FX 2 N Bridging The Gap FX Series

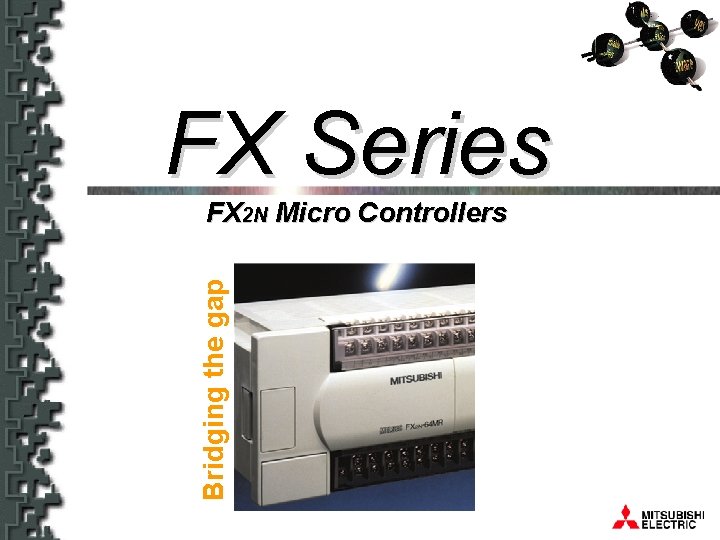

FX 2 N Bridging The Gap FX Series Bridging the gap FX 2 N Micro Controllers

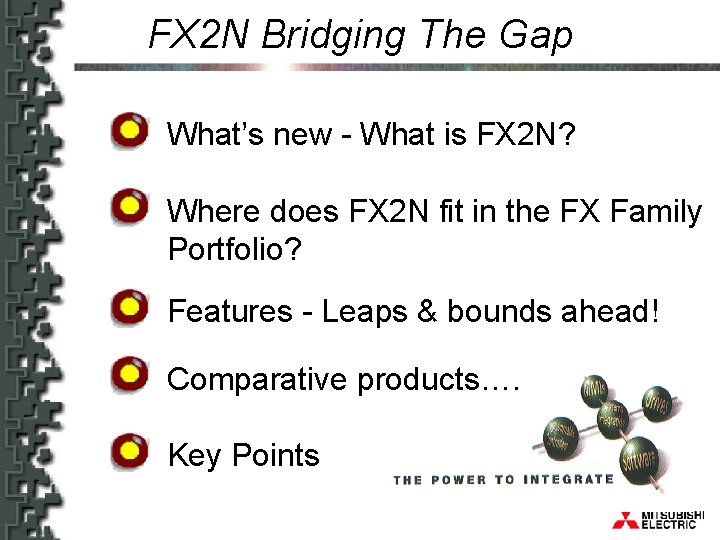

FX 2 N Bridging The Gap What’s new - What is FX 2 N? Where does FX 2 N fit in the FX Family Portfolio? Features - Leaps & bounds ahead! Comparative products…. Key Points

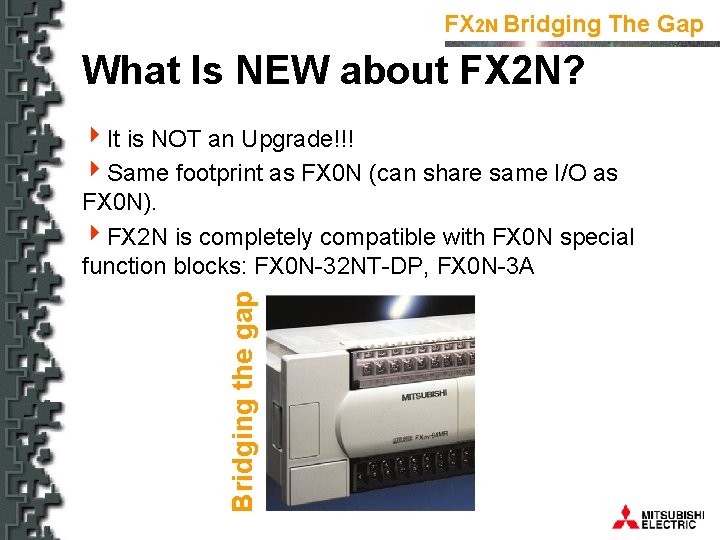

FX 2 N Bridging The Gap What Is NEW about FX 2 N? Bridging the gap 4 It is NOT an Upgrade!!! 4 Same footprint as FX 0 N (can share same I/O as FX 0 N). 4 FX 2 N is completely compatible with FX 0 N special function blocks: FX 0 N-32 NT-DP, FX 0 N-3 A

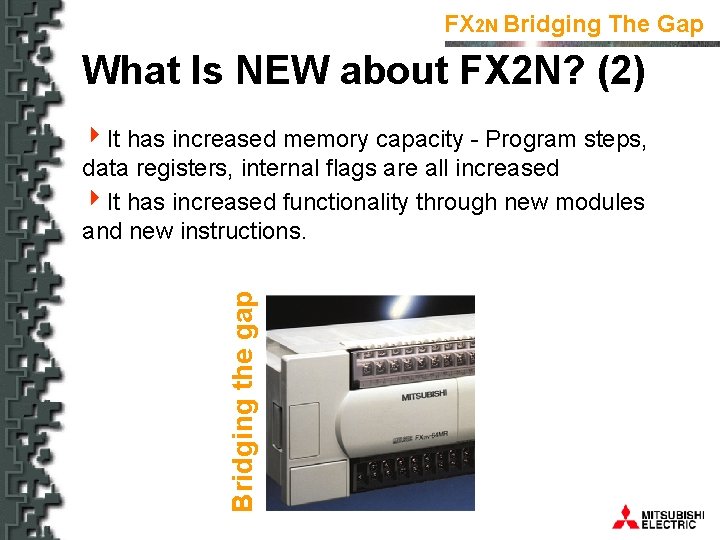

FX 2 N Bridging The Gap What Is NEW about FX 2 N? (2) Bridging the gap 4 It has increased memory capacity - Program steps, data registers, internal flags are all increased 4 It has increased functionality through new modules and new instructions.

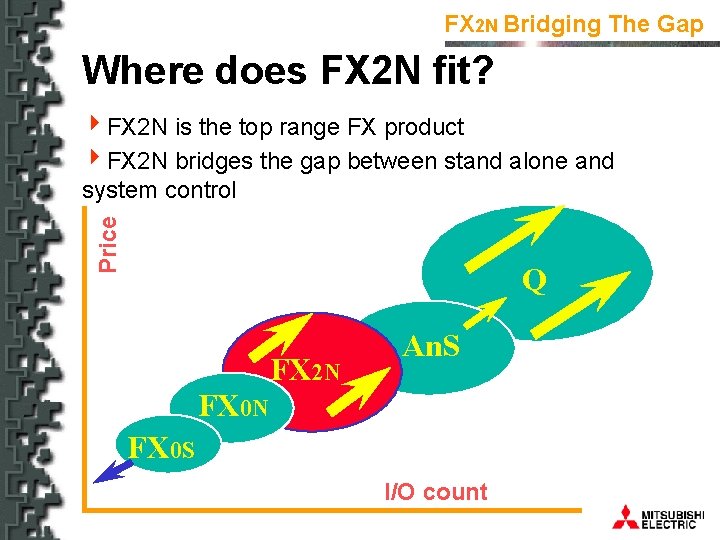

FX 2 N Bridging The Gap Where does FX 2 N fit? Price 4 FX 2 N is the top range FX product 4 FX 2 N bridges the gap between stand alone and system control Q FX 2 N An. S FX 0 N FX 0 S I/O count

FX 2 N Bridging The Gap The FX 2 N - Increased ability

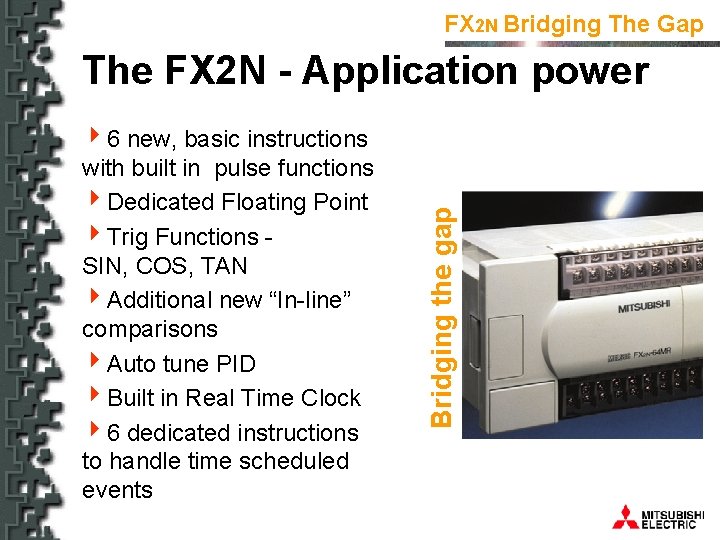

FX 2 N Bridging The Gap 46 new, basic instructions with built in pulse functions 4 Dedicated Floating Point 4 Trig Functions SIN, COS, TAN 4 Additional new “In-line” comparisons 4 Auto tune PID 4 Built in Real Time Clock 46 dedicated instructions to handle time scheduled events Bridging the gap The FX 2 N - Application power

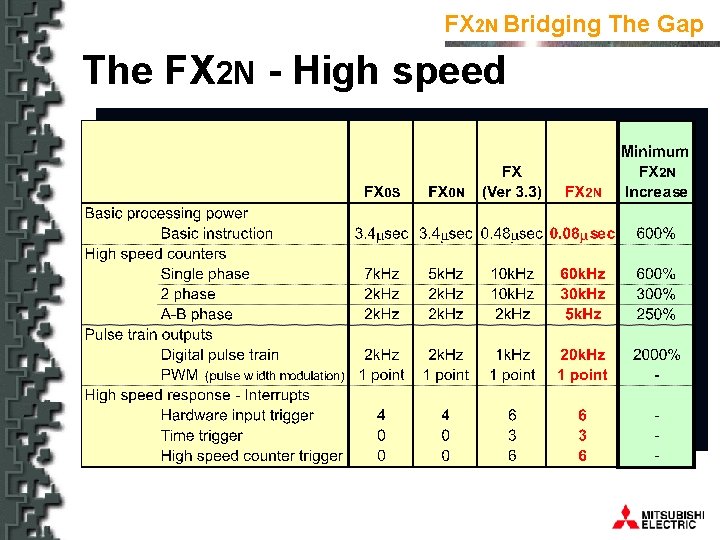

FX 2 N Bridging The Gap The FX 2 N - High speed

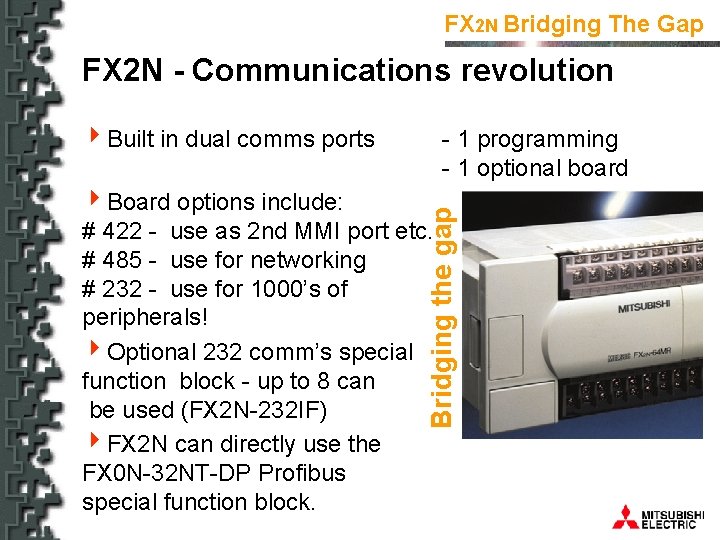

FX 2 N Bridging The Gap FX 2 N - Communications revolution 4 Built in dual comms ports - 1 programming - 1 optional board Bridging the gap 4 Board options include: # 422 - use as 2 nd MMI port etc. # 485 - use for networking # 232 - use for 1000’s of peripherals! 4 Optional 232 comm’s special function block - up to 8 can be used (FX 2 N-232 IF) 4 FX 2 N can directly use the FX 0 N-32 NT-DP Profibus special function block.

FX 2 N Bridging The Gap FX 2 N- Flexible operation Bridging the gap 4 True remote RUN/STOP control - ideal for modem access/maintenance 4 Built in modem initialization strings to aid FX 2 N dial out 4 FX 2 N can use the FX 0 N standard I/O blocks and special function blocks directly, i. e. Profibus DP, MELSEC Net MINI, 43 A analogue etc. 4 FX 2 N can use FX Special function blocks with special adapter FX 2 N-CNV-IF

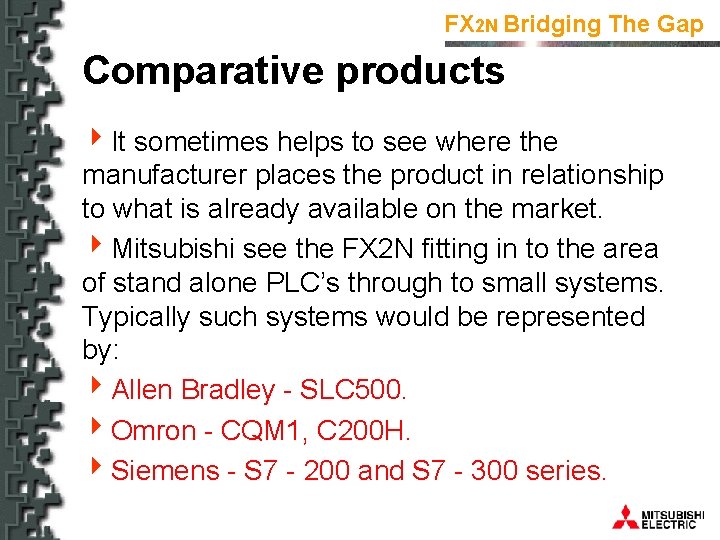

FX 2 N Bridging The Gap Comparative products 4 It sometimes helps to see where the manufacturer places the product in relationship to what is already available on the market. 4 Mitsubishi see the FX 2 N fitting in to the area of stand alone PLC’s through to small systems. Typically such systems would be represented by: 4 Allen Bradley - SLC 500. 4 Omron - CQM 1, C 200 H. 4 Siemens - S 7 - 200 and S 7 - 300 series.

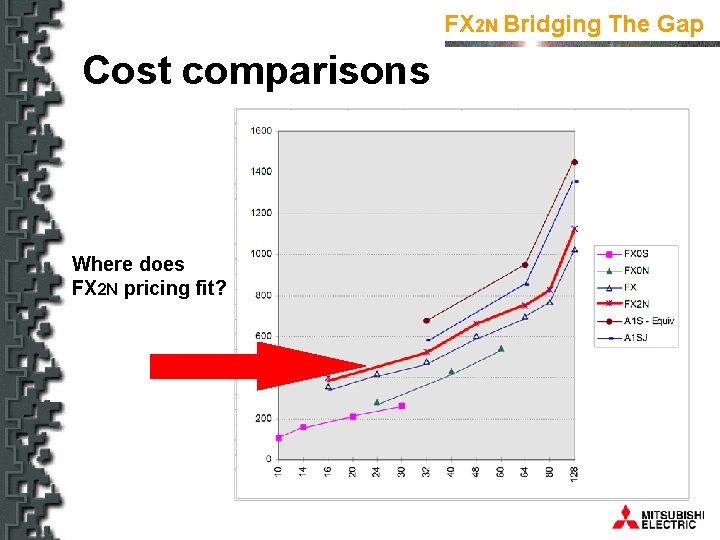

FX 2 N Bridging The Gap Cost comparisons Where does FX 2 N pricing fit?

FX 2 N Bridging The Gap FX 2 N Programming Support 4 The FX family of PLC’s can be Programmed in various ways using a range of tools. 4 These include: – Traditional, hand held programmers. (FX-20 P-E, FX-10 P-E etc) – PC based programming software such as…….

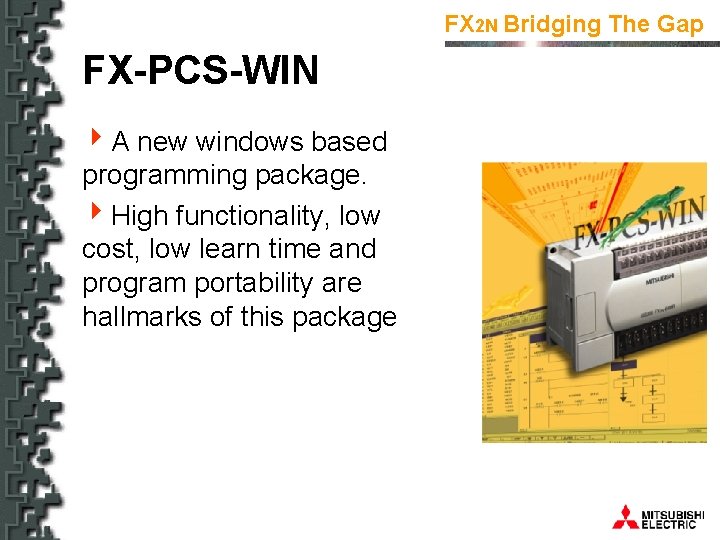

FX 2 N Bridging The Gap FX-PCS-WIN 4 A new windows based programming package. 4 High functionality, low cost, low learn time and program portability are hallmarks of this package

FX 2 N Bridging The Gap Melsec Medoc Plus 4 Melsec Medoc Plus (MM+) provides users with a tool to program ALL Mitsubishi PLCs from FX 0 through to A series and the top end ‘Q’ process controllers

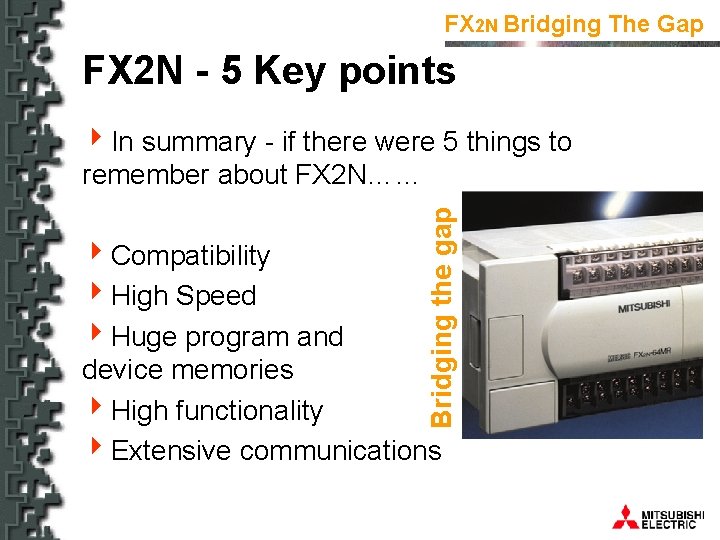

FX 2 N Bridging The Gap FX 2 N - 5 Key points Bridging the gap 4 In summary - if there were 5 things to remember about FX 2 N…… 4 Compatibility 4 High Speed 4 Huge program and device memories 4 High functionality 4 Extensive communications

FX 2 N Bridging The Gap QUESTIONS?

FX 2 N Bridging The Gap FX Series Bridging the gap FX 2 N Micro Controllers
