Futures Subcommittee l Proposed New Futures Subcommittee l
Futures Subcommittee l Proposed “New” Futures Subcommittee l l To create, discuss and draft IBIS/ICM updates Tasks for IBIS 4. 2 and Following l “Clean up” of language and resolve conflicts l l [External Model] integration issues l l Example: Acceptable digital states for input ports [External Circuit] usage issues l l Example: [S. Pin Mapping] (BIRD 87), [Driver Sched. ] (BIRD 88) User-definable measurement parameters and delay fixtures Specification “hooks” between ICM and IBIS ANSI ballot approval as 656 -B Tasks for ICM l l Add frequency-dependent RLGC matrix support Resolve known parser assumptions and keyword conflicts 01/30/04 *Other brands and names are the property of their respective owners 1

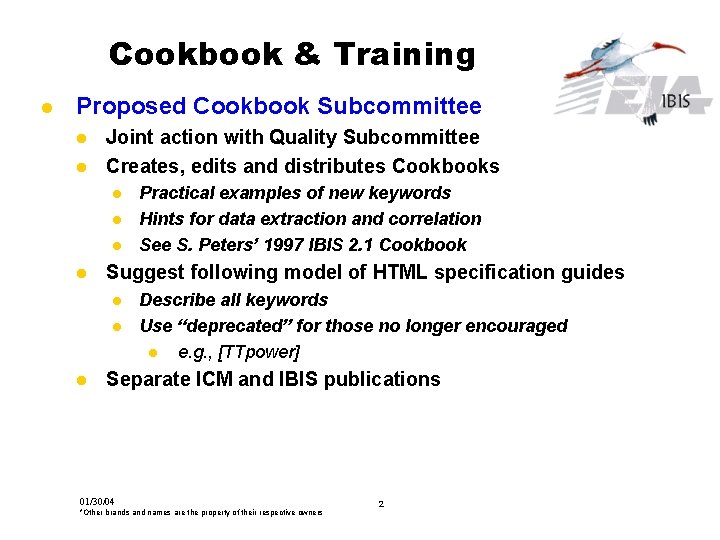

Cookbook & Training l Proposed Cookbook Subcommittee l l Joint action with Quality Subcommittee Creates, edits and distributes Cookbooks l l Suggest following model of HTML specification guides l l l Practical examples of new keywords Hints for data extraction and correlation See S. Peters’ 1997 IBIS 2. 1 Cookbook Describe all keywords Use “deprecated” for those no longer encouraged l e. g. , [TTpower] Separate ICM and IBIS publications 01/30/04 *Other brands and names are the property of their respective owners 2
Previous Cookbook 1. 0 Introduction 1. 1 Quick Overview of an IBIS File 1. 2 Steps to creating an IBIS Model 2. 0 Pre-Modeling Steps 2. 1 Basic Decisions Model Version and Complexity Specification Model vs. Part Model Fast and Slow Corner Model Limits Inclusion of SSO Effects 2. 2 Information Checklist 2. 3 Tips For Component Buffer Grouping 3. 0 Extracting the Data 3. 1 Using Spice to IBIS (s 2 ibis) 3. 2 Extracting I/V and Switching Data via Simulations 3. 2. 1 Extracting the I/V Data Simulation Setup 3 -state Buffers Output Only Buffers Open Drain Buffers Input Buffers Sweep Ranges Making Pullup and Power Clamp Sweeps Vcc Relative Diode Models Diode Transient Time Data 3. 2. 2 Extracting the Ramp Rate or V/T Waveform Data Extracting Data for the [Ramp] Keyword Extracting Data for the Rising and Falling Waveform Keywords Minimum Time Step Multi State Drivers 3. 3 Obtaining I/V and Switching Information via Lab Measurement 01/30/04 *Other brands and names are the property of their respective owners 3
Previous Cookbook (2) 4. 0 Putting the Data Into an IBIS File 4. 1 IBIS File Header Information 4. 2 Component and Pin Information 4. 3 The [Model] Keyword Parameter section Temperature and Voltage Keywords I/V data section Pulldown Ground Clamp Pullup Power Clamp Extrapolation Errors [Ramp] and Waveform Tables 4. 4 External Package Models 4. 5 Verifying the IBIS file 5. 0 Validating the Model 6. 0 Correlating the Data 7. 0 Resources 01/30/04 *Other brands and names are the property of their respective owners 4
Development Timeline Not Shown l July, 2002: IBIS 4. 0 approved l Sept. , 2003: ICM 1. 0 approved IBIS 4. 1 Parser IBIS 4. 1 Approval 26 13 Jan Feb Mar Q 1’ 04 Apr May Jun Q 2’ 04 “E-Roadshow” IBIS 4. 2 Proposal IBIS 4. 2 Approval ICM 1. 5 Proposal ICM 1. 0 Cookbook 1 Spec Activities IBIS 4. 1 Cookbook 39 Jul Aug Sep Q 3’ 04 52 Oct Nov Dec Q 4’ 04 “E-Roadshow” ICM 1. 5 Approval 13 Jan Feb Mar Q 1’ 05 26 Apr May Jun Q 2’ 05 “E-Roadshow” 39 Jul Aug Sep Q 3’ 05 “E-Roadshow” DAC DATE Design. Con Summits PCB East 01/30/04 *Other brands and names are the property of their respective owners 5
