What is Nuclear Fusion? • • Nuclear Fusion is the energy-producing process taking place in the core of the Sun and stars The core temperature of the Sun is about 15 million °C. At these temperatures hydrogen nuclei fuse to give Helium and Energy. The energy sustains life on Earth via sunlight

Energy Released by Nuclear Reactions • Light nuclei (hydrogen, helium) release energy when they fuse (Nuclear Fusion) • The product nuclei weigh less than the parent nuclei • Heavy nuclei (Uranium) release energy when they split (Nuclear Fission) • The product nuclei weigh less than the original nucleus

Energy Released by Nuclear Fusion and Fission • Fusion reactions release much higher energies than Fission reactions

Fusion Reactions • Deuterium – from water (0. 02% of all hydrogen is heavy hydrogen or deuterium) • Tritium – from lithium (a light metal common in the Earth’s crust) Deuterium + Lithium → Helium + Energy This fusion cycle (which has the fastest reaction rate) is of interest for Energy Production

The World, particularly developing countries, needs a New Energy Source • Growth in world population and growth in energy demand from increased industrialisation/affluence will lead to an Energy Gap which will be increasingly difficult to fill with fossil fuels • Without improvements in efficiency we will need 80% more energy by 2020 • Even with efficiency improvements at the limit of technology we would still need 40% more energy

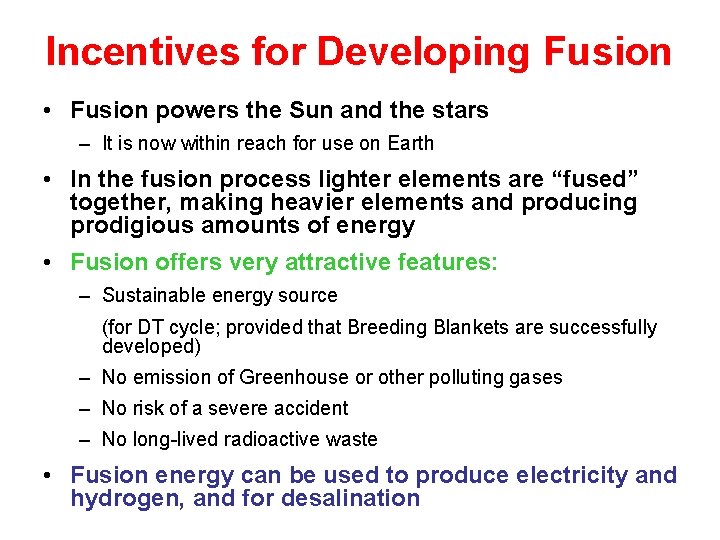

Incentives for Developing Fusion • Fusion powers the Sun and the stars – It is now within reach for use on Earth • In the fusion process lighter elements are “fused” together, making heavier elements and producing prodigious amounts of energy • Fusion offers very attractive features: – Sustainable energy source (for DT cycle; provided that Breeding Blankets are successfully developed) – No emission of Greenhouse or other polluting gases – No risk of a severe accident – No long-lived radioactive waste • Fusion energy can be used to produce electricity and hydrogen, and for desalination

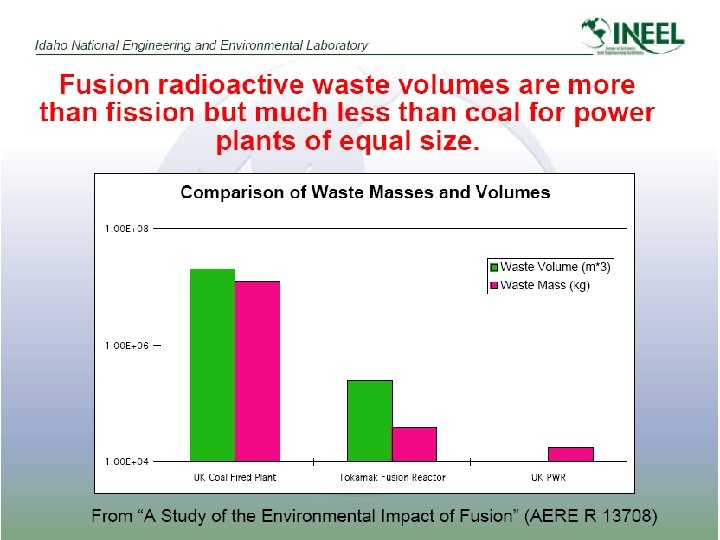

Fission (PWR) Fusion structure Coal Tritium in fusion

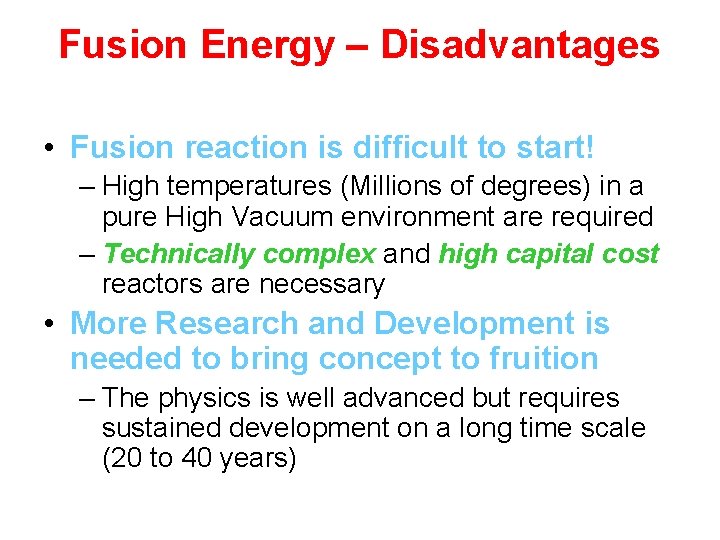

Fusion Energy – Disadvantages • Fusion reaction is difficult to start! – High temperatures (Millions of degrees) in a pure High Vacuum environment are required – Technically complex and high capital cost reactors are necessary • More Research and Development is needed to bring concept to fruition – The physics is well advanced but requires sustained development on a long time scale (20 to 40 years)

The President recognizes Fusion’s potential Fusion

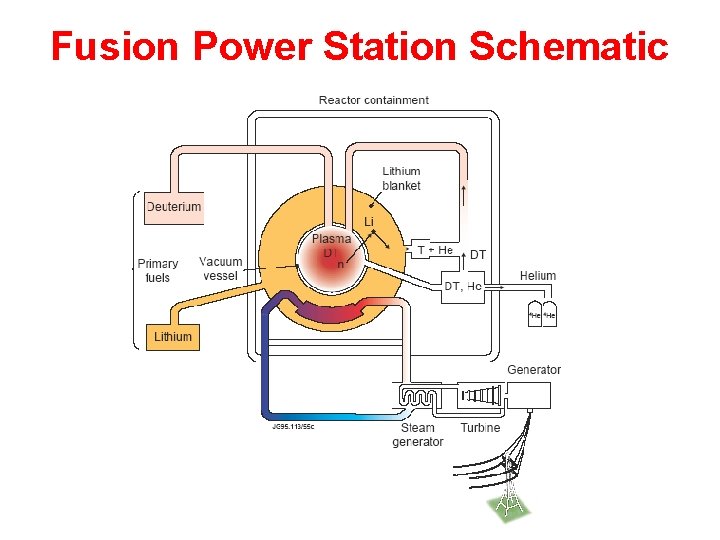

Fusion Power Station Schematic

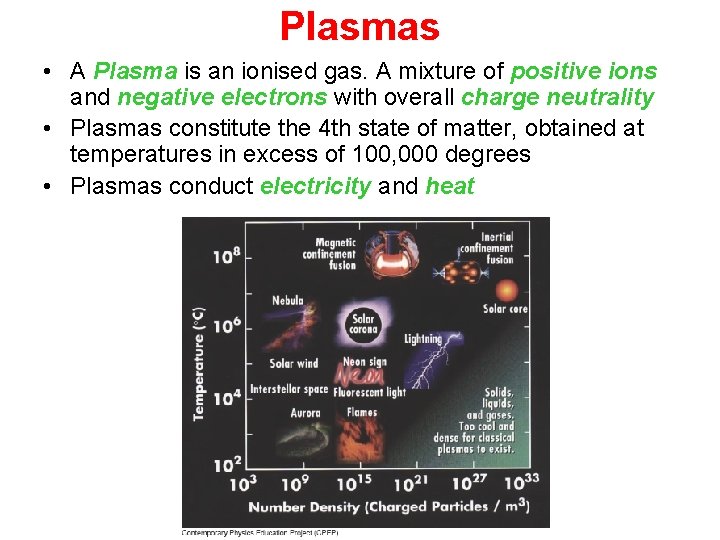

Plasmas • A Plasma is an ionised gas. A mixture of positive ions and negative electrons with overall charge neutrality • Plasmas constitute the 4 th state of matter, obtained at temperatures in excess of 100, 000 degrees • Plasmas conduct electricity and heat

Self-Sustaining or ‘Ignited’ Plasmas • Deuterium – tritium fusion reaction: D + T → 4 He + n + Energy The 4 He nuclei (‘a’ particles) carry about 20% of the energy and stay in the plasma. The other 80% is carried away by the neutrons and can be used to generate steam. Plasmas become Self-sustaining or Ignited when there is enough a power to balance losses from the plasma • In stars plasma particles (including a’s) are confined mainly by gravity and high plasma densities achieved • On Earth: – hot dense plasmas can be confined in Magnetic fields (Magnetic Confinement Fusion) – superdense plasmas can be obtained by imploding solid deuteriumtritium pellets (Inertial Confinement Fusion)

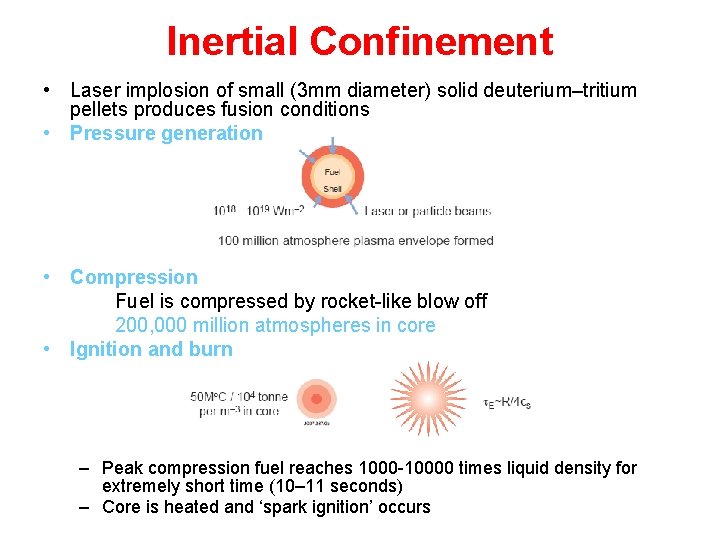

Inertial Confinement • Laser implosion of small (3 mm diameter) solid deuterium–tritium pellets produces fusion conditions • Pressure generation • Compression Fuel is compressed by rocket-like blow off 200, 000 million atmospheres in core • Ignition and burn – Peak compression fuel reaches 1000 -10000 times liquid density for extremely short time (10– 11 seconds) – Core is heated and ‘spark ignition’ occurs

Magnetic Confinement • Magnetic fields cause charged particles to spiral around field lines. Plasma particles are lost to the vessel walls only by relatively slow diffusion across the field lines • Toroidal (ring shaped) system avoids plasma hitting the end of the container • The most successful Magnetic Confinement device is the TOKAMAK (Russian for ‘Toroidal Magnetic Chamber’)

The Tokamak: A Transformer Device

How Large a Device? • For fusion power to ignite a plasma: – There has to be sufficient density of deuterium and tritium ions (ni); – The reacting ions have to be hot enough (Ti); – The energy from the fusion a’s must be confined for long enough (t. E). t. E increases with the square of the device size – a large machine is needed. • The fusion triple product (ni. Tit. E) and the ion temperature (Ti) must both be large enough (below a certain temperature the fusion reaction probability is too small) pressure (ni. Ti) ≥ 2 atmospheres confinement time > 5 seconds plasma ion temperature ≈ 100 -200 Million °C

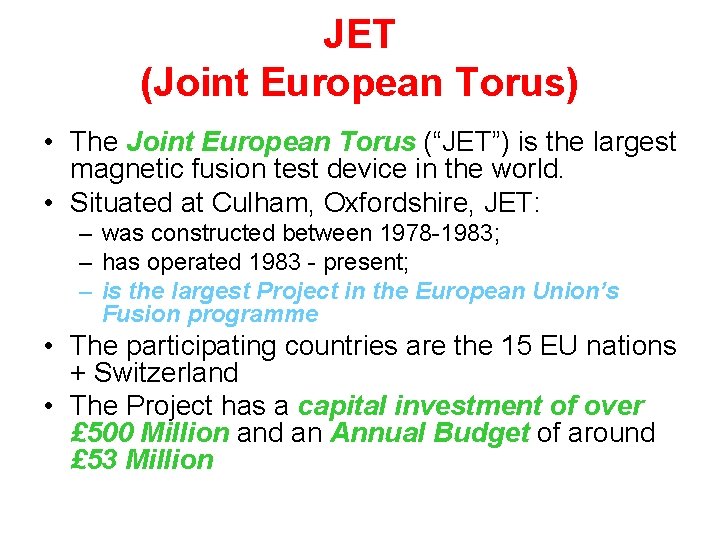

JET (Joint European Torus) • The Joint European Torus (“JET”) is the largest magnetic fusion test device in the world. • Situated at Culham, Oxfordshire, JET: – was constructed between 1978 -1983; – has operated 1983 - present; – is the largest Project in the European Union’s Fusion programme • The participating countries are the 15 EU nations + Switzerland • The Project has a capital investment of over £ 500 Million and an Annual Budget of around £ 53 Million

JET • JET is a Tokamak with: – Torus radius 3. 1 m – Vacuum vessel 3. 96 m high x 2. 4 m wide – Plasma volume 80 m 3 – Plasma current up to 5 MA – Main confining field up to 4 Tesla (recently upgraded from 3. 4 Tesla)

Progress with Magnetic Confinement Fusion • JET and the similar large Tokamaks in: – USA Tokamak Fusion Test Reactor (TFTR) Doublet IIID Tokamak (DIIID) – Japanese Tokamak – 60 U (JT-60 U) Have made significant progress in: – – – Technology of fusion; Approaching the conditions of an Ignited plasma; Predicting the behaviour of a reactor plasma; Controlling impurities which enter the plasma Operating with Tritium fuel

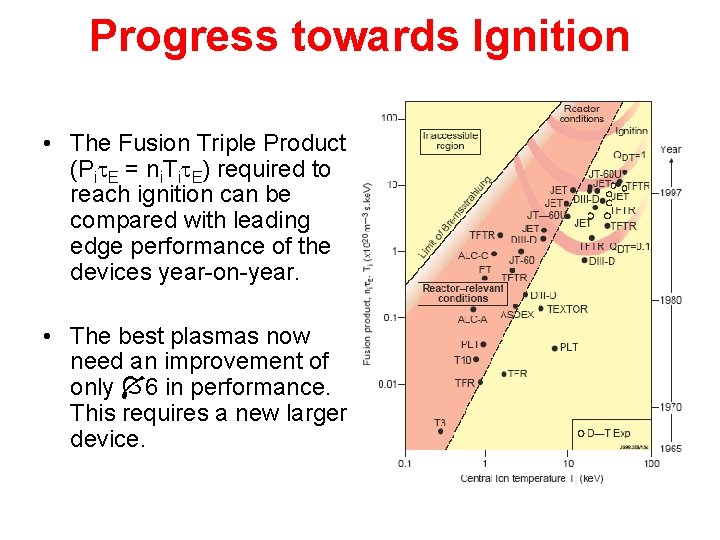

Progress towards Ignition • The Fusion Triple Product (Pit. E = ni. Tit. E) required to reach ignition can be compared with leading edge performance of the devices year-on-year. • The best plasmas now need an improvement of only 6 in performance. This requires a new larger device.

Controlling Impurities • Fuel Impurities are a major threat to reactor success • Two primary sources of impurities exist: – Helium “ash” from the fusion reaction – Material impurities from plasma-wall interactions • Impurities must be controlled since they: – Radiate energy, and reduce the plasma temperature – Dilute the fuel, thereby preventing ignition • The “Magnetic Divertor” is a device for controlling impurities. This has been tested successfully in JET. Three different concepts have been compared. Results agree with code predictions.

Progress with Magnetic Confinement Fusion Pumped Divertor in JET • Impurities (C, Be) are produced by ion impact on target and are ionised in the plasma and returned to target

Fusion Power Development The diagram encompasses : • Two pulses with 10% T in D in JET in 1991; • A result from the D-T studies on TFTR (1993 to 1997); • High fusion power and quasi-steady-state fusion power from the >200 pulses with >40% T in D in the JET D-T experiments of 1997.

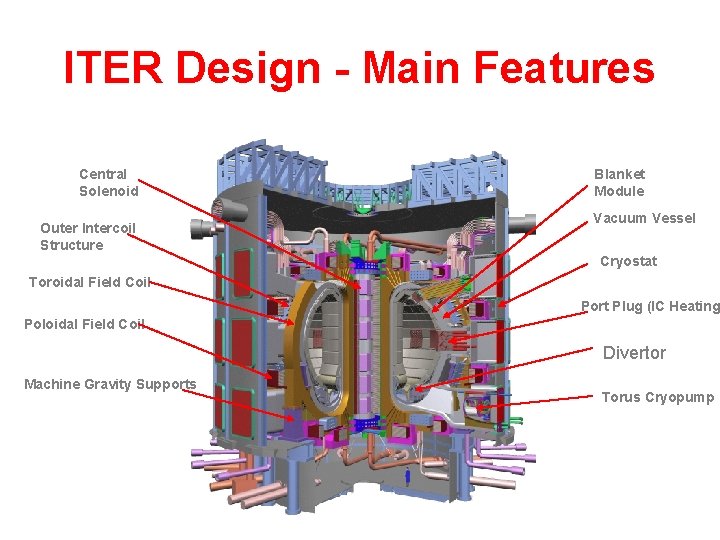

ITER Design - Main Features Central Solenoid Outer Intercoil Structure Blanket Module Vacuum Vessel Cryostat Toroidal Field Coil Port Plug (IC Heating Poloidal Field Coil Divertor Machine Gravity Supports Torus Cryopump

ITER Objectives Programmatic • Demonstrate the scientific and technological feasibility of fusion energy for peaceful purposes. Technical • Demonstrate extended burn of DT plasmas, with steady state as the ultimate goal. • Integrate and test all essential fusion power reactor technologies and components. • Demonstrate safety and environmental acceptability of fusion.

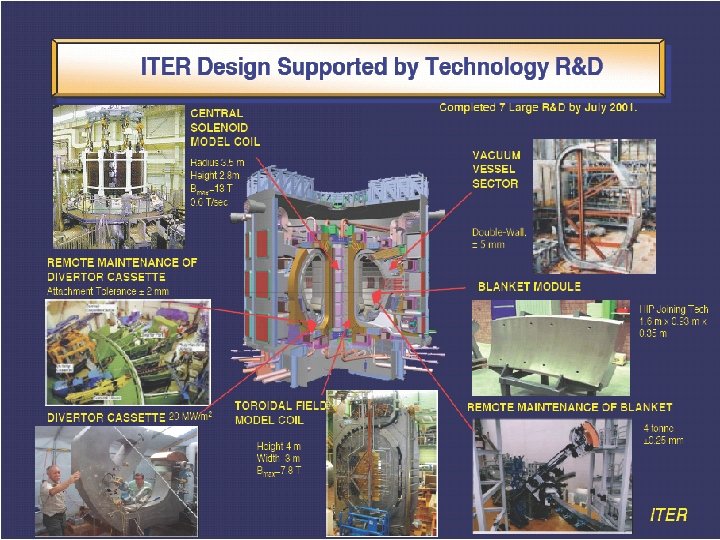

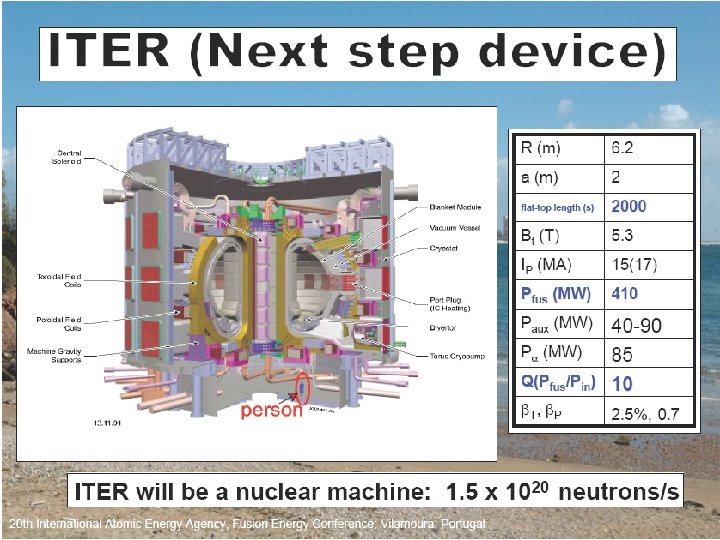

ITER Parameters Total fusion power Q = fusion power/auxiliary heating power Average neutron wall loading Plasma inductive burn time Plasma major radius Plasma minor radius Plasma current (inductive, Ip) Vertical elongation @95% flux surface/separatrix Triangularity @95% flux surface/separatrix Safety factor @95% flux surface Toroidal field @ 6. 2 m radius Plasma volume Plasma surface Installed auxiliary heating/current drive power 500 MW (700 MW) ≥ 10 (inductive) 0. 57 MW/m 2 (0. 8 MW/m 2) ≥ 300 s 6. 2 m 2. 0 m 15 MA (17. 4 MA) 1. 70/1. 85 0. 33/0. 49 3. 0 5. 3 T 837 m 3 678 m 2 73 MW (100 MW)

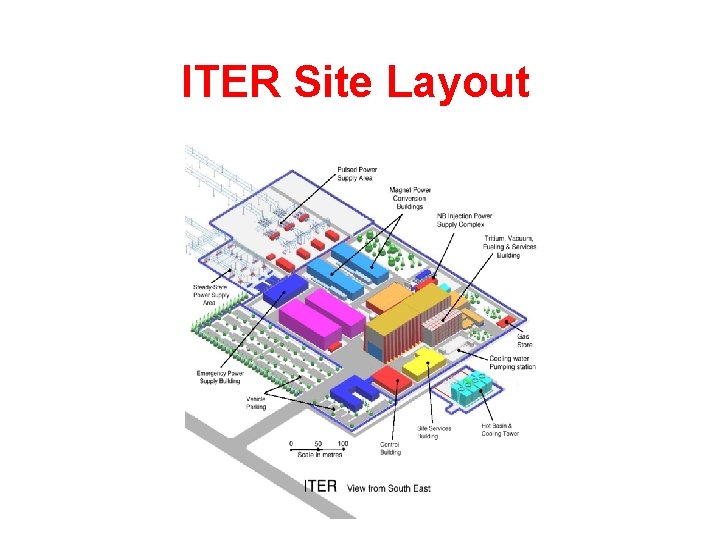

ITER Site Layout

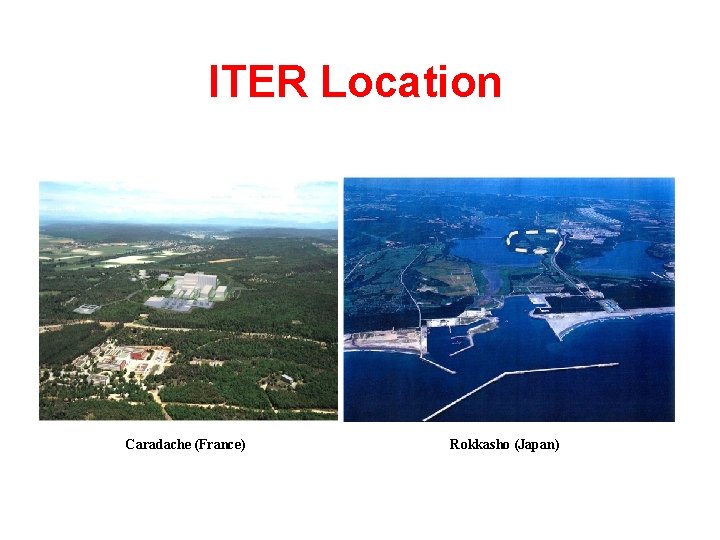

ITER Location Caradache (France) Rokkasho (Japan)

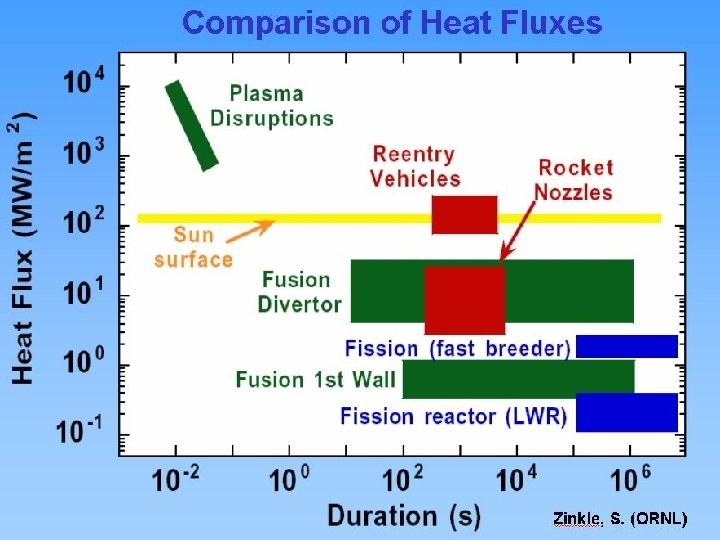

Fusion Nuclear Technology (FNT) Fusion Power & Fuel Cycle Technology FNT Components from the edge of the Plasma to TF Coils (Reactor “Core”) 1. Blanket Components 2. Plasma Interactive and High Heat Flux Components a. divertor, limiter b. rf antennas, launchers, wave guides, etc. 3. Vacuum Vessel & Shield Components Other Components affected by the Nuclear Environment 4. Tritium Processing Systems 5. Instrumentation and Control Systems 6. Remote Maintenance Components 7. Heat Transport and Power Conversion Systems

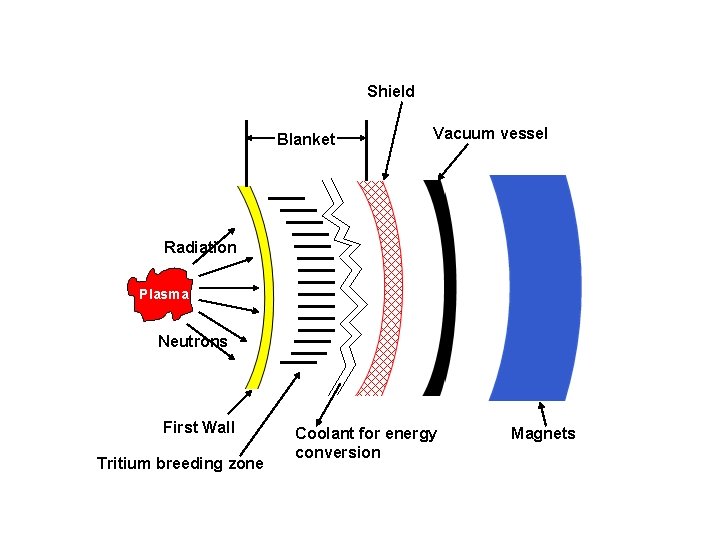

Shield Blanket Vacuum vessel Radiation Plasma Neutrons First Wall Tritium breeding zone Coolant for energy conversion Magnets

Blanket (including first wall) Blanket Functions: A. Power Extraction – Convert kinetic energy of neutrons and secondary gamma-rays into heat – Absorb plasma radiation on the first wall – Extract the heat (at high temperature, for energy conversion) B. Tritium Breeding – Tritium breeding, extraction, and control – Must have lithium in some form for tritium breeding C. Physical Boundary for the Plasma – Physical boundary surrounding the plasma, inside the vacuum vessel – Provide access for plasma heating, fueling – Must be compatible with plasma operation – Innovative blanket concepts can improve plasma stability and confinement D. Radiation Shielding of the Vacuum Vessel

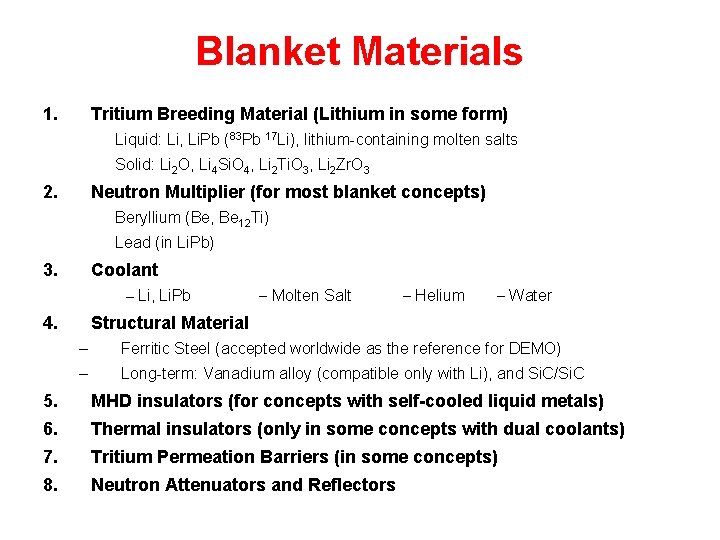

Blanket Materials 1. Tritium Breeding Material (Lithium in some form) Liquid: Li, Li. Pb (83 Pb 17 Li), lithium-containing molten salts Solid: Li 2 O, Li 4 Si. O 4, Li 2 Ti. O 3, Li 2 Zr. O 3 2. Neutron Multiplier (for most blanket concepts) Beryllium (Be, Be 12 Ti) Lead (in Li. Pb) 3. Coolant – Li, Li. Pb 4. – Molten Salt – Helium – Water Structural Material – Ferritic Steel (accepted worldwide as the reference for DEMO) – Long-term: Vanadium alloy (compatible only with Li), and Si. C/Si. C 5. MHD insulators (for concepts with self-cooled liquid metals) 6. Thermal insulators (only in some concepts with dual coolants) 7. Tritium Permeation Barriers (in some concepts) 8. Neutron Attenuators and Reflectors

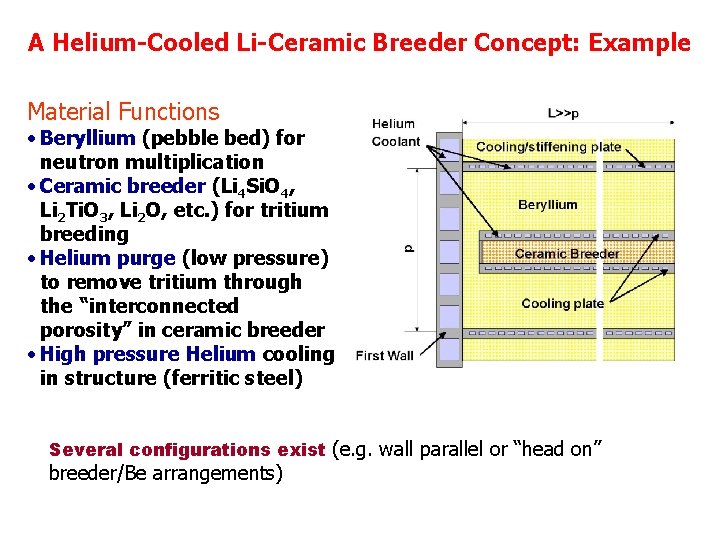

A Helium-Cooled Li-Ceramic Breeder Concept: Example Material Functions • Beryllium (pebble bed) for neutron multiplication • Ceramic breeder (Li 4 Si. O 4, Li 2 Ti. O 3, Li 2 O, etc. ) for tritium breeding • Helium purge (low pressure) to remove tritium through the “interconnected porosity” in ceramic breeder • High pressure Helium cooling in structure (ferritic steel) Several configurations exist (e. g. wall parallel or “head on” breeder/Be arrangements)

Li/Vanadium Blanket Concept Vanadium structure Li Lithium Secondary Shield Li Primary Shield Li Reflector Breeding Zone (Li flow) Primary shield (Tenelon) Secondary shield (B 4 C) Reflector Vanadium structure Lithium

Flows of electrically conducting coolants will experience complicated magnetohydrodynamic (MHD) effects What is magnetohydrodynamics (MHD)? – Motion of a conductor in a magnetic field produces an EMF that can induce current in the liquid. This must be added to Ohm’s law: – Any induced current in the liquid results in an additional body force in the liquid that usually opposes the motion. This body force must be included in the Navier-Stokes equation of motion: – For liquid metal coolant, this body force can have dramatic impact on the flow: e. g. enormous MHD drag, highly distorted velocity profiles, non-uniform flow distribution, modified or suppressed turbulent fluctuations

Large MHD drag results in large MHD pressure drop Conducting walls Insulated wall Lines of current enter the low resistance wall – leads to very high induced current and high pressure drop All current must close in the liquid near the wall – net drag from jx. B force is zero • • • Net Jx. B body force p = c VB 2 where c = (tw w)/(a ) For high magnetic field and high speed (self-cooled LM concepts in inboard region) the pressure drop is large The resulting stresses on the wall exceed the allowable stress for candidate structural materials • • Perfect insulators make the net MHD body force zero But insulator coating crack tolerance is very low (~10 -7). – It appears impossible to develop practical insulators under fusion environment conditions with large temperature, stress, and radiation gradients • Self-healing coatings have been proposed but none has yet been found (research is on-going)

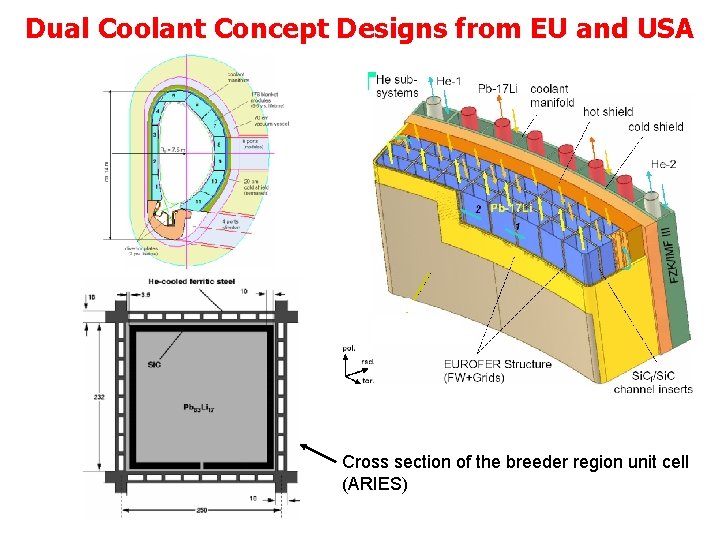

Dual Coolant Concept Designs from EU and USA Cross section of the breeder region unit cell (ARIES)

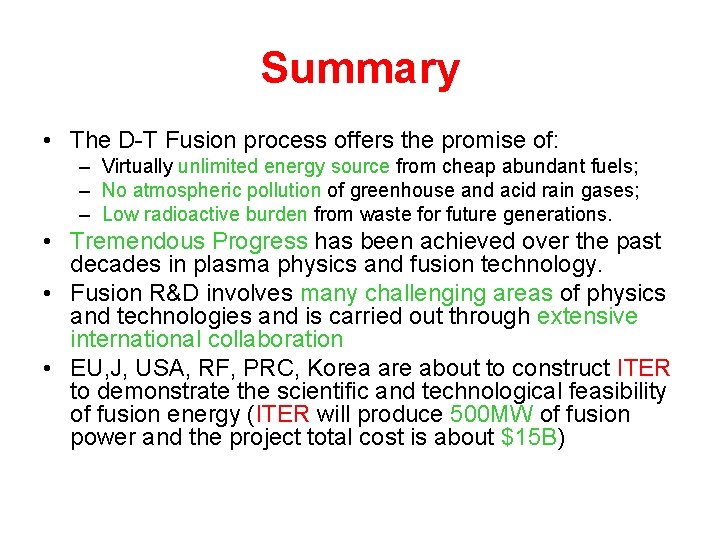

Summary • The D-T Fusion process offers the promise of: – Virtually unlimited energy source from cheap abundant fuels; – No atmospheric pollution of greenhouse and acid rain gases; – Low radioactive burden from waste for future generations. • Tremendous Progress has been achieved over the past decades in plasma physics and fusion technology. • Fusion R&D involves many challenging areas of physics and technologies and is carried out through extensive international collaboration • EU, J, USA, RF, PRC, Korea are about to construct ITER to demonstrate the scientific and technological feasibility of fusion energy (ITER will produce 500 MW of fusion power and the project total cost is about $15 B)
