Funded by the European Union Introduction Avni Aksoy

Funded by the European Union Introduction Avni Aksoy Institute of Accelerator Technologies 04. 10. 2019 WP 6 Progress meeting

Funded by the European Union Resonant wavelength • ~3 -5. 5 Ge. V

Funded by the European Union ~300 Me. V ~50 fs Facility ~1 Ge. V ~2 -50 fs ~3 -5. 5 Ge. V ~2 -50 fs For HXR at 100 Hz • 100 Hz, two bunch; to drive two HXR line with 65 MV/m gradient • 250 Hz, two bunch to drive two SXR line with ~20 MV/m gradient • 100 Hz, two bunch to drive SXR & HXR line with 65 MV/m gradient

Funded by the European Union Basic Lattice • FODO type of lattice is going to used • But FODO is simple to operate, less number of elements etc. . • Instead of BPMs wakefield monitors (Andrea) • Instead of independent correctors integrated quad-corrector is proposed (Jim) • Number of structures between quads can be: 1, 2, 4 (3 is not preferable) (Walter)

Baseline Module layout LINAC 2 (up to 5. 5 Ge. V) NEW 1 k. Hz@6 MW Klystron/Modulator 100 Hz@50 MW Klystron/Modulator Power Switch Mode converters + circular WG PC Quad Funded by the European Union Splitter Effective quad length and total quad length has to be checked Quad contains BPM&Corrector Sector valve Conn Acc-Structure 10 cm 103 cm Acc-Structure 5 cm Q u a d Acc-Structure Two WFM per AS with pumping 103 cm 5 cm 12 cm Q u a d Markus Module length: 4. 76 m; RF-fill factor: 76% WP 4, 1 st August 2019 M. Aicheler, UH/HIP 5

Funded by the European Union Agenda For long time we could not make meeting, most of the talks are reminder and status. . • XLS parameter update: James Anthony Clarke • Comparison of Injector Options: Anna Giribono • S-Band Based Injector Layout: S 2 E modelling: Edu Marin • X-Band Based Injector Layout: S 2 E modelling: Xingguang Liu • Progress on FEL simulation: Hector Mauricio Castaneda Cortes • Discussion¶

Funded by the European Union Meeting at Frascati • we are supposed to decide the injector for Compact. Light. But on which comparative terms? • Comparison of a common system, e. g. Injector + magnetic compressors at 300 Me. V or up to 2 nd BC? • • • like length number of elements sensitivities to various dynamic imperfections risk factors charge profile, uncorrelated energy spread

Funded by the European Union Thank you! Compact. Light@elettra. eu www. Compact. Light. eu Compact. Light is funded by the European Union’s Horizon 2020 research and innovation programme under Grant Agreement No. 777431.

Funded by the European Union Backup slides

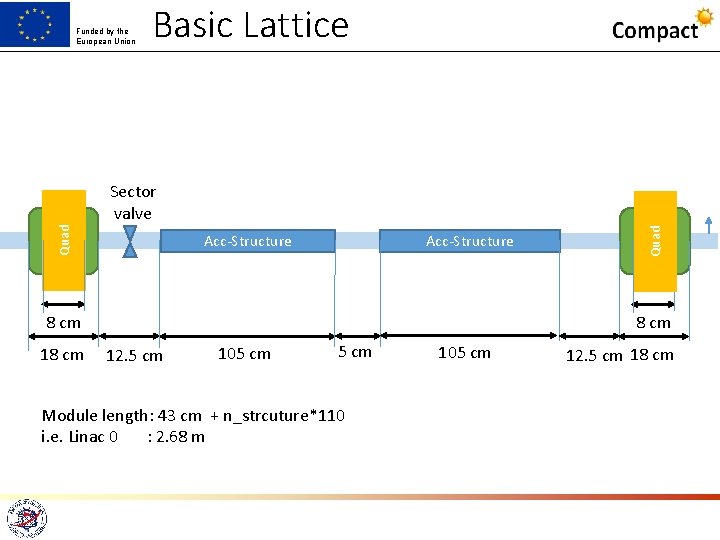

Funded by the European Union Basic Lattice Acc-Structure 8 cm 18 cm Quad Sector valve 8 cm 12. 5 cm 105 cm Module length: 43 cm + n_strcuture*110 i. e. Linac 0 : 2. 68 m 105 cm 12. 5 cm 18 cm

Funded by the European Union R 56=0. 01 R 56=0. 004 (4+1) * X-band 2 str between quads 2 * K-band 2 str between quads 12 * X-band 2 str between quads 78* X-band 3 str between quads

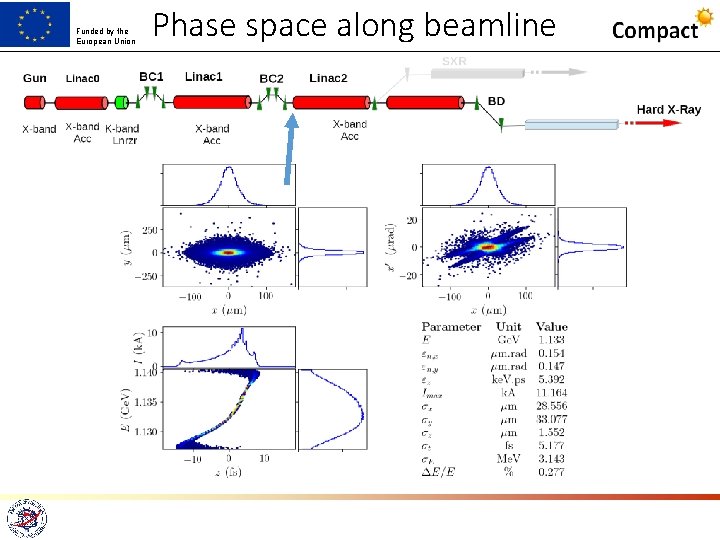

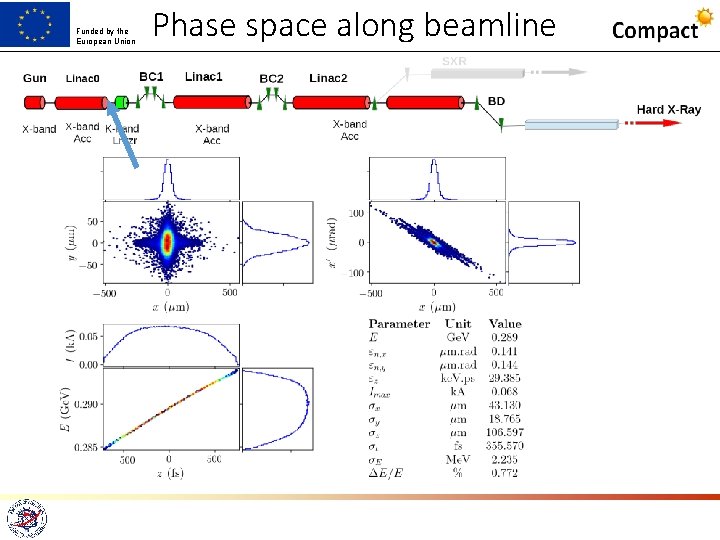

Funded by the European Union Phase space along beamline

Funded by the European Union Phase space along beamline

Funded by the European Union Phase space along beamline

Funded by the European Union Phase space along beamline

Funded by the European Union Phase space along beamline

Funded by the European Union Phase space along beamline

Funded by the European Union Phase space along beamline

Funded by the European Union Phase space along beamline
