The Electromagnetic Spectrum E = hn n=c/l Fundamentals of modern UV-visible spectroscopy Figure : 1

Electronic Transitions in Formaldehyde Fundamentals of modern UV-visible spectroscopy Figure : 2

Electronic Transitions and Spectra of Atoms Fundamentals of modern UV-visible spectroscopy Figure : 3

Electronic Transitions and UV-visible Spectra in Molecules Fundamentals of modern UV-visible spectroscopy Figure : 4

Derivative Spectra of a Gaussian Absorbance Band Absorbance: 1 st Derivative: 2 nd Derivative: Fundamentals of modern UV-visible spectroscopy Figure : 5

Resolution Enhancement • Overlay of 2 Gaussian bands with a NBW of 40 nm separated by 30 nm • Separated by 4 th derivative Fundamentals of modern UV-visible spectroscopy Figure : 6

Transmission and Color The human eye sees the complementary color to that which is absorbed Fundamentals of modern UV-visible spectroscopy Figure : 7

Absorbance and Complementary Colors Fundamentals of modern UV-visible spectroscopy Figure : 8

Transmittance and Concentration The Bouguer-Lambert Law Fundamentals of modern UV-visible spectroscopy Figure : 9

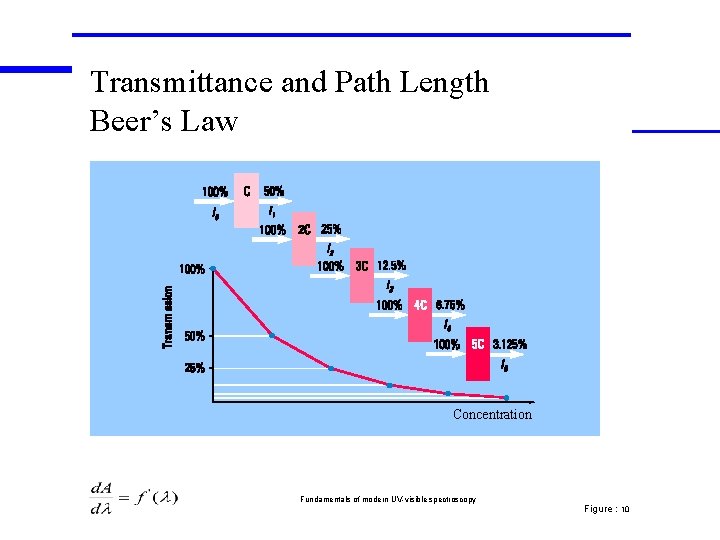

Transmittance and Path Length Beer’s Law Concentration Fundamentals of modern UV-visible spectroscopy Figure : 10

The Beer-Bouguer-Lambert Law Fundamentals of modern UV-visible spectroscopy Figure : 11

Two-Component Mixture Example of a two-component mixture with little spectral overlap Fundamentals of modern UV-visible spectroscopy Figure : 12

Two-Component Mixture Example of a two-component mixture with significant spectral overlap Fundamentals of modern UV-visible spectroscopy Figure : 13

Influence of 10% Random Error Influence on the calculated concentrations • Little spectral overlap: 10% Error • Significant spectral overlap: Depends on similarity, can be much higher (e. g. 100%) Fundamentals of modern UV-visible spectroscopy Figure : 14

Absorption Spectra of Hemoglobin Derivatives Fundamentals of modern UV-visible spectroscopy Figure : 15

Intensity Spectrum of the Deuterium Arc Lamp • Good intensity in UV range • Useful intensity in visible range • Low noise • Intensity decreases over lifetime Fundamentals of modern UV-visible spectroscopy Figure : 16

Intensity Spectrum of the Tungsten. Halogen Lamp • Weak intensity in UV range • Good intensity in visible range • Very low noise • Low drift Fundamentals of modern UV-visible spectroscopy Figure : 17

Intensity Spectrum of the Xenon Lamp • High intensity in UV range • High intensity in visible range • Medium noise Fundamentals of modern UV-visible spectroscopy Figure : 18

Dispersion Devices • Non-linear dispersion • Temperature sensitive • Linear Dispersion • Different orders Fundamentals of modern UV-visible spectroscopy Figure : 19

Photomultiplier Tube Detector • High sensitivity at low light levels • Cathode material determines spectral sensitivity • Good signal/noise • Shock sensitive Anode Fundamentals of modern UV-visible spectroscopy Figure : 20

The Photodiode Detector • Wide dynamic range • Very good signal/noise at high light levels • Solid-state device Fundamentals of modern UV-visible spectroscopy Figure : 21

Schematic Diagram of a Photodiode Array • Same characteristics as photodiodes • Solid-state device • Fast read-out cycles Fundamentals of modern UV-visible spectroscopy Figure : 22

Conventional Spectrophotometer Schematic of a conventional single-beam spectrophotometer Fundamentals of modern UV-visible spectroscopy Figure : 23

Diode-Array Spectrophotometer Schematic of a diode-array spectrophotometer Fundamentals of modern UV-visible spectroscopy Figure : 24

Diode-Array Spectrophotometer Optical diagram of the HP 8453 diode-array spectrophotometer Fundamentals of modern UV-visible spectroscopy Figure : 25

Conventional Spectrophotometer Optical system of a double-beam spectrophotometer Fundamentals of modern UV-visible spectroscopy Figure : 26

Diode-Array Spectrophotometer Optical system of the HP 8450 A diode-array spectrophotometer Fundamentals of modern UV-visible spectroscopy Figure : 27

Conventional Spectrophotometer Optical system of a split-beam spectrophotometer Fundamentals of modern UV-visible spectroscopy Figure : 28

Definition of Resolution Spectral resolution is a measure of the ability of an instrument to differentiate between two adjacent wavelengths Fundamentals of modern UV-visible spectroscopy Figure : 29

Instrumental Spectral Bandwidth The SBW is defined as the width, at half the maximum intensity, of the band of light leaving the monochromator Fundamentals of modern UV-visible spectroscopy Figure : 30

Natural Spectral Bandwidth The NBW is the width of the sample absorption band at half the absorption maximum Fundamentals of modern UV-visible spectroscopy Figure : 31

Effect of SBW on Band Shape The SBW/NBW ratio should be 0. 1 or better to yield an absorbance measurement with an accuracy of 99. 5% or better Fundamentals of modern UV-visible spectroscopy Figure : 32

Effect of Digital Sampling The sampling interval used to digitize the spectrum for computer evaluation and storage also effects resolution Fundamentals of modern UV-visible spectroscopy Figure : 33

Wavelength Resettability Influence of wavelength resettability on measurements at the maximum and slope of an absorption band Fundamentals of modern UV-visible spectroscopy Figure : 34

Effect of Stray Light Effect of various levels of stray light on measured absorbance compared with actual absorbance Fundamentals of modern UV-visible spectroscopy Figure : 35

Theoretical Absorbance Error The total error at any absorbance is the sum of the errors due to stray light and noise (photon noise and electronic noise) Fundamentals of modern UV-visible spectroscopy Figure : 36

Effect of Drift is a potential cause of photometric error and results from variations between the measurement of I 0 and I Fundamentals of modern UV-visible spectroscopy Figure : 37

Transmission Characteristics of Cell Materials Note that all materials exhibit at least approximately 10% loss in transmittance at all wavelengths Fundamentals of modern UV-visible spectroscopy Figure : 38

Cell Types I Open-topped rectangular standard cell (a) and apertured cell (b) for limited sample volume Fundamentals of modern UV-visible spectroscopy Figure : 39

Cell Types II Micro cell (a) for very small volumes and flow-through cell (b) for automated applications Fundamentals of modern UV-visible spectroscopy Figure : 40

Effect of Refractive Index Changes in the refractive index of reference and sample measurement can cause wrong absorbance measurements Fundamentals of modern UV-visible spectroscopy Figure : 41

Non-planar Sample Geometry Some sample can act as an active optical component in the system and deviate or defocus the light beam Fundamentals of modern UV-visible spectroscopy Figure : 42

Effect of Integration Time Averaging of data points reduces noise by the square root of the number of points averaged Fundamentals of modern UV-visible spectroscopy Figure : 43

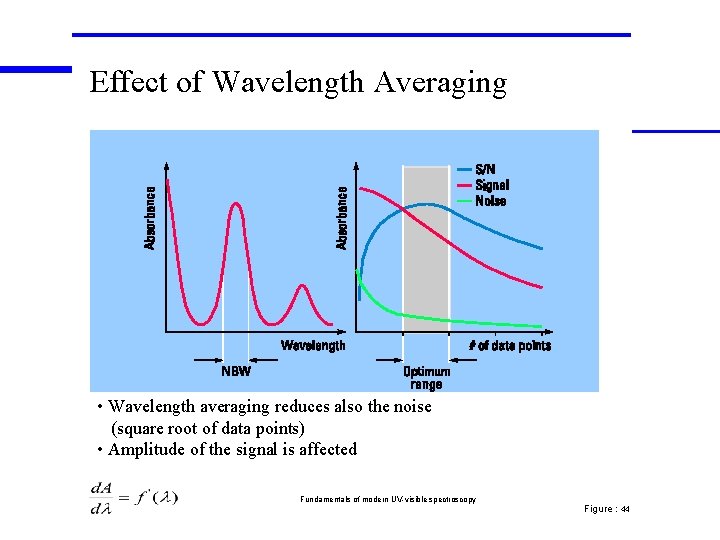

Effect of Wavelength Averaging • Wavelength averaging reduces also the noise (square root of data points) • Amplitude of the signal is affected Fundamentals of modern UV-visible spectroscopy Figure : 44

Increasing Dynamic Range Selection of a wavelength in the slope of a absorption band can increase the dynamic range and avoid sample preparation like dilution Fundamentals of modern UV-visible spectroscopy Figure : 45

Scattering causes an apparent absorbance because less light reaches the detector Fundamentals of modern UV-visible spectroscopy Figure : 46

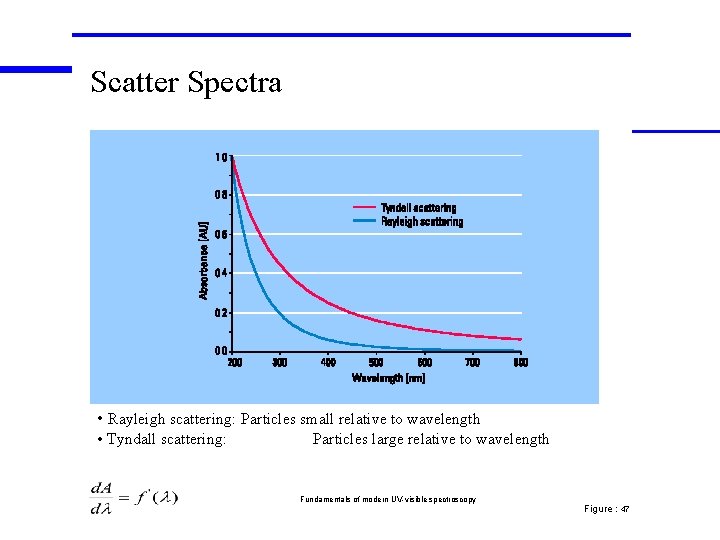

Scatter Spectra • Rayleigh scattering: Particles small relative to wavelength • Tyndall scattering: Particles large relative to wavelength Fundamentals of modern UV-visible spectroscopy Figure : 47

Isoabsorbance Corrections Absorbance at the reference wavelength must be equivalent to the interference at the analytical wavelength Fundamentals of modern UV-visible spectroscopy Figure : 48

Background Modeling Background modeling can be done if the interference is due to a physical process Fundamentals of modern UV-visible spectroscopy Figure : 49

Internal Referencing Corrects for constant background absorbance over a range Fundamentals of modern UV-visible spectroscopy Figure : 50

Three-Point Correction • Uses two reference wavelengths • Corrects for sloped linear background absorbance Fundamentals of modern UV-visible spectroscopy Figure : 51

Discrimination of Broad Bands • Derivatives can eliminate background absorption • Derivatives discriminate against broad absorbance bands Fundamentals of modern UV-visible spectroscopy Figure : 52

Scatter Correction by Derivative Spectroscopy Scatter is discriminated like a broad-band absorbance band Fundamentals of modern UV-visible spectroscopy Figure : 53

Effect of Fluorescence The emitted light of a fluorescing sample causes an error in the absorbance measurement Fundamentals of modern UV-visible spectroscopy Figure : 54

Acceptance Angles and Magnitude of Fluorescence Error • Forward optics: Absorbance at the excitation wavelengths are too low • Reversed optics: Absorbance at the emission wavelengths are too low Fundamentals of modern UV-visible spectroscopy Figure : 55

Inadequate Calibration • Theoretically one standard is required to calibrate • In practice, deviations from Beer’s law can cause wrong results Fundamentals of modern UV-visible spectroscopy Figure : 56

Calibration Data Sets • Forward optics: • Reversed optics: Absorbance at the excitation wavelengths are too low Absorbance at the emission wavelengths are too low Fundamentals of modern UV-visible spectroscopy Figure : 57

Wavelength(s) for Best Linearity • A linear calibration curve is calculated at each wavelength • The correlation coefficient gives an estimate on the linearity Fundamentals of modern UV-visible spectroscopy Figure : 58

Wavelength(s) for Best Accuracy • The quantification results are calculated at each wavelength • The calculated concentration are giving an estimate of the accuracy Fundamentals of modern UV-visible spectroscopy Figure : 59

Precision of an Analysis Precision of a method is the degree of agreement among individual test results when the procedure is applied repeatedly to multiple samplings Fundamentals of modern UV-visible spectroscopy Figure : 60

Wavelength(s) for Best Sensitivity • Calculation of relative standard deviation of the measured values at each wavelength • The wavelength with lowest %RSD likely will yield the best sensitivity Fundamentals of modern UV-visible spectroscopy Figure : 61

Wavelength(s) for Best Selectivity is the ability of a method to quantify accurately and specifically the analyte or analytes in the presence of other compounds Fundamentals of modern UV-visible spectroscopy Figure : 62

Ideal Absorbance and Wavelength Standards • An ideal absorbance standard would have a constant absorbance at all wavelengths • An ideal wavelength standard would have very narrow, well-defined peaks Fundamentals of modern UV-visible spectroscopy Figure : 63

Ideal Stray Light Filter An ideal stray light filter would transmit all wavelengths except the wavelength used to measure the stray light Fundamentals of modern UV-visible spectroscopy Figure : 64

Holmium Perchlorate Solution The most common wavelength accuracy standard is a holmium perchlorate solution Fundamentals of modern UV-visible spectroscopy Figure : 65

Potassium Dichromate Solution The photometric accuracy standard required by several pharmacopoeias is a potassium dichromate solution Fundamentals of modern UV-visible spectroscopy Figure : 66

Stray Light Standard Solutions The most common stray light standard and the respectively used wavelengths Fundamentals of modern UV-visible spectroscopy Figure : 67

Toluene in Hexane (0. 02% v/v) The resolution is estimated by taking the ratio of the absorbance of the maximum near 269 nm and minimum near 266 nm Fundamentals of modern UV-visible spectroscopy Figure : 68

Confirmation Analysis In confirmation analysis, the absorbance at one or more additional wavelengths are used to quantify a sample Fundamentals of modern UV-visible spectroscopy Figure : 69

Spectral Similarity Comparative plots of similar and dissimilar spectra Fundamentals of modern UV-visible spectroscopy Figure : 70

Precision and Accuracy – Precision + Accuracy – Precision – Accuracy + Precision Fundamentals of modern UV-visible spectroscopy + Accuracy + Precision Figure : 71
![Absorbance [AU] Hydrolysis of Sultone Wavelength [nm] Fundamentals of modern UV-visible spectroscopy Figure : Absorbance [AU] Hydrolysis of Sultone Wavelength [nm] Fundamentals of modern UV-visible spectroscopy Figure :](http://slidetodoc.com/presentation_image_h/e39d9d6dab318a55d3b2b8af492fa541/image-73.jpg)
Absorbance [AU] Hydrolysis of Sultone Wavelength [nm] Fundamentals of modern UV-visible spectroscopy Figure : 72
