FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 1 Common symbols for indicating a reference node: (a) common ground, (b) ground, (c) chassis. Mc. Graw-Hill 1 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 2 Typical circuit for nodal analysis Mc. Graw-Hill 2 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 5 For Example 3. 2: (a) original circuit, (b) circuit for analysis Mc. Graw-Hill 3 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 7 A circuit with a supernode. Mc. Graw-Hill 4 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 8 Applying KVL to a supernode. Mc. Graw-Hill 5 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 17 A circuit with two meshes Mc. Graw-Hill 6 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 18 For Example 3. 5 Mc. Graw-Hill 7 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 22 A circuit with a current source Mc. Graw-Hill 8 © The Mc. Graw-Hill Companies, Inc.

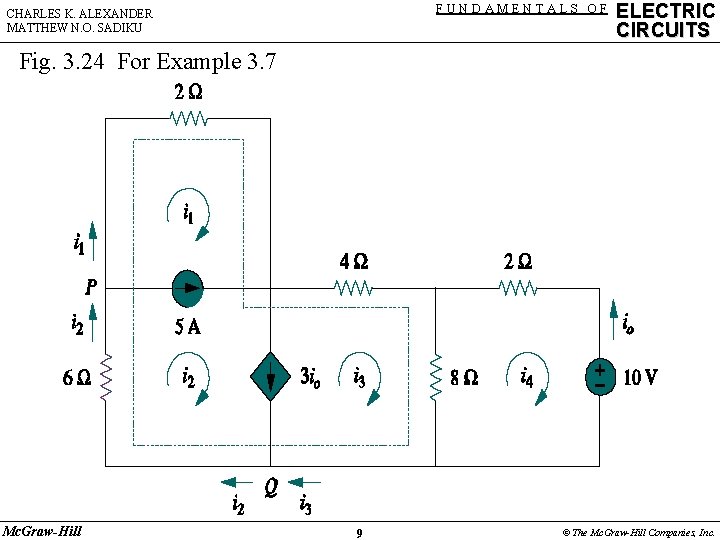

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 24 For Example 3. 7 Mc. Graw-Hill 9 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 31 For Example 3. 10 Mc. Graw-Hill 10 © The Mc. Graw-Hill Companies, Inc.

FUNDAMENTALS OF CHARLES K. ALEXANDER MATTHEW N. O. SADIKU ELECTRIC CIRCUITS Fig. 3. 32 For Example 3. 10; the schematic of the circuit in Fig. 3. 31. Mc. Graw-Hill 11 © The Mc. Graw-Hill Companies, Inc.
