Fundamental ElectronicsBJT CMOS Reference Thomas L Floyd Electronics

Fundamental Electronics—BJT, CMOS Reference: Thomas L. Floyd, Electronics Fundamentals: Circuits, Devices, and Applications, Pearson Education Inc

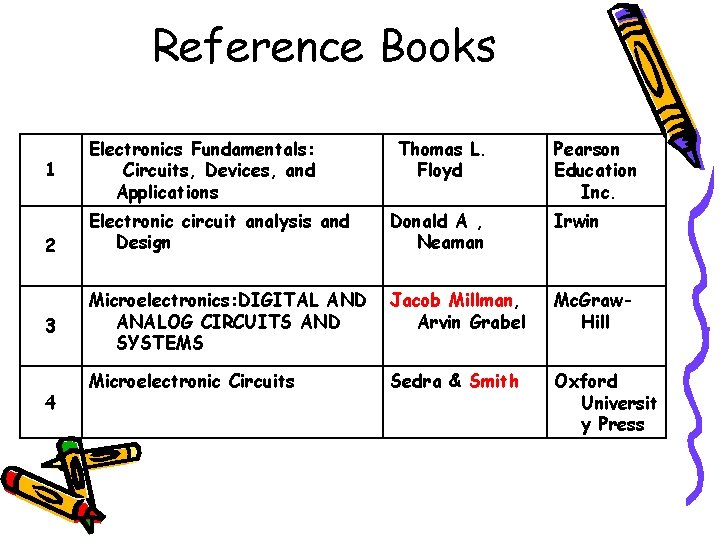

Reference Books 1 2 3 4 Electronics Fundamentals: Circuits, Devices, and Applications Thomas L. Floyd Pearson Education Inc. Electronic circuit analysis and Design Donald A , Neaman Irwin Microelectronics: DIGITAL AND ANALOG CIRCUITS AND SYSTEMS Jacob Millman, Arvin Grabel Mc. Graw. Hill Microelectronic Circuits Sedra & Smith Oxford Universit y Press

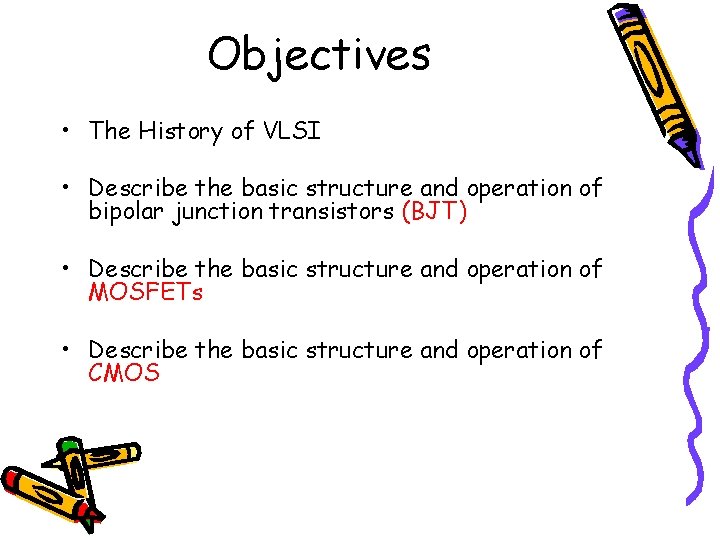

Objectives • The History of VLSI • Describe the basic structure and operation of bipolar junction transistors (BJT) • Describe the basic structure and operation of MOSFETs • Describe the basic structure and operation of CMOS

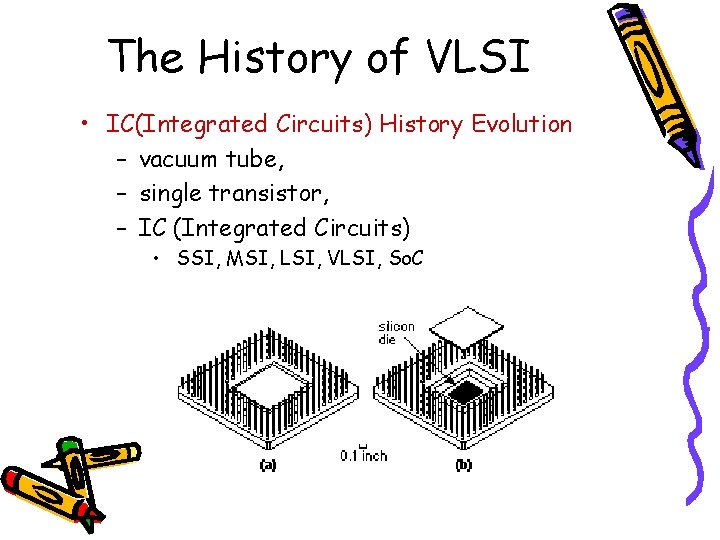

The History of VLSI • IC(Integrated Circuits) History Evolution – vacuum tube, – single transistor, – IC (Integrated Circuits) • SSI, MSI, LSI, VLSI, So. C

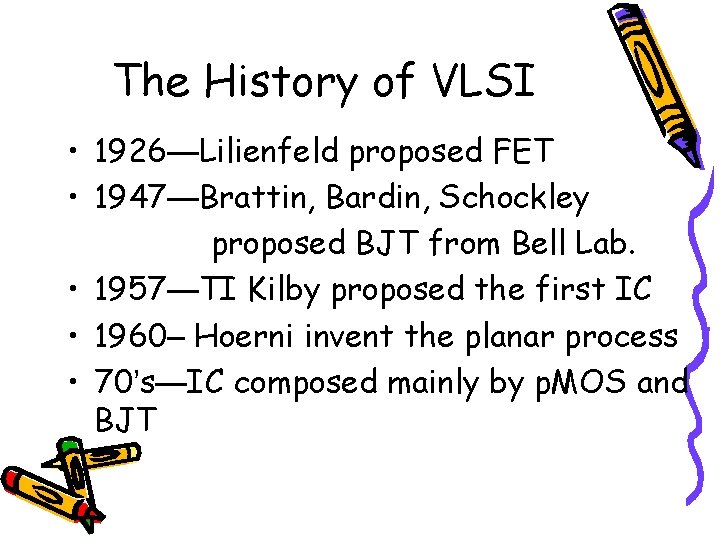

The History of VLSI • 1926—Lilienfeld proposed FET • 1947—Brattin, Bardin, Schockley proposed BJT from Bell Lab. • 1957—TI Kilby proposed the first IC • 1960– Hoerni invent the planar process • 70’s—IC composed mainly by p. MOS and BJT

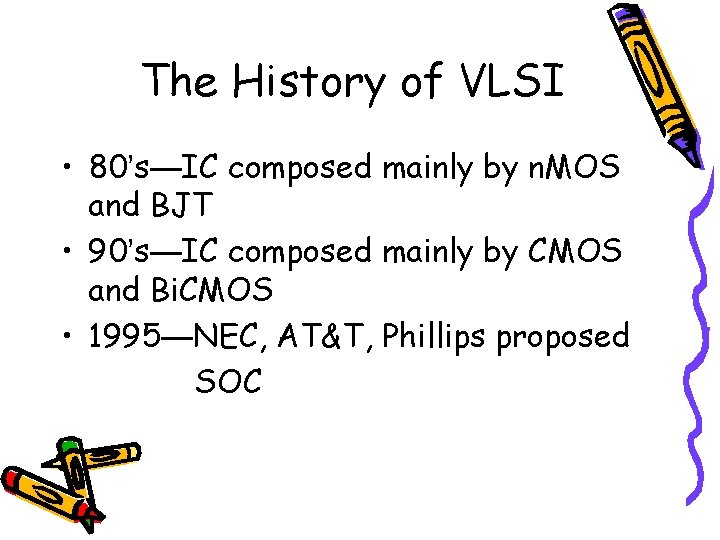

The History of VLSI • 80’s—IC composed mainly by n. MOS and BJT • 90’s—IC composed mainly by CMOS and Bi. CMOS • 1995—NEC, AT&T, Phillips proposed SOC

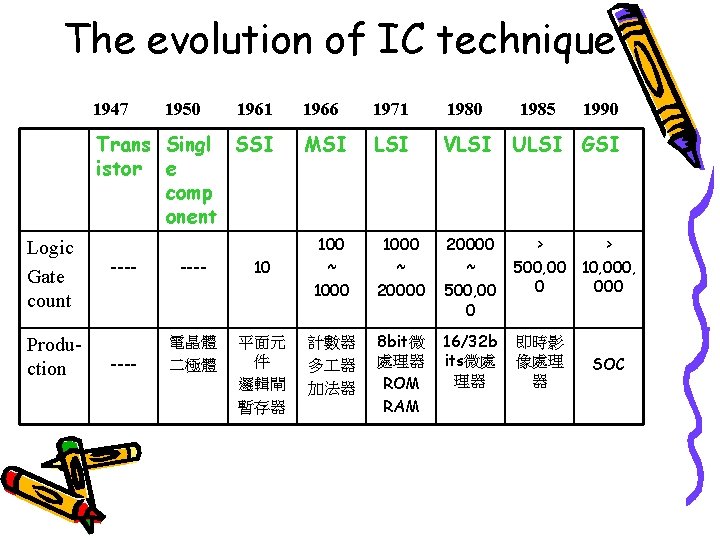

The evolution of IC technique 1947 1950 1961 Trans Singl SSI istor e comp onent Logic Gate count Production ---- 10 ---- 電晶體二極體平面元件邏輯閘暫存器 1966 1971 1980 1985 1990 MSI LSI VLSI ULSI GSI 100 ~ 1000 ~ 20000 ~ 500, 00 0 > > 500, 00 10, 000, 0 000 計數器多器加法器 8 bit微處理器 ROM RAM 16/32 b its微處理器即時影像處理器 SOC

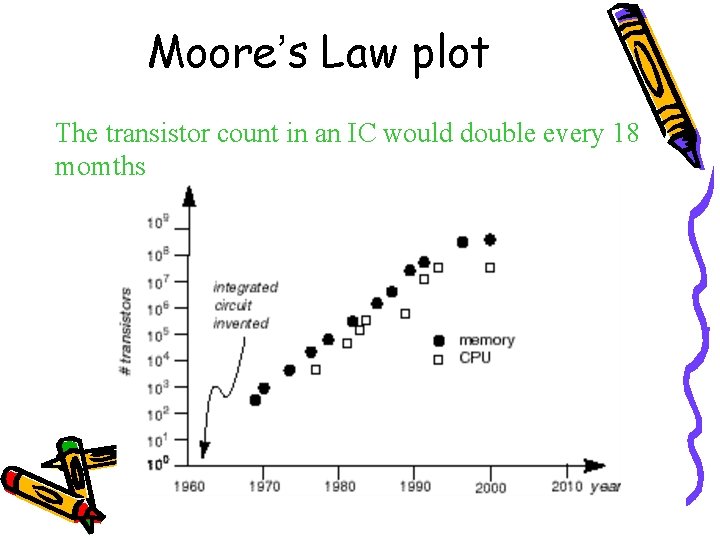

Moore’s Law plot The transistor count in an IC would double every 18 momths

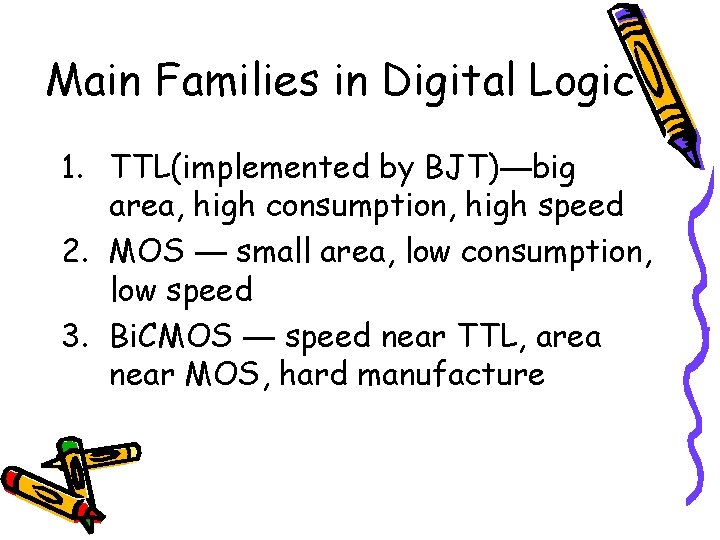

Main Families in Digital Logic 1. TTL(implemented by BJT)—big area, high consumption, high speed 2. MOS — small area, low consumption, low speed 3. Bi. CMOS — speed near TTL, area near MOS, hard manufacture

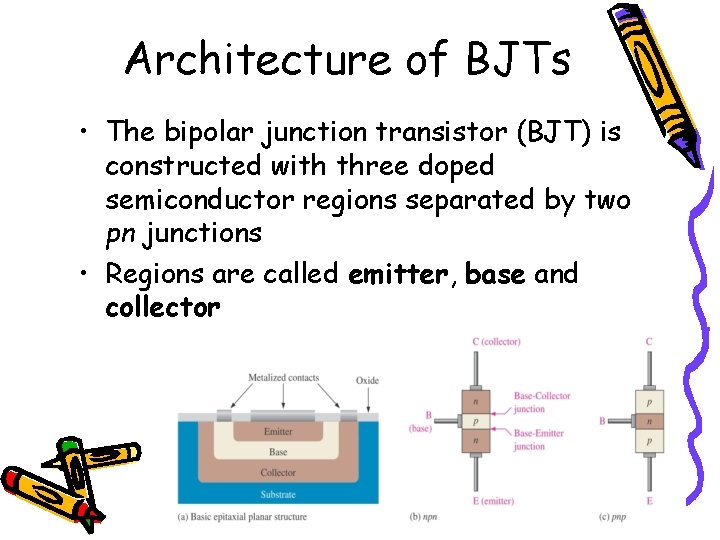

Architecture of BJTs • The bipolar junction transistor (BJT) is constructed with three doped semiconductor regions separated by two pn junctions • Regions are called emitter, base and collector

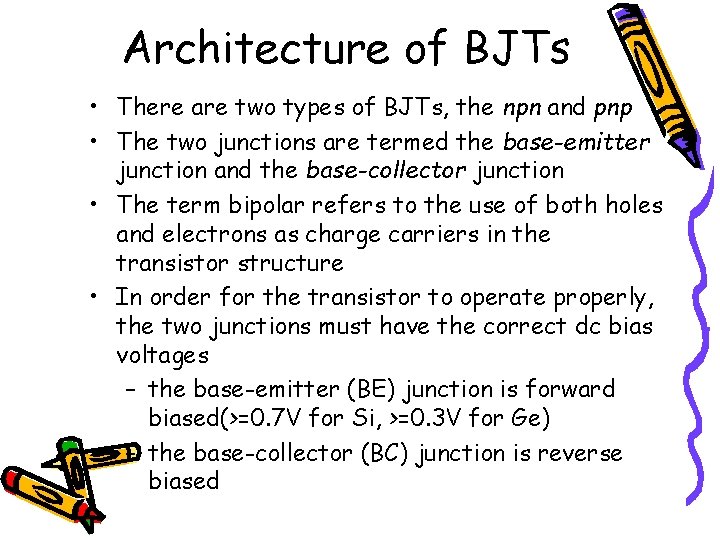

Architecture of BJTs • There are two types of BJTs, the npn and pnp • The two junctions are termed the base-emitter junction and the base-collector junction • The term bipolar refers to the use of both holes and electrons as charge carriers in the transistor structure • In order for the transistor to operate properly, the two junctions must have the correct dc bias voltages – the base-emitter (BE) junction is forward biased(>=0. 7 V for Si, >=0. 3 V for Ge) – the base-collector (BC) junction is reverse biased

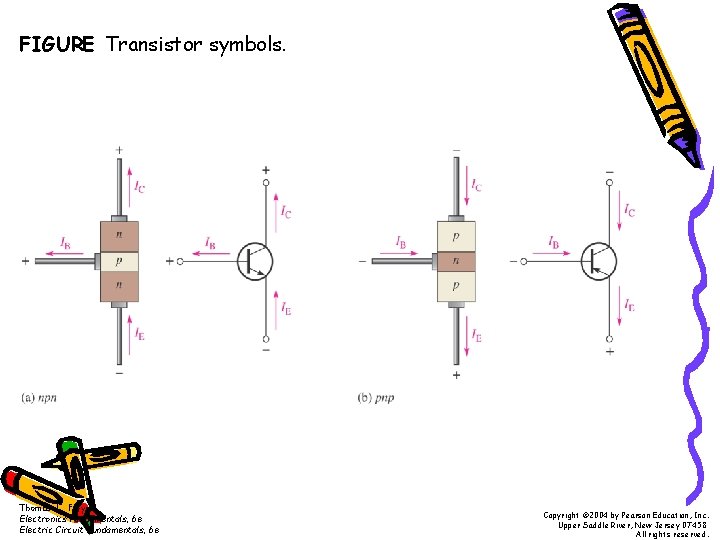

FIGURE Transistor symbols. Thomas L. Floyd Electronics Fundamentals, 6 e Electric Circuit Fundamentals, 6 e Copyright © 2004 by Pearson Education, Inc. Upper Saddle River, New Jersey 07458 All rights reserved.

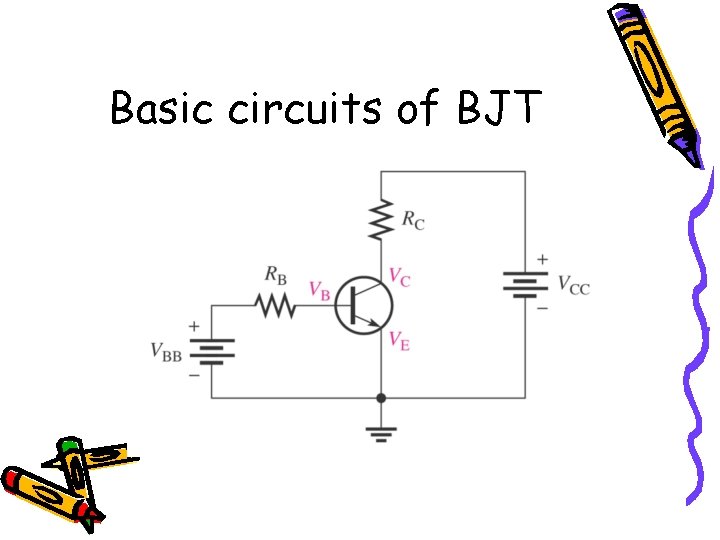

Basic circuits of BJT

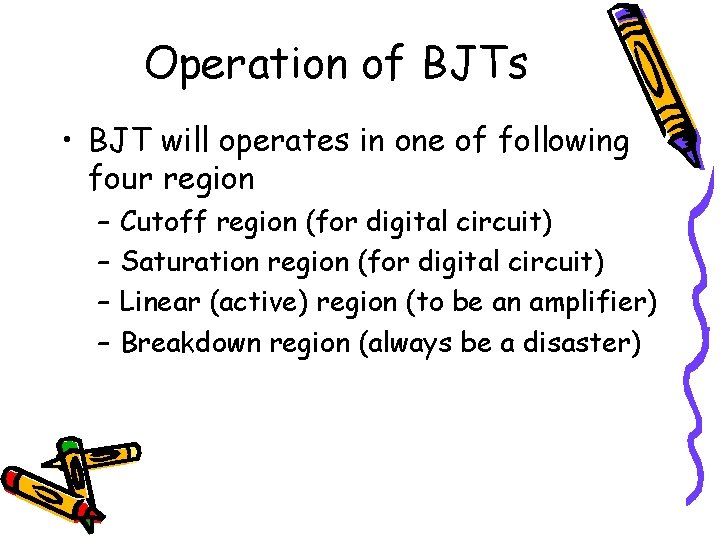

Operation of BJTs • BJT will operates in one of following four region – – Cutoff region (for digital circuit) Saturation region (for digital circuit) Linear (active) region (to be an amplifier) Breakdown region (always be a disaster)

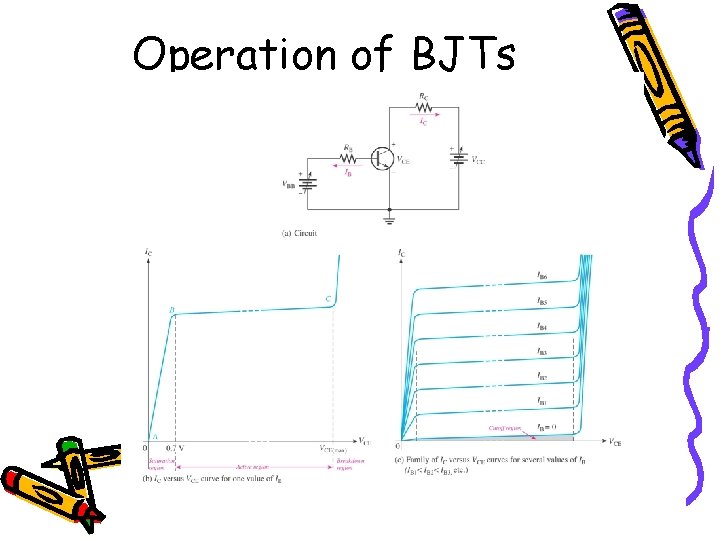

Operation of BJTs

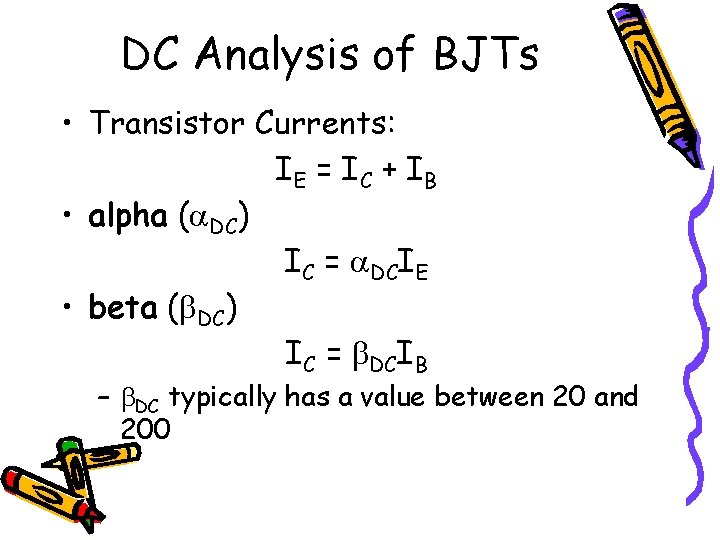

DC Analysis of BJTs • Transistor Currents: IE = I C + I B • alpha ( DC) IC = DCIE • beta ( DC) IC = DCIB – DC typically has a value between 20 and 200

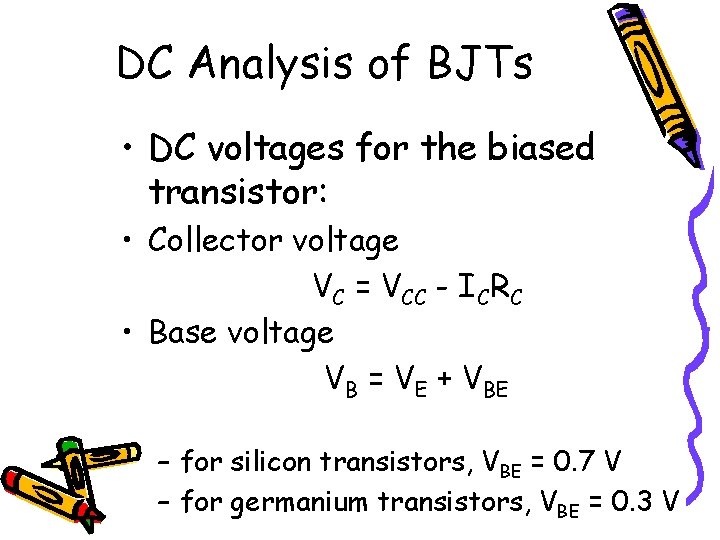

DC Analysis of BJTs • DC voltages for the biased transistor: • Collector voltage VC = VCC - ICRC • Base voltage VB = VE + VBE – for silicon transistors, VBE = 0. 7 V – for germanium transistors, VBE = 0. 3 V

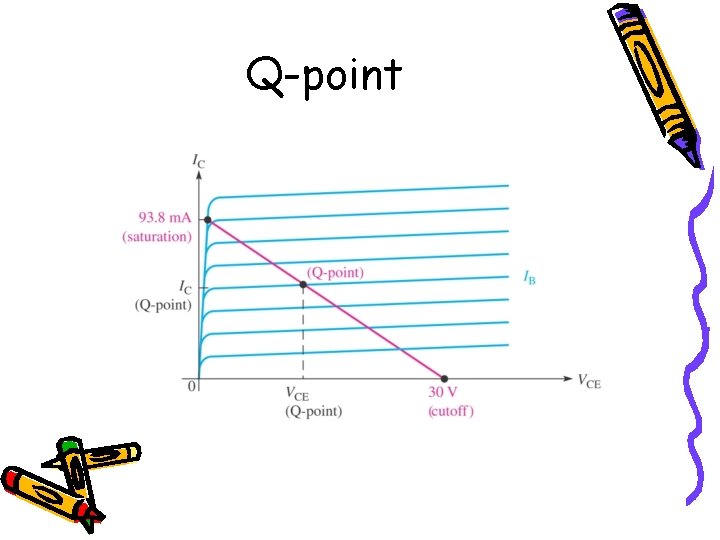

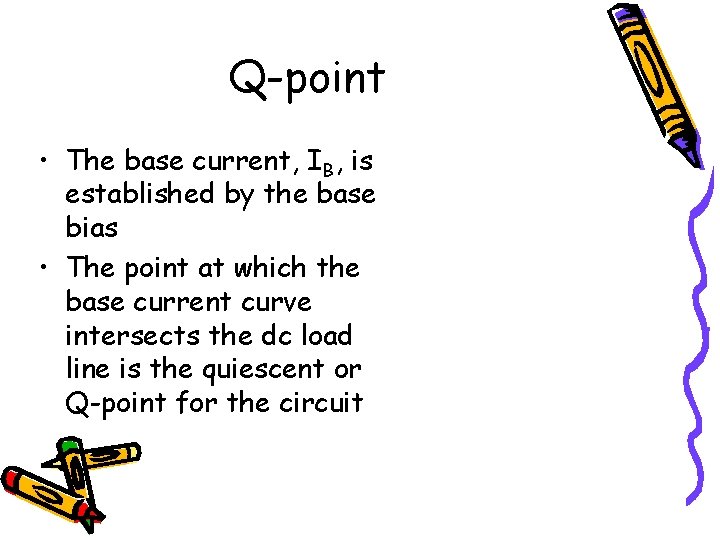

Q-point • The base current, IB, is established by the base bias • The point at which the base current curve intersects the dc load line is the quiescent or Q-point for the circuit

Q-point

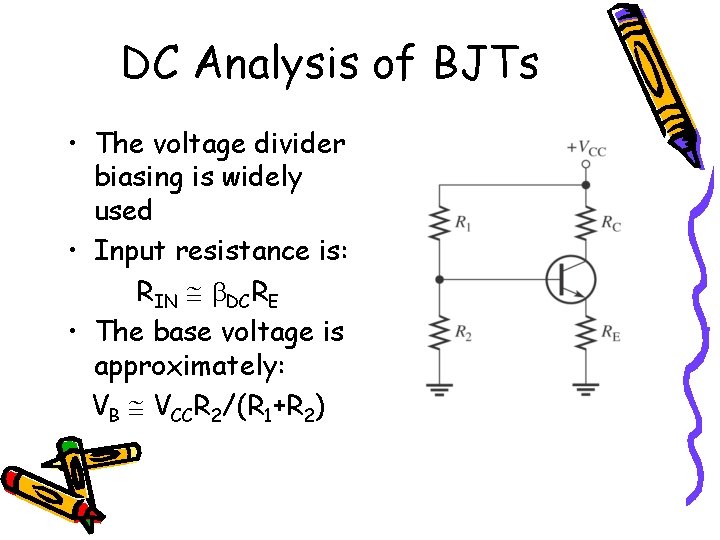

DC Analysis of BJTs • The voltage divider biasing is widely used • Input resistance is: RIN DCRE • The base voltage is approximately: VB VCCR 2/(R 1+R 2)

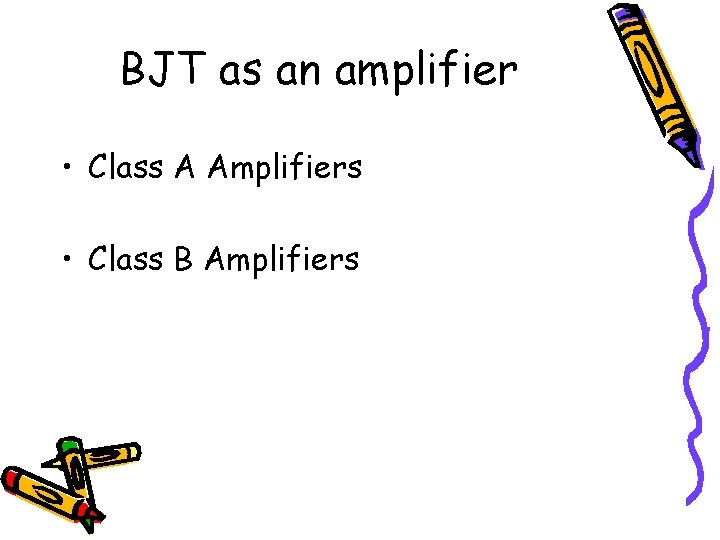

BJT as an amplifier • Class A Amplifiers • Class B Amplifiers

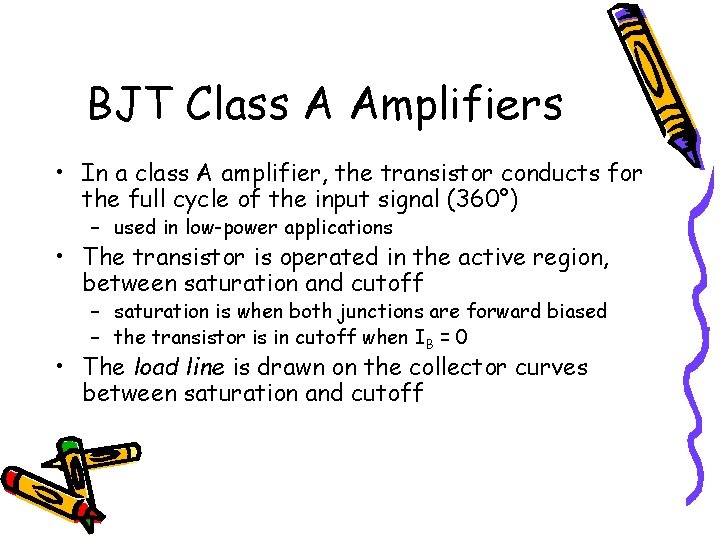

BJT Class A Amplifiers • In a class A amplifier, the transistor conducts for the full cycle of the input signal (360°) – used in low-power applications • The transistor is operated in the active region, between saturation and cutoff – saturation is when both junctions are forward biased – the transistor is in cutoff when IB = 0 • The load line is drawn on the collector curves between saturation and cutoff

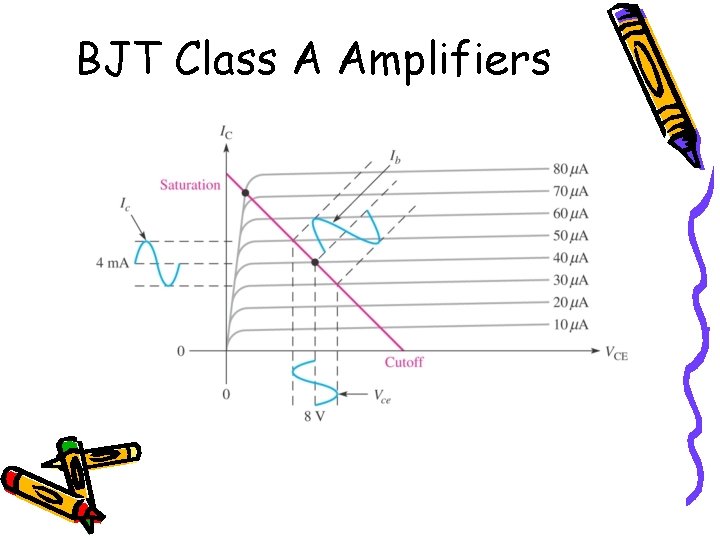

BJT Class A Amplifiers

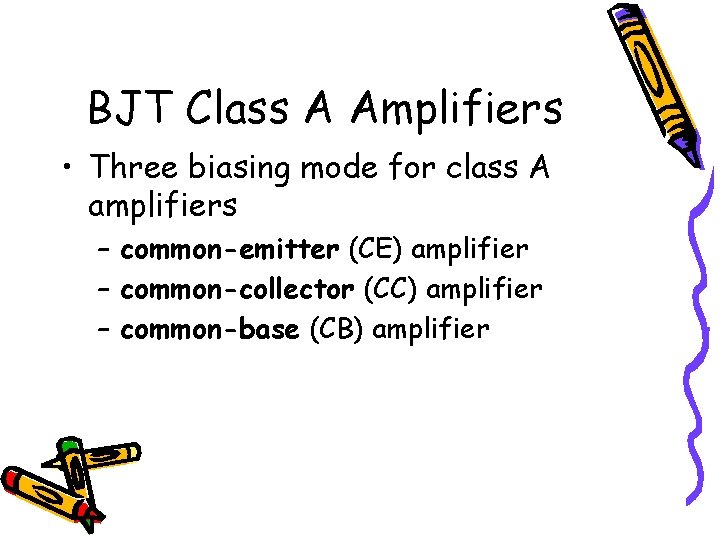

BJT Class A Amplifiers • Three biasing mode for class A amplifiers – common-emitter (CE) amplifier – common-collector (CC) amplifier – common-base (CB) amplifier

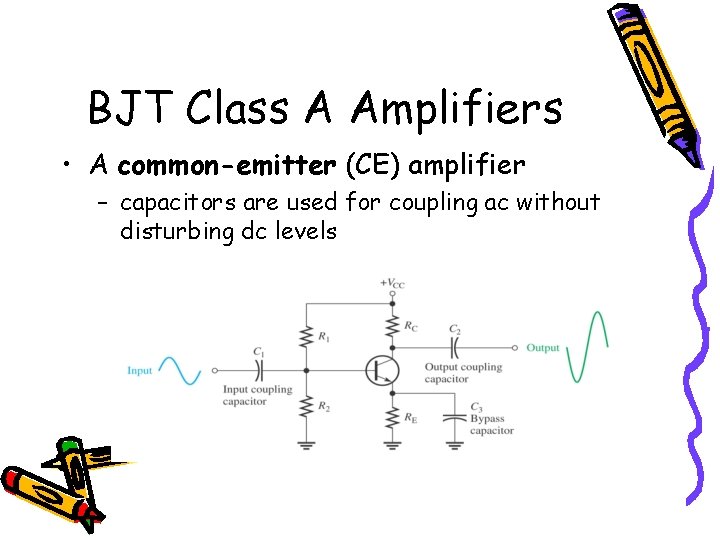

BJT Class A Amplifiers • A common-emitter (CE) amplifier – capacitors are used for coupling ac without disturbing dc levels

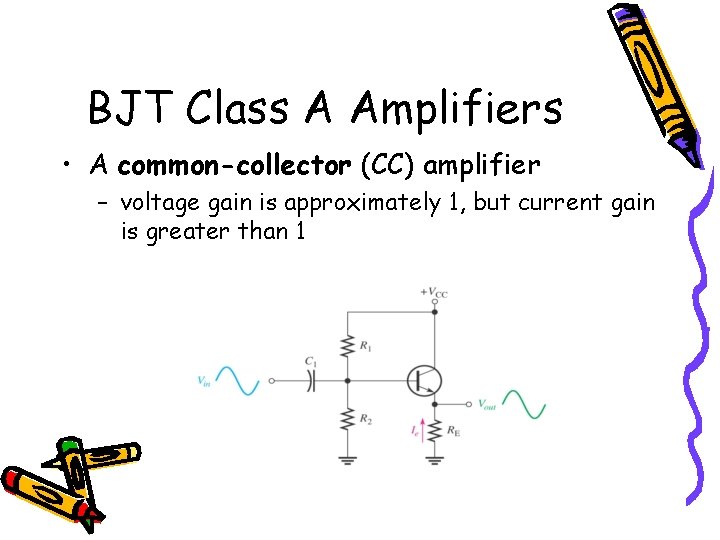

BJT Class A Amplifiers • A common-collector (CC) amplifier – voltage gain is approximately 1, but current gain is greater than 1

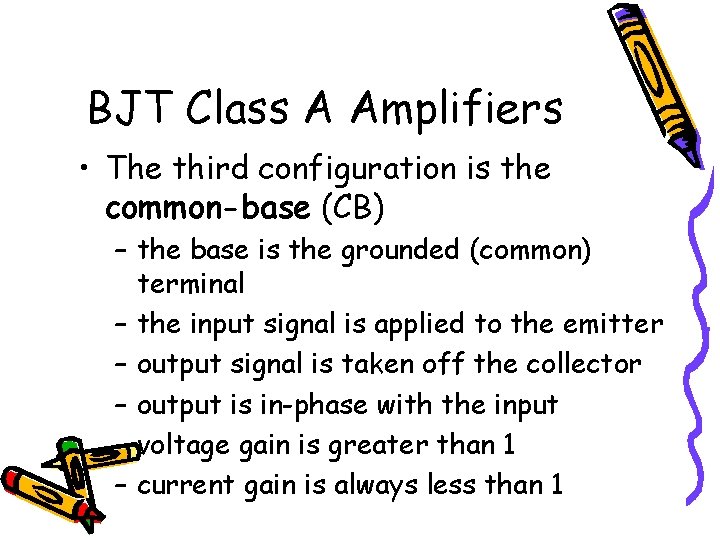

BJT Class A Amplifiers • The third configuration is the common-base (CB) – the base is the grounded (common) terminal – the input signal is applied to the emitter – output signal is taken off the collector – output is in-phase with the input – voltage gain is greater than 1 – current gain is always less than 1

BJT Class B Amplifiers • When an amplifier is biased such that it operates in the linear region for 180° of the input cycle and is in cutoff for 180°, it is a class B amplifier – A class B amplifier is more efficient than a class A • In order to get a linear reproduction of the input waveform, the class B amplifier is configured in a push-pull arrangement – The transistors in a class B amplifier must be biased above cutoff to eliminate crossover distortion

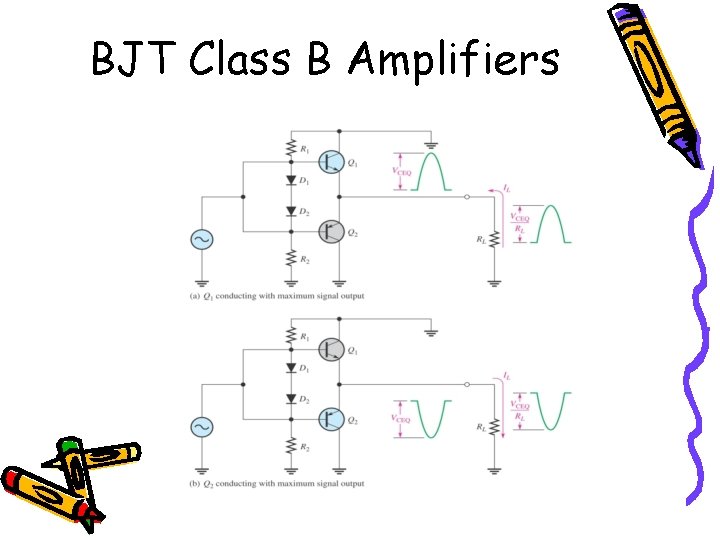

BJT Class B Amplifiers

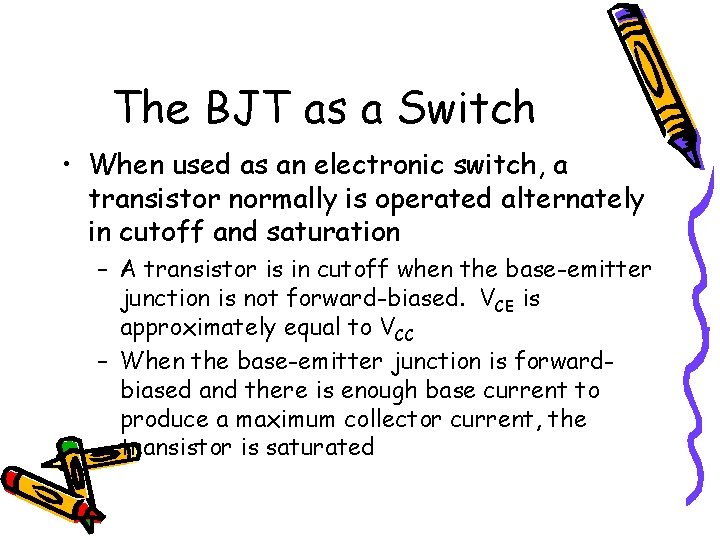

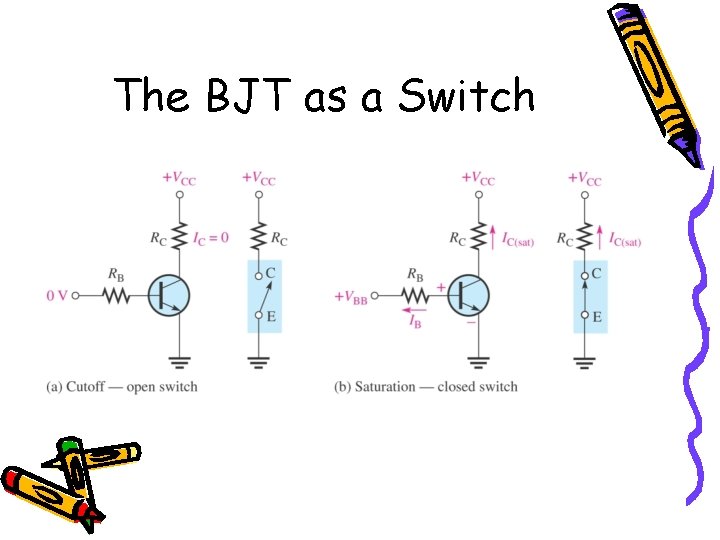

The BJT as a Switch • When used as an electronic switch, a transistor normally is operated alternately in cutoff and saturation – A transistor is in cutoff when the base-emitter junction is not forward-biased. VCE is approximately equal to VCC – When the base-emitter junction is forwardbiased and there is enough base current to produce a maximum collector current, the transistor is saturated

The BJT as a Switch

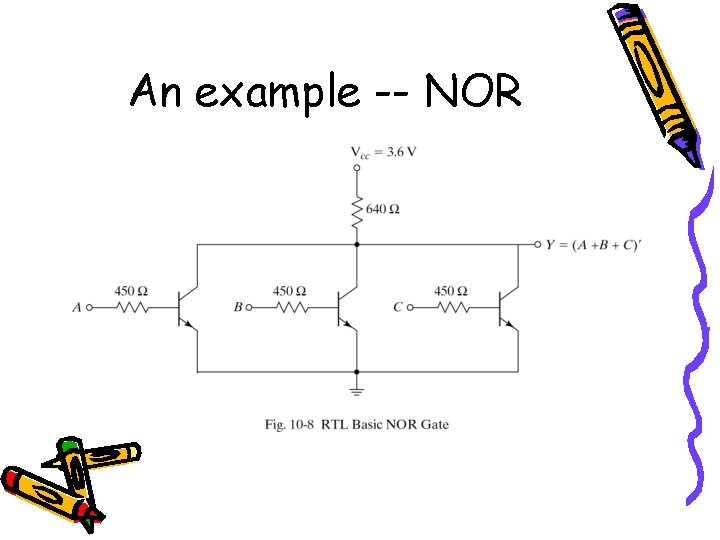

An example -- NOR

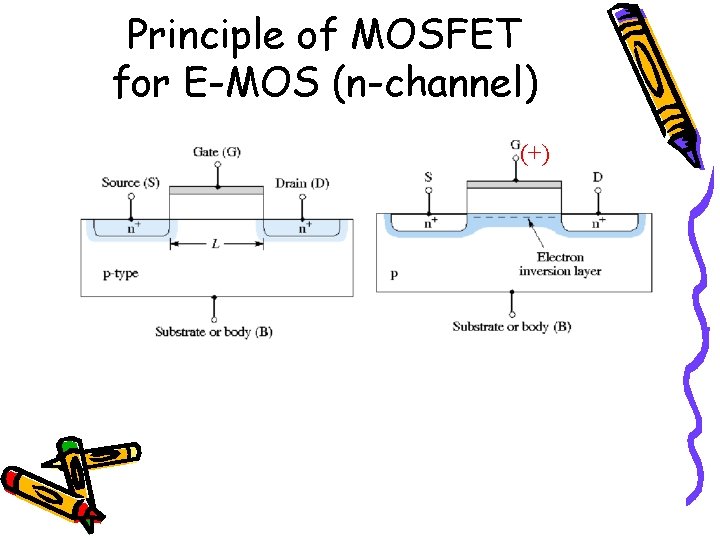

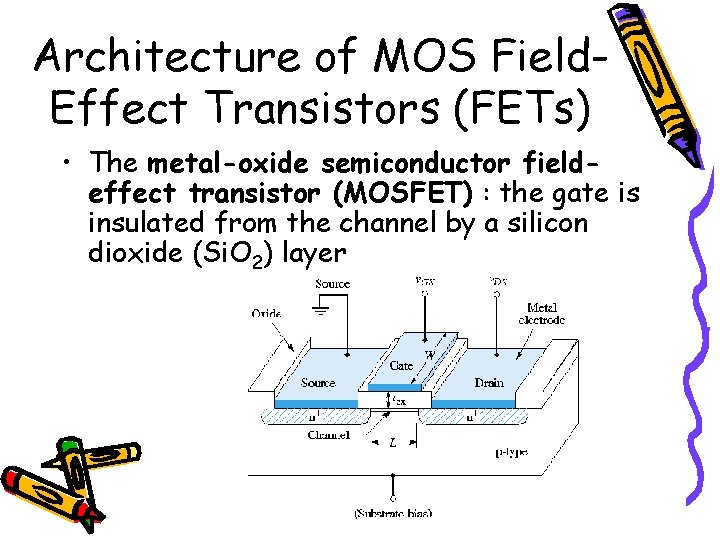

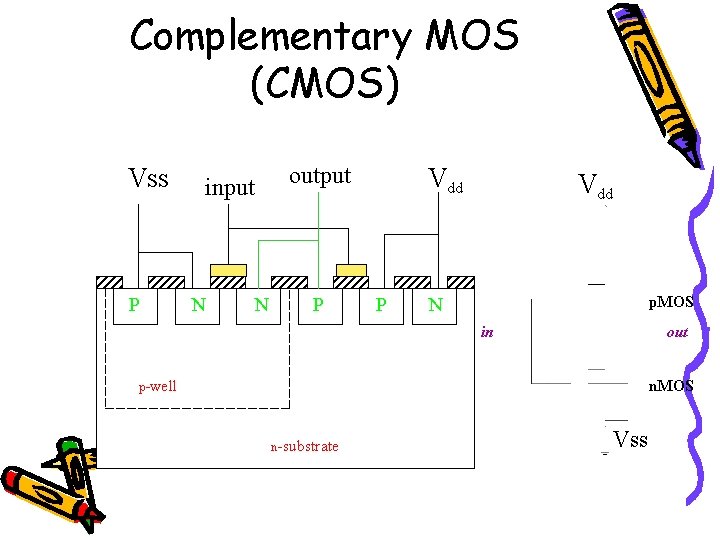

Architecture of MOS Field. Effect Transistors (FETs) • The metal-oxide semiconductor fieldeffect transistor (MOSFET) : the gate is insulated from the channel by a silicon dioxide (Si. O 2) layer

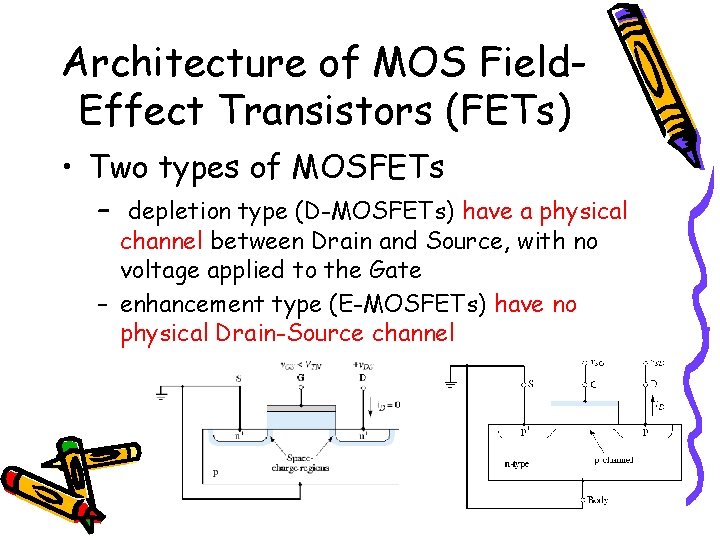

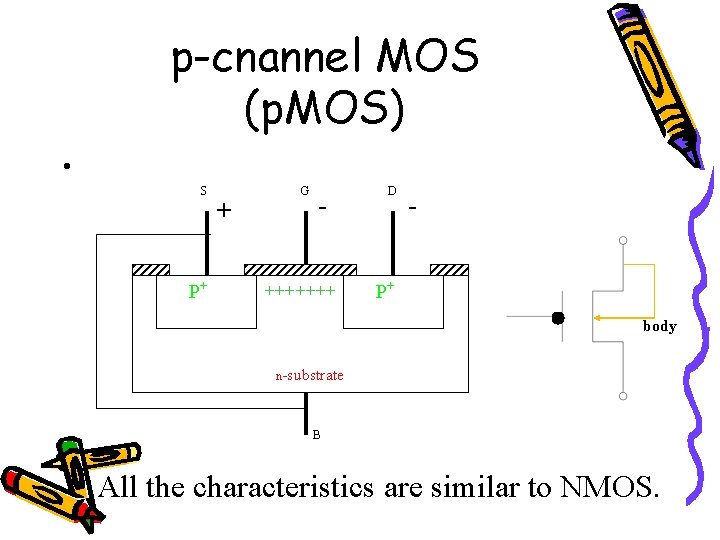

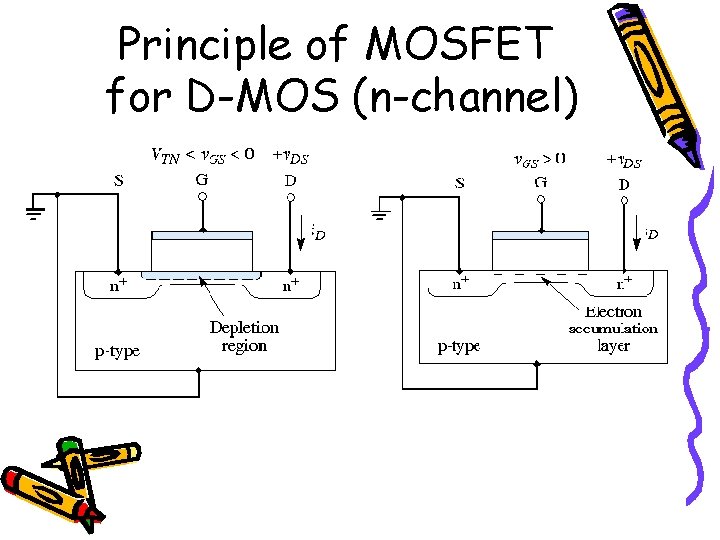

Architecture of MOS Field. Effect Transistors (FETs) • Two types of MOSFETs – depletion type (D-MOSFETs) have a physical channel between Drain and Source, with no voltage applied to the Gate – enhancement type (E-MOSFETs) have no physical Drain-Source channel

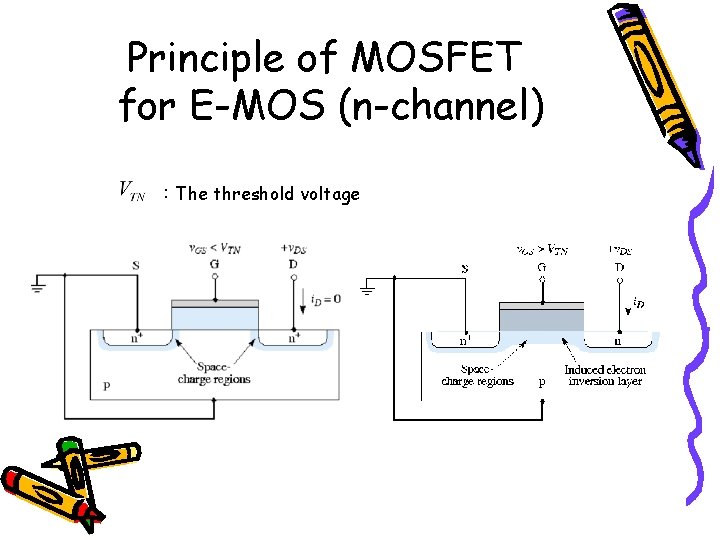

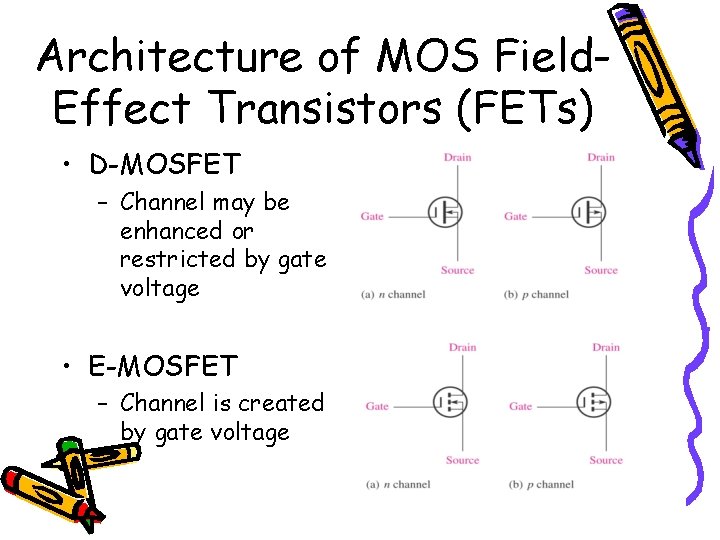

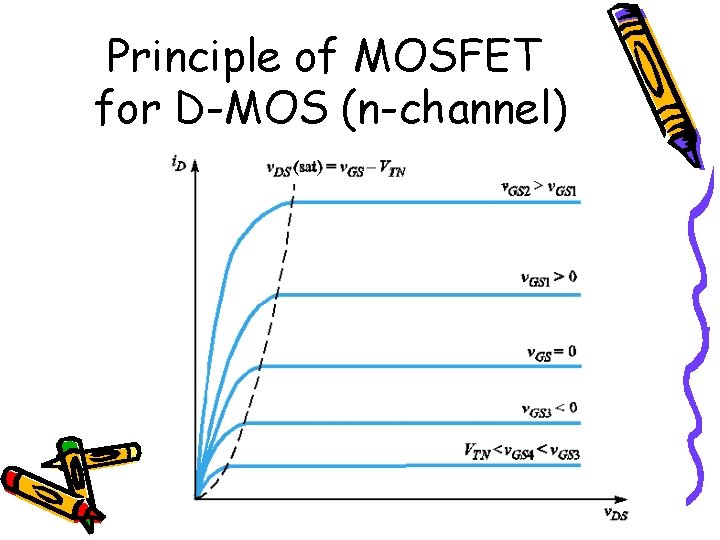

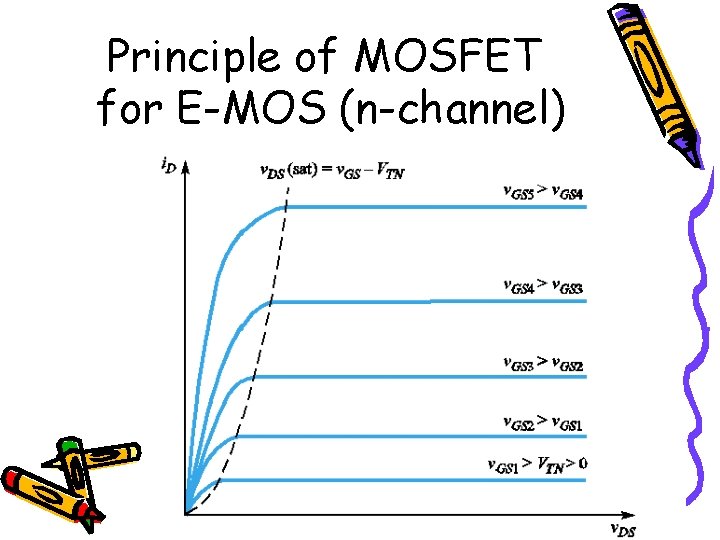

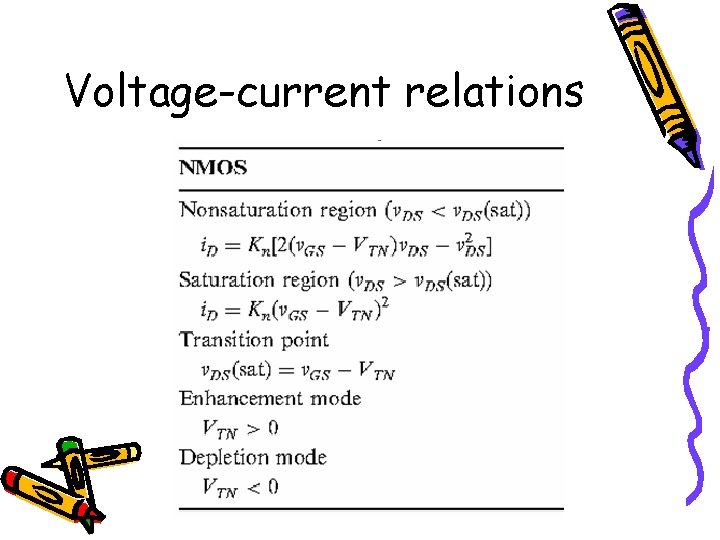

Architecture of MOS Field. Effect Transistors (FETs) • D-MOSFET – Channel may be enhanced or restricted by gate voltage • E-MOSFET – Channel is created by gate voltage

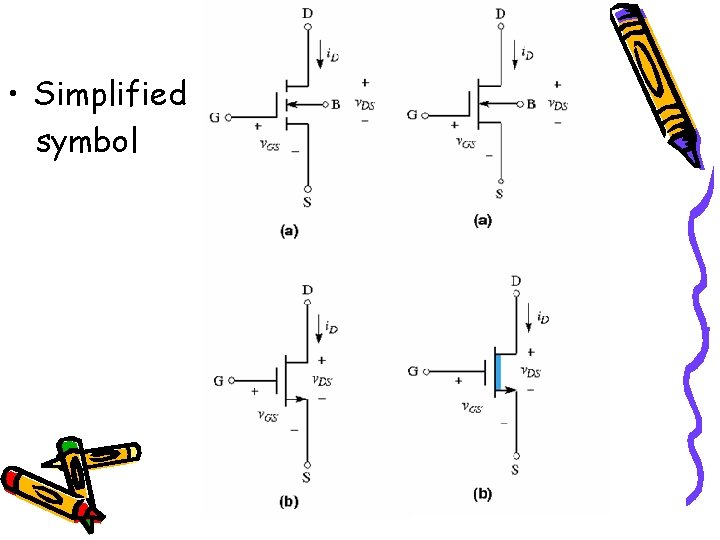

• Simplified symbol

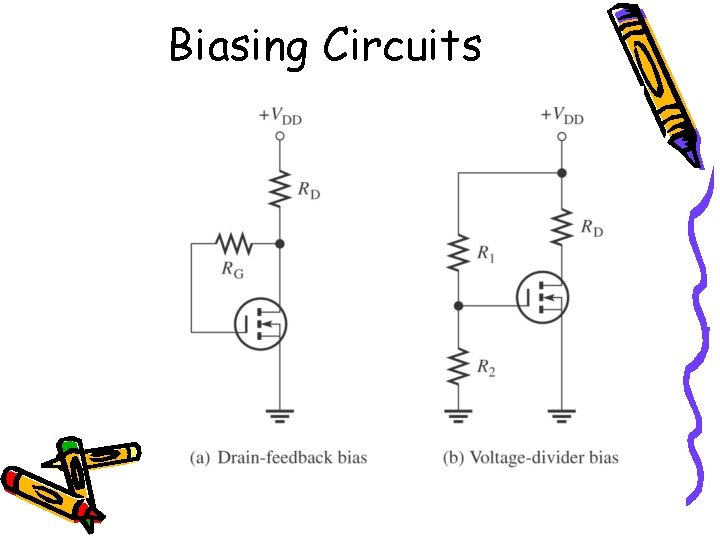

Biasing Circuits

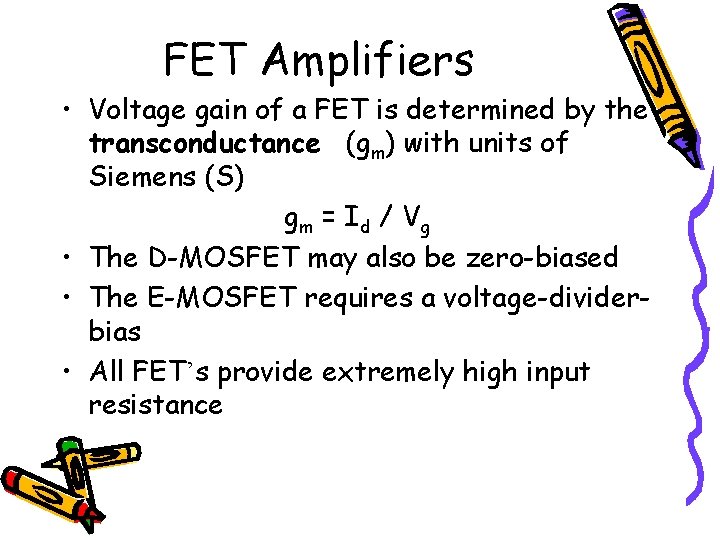

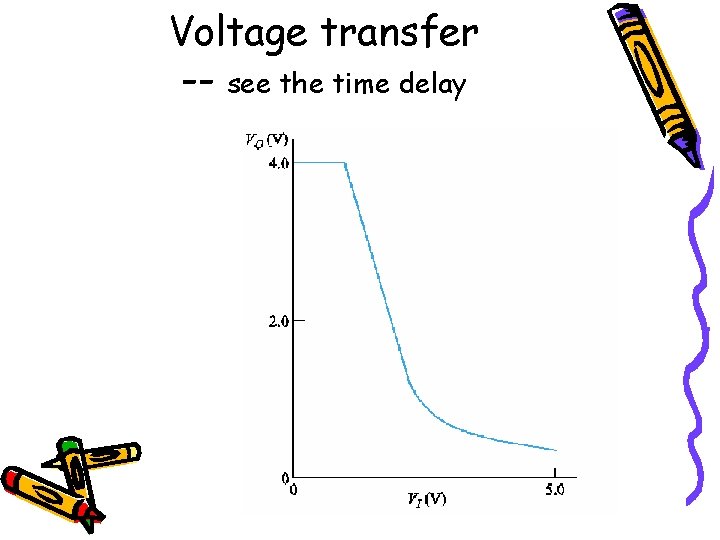

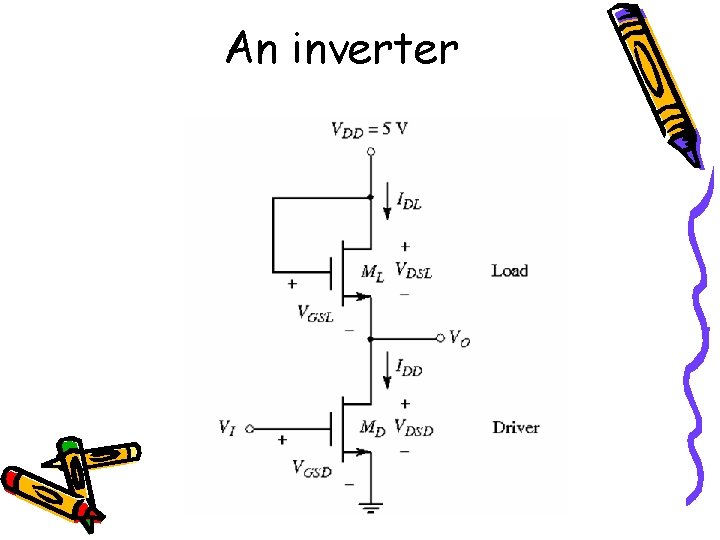

FET Amplifiers • Voltage gain of a FET is determined by the transconductance (gm) with units of Siemens (S) gm = I d / V g • The D-MOSFET may also be zero-biased • The E-MOSFET requires a voltage-dividerbias • All FET’s provide extremely high input resistance
