Functions Overview Experience has shown that the best

Functions

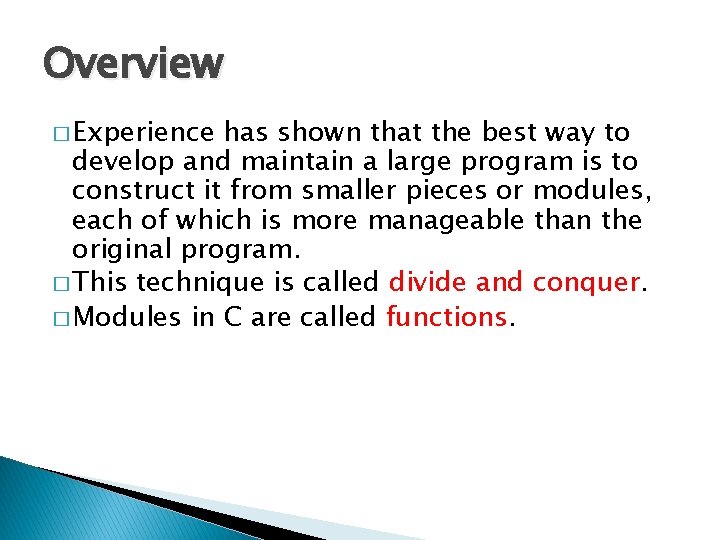

Overview � Experience has shown that the best way to develop and maintain a large program is to construct it from smaller pieces or modules, each of which is more manageable than the original program. � This technique is called divide and conquer. � Modules in C are called functions.

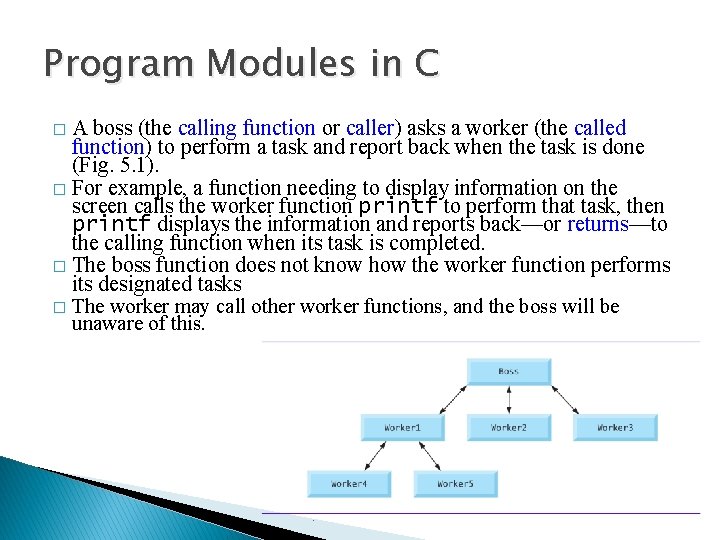

Program Modules in C A boss (the calling function or caller) asks a worker (the called function) to perform a task and report back when the task is done (Fig. 5. 1). � For example, a function needing to display information on the screen calls the worker function printf to perform that task, then printf displays the information and reports back—or returns—to the calling function when its task is completed. � The boss function does not know how the worker function performs its designated tasks � The worker may call other worker functions, and the boss will be unaware of this. �

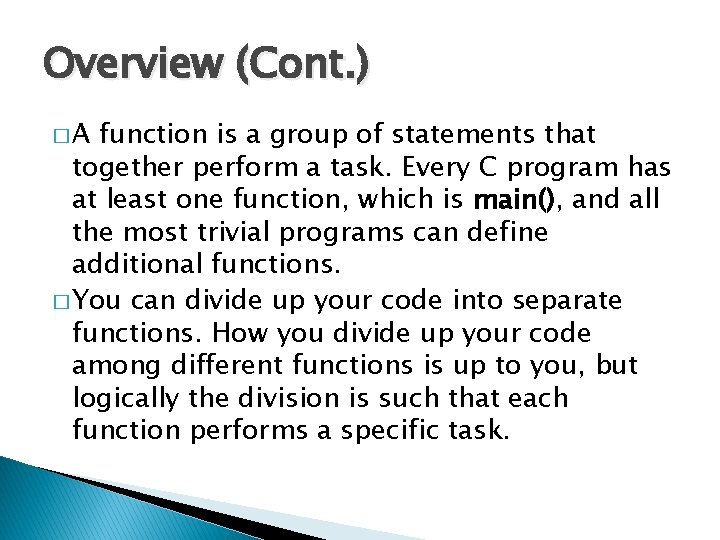

Overview (Cont. ) �A function is a group of statements that together perform a task. Every C program has at least one function, which is main(), and all the most trivial programs can define additional functions. � You can divide up your code into separate functions. How you divide up your code among different functions is up to you, but logically the division is such that each function performs a specific task.

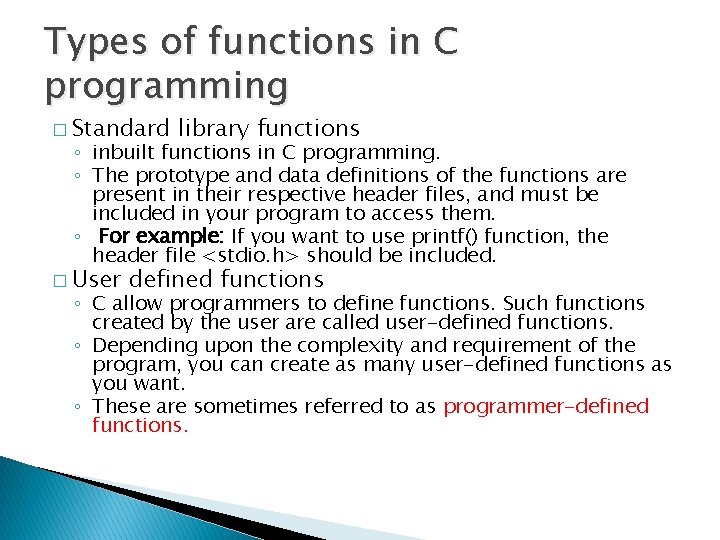

Types of functions in C programming � Standard library functions ◦ inbuilt functions in C programming. ◦ The prototype and data definitions of the functions are present in their respective header files, and must be included in your program to access them. ◦ For example: If you want to use printf() function, the header file <stdio. h> should be included. � User defined functions ◦ C allow programmers to define functions. Such functions created by the user are called user-defined functions. ◦ Depending upon the complexity and requirement of the program, you can create as many user-defined functions as you want. ◦ These are sometimes referred to as programmer-defined functions.

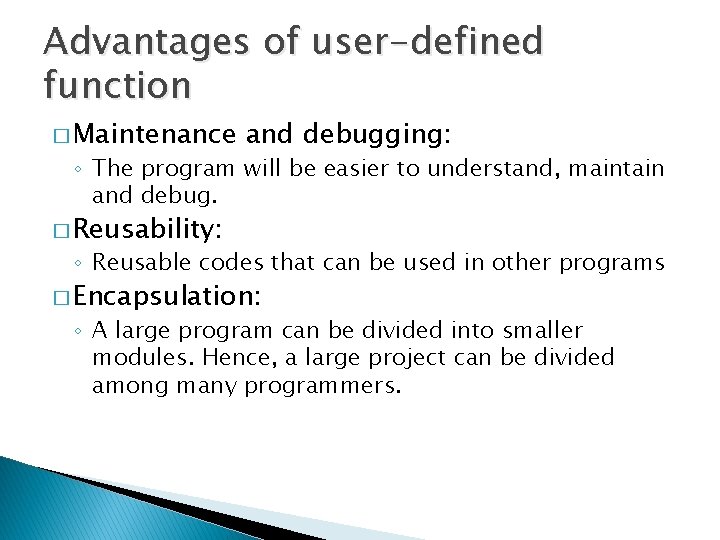

Advantages of user-defined function � Maintenance and debugging: ◦ The program will be easier to understand, maintain and debug. � Reusability: ◦ Reusable codes that can be used in other programs � Encapsulation: ◦ A large program can be divided into smaller modules. Hence, a large project can be divided among many programmers.

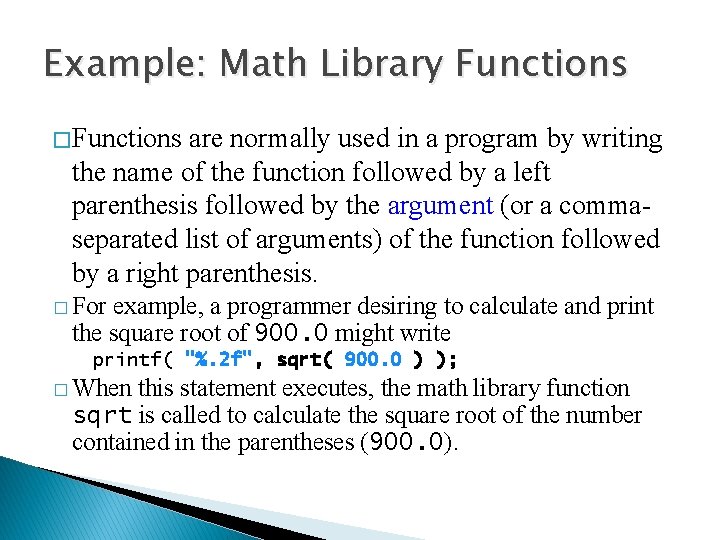

Example: Math Library Functions � Functions are normally used in a program by writing the name of the function followed by a left parenthesis followed by the argument (or a commaseparated list of arguments) of the function followed by a right parenthesis. � For example, a programmer desiring to calculate and print the square root of 900. 0 might write printf( "%. 2 f", sqrt( 900. 0 ) ); � When this statement executes, the math library function sqrt is called to calculate the square root of the number contained in the parentheses (900. 0).

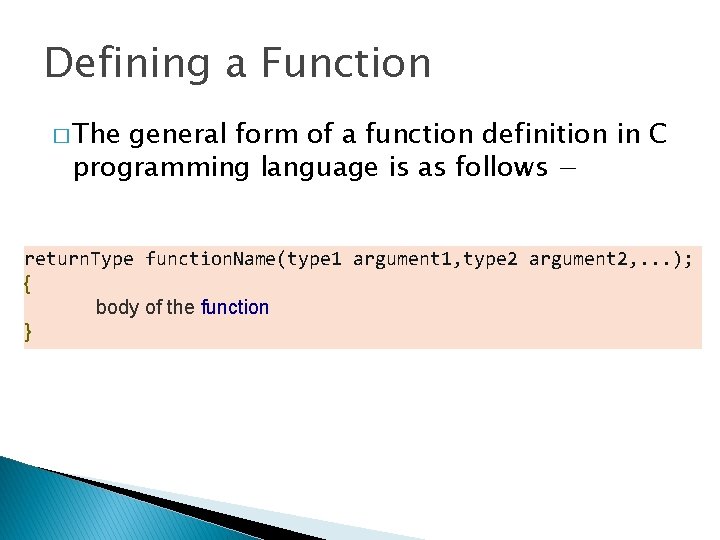

Defining a Function � The general form of a function definition in C programming language is as follows − return. Type function. Name(type 1 argument 1, type 2 argument 2, . . . ); { body of the function }

Defining a Function (cont. ) Return Type − A function may return a value. The return_type is the data type of the value the function returns. Some functions perform the desired operations without returning a value. In this case, the return_type is the keyword void. � Function Name − This is the actual name of the function. The function name and the parameter list together constitute the function signature. � Parameters − A parameter is like a placeholder. When a function is invoked, you pass a value to the parameter. This value is referred to as actual parameter or argument. The parameter list refers to the type, order, and number of the parameters of a function. Parameters are optional; that is, a function may contain no parameters. � Function Body − The function body contains a collection of statements that define what the function does. �

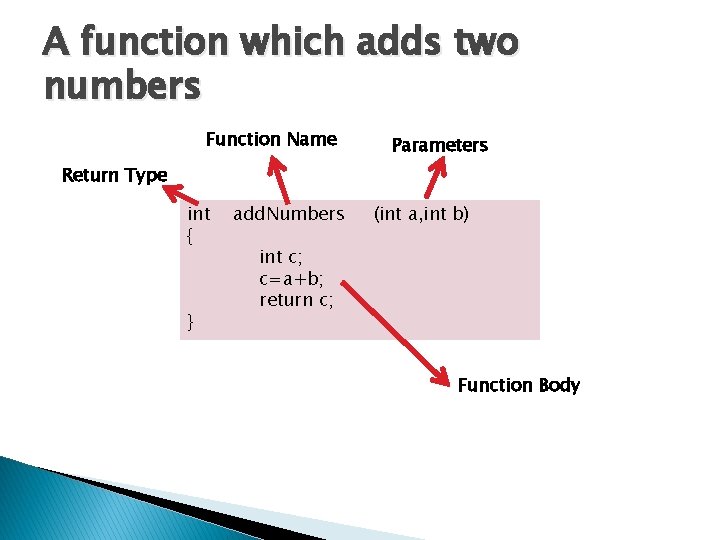

A function which adds two numbers Function Name Parameters Return Type int { } add. Numbers (int a, int b) int c; c=a+b; return c; Function Body

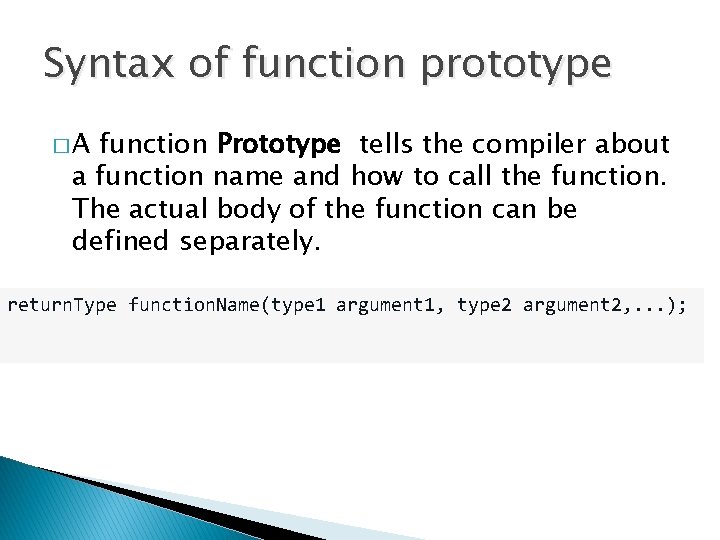

Syntax of function prototype �A function Prototype tells the compiler about a function name and how to call the function. The actual body of the function can be defined separately. return. Type function. Name(type 1 argument 1, type 2 argument 2, . . . );

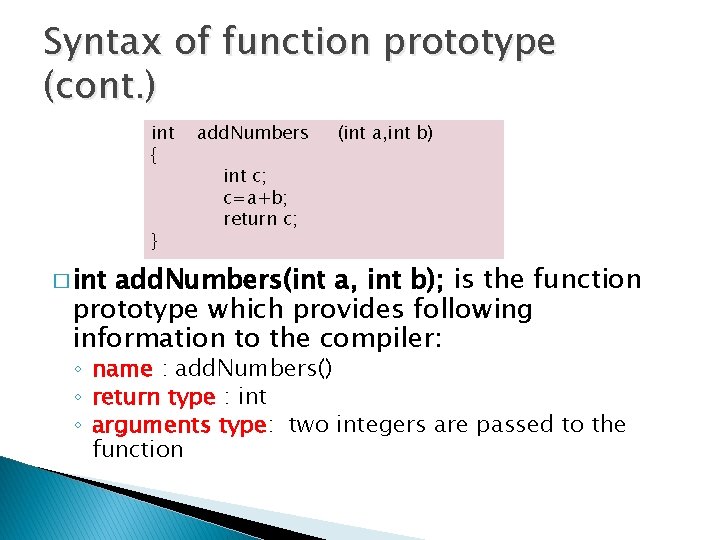

Syntax of function prototype (cont. ) int { } add. Numbers (int a, int b) int c; c=a+b; return c; � int add. Numbers(int a, int b); is the function prototype which provides following information to the compiler: ◦ name : add. Numbers() ◦ return type : int ◦ arguments type: two integers are passed to the function

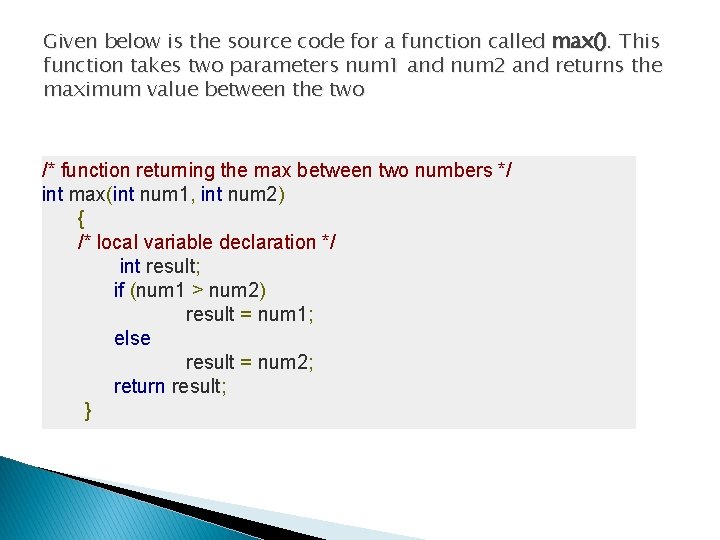

Given below is the source code for a function called max(). This function takes two parameters num 1 and num 2 and returns the maximum value between the two /* function returning the max between two numbers */ int max(int num 1, int num 2) { /* local variable declaration */ int result; if (num 1 > num 2) result = num 1; else result = num 2; return result; }

Two methods of Using functions #include <stdio. h> Function definition int main() {. . . function. Name(); . . . } #include <stdio. h> Function prototype; int main() {. . . function. Name(); . . . } Function definition

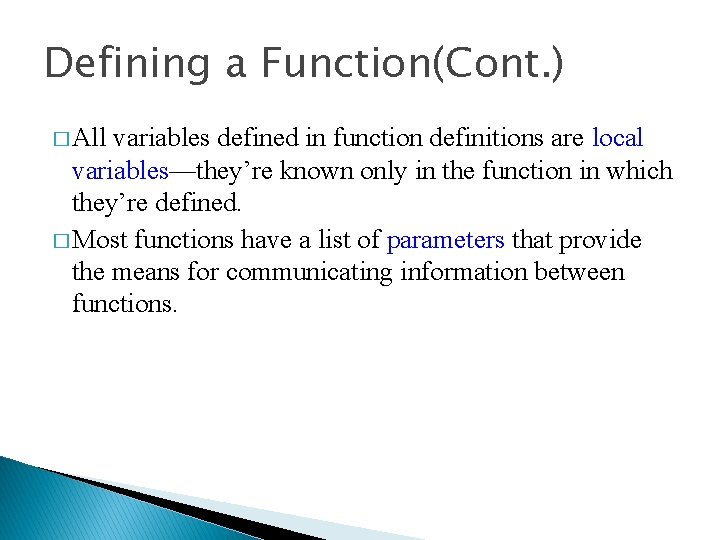

Defining a Function(Cont. ) � All variables defined in function definitions are local variables—they’re known only in the function in which they’re defined. � Most functions have a list of parameters that provide the means for communicating information between functions.

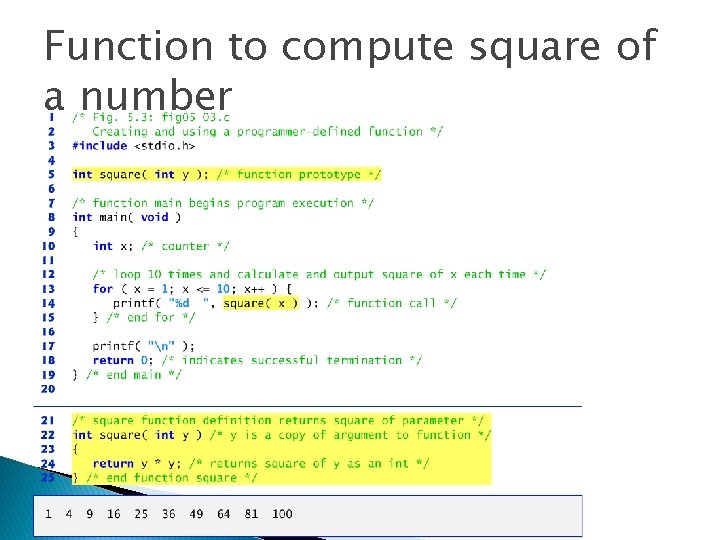

Function to compute square of a number

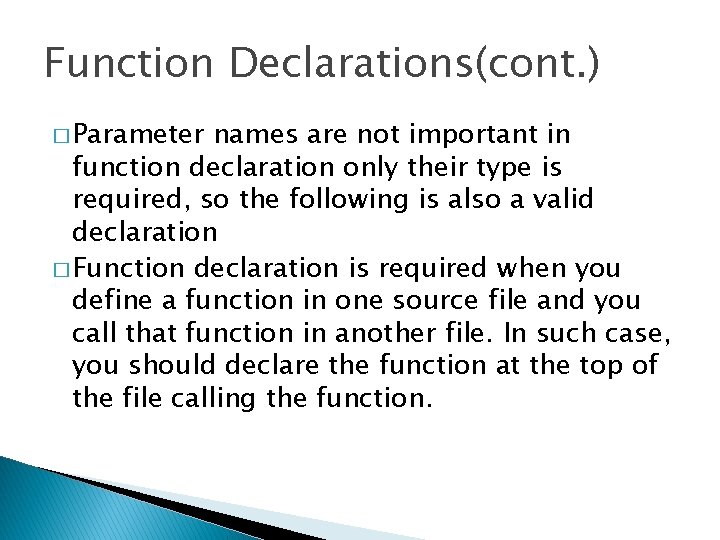

Function Declarations(cont. ) � Parameter names are not important in function declaration only their type is required, so the following is also a valid declaration � Function declaration is required when you define a function in one source file and you call that function in another file. In such case, you should declare the function at the top of the file calling the function.

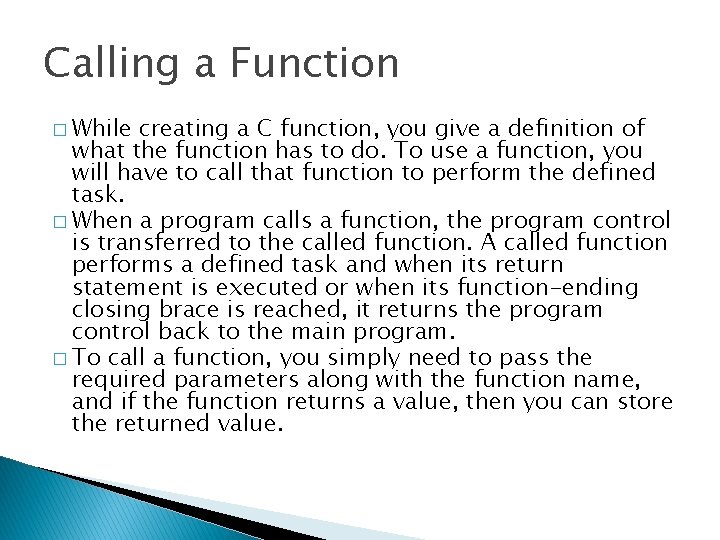

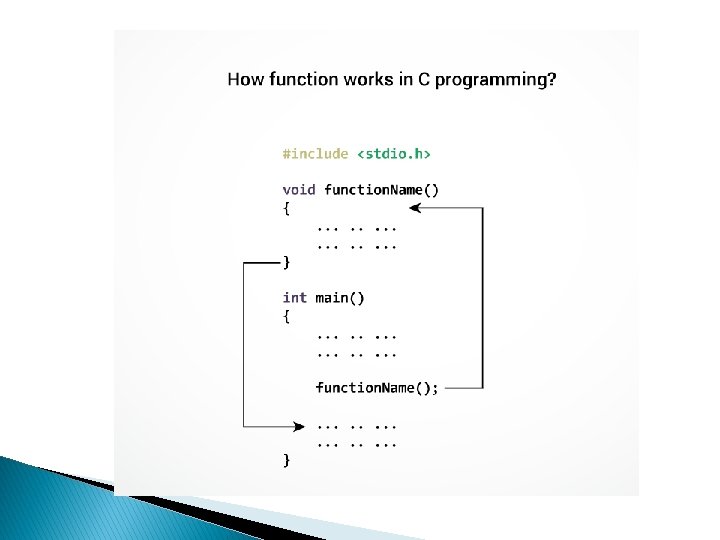

Calling a Function � While creating a C function, you give a definition of what the function has to do. To use a function, you will have to call that function to perform the defined task. � When a program calls a function, the program control is transferred to the called function. A called function performs a defined task and when its return statement is executed or when its function-ending closing brace is reached, it returns the program control back to the main program. � To call a function, you simply need to pass the required parameters along with the function name, and if the function returns a value, then you can store the returned value.

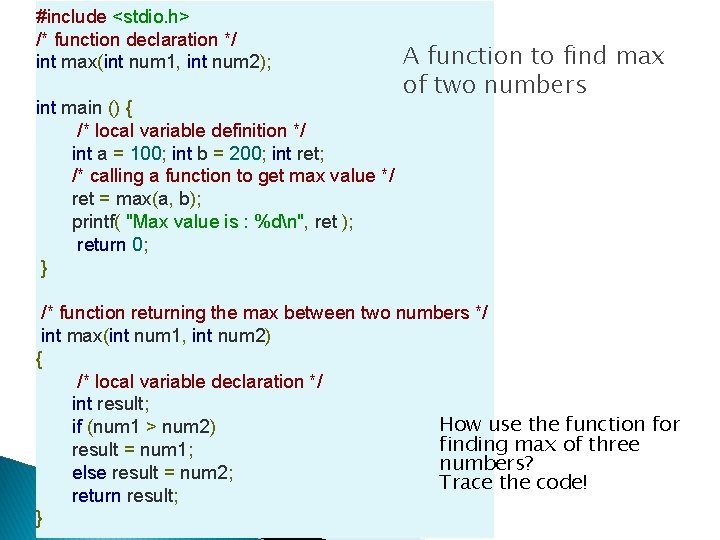

#include <stdio. h> /* function declaration */ int max(int num 1, int num 2); int main () { /* local variable definition */ int a = 100; int b = 200; int ret; /* calling a function to get max value */ ret = max(a, b); printf( "Max value is : %dn", ret ); return 0; } A function to find max of two numbers /* function returning the max between two numbers */ int max(int num 1, int num 2) { /* local variable declaration */ int result; How use the function for if (num 1 > num 2) finding max of three result = num 1; numbers? else result = num 2; Trace the code! return result; }

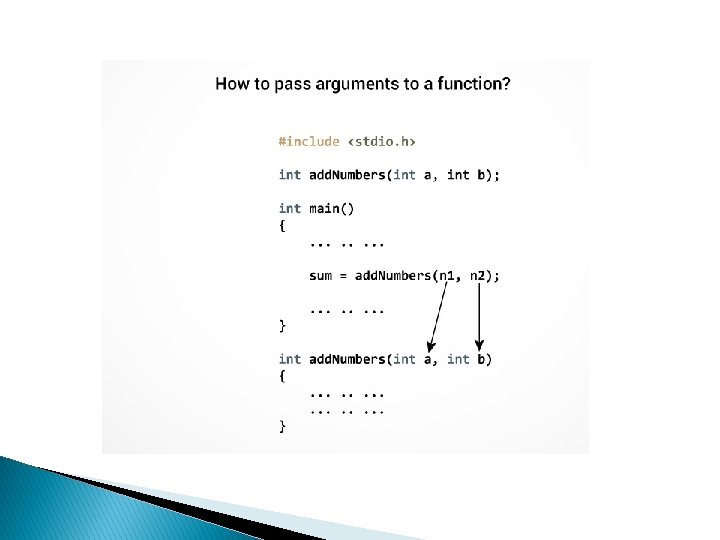

Passing arguments to a function � In programming, argument refers to the variable passed to the function. � The parameters a and b accepts the passed arguments in the function definition. These arguments are called formal parameters of the function. � The type of arguments passed to a function and the formal parameters must match, otherwise the compiler throws error. � If n 1 is of char type, a also should be of char type. If n 2 is of float type, variable b also should be of float type. � A function can also be called without passing an argument.

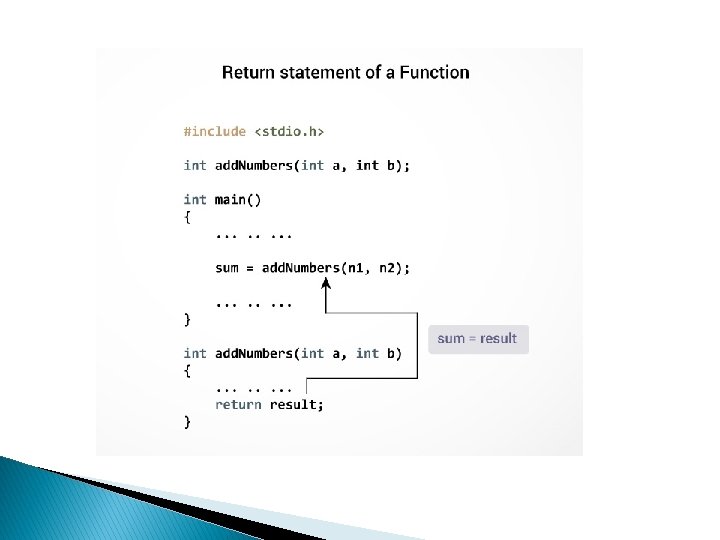

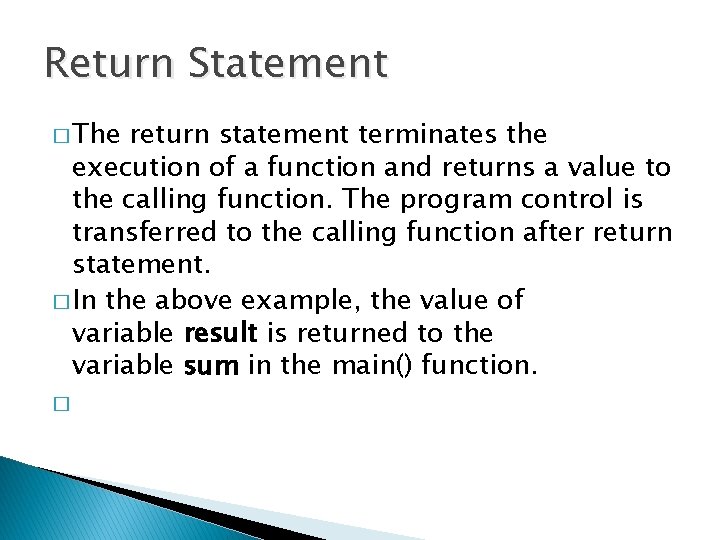

Return Statement � The return statement terminates the execution of a function and returns a value to the calling function. The program control is transferred to the calling function after return statement. � In the above example, the value of variable result is returned to the variable sum in the main() function. �

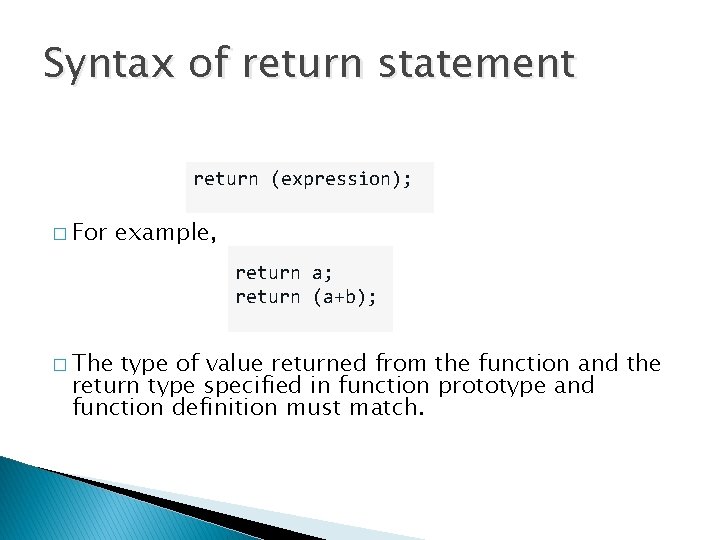

Syntax of return statement return (expression); � For example, return a; return (a+b); � The type of value returned from the function and the return type specified in function prototype and function definition must match.

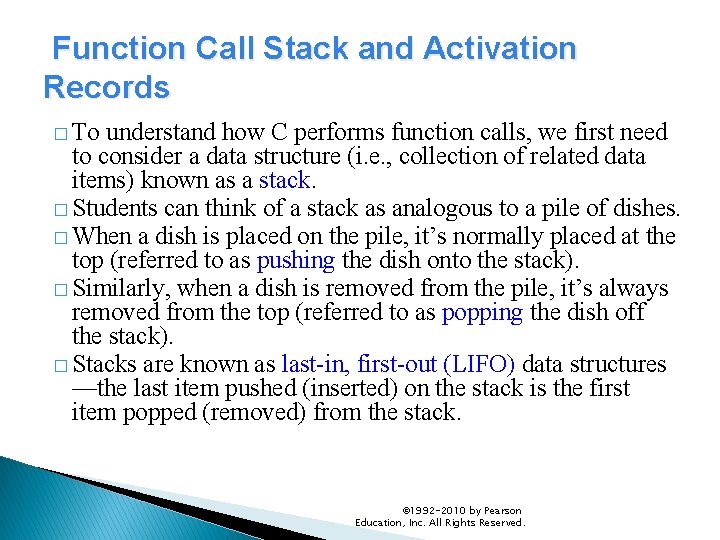

Function Call Stack and Activation Records � To understand how C performs function calls, we first need to consider a data structure (i. e. , collection of related data items) known as a stack. � Students can think of a stack as analogous to a pile of dishes. � When a dish is placed on the pile, it’s normally placed at the top (referred to as pushing the dish onto the stack). � Similarly, when a dish is removed from the pile, it’s always removed from the top (referred to as popping the dish off the stack). � Stacks are known as last-in, first-out (LIFO) data structures —the last item pushed (inserted) on the stack is the first item popped (removed) from the stack. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

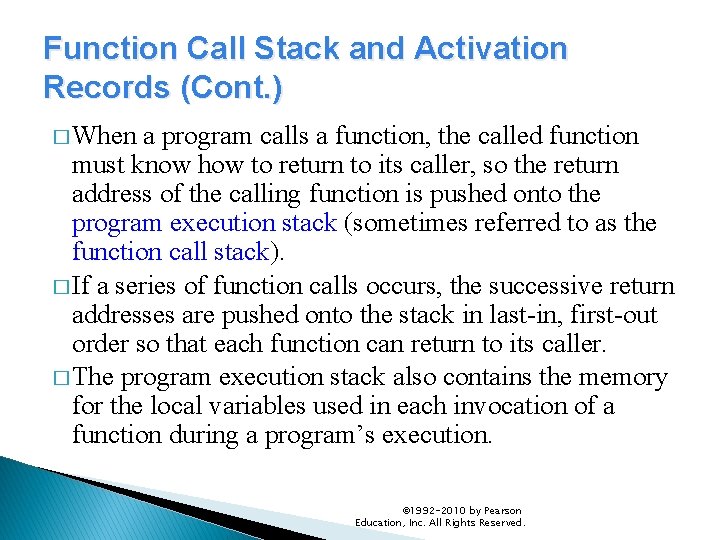

Function Call Stack and Activation Records (Cont. ) � When a program calls a function, the called function must know how to return to its caller, so the return address of the calling function is pushed onto the program execution stack (sometimes referred to as the function call stack). � If a series of function calls occurs, the successive return addresses are pushed onto the stack in last-in, first-out order so that each function can return to its caller. � The program execution stack also contains the memory for the local variables used in each invocation of a function during a program’s execution. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

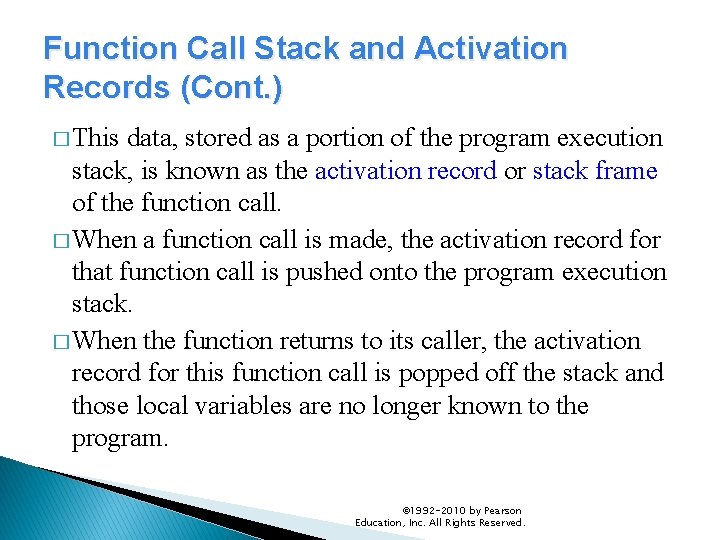

Function Call Stack and Activation Records (Cont. ) � This data, stored as a portion of the program execution stack, is known as the activation record or stack frame of the function call. � When a function call is made, the activation record for that function call is pushed onto the program execution stack. � When the function returns to its caller, the activation record for this function call is popped off the stack and those local variables are no longer known to the program. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

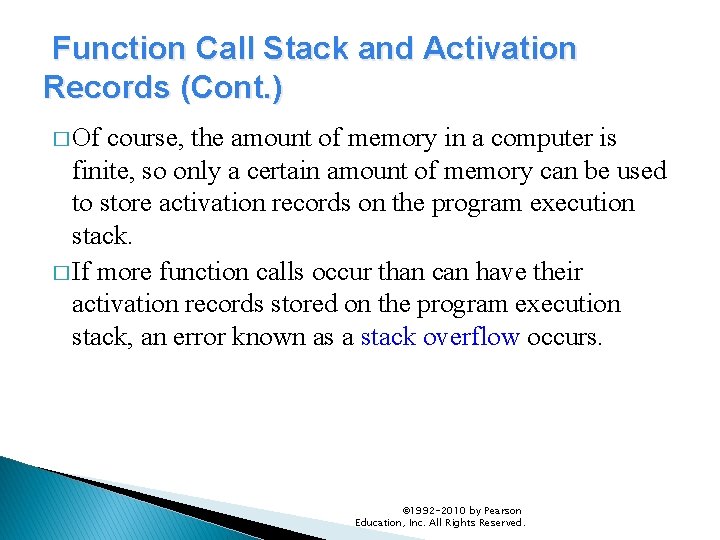

Function Call Stack and Activation Records (Cont. ) � Of course, the amount of memory in a computer is finite, so only a certain amount of memory can be used to store activation records on the program execution stack. � If more function calls occur than can have their activation records stored on the program execution stack, an error known as a stack overflow occurs. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

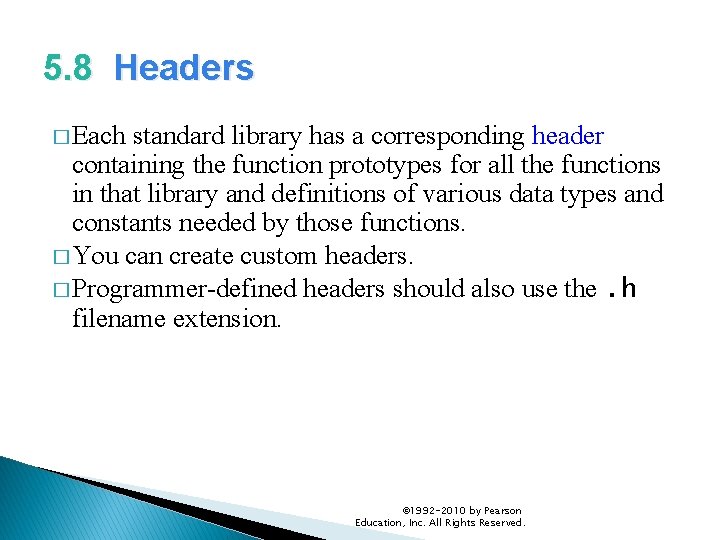

5. 8 Headers � Each standard library has a corresponding header containing the function prototypes for all the functions in that library and definitions of various data types and constants needed by those functions. � You can create custom headers. � Programmer-defined headers should also use the. h filename extension. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

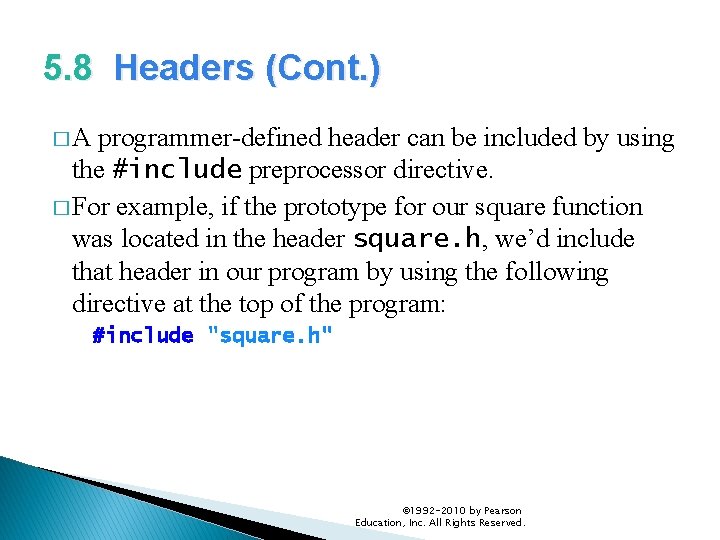

5. 8 Headers (Cont. ) � A programmer-defined header can be included by using the #include preprocessor directive. � For example, if the prototype for our square function was located in the header square. h, we’d include that header in our program by using the following directive at the top of the program: #include "square. h" © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

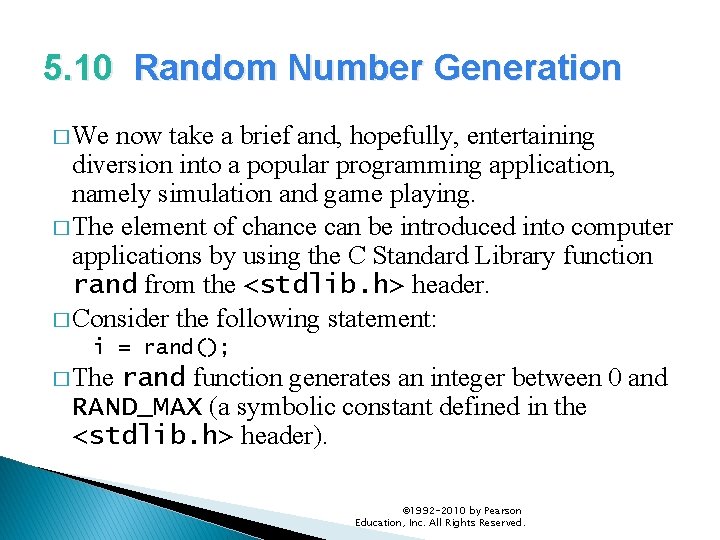

5. 10 Random Number Generation � We now take a brief and, hopefully, entertaining diversion into a popular programming application, namely simulation and game playing. � The element of chance can be introduced into computer applications by using the C Standard Library function rand from the <stdlib. h> header. � Consider the following statement: i = rand(); � The rand function generates an integer between 0 and RAND_MAX (a symbolic constant defined in the <stdlib. h> header). © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

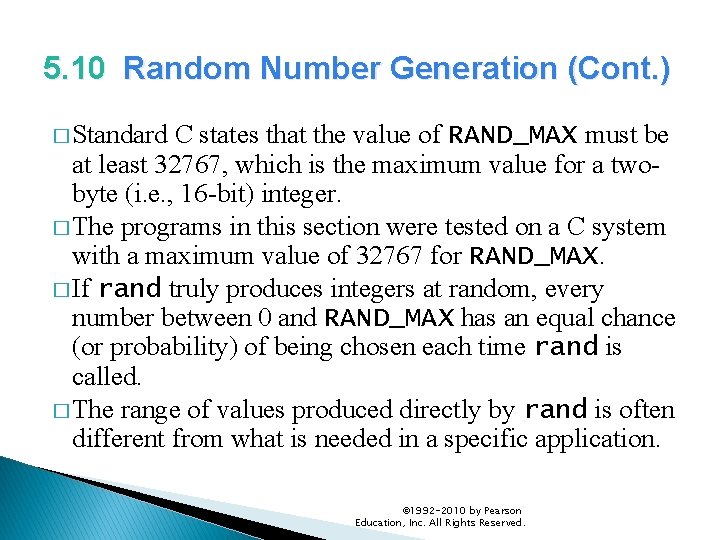

5. 10 Random Number Generation (Cont. ) � Standard C states that the value of RAND_MAX must be at least 32767, which is the maximum value for a twobyte (i. e. , 16 -bit) integer. � The programs in this section were tested on a C system with a maximum value of 32767 for RAND_MAX. � If rand truly produces integers at random, every number between 0 and RAND_MAX has an equal chance (or probability) of being chosen each time rand is called. � The range of values produced directly by rand is often different from what is needed in a specific application. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

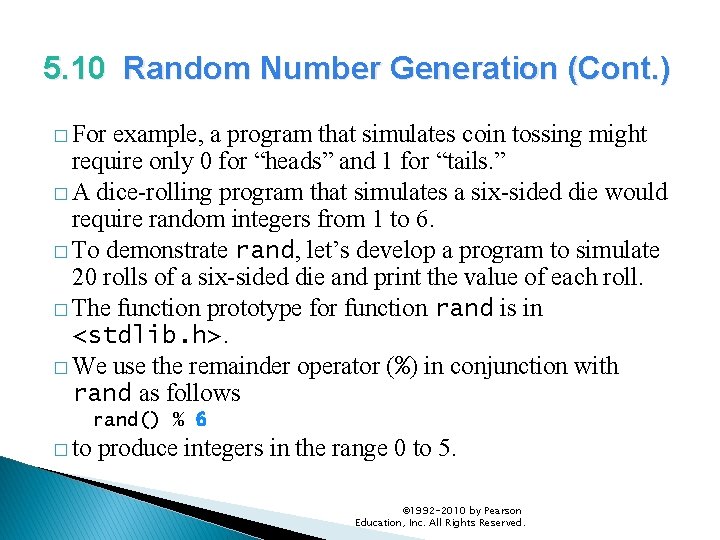

5. 10 Random Number Generation (Cont. ) � For example, a program that simulates coin tossing might require only 0 for “heads” and 1 for “tails. ” � A dice-rolling program that simulates a six-sided die would require random integers from 1 to 6. � To demonstrate rand, let’s develop a program to simulate 20 rolls of a six-sided die and print the value of each roll. � The function prototype for function rand is in <stdlib. h>. � We use the remainder operator (%) in conjunction with rand as follows rand() % 6 � to produce integers in the range 0 to 5. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

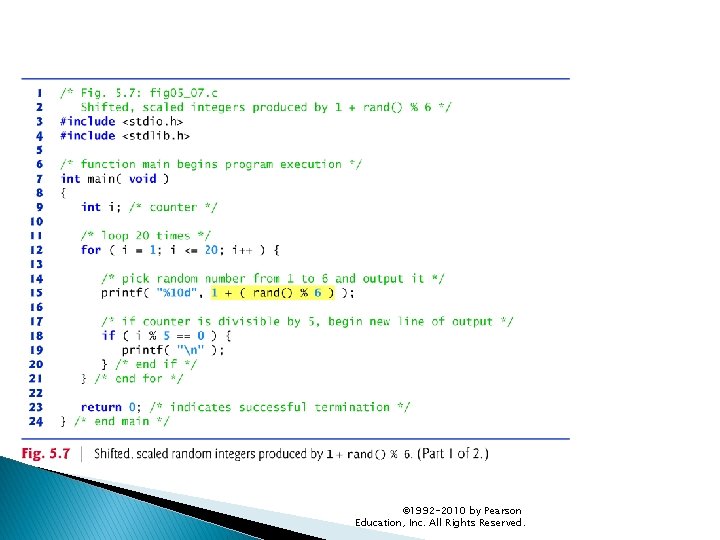

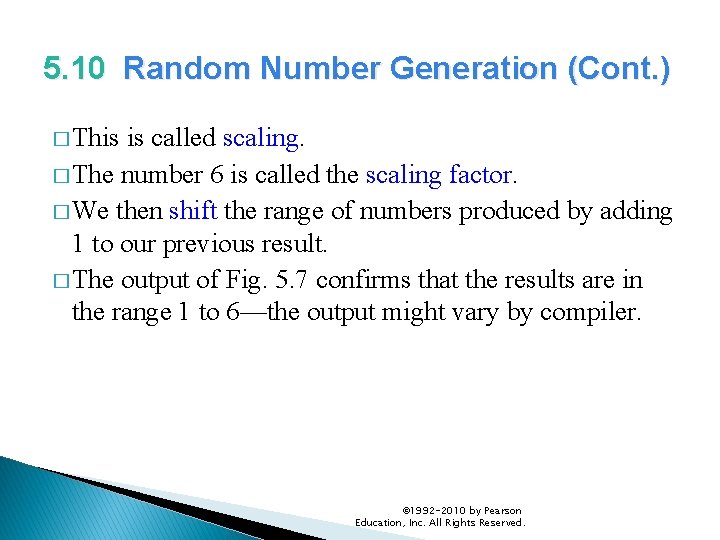

5. 10 Random Number Generation (Cont. ) � This is called scaling. � The number 6 is called the scaling factor. � We then shift the range of numbers produced by adding 1 to our previous result. � The output of Fig. 5. 7 confirms that the results are in the range 1 to 6—the output might vary by compiler. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

© 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

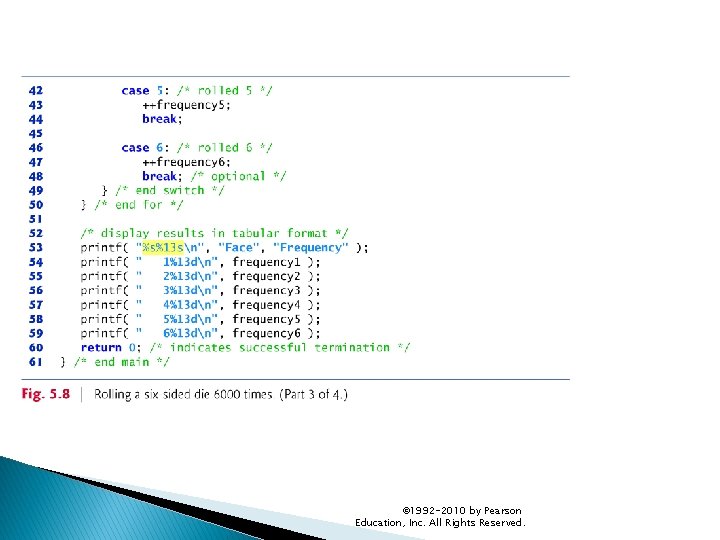

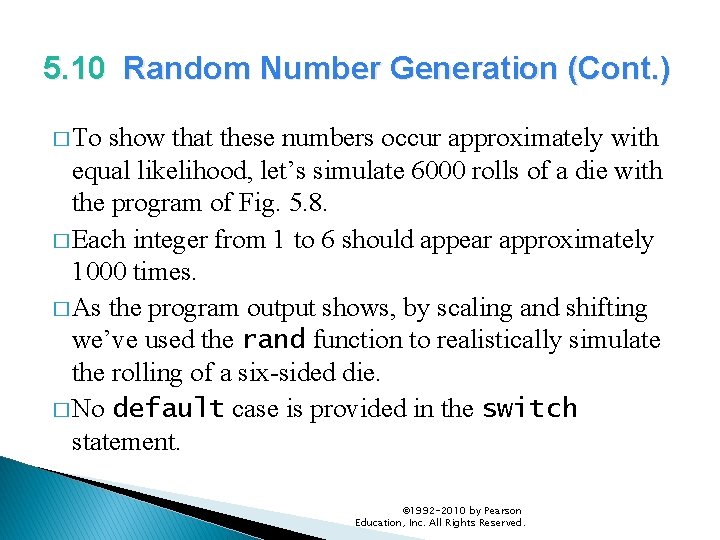

5. 10 Random Number Generation (Cont. ) � To show that these numbers occur approximately with equal likelihood, let’s simulate 6000 rolls of a die with the program of Fig. 5. 8. � Each integer from 1 to 6 should appear approximately 1000 times. � As the program output shows, by scaling and shifting we’ve used the rand function to realistically simulate the rolling of a six-sided die. � No default case is provided in the switch statement. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

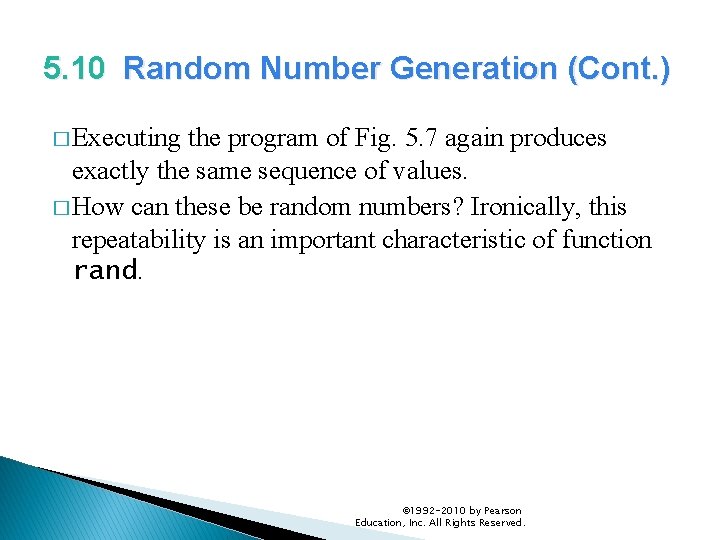

5. 10 Random Number Generation (Cont. ) � Executing the program of Fig. 5. 7 again produces exactly the same sequence of values. � How can these be random numbers? Ironically, this repeatability is an important characteristic of function rand. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

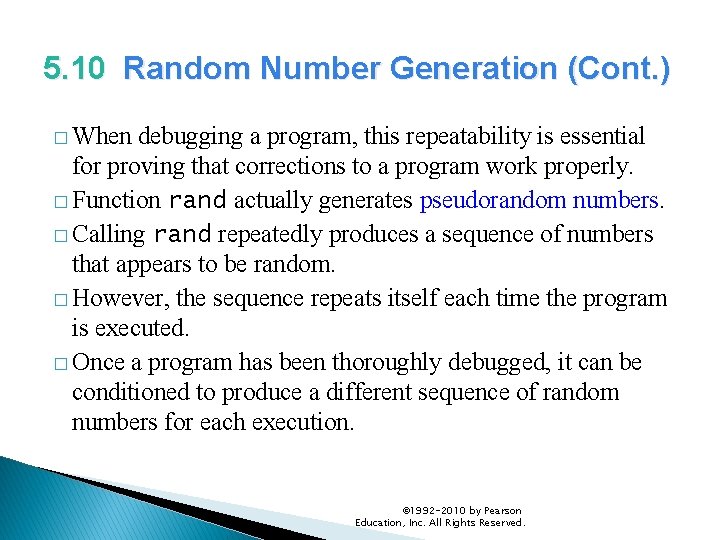

5. 10 Random Number Generation (Cont. ) � When debugging a program, this repeatability is essential for proving that corrections to a program work properly. � Function rand actually generates pseudorandom numbers. � Calling rand repeatedly produces a sequence of numbers that appears to be random. � However, the sequence repeats itself each time the program is executed. � Once a program has been thoroughly debugged, it can be conditioned to produce a different sequence of random numbers for each execution. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

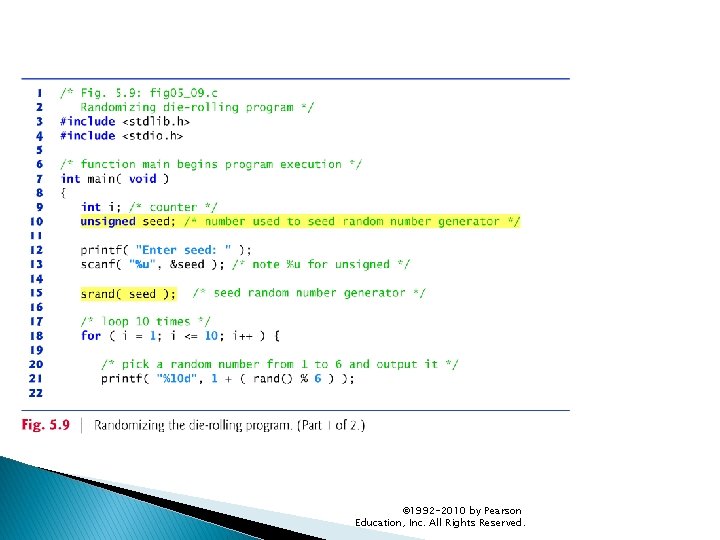

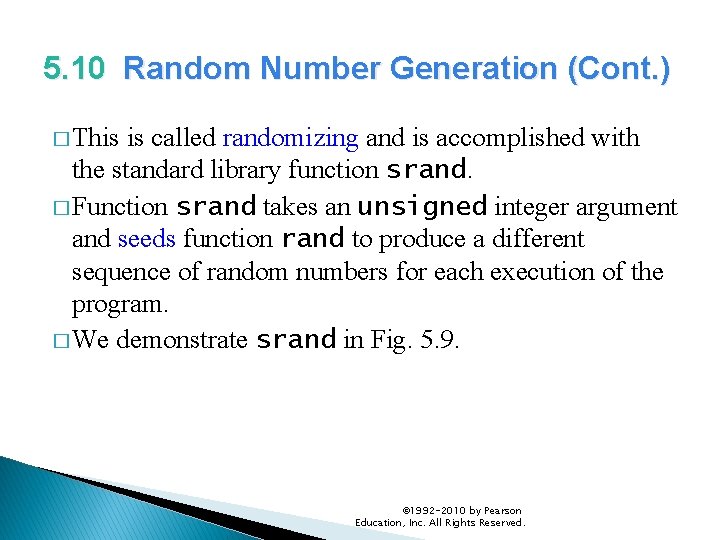

5. 10 Random Number Generation (Cont. ) � This is called randomizing and is accomplished with the standard library function srand. � Function srand takes an unsigned integer argument and seeds function rand to produce a different sequence of random numbers for each execution of the program. � We demonstrate srand in Fig. 5. 9. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

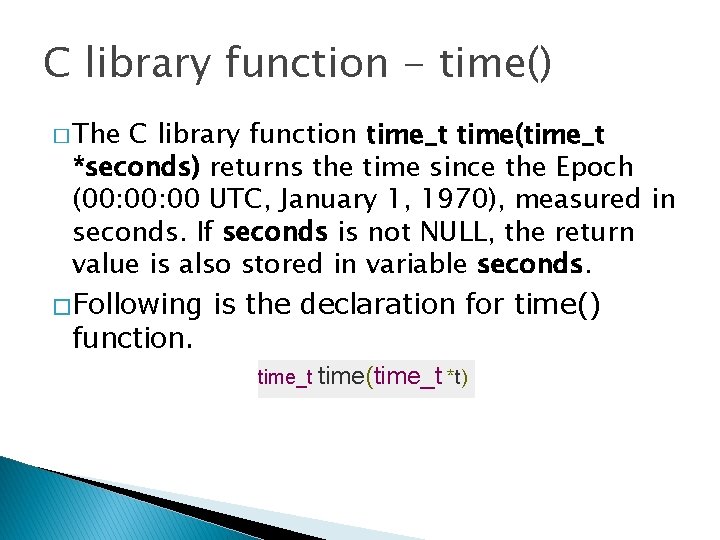

C library function - time() � The C library function time_t time(time_t *seconds) returns the time since the Epoch (00: 00 UTC, January 1, 1970), measured in seconds. If seconds is not NULL, the return value is also stored in variable seconds. � Following function. is the declaration for time() time_t time(time_t *t)

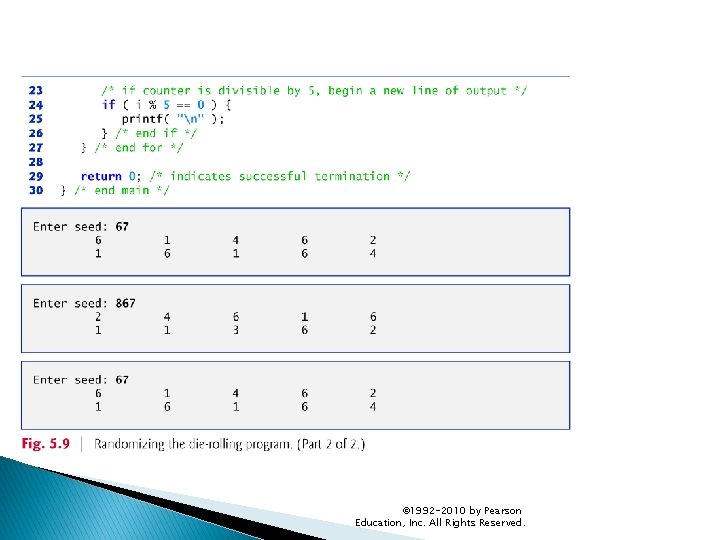

5. 10 Random Number Generation (Cont. ) � Let’s run the program several times and observe the results. � Notice that a different sequence of random numbers is obtained each time the program is run, provided that a different seed is supplied. � To randomize without entering a seed each time, use a statement like srand( time( NULL ) ); � This causes the computer to read its clock to obtain the value for the seed automatically. � Function time returns the number of seconds that have passed since midnight on January 1, 1970. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

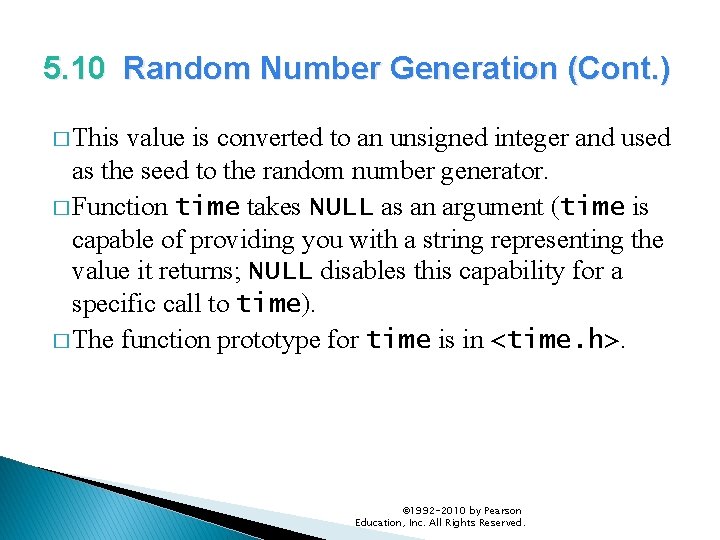

5. 10 Random Number Generation (Cont. ) � This value is converted to an unsigned integer and used as the seed to the random number generator. � Function time takes NULL as an argument (time is capable of providing you with a string representing the value it returns; NULL disables this capability for a specific call to time). � The function prototype for time is in <time. h>. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

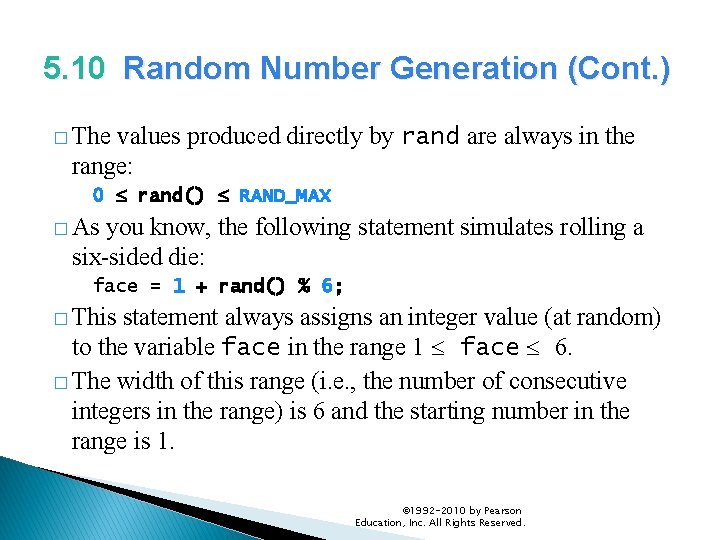

5. 10 Random Number Generation (Cont. ) � The values produced directly by rand are always in the range: 0 £ rand() £ RAND_MAX � As you know, the following statement simulates rolling a six-sided die: face = 1 + rand() % 6; � This statement always assigns an integer value (at random) to the variable face in the range 1 £ face £ 6. � The width of this range (i. e. , the number of consecutive integers in the range) is 6 and the starting number in the range is 1. © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

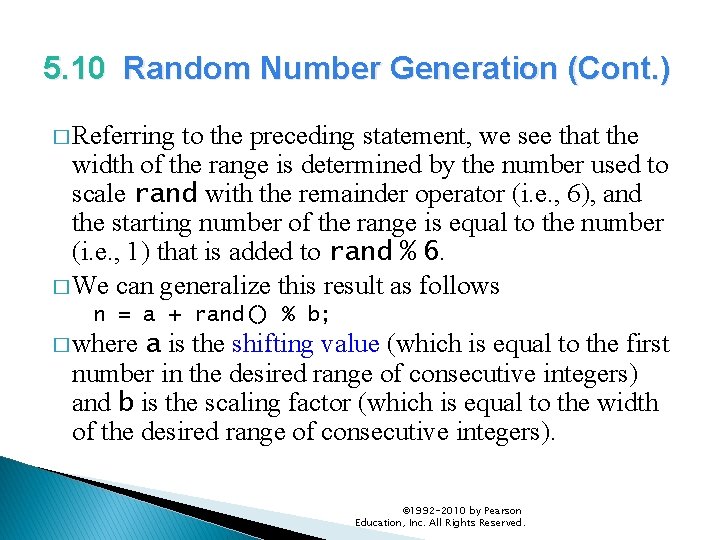

5. 10 Random Number Generation (Cont. ) � Referring to the preceding statement, we see that the width of the range is determined by the number used to scale rand with the remainder operator (i. e. , 6), and the starting number of the range is equal to the number (i. e. , 1) that is added to rand % 6. � We can generalize this result as follows n = a + rand() % b; � where a is the shifting value (which is equal to the first number in the desired range of consecutive integers) and b is the scaling factor (which is equal to the width of the desired range of consecutive integers). © 1992 -2010 by Pearson Education, Inc. All Rights Reserved.

$Get current system time #include <stdio. h> #include<time. h> int main() { time_t t=time(NULL);$

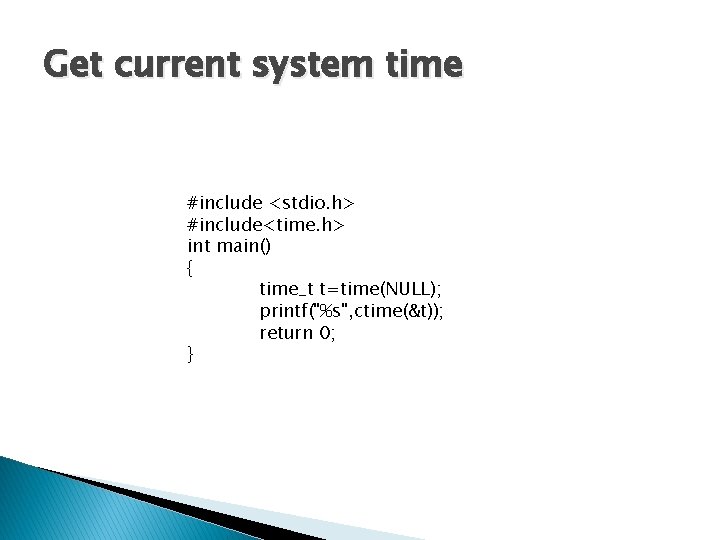

Get current system time #include <stdio. h> #include<time. h> int main() { time_t t=time(NULL); printf("%s", ctime(&t)); return 0; }

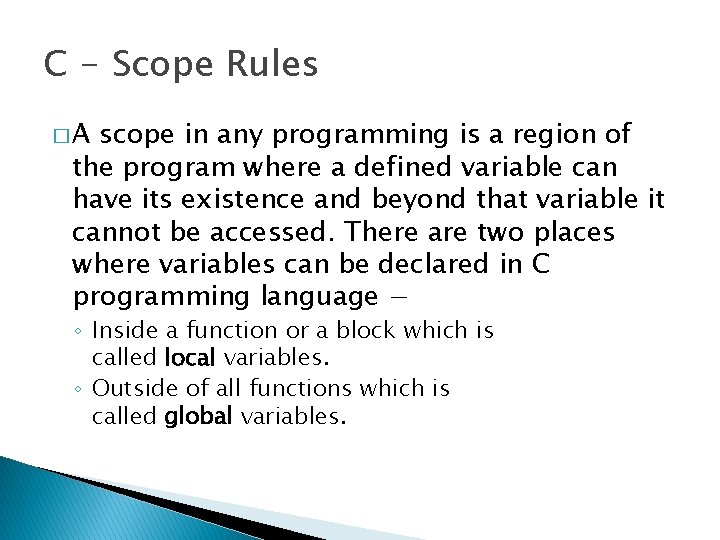

C - Scope Rules �A scope in any programming is a region of the program where a defined variable can have its existence and beyond that variable it cannot be accessed. There are two places where variables can be declared in C programming language − ◦ Inside a function or a block which is called local variables. ◦ Outside of all functions which is called global variables.

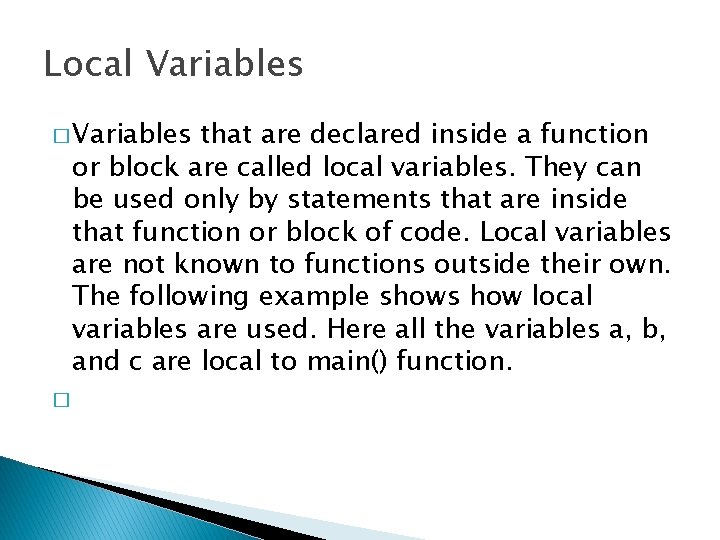

Local Variables � Variables that are declared inside a function or block are called local variables. They can be used only by statements that are inside that function or block of code. Local variables are not known to functions outside their own. The following example shows how local variables are used. Here all the variables a, b, and c are local to main() function. �

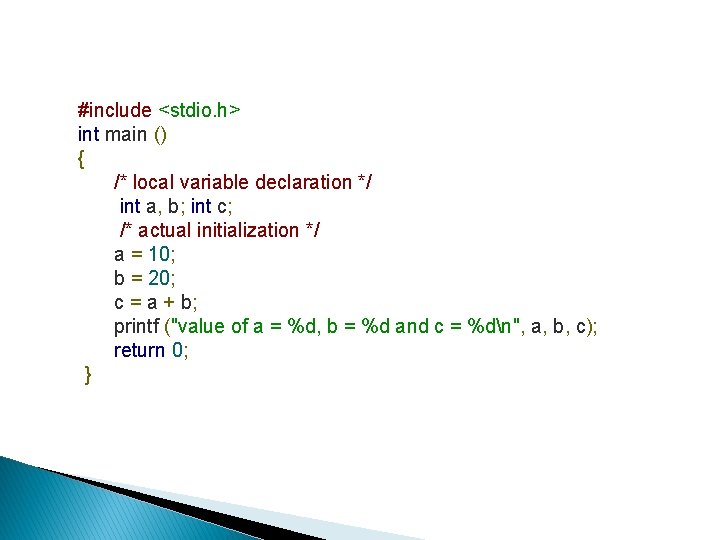

#include <stdio. h> int main () { /* local variable declaration */ int a, b; int c; /* actual initialization */ a = 10; b = 20; c = a + b; printf ("value of a = %d, b = %d and c = %dn", a, b, c); return 0; }

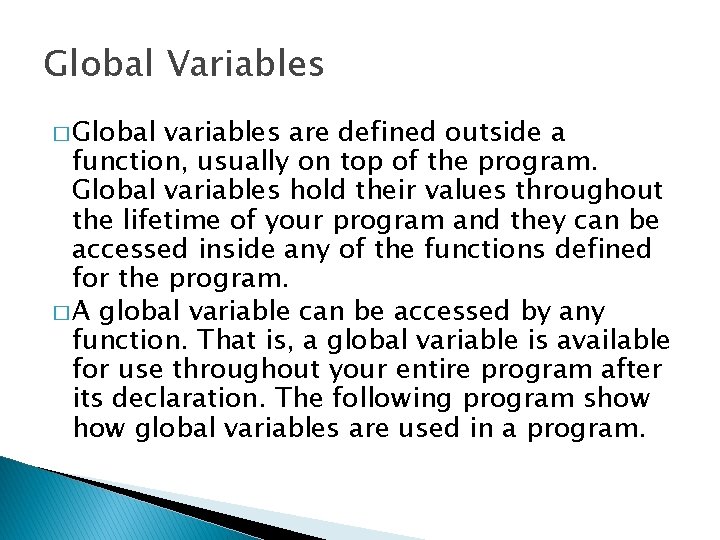

Global Variables � Global variables are defined outside a function, usually on top of the program. Global variables hold their values throughout the lifetime of your program and they can be accessed inside any of the functions defined for the program. � A global variable can be accessed by any function. That is, a global variable is available for use throughout your entire program after its declaration. The following program show global variables are used in a program.

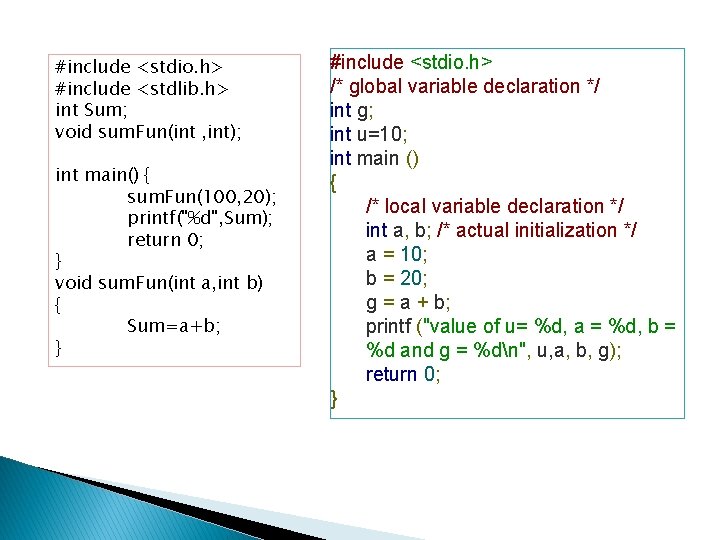

#include <stdio. h> #include <stdlib. h> int Sum; void sum. Fun(int , int); int main() { sum. Fun(100, 20); printf("%d", Sum); return 0; } void sum. Fun(int a, int b) { Sum=a+b; } #include <stdio. h> /* global variable declaration */ int g; int u=10; int main () { /* local variable declaration */ int a, b; /* actual initialization */ a = 10; b = 20; g = a + b; printf ("value of u= %d, a = %d, b = %d and g = %dn", u, a, b, g); return 0; }

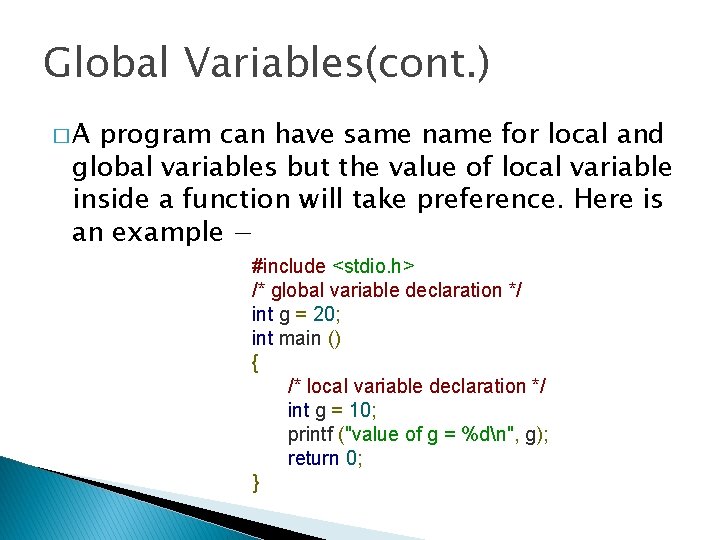

Global Variables(cont. ) �A program can have same name for local and global variables but the value of local variable inside a function will take preference. Here is an example − #include <stdio. h> /* global variable declaration */ int g = 20; int main () { /* local variable declaration */ int g = 10; printf ("value of g = %dn", g); return 0; }

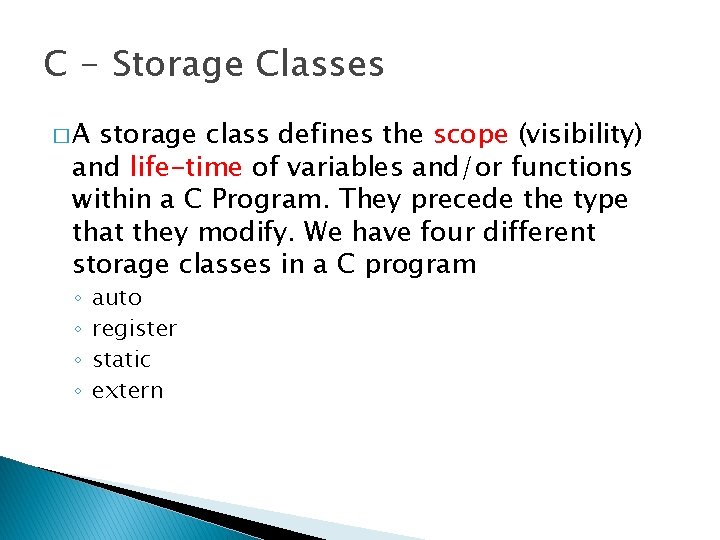

C - Storage Classes �A storage class defines the scope (visibility) and life-time of variables and/or functions within a C Program. They precede the type that they modify. We have four different storage classes in a C program ◦ ◦ auto register static extern

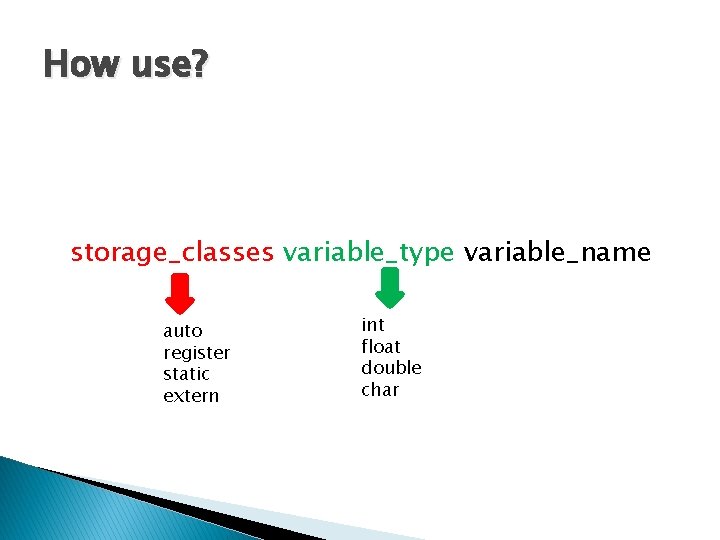

How use? storage_classes variable_type variable_name auto register static extern int float double char

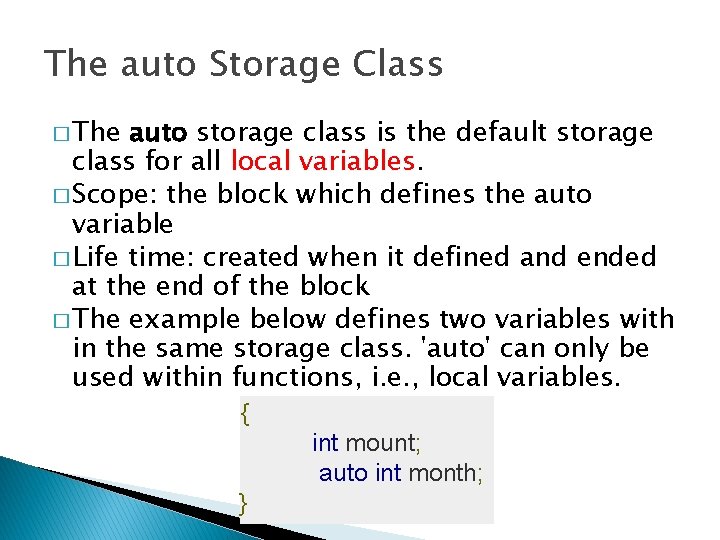

The auto Storage Class � The auto storage class is the default storage class for all local variables. � Scope: the block which defines the auto variable � Life time: created when it defined and ended at the end of the block � The example below defines two variables with in the same storage class. 'auto' can only be used within functions, i. e. , local variables. { int mount; auto int month; }

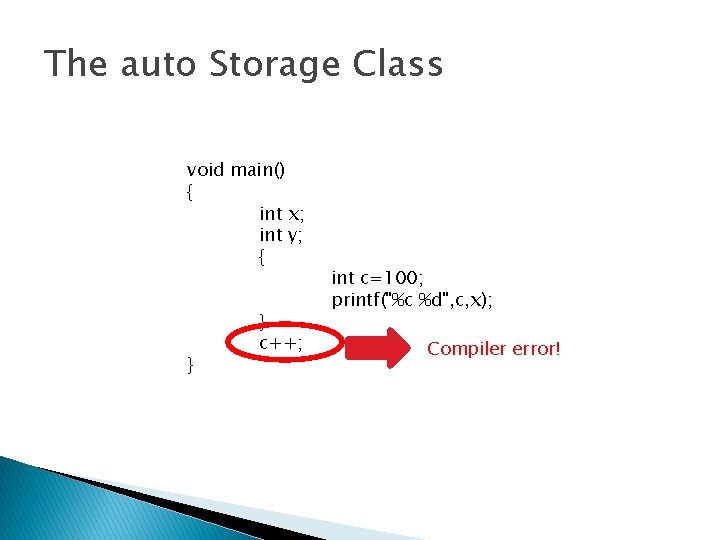

The auto Storage Class void main() { int x; int y; { } } c++; int c=100; printf("%c %d", c, x); Compiler error!

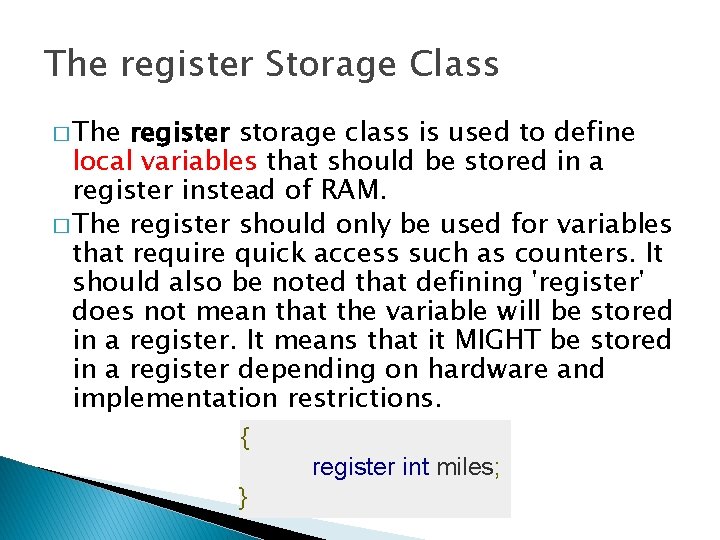

The register Storage Class � The register storage class is used to define local variables that should be stored in a register instead of RAM. � The register should only be used for variables that require quick access such as counters. It should also be noted that defining 'register' does not mean that the variable will be stored in a register. It means that it MIGHT be stored in a register depending on hardware and implementation restrictions. { register int miles; }

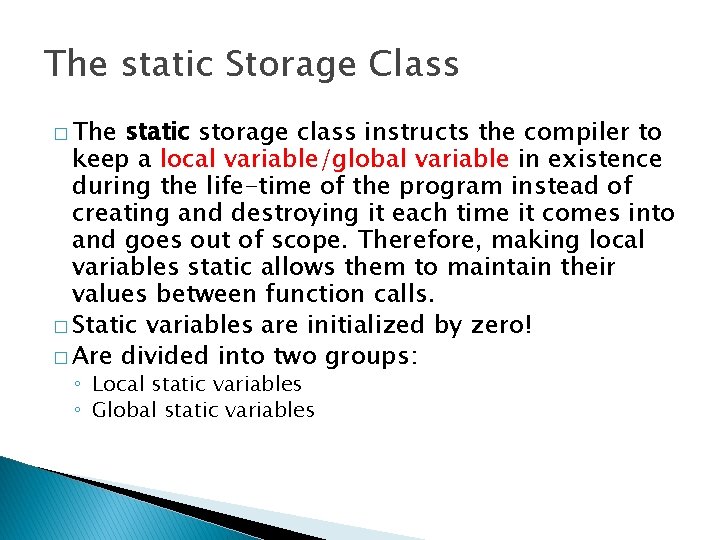

The static Storage Class � The static storage class instructs the compiler to keep a local variable/global variable in existence during the life-time of the program instead of creating and destroying it each time it comes into and goes out of scope. Therefore, making local variables static allows them to maintain their values between function calls. � Static variables are initialized by zero! � Are divided into two groups: ◦ Local static variables ◦ Global static variables

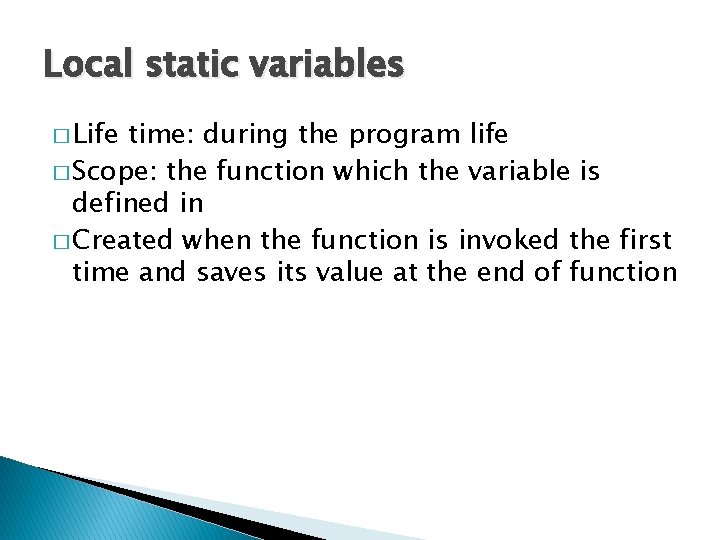

Local static variables � Life time: during the program life � Scope: the function which the variable is defined in � Created when the function is invoked the first time and saves its value at the end of function

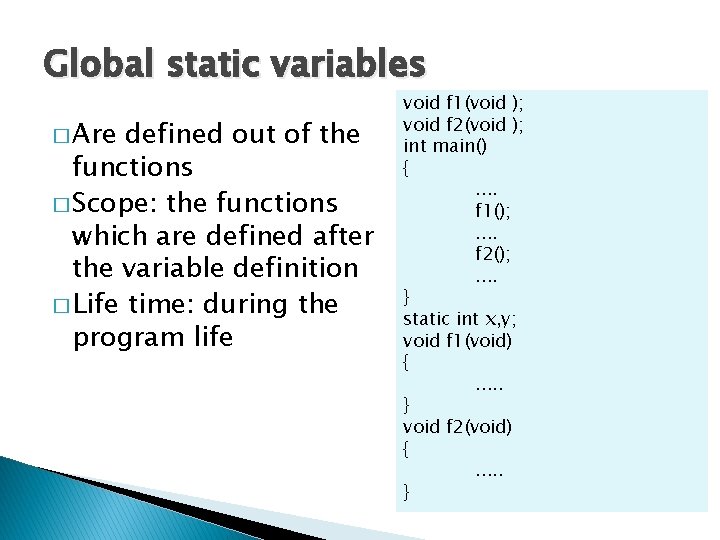

Global static variables � Are defined out of the functions � Scope: the functions which are defined after the variable definition � Life time: during the program life void f 1(void ); void f 2(void ); int main() {. . f 1(); . . f 2(); . . } static int x, y; void f 1(void) {. . . } void f 2(void) {. . . }

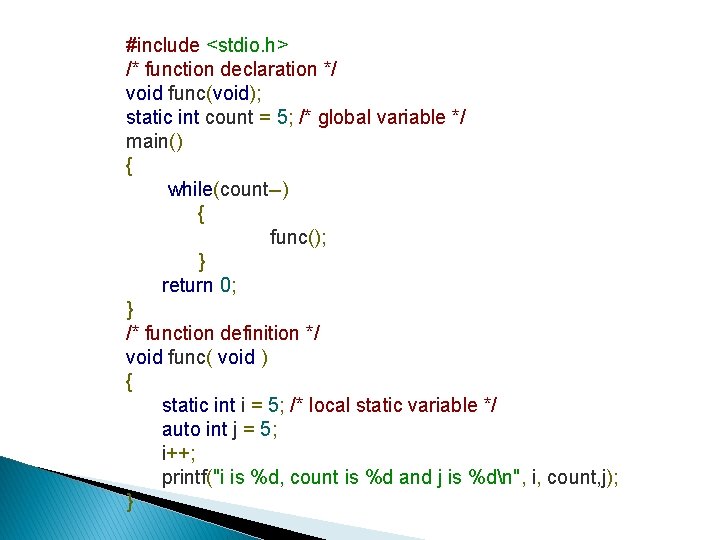

#include <stdio. h> /* function declaration */ void func(void); static int count = 5; /* global variable */ main() { while(count--) { func(); } return 0; } /* function definition */ void func( void ) { static int i = 5; /* local static variable */ auto int j = 5; i++; printf("i is %d, count is %d and j is %dn", i, count, j); }

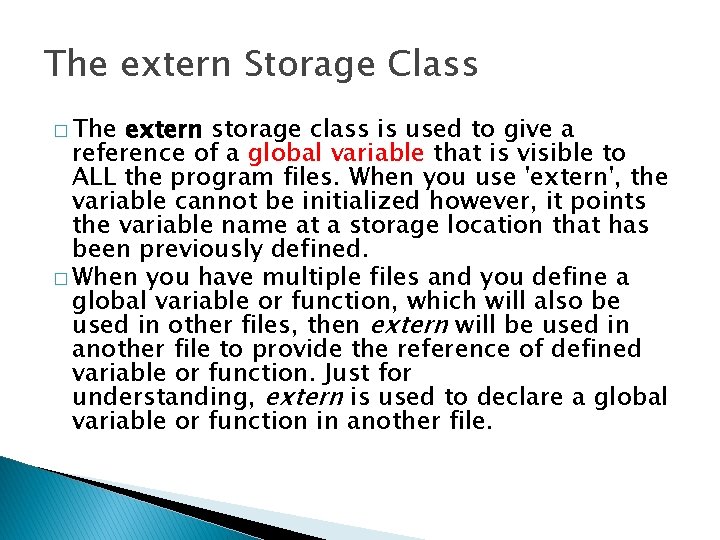

The extern Storage Class � The extern storage class is used to give a reference of a global variable that is visible to ALL the program files. When you use 'extern', the variable cannot be initialized however, it points the variable name at a storage location that has been previously defined. � When you have multiple files and you define a global variable or function, which will also be used in other files, then extern will be used in another file to provide the reference of defined variable or function. Just for understanding, extern is used to declare a global variable or function in another file.

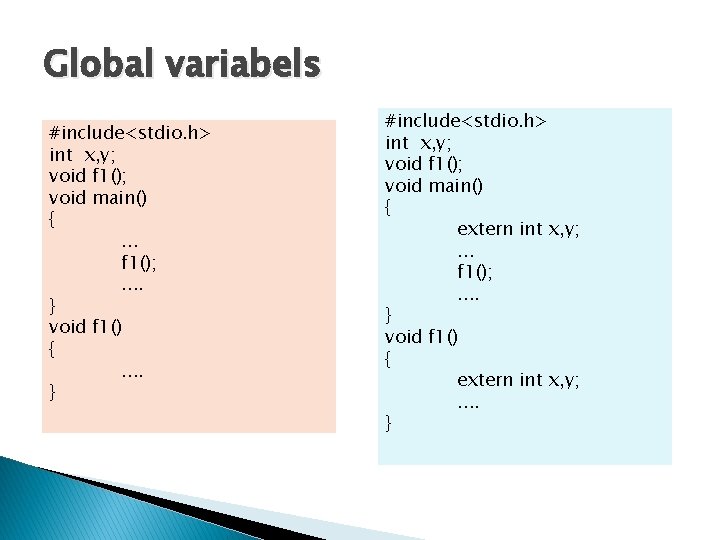

Global variabels #include<stdio. h> int x, y; void f 1(); void main() {. . . f 1(); . . } void f 1() {. . } #include<stdio. h> int x, y; void f 1(); void main() { extern int x, y; . . . f 1(); . . } void f 1() { extern int x, y; . . }

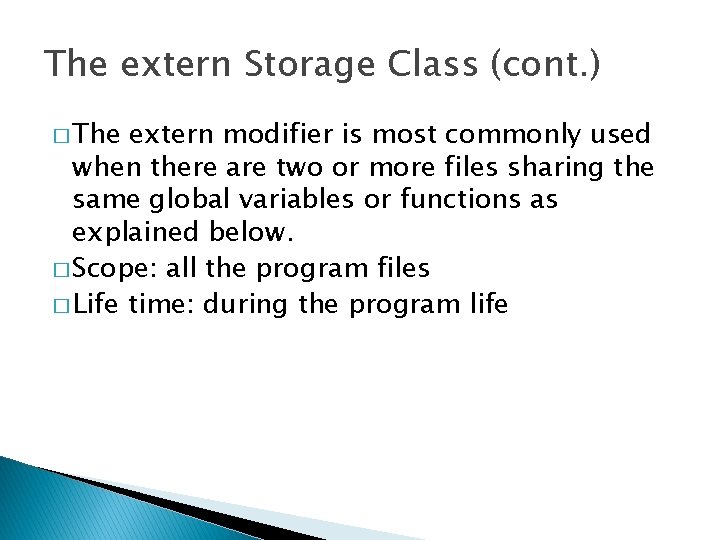

The extern Storage Class (cont. ) � The extern modifier is most commonly used when there are two or more files sharing the same global variables or functions as explained below. � Scope: all the program files � Life time: during the program life

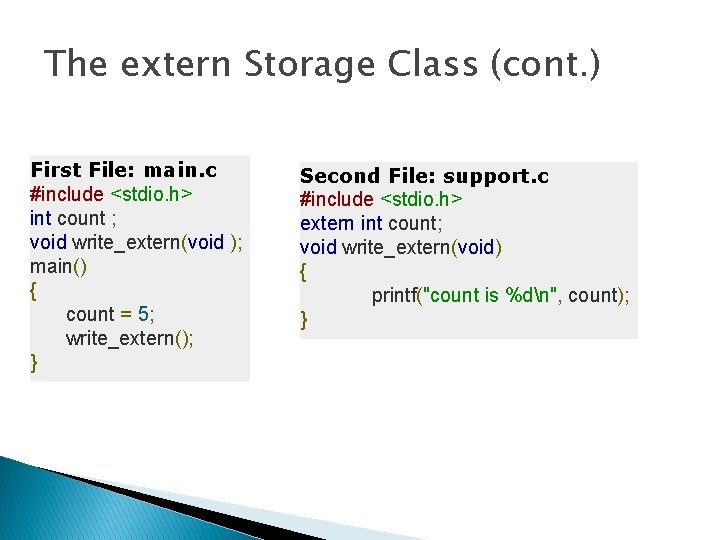

The extern Storage Class (cont. ) First File: main. c #include <stdio. h> int count ; void write_extern(void ); main() { count = 5; write_extern(); } Second File: support. c #include <stdio. h> extern int count; void write_extern(void) { printf("count is %dn", count); }

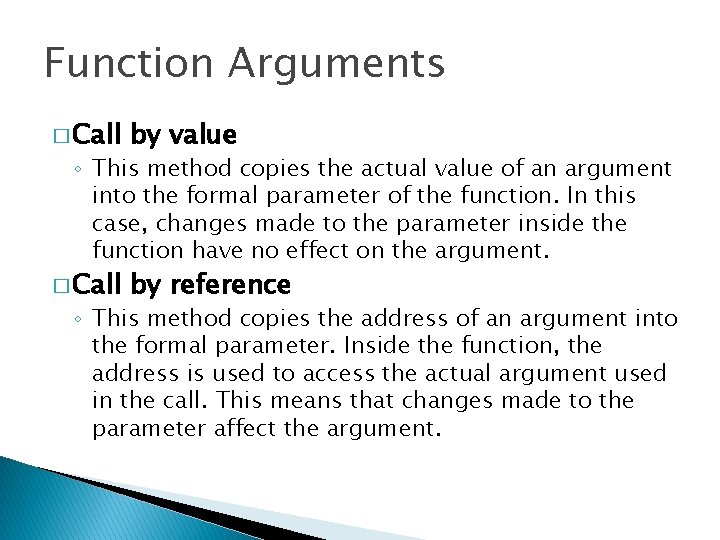

Function Arguments � Call by value � Call by reference ◦ This method copies the actual value of an argument into the formal parameter of the function. In this case, changes made to the parameter inside the function have no effect on the argument. ◦ This method copies the address of an argument into the formal parameter. Inside the function, the address is used to access the actual argument used in the call. This means that changes made to the parameter affect the argument.

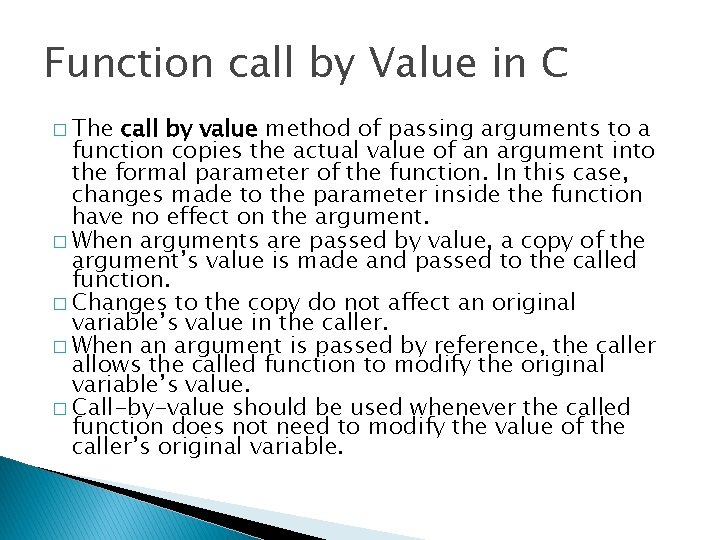

Function call by Value in C � The call by value method of passing arguments to a function copies the actual value of an argument into the formal parameter of the function. In this case, changes made to the parameter inside the function have no effect on the argument. � When arguments are passed by value, a copy of the argument’s value is made and passed to the called function. � Changes to the copy do not affect an original variable’s value in the caller. � When an argument is passed by reference, the caller allows the called function to modify the original variable’s value. � Call-by-value should be used whenever the called function does not need to modify the value of the caller’s original variable.

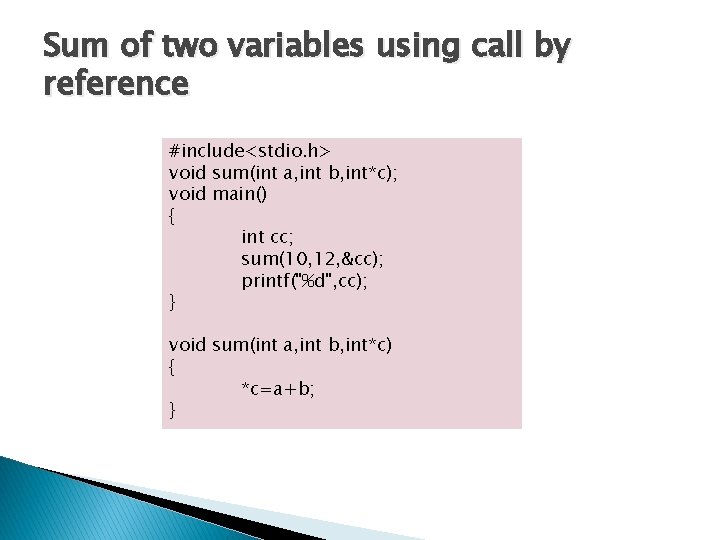

Sum of two variables using call by reference #include<stdio. h> void sum(int a, int b, int*c); void main() { int cc; sum(10, 12, &cc); printf("%d", cc); } void sum(int a, int b, int*c) { *c=a+b; }

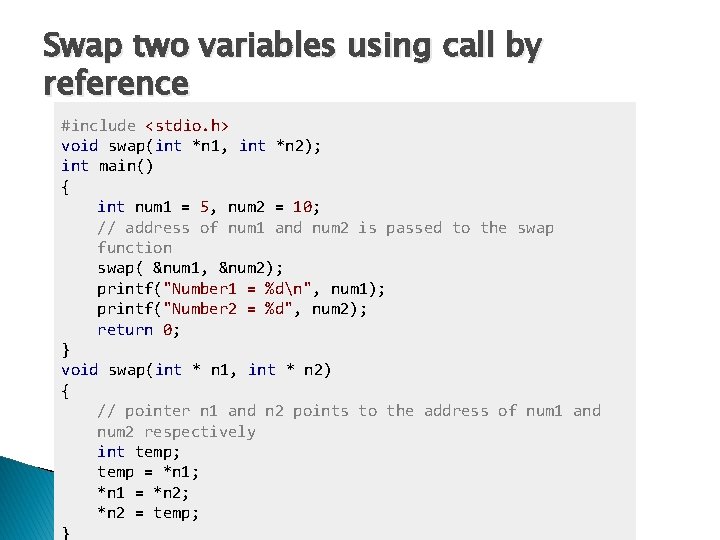

Swap two variables using call by reference #include <stdio. h> void swap(int *n 1, int *n 2); int main() { int num 1 = 5, num 2 = 10; // address of num 1 and num 2 is passed to the swap function swap( &num 1, &num 2); printf("Number 1 = %dn", num 1); printf("Number 2 = %d", num 2); return 0; } void swap(int * n 1, int * n 2) { // pointer n 1 and n 2 points to the address of num 1 and num 2 respectively int temp; temp = *n 1; *n 1 = *n 2; *n 2 = temp; }

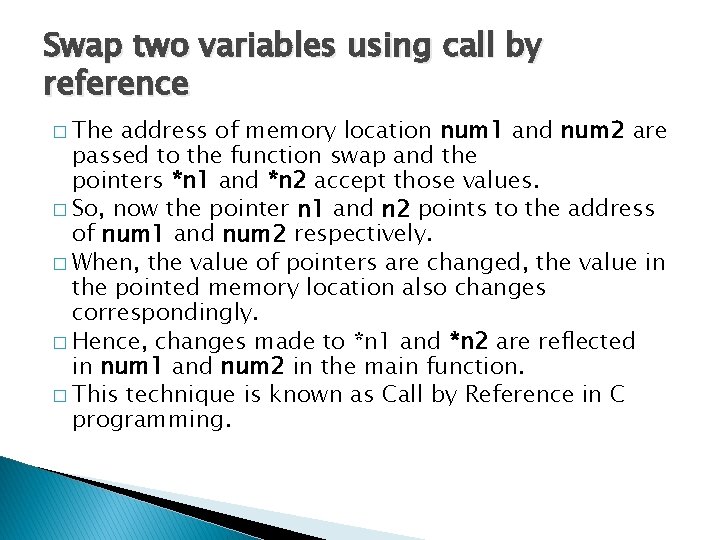

Swap two variables using call by reference � The address of memory location num 1 and num 2 are passed to the function swap and the pointers *n 1 and *n 2 accept those values. � So, now the pointer n 1 and n 2 points to the address of num 1 and num 2 respectively. � When, the value of pointers are changed, the value in the pointed memory location also changes correspondingly. � Hence, changes made to *n 1 and *n 2 are reflected in num 1 and num 2 in the main function. � This technique is known as Call by Reference in C programming.

Call by reference � When we tried to write the above code using call by value method, the value of both the integer variables didn’t get change, however with this method of “call by reference” we have dealt with the address of actual arguments and got desired output.
