Functions 8 2 Characteristicsofof Quadratic Functions 8 2

  • Slides: 30
Download presentation

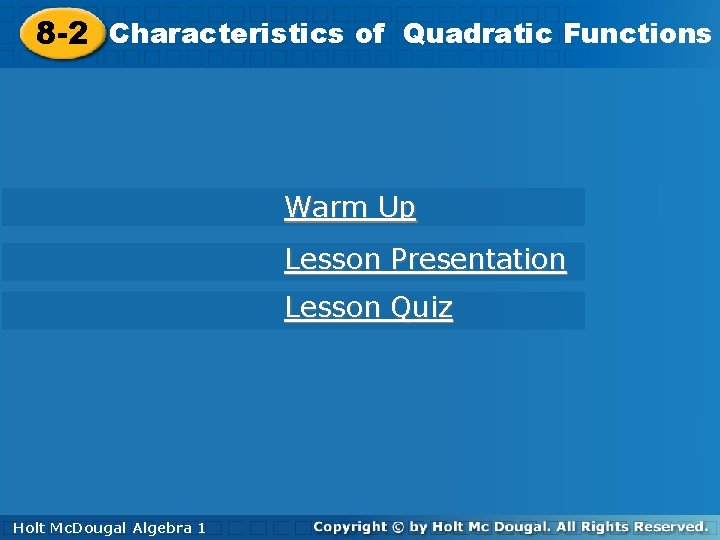

Functions 8 -2 Characteristicsofof. Quadratic Functions 8 -2 Characteristics Warm Up Lesson Presentation Lesson

Functions 8 -2 Characteristicsofof. Quadratic Functions 8 -2 Characteristics Warm Up Lesson Presentation Lesson Quiz Holt Mc. Dougal Algebra 1 Algebra 11 Holt Mc. Dougal

8 -2 Characteristics of Quadratic Functions Warm Up Find the x-intercept of each linear

8 -2 Characteristics of Quadratic Functions Warm Up Find the x-intercept of each linear function. 1. y = 2 x – 3 2. 3. y = 3 x + 6 – 2 Evaluate each quadratic function for the given input values. 4. y = – 3 x 2 + x – 2, when x = 2 – 12 5. y = x 2 + 2 x + 3, when x = – 1 2 Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Objectives Find the zeros of a quadratic function

8 -2 Characteristics of Quadratic Functions Objectives Find the zeros of a quadratic function from its graph. Find the axis of symmetry and the vertex of a parabola. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Vocabulary zero of a function axis of symmetry

8 -2 Characteristics of Quadratic Functions Vocabulary zero of a function axis of symmetry Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Recall that an x-intercept of a function is

8 -2 Characteristics of Quadratic Functions Recall that an x-intercept of a function is a value of x when y = 0. A zero of a function is an xvalue that makes the function equal to 0. So a zero of a function is the same as an x-intercept of a function. Since a graph intersects the x-axis at the point or points containing an x-intercept, these intersections are also at the zeros of the function. A quadratic function may have one, two, or no zeros. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 1 A: Finding Zeros of Quadratic Functions

8 -2 Characteristics of Quadratic Functions Example 1 A: Finding Zeros of Quadratic Functions From Graphs Find the zeros of the quadratic function from its graph. Check your answer. y = x 2 – 2 x – 3 Check y = x 2 – 2 x – 3 y = (– 1)2 – 2(– 1) – 3 =1 +2– 3=0 y = 32 – 2(3) – 3 =9– 6– 3=0 The zeros appear to be – 1 and 3. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 1 B: Finding Zeros of Quadratic Functions

8 -2 Characteristics of Quadratic Functions Example 1 B: Finding Zeros of Quadratic Functions From Graphs Find the zeros of the quadratic function from its graph. Check your answer. y = x 2 + 8 x + 16 Check y = x 2 + 8 x + 16 y = (– 4)2 + 8(– 4) + 16 = 16 – 32 + 16 = 0 The zero appears to be – 4. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Helpful Hint Notice that if a parabola has

8 -2 Characteristics of Quadratic Functions Helpful Hint Notice that if a parabola has only one zero, the zero is the x-coordinate of the vertex. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 1 C: Finding Zeros of Quadratic Functions

8 -2 Characteristics of Quadratic Functions Example 1 C: Finding Zeros of Quadratic Functions From Graphs Find the zeros of the quadratic function from its graph. Check your answer. y = – 2 x 2 – 2 The graph does not cross the x-axis, so there are no zeros of this function. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Check It Out! Example 1 a Find the

8 -2 Characteristics of Quadratic Functions Check It Out! Example 1 a Find the zeros of the quadratic function from its graph. Check your answer. y = – 4 x 2 – 2 The graph does not cross the x-axis, so there are no zeros of this function. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Check It Out! Example 1 b Find the

8 -2 Characteristics of Quadratic Functions Check It Out! Example 1 b Find the zeros of the quadratic function from its graph. Check your answer. y = x 2 – 6 x + 9 Check y = x 2 – 6 x + 9 y = (3)2 – 6(3) + 9 = 9 – 18 + 9 = 0 The zero appears to be 3. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions A vertical line that divides a parabola into

8 -2 Characteristics of Quadratic Functions A vertical line that divides a parabola into two symmetrical halves is the axis of symmetry. The axis of symmetry always passes through the vertex of the parabola. You can use the zeros to find the axis of symmetry. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 2: Finding the Axis of Symmetry by

8 -2 Characteristics of Quadratic Functions Example 2: Finding the Axis of Symmetry by Using Zeros Find the axis of symmetry of each parabola. A. (– 1, 0) Identify the x-coordinate of the vertex. The axis of symmetry is x = – 1. B. Holt Mc. Dougal Algebra 1 Find the average of the zeros. The axis of symmetry is x = 2. 5.

8 -2 Characteristics of Quadratic Functions Check It Out! Example 2 Find the axis

8 -2 Characteristics of Quadratic Functions Check It Out! Example 2 Find the axis of symmetry of each parabola. a. b. Holt Mc. Dougal Algebra 1 (– 3, 0) Identify the x-coordinate of the vertex. The axis of symmetry is x = – 3. Find the average of the zeros. The axis of symmetry is x = 1.

8 -2 Characteristics of Quadratic Functions If a function has no zeros or they

8 -2 Characteristics of Quadratic Functions If a function has no zeros or they are difficult to identify from a graph, you can use a formula to find the axis of symmetry. The formula works for all quadratic functions. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 3: Finding the Axis of Symmetry by

8 -2 Characteristics of Quadratic Functions Example 3: Finding the Axis of Symmetry by Using the Formula Find the axis of symmetry of the graph of y = – 3 x 2 + 10 x + 9. Step 1. Find the values of a and b. y = – 3 x 2 + 10 x + 9 a = – 3, b = 10 The axis of symmetry is Holt Mc. Dougal Algebra 1 Step 2. Use the formula.

8 -2 Characteristics of Quadratic Functions Check It Out! Example 3 Find the axis

8 -2 Characteristics of Quadratic Functions Check It Out! Example 3 Find the axis of symmetry of the graph of y = 2 x 2 + x + 3. Step 1. Find the values of a and b. y = 2 x 2 + 1 x + 3 a = 2, b = 1 The axis of symmetry is Holt Mc. Dougal Algebra 1 Step 2. Use the formula. .

8 -2 Characteristics of Quadratic Functions Once you have found the axis of symmetry,

8 -2 Characteristics of Quadratic Functions Once you have found the axis of symmetry, you can use it to identify the vertex. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 4 A: Finding the Vertex of a

8 -2 Characteristics of Quadratic Functions Example 4 A: Finding the Vertex of a Parabola Find the vertex. y = 0. 25 x 2 + 2 x + 3 Step 1 Find the x-coordinate of the vertex. The zeros are – 6 and – 2. Step 2 Find the corresponding y-coordinate. y = 0. 25 x 2 + 2 x + 3 = 0. 25(– 4)2 + 2(– 4) + 3 = – 1 Step 3 Write the ordered pair. (– 4, – 1) The vertex is (– 4, – 1). Holt Mc. Dougal Algebra 1 Use the function rule. Substitute – 4 for x.

8 -2 Characteristics of Quadratic Functions Example 4 B: Finding the Vertex of a

8 -2 Characteristics of Quadratic Functions Example 4 B: Finding the Vertex of a Parabola Find the vertex. y = – 3 x 2 + 6 x – 7 Step 1 Find the x-coordinate of the vertex. a = – 3, b = 6 Identify a and b. Substitute – 3 for a and 6 for b. The x-coordinate of the vertex is 1. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 4 B Continued Find the vertex. y

8 -2 Characteristics of Quadratic Functions Example 4 B Continued Find the vertex. y = – 3 x 2 + 6 x – 7 Step 2 Find the corresponding y-coordinate. y = – 3 x 2 + 6 x – 7 = – 3(1)2 + 6(1) – 7 Use the function rule. Substitute 1 for x. = – 3 + 6 – 7 = – 4 Step 3 Write the ordered pair. The vertex is (1, – 4). Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Check It Out! Example 4 Find the vertex.

8 -2 Characteristics of Quadratic Functions Check It Out! Example 4 Find the vertex. y = x 2 – 4 x – 10 Step 1 Find the x-coordinate of the vertex. a = 1, b = – 4 Identify a and b. Substitute 1 for a and – 4 for b. The x-coordinate of the vertex is 2. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Check It Out! Example 4 Continued Find the

8 -2 Characteristics of Quadratic Functions Check It Out! Example 4 Continued Find the vertex. y = x 2 – 4 x – 10 Step 2 Find the corresponding y-coordinate. y = x 2 – 4 x – 10 = (2)2 – 4(2) – 10 Use the function rule. Substitute 2 for x. = 4 – 8 – 10 = – 14 Step 3 Write the ordered pair. The vertex is (2, – 14). Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 5: Application The graph of f(x) =

8 -2 Characteristics of Quadratic Functions Example 5: Application The graph of f(x) = – 0. 06 x 2 + 0. 6 x + 10. 26 can be used to model the height in meters of an arch support for a bridge, where the xaxis represents the water level and x represents the horizontal distance in meters from where the arch support enters the water. Can a sailboat that is 14 meters tall pass under the bridge? Explain. The vertex represents the highest point of the arch support. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Example 5 Continued Step 1 Find the x-coordinate.

8 -2 Characteristics of Quadratic Functions Example 5 Continued Step 1 Find the x-coordinate. a = – 0. 06, b = 0. 6 Identify a and b. Substitute – 0. 06 for a and 0. 6 for b. Step 2 Find the corresponding y-coordinate. Use the function rule. f(x) = – 0. 06 x 2 + 0. 6 x + 10. 26 Substitute 5 for x. = – 0. 06(5)2 + 0. 6(5) + 10. 26 = 11. 76 Since the height of each support is 11. 76 m, the sailboat cannot pass under the bridge. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Check It Out! Example 5 The height of

8 -2 Characteristics of Quadratic Functions Check It Out! Example 5 The height of a small rise in a roller coaster track is modeled by f(x) = – 0. 07 x 2 + 0. 42 x + 6. 37, where x is the distance in feet from a supported pole at ground level. Find the greatest height of the rise. Step 1 Find the x-coordinate. a = – 0. 07, b= 0. 42 Identify a and b. Substitute – 0. 07 for a and 0. 42 for b. Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Check It Out! Example 5 Continued Step 2

8 -2 Characteristics of Quadratic Functions Check It Out! Example 5 Continued Step 2 Find the corresponding y-coordinate. f(x) = – 0. 07 x 2 + 0. 42 x + 6. 37 = – 0. 07(3)2 + 0. 42(3) + 6. 37 = 7 ft The height of the rise is 7 ft. Holt Mc. Dougal Algebra 1 Use the function rule. Substitute 3 for x.

8 -2 Characteristics of Quadratic Functions Lesson Quiz: Part I 1. Find the zeros

8 -2 Characteristics of Quadratic Functions Lesson Quiz: Part I 1. Find the zeros and the axis of symmetry of the parabola. zeros: – 6, 2; x = – 2 2. Find the axis of symmetry and the vertex of the graph of y = 3 x 2 + 12 x + 8. x = – 2; (– 2, – 4) Holt Mc. Dougal Algebra 1

8 -2 Characteristics of Quadratic Functions Lesson Quiz: Part II 3. The graph of

8 -2 Characteristics of Quadratic Functions Lesson Quiz: Part II 3. The graph of f(x) = – 0. 01 x 2 + x can be used to model the height in feet of a curved arch support for a bridge, where the x-axis represents the water level and x represents the distance in feet from where the arch support enters the water. Find the height of the highest point of the bridge. 25 feet Holt Mc. Dougal Algebra 1
