Functional Image Synthesis

Pan • • • An image synthesis “language” Images are functions Continuous and infinite Embedded in a functional host language Reusable optimizing compiler

Examples

What’s an image? • Assignment of color to points: R 2 Color • Infinite, but color may be transparent • Useful generalization: R 2 a

Expressing functions • Use l-calculus (Church, Curry, etc): • Or, non-anonymously: • Currying isomorphism: (a b) g a (b g ) Good for partial application

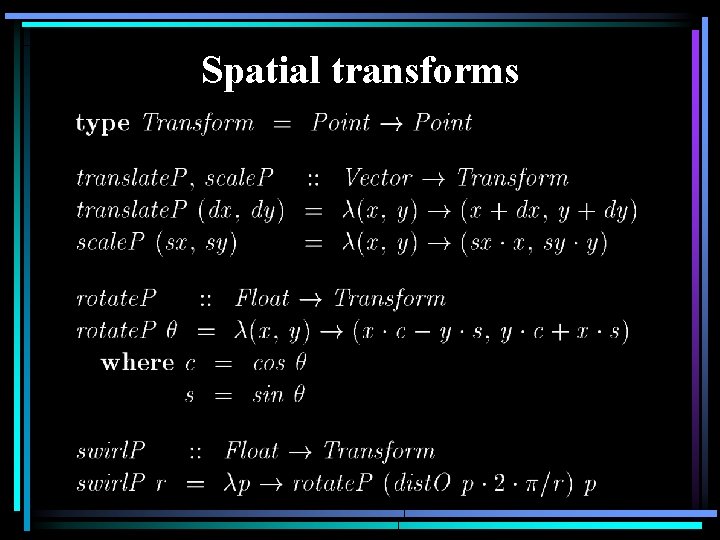

Spatial transforms

Images

Higher-order functions Apply filter “about” a point:

Examples

Programming example

Another

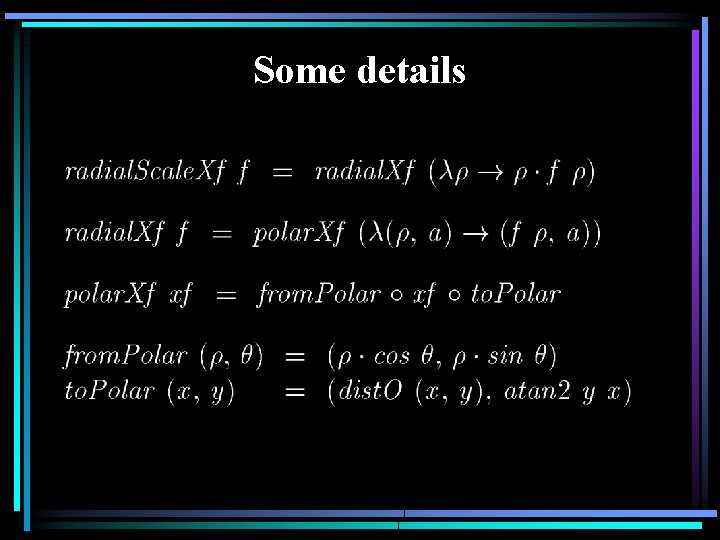

Some details

Another

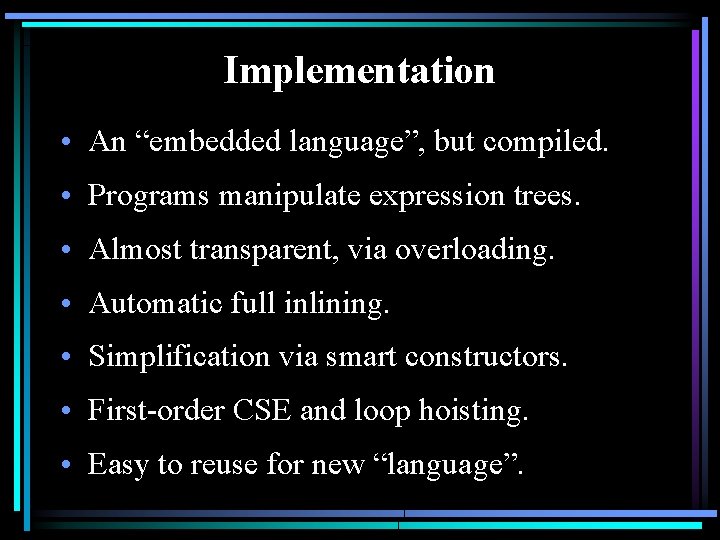

Implementation • An “embedded language”, but compiled. • Programs manipulate expression trees. • Almost transparent, via overloading. • Automatic full inlining. • Simplification via smart constructors. • First-order CSE and loop hoisting. • Easy to reuse for new “language”.

More examples

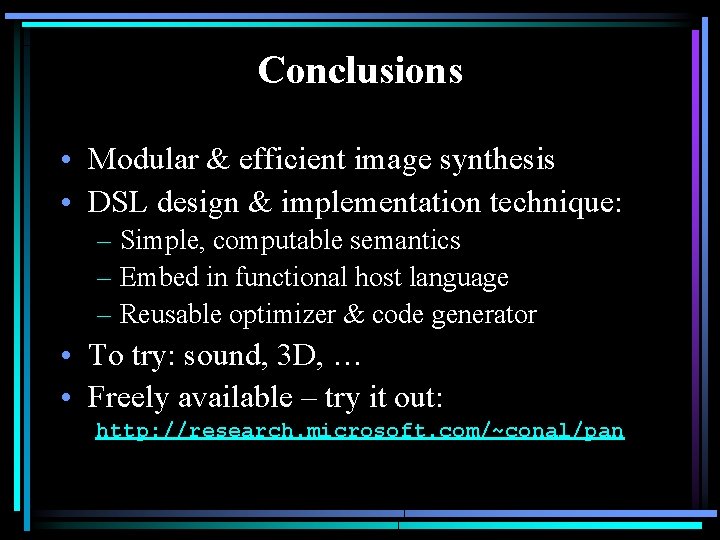

Conclusions • Modular & efficient image synthesis • DSL design & implementation technique: – Simple, computable semantics – Embed in functional host language – Reusable optimizer & code generator • To try: sound, 3 D, … • Freely available – try it out: http: //research. microsoft. com/~conal/pan
