Fun with Eo. IP Mike Everest, Dux. Tel Pty Ltd
Ethernet over IP …not just another GRE tunnel! • • • Transparent layer 2 transport Presents as a virtual Interface to Router. OS Carries Ethernet frames Can bridge it Can route it Can firewall filter it NAT it Queue it Bond it
Ethernet over IP …some limitations! • • requires routable path (avoid NAT!) proprietary Mikro. Tik (? ) watch out for MTU on carrier network only(!) 65536 unique tunnels
Ethernet over IP …easy to implement! • Router A • remote-address (IP of Router B) • tunnel-id (0 – 255) • Router B • remote-address (IP of Router A) • tunnel-id (matches other end)
Example 1 Connect to Remote Hotspot

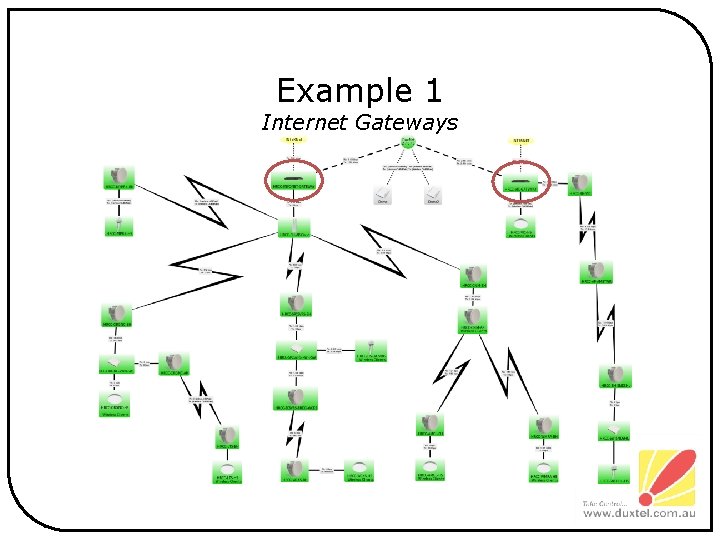

Example 1 Internet Gateways

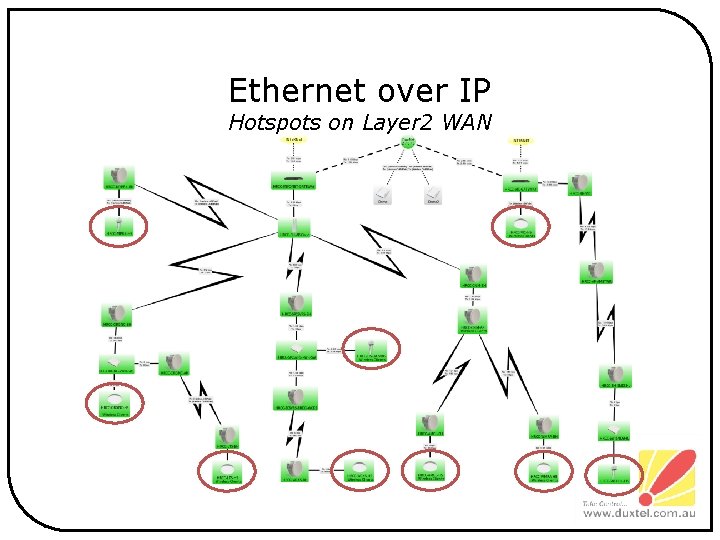

Ethernet over IP Hotspots on Layer 2 WAN
Example 1 Hot. Spots use pppoe
Example 1 Remote/Mobile hotspots connect using pptp
Example 1 Concept: create Eo. IP tunnel across ppp
Example 1 Concept: bridge local wlan to remote HS Remote Router Local Router wlan 1 HS bridge eth 1 internet eoip HS bridge eth 1 internet
Example 1 Concept: bridge local wlan to remote HS Remote Router Local Router wlan 1 HS bridge eoip Eo. IP bridge HS bridge eth 1 internet
Example 1: Demo
Example 2 the weakest link d u lo c o l co ISP FA ! T S internet FA ! T S FA N LA FA ! T S
Example 2 the pipe dream d u lo c o l co ISP internet N LA
Example 2 load balanced uplinks d u lo c o l co ISP internet N LA
Example 2 limited to one link per stream d u lo c o l co ISP internet N LA
Example 2 Eo. IP to the rescue! internet ISP N LA

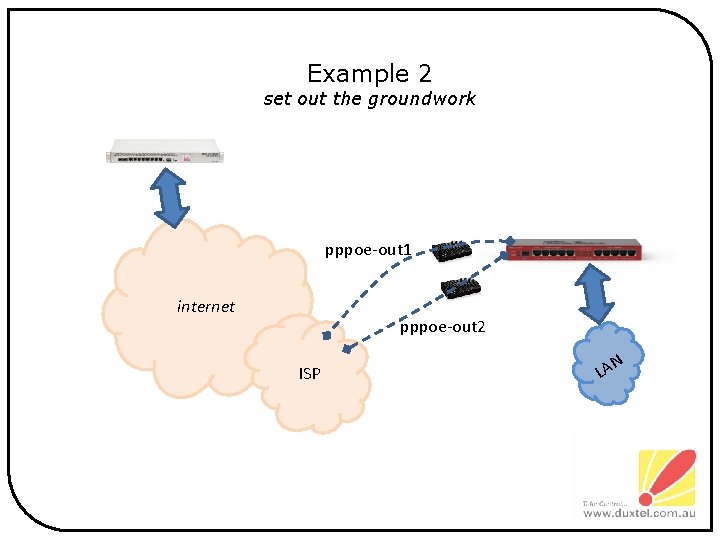

Example 2 set out the groundwork pppoe-out 1 internet pppoe-out 2 ISP N LA
Example 2 lay in the tunnels internet ISP N LA

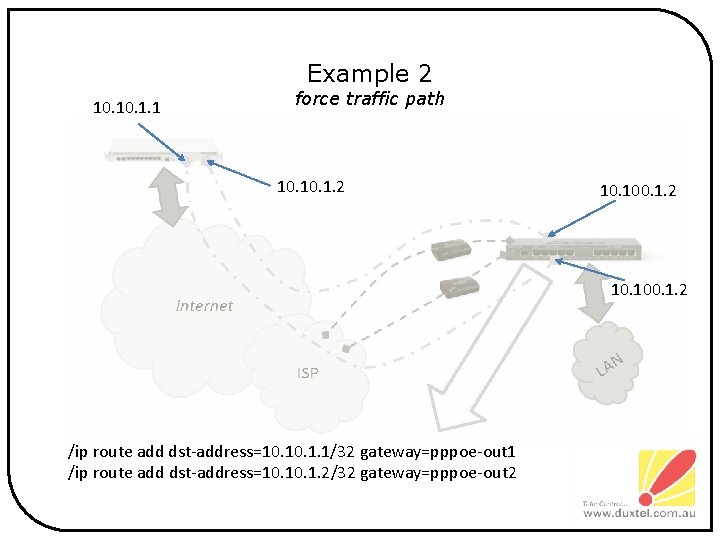

Example 2 force traffic path 10. 1. 1 10. 1. 2 10. 100. 1. 2 internet ISP /ip route add dst-address=10. 1. 1/32 gateway=pppoe-out 1 /ip route add dst-address=10. 1. 2/32 gateway=pppoe-out 2 N LA
Example 2 force traffic path 10. 1. 1 10. 1. 2 10. 100. 1. 1 10. 100. 1. 2 internet ISP /int eoip add tunnel-id=1 remote=10. 1. 1 local=10. 100. 1. 1 /int eoip add tunnel-id=2 remote=10. 1. 1 local=10. 100. 1. 2 N LA
Example 2 bond them! internet ISP N LA
Example 2 a single virtual aggregate link! internet ISP N LA
Example 2 a single virtual aggregate link! internet ISP N LA

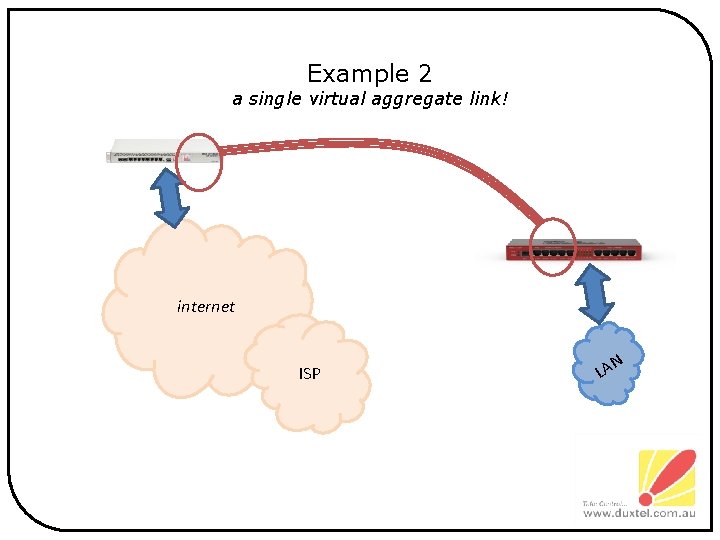

Example 2 combined bandwidth per stream! internet ISP N LA
More resources About Dux. Tel: Mikro. Tik Specialists since 2004 Widest range of Mikro. Tik products and related components Free email support – even if you didn’t buy it from us! Contract and Project support – 4 certified engineers available Free sample scripts for download from shop. mikrotik. com. au Supporter of talk. mikrotik. com. au (thanks too, Connectivity IT)
