Fun With Carbon

Fun With Carbon

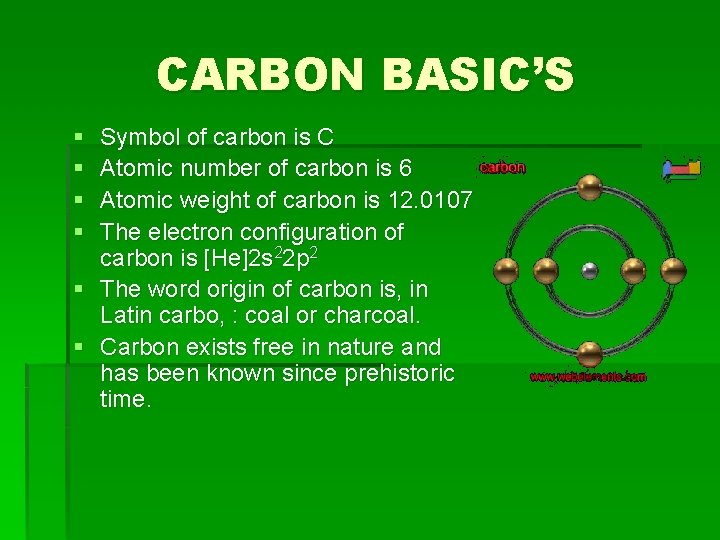

CARBON BASIC’S § § Symbol of carbon is C Atomic number of carbon is

CARBON BASIC’S § § Symbol of carbon is C Atomic number of carbon is 6 Atomic weight of carbon is 12. 0107 The electron configuration of carbon is [He]2 s 22 p 2 § The word origin of carbon is, in Latin carbo, : coal or charcoal. § Carbon exists free in nature and has been known since prehistoric time.

Descriptions n Carbon’s standard state is solid at 298 K or 25 degrees Celsius.

Descriptions n Carbon’s standard state is solid at 298 K or 25 degrees Celsius. n In solid form Carbon is black as graphite and colorless as a diamond. n Carbon is a non-metal. n Carbon is found widely in nature. It is found in abundance in suns, stars, comets, and atmospheres of many planets.

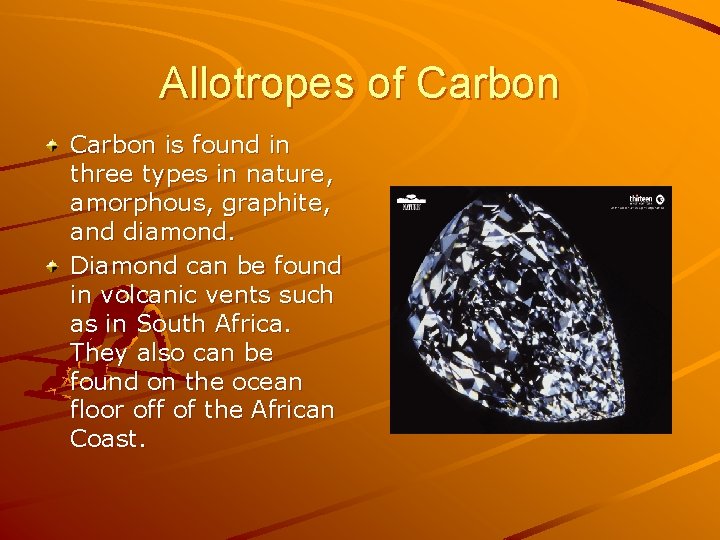

Allotropes of Carbon is found in three types in nature, amorphous, graphite, and diamond.

Allotropes of Carbon is found in three types in nature, amorphous, graphite, and diamond. Diamond can be found in volcanic vents such as in South Africa. They also can be found on the ocean floor off of the African Coast.

. . . other Forms Carbon is found as carbon dioxide in the atmosphere

. . . other Forms Carbon is found as carbon dioxide in the atmosphere and is found in natural water sources. It can also be found in rocks, and also in coal petroleum and

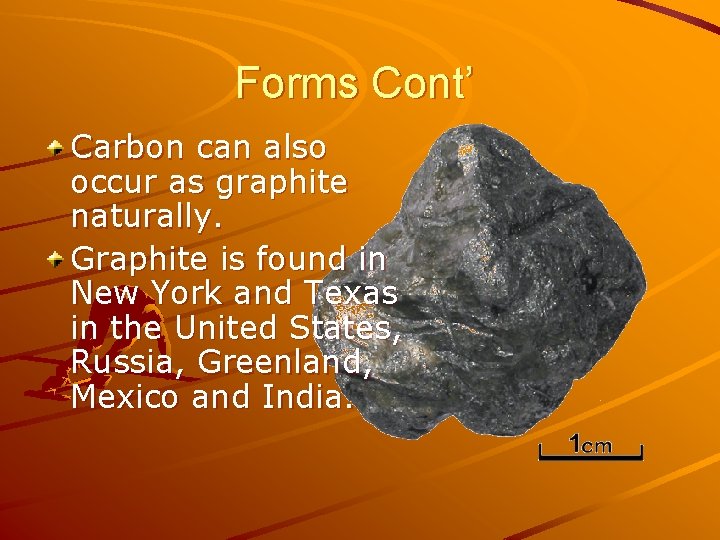

Forms Cont’ Carbon can also occur as graphite naturally. Graphite is found in New

Forms Cont’ Carbon can also occur as graphite naturally. Graphite is found in New York and Texas in the United States, Russia, Greenland, Mexico and India.

FACTS n n Organic chemistry is the study of carbon and its components. Silicon

FACTS n n Organic chemistry is the study of carbon and its components. Silicon can be used in place of carbon in certain compounds, but unlike carbon it cannot form stable compounds with long chains.

Carbons Isotopes In 1961 the International Union of Pure and Applied Chemistry adopted the

Carbons Isotopes In 1961 the International Union of Pure and Applied Chemistry adopted the isotope carbon 12. u Carbon 12 can be found on the periodic table. u Carbon 14 is used to date minerals such as wood, archeological specimens. u Carbon 13 can also be used for isotopic labeling studies because it is also radioactive, but not as stable u A new form of carbon, buckminsterfullerene or carbon 60, has be found and is being researched in labs. u

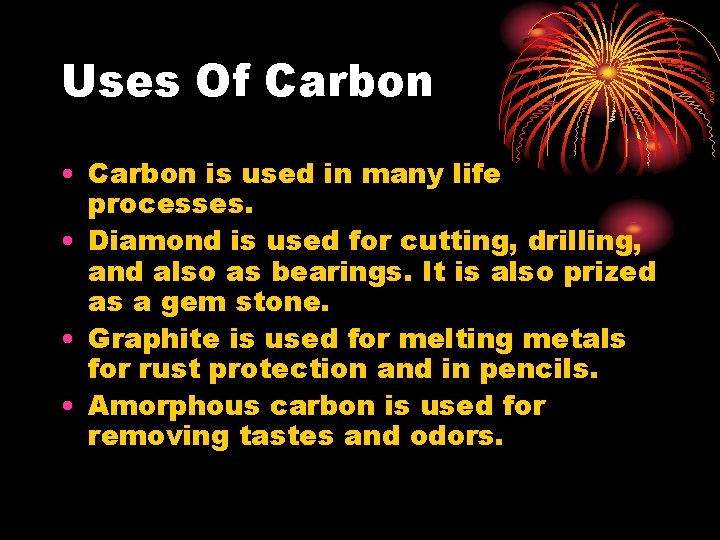

Uses Of Carbon • Carbon is used in many life processes. • Diamond is

Uses Of Carbon • Carbon is used in many life processes. • Diamond is used for cutting, drilling, and also as bearings. It is also prized as a gem stone. • Graphite is used for melting metals for rust protection and in pencils. • Amorphous carbon is used for removing tastes and odors.

COVALENT BONDING

COVALENT BONDING

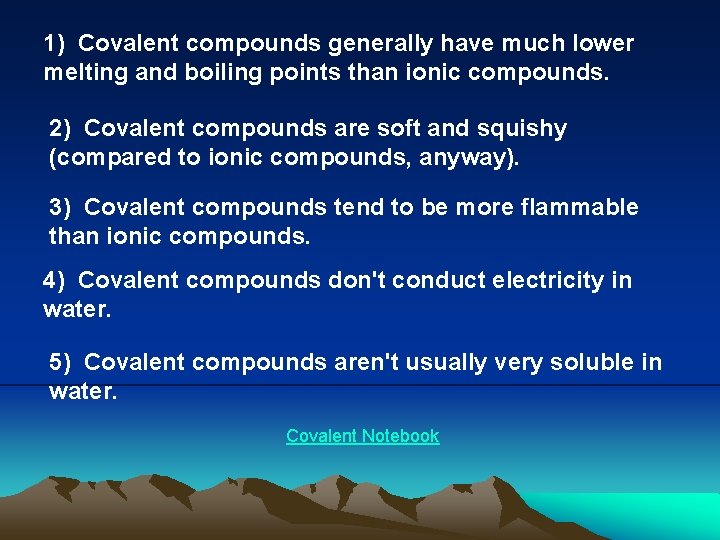

1) Covalent compounds generally have much lower melting and boiling points than ionic compounds.

1) Covalent compounds generally have much lower melting and boiling points than ionic compounds. 2) Covalent compounds are soft and squishy (compared to ionic compounds, anyway). 3) Covalent compounds tend to be more flammable than ionic compounds. 4) Covalent compounds don't conduct electricity in water. 5) Covalent compounds aren't usually very soluble in water. Covalent Notebook

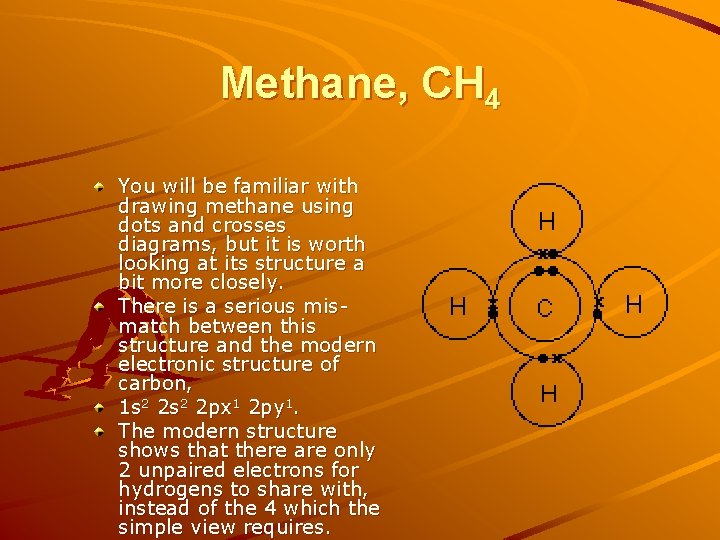

Methane, CH 4 You will be familiar with drawing methane using dots and crosses

Methane, CH 4 You will be familiar with drawing methane using dots and crosses diagrams, but it is worth looking at its structure a bit more closely. There is a serious mismatch between this structure and the modern electronic structure of carbon, 1 s 2 2 px 1 2 py 1. The modern structure shows that there are only 2 unpaired electrons for hydrogens to share with, instead of the 4 which the simple view requires.

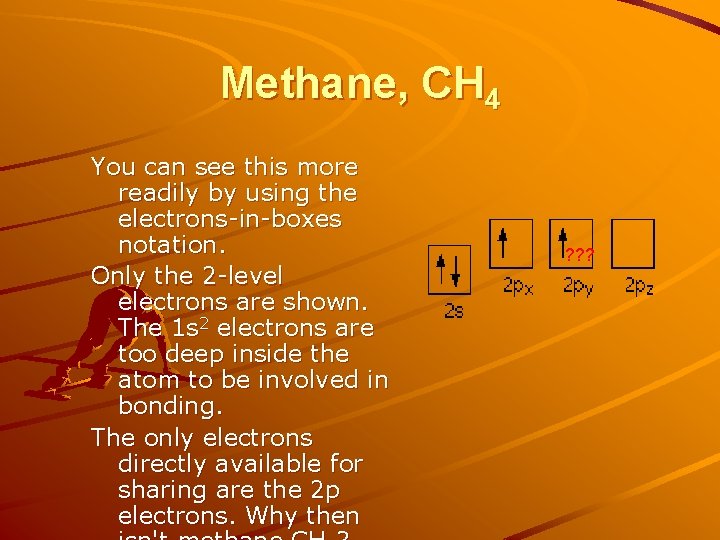

Methane, CH 4 You can see this more readily by using the electrons-in-boxes notation.

Methane, CH 4 You can see this more readily by using the electrons-in-boxes notation. Only the 2 -level electrons are shown. The 1 s 2 electrons are too deep inside the atom to be involved in bonding. The only electrons directly available for sharing are the 2 p electrons. Why then ? ? ?

Promotion of an electron When bonds are formed, energy is released and the system

Promotion of an electron When bonds are formed, energy is released and the system becomes more stable. If carbon forms 4 bonds rather than 2, twice as much energy is released and so the resulting molecule becomes even more stable. There is only a small energy gap between the 2 s and 2 p orbitals, and so it pays the carbon to provide a small amount of energy to promote an electron from the 2 s to the empty 2 p to give 4 unpaired electrons. The extra energy released when the bonds form more than compensates for the initial input.

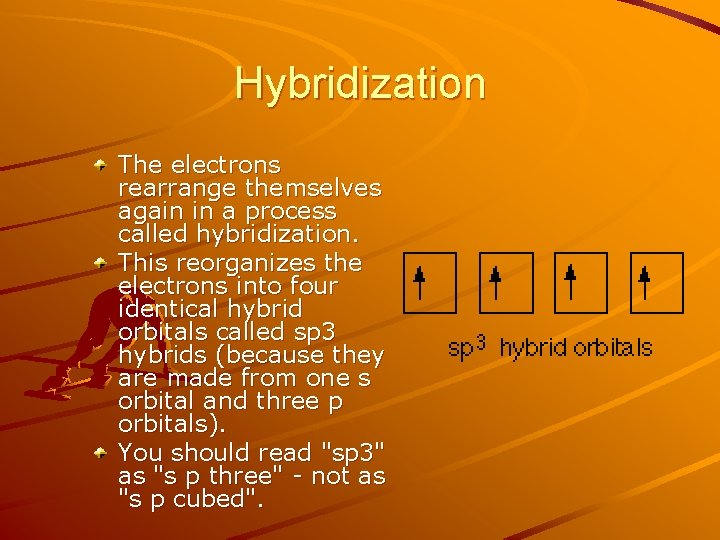

Hybridization The electrons rearrange themselves again in a process called hybridization. This reorganizes the

Hybridization The electrons rearrange themselves again in a process called hybridization. This reorganizes the electrons into four identical hybrid orbitals called sp 3 hybrids (because they are made from one s orbital and three p orbitals). You should read "sp 3" as "s p three" - not as "s p cubed".

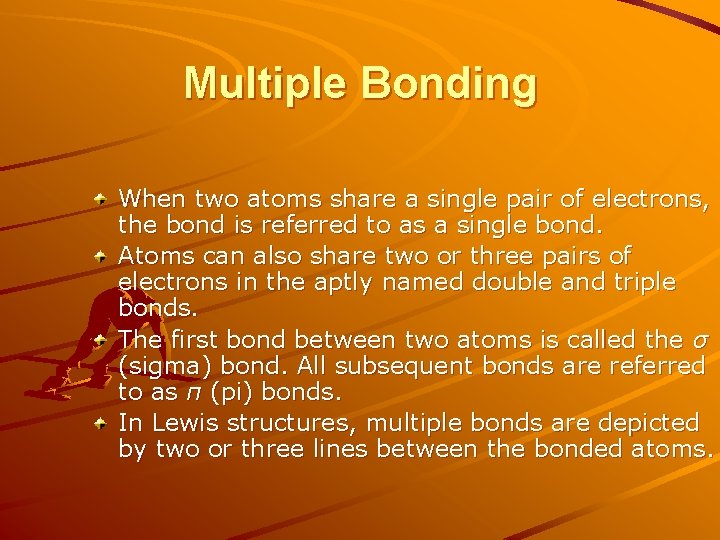

Multiple Bonding When two atoms share a single pair of electrons, the bond is

Multiple Bonding When two atoms share a single pair of electrons, the bond is referred to as a single bond. Atoms can also share two or three pairs of electrons in the aptly named double and triple bonds. The first bond between two atoms is called the σ (sigma) bond. All subsequent bonds are referred to as π (pi) bonds. In Lewis structures, multiple bonds are depicted by two or three lines between the bonded atoms.
