FTC Basic Design By Andrew Rudolph What are

FTC Basic Design By Andrew Rudolph

What are we designing? STRATEGY DRIVES ROBOT DESIGN NOT THE OPPOSITE!

What are we designing? The Road to Reality

2012 – 2013 Robot Rules Not the same as it used to be

Robot Rules 2012 -2013 • 18” x 18” – No weight limits • No mechanisms which: • • • Damage Playing field Damage or flip other robots Entangle Sharp edges Use hazardous materials

Robot Rules 2012 -2013 • Only can use preformed robotics components from: • Lego • Tetrix • Matrix

Matrix? • • • Designed to bring costs down of FTC overseas Designed off standard lego grid Different motors Different motor controllers Different Gears and wheels Observed at World Possibly thinner metal Championship exhibit Belt system CV Axles Check some of the offerings at: • http: //matrixrobotics. com

http: //www. chiefdelphi. com/forum s/showthread. php? t=106017 Matrix

Robot Rules 2012 -2013 • Only COTS (Custom Off The Shelf) items allowed: • Linear Slide • Non-motorized Turntables and Lazy Susan • Lead screws and threaded rod plus compatible nuts • Servo Blocks • #25 Chain and connector or half links

Robot Rules 2012 -2013 • Unlimited in quantity or size of the following: • Raw material available to all teams from standard • • • distributors Standard bearings or bushings Fasteners Rope, Cord, Cable, monofilament, … Rubber bands Latex tubing Zip ties Nonslip pad without adhesive backing Electrical solder, tape and any type of glue/cement Any COTS lubricant as long as it doesn’t get on stuff

Low Resolution Design You’ll get HDTV later

Low Resolution Design • Drawings

Low Resolution Design • Cardboard Mockups

The game piece • What can I do with this game piece? • What is the raw data on the game piece? • • Size Weight Center of Gravity Hard / Soft / Bouncy • Are there any unique features I can use to my advantage?

Sample Analysis. The • • Crate from 2011 -2012 9" L x 7 7/8" W x 6 1/8" H Covered in. 75” dia. holes Hard Plastic Ideal for organizing CDs, DVDs or smaller items in the office, bathroom or college dorm room.

What tasks within my strategy do I need to perform? • Are you going to… • acquire it? • manipulate it? • store it? • lift it? • position it? • release it?

The game piece • Think like a robot about the game piece: • What does the game piece look like from the robots POV? • What are all the ways the game piece could lay? • What is the most usable or stable position? • How does the object react?

Break time!

Drive Trains • • • 2 wd Casters / Omni wheels on end Difficult to drive Highly maneuverable Easy to get pushed Low payload

Drive Trains • • • 4 wd Easy to drive Can be low maneuverable Good pushing Easy to balance weight

Drive Trains • • 6 wd Drop center gives best of 2 wd and 4 wd Easy to drive Can be low maneuverable • (w/o drop center)

Drive Trains • • • Holonomic Maximum maneuverability Difficult to code / drive Easy to be pushed around Complex design

Drive Trains • • Tread Lower Center for maximum maneuverability FTC treads tend to slide Snap easily with side load

http: //www. youtube. com/user/FTC 5454

Mobility Analysis

Speed Reduction • Slower Speed Higher Torque • Higher Speed Lower Torque 221 robotics systems chain breaker

Mechanisms • Linkages http: //kmoddl. library. cornell. edu/ http: //www. mechanisms 101. com

Mechanisms • Lifts

Mechanisms • Complex stuff

Medium Resolution Design • Prototypes

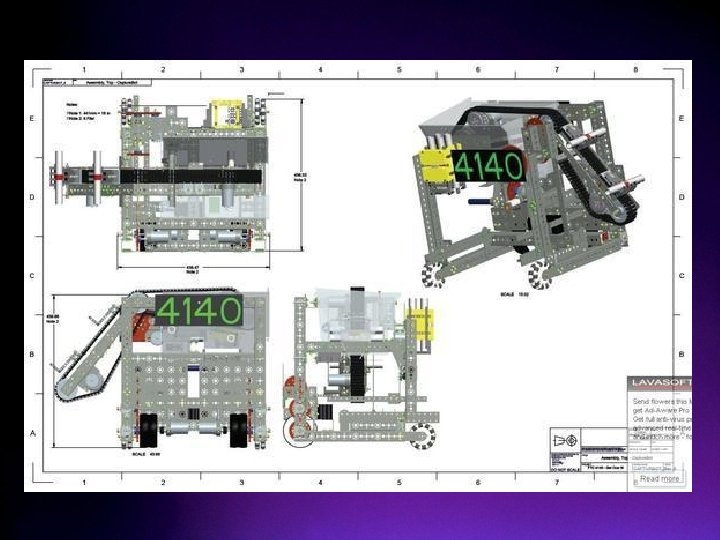

CAD • No surprises when you build your real robot • Make changes quickly • Package your electronics! • Inventor • Solid. Works • Creo (PTC) • Use online tutorials, or take classes at Community College • • http: //www. catalogds. com/db/service? domain=fir st&command=show. Product&category=FTC_KOP& product=FTC%20 Kit%20 of%20 Parts Google Tetrix CAD

Paper Towers • Make the tallest tower you can • Must support at least 1 golf ball within 3” of the • • • tallest point • 3” bonus for every ball extra in top 6” of tower 1 Newspaper sheet 1 Strip of Tape Must be freestanding (i. e. cannot be taped to floors, walls, etc) Must pass a whoosh test Must spend 4 minutes minimum planning

General Design Tips • Maximize your “Acquisition Zone”

General Design Tips • Alignment Devices

General Design Tips • Use Nylock Nuts

General Design Tips • Keep your Center of Gravity low

General Design Tips • Will stray objects interfere?

General Design Tips • Make it easy to drive

General Design Tips • Design is an iterative process

Other Design Mantras • • Really, simple IS better Assume Nothing Sometimes wild ideas lead to champions You don’t have to prototype everything… …just the parts you want to work.
