FSMs and Synchronization Asynchronous Inputs in Sequential Systems

  • Slides: 44
Download presentation
FSMs and Synchronization

FSMs and Synchronization

Asynchronous Inputs in Sequential Systems

Asynchronous Inputs in Sequential Systems

Asynchronous Inputs in Sequential Systems

Asynchronous Inputs in Sequential Systems

Asynchronous Inputs in Sequential Systems

Asynchronous Inputs in Sequential Systems

Handling Metastability § Preventing metastability turns out to be an impossible problem § High

Handling Metastability § Preventing metastability turns out to be an impossible problem § High gain of digital devices makes it likely that metastable conditions will resolve themselves quickly § Solution to metastability: allow time for signals to stabilize

Handling Metastability How many registers are necessary? § Depends on many design parameters(clock speed,

Handling Metastability How many registers are necessary? § Depends on many design parameters(clock speed, device speeds, …), one or maybe two synchronization registers is sufficient

Finite State Machines § Finite State Machines (FSMs) are a useful abstraction for sequential

Finite State Machines § Finite State Machines (FSMs) are a useful abstraction for sequential circuits with centralized “states” of operation § At each clock edge, combinational logic computes outputs and next state as a function of inputs and present state

Finite State Machines

Finite State Machines

Two Types of FSMs § Moore FSMs 輸出只與目前狀態有關 § Mealy FSMs 輸出與目前狀態及輸入有關 § Moore

Two Types of FSMs § Moore FSMs 輸出只與目前狀態有關 § Mealy FSMs 輸出與目前狀態及輸入有關 § Moore and Mealy FSMs are distinguished by their output generation

Moore FSMs § Moore and Mealy FSMs are distinguished by their output generation

Moore FSMs § Moore and Mealy FSMs are distinguished by their output generation

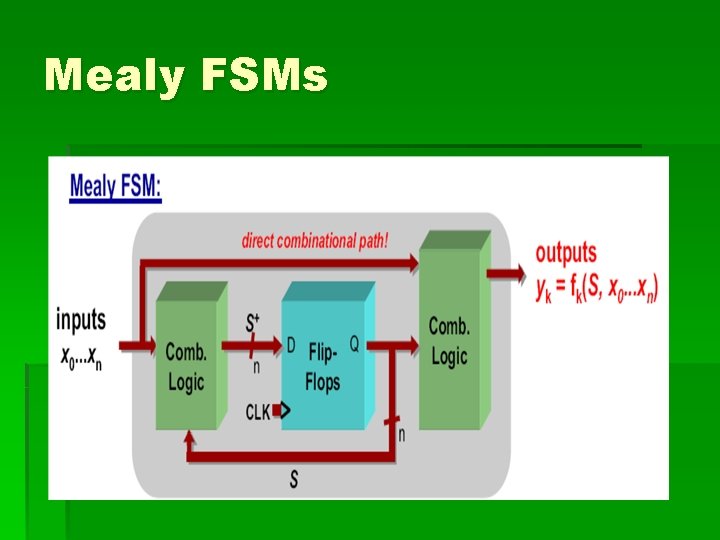

Mealy FSMs

Mealy FSMs

FSM Design Example : Level-to-Pulse § 功能:A level-to-pulse converter produces a single-cycle pulse each

FSM Design Example : Level-to-Pulse § 功能:A level-to-pulse converter produces a single-cycle pulse each time its input goes high. In other words, it’s a synchronous rising edge detector. § 應用例: Buttons and switches pressed by humans for arbitrary periods of time Singlecycle enable signals for counters

FSM Design Example : Level-to-Pulse

FSM Design Example : Level-to-Pulse

State Transition Diagrams § 如何設計Level to Pulse FSM? 狀態轉移圖是一種非常有用之 具。

State Transition Diagrams § 如何設計Level to Pulse FSM? 狀態轉移圖是一種非常有用之 具。

State Transition Diagrams

State Transition Diagrams

Logic Derivation for a Moore FSM § 對應之組合邏輯應用K -map化簡

Logic Derivation for a Moore FSM § 對應之組合邏輯應用K -map化簡

Moore Level-to-Pulse Converter

Moore Level-to-Pulse Converter

Design of a Mealy Level-to. Pulse

Design of a Mealy Level-to. Pulse

Mealy Level-to-Pulse Converter

Mealy Level-to-Pulse Converter

Moore/Mealy Trade-Offs Remember that the difference is in the output: • Moore outputs are

Moore/Mealy Trade-Offs Remember that the difference is in the output: • Moore outputs are based on state only • Mealy outputs are based on state and input • Therefore, Mealy outputs generally occur one cycle earlier than a Moore: Compared to a Moore FSM, a Mealy FSM might. . . • Be more difficult to conceptualize and design • Have fewer states

FSM Timing Requirements

FSM Timing Requirements

FSM Timing Requirements

FSM Timing Requirements

Vending Machine

Vending Machine

What States are in the System?

What States are in the System?

A Moore Vender

A Moore Vender

State Reduction

State Reduction

Verilog for the Moore Vender module moore. Vender (N, D, Q, DC, DN, DD,

Verilog for the Moore Vender module moore. Vender (N, D, Q, DC, DN, DD, clk, reset, state); input N, D, Q, clk, reset; output DC, DN, DD; output [3: 0] state; reg [3: 0] state, next;

parameter IDLE = 0; parameter GOT_5 c = 1; parameter GOT_10 c = 2;

parameter IDLE = 0; parameter GOT_5 c = 1; parameter GOT_10 c = 2; parameter GOT_15 c = 3; parameter GOT_20 c = 4; parameter GOT_25 c = 5; parameter GOT_30 c = 6; parameter GOT_35 c = 7; parameter GOT_40 c = 8; parameter GOT_45 c = 9; parameter GOT_50 c = 10; parameter RETURN_20 c = 11; parameter RETURN_15 c = 12; parameter RETURN_10 c = 13; parameter RETURN_5 c = 14

always @ (posedge clk or negedge reset) if (!reset) state <= IDLE; else state

always @ (posedge clk or negedge reset) if (!reset) state <= IDLE; else state <= next;

always @ (state or N or D or Q) begin case (state) IDLE: if

always @ (state or N or D or Q) begin case (state) IDLE: if (Q) next = GOT_25 c; else if (D) next = GOT_10 c; else if (N) next = GOT_5 c; else next = IDLE; GOT_5 c: if (Q) next = GOT_30 c; else if (D) next = GOT_15 c; else if (N) next = GOT_10 c; else next = GOT_5 c; GOT_10 c: if (Q) next = GOT_35 c; else if (D) next = GOT_20 c; else if (N) next = GOT_15 c; else next = GOT_10 c; GOT_15 c: if (Q) next = GOT_40 c; else if (D) next = GOT_25 c; else if (N) next = GOT_20 c; else next = GOT_15 c; GOT_20 c: if (Q) next = GOT_45 c; else if (D) next = GOT_30 c; else if (N) next = GOT_25 c; else next = GOT_20 c; GOT_25 c: if (Q) next = GOT_50 c; else if (D) next = GOT_35 c; else if (N) next = GOT_30 c; else next = GOT_25 c; GOT_30 c: next = IDLE; GOT_35 c: next = RETURN_5 c; GOT_40 c: next = RETURN_10 c; GOT_45 c: next = RETURN_15 c; GOT_50 c: next = RETURN_20 c; RETURN_20 c: next = RETURN_10 c; RETURN_15 c: next = RETURN_5 c; RETURN_10 c: next = IDLE; RETURN_5 c: next = IDLE; default: next = IDLE; endcase end

assign DC = (state == GOT_30 c || state == GOT_35 c || state

assign DC = (state == GOT_30 c || state == GOT_35 c || state == GOT_40 c || state == GOT_45 c || state == GOT_50 c); assign DN = (state == RETURN_5 c); assign DD = (state == RETURN_20 c || state == RETURN_15 c || state == RETURN_10 c); endmodule

Simulation of Moore Vender

Simulation of Moore Vender

Coding Alternative: Two Blocks always @ (state or N or D or Q) begin

Coding Alternative: Two Blocks always @ (state or N or D or Q) begin DC = 0; DD = 0; DN = 0; // defaults case (state) IDLE: if (Q) next = GOT_25 c; else if (D) next = GOT_10 c; else if (N) next = GOT_5 c; else next = IDLE; GOT_5 c: if (Q) next = GOT_30 c; else if (D) next = GOT_15 c; else if (N) next = GOT_10 c; else next = GOT_5 c; GOT_10 c: if (Q) next = GOT_35 c; else if (D) next = GOT_20 c; else if (N) next = GOT_15 c; else next = GOT_10 c; GOT_30 c: begin DC = 1; next = IDLE; end GOT_35 c: begin DC = 1; next = RETURN_5 c; end GOT_40 c: begin DC = 1; next = RETURN_10 c; end GOT_45 c: begin DC = 1; next = RETURN_15 c; end GOT_50 c: begin DC = 1; next = RETURN_20 c; end RETURN_20 c: begin DD = 1; next = RETURN_10 c; end GOT_15 c: if (Q) next = GOT_40 c; else if (D) next = GOT_25 c; else if (N) next = GOT_20 c; else next = GOT_15 c; GOT_20 c: if (Q) next = GOT_45 c; else if (D) next = GOT_30 c; else if (N) next = GOT_25 c; else next = GOT_20 c; RETURN_15 c: begin DD = 1; next = RETURN_5 c; end RETURN_10 c: begin DD = 1; next = IDLE; end RETURN_5 c: begin DN = 1; next = IDLE; end GOT_25 c: if (Q) next = GOT_50 c; else if (D) next = GOT_35 c; else if (N) next = GOT_30 c; else next = GOT_25 c; default: next = IDLE; endcase end

FSM Output Glitching § FSM state bits may not transition at precisely the same

FSM Output Glitching § FSM state bits may not transition at precisely the same time § Combinational logic for outputs may contain hazards § Result: your FSM outputs may glitch!

§ If the soda dispenser is glitch-sensitive, your customers can get a 20 -cent

§ If the soda dispenser is glitch-sensitive, your customers can get a 20 -cent soda!

Registered FSM Outputs are Glitch-Free reg DC, DN, DD; // Sequential always block for

Registered FSM Outputs are Glitch-Free reg DC, DN, DD; // Sequential always block for state assignment always @ (posedge clk or negedge reset) begin if (!reset) state <= IDLE; else if (clk) state <= next; DC <= (next == GOT_30 c || next == GOT_35 c ||next == GOT_40 c || next == GOT_45 c ||next == GOT_50 c); DN <= (next == RETURN_5 c); DD <= (next == RETURN_20 c || next == RETURN_15 c ||next == RETURN_10 c); END

Mealy Vender (covered in Recitation)

Mealy Vender (covered in Recitation)

Verilog for Mealy FS module mealy. Vender (N, D, Q, DC, DN, DD, clk,

Verilog for Mealy FS module mealy. Vender (N, D, Q, DC, DN, DD, clk, reset, state); input N, D, Q, clk, reset; output DC, DN, DD; reg DC, DN, DD; output [3: 0] state; reg [3: 0] state, next; parameter IDLE = 0; parameter GOT_5 c = 1; parameter GOT_10 c = 2; parameter GOT_15 c = 3; parameter GOT_20 c = 4; parameter GOT_25 c = 5; parameter RETURN_20 c = 6; parameter RETURN_15 c = 7; parameter RETURN_10 c = 8; parameter RETURN_5 c = 9; // Sequential always block for state assignment always @ (posedge clk or negedge reset) if (!reset) state <= IDLE; else state <= next;

always @ (state or N or D or Q) begin DC = 0; DN

always @ (state or N or D or Q) begin DC = 0; DN = 0; DD = 0; // defaults case (state) IDLE: if (Q) next = GOT_25 c; else if (D) next = GOT_10 c; else if (N) next = GOT_5 c; else next = IDLE; GOT_5 c: if (Q) begin DC = 1; next = IDLE; end else if (D) next = GOT_15 c; else if (N) next = GOT_10 c; else next = GOT_5 c; GOT_10 c: if (Q) begin GOT_25 c: if (Q) begin DC = 1; next = RETURN_20 c; end else if (D) begin DC = 1; next = RETURN_5 c; end else if (N) begin DC = 1; next = IDLE; end else next = GOT_25 c; RETURN_20 c: begin DC = 1; next = RETURN_5 c; end else if (D) next = GOT_20 c; else if (N) next = GOT_15 c; else next = GOT_10 c; DD = 1; next = RETURN_10 c; DC = 1; next = RETURN_10 c; end else if (D) next = GOT_25 c; else if (N) next = GOT_20 c; else next = GOT_15 c; RETURN_10 c: begin GOT_15 c: if (Q) begin GOT_20 c: if (Q) begin DC = 1; next = RETURN_15 c; end else if (D) begin DC = 1; next = IDLE; end else if (N) next = GOT_25 c; else next = GOT_20 c; end RETURN_15 c: begin DD = 1; next = RETURN_5 c; end DD = 1; next = IDLE; end RETURN_5 c: begin DN = 1; next = IDLE; end default: next = IDLE; endcase endmodule

Simulation of Mealy Vender

Simulation of Mealy Vender

Summary § Synchronize all asynchronous inputs § Use two back to back registers §

Summary § Synchronize all asynchronous inputs § Use two back to back registers § Two types of Finite State Machines introduced § Moore – Outputs are a function of current state § Mealy – outputs a function of current state and input § A standard template can be used for coding FSMs § Register outputs of combinational logic for critical control signals
