Frozen Tissue Array Bio. Chain Institute Inc.

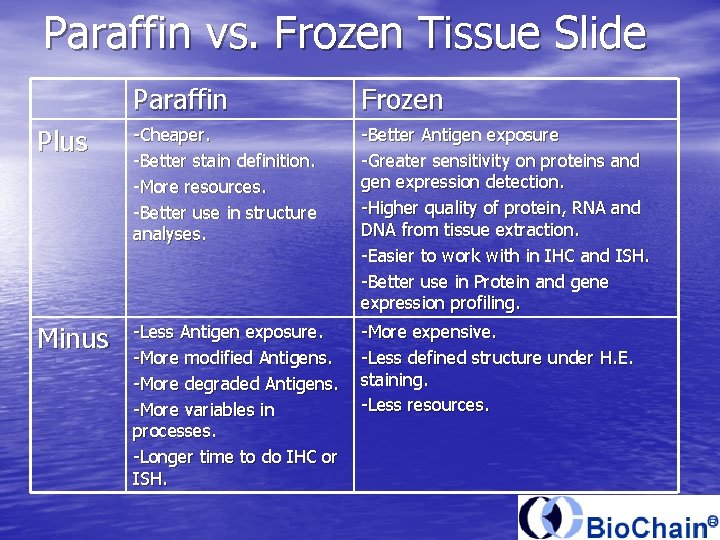

Paraffin vs. Frozen Tissue Slide Paraffin Frozen Plus -Cheaper. -Better stain definition. -More resources. -Better use in structure analyses. -Better Antigen exposure -Greater sensitivity on proteins and gen expression detection. -Higher quality of protein, RNA and DNA from tissue extraction. -Easier to work with in IHC and ISH. -Better use in Protein and gene expression profiling. Minus -Less Antigen exposure. -More modified Antigens. -More degraded Antigens. -More variables in processes. -Longer time to do IHC or ISH. -More expensive. -Less defined structure under H. E. staining. -Less resources.

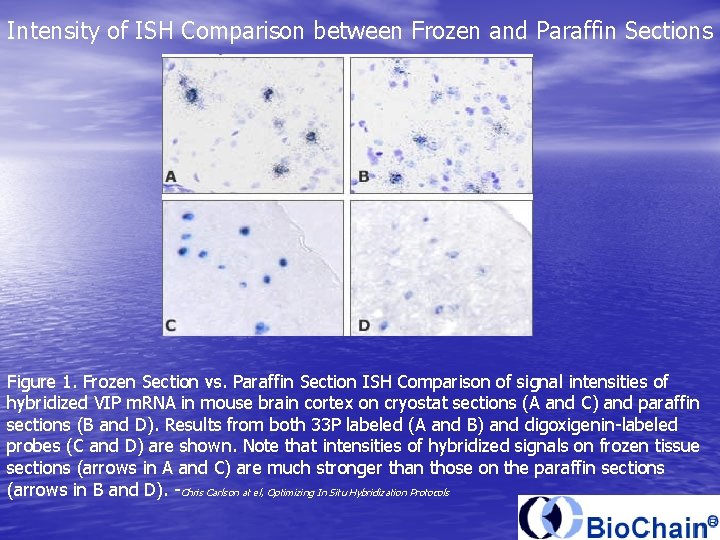

Intensity of ISH Comparison between Frozen and Paraffin Sections Figure 1. Frozen Section vs. Paraffin Section ISH Comparison of signal intensities of hybridized VIP m. RNA in mouse brain cortex on cryostat sections (A and C) and paraffin sections (B and D). Results from both 33 P labeled (A and B) and digoxigenin-labeled probes (C and D) are shown. Note that intensities of hybridized signals on frozen tissue sections (arrows in A and C) are much stronger than those on the paraffin sections (arrows in B and D). -Chris Carlson at el, Optimizing In Situ Hybridization Protocols

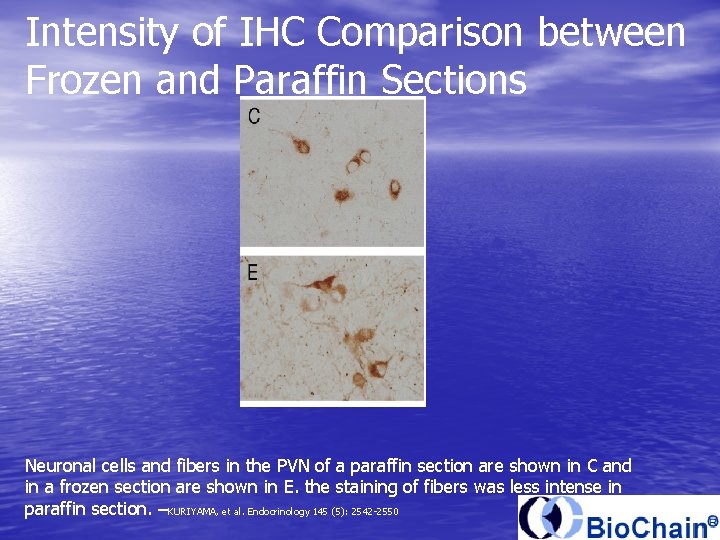

Intensity of IHC Comparison between Frozen and Paraffin Sections Neuronal cells and fibers in the PVN of a paraffin section are shown in C and in a frozen section are shown in E. the staining of fibers was less intense in paraffin section. –KURIYAMA, et al. Endocrinology 145 (5): 2542 -2550

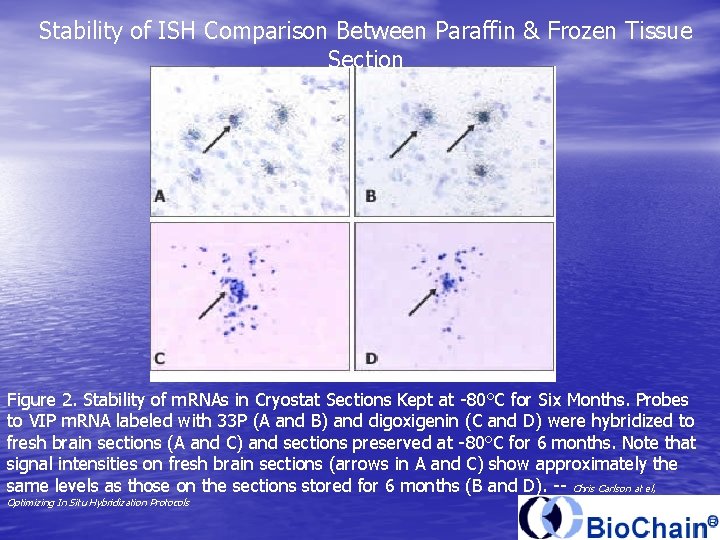

Stability of ISH Comparison Between Paraffin & Frozen Tissue Section Figure 2. Stability of m. RNAs in Cryostat Sections Kept at -80°C for Six Months. Probes to VIP m. RNA labeled with 33 P (A and B) and digoxigenin (C and D) were hybridized to fresh brain sections (A and C) and sections preserved at -80°C for 6 months. Note that signal intensities on fresh brain sections (arrows in A and C) show approximately the same levels as those on the sections stored for 6 months (B and D). -- Chris Carlson at el, Optimizing In Situ Hybridization Protocols

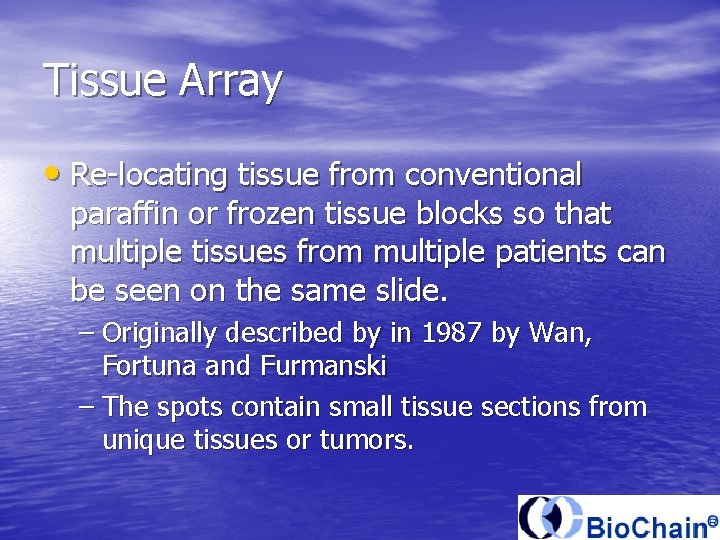

Tissue Array • Re-locating tissue from conventional paraffin or frozen tissue blocks so that multiple tissues from multiple patients can be seen on the same slide. – Originally described by in 1987 by Wan, Fortuna and Furmanski – The spots contain small tissue sections from unique tissues or tumors.

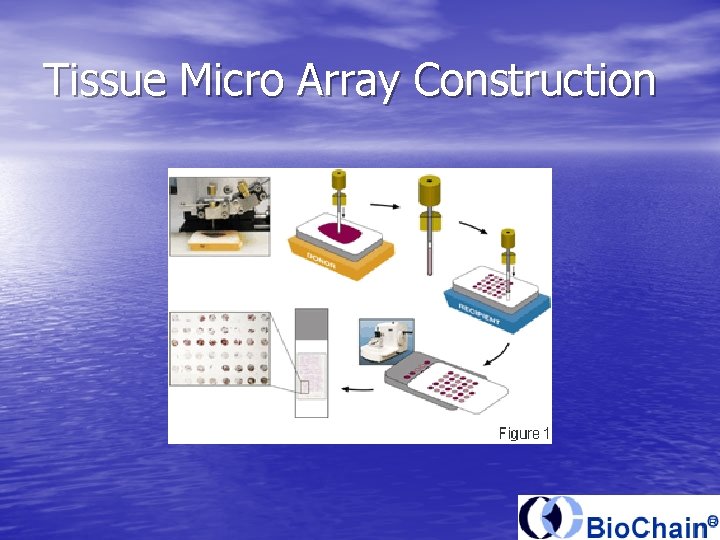

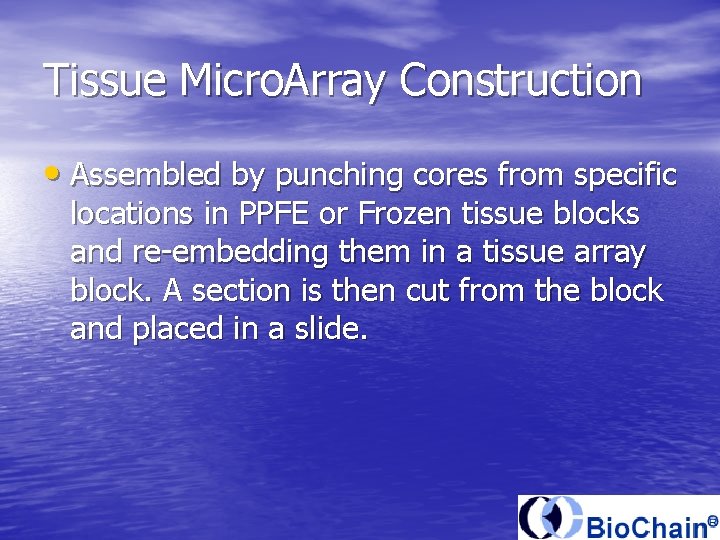

Tissue Micro. Array Construction • Assembled by punching cores from specific locations in PPFE or Frozen tissue blocks and re-embedding them in a tissue array block. A section is then cut from the block and placed in a slide.

Tissue Micro Array Construction

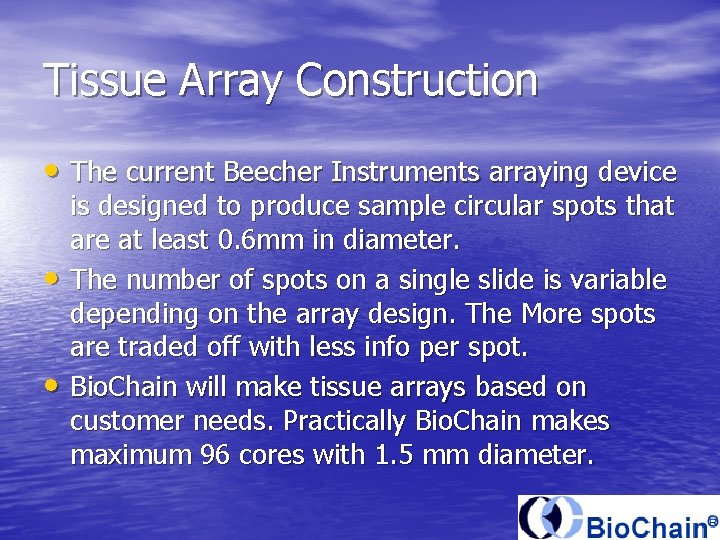

Tissue Array Construction • The current Beecher Instruments arraying device • • is designed to produce sample circular spots that are at least 0. 6 mm in diameter. The number of spots on a single slide is variable depending on the array design. The More spots are traded off with less info per spot. Bio. Chain will make tissue arrays based on customer needs. Practically Bio. Chain makes maximum 96 cores with 1. 5 mm diameter.

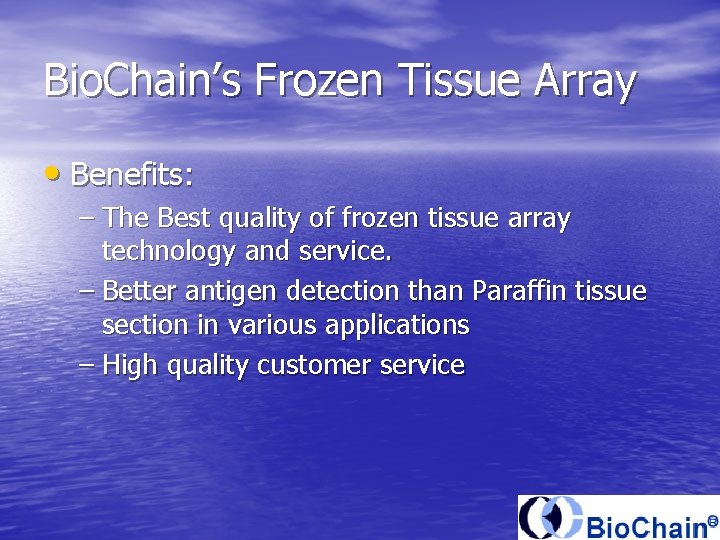

Bio. Chain’s Frozen Tissue Array • Benefits: – The Best quality of frozen tissue array technology and service. – Better antigen detection than Paraffin tissue section in various applications – High quality customer service

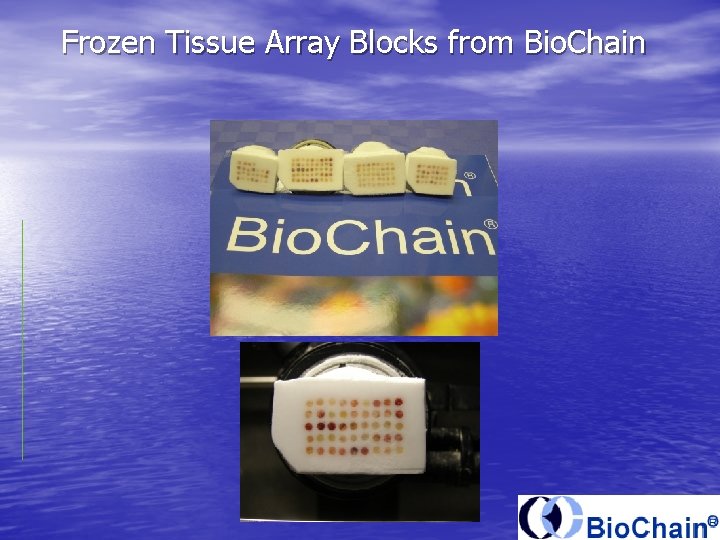

Frozen Tissue Array Blocks from Bio. Chain

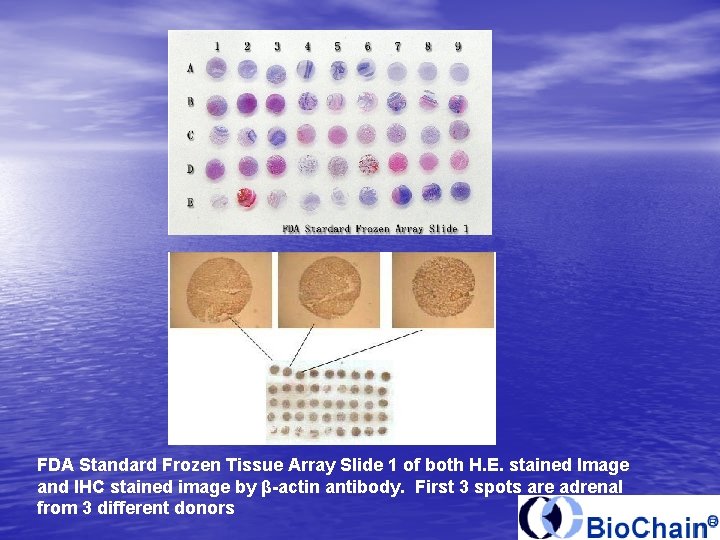

FDA Standard Frozen Tissue Array Slide 1 of both H. E. stained Image and IHC stained image by β-actin antibody. First 3 spots are adrenal from 3 different donors

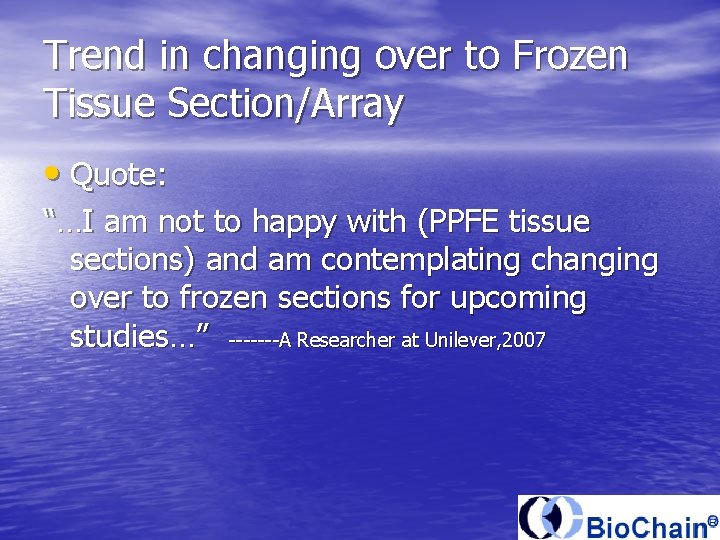

Trend in changing over to Frozen Tissue Section/Array • Quote: “…I am not to happy with (PPFE tissue sections) and am contemplating changing over to frozen sections for upcoming studies…” -------A Researcher at Unilever, 2007

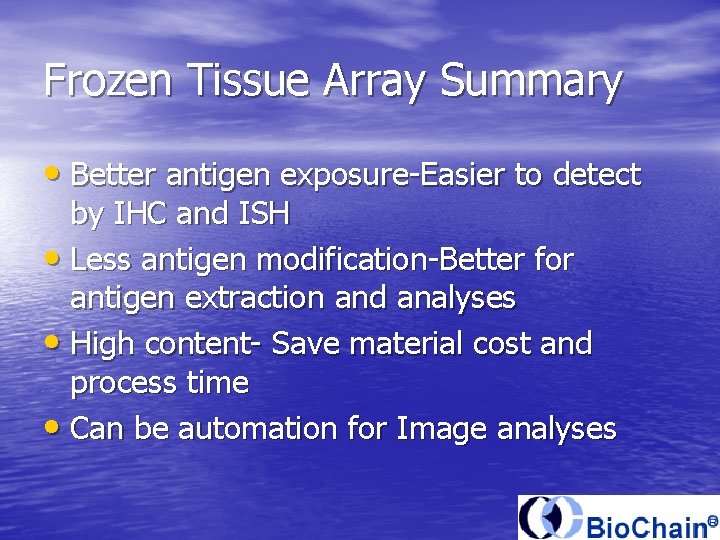

Frozen Tissue Array Summary • Better antigen exposure-Easier to detect by IHC and ISH • Less antigen modification-Better for antigen extraction and analyses • High content- Save material cost and process time • Can be automation for Image analyses

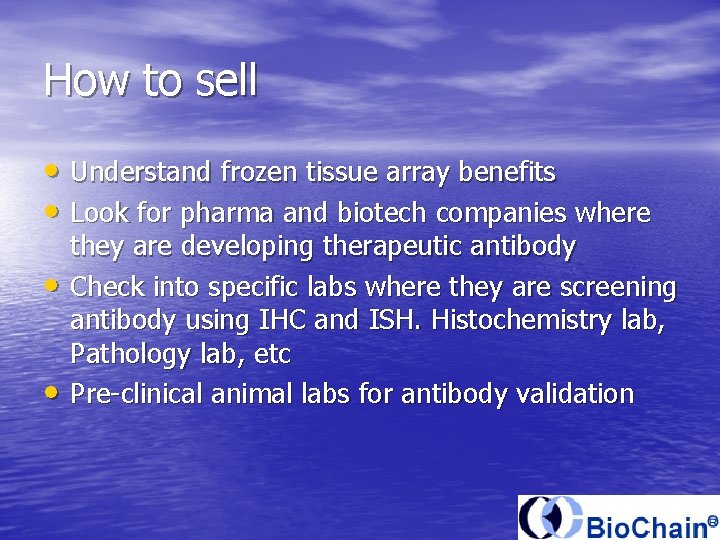

How to sell • Understand frozen tissue array benefits • Look for pharma and biotech companies where • • they are developing therapeutic antibody Check into specific labs where they are screening antibody using IHC and ISH. Histochemistry lab, Pathology lab, etc Pre-clinical animal labs for antibody validation
