Fronts Symbols and Weather Air Mass is a

Fronts, Symbols, and Weather

Air Mass is a large body of air where temperature and moisture content are similar throughout. Moisture content and temperature are determined by the area over which the air mass is formed called source regions.

Air Mass is designated by a two-letter symbol. The first letter indicates moisture content. Continental– forms over continents Maritime – forms over oceans

Temperature: The second letter represents temperature. Polar– cold air masses Tropical– warm air masses

Moisture Content vs. Temperature

Cold Air Mass There are three polar air masses that influence the weather in the United States. Continental polar Maritime polar: over the North Pacific Ocean Maritime polar: over the North Atlantic ocean

Warm Air Masses There are three warm air masses that influence the weather in the United States. Maritime tropical: that develops over the Gulf of Mexico Maritime tropical: that develops over the Pacific Ocean Continental tropical

Fronts are the boundary between air masses of different densities and usually different temperatures. There are four types of fronts: cold fronts, warm fronts, occluded fronts, and stationary fronts.

Cold Front A cold front forms when cold air moves under warm air and pushes the warm air up. Cooler weather follows cold fronts. Cold fronts bring thunderstorms, heavy rain or snow.

Warm Front A warm front forms when warm air moves over cold, denser air. Warm fronts bring drizzly rain and are followed by clear warm weather.

Occluded Front An occluded fronts form when a warm air mass is caught between two cooler air masses. Occluded front has cool temperatures and large amounts of rain and snow.

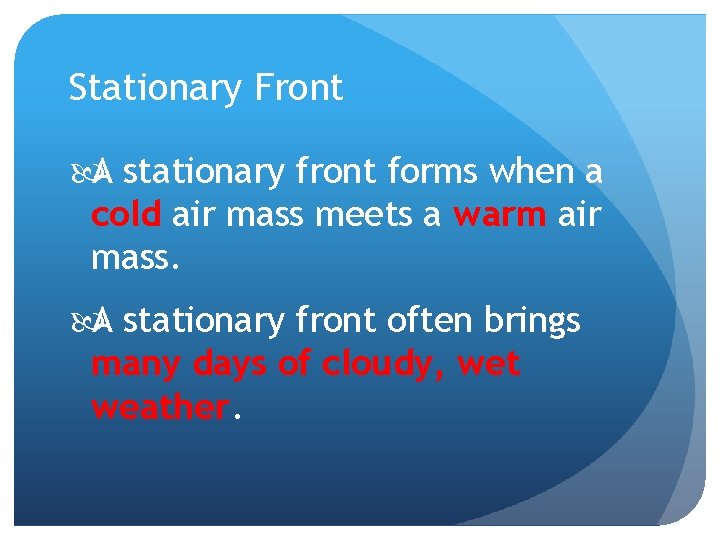

Stationary Front A stationary front forms when a cold air mass meets a warm air mass. A stationary front often brings many days of cloudy, wet weather.

Symbols for Fronts: You are going to go around the four front stations. At each station will you fill in your fronts foldable. While you’re moving through stations, there should be NO talking. Are you ready? ? ?

Name that Front! How does the air move?

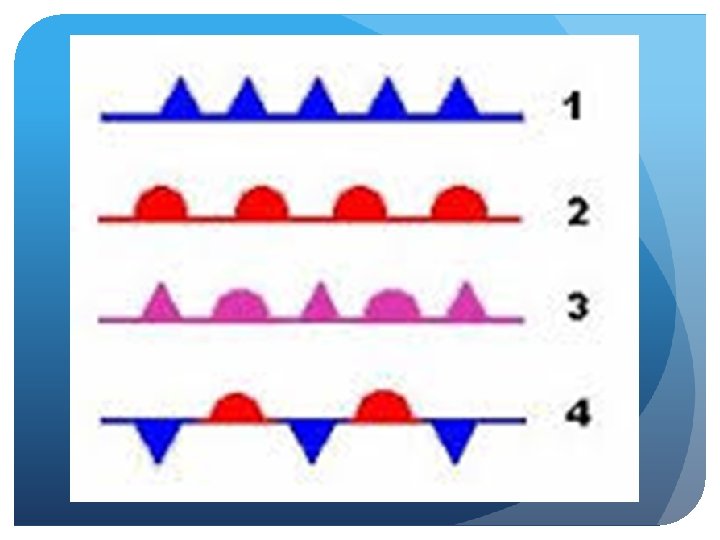

Weather and Fronts Mini Pop Quiz

What is the front name associated with symbol 1? And what happens to the air masses during this type of front?

What is the front name associated with symbol 2? And what happens to the air masses during this type of front?

What is the front name associated with symbol 3? And what happens to the air masses during this type of front?

What is the front name associated with symbol 4? And what happens to the air masses during this type of front?

What has to happen in order for weather to occur? Flip your paper over when you’re done.

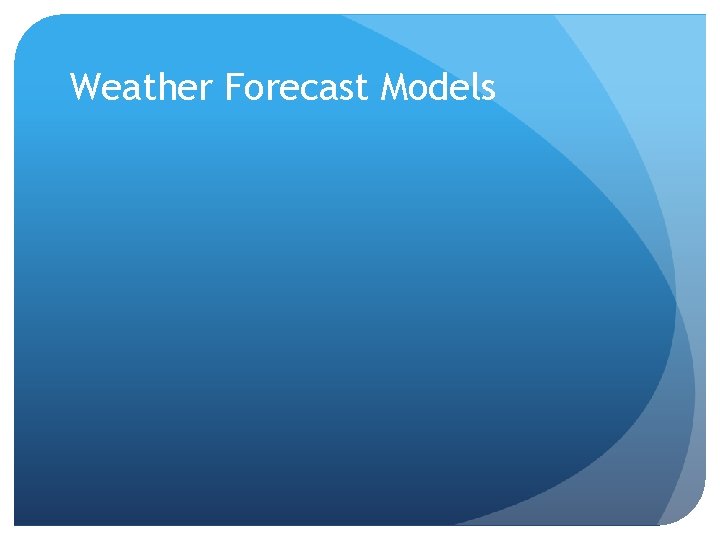

Weather Forecast Models

Daily Forecast:

What’s in a weather forecast? https: //www. youtube. com/watch? v=S 4 Ep_l. M_5 W 4

Weather map practice together. 1. Complete your weather map. 2. With your partner, come up with a weather script for the weather system located in northern California (last bullet).

Air Pressure and Weather Cyclones and Anticyclones

Air Pressure and Weather Cyclones An area in the atmosphere that has lower pressure than the surrounding areas. Air masses converge or move together; winds spiral toward the center

Air Pressure and Weather Anticyclones Areas where air diverges or moves apart and sinks. Sinking air is denser than surrounding air. Rotates in a direction opposite to Earth’s rotation.

Air Pressure and Weather Cyclones form clouds and rain when the rising air cools. Cyclones cause stormy weather. Anticyclones cause dry, clear weather because as the air sinks it gets warmer and absorbs moisture.

Severe Weather

Thunderstorms are a usually brief, heavy storm that consists of rain, strong winds, lightning, and thunder. Thunderstorms can occur along cold fronts, but only require warm and moist air near Earth’s surface and an unstable atmosphere.

Thunderstorms An unstable atmosphere occurs when the surrounding air is colder than the rising air mass. When the rising air reaches its dew point, the water vapor in the air condenses to form dark cumulonimbus clouds.

Lightning is an electric discharge that takes place between two oppositely charged surfaces, such as between a cloud and the ground, between two clouds, or between two parts of the same cloud.

Thunder is the sound caused by the rapid expansion of air along an electrical strike. Balloon Demonstration

Severe Thunderstorms Severe thunderstorms can produce one or more of the following conditions: high winds, hail, flash floods, and tornadoes.

Tornadoes A destructive, rotating column of air that has very high wind speeds , is visible as a funnel-shaped cloud, and touches the ground. 1% of all thunderstorms have a tornado. The average tornado has wind speeds between 120 and 180 km/h

Hurricanes A severe storm that develops over tropical oceans and whose strong winds of more than 120 km/h spiral in toward the intensely low-pressure storm center. At the center of the hurricane is the eye, which is a core of warm, relatively calm air with low pressure and light winds. Hurricanes can vary in size from 160 to 1, 500 km and can travel thousands of kilometers.

Hurricanes get their energy from the condensation of water vapor. Moisture is added to the air through evaporation from warm water which eventually condenses and gives the hurricane more energy.

Severe Weather Safety Tornado Watch- an alert that a tornado may happen Warning- a tornado has been spotted Go to a basement/cellar or a windowless room in the center of the building; outside lay in a deep ditch Flood Find a high place to wait out the flood; stay out of floodwaters Hurricane Have a disaster supply kit, evacuate if necessary, cover windows with plywood Thunderstorm Safety Stay away from water If you are outside stay away from trees and crouch down
