From Semistructured Data to XML Dan Suciu ATT
- Slides: 118
From Semistructured Data to XML Dan Suciu AT&T Labs http: //www. research. att. com/~suciu/vldb 99 -tutorial. pdf
How the Web is Today • HTML documents • all intended for human consumption • many generated automatically by applications Easy to fetch any Web page, from any server, any platform
Limits of the Web Today • application cannot consume HTML • HTML wrapper technology is brittle – screen scraping • OO technology (Corba) requires controlled environment • companies merge, form partnerships; need interoperability fast people are inventive: send data by fax !
Paradigm Shift on the Web • new Web standard XML: – XML generated by applications – XML consumed by applications • data exchange – across platforms: enterprise interoperability – across enterprises Web: from collection of documents to data and documents
Database Community Can Help • • • query optimization, processing views, transformations data warehouses, data integration mediators, query rewriting secondary storage, indexes
But Needs a Paradigm Shift Too • Web data differs from database data: – self-describing, schema-less – structure changes without notice – heterogeneous, deeply nested, irregular – documents and data mixed together • designed by document, not db experts • need Web data management
What This Tutorial is About • what the database community has done – semistructured data model – query languages, schemas • what the Web community has done: – data formats/models: XML, RDF – transformation language (XSL), schemas • where they meet and where they differ
Outline • • • Semistructured data and XML Query languages Schemas Systems issues Conclusions
Part 1 Semistructured Data and XML
Semistructured Data Origins: • integration of heterogeneous sources • data sources with non-rigid structure • biological data • Web data
The Semistructured Data Model Bib &o 1 complex object paper book references &o 12 &o 24 references author title year &o 29 references author http page author title publisher title author &o 43 &25 &96 1997 firstname lastname atomic object last firstname lastname &243 “Serge” “Abiteboul” “Victor” Object Exchange Model (OEM) first &206 “Vianu” 122 133
Syntax for Semistructured Data Bib: &o 1 { paper: &o 12 { … }, book: &o 24 { … }, paper: &o 29 { author: &o 52 “Abiteboul”, author: &o 96 { firstname: &243 “Victor”, lastname: &o 206 “Vianu”}, title: &o 93 “Regular path queries with constraints”, references: &o 12, references: &o 24, pages: &o 25 { first: &o 64 122, last: &o 92 133} } }
Syntax for Semistructured Data May omit oid’s: { paper: { author: “Abiteboul”, author: { firstname: “Victor”, lastname: “Vianu”}, title: “Regular path queries …”, page: { first: 122, last: 133 } } }
Characteristics of Semistructured Data • • missing or additional attributes multiple attributes different types in different objects heterogeneous collections self-describing, irregular data, no a priori structure
Comparison with Relational Data row row name phone “John” 3634 “Sue” 6343 “Dick” 6363 { row: { name: “John”, phone: 3634 }, row: { name: “Sue”, phone: 6343 }, row: { name: “Dick”, phone: 6363 } }
XML • a W 3 C standard to complement HTML • origins: structured text SGML • motivation: – HTML describes presentation – XML describes content • • http: //www. w 3. org/TR/REC-xml (2/98)
From HTML to XML HTML describes the presentation
HTML <h 1> Bibliography </h 1> <p> <i> Foundations of Databases </i> Abiteboul, Hull, Vianu Addison Wesley, 1995 <p> <i> Data on the Web </i> Abiteoul, Buneman, Suciu Morgan Kaufmann, 1999
XML <bibliography> <book> <title> Foundations… </title> <author> Abiteboul </author> <author> Hull </author> <author> Vianu </author> <publisher> Addison Wesley </publisher> <year> 1995 </year> </book> … </bibliography> XML describes the content
XML Terminology • • • tags: book, title, author, … start tag: <book>, end tag: </book> elements: <book>…<book>, <author>…</author> elements are nested empty element: <red></red> abbrv. <red/> an XML document: single root element well formed XML document: if it has matching tags
More XML: Attributes <book price = “ 55” currency = “USD”> <title> Foundations of Databases </title> <author> Abiteboul </author> … <year> 1995 </year> </book> attributes are alternative ways to represent data
More XML: Oids and References <person id=“o 555”> <name> Jane </name> </person> <person id=“o 456”> <name> Mary </name> <children idref=“o 123 o 555”/> </person> <person id=“o 123” mother=“o 456”><name>John</name> </person> oids and references in XML are just syntax
XML Data Model • does not exists • Document Object Model (DOM): – – http: //www. w 3. org/TR/REC-DOM-Level-1 (10/98) class hierarchy (node, element, attribute, …) objects have behavior defines API to inspect/modify the document
XML Parsers • traditional: return data structure (DOM? ) • event based: SAX (Simple API for XML) – http: //www. megginson. com/SAX – write handler for start tag and for end tag
XML Namespaces • http: //www. w 3. org/TR/REC-xml-names (1/99) • name : : = [prefix: ]localpart <book xmlns: isbn=“www. isbn-org. org/def”> <title> … </title> <number> 15 </number> <isbn: number> …. </isbn: number> </book>
XML Namespaces • syntactic: <number> , <isbn: number> • semantic: provide URL for schema <tag xmlns: mystyle = “http: //…”> defined here … <mystyle: title> … </mystyle: title> <mystyle: number> … </tag>
XML v. s. Semistructured Data • both described best by a graph • both are schema-less, self-describing
Similarities and Differences <person id=“o 123”> { person: &o 123 <name> Alan </name> { name: “Alan”, <age> 42 </age> age: 42, <email> ab@com </email> email: “ab@com” } </person> } <person father=“o 123”> … </person> father person name Alan age 42 email ab@com { person: { father: &o 123 …} } person father name age email Alan similar on trees, different on graphs 42 ab@com
More Differences • XML is ordered, ssd is not • XML can mix text and elements: <talk> Making Java easier to type and easier to type <speaker> Phil Wadler </speaker> </talk> • XML has lots of other stuff: entities, processing instructions, comments
RDF • http: //www. w 3. org/TR/REC-rdf-syntax (2/99) • purpose: metadata for Web – help search engines • syntax in XML • semantics: edge-labeled graphs
RDF Syntax <rdf: Description about=“www. mypage. com”> <about> birds, butterflies, snakes </about> <author> <rdf: Description> <firstname> John </firstname> <lastname> Smith </lastname> </rdf: Description> </author> </rdf: Description>
RDF Data Model www. mypage. com about author birds, butterflies, snakes firstname John lastname Smith the RDF Data Model is very close to semistructured data
More RDF Examples related www. mypage. com about www. anotherpage. com author birds, butterflies, snakes firstname John lastname Smith author Joe Doe
<rdf: Description about=“www. mypage. com”> <about> birds, butterflies, snakes </about> <author> <rdf: Description ID=“&o 55”> <firstname> John </firstname> <lastname> Smith </lastname> </rdf: Description> </author> </rdf: Description> <rdf: Description about=“www. anotherpage. com”> <related> <rdf: Description about=“www. mypage. com”/> </related> <author rdf: resource=“&o 55”/> <author> Joe Doe </author> </rdf: Description>
RDF Terminology subject predicate object statement
More RDF: Containers • bag, sequence, alternative <rdf: Description> <a> <rdf: Bag> <rdf: li> s 1 </rdf: li> <rdf: li> s 2 </rdf: li> </rdf: Bag> </a> </rdf: Description>
RDF Containers (cont’d) a rdf: type Bag rdf_1 s 1 rdf_2 s 2
More RDF: Higher Order Statements “the author of www. thispage. com says: ‘the topic of www. thatpage. com is environment’ “ www. thispage. com www. thatpage. com topic author says environment RDF uses reification
Summary of Data Models • semistructured data, XML, RDF • data is self-describing, irregular • schema embedded in the data
Part 2 Query Languages • • • Semistructured data and XML Query languages Schemas Systems issues Conclusions
Query Languages: Motivation • granularity of the HTML Web: one file • granularity of Web data varies: – single data item: “get John’s salary” – entire database: “get all salaries” – aggregates: “get average salary” • need query language to define granularity
Query Languages: Outline • for semistructured data: – Lorel – Un. QL – Stru. QL • for XML: XML-QL • a different paradigm – structural recursion – XSL
Lorel • part of the Lore system (Stanford) • adapts OQL to semistructured data example: select X. title from Bib. paper X where X. year > 1995 select Bib. paper. title abbreviated to: from Bib. paper where Bib. paper. year > 1995
Lorel v. s. OQL • implicit coercions: 1995 to “ 1995” • missing attributes – empty answer v. s. type error • set-valued attributes – in X. year>1995, X may have several years • regular path expressions (next)
Regular Path Expressions select X. title from Bib. paper X, Bib. (paper|book) Y where Y. author. lastname? = “Ullman” and Y. reference+ X Useful for: • syntactic substitute for inheritance: paper|book • navigating partially known structures: lastname? • transitive closure: reference+
Un. QL • Unstructured Query Language • patterns, templates, structural recursion • patterns: select T where Bib. paper: { title: T, year: Y, journal: “TODS”} and Y > 1995
Un. QL: Templates select result: { fn: F, ln: L, pub: { title: T, year: Y }} where Bib. paper: { title: T, year: Y, journal: “TODS”} and Y > 1995 Result looks like: { result: { fn: “John”, ln: “Smith”, pub: { title: “P equals NP”, year: 2005}}, result: { fn: “Joe”, ln: “Doe”, pub: { title: “Errata to P=NP”, year: 2006}} …}
Skolem Functions • Maier, 1986 – in OO systems • Kifer et al, 1989 – F-logic • Hull and Yoshikawa, 1990 – deductive db (ILOG) • Papakonstantinou et al. , 1996 – semistructured db (MSL) • illustrate with Strudel (next)
Skolem Functions in Stru. QL • Strudel: a Web Site Management System • Stru. QL: its query language
Example: Bibliography Data {Bib: { paper: { author: “Jones”, author: “Smith”, title: “The Comma”, year: 1994 } }, { paper: …. . } }
Example: A Complex Web Site person Home. Page(“Smith”) yearentry Year. Page(“Smith”, 1996) publication Pub. Page(“The Comma”) title person Home. Page(“Jones”) yearentry author Year. Page(“Smith”, 1994) author Root() Home. Page(“Mark”) yearentry Year. Page(“Jones”, 1994) publication Year. Page(“Mark”, 1996) Year. Page(“Jones”, 1998) publication Pub. Page(“The Dot”) publication title publication author
Example: Skolem Functions in Stru. QL where Root -> “Bib” -> X, X -> “paper” -> P, P -> “author” -> A, P -> “title” -> T, P -> “year” -> Y create Root(), Home. Page(A), Year. Page(A, Y), Pub. Page(P) link Root() -> “person” -> Home. Page(A), Home. Page(A) -> “yearentry” -> Year. Page(A, Y), Year. Page(A, Y) -> “publication” -> Pub. Page(P), Pub. Page(P) -> “author” -> Home. Page(A), Pub. Page(P) -> “title” -> T
XML-QL: A Query Language for XML • http: //www. w 3. org/TR/NOTE-xml-ql (8/98) • features: – regular path expressions – patterns, templates – Skolem Functions • based on OEM data model
Pattern Matching in XML-QL where <book language=“french”> <publisher> <name> Morgan Kaufmann </name> </publisher> <author> $a </author> </book> in “www. a. b. c/bib. xml” construct $a
Simple Constructors in XML-QL where <book language = $l> <author> $a </> in “www. a. b. c/bib. xml” construct <result> <author> $a </> <lang> $l </> Note: </> abbreviates </book> or </result> or. . . <result> <author>Smith</author><lang>English</lang></result> <author>Smith</author><lang>Mandarin</lang></result> <author>Doe</author><lang>English</lang></result>
Skolem Functions in XML-QL where <book language = $l> <author> $a </> in “www. a. b. c/bib. xml” construct <result> <author id=F($a)> $a</> <lang> $l </> <result> <author>Smith</author> <lang>English</lang> <lang>Mandarin</lang> </result> <author>Doe</author> <lang>English</lang> </result>
A Different Paradigm: Structural Recursion Data as sets with a union operator: {a: 3, a: {b: ”one”, c: 5}, b: 4} = {a: 3} U {a: {b: ”one”, c: 5}} U {b: 4}
Structural Recursion Example: retrieve all integers in the data f(T 1 U T 2) = f({L: T}) = f({}) = f(V) = a 3 b a b c “one” 5 f(T 1) U f(T 2) f(T) {} if is. Int(V) then {result: V} else {} result 4 3 result 5 result 4 standard textbook programming on trees
Structural Recursion Example: increase all engine prices by 10% f(T 1 U T 2) = f(T 1) U f(T 2) f({L: T}) = if L= engine then {L: g(T)} else {L: f(T)} f({}) = {} f(V) = V engine part price 100 body price part 1000 g(T 1 U T 2) = g(T 1) U g(T 2) g({L: T}) = if L= price then {L: 1. 1*T} else {L: g(T)} g({}) = {} g(V) = V engine price 1000 100 part price 110 body price part 1100 price 1000 100
XSL • two W 3 C drafts: XSLT and XPATH – http: //www. w 3. org/TR/xpath, 7/99 – http: //www. w 3. org/TR/WD-xslt, 7/99 • in commercial products (e. g. IE 5. 0) • purpose: stylesheet specification language: – stylesheet: XML -> HTML – in general: XML -> XML
XSL Templates and Rules • query = collection of template rules • template rule = match pattern + template Retrieve all book titles: <xsl: template> <xsl: apply-templates/> </xsl: template> <xsl: template match = “/bib/*/title”> <result> <xsl: value-of/> </result> </xsl: template>
XPath Expressions in Match Patterns bib * / /bib bib/paper bib//paper|book @price bib/book/@price matches a bib element matches any element matches the root element matches a bib element under root matches a paper in bib, at any depth matches a paper or a book matches a price attribute matches price attribute in book, in bib
Flow Control in XSL <xsl: template> <xsl: apply-templates/> </xsl: template> <xsl: template match=“a”> <A><xsl: apply-templates/></A> </xsl: template> <xsl: template match=“b”> <B><xsl: apply-templates/></B> </xsl: template> <xsl: template match=“c”> <C><xsl: value-of/></C> </xsl: template>
XSL is Structural Recursion Equivalent to: f(T 1 U T 2) = f(T 1) U f(T 2) f({L: T}) = if L= c then {C: t} else L= b then {B: f(t)} else L= a then {A: f(t)} else f(t) f({}) = {} f(V) = V XSL query = single function XSL query with modes = multiple function
XSL and Structural Recursion XSL: • trees only • may loop Structural Recursion: • arbitrary graphs • always terminates add the following rule: <xsl: template match = “e”> <xsl: apply-patterns select=“/”/> </xsl: template> stack overflow on IE 5. 0
Summary of Query Languages • • • studied extensively in semistructured data some quite powerful features no standard for XML QL yet (WG soon) XSL available today (for stylesheets) XSL = structural recursion
Part 3 Schemas • • • Semistructured data and XML Query languages Schemas Systems issues Conclusions
Schemas • why ? here lies our interest – XML: to describe semantics – semistructured data: to improve processing • what ? – semistructured data: foundational – XML: several concrete proposals
Schemas • when ? – semistructured data, XML: a posteriori – RDBMS: a priori, to interpret binary data • how ? – semistructured data: schema is independent – XML: schema is hardwired with the data
Outline • schemas for semistructured data: – foundations – schema extraction • schemas for XML: – DTD – XML-Schema – RDF-Schema
Schemas: An Example Some database: &r 1 person company person manages company works-for employee &p 1 &c 1 &p 2 &c 2 c. e. o. &p 3 c. e. o. works-for position phone name address namepositionworks-for nameaddress &s 0 &s 1 &s 2 &s 3 &s 4 &s 5 &s 6 url &s 7 &s 8 &s 9 description “Smith” “Manager” “Widget” “Trenton” “Jones” “ 5552121” “Gadget” description salesrep &a 2 “Sales” eval &a 5 1998 &a 4 1997 &a 3 task &a 6 “below target” “www. gp. fr” &a 1 procurement &s 10 “Paris” “Dupont” contact “on target”
Lower-Bound Schemas person Root company works-for Company c. e. o. Employee name address name managed-by string
Upper Bound Schemas person Root company Company works-for managed-by Employee c. e. o. | employee name | address | url name | phone | position description string - Any
The Two Questions to Ask Conformance: does that data conform to this schema ? Classification: if so, then which objects belong to what classes ?
Graph Simulation Definition Two edge-labeled graphs G 1, G 2 A simulation is a relation R between nodes: • if (x 1, x 2) in R, and (x 1, a, y 1) in G 1, then exists (x 2, a, y 2) in G 2 (same label) s. t. (y 1, y 2) in R G 1 x 1 R x 2 a a y 1 R G 2 y 2 Note: a simulation can be efficiently computed [Henzinger, et a. 1995]
Using Simulation Data graph D, schema S • upper bound schema: – conformance: find simulation R from D to S – classification: check if (x, c) in R • lower bound schema – conformance: find simulation R from S to D – classification: check if (c, x) in R [Buneman et al 1997]
Example person Root company works-for managed-by Company c. e. o. “Smith” “Manager” name address name Employee &r 1 person company person manages company works-for &p 1 c. e. o. &c 1 employee&p 2 &c 2 c. e. o. &p 3 works-for phone name address position nameaddress name &s 0 &s 1 &s 2 &s 3 &s 4 &s 5 &s 6 url &s 7 &s 8 &s 9 description string “Widget” “Trenton” “Jones” &a 1 procurement &a 2 “Paris”“Dupont” “Sales” “ 5552121”“Gadget” description &s 10 eval &a 5 1998 &a 4 1997 &a 3 task &a 6 “below target” “www. gp. fr” salesrep contact person Root company works-for managed-by Company Employee c. e. o. | employee name | address | url name | phone | position description string - “on target” Lower Bound Database Upper Bound simulation: efficient technique for checking conformance to schema Any
Application 1: Improve Secondary Storage Company person Root company works-for managed-by Company name address name Employee c. e. o. string Employee Lower-bound schema Store rest in overflow graph
Application 2: Query Optimization Bib paper year int journal select X. title from Bib. _ X where X. *. zip = “ 12345” book address title string title author string last first zip city streetname string Upper-bound schema select X. title from Bib. book X where X. address. zip = “ 12345” [Fernandez, Suciu 1998]
Schema Extraction (From Data) Problem statement • given data instance D • find the “most specific” schema S for D In practice: S too large, need to relax [Nestorov et al. 1998]
Schema Extraction: Sample Data &r employee employee manages manages &p 1 &p 2 managedby worksfor &p 4 &p 5 managedby company worksfor &c &p 3 worksfor employee &p 6 &p 7 managedby worksfor &p 8
Lower Bound Schema Extraction Root &r employee company employee Bosses &p 1, &p 4, &p 6 worksfor Company &c manages managedby worksfor Regulars &p 2, &p 3, &p 5, &p 7, &p 8
Upper Bound Schema Extraction: Data Guides Root &r company managedby worksfor Bosses &p 1, &p 4, &p 6 worksfor Company &c employee Employees &p 1, &p 3, P 4 &p 5, &p 6, &p 7, &p 8 manages managedby worksfor manages Regulars &p 2, &p 3, &p 5, &p 7, &p 8
Schemas in XML • Document Type Definition (DTD) • XML Schema • RDF Schema
Document Type Definition: DTD • part of the original XML specification • an XML document may have a DTD • terminology for XML: – well-formed: if tags are correctly closed – valid: if it has a DTD and conforms to it • validation is useful in data exchange
DTDs as Grammars <!DOCTYPE paper [ <!ELEMENT paper (section*)> <!ELEMENT section ((title, section*) | text)> <!ELEMENT title (#PCDATA)> <!ELEMENT text (#PCDATA)> ]> <paper> <section> <text> </section> <title> </title> <section> … </section> </paper>
DTDs as Schemas Not so well suited: • impose unwanted constraints on order <!ELEMENT person (name, phone)> • references cannot be constraint • can be to vague: <!ELEMENT person ((name|phone|email)*)>
XML Schemas • • • very recent proposal unifies previous schema proposals generalizes DTDs uses XML syntax two documents: structure and datatypes – http: //www. w 3. org/TR/xmlschema-1 – http: //www. w 3. org/TR/xmlschema-2
XML Schemas <element. Type name=“paper”> <sequence> <element. Type. Ref name=“title”/> <element. Type. Ref name=“author” min. Occurs=“ 0”/> <element. Type. Ref name=“year”/> <choice> <element. Type. Ref name=“journal”/> <element. Type. Ref name=“conference”/> </choice> </sequence> </element. Type> DTD: <!ELEMENT paper (title, author*, year, (journal|conference))>
RDF Schemas • http: //www. w 3. org/TR/PR-rdf-schema (3/99) • object-oriented flavor
RDF Schemas • recall RDF data: subject predicate object statement – resources – properties • RDF schema: – classes – properties
RDF Schemas Data: <rdf: Description ID=“car 001”> <name> My Honda </name> <miles> 50000 </miles> <rdf: type resource=“#Motor. Vehicle”/> </rdf: Description>
RDF Schemas Schema: <rdf: Description ID=“Motor. Vehicle”> <rdf: type resource=“#Class”/> <rdf: sub. Class. Of resource=“#Resource”/> </rdf: Description> <rdf: Description ID=“Truck”> <rdf: type resource=“#Class”/> <rdf: sub. Class. Of resource=“#Motor. Vehicle”/> </rdf: Description>
RDF Schemas car 001 name type Truck sub. Class. Of type Class miles Motor. Vehicle type My Honda 50000

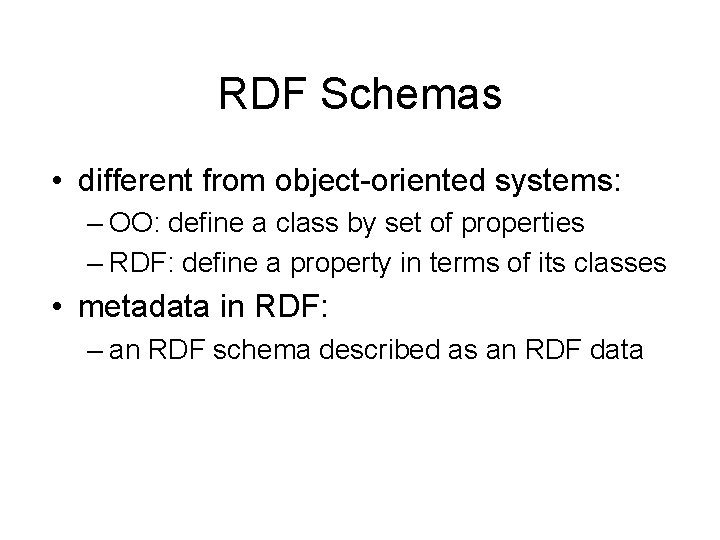

RDF Schemas • different from object-oriented systems: – OO: define a class by set of properties – RDF: define a property in terms of its classes • metadata in RDF: – an RDF schema described as an RDF data
Summary of Schemas • in SS data: – graph theoretic – data and schema are decoupled – used in data processing • in XML – from grammar to object-oriented – schema wired with the data – emphasis on semantics for exchange
Part 4 Systems Issues • • • Semistructured data and XML Query languages Schemas Systems issues Conclusions
Systems Issues • servers • mediators
Servers for Semistructured Data / XML • storage • index • query evaluation [Mc. Hugh, Widom 1999]
XML Storage • • • text file (XML) store in ternary relation use DTD to derive schema mine data to derive schema build special purpose repository (Lore)
XML Storage: Text File • advantages – simple – less space than one thinks – reasonable clustering • disadvantage – no updates – require special purpose query processor
Store XML in Ternary Relation Ref &o 1 paper &o 2 title &o 3 author &o 4 “The Calculus” “…” year Val &o 5 “…” [Florescu, Kossman 1999] &o 6 “ 1986”
Use DTD to derive Schema • DTD: <!ELEMENT employee (name, address, project*)> <!ELEMENT address (street, city, state, zip)> • ODMG classes: class Employee public type tuple (name: string, address: Address, project: List(Project)) class Address public type tuple (street: string, …) • [Christophides et al. 1994 , Shanmugasundaram et al. 1999]
Mine Data to Derive Schema paper Paper 1 paper year author title authortitleauthor title fn ln Paper 2 [Deutsch et al. 1999]
Indexing Semistructured Data • coercions: 1995 v. s. “ 1995” • regular path expressions – data guides [Goldman, Widom, 1997] – T-indexes [Milo, Suciu, 1999]
Indexing All Paths in the Data 1 t t 2 a t 3 b 7 a 8 t t 4 c a d 5 a 9 10 11 12 6 a b 13 Semistructured Data t 1 t 23456 a b 7 8 10 12 13 d c 7 13 Data Guide 9 11 1 a 23456 b c b 7 13 8 10 12 T-Index d 9 11
Mediators for Semistructured Data / XML • XML = virtual view of Relational/OO/OR sources • mediator = translation, integration • issues: – query composition and rewriting [Papakonstatinou, et al. 1996] – limited source capabilities [Yerneni, et al. 1999]
Example: An XML Mediator Store SB • relational database: • virtual XML view: <store> <name> n 1 </name> <book>. . . </book>. . . </store> <name>n 2 </name> <book>. . . </book> … </store> Book
Example: An XML Mediator • specify mediator declaratively (a view): from where Store, SB, Book Store. sid=SB. sid and SB. bid=Book. bid construct <store ID=f(Store. sid)> <name> Store. name </name> <book> Book. title </book> </store>
Example: An XML Mediator • users ask XML-QL queries: – find stores who sell “The Calculus” where <store> <name> $n </name> <book> The Calculus </book> <store> construct <result> $n </result>
Example: An XML Mediator • system composes query with view: from Store, SB, Book where Store. sid=SB. sid and SB. bid=Book. bid and Book. title=“The Calculus” construct <result> Store. name </result>
Summary of Systems • unclear today how XML will be used – materialized ? Need servers – virtual ? Need mediators • most work is still ahead
Part 5 Conclusions • • • Semistructured data and XML Query languages Schemas Systems issues Conclusions
Summary • • XML = what is out there semistructured data = what we can process paradigm shift, for both Web and db covered in tutorial: – data models, queries, schemas
Current and Future Technologies • Web applications possible today: – export relational data to XML (e. g. Oracle) – import XML directly into applications • Web applications in the future: – mediator technology (XML view) – store/process native XML data – compress XML – mine/analyze XML
Why This Is Cool for Database Researchers • put to work what you teach in CS 101 ! – tree traversals (structural recursion, XSL) – automata theory (DTD’s, path expressions) – graph theory (simulation) • adapt old DB tricks to new kind of data • save the trees: from fax to XML The End
Further Readings www. w 3. org/XML www-db. stanford. edu/~widom www-rocq. inria. fr/~abiteboul db. cis. upenn. edu www. research. att. com/~suciu Abiteboul, Buneman, Suciu Data on the Web: From Relational to Semistructured to XML Morgan Kaufmann, 1999 (appears in October)
