From Good Laboratory Practice to Total Quality Management

From Good Laboratory Practice to Total Quality Management in Medical Laboratories : The Perspective October, 2002 S Cheng 1

What is Quality b Quality is the entity of a product ( service ) which fulfils the defined and expected requirement b The customer checks if the product meet the requirements 2

Quality in Medical Laboratory Testing b The right test result, at the b Right time, on the b Right specimen, from the right patient, with result interpretation based on b Correct reference data, and at the b Right price 3

Evolution of Quality Management Philosophy 1930 – 60, Q. C. ( Cure ) 1970 – 80, Q. A. ( Preventive ) To-day, TQM ( Holistic involvement ) 4

Evolution of Quality Systems 5

Overview on the Functions of The Medical Laboratory 6

Clinical Specimen Adulteration 7

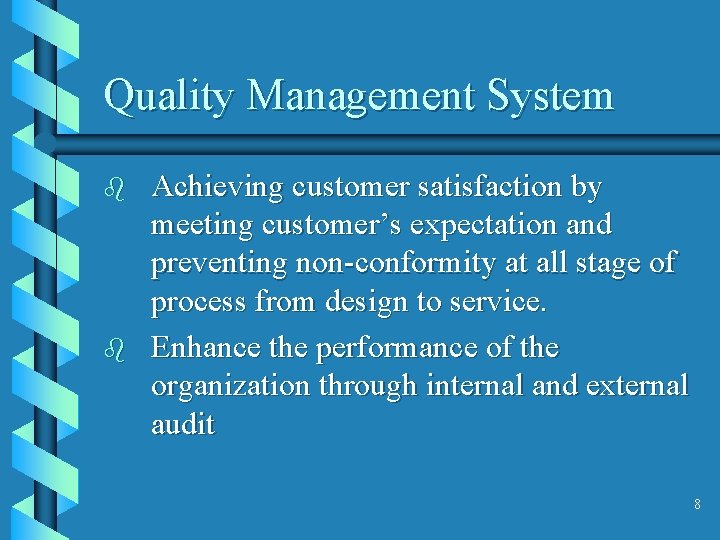

Quality Management System b b Achieving customer satisfaction by meeting customer’s expectation and preventing non-conformity at all stage of process from design to service. Enhance the performance of the organization through internal and external audit 8

QM, QA and QC interrelationships 9

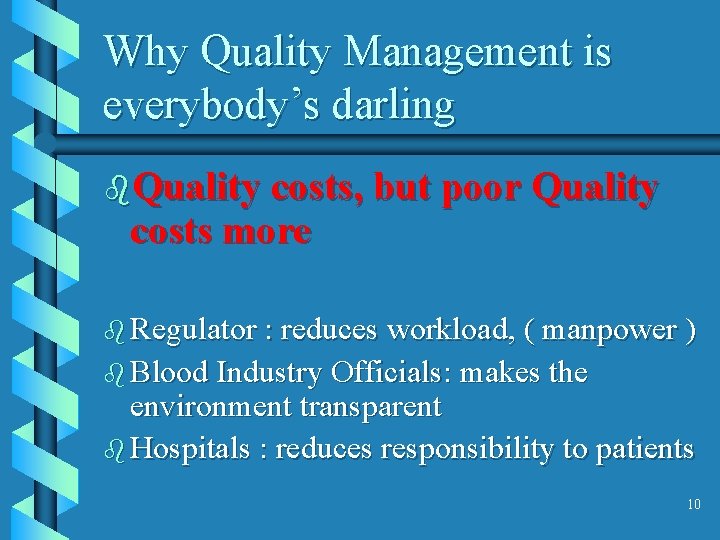

Why Quality Management is everybody’s darling b. Quality costs, but poor Quality costs more b Regulator : reduces workload, ( manpower ) b Blood Industry Officials: makes the environment transparent b Hospitals : reduces responsibility to patients 10

Cost of Quality 11

Demings chain Improvement of quality Improvement of productivity Market-share Price-reduction Secure position Secure jobs Cost-reduction 12

Demings chain in Laboratory Service Improvement of quality Improvement of productivity Market-share Price-reduction Secure position Secure jobs Cost-reduction 13

My problems with the definitions of quality b Does the customer have all the information he needs to qualify the products? Service? b Is it his responsibility to check the quality or standards? b Is’nt there a discrepancy between customer’s expectations and requirements ? 14

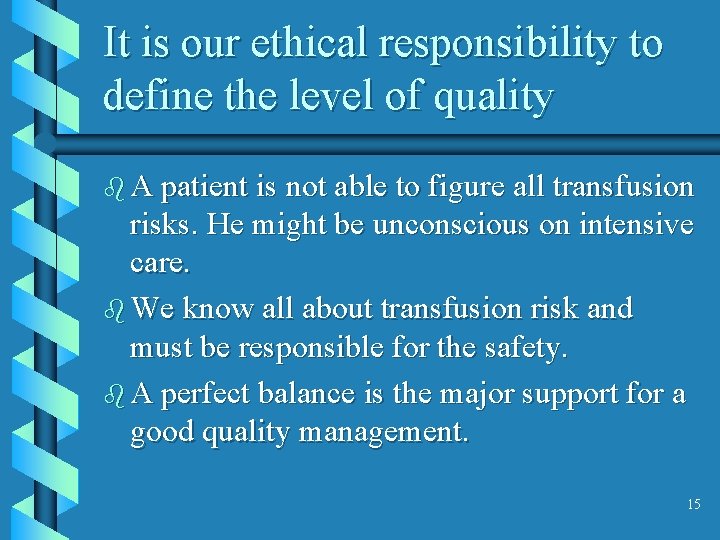

It is our ethical responsibility to define the level of quality b A patient is not able to figure all transfusion risks. He might be unconscious on intensive care. b We know all about transfusion risk and must be responsible for the safety. b A perfect balance is the major support for a good quality management. 15

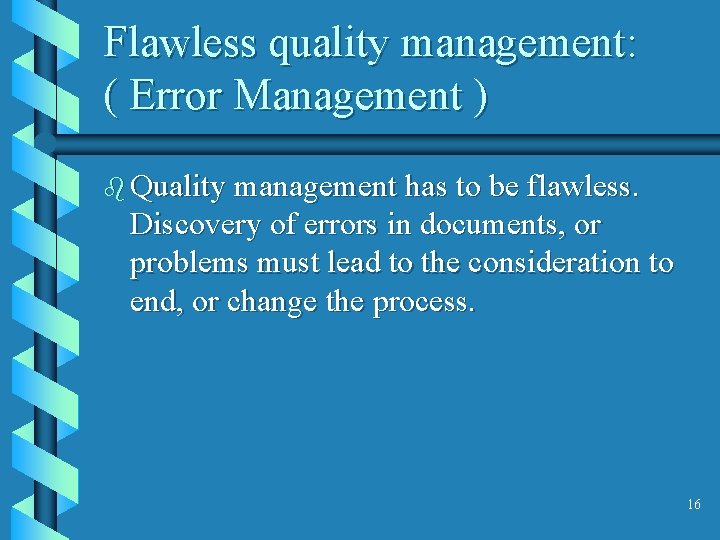

Flawless quality management: ( Error Management ) b Quality management has to be flawless. Discovery of errors in documents, or problems must lead to the consideration to end, or change the process. 16

Quality Layers 1. 2. 3. 4. Minimal requirements “ Bad Quality” Functional Requirement “Quality” Non-functional requirements “Good Quality” Far ahead of customer expectations “Excellence” 17

Should’nt we achieve excellence ? Quality = Excellence begins in your mind 18

Quality Planning b Part of Quality management focused on setting quality objectives and specifying necessary processes and related resources to fulfil the quality objective 19

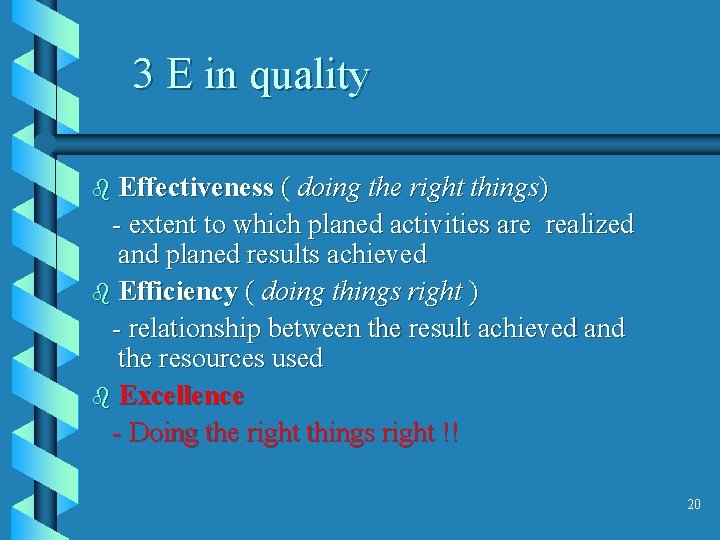

3 E in quality b Effectiveness ( doing the right things) - extent to which planed activities are realized and planed results achieved b Efficiency ( doing things right ) - relationship between the result achieved and the resources used b Excellence - Doing the right things right !! 20

The 8 columns of excellence Responsibility for the community Building partnerships Continuous learning Involvement of employees Orientation on results Orientation of customers Leadership & consequences of goals Management of processes & facts 21

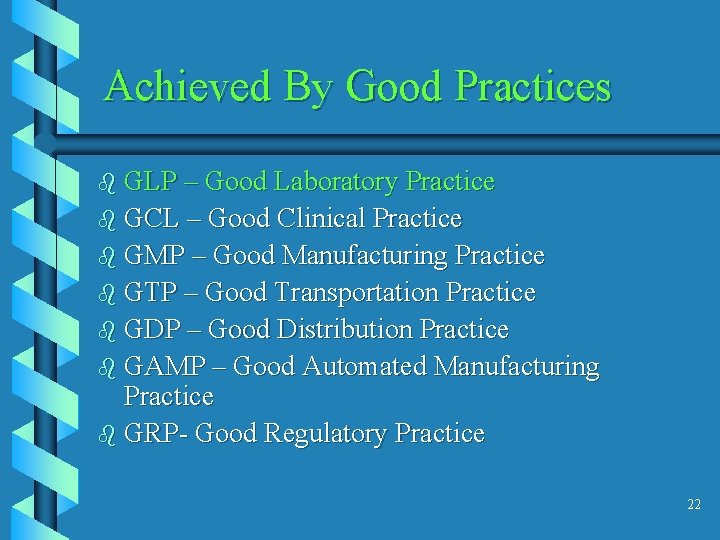

Achieved By Good Practices b GLP – Good Laboratory Practice b GCL – Good Clinical Practice b GMP – Good Manufacturing Practice b GTP – Good Transportation Practice b GDP – Good Distribution Practice b GAMP – Good Automated Manufacturing Practice b GRP- Good Regulatory Practice 22

Medical laboratory quality system b A quality system is essential in the laboratory to ensure the correct results for the correct patient / donor b By Good Laboratory Practice ( GLP ) 23

Good Laboratory Practice( GLP ) b Main areas of GLP - Organization and personnel - Facilities - Equipment - Reagent / test kits - Documentation - Inter-laboratory comparison 24

Organization and Personnel b Quality management system On Accountability -Responsibilities -Authorities b Training - Competency based 25

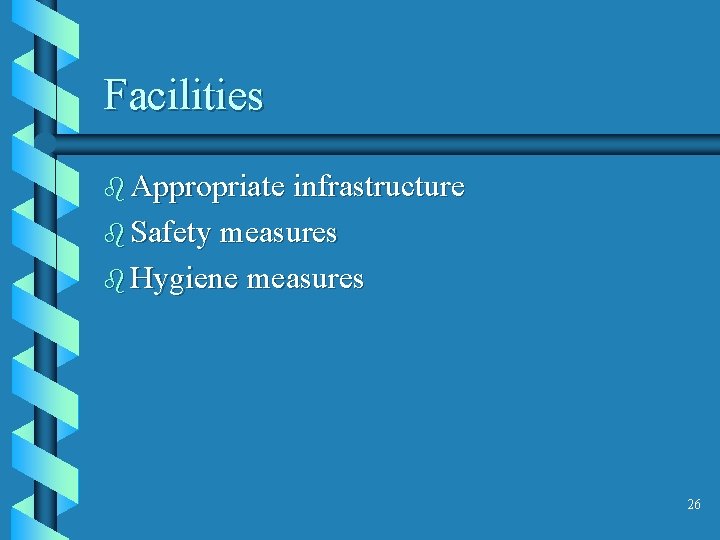

Facilities b Appropriate infrastructure b Safety measures b Hygiene measures 26

Equipment b Validated - Does it do what you want it to do ? b Maintained b Calibrated 27

Reagents / Test Kits b Evaluated b Methodology validated b Test run validated - Kit / reagent controls - Internal control 28

Documentation (1) b Testing strategies / protocols - Specimen identification - Confidentiality b SOPs - Sample processing - Test performance and result interpretation - Inspection of incoming goods - Validation - Equipment maintenance and calibration - Safety 29

Documentation (2) b Records - Test results - Equipment maintenance - Equipment calibration - Control charts - Validation - Training 30

Inter-laboratory comparison b External Quality Assurance Scheme ( Proficiency Test , P. T. ) 31

By Other Quality Management System International Standards e. g. ISO 9000 series, ISO/IEC 17025: 1999 ( General Requirements for the Competence of Testing and Calibration Laboratories ) 32

ISO 1/IEC 17025, ISO 15189 Development History 33

In 1985 JCAHO published its 10 -step QA monitoring process. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Assign responsibility for QA plan. Define scope of patient care. Identify important aspects of care. Construct indicators. Define thresholds for evaluation. Collect and organize data. Evaluate data. Develop corrective action plan. Assess action; document improvement. Communicate relevant information. 34

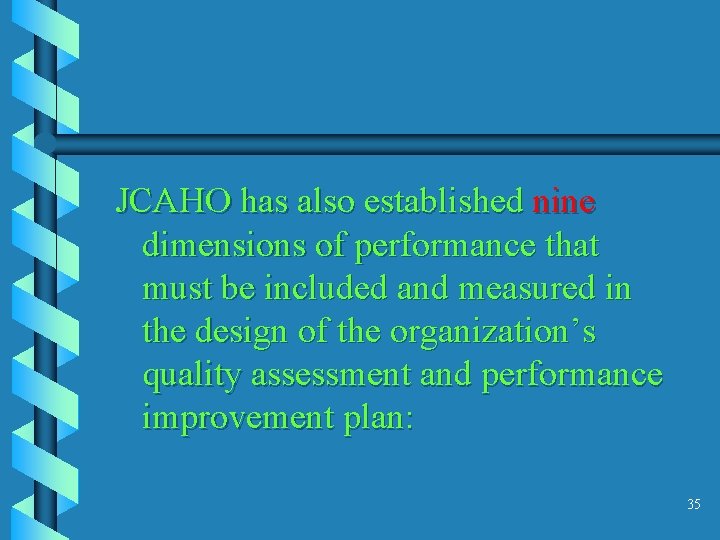

JCAHO has also established nine dimensions of performance that must be included and measured in the design of the organization’s quality assessment and performance improvement plan: 35

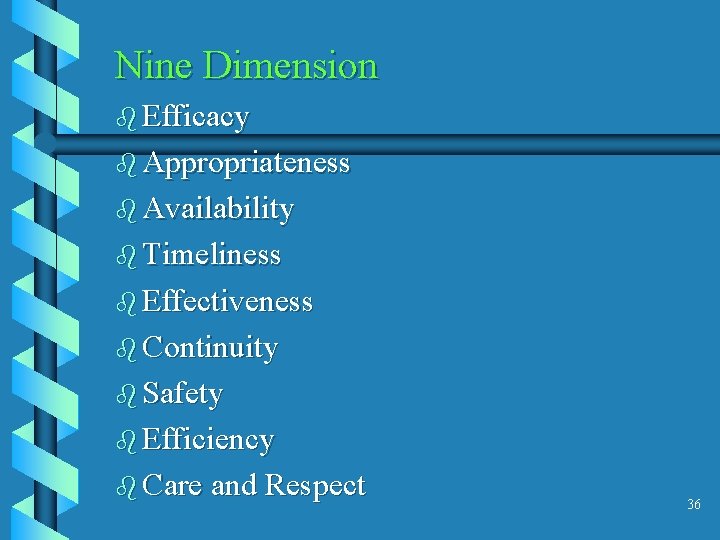

Nine Dimension b Efficacy b Appropriateness b Availability b Timeliness b Effectiveness b Continuity b Safety b Efficiency b Care and Respect 36

National Accreditation Scheme b CAP Laboratory Accreditation Programm ( LAP ), USA b CPA , Clinical Pathology Accreditation ( UK) Ltd. , Standards for the Medical Laboratory 37

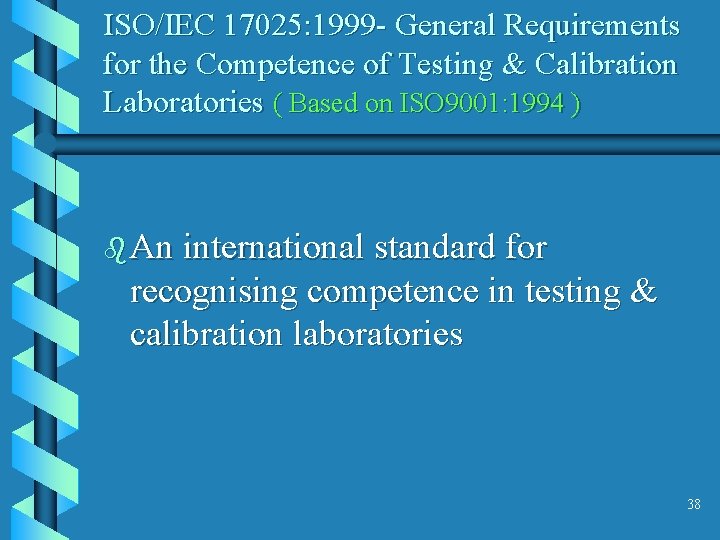

ISO/IEC 17025: 1999 - General Requirements for the Competence of Testing & Calibration Laboratories ( Based on ISO 9001: 1994 ) b An international standard for recognising competence in testing & calibration laboratories 38

ISO/IEC 17025: 1999 - General Requirements for the Competence of Testing & Calibration Laboratories con’t b Sets out basic quality system requirements in accordance with ISO 9001 or 9002 b Laboratories carrying out calibration and testing activities and meeting the requirements will therefore also operate accordance with the ISO 9000 series quality system 39

ISO 9001: 1994 – The Role and Function of 20 Elements 40

Management and Technical criteria for Accreditation b Compliance with criteria in Section 4, Management Requirements; b Compliance with the criteria in Section 5, Technical Requirements of Technical Criteria for Laboratory Accreditation HKLAS 003 b Compliance with HKLAS 002 – regulations governing the administration of HOKLAS and the obligations of accredited laboratories. 41

UNCERTAINTY OF MEASUREMENT Calibration Laboratories b Accredited for calibrations under the “Calibration Service” Test category b Refer to ISO “Guide to Expression of Uncertainty in Measurement” (GUM) b Refer to EA-4/02, for application of GUM website: www. european-accreditation. org 42

Testing Laboratories b Required to estimate the uncertainty of measurement in accordance with 5. 4. 6. 2 of the HKLAS 003 43

Asia Pacific Laboratory Accreditation Cooperation (APLAC) b b b 1. 2. 3. 4. 5. 6. 7. Established in 1992, Secretary Office in Australia MRA, Mutual Recognition Agreement Members consisted of 7 countries, 13 Laboratory accredition bodies (December, 1999 figure) China, China Taipei, China Hong Kong Australia New Zealand Korea Singapore United State Japan 44

The Hong Kong Laboratory Accreditation Scheme (HOKLAS) b Found in 1985 b Function : identifying and recognising competent testing & calibration laboratories in Hong Kong b Expanded in 1998, forming Hong Kong Accreditation Service (HKAS) 45

HKLAS – Scope of Accreditation b b b b b Electrical and Electronic Products Textiles and Garments Toys and children product Food Calibration service Construction materials Environmental testing Chemical testing Miscellaneous Other Test Categories may be added when significant needs are identified. 46

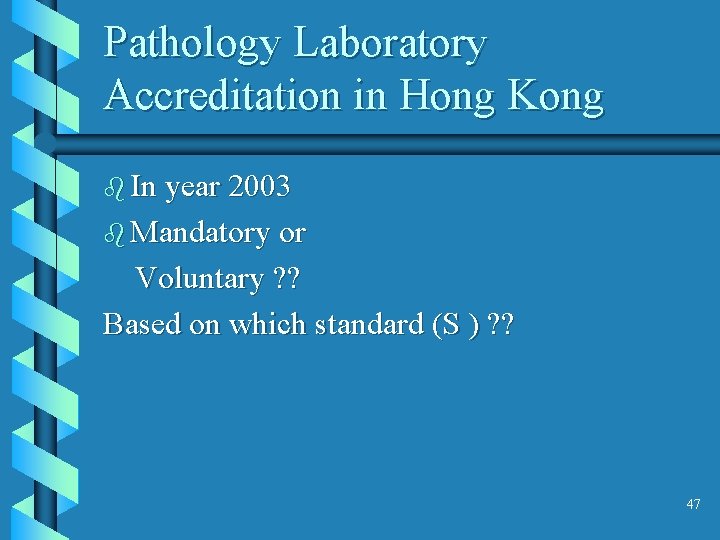

Pathology Laboratory Accreditation in Hong Kong b In year 2003 b Mandatory or Voluntary ? ? Based on which standard (S ) ? ? 47

Technical Criteria – ISO/IEC 17025: 1999 4. Management Requirements 4. 1 Organizaton 4. 2 Quality system 4. 3 Document control 4. 4 Review of request, tenders or contract 4. 5 Subcontracting of tests and calibrations 4. 6 Purchasing services and supplies 4. 7 Service to the client 4. 8 Complaints 4. 9 Control of NC Testing and/or calibration work 4. 10 Corrective action 4. 11 Preventive action 4. 12 Control of records 4. 13 Internal audits 4. 14 Management Reviews 48

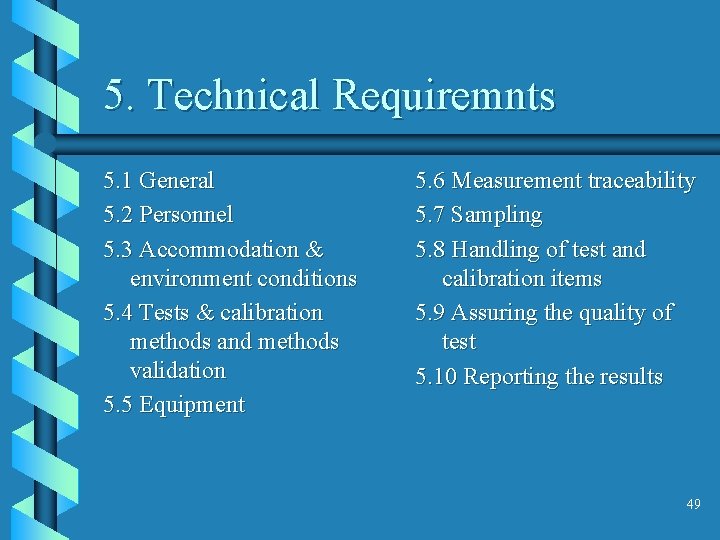

5. Technical Requiremnts 5. 1 General 5. 2 Personnel 5. 3 Accommodation & environment conditions 5. 4 Tests & calibration methods and methods validation 5. 5 Equipment 5. 6 Measurement traceability 5. 7 Sampling 5. 8 Handling of test and calibration items 5. 9 Assuring the quality of test 5. 10 Reporting the results 49

Quality Policy – determined and issued by the Top Management 50

Documentation Structure : hierarchy 51

Documentation System 52

Document Control 53

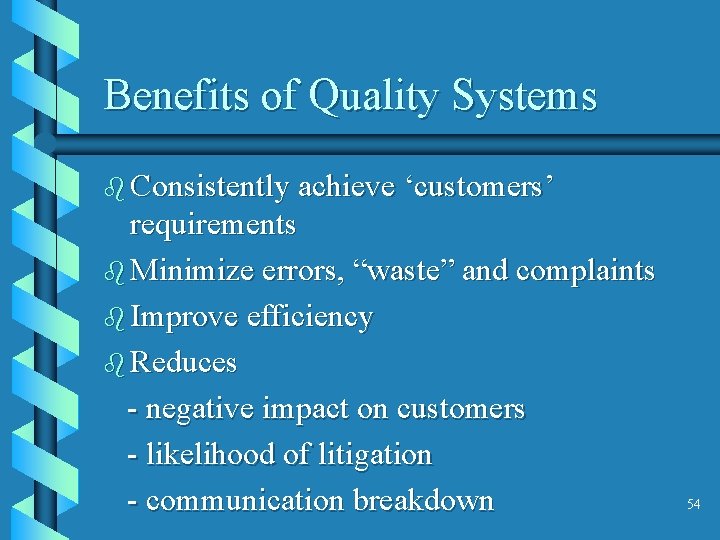

Benefits of Quality Systems b Consistently achieve ‘customers’ requirements b Minimize errors, “waste” and complaints b Improve efficiency b Reduces - negative impact on customers - likelihood of litigation - communication breakdown 54

Con’t b Improve safety and morale b Standardization b Ensure adequacy of resources b Build-in improvement tools b Facilitates changes & easier problem solving 55

ISO 15189 Medical Laboratories – Particular requirements for quality and competence ( Based on ISO 9001: 2000) 4 Management requirement 4. 1 Organisation and management 4. 2 Quality management system 4. 3 Document control 4. 4 Review of requests and contracts 4. 5 Examination by referral laboratories 4. 6 External services and supplies 4. 7 Advisory services 56

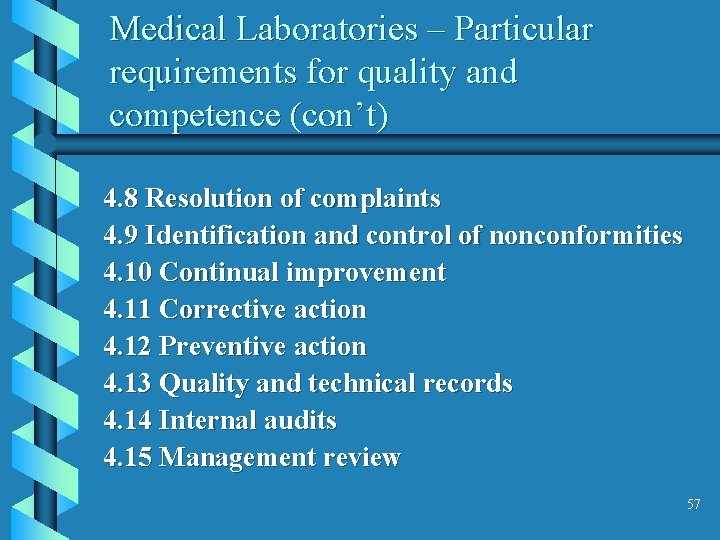

Medical Laboratories – Particular requirements for quality and competence (con’t) 4. 8 Resolution of complaints 4. 9 Identification and control of nonconformities 4. 10 Continual improvement 4. 11 Corrective action 4. 12 Preventive action 4. 13 Quality and technical records 4. 14 Internal audits 4. 15 Management review 57

Medical Laboratories – Particular requirements for quality and competence (con’t) 5 Technical requirements 5. 1 Personnel 5. 2 Accommodation and environmental conditions 5. 3 Laboratory equipment 5. 4 Pre-examination procedures 5. 5 Examination procedures 5. 6 Assuring the quality of examination procedures 5. 7 Post-examination process 5. 8 Reporting of results 5. 9 Alterations and amendments of reports 58

Continual Improvement 59

Deming Cycle (Plan, Do, Check & Act) 60

Seven Determinants in TQM 61

62

Model for Medical Laboratories with Patient / Client as “Customer” 63

New Rules of the Game…. . b Diminishing Resources b Lowering of staff level b Increasing Accountability b Increasing Regulation b Complex Relationships b Rate of changes b New value Systems The Age of Innocence is over 64

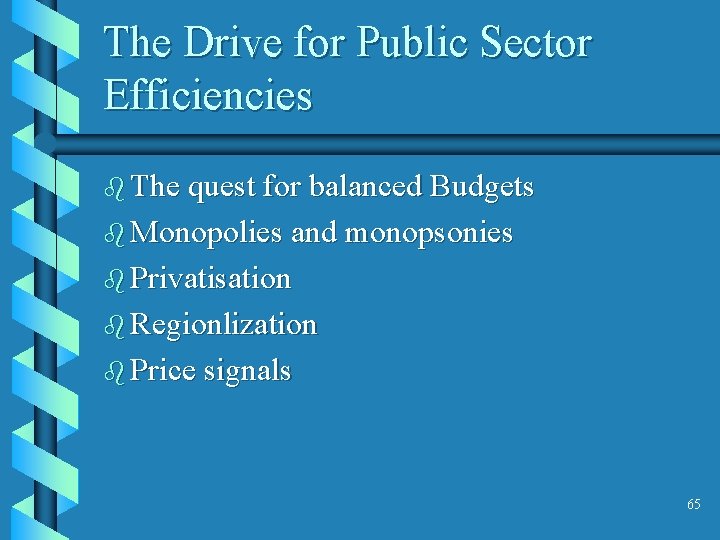

The Drive for Public Sector Efficiencies b The quest for balanced Budgets b Monopolies and monopsonies b Privatisation b Regionlization b Price signals 65

Some Common Goals b Standardize Business System b Standardize System Performance b Strengthen the Skills of our People 66

Customers Focus and Expectation continue for Good Price for Best Quality 67

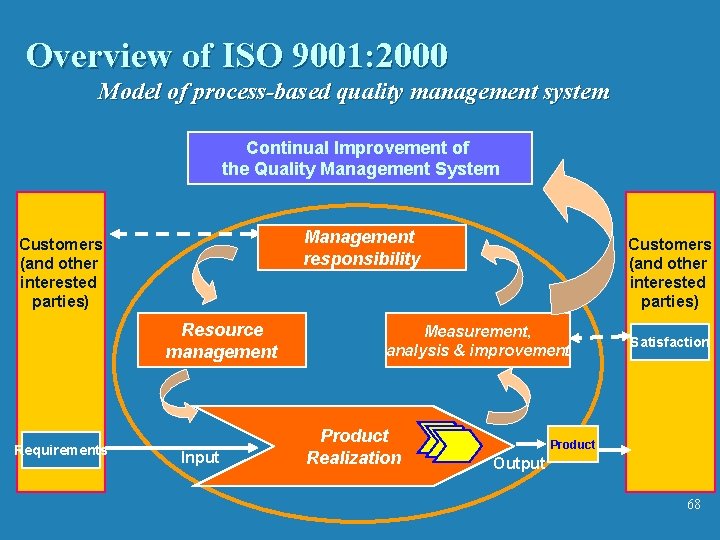

Overview of ISO 9001: 2000 Model of process-based quality management system Continual Improvement of the Quality Management System Management responsibility Customers (and other interested parties) Resource management Requirements Input Customers (and other interested parties) Measurement, analysis & improvement Product Realization Satisfaction Product Output 68

Quality Standard Compliance Triangle & Quality System Accreditation/Certification 69

“The system approach begins when first you see the world through the eyes of another” C. W. Churchman 1968 70
