From calling bases to calling variants: Experiences with Illumina data Gerton Lunter Wellcome Trust Centre for Human Genetics

This talk Refresher: Illumina sequencing QC What can go wrong Useful QC statistics Read mapping Comparison of popular read mappers Stampy Indel and SNP calling (Some results: 1000 Genomes indel calls)

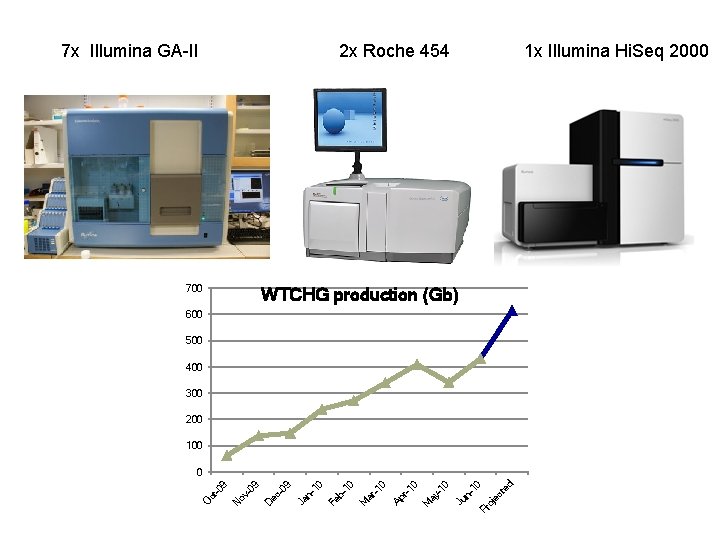

7 x Illumina GA-II 2 x Roche 454 700 1 x Illumina Hi. Seq 2000 WTCHG production (Gb) 600 500 400 300 200 100 d oj ec te 10 Pr n. Ju ay -1 0 0 M r-1 Ap -1 0 M ar 10 b. Fe 10 n. Ja -0 9 D ec -0 ov N O ct -0 9 9 0

1. Refresher: Illumina sequencing

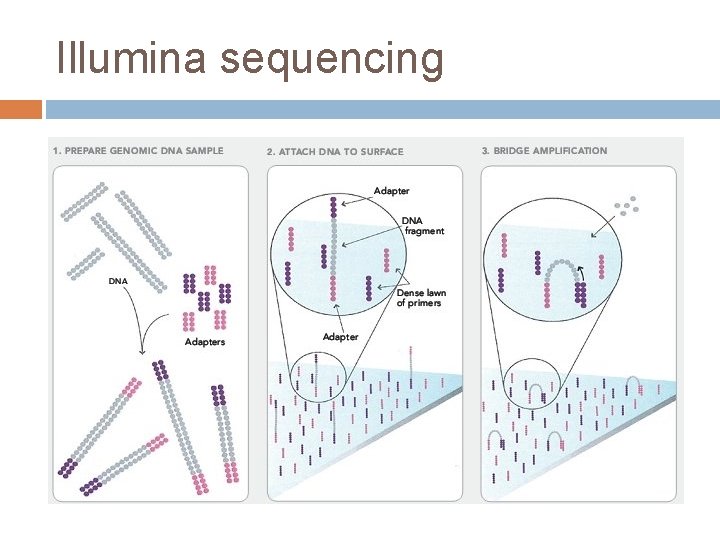

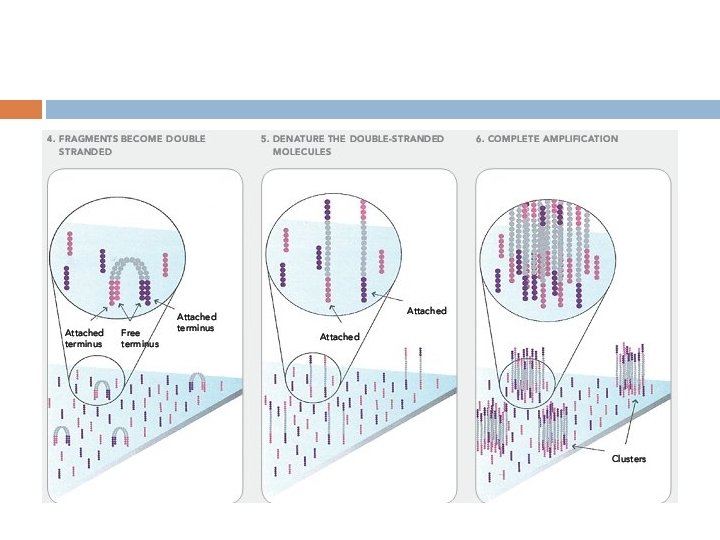

Illumina sequencing

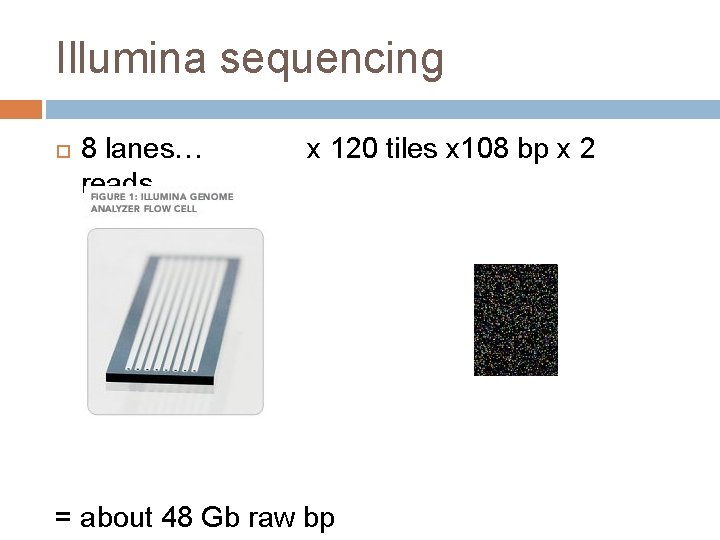

Illumina sequencing 8 lanes… reads… x 120 tiles x 108 bp x 2 = about 48 Gb raw bp

2. QC

Quality issues Bases are identified by their fluorescent tag Single base per cycle: reversible terminator chemistry Not perfect: fraction lags, fraction runs ahead: “Phasing” Limits read length Optimizing yield: cluster density Overlapping emission spectra Higher densities mean more errors Above an optimum, yield decreases Partly signal processing issue: software improvements Low amounts of initial DNA Linker-linker hybrids; duplicated reads

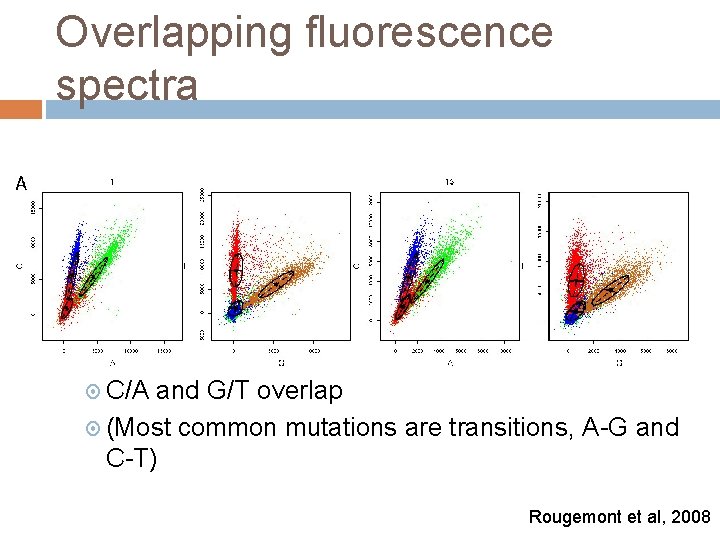

Overlapping fluorescence spectra C/A and G/T overlap (Most common mutations are transitions, A-G and C-T) Rougemont et al, 2008

Refresher: Phred scores Phred score = 10 log 10( probability of error ) 10: 10% error probability 20: 1% error probability 30: 0. 1% error probability (one in 1, 000) 3 = 50%, 7 = 20% 13 = 5%, 17 = 2% 23 = 0. 5%, 27 = 0. 2% 33 = 0. 05%, 37 = 0. 02%

Phasing August 2009 June 2010

Cluster density & other improvements August 2009: June 2010:

Library complexity, duplicate reads Some sequences are read several times: Problem for variant calling Criterion: both ends of a PE read map to matching location Can occur by chance, but low probability, except for very high coverage Post processing: duplicate removal Any PCR error will be seen twice: evidence for variant Rate of duplicates is rarely >5% Low amount of initial material, many PCR copies Optical duplicates; secondary cluster seeding Standard processing step (e. g. Samtools, Picard) Useful statistic: Duplicate fraction is approximately additive across lanes (same library) 2 x duplication fraction ≈ fraction of the library that was sequenced

Library complexity, duplicate reads Fraction α of all molecules is sequenced Number of times a PCR copy is sequenced: Poisson(α) n= 0 1 2 3 … Poisson e-α α 2 e-α/2 α 3 e-α/6 … Duplicate s: 0 0 1 2 … Expected fraction of duplicates: e-α-1+α As a fraction of all reads sequenced: (e-α-1+α)/α = ½α+…

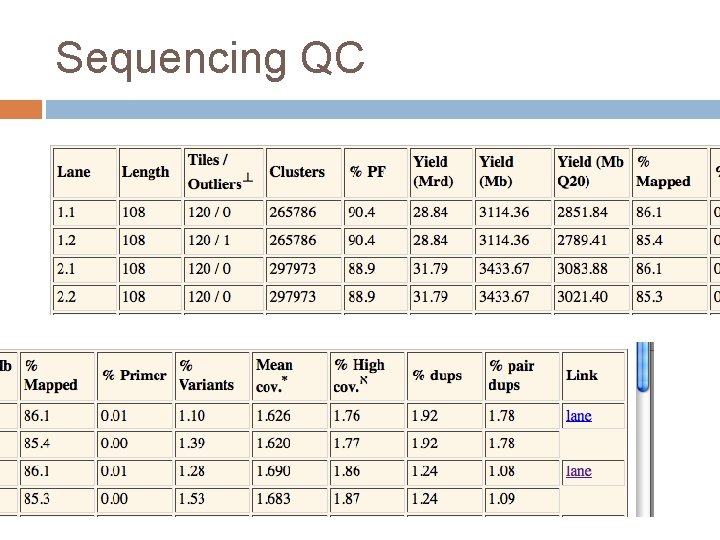

Sequencing QC

QC statistics

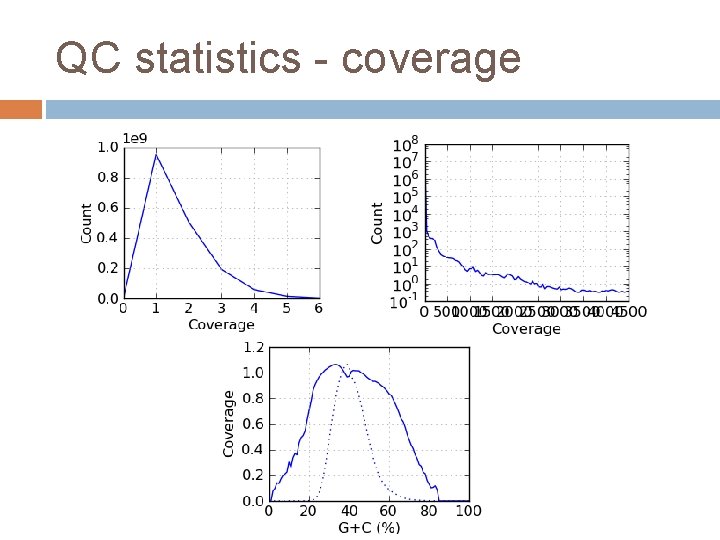

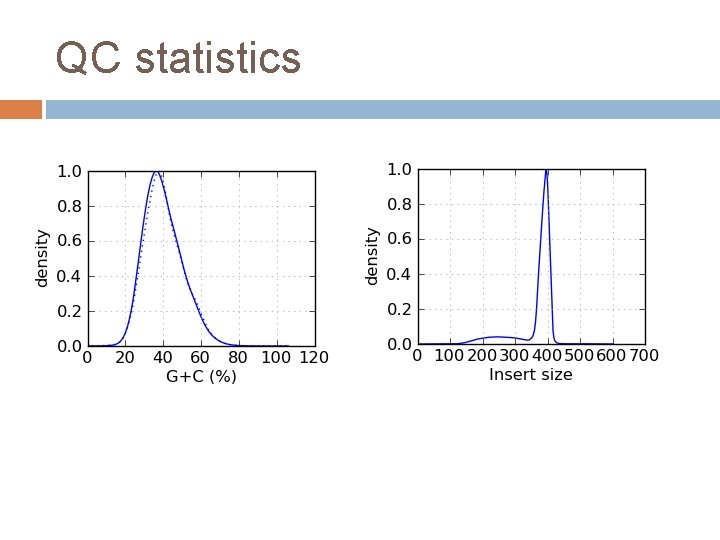

QC statistics - coverage

QC statistics – quality scores

GATK recalibration tool

3. Read mapping

Read mapping First processing step after sequencing: Read mapping (most times) Assembly (no reference sequence; specialized analyses) Quality of mapping determines downstream results Accessible genome Biases (ref vs. variant) Sensitivity (divergent reference; snps, indels, SV) Specificity (calibration of mapping quality)

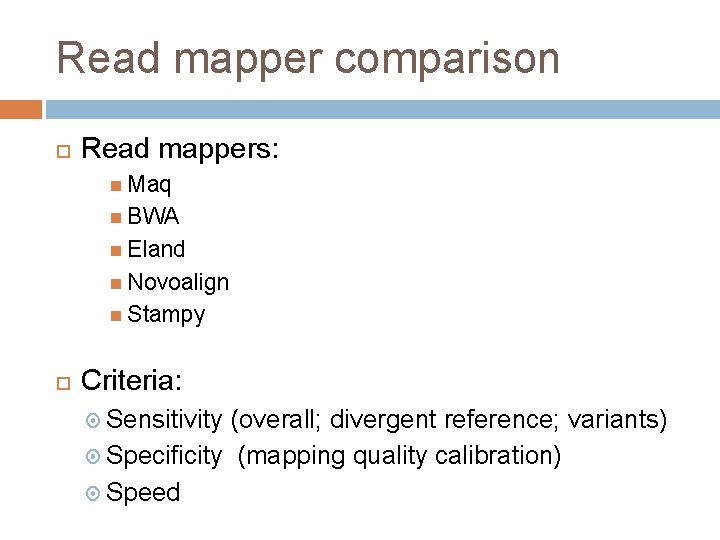

Read mapper comparison Read mappers: Maq BWA Eland Novoalign Stampy Criteria: Sensitivity (overall; divergent reference; variants) Specificity (mapping quality calibration) Speed

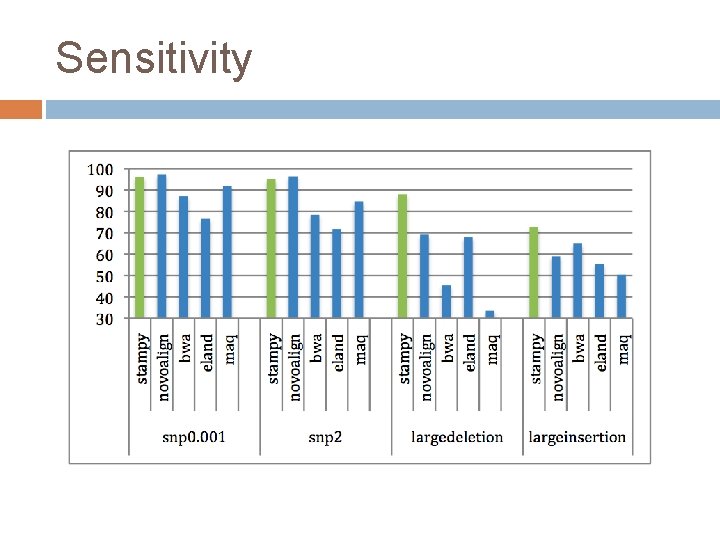

Sensitivity

Sensitivity - indels

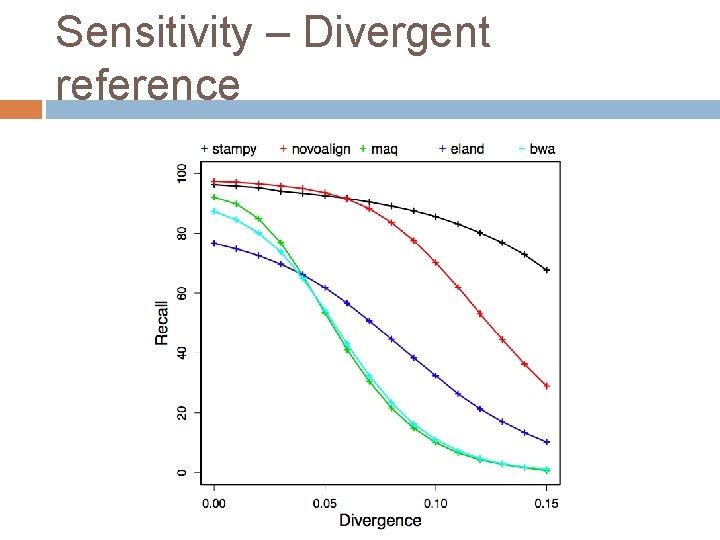

Sensitivity – Divergent reference

Specificity – ROC curves ROC - indels

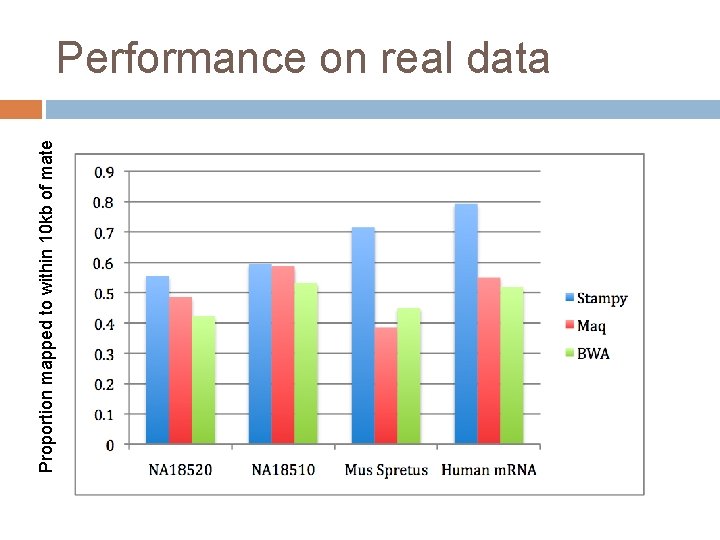

Proportion mapped to within 10 kb of mate Performance on real data

Efficiency

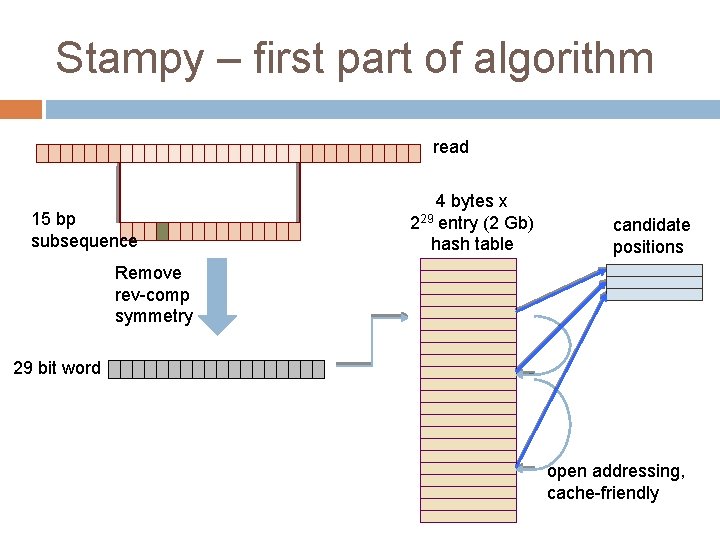

Stampy – first part of algorithm read 15 bp subsequence 4 bytes x 229 entry (2 Gb) hash table candidate positions Remove rev-comp symmetry 29 bit word open addressing, cache-friendly

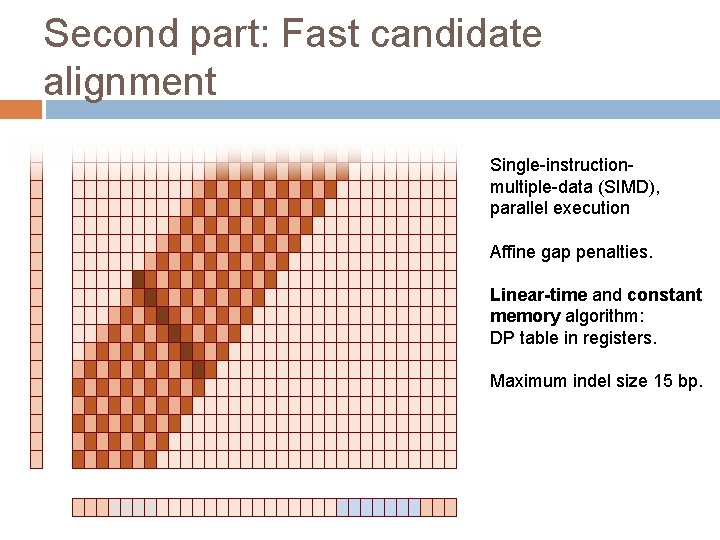

Second part: Fast candidate alignment Single-instructionmultiple-data (SIMD), parallel execution Affine gap penalties. Linear-time and constant memory algorithm: DP table in registers. Maximum indel size 15 bp.

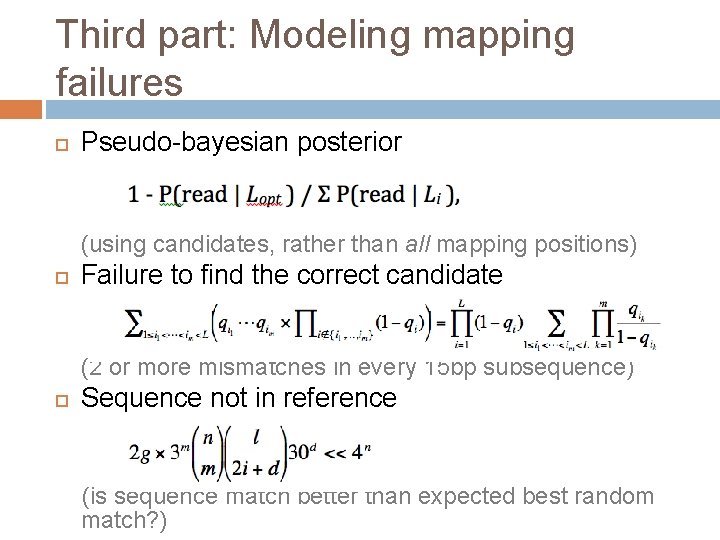

Third part: Modeling mapping failures Pseudo-bayesian posterior (using candidates, rather than all mapping positions) Failure to find the correct candidate (2 or more mismatches in every 15 bp subsequence) Sequence not in reference (is sequence match better than expected best random match? )

4. SNP and indel calling

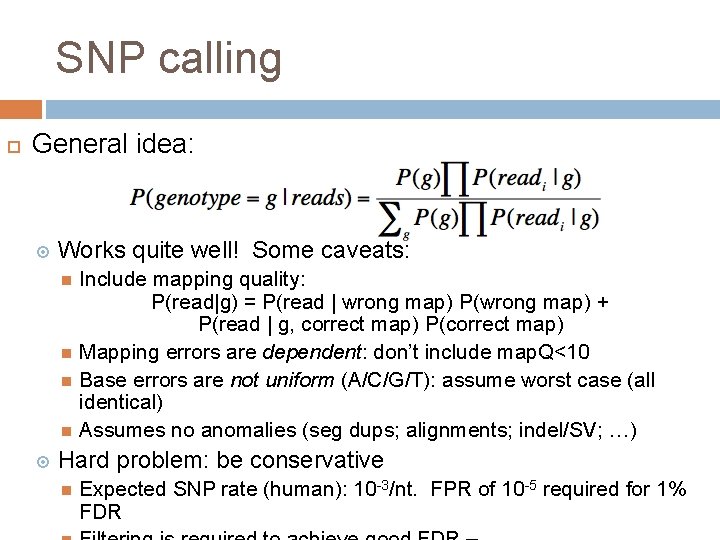

SNP calling General idea: Works quite well! Some caveats: Include mapping quality: P(read|g) = P(read | wrong map) P(wrong map) + P(read | g, correct map) P(correct map) Mapping errors are dependent: don’t include map. Q<10 Base errors are not uniform (A/C/G/T): assume worst case (all identical) Assumes no anomalies (seg dups; alignments; indel/SV; …) Hard problem: be conservative Expected SNP rate (human): 10 -3/nt. FPR of 10 -5 required for 1% FDR

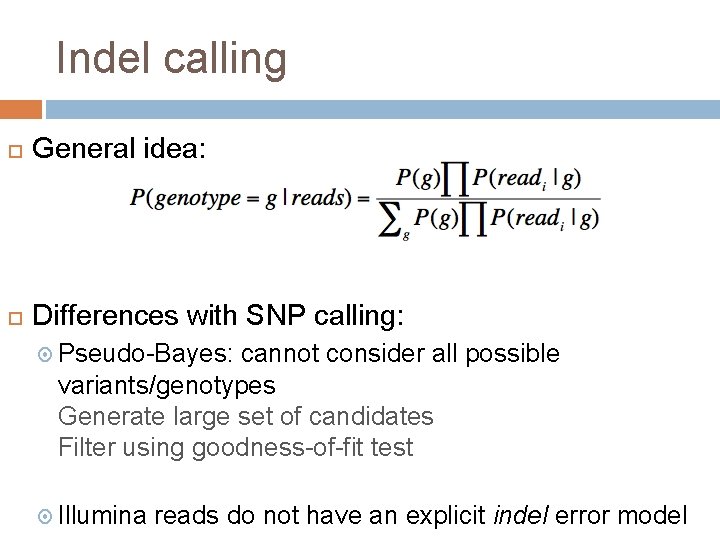

Indel calling General idea: Differences with SNP calling: Pseudo-Bayes: cannot consider all possible variants/genotypes Generate large set of candidates Filter using goodness-of-fit test Illumina reads do not have an explicit indel error model

Indel error model Indel error rate (per nt) 1, 00 E-02 1, 00 E-03 1, 00 E-04 1, 00 E-05 1 2 3 4 5 6 7 8 9 10 11 12 13 Homopolymer run length 14 15

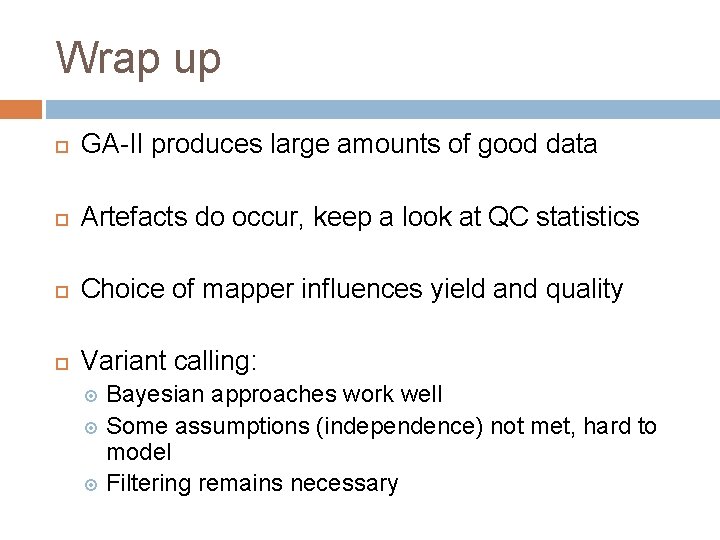

Wrap up GA-II produces large amounts of good data Artefacts do occur, keep a look at QC statistics Choice of mapper influences yield and quality Variant calling: Bayesian approaches work well Some assumptions (independence) not met, hard to model Filtering remains necessary
