Frog Dissection Fall 2000 Jenna Hellack Dissection index

Frog Dissection Fall 2000 Jenna Hellack

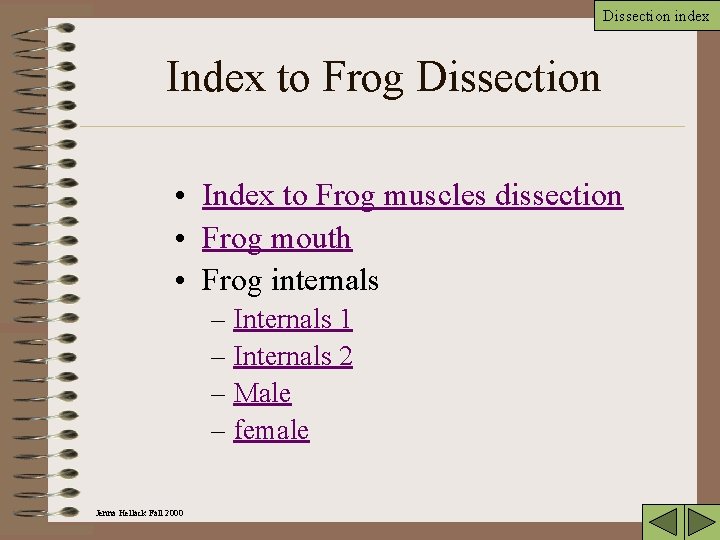

Dissection index Index to Frog Dissection • Index to Frog muscles dissection • Frog mouth • Frog internals – Internals 1 – Internals 2 – Male – female Jenna Hellack Fall 2000

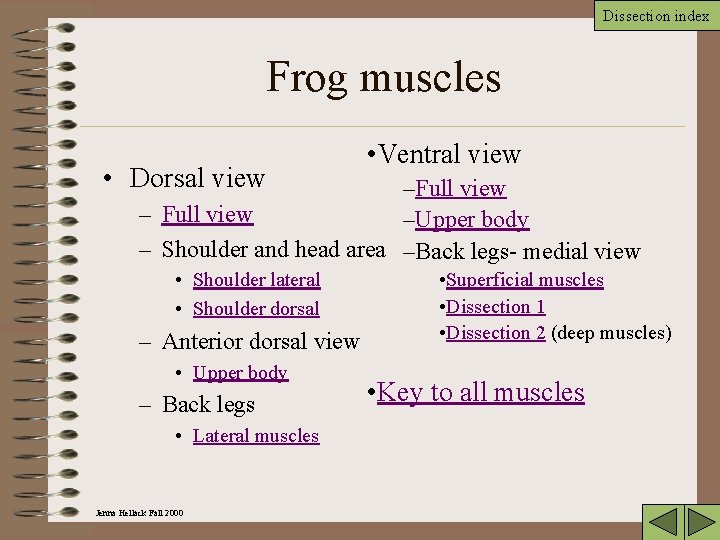

Dissection index Frog muscles • Dorsal view • Ventral view –Full view –Upper body – Shoulder and head area –Back legs- medial view • Shoulder lateral • Shoulder dorsal – Anterior dorsal view • Upper body – Back legs • Lateral muscles Jenna Hellack Fall 2000 • Superficial muscles • Dissection 1 • Dissection 2 (deep muscles) • Key to all muscles

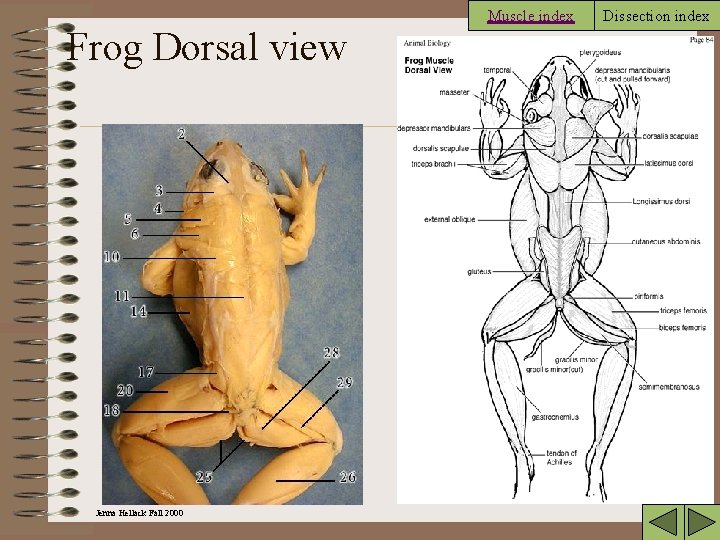

Frog Dorsal view Jenna Hellack Fall 2000 Muscle index Dissection index

Muscle index Dissection index Frog shoulder lateral view Muscles contrasted Tympanic membrane 6 5 10 4 Mouse click once for key Jenna Hellack Fall 2000 4. 5. 6. 10. Masseter Depressor mandibularis Dorsalis scapulae Latissimus dorsi

Muscle index Dissection index Frog shoulder dorsal view Muscles contrasted 6 5 10 2 4 7 Mouse click once for key Jenna Hellack Fall 2000 2. 4. 5. 6. 7. 10. Pterygoideus Masseter Depressor mandibularis Dorsalis scapulae Deltoid Latissimus dorsi

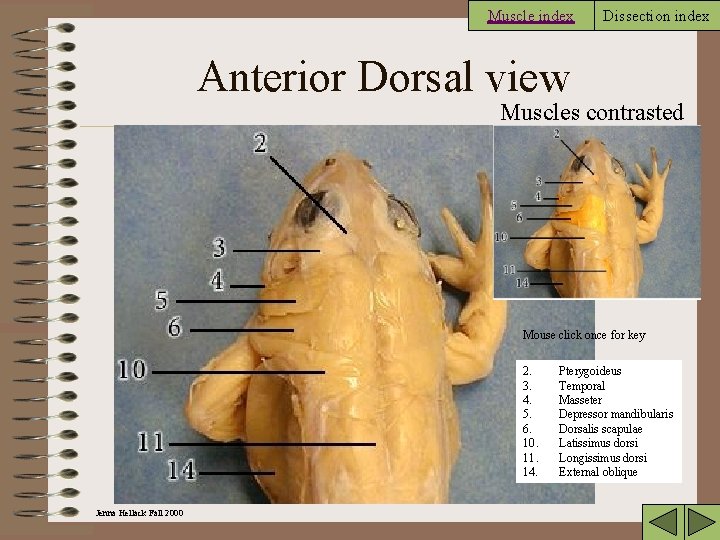

Muscle index Dissection index Anterior Dorsal view Muscles contrasted Mouse click once for key 2 Jenna Hellack Fall 2000 2. 3. 4. 5. 6. 10. 11. 14. Pterygoideus Temporal Masseter Depressor mandibularis Dorsalis scapulae Latissimus dorsi Longissimus dorsi External oblique

Muscle index Dissection index Legs lateral muscles Muscles contrasted Mouse click once for key 17. 18. 20. 25. 26. 27. 28. 29. Jenna Hellack Fall 2000 Gluteus Piriformis Triceps femoris Gracilis minor Gastrocnemius Tendon of Achilles Semimembranous Biceps femoris

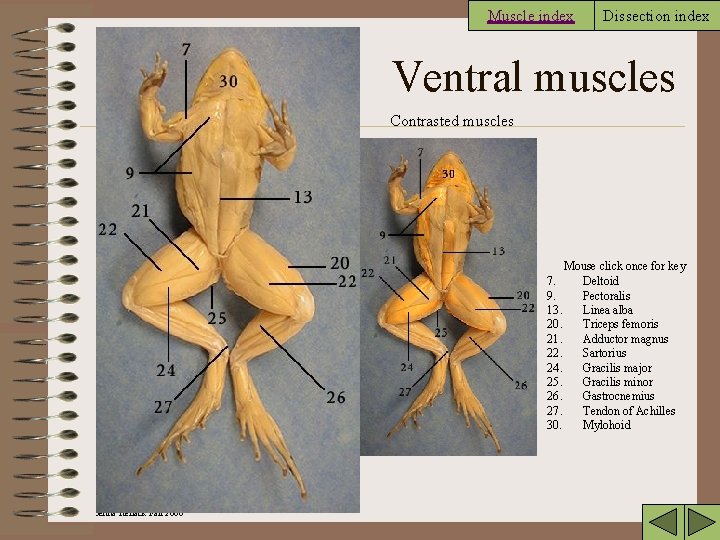

Muscle index Dissection index Ventral muscles Contrasted muscles Mouse click once for key 7. Deltoid 9. Pectoralis 13. Linea alba 20. Triceps femoris 21. Adductor magnus 22. Sartorius 24. Gracilis major 25. Gracilis minor 26. Gastrocnemius 27. Tendon of Achilles 30. Mylohoid Jenna Hellack Fall 2000

Muscle index Dissection index Frog ventral anterior muscles Muscles contrasted 7. • 12. 13. 14. Jenna Hellack Fall 2000 Mouse click once for key Deltoid Pectoralis Rectus abdominis Linea alba External oblique

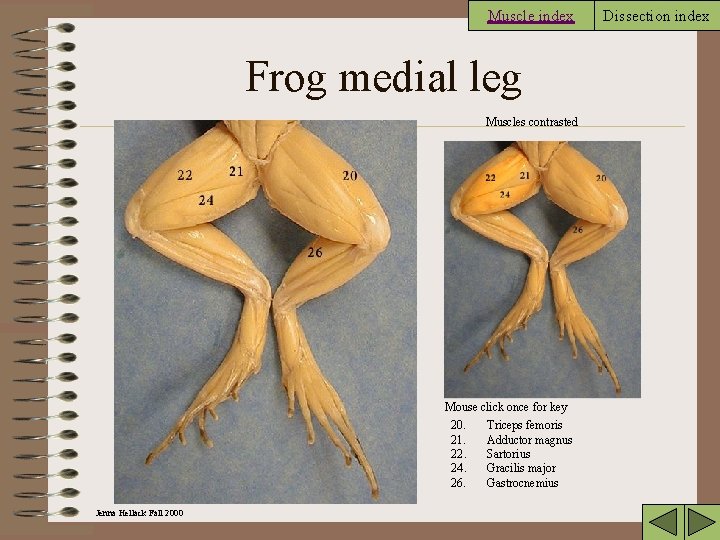

Muscle index Frog medial leg Muscles contrasted Mouse click once for key 20. Triceps femoris 21. Adductor magnus 22. Sartorius 24. Gracilis major 26. Gastrocnemius Jenna Hellack Fall 2000 Dissection index

Muscle index Dissection index Legs medial muscles Mouse click once for key 19. Adductor longus 20. Triceps femoris 21. Adductor magnus 22. Sartorius 23. Not shown here 24. Gracilis major 25. Gracilis minor 26. Gastrocnemius 27. Tendon Achilles Jenna Hellack Fall 2000

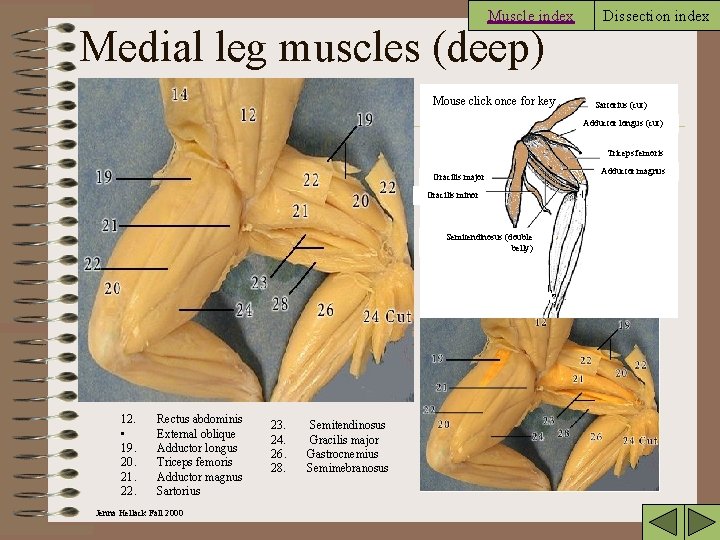

Muscle index Medial leg muscles (deep) Mouse click once for key Dissection index Sartorius (cut) Adductor longus (cut) Triceps femoris Gracilis major Gracilis minor Semitendinosus (double belly) 12. • 19. 20. 21. 22. Rectus abdominis External oblique Adductor longus Triceps femoris Adductor magnus Sartorius Jenna Hellack Fall 2000 23. 24. 26. 28. Semitendinosus Gracilis major Gastrocnemius Semimebranosus Adductor magnus

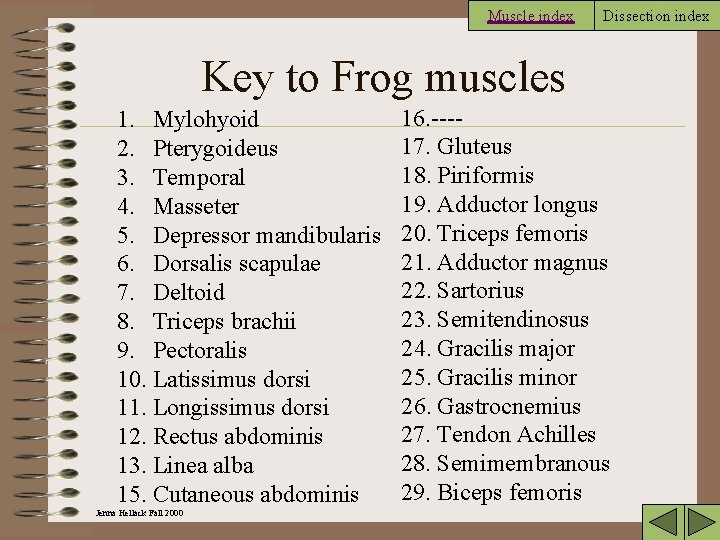

Muscle index Dissection index Key to Frog muscles 1. Mylohyoid 2. Pterygoideus 3. Temporal 4. Masseter 5. Depressor mandibularis 6. Dorsalis scapulae 7. Deltoid 8. Triceps brachii 9. Pectoralis 10. Latissimus dorsi 11. Longissimus dorsi 12. Rectus abdominis 13. Linea alba 15. Cutaneous abdominis Jenna Hellack Fall 2000 16. ---17. Gluteus 18. Piriformis 19. Adductor longus 20. Triceps femoris 21. Adductor magnus 22. Sartorius 23. Semitendinosus 24. Gracilis major 25. Gracilis minor 26. Gastrocnemius 27. Tendon Achilles 28. Semimembranous 29. Biceps femoris

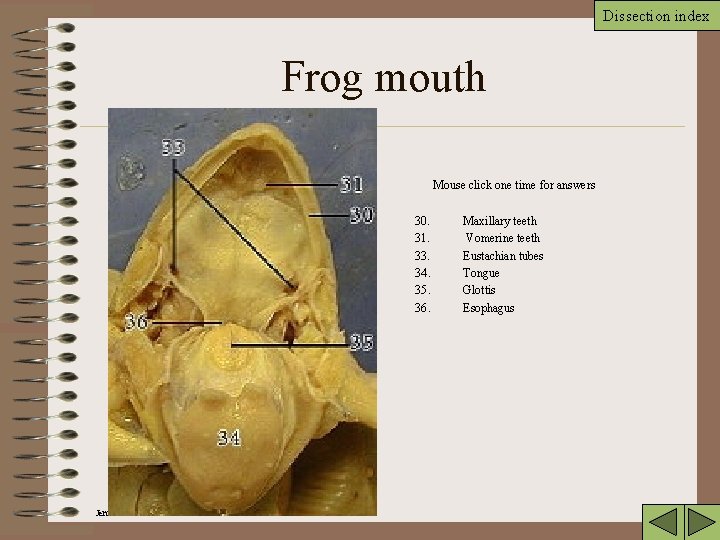

Dissection index Frog mouth Mouse click one time for answers 30. 31. 33. 34. 35. 36. Jenna Hellack Fall 2000 Maxillary teeth Vomerine teeth Eustachian tubes Tongue Glottis Esophagus

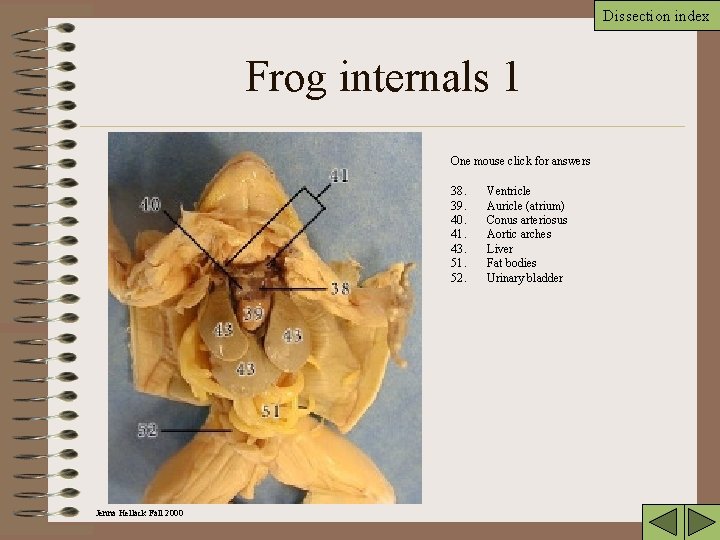

Dissection index Frog internals 1 One mouse click for answers 38. 39. 40. 41. 43. 51. 52. Jenna Hellack Fall 2000 Ventricle Auricle (atrium) Conus arteriosus Aortic arches Liver Fat bodies Urinary bladder

Dissection index Frog internals 2 Mouse click once for answers 40 38 42 43 39 44 56 55 50 46 52 49 47 Jenna Hellack Fall 2000 51 38. 39. 40. 42. 43. 44. 46. 47. 49. 50. 51. 52. 55. 56. Auricle (atrium) Ventricle Conus arteriosus Lung Liver Gall bladder Small intestine Large intestine Spleen Kidney Fat bodies Urinary bladder Adrenal gland testis

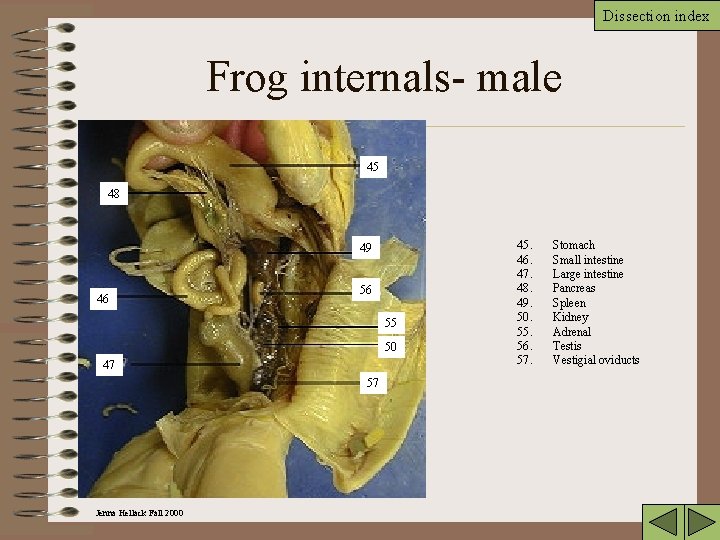

Dissection index Frog internals- male 45 48 49 46 56 55 50 47 57 Jenna Hellack Fall 2000 45. 46. 47. 48. 49. 50. 55. 56. 57. Stomach Small intestine Large intestine Pancreas Spleen Kidney Adrenal Testis Vestigial oviducts

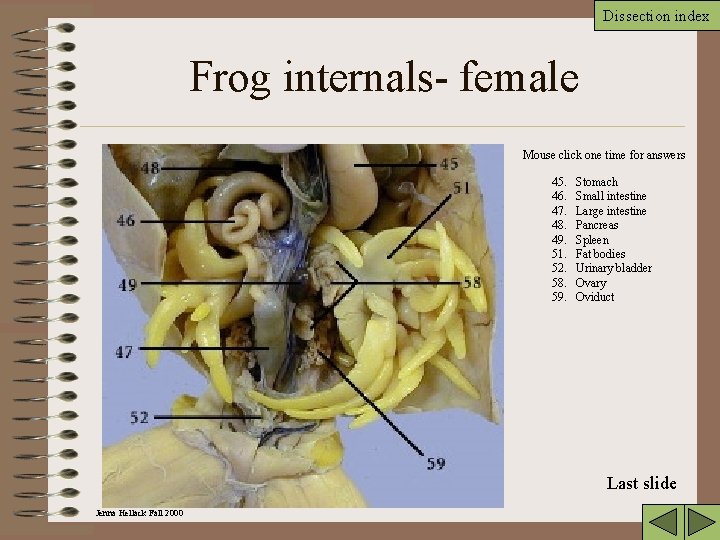

Dissection index Frog internals- female Mouse click one time for answers 45. 46. 47. 48. 49. 51. 52. 58. 59. Stomach Small intestine Large intestine Pancreas Spleen Fat bodies Urinary bladder Ovary Oviduct Last slide Jenna Hellack Fall 2000
