French Fry Fuel Sponsored by J R Simplot

French Fry Fuel Sponsored by J. R. Simplot, Co. Conditioning used frying oil for conversion to biodiesel Shane Bird, Marie Stark, Kate Burlingame, Chuck Weatherspoon, John Neal

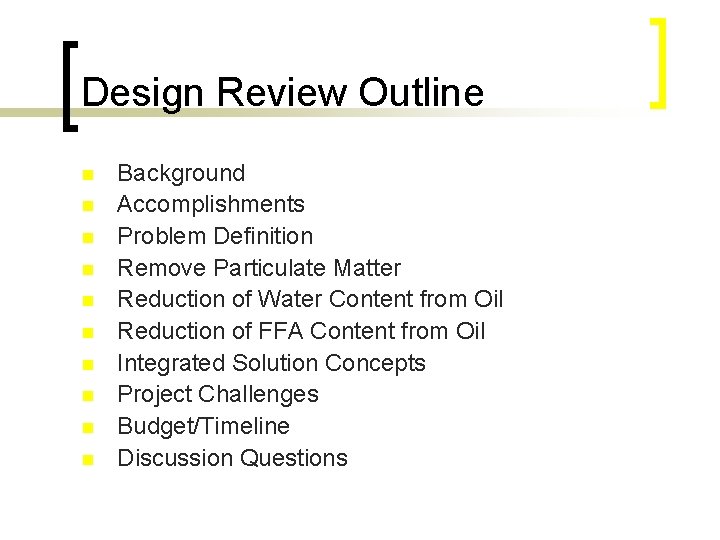

Design Review Outline n n n n n Background Accomplishments Problem Definition Remove Particulate Matter Reduction of Water Content from Oil Reduction of FFA Content from Oil Integrated Solution Concepts Project Challenges Budget/Timeline Discussion Questions

Background n The J. R. Simplot Company generates 2 million pounds of waste oil each year. n Simplot would like to condition the oil and convert it to biodiesel, which would then be returned to Simplot to offset the diesel used in the transportation fleet.

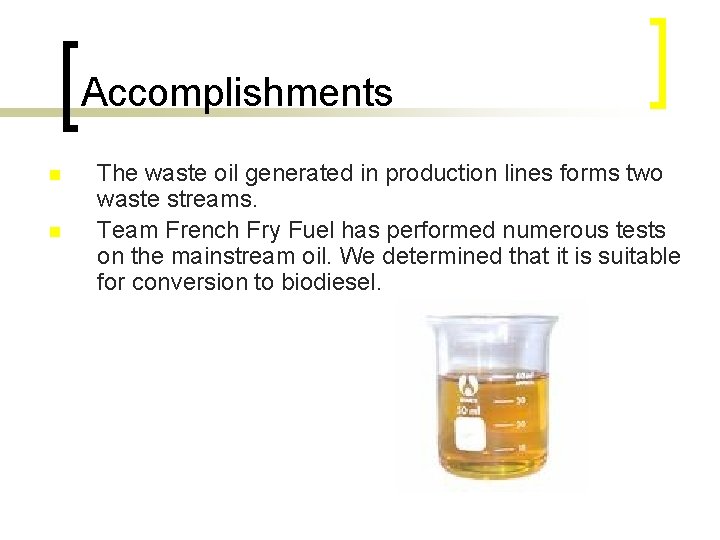

Accomplishments n n The waste oil generated in production lines forms two waste streams. Team French Fry Fuel has performed numerous tests on the mainstream oil. We determined that it is suitable for conversion to biodiesel.

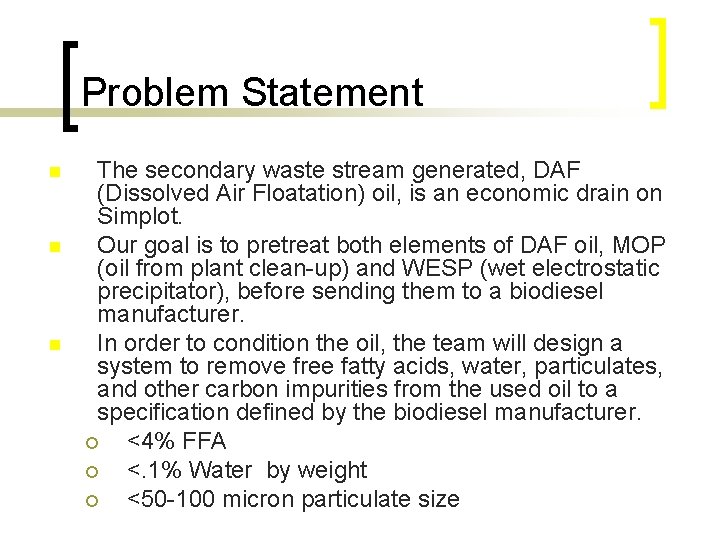

Problem Statement n n n The secondary waste stream generated, DAF (Dissolved Air Floatation) oil, is an economic drain on Simplot. Our goal is to pretreat both elements of DAF oil, MOP (oil from plant clean-up) and WESP (wet electrostatic precipitator), before sending them to a biodiesel manufacturer. In order to condition the oil, the team will design a system to remove free fatty acids, water, particulates, and other carbon impurities from the used oil to a specification defined by the biodiesel manufacturer. ¡ <4% FFA ¡ <. 1% Water by weight ¡ <50 -100 micron particulate size

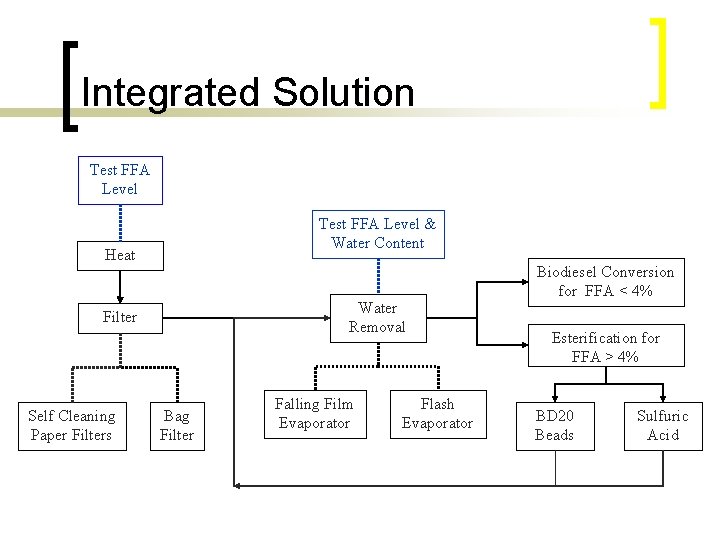

Integrated Solution Test FFA Level & Water Content Heat Water Removal Filter Self Cleaning Paper Filters Bag Filter Falling Film Evaporator Flash Evaporator Biodiesel Conversion for FFA < 4% Esterification for FFA > 4% BD 20 Beads Sulfuric Acid

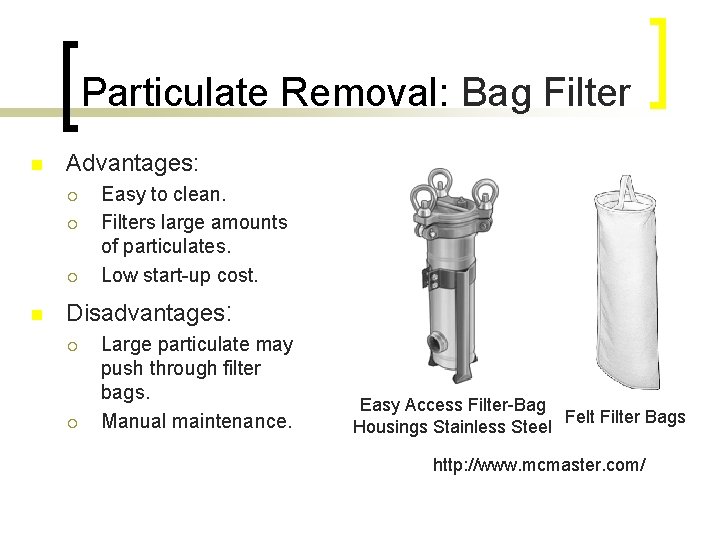

Particulate Removal: Bag Filter n Advantages: ¡ ¡ ¡ n Easy to clean. Filters large amounts of particulates. Low start-up cost. Disadvantages: ¡ ¡ Large particulate may push through filter bags. Manual maintenance. Easy Access Filter-Bag Felt Filter Bags Housings Stainless Steel http: //www. mcmaster. com/

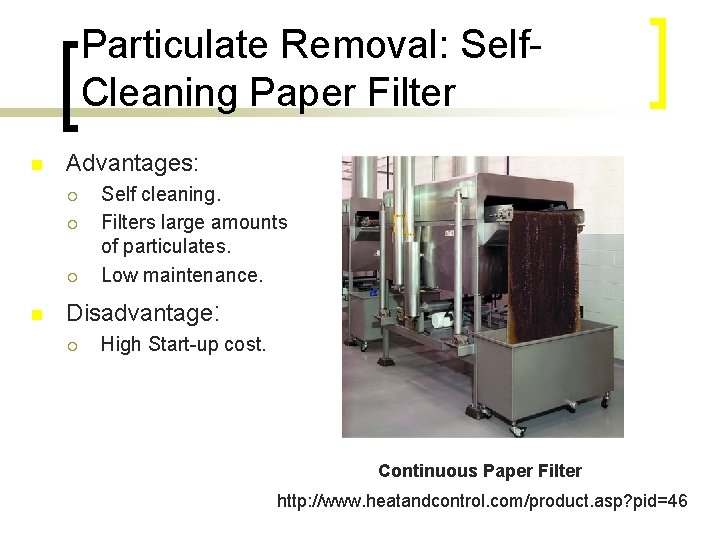

Particulate Removal: Self. Cleaning Paper Filter n Advantages: ¡ ¡ ¡ n Self cleaning. Filters large amounts of particulates. Low maintenance. Disadvantage: ¡ High Start-up cost. Continuous Paper Filter http: //www. heatandcontrol. com/product. asp? pid=46

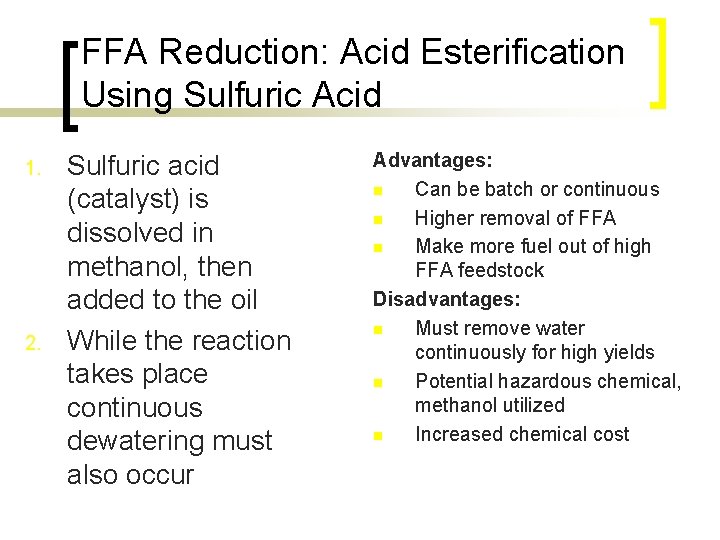

FFA Reduction: Acid Esterification Using Sulfuric Acid 1. 2. Sulfuric acid (catalyst) is dissolved in methanol, then added to the oil While the reaction takes place continuous dewatering must also occur Advantages: n Can be batch or continuous n Higher removal of FFA n Make more fuel out of high FFA feedstock Disadvantages: n Must remove water continuously for high yields n Potential hazardous chemical, methanol utilized n Increased chemical cost

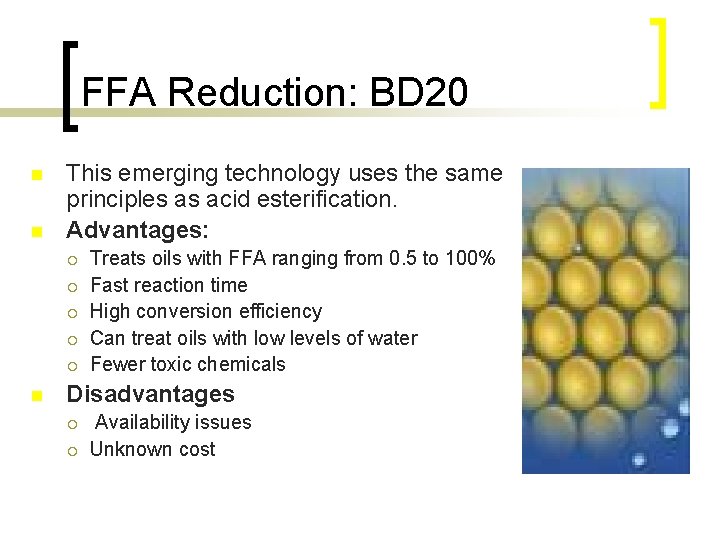

FFA Reduction: BD 20 n n This emerging technology uses the same principles as acid esterification. Advantages: ¡ ¡ ¡ n Treats oils with FFA ranging from 0. 5 to 100% Fast reaction time High conversion efficiency Can treat oils with low levels of water Fewer toxic chemicals Disadvantages ¡ ¡ Availability issues Unknown cost

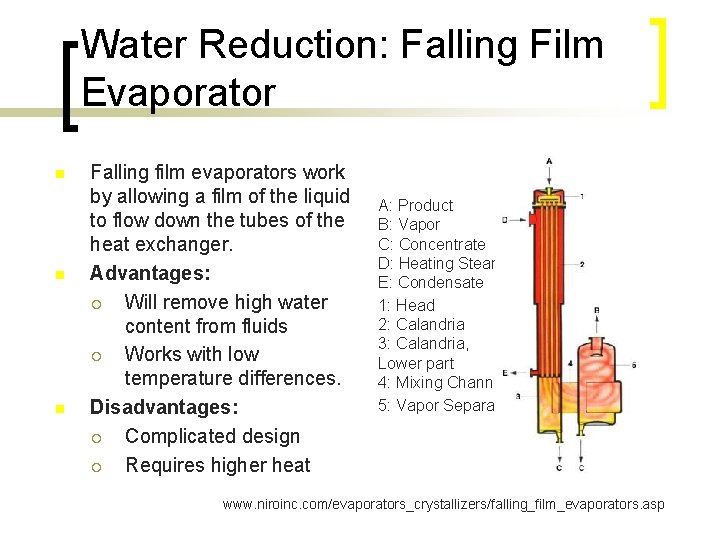

Water Reduction: Falling Film Evaporator n n n Falling film evaporators work by allowing a film of the liquid to flow down the tubes of the heat exchanger. Advantages: ¡ Will remove high water content from fluids ¡ Works with low temperature differences. Disadvantages: ¡ Complicated design ¡ Requires higher heat A: Product B: Vapor C: Concentrate D: Heating Steam E: Condensate 1: Head 2: Calandria 3: Calandria, Lower part 4: Mixing Channel 5: Vapor Separator www. niroinc. com/evaporators_crystallizers/falling_film_evaporators. asp

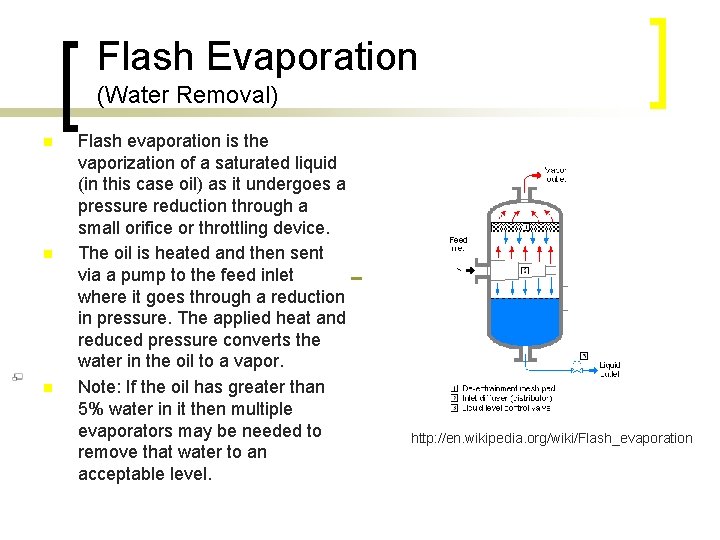

Flash Evaporation (Water Removal) n n Flash evaporation is the vaporization of a saturated liquid (in this case oil) as it undergoes a pressure reduction through a small orifice or throttling device. The oil is heated and then sent via a pump to the feed inlet where it goes through a reduction in pressure. The applied heat and reduced pressure converts the water in the oil to a vapor. Note: If the oil has greater than 5% water in it then multiple evaporators may be needed to http: //en. wikipedia. org/wiki/Flash_evaporation remove that water to an acceptable level. n

Recommended Treatment Process Water Heated DAF Oil Agitated (1) Q To Blue Sky (2) Water Tank Q P Evaporator P Filter System P (3) P Particles P (1) Sample taken for Water content and FFA testing (2) Send to Blue Sky if FFA ≤ 4% FFA (3) Test for Water and FFA content Esterification Methanol Recovery

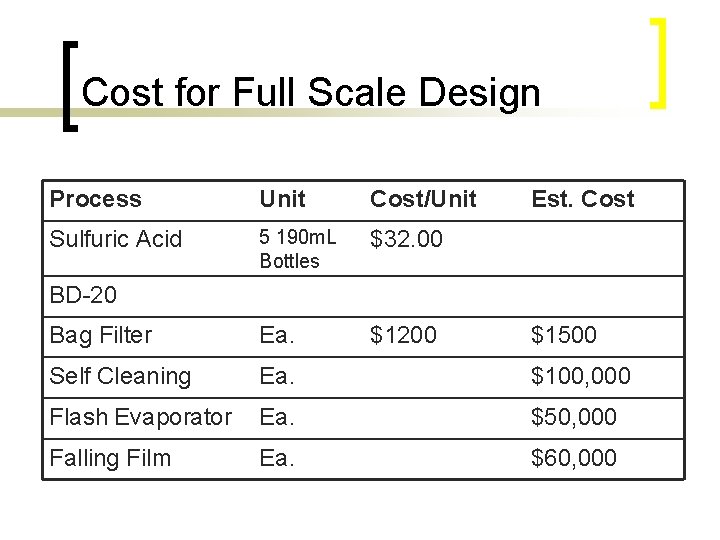

Cost for Full Scale Design Process Unit Cost/Unit Est. Cost Sulfuric Acid 5 190 m. L Bottles $32. 00 Bag Filter Ea. $1200 Self Cleaning Ea. $100, 000 Flash Evaporator Ea. $50, 000 Falling Film Ea. $60, 000 BD-20 $1500

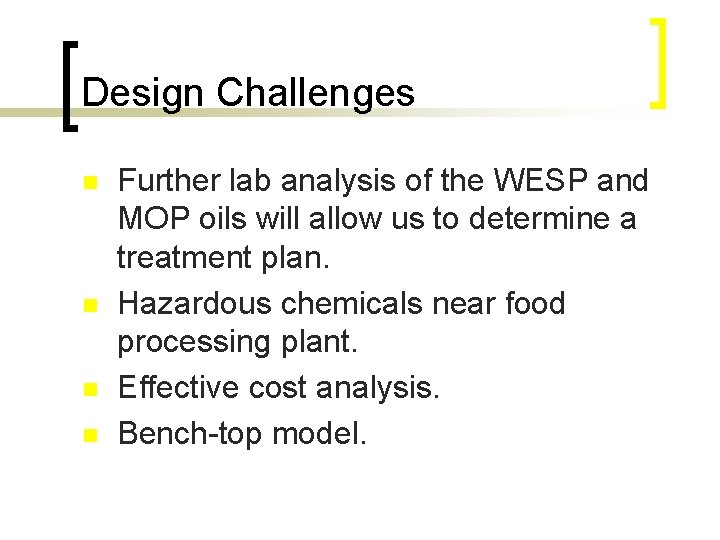

Design Challenges n n Further lab analysis of the WESP and MOP oils will allow us to determine a treatment plan. Hazardous chemicals near food processing plant. Effective cost analysis. Bench-top model.

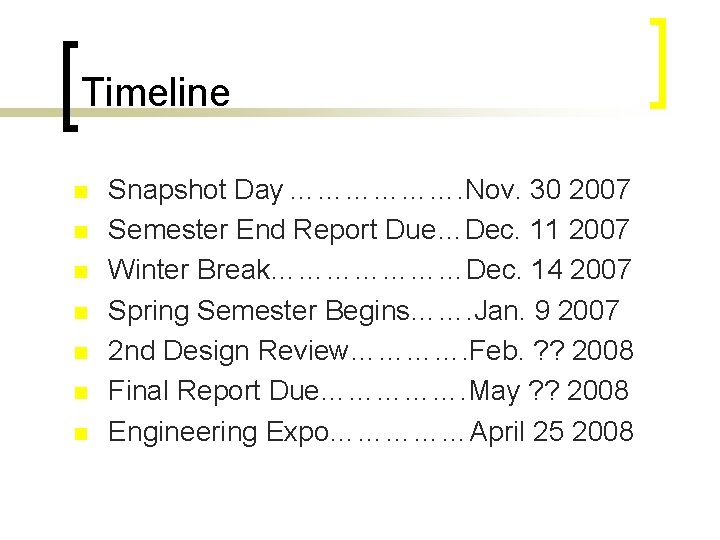

Timeline n n n n Snapshot Day ………………. Nov. 30 2007 Semester End Report Due…Dec. 11 2007 Winter Break…………………Dec. 14 2007 Spring Semester Begins……. Jan. 9 2007 2 nd Design Review…………. Feb. ? ? 2008 Final Report Due……………. May ? ? 2008 Engineering Expo……………April 25 2008

Questions? Ideas, Comments, or Suggestions
