Freescale Integrated Communications Processors Presentation Freescale Semiconductor General

Freescale Integrated Communications Processors Presentation Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Freescale: The Leader in Communications Processors Market share leader in communications processors • Over 185 million units shipped Continuous innovation and growth • Proven Power. PC processor architecture • Unsurpassed communications integration Broad application across the industry • 350+ customers with 5000+ designs • 10 th anniversary of Power. QUICC Microprocessor Report: Analysts’ Choice Best High Performance Embedded Processor: MPC 8560 Power. QUICCTM III February 2004 Slide 2 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. PC Core Evolution – Platform Scalability e 700 Core 64 -Bit Power. PC ISA Higher CPU & I/O Performance Multi-Core 1500 -3000+ MHz 8 – 20 W G 4 800 – 2000 MHz 6 – 15 W e 500 400 – 1700 MHz 2. 4 – 8 W 74 xx/745 x SIMD 256 K on-chip L 2 External 2 MB L 3 85 xx Family Integrated So. C 256 K L 2, Rapid. IO 603 e 200 – 600 MHz 0. 5 -1. 2 W High Integration 82 xx Family PCI, SDRAM, CPM Current Availability Higher Frequency 512 K L 2 100% Pin & S/W Compatibility Multi-Core e 700 Platform 3000+ MHz MPC 87 xx Series e 600 Core e 600 Platform MPC 86 xx Series 2000+ MHz Fully compatible with G 4 e 500 Core Application Specific Higher CPU & I/O Performance So. C Higher CPU & I/O Performance Application Specific Integration Future Plan Slide 3 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 e 500 Platform 1500+ MHz MPC 85 xx Series e 300 Core e 300 Platform MPC 83 xx Series Product Platforms 667+ MHz Fully compatible with G 2/603 e Core Nomenclature

Scalable Performance, Integration & Connectivity Scalable Performance e 500 Core e 600 Core e 700 Core 86 xx Integrated Platform Scalable Connectivity Interconnect Host Peripheral Bus: • PCI, PCI-X • PCI-Express • PCMCIA • 60 x, MPX • Local Bus System Fabric: • Rapid. IO • SERDES General Peripherals: • USB High/Full/Low speed • USB Full/Low Speed • I 2 C, DUART Networking: • Utopia • GMII, RGMII, TBI etc. • XAUI Network Acceleration Security: Networking Protocols: • Encryption • Ethernet (10/1000) • Authentication • Serial (Tx/Rx) • Public Key • HDLC • RNG • T 1/E 1/T 3/E 3 (TDM) • DES/3 DES/SHA 1 • ATM (AAL 0, 1, 2, 5, IMA) • IP (ML/MC-PPP, PPPmux) • BPON Scalable Integration Structures: System Integration: • • Copper Line Magenta/Sky. Blue Line OCea. N Integrated Fabric Coherent System Bus • • Bus Controllers Timers DMA Arbiters Bridges Interrupt Controllers GPIO Mixed Signal: • • Slide 4 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 PLLs/DLLs D/A, A/D Clock Data Recovery TIA, LDD PQ III (90 nm) PQ III PQ II Pro Memory Controllers: • • • DDR SDRAM DDRII SDRAM Flash, EPROM SRAM, DRAM PQ II Scalable Compatible Solutions e 300 Core Future PQ

Power. QUICC™ Family Roadmap MPC 85 XX 130 nm, 90 nm 533 MHz-1. 5 GHz e 500 CPU 333 MHz CPM 333 MHz DDR Bus 533 -667 MHz DDR 2 Bus 130 nm, 90 nm 266 -667 MHz e 300 CPU 333 MHz CPM 333 MHz DDR Bus MPC 82 XX 0. 29µm, 0. 25µm, 130 nm 200 -466 MHz 603 e CPU 208 -300 MHz CPM 66 -133 MHz Bus MPC 8 XX 0. 32 um, 0. 18µm 50 -133 MHz 8 XX CPU/CPM 40 -80 MHz Bus MPC 8555 E MPC 8548 E MPC 8541 E MPC 85 XX MPC 8540 MPC 8271/8272 Performance and Features MPC 83 XX MPC 8560 Future 85 xx MPC 8280/8275 8270 MPC 8347 E MPC 8266/8265/8264 8255/8250 MPC 8260/8255 MPC 82 XX Future 83 xx MPC 8349 E MPC 8343 E MPC 8247/8248 MPC 83 XX MPC 8241/8245 Proposed MPC 860 MPC 885/875 MPC 866/859 T 859 DSL/852 T Execution MPC 862/857 T 857 DSL MPC 8 XX Time Production MPC 860/855 T 2002 Slide 5 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 - 2003 2004 2005+

MPC 8 xx Power. QUICC I Family Update CI e IC r. QU Pow February 10, 2005 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC™ MPC 8 xx Family Roadmap MPC 885 133 MHz CPU/CPM 80 MHz External Bus ATM, 2 X 10/100, Security, USB MPC 866 MPC 880 MPC 859 MPC 875 133 MHz CPU/CPM 66 MHz External Bus ATM Enhancements MPC 862/857 T 100 MHz CPU/CPM 66 MHz External Bus ATM Enhancements MPC 860/855 T 80 MHz CPU/CPM 66 MHz External Bus ATM, 10/100, HDLC Performance and Features MPC 866/859/852 T MPC 859 DSL MPC 870 MPC 852 T MPC 862 MPC 857 T MPC 857 DSL . 18µm, 1. 8 V core, 3. 3 V I/O MPC 860 MPC 850 80 MHz CPU/CPM 50 MHz External Bus ATM, 10 Base. T, HDLC, USB MPC 855 T . 32µm, 3. 3 V core, 5 V I/O MPC 850 2000 - 2002 Slide 7 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 2003 2004

MPC 866 P – Block Diagram and Features • Efficient architecture integrates an • • 16 KB I-cache 8 KB D-cache Bus Interface Unit Embedded MMUs Memory Controllers Communications Processor Module (CPM) Fast Ethernet Controller DMAs FIFOs Bus Arbitration Serial DMA & 2 Virtual DMAs I²C SPI Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 32 -bit RISC CP Timer SMC 2 Slide 8 Parallel I/O 8 K DPRAM SMC 1 MII Baud Rate Generators SCC 4 10/100 Base-T Media 4 Timers SCC 3 • System Interface Unit (SIU) MPC 8 xx Core SCC 2 • MPC 866 P SCC 1 • • embedded 8 XX core and CPM Support for one Fast Ethernet, PCMCIA (for connecting to wireless module, e. g. 802. 11 b, Bluetooth) Four Serial Communication Controllers Support for Ethernet, HDLC, ATM, two UARTs, and more… Powerful memory controller and system functions 0. 18 um Process Technology Voltages: 1. 8 V Core, 3. 3 V I/O Frequency: Up to 133 MHz Power Consumption: 310 mw @133 MHz Package: 357 PBGA, 27 x 27 mm, 1. 27 mm pitch Samples and Production available Interrupt Controller PCMCIA System Reset Clock Synthesizer Time Slot Assigner Serial Interface

MPC 866 Family Derivatives Matrix Performance & Features 132 MIPS at 100 MHz, 176 MIPS at 133 MHz 310 m. W at 133 MHz! 110 mw at 50 MHz! 357 -pin PBGA package, 852 T is in 256 -pin PBGA package 866 T, 866 P, 859 T available at 100 and 133 MHz only 859 DSL available at 50 and 66 MHz only 852 T available at 50, 66, 80 and 100 MHz only Slide 9 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 866 ADS/MPC 852 TADS Development Systems • MPC 866, running up to 66 MHz bus frequency, mounted on ZIF BGA socket. • Also Supports MPC 860 and MPC 862 Families • Board Control & Status Register - BCSR, Controlling Board’s Operation. • Ethernet 10 Base. T port via SCC 1 • Supports Fast Ir. DA (Upto 4 Mbps). • Dual RS 232 port with Low-Power Option per each port. • T 1/E 1 connected to TDMB using external framer for serial ATM. • PCMCIA Socket • Selectable clock source • On - Board Debug Port Controller with ADI I/F. • Optional Hard Reset Configuration burned in Flash. • On-Board High Density Logic Analyzer connectors, supporting fast connection to HP 16500 logic analyzer. • Soft / Hard Reset Push – Button Slide 10 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 • MPC 866 ADS, MPC 852 TADS $2995. 00 SRP • MPC 866 ADS-KIT, MPC 852 T-KIT $3695. 00 SRP

MPC 866 QUICCstart Evaluation Board • • • • • Freescale MPC 866 processor – 50 MHz RPX Bus provides direct access to the MPC 866 bus 16 MB SDRAM (expandable to 128 MB) 8 MB Flash (expandable to 32 MB) 1 – 10/100 Base. T Ethernet 1 – 10 Base. T Ethernet 2 – RS 232 ports PC/104 mechanical form factor (3. 6 by 3. 8 inches) CD-ROM with schematics, reference, and monitor documentation Planet. Core on board monitor DPI/BDM Run Control Interface Linux BSP available 30 day Codewarrior eval license Power Supply & Cables $495 SRP Part number – CWDS 866 EVAL www. metrowerks. com Slide 11 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 885 Family • The MPC 885 Family is a next generation extension to the Power. QUICC I Family • New Features Include: • • Additional Fast Ethernet Controller Block (2 x 10/100) with MII/RMII Integrated Security USB External Bus speed up to 80 MHz • The MPC 885 Family consists of 4 new product to the existing PQ 1 family • • 870 – 2 10/100 Fast Ethernet Controllers, USB and 1 SMC 875 - 2 10/100 Fast Ethernet Controllers, USB, 1 SCC, 1 SMC, and HW Encryption 880 - 2 10/100 Fast Ethernet Controllers, USB, 2 SCC, 2 SMCs, and ATM 885 - 2 10/100 Fast Ethernet Controllers, USB, 3 SCCs, 2 SMCs, ATM, and HW Encryption • Target applications include IAD’s, VPN routers, SOHO routers, Industrial Control and General Purpose Computing. Slide 12 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 885 – Block Diagram and Features • Efficient architecture integrates an • • • 8 KB D-cache Bus Interface Unit Embedded MMUs Memory Controllers Security Communications Processor Module (CPM) Parallel I/O 32 -bit RISC CP Timer Serial DMA & 2 Virtual DMAs I²C Time Slot Assigner Serial Interface Bus Arbitration SPI Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Baud Rate Generators 8 K DPRAM USB Slide 13 4 Timers SMC 2 Fast Ethernet Controller DMAs FIFOs 10/100 Base-T 10/100 Base-T Media MII/RMII MII SMC 1 • 8 KB I-cache SCC 3 • System Interface Unit (SIU) MPC 8 xx Core SCC 4/ UTOPIA • MPC 885 SCC 2 • • embedded 8 XX core, Security engine, and CPM Security Engine: AES, DES/3 DES, SHA/MD 5/HMAC Support for two Fast Ethernets (MII or RMII), PCMCIA (for connecting to wireless module, e. g. 802. 11 b, Bluetooth) Three Serial Communication Controllers Support for Ethernet, HDLC, ATM, two UARTs, USB and more… Powerful memory controller and system functions Voltages: 1. 8 V Core, 3. 3 V I/O Frequency: 66/66 MHz, 80/80 MHz, 133/66 MHz Power Consumption: 430 m. W @ 133 MHz Package: 357 PBGA, 25 x 25 mm, 1. 27 mm pitch Samples and Production available Interrupt Controller PCMCIA System Reset Clock Synthesizer

MPC 885 ADS Development System • MPC 885/MPC 880, running up to 80 MHz bus frequency, mounted on ZIF BGA socket. MPC 885 is superset part, and can be used to develop for 870, 875, 880 and 885. • 4 MByte, Un-buffered, Synchronous Dram On. Board. • 2 MByte Flash SIMM. Support for up to 8 MByte, 5 V or 12 V Programmable, with Automatic Flash SIMM identification. • Board Control & Status Register - BCSR, Controlling Board’s Operation. • Two Fast Ethernet Ports with MII and/or RMII interface support • USB 2. 0 Full/Low speed compatible interface • Ethernet 10 Base. T port via SCC 3 • An infra-Red communication port is provided with support for Fast Ir. DA (Up to 4 Mbps). • Dual RS 232 port with Low-Power Option per each port. • T 1/E 1 connected to TDMA framer for serial ATM. • ATM 55 and ATM 125 connected to UTOPIA/Adtech Bus interface • EPP (Enhanced Parallel Port) Debug interface Kit Includes: Motherboard, Wire. Tap, Power Supply, 30 day Code Warrior Eval License SRP $2995 Slide 14 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 875 QUICCstart Evaluation Board • • • • Motorola MPC 875 processor – 120 MHz 2 - 10/100 M Ethernet Ports 1 - USB Port 1 - serial port (SMC) 8 MB flash 16 MB SDRAM CD-ROM with design, reference, and complete documentation Red. Boot on-board monitor Linux BSP Wire. TAP™ BDM/DPI Run Control Power Supply & Cables $595 SRP Part number – CWDS 875 EVAL www. metrowerks. com Slide 15 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 885 Security Core • Data Encryption Standard Execution Unit (DEU) • • • Advanced Encryption Standard Unit (AESU) • • • DES, 3 DES with two key (K 1, K 2, K 1) or three Key (K 1, K 2, K 3) ECB and CBC modes for both DES and 3 DES Key lengths of 128, 192, and 256 bits. ECB, CBC, and Counter modes Message Digest Execution Unit (MDEU) • • SHA with 160 -bit or 256 -bit message digest , MD 5 with 128 -bit message digest HMAC with all algorithms • Supports IPSec, SSL/TLS, SRTP, and 802. 11 i protocol processing • SW compatible with MPC 184/MPC 185 drivers Slide 16 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Crypto Channel 8 xx Bus / IF Unit Controller FIFO DEU AESU MDEU FIFO

MPC 885 Family Derivatives Matrix 870 875 880 885 66, 80, 133 66, 80, 66 – I Cache (KB) 8 8 – D Cache (KB) 8 8 Fast Ethernet Controllers (MII/RMII) CPM Interfaces 2 2 – UTOPIA (ATM) 0 0 YES – Multichannel HDLC 0 32 64 64 – SCCs 0 1 2 3 – USB 1 1 – SMCs 1 1 2 2 – I²C 1 1 – SPI 1 1 No 256 PBGA Now! YES! 256 PBGA Now! No 357 PBGA Now! YES! 357 PBGA Now! Performance – CPU/CPM (MHz) – External Bus (MHz) Integrated Security Package Samples Production Slide 17 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 82 xx Power. QUICC II Family Update C II e IC r. QU Pow February 10, 2005 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC II™ MPC 82 xx Family Roadmap MPC 8280 450 MHz CPU 300 MHz CPM 100 MHz External Bus ATM, 10/100, HDLC, PCI, USB MPC 8272 MPC 8275 MPC 8272 400 MHz CPU 200 MHz CPM 100 MHz External Bus ATM, 10/100, PCI, USB Security MPC 8266 300 MHz CPU 208 MHz CPM 83 MHz External Bus ATM, 10/100, HDLC, PCI Performance and Features MPC 8271 MPC 8270 MPC 8248 MPC 8266 MPC 8247 MPC 8265 MPC 8264 MPC 8260 200 MHz CPU 166 MHz CPM 66 MHz External Bus ATM, 10/100, HDLC MPC 8255 2001 130 nm, 1. 5 V core, 3. 3 V I/O. 25µm, 1. 8/2. 0 V core, 3. 3 V I/O. 29µm, 2. 5 V core, 3. 3 V I/O MPC 8250 2002 Slide 19 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 2003 2004

MPC 8280 – Block Diagram and Features • • 603 e core with 16 K inst & 16 K data caches 64 -bit 60 x bus 32 -bit 33/66 MHz PCI or Local Bus 3 FCCs supporting HDLC, 10/100 Ethernet, ATM 4 SCCs, USB, 2 SMCs, SPI, I²C 8 TDMs supporting up to 256 HDLC channels for 8 x E 1/T 1 interfaces or ATM IMA + TC Layer Memory controller built from SDRAM, UPM, GPCM machines MPC 8280 603 e Core 16 KB I-cache 450/300/100 MHz (480 TBGA) 333/250/83 MHz (480 TBGA) 1. 5 W @ full performance , 1. 5 V FPU Power Management 60 x Bus Interface Unit JTAG/COP Timers 60 x-to-PCI Bridge 60 x-to-Local Bridge Communications Processor Module (CPM) Interrupt Controller Protection & Configuration I²C SPI USB SMC 2 SMC 1 SCC 4 SCC 3 SCC 2 SCC 1 FCC 3 FCC 2 General Samples: Production: Timer Serial DMA & 2 Virtual DMAs System Reset Clock Synthesizer TC Layer Time Slot Assigner Serial Interface Availability • • 32 -bit RISC CP Parallel I/O FCC 1 130 nm, 3. 3 V I/O, 1. 5 V Core 480 TBGA, 37. 5 x 37. 5 mm, 1. 27 mm pitch Baud Rate Generators MCC 2 • • Bus Arbitration 128 K 32 K DPRAM I-MEM (ROM) 32 K I-RAM 4 Timers MCC 1 Technology Memory Controllers GPCM/UPM/SDRAM Classic G 2 MMUs Performance (CPU/CPM/Bus) • • • System Interface Unit (SIU) 16 KB D-cache NOW 8 TDM Ports Slide 20 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 3 MII/RMII 2 UTOPIA 8/16 bit 60 x Bus PCI/ Local

MPC 8272 – Block Diagram and Features • • 603 e core with 16 K inst & 16 K data caches 64 -bit 60 x bus 32 -bit 33/66 MHz PCI 2 FCCs supporting HDLC, 10/100 Ethernet, ATM 3 SCCs, USB, 2 SMCs, SPI, I²C 2 TDMs supporting up to 64 HDLC channels for 2 x E 1/T 1 interfaces Memory controller built from SDRAM, UPM, GPCM machines Integrated Security - DES/3 DES, MD 5/SHA-1, AES, RNG, PKE, ARC 4 Performance (CPU/CPM/Bus) • • • FPU Power Management 60 x Bus Interface Unit JTAG/COP Timers 60 x-to-PCI Bridge Communications Processor Module (CPM) Baud Rate Generators 32 -bit RISC CP Parallel I/O Timer Serial DMA & 2 Virtual DMAs I²C SPI USB SMC 2 SMC 1 SCC 4 1 UTOPIA 8 -bit Slide 21 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 2 MII/RMII System Reset Clock Synthesizer Time Slot Assigner Serial Interface 2 TDM Ports Interrupt Controller Protection & Configuration SCC 3 NOW Bus Arbitration 80 K 16 K DPRAM I-MEM (ROM) 4 K I-RAM 4 Timers 130 nm, 3. 3 V I/O, 1. 5 V Core 516 PBGA, 27 x 27 mm, 1. 00 mm pitch General Samples: Production: Memory Controllers GPCM/UPM/SDRAM Classic G 2 MMUs Availability • • System Interface Unit (SIU) Security 16 KB D-cache SCC 1 • • 16 KB I-cache FCC 2 Technology 603 e Core FCC 1 • 400/200/100 MHz 300/200/100 MHz 266/200/66 MHz (industrial temp available) 1. 2 W @ full performance , 1. 5 V MPC 8272 60 x Bus PCI

MPC 8272 Security Core • Public Key Execution Unit (PKEU) that supports the following: – RSA and Diffie-Hellman with programmable field size up to 2048 -bits – Elliptic curve cryptography, F 2 m and F(p) modes with programmable field size up to 511 -bits • Data Encryption Standard Execution Unit (DEU) – DES, 3 DES with two key (K 1, K 2, K 1) or three Key (K 1, K 2, K 3) – ECB and CBC modes for both DES and 3 DES • Advanced Encryption Standard Unit (AESU) – ECB, CBC, Counter, and CCM modes – Key lengths of 128, 192, and 256 bits. • Message Digest Execution Unit (MDEU) – SHA with 160 -bit or 256 -bit message digest , MD 5 with 128 -bit message digest – HMAC with all algorithms • ARC Four Execution Unit (AFEU) • Random Number Generator (RNG) • SW compatible with MPC 184/ MPC 185 drivers Slide 22 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC II™ Family 130 nm Derivatives Matrix 8247 8248 8271 8272 8270 8275 8280 – CPU (MHz) 266/300/400 266/333/450 266 333/450 – CPM (MHz) 200 200 200/250/300 66/100 66/83/100 66 83/100 – Local Bus (MHz) NO NO 66/83/100 66 83/100 – I/D Cache (KB) 16/16 16/16 66/33 66/33 2 2 3 3 3 • MII/RMII (Fast Ethernet) 2 2 3 3 3 • UTOPIA (ATM) 0 0 1 1 0 2 2 – Multichannel HDLC 64 64 128 256 – SCCs 3 3 4 4 4 – USB 1 1 1 1 – SMCs 2 2 2 2 – I 2 C/SPI 1 1 1 1 IMA/TC Functionality NO NO NO YES Integrate Security NO YES NO NO NO • Sample NOW NOW • Production NOW NOW 516 PBGA 480 TBGA 516 PBGA 480 TBGA Performance – 60 x/Memory Bus (MHz) CPM Interfaces – PCI (MHz) – FCCs • Package Slide 23 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC II Development System PQ 2 FADS • Supports all PQ 2 Offerings - Hi. P 3/4/7 • Selectable Local Bus or PCI Bus in host mode – 3 PCI slots (PCI 2. 2 compliant) • Memory (buffered on 60 x bus) – 32 MB SDRAM (soldered on-board) – 8 MB Program Flash SIMM (up to 32 MByte) – 8 KB EEPROM • Peripherals – 155 Mbps ATM UNI on FCC 1 with optional optical I/f – Two 100/10 -Base-T Ports on FCC 2 and FCC 3 – USB Port – Dual RS-232 port residing on SCC 1 and SCC 2 • Integrated on-board command converter – Allows for a direct debugger connection – Connects directly to a PC parallel port • JTAG/COP Run Control • Offerings – PQ 2 FADS-ZU (480 TBGA) – PQ 2 FADS-VR (516 PBGA) Wire. TAPTM Slide 24 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Kit Includes: Motherboard, Wire. Tap, Power Supply, 30 day Code Warrior Eval License SRP $2995

MPC 8280 QUICCStart Evaluation Board • • • • Freescale MPC 8280 ZU processor 16 MB 64 bit wide, SDRAM 4 MB Flash (expandable to 8 MB) 2 – 10/100 Base. T Ethernet 2 – RS 232 ports PCI Bus Interface & PCI Card Form Factor for Easy Use & Insertion into PCI slots Stand Alone Operation or Integrated Operation in PCI Slot CD-ROM with design, reference, and complete documentation Red. Boot on-board monitor Linux BSP Wire. TAP™ JTAG/COP Run Control Power Supply & Cables $895 SRP Part number – CWDS 8280 EVAL www. metrowerks. com Slide 25 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 8272 Development System MPC 8272 ADS • 155 Mbps optical ATM port or 10/100 Base-T Ethernet port on FCC 1 • Supports 8 -bit Multi-PHY UTOPIA Level 2 with UTOPIA ADTECH interface • 10/100 Base-T Ethernet port on FCC 2 • Dual RS 232 serial ports • USB compliant port • 3 PCI slots @ 3. 3 V/66 MHz • Parallel port command converter • Logic analyzer (debug) connectors • Differences from PQ 27 FADS – – – Pinout 64 MB SDRAM (60 x bus) vs. 32 MB Only two FCCs (no support for two FE = ATM) 8 -bit UTOPIA vs. 8/16 -bit UTOPIA No local bus functionality Kit Includes: Motherboard, Wire. Tap, Power Supply, 30 day Code Warrior Eval License SRP $2995 Slide 26 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 8248 QUICCStart Evaluation Board • • • • Freescale MPC 8248 processor, 100 MHz Bus 16 MB 64 bit wide, SDRAM 8 MB Flash 2 x – 10/100 Base. T Ethernet 1 x – RS 232 ports PCI Bus Interface & PCI Card Edge Connector (Agent Only) USB Full Speed Expansion Connectors CD-ROM with design, reference, and complete documentation Linux and Precise/MQX BSP Wire. TAP™ JTAG/COP Run Control Power Supply & Cables $895 SRP Part number – CWDS 8248 EVAL www. metrowerks. com Slide 27 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Freescale’s Power. QUICC II/III Processors: Extending Functionality Through Protocol Leadership • Software internetworking leadership with extensive multi-protocol support: • • • • 10/100 Ethernet ATM HDLC Multi-Channel HDLC IMA Enhanced SS 7 (E-SS 7) Fast Data Switching (FDS) Multi Service Platform (MSP) Enhanced MSP Enhanced AAL 2 (E 2 AAL 2) SSTED ATM Policer ML-PPP/MC-PPP 603 e, e 300 and e 500 Processor Core (compatible with Power. PC ISA) FDS, MSP, E-SS 7, E 2 AAL 2 SSTED, Policer, E-MSP, ML/MC-PPP AAL 0 AAL 1 AAL 2 AAL 5 IMA Ethernet ATM HDLC SS 7 TC Layer MII UTOPIA TDM GPIO UART Slide 28 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

PQII and PQIII Microcodes – Available Now • Fast Data Switching (FDS) Enables the automatic forwarding of data (ATM or Ethernet) from one FCC to one other FCC, without the need for software intervention. Typical applications: CO Switches, Gateways, Base Stations, Multi-Service Access Platforms, Network Edge • Multi Service Platform (MSP) Gives customers the ability to handle ATM switching and enables Qo. S functionality on the Power. QUICC II as well as traffic management features such as billing, queuing, policing, address translation etc. – without host software intervention, significantly lowering the design cost for OEMs. Typical applications: DSLAMs, Access Line Cards, Edge Access Servers • Enhanced SS 7 (ESS 7) Enhances the current SS 7 (signaling protocol allowing different types of switches to communicate to each other) implementation by adding support for high speed SS 7 channels at T 1/E 1 rates, as defined by ITU-T Q 703 Annex A recommendation. Also adds support for the Japanese and Chinese high speed standards. • Enhanced AAL 2 (E 2 AAL 2) - Providing Qo. S parameters in the host. Enhances the current AAL 2 implementation by providing external TQD capabilities, enabling support for 64 K VCs. Also supports AAL 2 statistics gathering. Typical applications: Voice Switches, Voice Gateways. Slide 29 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

PQII and PQIII Microcodes – Beta Versions • SSTED – Alleviates the CPU from performing AAL 2 packet error detect The SSTED (Service Specific Transmission Error Detection sublayer) microcode builds on the E 2 AAL 2 package, providing support for the next AAL 2 layer (SSTED functionality) which adds the SSTED trailer and detects corrupted or lost Packet Data Units. • ATM Policer – Polices the Qo. S to ATM cells Implements the ATM forum’s TM 4. 1 Virtual Scheduling algorithm – Dual leaky bucket policing scheme – Programmable bundling of multiple VCCs – Guaranteed Frame Rate (GFR) Mode – Typical applications: Routers/Switches (apps where Qo. S needs to be enforced) • Enhanced MSP (E-MSP) Adds the following functionality to the existing MSP microcode: – – – Simultaneous Early Packet Discard and Partial Packet Discard Enhanced OAM support Enhanced APC to support PHYs with variable bit rate Dynamic channel add/delete Dynamic address compression Transparent VP switching support in CAM address lookup Slide 30 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

3 rd Party Custom Microcode Developers • Arabella Systems – Develops custom microcode packages that can off-load critical functions from the Power. PC CPU-based software, enhancing system throughput. – Custom microcode packages will be integrated with Linux-based software solutions to create comprehensive, highly optimized software systems. – www. arabellasw. com • Do. Gav Systems – Provides various CPM fee based microcode patches for optimization. – Fast Ethernet Shaper – VLAN support – Ethernet Cable Connect/Disconnect Recovery – CPM Idle Slots – FCC-Ethernet Time Stamp (dowloadable for free) – www. dogav. com • Flextronics – www. flextronics. com • Windriver – www. windriver. com Slide 31 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Customer Presentation Slide 32 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Freescale: The Leader in Telematics Control Unit Processors Over 90% of TCU’s Shipped are Based on a Freescale Processor (Source: Telematics Research Group) Introducing the MPC 5200 • Hi Integration/Hi Performance • Extended Temp/Low Power • Long Term Availability MPC 560 MPC 823 e Slide 33 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

mobile. GT: What is it? Cooperative alliance of key software vendors providing integrated and proven support on the MPC 5200 -based mobile. GT platforms. • Real Time Operating Systems • Java Virtual Machines • Voice Recognition Engines • Acoustic Echo Cancellation Technologies • Wireless Communications • Graphical Interface Technologies • Navigation software mobile. GT Total 5200 Platform Slide 34 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

mobile. GT: How Can it Help You? Minimal time configuring key software on an I/O and resource rich platform. This enables: • Rapid realization of prototypes and field trial units (weeks instead months) • Easy connection to automotive networks including MOST, CAN and J 1850 with on-chip and on-platform technologies • Well-proven connectivity to key enabling hardware technologies including GPS, cellular, Bluetooth, WLAN and 3 D graphics • One-stop support for the processor, development platform and software including access and support of Freescale developed software I/O drivers Slide 35 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 5200/mobile. GT: What software is supported? mobile. GT Total 5200 Real Time Operating Systems • QNX • And others Voice Recognition/Text to Speech/AEC • Clarity • Fonix • IBM Embedded Via Voice • Scan. Soft Vo. Con 3200 • Speech. Works Speechify Solo • Wavemakers Graphics • e. NGENUITY • Tilcon Navigation • Navigon, etc. Slide 36 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Wireless • Airbiquity • Extended Systems, Stone. Street One Lite 5200 EVB Real Time Operating Systems • QNX • And others

MPC 5200 Block Diagram 603 e series Power. PC® Core 16 K Instruction and 16 K Data Caches Dual 32 Entry MMUs High Speed DDR SDRAM interface 256 Mbyte addressing range per chip select (2 CS available), 32 -bit wide Flexible multi-function external bus PCI master v 2. 2, ATA v 4 compatibility Best. Comm I/O subsystem Support for PSC, Ethernet, USB 1. 1, PCI, ATA, I 2 C, AC 97 & CODEC Interfaces, SPI, CAN 16 k. B internal SDRAM 6 Peripheral Serial Controllers Configurable as UART, AC 97 & CODEC Interfaces, I 2 S 8 Counter/Timers BDLC-D J 1850 Superior I/O for Industrial Automation and Automotive Applications CAN, Serial, USB, J 1850 (MOST® on Total 5200 Development Board) Power Management Sleep and deep sleep modes. ~ 1 W @ 400 MHz Performance: ~ 760 MIPS (400 MHz) at -40° C to 85 C Package 272 pin PBGA, 1. 27 mm pitch 16 K ICache 32 Entry MMU 16 K DCache 32 Entry MMU Systems Integration Unit Systems Integration Memory Controller DDR or (DRAM) SDRAM 400 MHz Power. PC 603 e Core Unit USB (Two) Interrupt Control System Functions Counter/Timers/Real Time clock FPU Chip Selects (8) (6) XLB PCI Controller Best Comm 16 k. B 8 k. B DPRAM Features IPBI Smart DMA ROM/SRAM ATA/IDE Host Controller JTAG IP Bus PSC 1 Slide 37 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 PSC 2 PSC 3 PSC 4 PSC 5 PSC 6 J 1850 SPI 10/100 I 2 C Base. T (Two) CAN 2. 0 A/B (Two)

mobile. GT Hardware Architecture Add on Modules • CD ROM • DVD • HDD MPC 5200 USBx 2 ATA Audio Subsystem UARTs, SPI 760 MIPS 64 MB SDRAM AC 97 DDR Memory Support Ethernet 64 MB Flash I 2 S Best. Comm DMA J 1850 I 2 C PCI GPU FPU CANx 2 Total 5200 Development Platform +12 V Slide 38 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 MOST • Bluetooth • 802. 11 • Cellular • GPS, Gyro • Navigation • Audio DSP • Radio • SDAR • Camera Sensors

mobile. GT Software Architecture Audio/Vi deo Codecs Navigation SW/ Databases Graphics/HMI Browser Wireless Stacks Echo Cancellation Voice Recognition Frameworks UI ML OSGi/SMF Java/ OSGi Applications/Middleware Java Virtual Machine And Classes Middleware (Database, Audio Mgt, etc) POSIX Compliant RTOS Audio Graphics FLASH File System RTOS I/O (Serial, USB, CAN, etc) TCP/IP HW Devpt Platform mobile. GT Hardware Platform Car Ntwk Camera Sensors CD/DVD HDD GPS/ Gyro Bluetooth Slide 39 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Software Drivers 802. 11 Cellular Display Add-on Hardware Modules

Simplified Total 5200 Block Diagram PC 104+ 2 CAN Transc MPC 5200 Local Plus ATA PCI Ir. DA Transc 2 USB Transc MOST 64 MB Flash e. Bus AC’ 97 CPLD Audio 3 V/5 V 12 V Transc LCD Ctl UARTS 10/100 Transc 64 MB SDRAM I 2 C Slide 40 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 RS 232 Transc

Details for Total 5200 Development Platform 400 MHz Total 5200 Development Platform 1 RS-232 CRT USB Ethernet • Detachable, Graphics Touchscreen, • Reconfigurable buttons S-Video Evaluation Software/Tools Available NOW Slide 41 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Loudspeaker , L Phone Radio R Radio L Line 3 (Video) Line 2 (MP 3) Line 1 (DSP) 2 Mic 2 QNX Momentics and QNX Neutrino BSP IBM Web. Sphere/ J 9 Java Virtual Machine with QNX Metrowerks Code. Warrior and Linux BSP d. BUG - low level debugger & boot loader Mic 1 • • ™ Total 5200 Graphics Unit Big. Foot Bluetooth Loudspeaker , R Base unit - 1 DIN Form Factor 120 VAC or 11 -14 VDC 64 MB SDRAM, 64 MB Flash PC 104+(PCI), ATA 2 CAN, MOST, 2 USB, I 2 C 9 UARTs LCD controller w/ VGA & S-Video 10 Base. T Ethernet Audio Inputs/Outputs supporting Mic, Bluetooth, Radio, Phone & Speaker. Headphone • • •

Details for Lite 5200 EVB 400 MHz Lite 5200 Board • 160 mm x 133 mm • 64 MB SDRAM, 16 MB Flash • PCI, ATA • CAN (2), USB, I 2 C (2) • 1 UART • 10/100 Ethernet • All additional MPC 5200 I/O available on header connector • No MOST®, LCD Controller, Graphics Display, Audio Subsystem • No Integrated 12 V Power Support Lite 5200 Software • Code. Warrior 30 -day Eval Seat • d. BUG - low level debugger & boot loader • Support for QNX and others. Available NOW Slide 42 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 5200 Total 5200 and Lite 5200 Ordering Information Total 5200 Development Platform $5, 000 • Total 5200 Hardware • Complete Total 5200 startup CD including QNX drivers, utilities, and IBM Web. Sphere/J 9 • 30 day evaluation copy of QNX Momentics • Freescale P/N: MPCSYS 5200 EVAL Lite 5200 Evaluation Board Kit $995 • Lite 5200 EVB Hardware • Evaluation Copies of Code. Warrior, Platform Creation Suite and Code. Warrior for Embedded Linux • Support for QSSL Momentics/QNX and others. • Metrowerks Wire. TAP® and Green Hills Slingshot® Probes included • P/N CWMPCEVB 5200 Slide 43 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 83 xx Power. QUICC II Pro Family Update O er. Q Pow February 10, 2005 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 C UIC II PR

Power. QUICC II Pro™ Family Goals Extends Power. QUICC processor roadmap • Extends Power. QUICC I and Power. QUICC II Families Powered by the new e 300 Power. PC Core Provides new high-performance functionality • DDR SDRAM • Hi-Speed USB • 10/1000 Ethernet • Dual PCI capability • Next generation communications engine Based on So. C design methodology • Single Architecture for the entire Power. QUICC II Pro family • Easier and faster to develop additional So. C-based family members • targeting emerging markets Semi. Custom IC platform Slide 45 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC II Pro™ Power. PC e 300 Core Enhanced version of the 603 e Power. PC core used in previous generation Power. QUICC II New enhanced core (e 300) features: • • • 32 -bit Power. PC Classic architecture Superscalar (3 IPC) 32 KB I/D caches (8 way) with Parity Classic PPC MMUs Double precision FPU On-chip debug support (JTAG/COP) Completion Unit Power Management • • • Dynamic power management on decode Low power static design Nap and doze and sleep modes Integer Unit Gen Reg File Branch Unit Dispatch Unit Gen Rename FPU Reg File Load/ Store Unit Floating Point Unit Performance • • • 667 MHz (1261 MIPS) 533 MHz (1007 MIPS) 400 MHz (756 MIPS) D MMU 32 K Data Cache New features: • 32 Kbyte Instruction and 32 Kbyte. Data § 8 -way set associative Cache with Parity • Added performance features (extensions) • Up to 667 MHz operation • 130 nm technology (1. 2 V operation) Slide 46 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 I MMU 32 K Inst. Cache Bus Interface Unit 32 b Address 64 b Data Coherent System Bus (CSB)

MPC 8349 E – Block Diagram and Features • Integrated e 300 core processor • • • 0. 13µm, 1. 2 V core, 3. 3 V I/O Temp Range: 0°C-85/105°C, -40°C-105°C 672 TBGA – 35 x 35 mm, 1 mm pitch Estimated ~1. 3 W @533 MHz Host Device Availability • Alpha Samples • General Samples • Production e 300 core Interrupt 32 KB Controller D-Cache I-Cache USB Hi-Speed A DM Technology QUICC Security Duart Dual I 2 C Timers GPIO SPI Now Q 2 2005 Q 3 2005 Slide 47 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 I • • MPC 8349 E PC • § 400 -667 MHz § 32 K I/D cache Memory Controller § 32/64 -bit DDR 266/333 MHz Two 10/1000 Ethernet MACs 2 x 32 -bit or 1 x 64 -bit PCI § Up to 66 MHz PCI 2. 2, PCI Arbiter § Master & Agent mode support Local Bus Integrated QUICC Security - DES/3 DES, MD 5/SHA-1, AES, RNG, PKEU, RC 4 Two Hi-Speed USB ports § 1 port Host, Device, or On-The-Go § 1 port Host Multi-channel DMA controller DUART, Dual I²C, Interrupt, GPIO, SPI PCI Local Bus 10/1000 Ethernet DDR Controller 10/1000 Ethernet

MPC 8349 E Family Features Comparison MPC 8349 E MPC 8347 E MPC 8343 E Core e 300 CPU Speed Up to 667 MHz L 1 I/D Cache Memory Controller Local bus 32 KI/32 KD 64/32 bit DDR Yes 2 -32 Bit up to 66 MHz OR 1 -64 bit up to 66 MHz e 300 Up to 667 MHz (TBGA) Up to 400 MHz (PBGA) 32 KI/32 KD 64/32 bit DDR Yes PCI Up to 400 MHz 32 KI/32 KD 32 bit DDR Yes 1 -32 Bit up to 66 MHz 2 -10/100/1000 2 -10/1000 QUICC Security UART I 2 C SPI Int. Controller Est. Core Power Hi-Speed Host, Device, & OTG E version only Dual Yes ~1. 3 W @ 533 MHz Hi-Speed Host, Device, or OTG E version only Dual Yes ~0. 8 W @ 266 MHz Package 672 TBGA (35 x 35) 1 mm pitch Initial Samples General Samples Q 1 -05 Q 2 -05 Hi-Speed Host, Device, & OTG E version only Dual Yes ~1. 1 W @ 400 MHz 672 TBGA (35 x 35) 1 mm pitch 620 PBGA (29 x 29) 1 mm pitch Q 1 -05 Q 2 -05 Ethernet USB Slide 48 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 620 PBGA (29 x 29) 1 mm pitch Q 1 -05 Q 2 -05

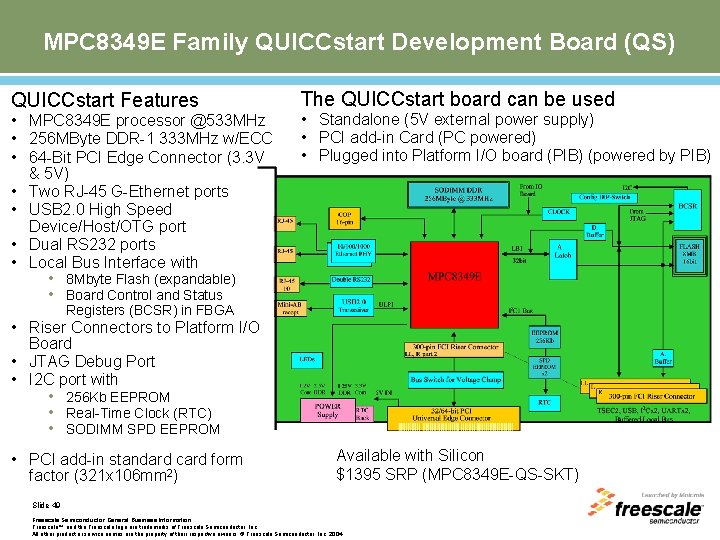

MPC 8349 E Family QUICCstart Development Board (QS) QUICCstart Features • MPC 8349 E processor @533 MHz • 256 MByte DDR-1 333 MHz w/ECC • 64 -Bit PCI Edge Connector (3. 3 V & 5 V) • Two RJ-45 G-Ethernet ports • USB 2. 0 High Speed Device/Host/OTG port • Dual RS 232 ports • Local Bus Interface with • 8 Mbyte Flash (expandable) • Board Control and Status The QUICCstart board can be used • Standalone (5 V external power supply) • PCI add-in Card (PC powered) • Plugged into Platform I/O board (PIB) (powered by PIB) Registers (BCSR) in FBGA • Riser Connectors to Platform I/O Board • JTAG Debug Port • I 2 C port with • 256 Kb EEPROM • Real-Time Clock (RTC) • SODIMM SPD EEPROM • PCI add-in standard card form factor (321 x 106 mm 2) Available with Silicon $1395 SRP (MPC 8349 E-QS-SKT) Slide 49 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 8349 E Family Application Development Board (FADS) The FADS is comprised of a 8349 E QUICCstart board + 83 xx Platform I/O Board + PCI PMC card 83 xx Platform I/O Board (PIB) 8349 E FADS Additional Features: • • • PCI Host mode (w/ PCI PMC card) 2 nd USB Port (w/ USB PMC card) Optical Ethernet phy PMC 1 PMC 2 PMC 3 PMC 4 Platform I/O Board Features: • • • Advanced. TCA form factor 4 PMC slots 1 x 10/1000 Ethernet 4 x 10/100 Ethernet Two PMC for ATM modules with ADTEC connectors. One PMC for USB One PMC for SLIC-SLAC module card. Expansion connectors for TCOM & CE signals. Logic analyzer connectors for all CE signals $2495. 00 SRP (MPC 83 XX-PIB) TCOM/ECOM 8349 E QUICCstart Board (QS) Available Q 205 $3795 SRP (MPC 8349 E-FADS) Slide 50 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 85 xx Power. QUICC III Family Update CC UI er. Q Pow February 10, 2005 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 III

Power. QUICC III Power. PC e 500 Core Freescale’s e 500 core is aimed at embedded applications § e 500 is a high-performance core • e 500 provides key embedded functionality • Cache locking, fast interrupt response, fault robustness, performance monitoring Common So. C Platforms Scalable Performance - Low to High e 700 Core 3000+ MHz 32/64 -bit e 700 Platform MPC 87 xx Series Key features: • – – e 600 Core G 4 Core MPC 74 xx Series 2000+ MHz 32 -bit Fully compatible with G 4 e 600 Platform MPC 86 xx Series • e 500 Core MPC 85 xx Series 1500+ MHz 32 -bit e 500 Platform MPC 85 xx Series e 300 Core 603 e Core MPC 82 xx Series 667+ MHz 32 -bit Fully compatible with 603 e/G 2 e 300 Platform MPC 83 xx Series Slide 52 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Integrated L 1/L 2 Cache • • 32 K Instruction & Data Up to 512 K L 2 L 1/L 2 Hardware Coherency L 2 configurable as SRAM Added performance features (extensions) Planned >1 GHz operation 130 nm & 90 nm technology

Power. QUICC III So. C Platform Architecture Multi-core Ready e 500 core Potential 32 K I-Cache Hierarchical on-chip buses e 500 Cores 32 K D-Cache 32 K I-Cache • Memory Coherency (in HW) • Support Out-of-order Transfers: L 2 Cache /SRAM 32 K D-Cache Accesses to slow peripherals do not 128 bit Read block DDR memory accesses. 128 bit Write 64 bit Read e 500 Coherency Module • Only coherent I/O traffic Snooped Queue 64 b DDR/ DDR 2 SDRAM Controller Queue Potential Memory Coherency Module 64 b DDR/ DDR 2 SDRAM Controller up to Processor(s) • CPU access of L 2 -cache concurrent IO w/ Non-coherent I/O transfers pid to/from memory. Ra CPM DM A om st Cu IP Dual PCI-X PCI Express Local Bus IP-Bus Buffers Gigabit Ethernet • Speculative Reads from CPU(s) to DDR only when Queue empty. I 2 C DUART Slide 53 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 10/100 Enet Custom IP Switch fabric supports peer-to -peer traffic concurrent w/ CPU & I/O memory accesses.

MPC 8560 e 500 Core • • • e 500 core 667 MHz up to 1 GHz 32 K L 1 I-Cache, 32 K L 1 D-Cache 256 K unified L 2 cache 32 K I-Cache 32 K D-Cache 256 K L 2 CPM • Specialized RISC 333 MHz • 3 Fast Communication Channels (FCC): § ATM -> OC-3, 10/100 Mbit/s Ethernet, E 3/T 3 HDLC/transparent operation • 2 Multi-channel Communications Controller • Time Slot assigner channels Local Bus 64 b DDR/ SDRAM Controller Coherency Module Open. PIC § 256 channels of HDLC/transparent • 8 physical links of up to 16 Mbps or 2 channels of T 3/E 3 4 Serial Communication Channels (SCC) § HDLC, HDLC bus, transparent mode, UART, Bisync, Appletalk/Localtalk 8 channel ATM TC layer SPI, I 2 C 2 x 10/1000 MAC (MII/GMII/TBI/RGMII/RTBI) DDR Memory Bus - (2. 5 V I/O) • 133 -166 MHz bus (266 -333 MHz data rates) Local Bus - (3. 3 V I/O) • • 32 -bit local bus with memory controller Muxed address/data Gigabit Ethernet CPM I PC I-X PC • • Perf Mon DUART 2 x I 2 C Timers MPC 8560 • PCI-X - (3. 3 V I/O) – 32 -/64 -bit PCI/PCI-X with int. PCI arbiter • Rapid. IO – 8 -bit interface, LVDS I/O 500 MHz Slide 54 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 DM A § § Rapid IO • 0. 13 um Process Technology • 783 FC-PBGA Package (Flip Chip on PBGA)

MPC 8540 e 500 Core • • • 667 MHz up to 1 GHz e 500 core 32 K L 1 I-Cache, 32 K L 1 D-Cache 32 K I-Cache 256 K unified L 2 cache 32 K D-Cache 256 K L 2 2 x 10/1000 MAC (MII/GMII/TBI/RGMII/RTBI) 1 x 10/100 (MII) Local Bus DUART Open. PIC 64 b DDR/ SDRAM Controller Coherency Module DDR Memory Bus - (2. 5 V I/O) 133 -166 MHz bus (266 -333 MHz data rates) Local Bus - (3. 3 V I/O) • • Muxed address/data PCI-X - (3. 3 V I/O) • 32 -/64 -bit PCI/PCI-X with int. PCI arbiter Rapid. IO • MPC 8540 8 -bit interface, LVDS I/O 500 MHz Technology • • Gigabit Ethernet 0. 13 um Process Technology 783 FC-PBGA Package (Flip Chip on PBGA) Slide 55 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 10/100 Ethernet I PC I-X PC Perf Mon DUART 2 x I 2 C Timers 32 -bit local bus with memory controller DM A • Rapid IO

MPC 8555 E e 500 core (up to 833 MHz) • 0. 13 um bulk technology • 32 KB Level 1 Caches • 256 KB L 2 Cache e 500 core 32 K I-Cache 32 K D-Cache 256 K L 2 Features Up to 333 MHz 64 b DDR SDRAM 2 x 10/1000 Ethernet Controllers 2 x 32 bit / single 64 b PCI DUART, I 2 C Integrated QUICC Security Local Bus CPM (as in MPC 8272) Perf Mon DUART 2 x I 2 C Timers • 3 SCCs, USB, 2 SMCs, SPI, I 2 C • Two FCCs supporting ATM (up to 55 Mbps) or 2 x E 1/T 1 interfaces CPM Gigabit Ethernet MPC 8555 E Samples: NOW Production: 1 Q 05 Slide 56 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 A • 2 x 8 bit Utopia Level-2 interface • 2 TDMs supporting up to 64 HDLC channels for Open. PIC b 32 I PC 10/100 Ethernet 64 b DDR/ SDRAM Controller Coherency Module DM • • • 32 b/64 b PCI QUICC Security

MPC 8541 E e 500 core (up to 833 MHz) • 0. 13 um bulk technology • 32 KB Level 1 Caches • 256 KB L 2 Cache Features • Up to 333 MHz 64 b DDR SDRAM • 2 x 10/1000 Ethernet Controllers 2 x 10/100 Ethernet Controllers, SPI, and I 2 C using CPM 2 x 32 bit / single 64 b PCI DUART, I 2 C Integrated QUICC Security Samples: Now Production: 1 Q 05 Perf Mon DUART 2 x I 2 C Timers Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 64 b DDR/ SDRAM Controller Coherency Module Open. PIC CPM Lite Gigabit Ethernet MPC 8541 E Slide 57 256 K L 2 (Ethernet SPI, I 2 C only) A Local Bus 32 K D-Cache b 32 I PC • • • 32 K I-Cache DM • e 500 core 32 b/64 b PCI QUICC Security

MPC 8555 and MPC 8541 Security Core Block Diagram On-Chip System Interface cryptochannel Control PKEU cryptochannel FIFO DEU AESU MDEU AFEU RNG FIFO Easy Software Migration Path from Existing Freescale Security Device Drivers Slide 58 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 FIFO

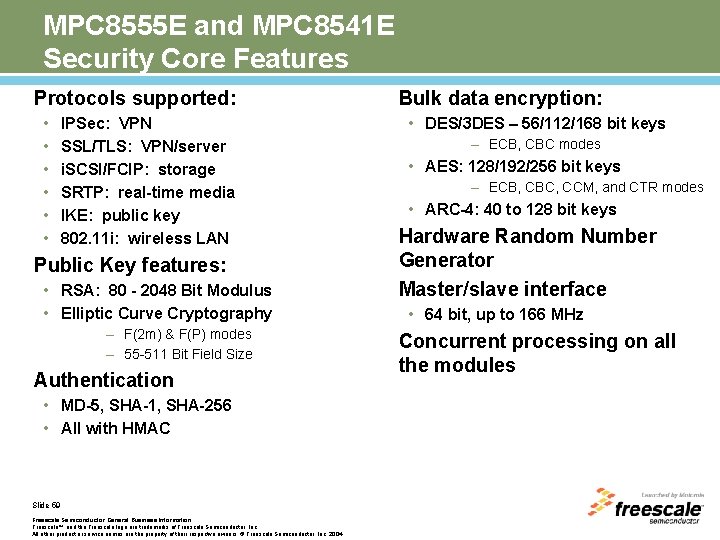

MPC 8555 E and MPC 8541 E Security Core Features Protocols supported: • • • IPSec: VPN SSL/TLS: VPN/server i. SCSI/FCIP: storage SRTP: real-time media IKE: public key 802. 11 i: wireless LAN Public Key features: • RSA: 80 - 2048 Bit Modulus • Elliptic Curve Cryptography – F(2 m) & F(P) modes – 55 -511 Bit Field Size Authentication • MD-5, SHA-1, SHA-256 • All with HMAC Slide 59 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Bulk data encryption: • DES/3 DES – 56/112/168 bit keys – ECB, CBC modes • AES: 128/192/256 bit keys – ECB, CBC, CCM, and CTR modes • ARC-4: 40 to 128 bit keys Hardware Random Number Generator Master/slave interface • 64 bit, up to 166 MHz Concurrent processing on all the modules

Power. QUICC III Product Status • MPC 8560 and MPC 8540 ØMPC Qualification ØProduction ØReference Boards Ø 1 GHz Samples NOW NOW • MPC 8541 E and MPC 8555 E ØGeneral Sampling NOW ØMPC Qualification NOW ØProduction Ramping NOW ØReference Boards NOW Ø 1 GHz Samples NOW • Freescale’s ongoing commitment: higher levels of integration & performance – see our 90 nm Roadmap Slide 60 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC III Processor Power measurements shown are with VDD = 1. 2 V, TA= 70 ° C / TJ= 105 ° C Slide 61 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

PQIII Family Feature Matrix Slide 62 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

PQIII Next Generation 90 nm Products Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC III 90 nm Platform Enhanced e 500 core 32 KB I-Cache Local Bus Open. PIC QUICC Security 512 KB L 2 32 KB D-Cache 64 b DDR/ DDR 2 SDRAM Controller Coherency Module M D Slide 64 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 I/ PC -X b CI 32 b P 64 Gigabit Ethernet 32 b PCI S PC RIO I- / Ex pr es s A Perf Mon DUART 2 x I 2 C Timers

Power. QUICC III Platform Extensions Optimized to Satisfy Evolving Customer System Requirements • High-performance e 500 Power. PC core complex scaling from 800 MHz up to 1. 5 GHz, initial offerings up to 1. 33 GHz • Enhancements include: • 36 bit physical addressing • Double precision floating point support • - 512 KB L 2 Cache • - Configurable as Cache or SRAM with 64 KB block granularity • - I/O transaction can be stashed into L 2 cache regions • Superior levels of memory bandwidth • Double the internal bandwidth with buses running at up to 667 MHz clock rate • Legacy support for DDR 1 and next-generation memory interfaces DDR 2/FCRAM 1/FCRAM 2 up to 333 MHz clock rate/667 MHz data rate w/ECC • Freescale’s 90 nanometer (nm) silicon-on-insulator (SOI) copper interconnect process technology Slide 65 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Power. QUICC III Platform Extensions Optimized to Satisfy Evolving Customer System Requirements • Functional enhancements • Four on-chip three-speed Ethernet controllers (Enhanced TSEC) supporting 10 - and 100 Mbps, and 1 -Gbps Ethernet/802. 3 networks with MII, RMII, GMII, RTBI, and TBI physical interfaces. • IP header checksum and TCP/UDP payload check sum acceleration • Advanced Qo. S features • 8/16 b FIFO-mode • Integrated QUICC Security with support for DES, 3 DES, MD-5, SHA-1/SHA-2, AES, RSA, RNG • Kasumi encryption algorithm, used in 3 G wireless security • XOR acceleration used in storage applications for error correction • High-speed Interfaces while maintaining legacy interface support • x 4/x 1 Serial Rapid. IO • x 8/x 4/x 2/x 1 PCI-Express • 2 x 32 b-PCI or 1 x 64 b-PCI(X) Slide 66 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

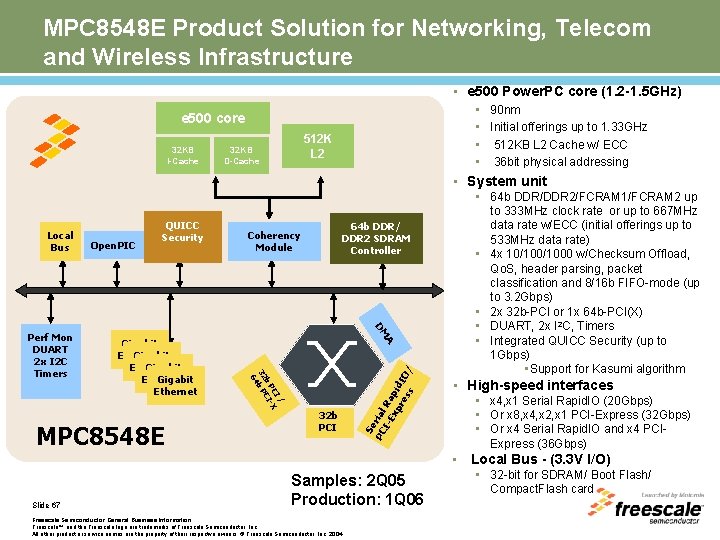

MPC 8548 E Product Solution for Networking, Telecom and Wireless Infrastructure • e 500 Power. PC core (1. 2 -1. 5 GHz) • 90 nm • Initial offerings up to 1. 33 GHz • 512 KB L 2 Cache w/ ECC • 36 bit physical addressing e 500 core 32 KB I-Cache 512 K L 2 32 KB D-Cache • System unit MPC 8548 E A DM Gigabit Ethernet 64 b DDR/ DDR 2 SDRAM Controller Coherency Module I/ PC -X b CI 32 b P 64 Perf Mon DUART 2 x I 2 C Timers Open. PIC QUICC Security 32 b PCI Se PC rial I-E Ra xp pid re IO ss / Local Bus • 64 b DDR/DDR 2/FCRAM 1/FCRAM 2 up to 333 MHz clock rate or up to 667 MHz data rate w/ECC (initial offerings up to 533 MHz data rate) • 4 x 10/1000 w/Checksum Offload, Qo. S, header parsing, packet classification and 8/16 b FIFO-mode (up to 3. 2 Gbps) • 2 x 32 b-PCI or 1 x 64 b-PCI(X) • DUART, 2 x I 2 C, Timers • Integrated QUICC Security (up to 1 Gbps) • Support for Kasumi algorithm • High-speed interfaces • x 4, x 1 Serial Rapid. IO (20 Gbps) • Or x 8, x 4, x 2, x 1 PCI-Express (32 Gbps) • Or x 4 Serial Rapid. IO and x 4 PCIExpress (36 Gbps) • Slide 67 Samples: 2 Q 05 Production: 1 Q 06 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Local Bus - (3. 3 V I/O) • 32 -bit for SDRAM/ Boot Flash/ Compact. Flash card

Hardware Acceleration to Layer 4 Gig-E Controller 1 DMA Gig-E Controller 2 DMA Quality of 3 Gig-E Controller Service 64 b DMA FIFO Service TCP/IP 64 b of DMATx Quality Rx Offload Service FIFOTx TCP/IP Quality of FIFO Offload Rx Service 10 k. BTx TCP/IP 2 k. B FIFO 10/100/1 G FIFO Offload TCP/IP 2 k. B MAC 10 k. B 10/100/1 G Offload MAC 16 b FIFO 10/100/1000 Interface MAC Quality of Tx Gig-E Controller 4 Slide 68 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Optimizes CPU performance on TCP/IP • TCP/IP checksum offload Rx + Tx • IPv 6 support in hardware Qo. S support for 16 hardware queues (8 Rx + 8 Tx) • Customizable per-packet filing/filtering • 802. 1 p, IP TOS, Diffserv classification • Support for weighted fair queuing • TCP/UDP port-based flows • Assist firewall through IP/TCP/UDP reject • Ethernet preamble sorting and insertion FIFO I/F to ASICs + (R)GMII/(R)TBI • 8/16 -bits @ OC-48 rates (200 MHz) Layer 2 features • VLAN insertion and deletion per frame • 16 exact-match MAC addresses Code compatible with Power. QUICC III™

PQIII Ethernet Based Products Slide 69 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 8548 E QUICC Security Expanded and Improved Protocol Support Kasumi Execution Unit (KEU) Supports the following algorithms: In Snoop Internal Bus Interface FIFO FIFO Crypto Channel Crypto Control Public DES Key 3 DES Crypto FIFO SHA-2 ARC 4 RNG FIFO Channel Crypto Channel ARC 4 KEU MD 5 FIFO • A 5/3 for GSM and EDGE • GEA-3 for GPRS SHA-1 AES Channel (master/ slave) • F 8 , F 9 as required for 3 GPP Out Snoop FIFO Processing latency for 64 B packet estimated to be 3. 3 x 10 -7. Raw performance 1. 5 Gbps. Improved SSL support Single pass SSL processing 2 x Increase in Raw Performance! Support for SSL 3. 0 MAC (Message Authentication Code) Note: Freescale’s inclusion of Kasumi acceleration does not provide pass through licensing to wireless infrastructure manufacturers. The user of Kasumi functionality must obtain a license from Mitsubishi prior to implementing these algorithms. Slide 70 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Next-Generation Gigabit Access Controller Optimizes CPU performance on TCP/IP • TCP/IP checksum offload Rx + Tx • IPV 4 / IPv 6 support in H/W Qo. S support for 16 H/W queues (8 Rx + 8 Tx) • Customizable per-packet filtering/filing to 64 logical receive queues 802. 1 p, IP TOS, Diffserv classification Support for weighted fair queueing TCP/UDP port-based flows Assist firewall through IP/TCP/UDP reject Ethernet preamble sorting and insertion • • • FIFO I/F to ASICs + (R)GMII/(R)TBI • 8/16 -bits @ OC-48 rates and above Layer 2 features • VLAN insertion and deletion per frame • 16 exact-match MAC addresses Code compatible with PQ-III Gigabit Ethernet controllers Slide 71 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Gig-E Controller 1 DMA Gig-E Controller 2 DMA Quality of 3 Gig-E Controller Service 64 b DMA FIFO Service TCP/IP 64 b DMA Quality of Tx Offload. Service FIFOTx TCP/IP Quality of FIFO Offload Rx Service 10 k. BTx TCP/IP FIFO 10/100/1 G FIFO Offload TCP/IP MAC 2 k. B 10/100/1 G Offload MAC 10/1000 MAC 16 b FIFO 10/1000 Interface MAC Quality of 4 Tx Gig-E Controller

The Rapid. IO Fit Interconnect Use Characteristics Ethernet LAN/WAN (billions of end-points) Rapid. IO Fabric (50 K+ end-points) ASI Switched Interconnect PCI Express Serial Local Bus (10+ end-points) Parallel Local Bus PCI-X Slide 72 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 IPv 4/IPv 6, 48 -bit MAC address Hundreds of classes, millions of flows, end-to-end flow control, interworking Message passing, architectural/ topological independence, one flow, protocol tunneling Serialized Input/Output Transactions/DMA Parallel Input/Output Transactions/DMA

MPC 86 XX e 600 Single/Dual Core Update February 10, 2005 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

e 600 Power. PC® Core Block Diagram Sequencer Unit 32 KB Instruction Cache Instruction Fetch Branch Unit Completion Unit Dispatch Unit Alti. Vec™ Issue GPR Issue BHT / BTIC FPR Issue GPRs CFX SFX 0 SFX 1 SFX 2 Rename Buffers FPRs LSU Rename Buffers PERMUTE SIMPLE COMPLEX FLOAT Rename Buffers FPU • 32 KB Data Cache VRs Unified L 2 Cache 1 MB Alti. Vec™ Engine Slide 74 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 32 -bit Power. PC® processor architecture • Millions sold • All software-compatible Improvements • L 2 cache increase to 1 MB • L 2 with ECC • Alti. Vec™ out-of-order Bus Interface Unit transactions Addition of a second cacheable store miss SMP support • MESI cache coherence • Intervention

MPC 7447 A Higher Performance – Highest EEMBC benchmarks to date • 1420 MHz to the embedded specification and • • reliability requirements 1167 MHz at 1. 1 core voltage at 9. 3 watts 600 MHz at 1. 1 core voltage at 5. 2 watts Lower Power – Enhanced thermal power management • Ability to de-rate core voltage from 1. 3 to 1. 0 volt. • Dynamic Frequency Switching enables software • control of frequency – 40 -45% power savings Temperature Sensor Diode allows the monitoring of junction temperature for management of system power Cost-effective – A true “drop-in” high performance processor Slide 75 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 7448 Compatibility • Software compatible with 7447 A • Pin-to-pin compatible with 7447 A § Apps note AN 2656 describes how to handle differences in power supplies and bus multipliers New Features • L 2 increased to 1 MB • L 2 optionally protected by ECC with SECDED • MPX bus up to 200 MHz • Out-of-order Altivec instructions supported • Increased flexibility for dynamic frequency shifting Performance, Power • Specification N Spec L Spec • Frequency (GHz) 1. 4 - 1. 5 1. 7 - 1. 8 • Voltage 1. 0 1. 1 • Power (W, typ) <10 15 Technology • 90 nm 9 LM-Cu CMOS-SOI • Package: 360 Hi. CTE BGA Schedule • Alpha: Dec 04 • Engineering samples: Q 1 -05 • Production: Aug 05 Slide 76 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 7447 A Processor Benchmarks ® IPmark™ 245. 1 819. 8 TCPmark™ Netmark™ Telemark™ 135 (with Alti. Vec) 46. 7 500. 6 (with Alti. Vec) 41. 4 • IPmark and TCPmark reflect new Networking Version 2. 0 scores • Alti. Vec optimized benchmarks show up to 12 time faster processing • Telemark score with Alti. Vec outperforms TI C 64 -720 DSP with optimized C Slide 77 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Comparing Telecom Optimizations Details Slideat 78 www. eembc. org Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Vectorized Standard C Libraries One of many useful features of Alti. Vec is 128 bit wide bus between Register and L 1 Cache • 4 x more that for Scalar Unit…. …which means that if used properly it can offer greater I/O capabilities for some standard C library functions like…. • memcpy • bcopy • memset (bzero) • memmove • strlen, strcmp, strcpy …which are normally just linked in at the final stage of compilation • ld dhry 21 a. o dhry 21 b. o –l c: /sw/libmoto. Vec. a -l c: /gcc/lib/gcc-lib/powerpceabisim/2. 95. 2/libgcc. a -o vec_dhry 21. elf Slide 79 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

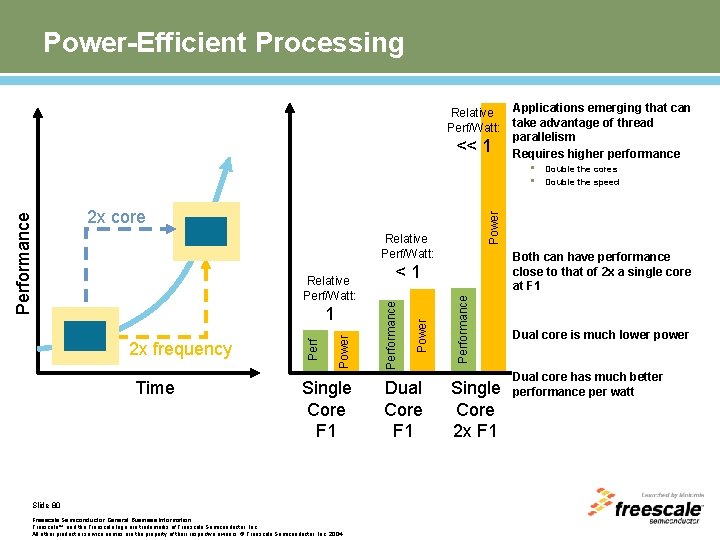

Power-Efficient Processing Relative Perf/Watt: << 1 Applications emerging that can take advantage of thread parallelism Requires higher performance Relative Perf/Watt: Time Single Core F 1 Slide 80 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Dual Core F 1 Performance Power 2 x frequency Power 1 Both can have performance close to that of 2 x a single core at F 1 <1 Performance Relative Perf/Watt: Double the cores Double the speed Power 2 x core Performance • • Single Core 2 x F 1 Dual core is much lower power Dual core has much better performance per watt

High Performance with Integrated Connectivity Within Embedded Power Budgets Problem: Clock frequency doesn’t solve the problem within power budget From this… 744 x to this… MPC 8641 D Pe rf orm System Controller anc e on ti a r g e Int Power. QUICC™ Solution: Combine • Dual e 600 Power. PC® cores § § Dual-processor performance Altivec™ extensions Fast L 2 caches Symmetric multiprocessing • Power. QUICC™ integration § High internal bus speed § Low chip counts § Low memory latency … in a single device Slide 81 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

MPC 8641 D – Dual-Core Power. PC® Processor MPC 8641 D e 600 core 32 KB D-Cache 32 KB I-Cache 1 MB L 2 (ECC) • Dual e 600 Power. PC® cores e 600 core 32 KB D-Cache 32 KB I-Cache MSS §>1. 5 GHz 1 MB L 2 (ECC) • Dual DDR 2 memory MSS MPX Bus MPX Coherency Module MPIC 64 b DDR/ DDR 2 SDRAM Controller Queue Local Bus 64 b DDR/ DDR 2 SDRAM Controller • • • controllers 4 x Gb. E controllers Rapid. IO fabric: 1 x/4 x SRIO Local I/O interfaces §Dual x 1/x 2/x 4/x 8 PCI Express • Multiprocessor interrupt DMA Perf Mon Trace Buffer DUART 2 x I 2 C Timers 16 b FIFO 8 b FIFO Gigabit Ethernet SRIO 1 x/4 x OR PCI Exp x 1/2/4/8 Slide 82 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 PCI Exp x 1/2/4/8 • • controller Local Bus Power (typical): 15– 25 W 10 -yr reliability at 105°C Tj 90 nm fabrication process

MPC 8641 – Single-Core Power. PC® Processor MPC 8641 • Pin-to-pin compatible with 32 KB D-Cache • 1 MB L 2 (ECC) e 600 core 32 KB I-Cache MPX Bus 64 b DDR/ DDR 2 SDRAM Controller Queue MPX Coherency Module MPIC §>1. 5 GHz • Dual DDR 2 memory MSS Local Bus MPC 8641 D Single e 600 Power. PC® core 64 b DDR/ DDR 2 SDRAM Controller • • • controllers Ethernet controllers Rapid. IO fabric: 1 x/4 x SRIO Local I/O interfaces §Dual x 1/x 2/x 4/x 8 PCI Express • Multiprocessor interrupt DMA Perf Mon Trace Buffer DUART 2 x I 2 C Timers 16 b FIFO 8 b FIFO Gigabit Ethernet SRIO 1 x/4 x OR PCI Exp x 1/2/4/8 Slide 83 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 PCI Exp x 1/2/4/8 • • controller Local Bus Power (typical): 10– 15 W 10 -yr reliability at 105°C Tj 90 nm fabrication process

Memory Controllers Dual memory controllers • At least 333 MHz clock rate, 667 MHz • • • data rate 64 bits (72 bits with ECC) 4 banks Support for up to 4 Gb devices, x 8, x 16, x 32 configurations Up to 4 GB DIMMs per bank Up to 16 GB per controller Low-latency read path Power conservation modes • • Flexible address mapping • Each controller owns a block of • memory Page- or cache-line interleaving Slide 84 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 MCM Memory Controller MPC 8641 D

Rapid. IO for Fabric Connectivity In-the-box interconnect • Chip-to-chip, board-to-board, backplane § Greater efficiency than box-to-box protocols RIO Switch • Physical layer defined for backplane interconnection PCIe ASIC § ~80– 100 cm + 2 connectors (serial) • Both memory-mapped and packet-based transactions Extensible • Layered architecture Point-to-point packetized architecture • Low overhead • Variable packet size • Maximum 256 byte PDU • SAR support for 4 K-byte messages • Hardware error recovery Implementation • 1 x or 4 x serial, to 3. 125 Gbaud, 2. 5 Gb/s per lane • Rapid. IO Interconnect Specification version 1. 2 • Read/write bridged between PCI Express port Slide 85 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 ATCA 3. 5

PCI Express for Local Connectivity • PCI Express 1. 0 a compatible • Supports x 1, x 2, x 4 and x 8 link widths @ 2. 5 Gbaud, 2. 0 Gb/s § Auto-detects number of connected lanes e 600 Root Complex/ Endpoint • Selectable as root complex • • or endpoint at initialization Root complex inbound support for MSI and INTx Endpoint support for outbound MSI Reads/writes carried across ports 256 byte maximum payload size Slide 86 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Peripheral Endpoint Bridge Peripheral Endpoint

Multiprocessing Configurations and data Asymmetric Multiprocessing • Heterogeneous OS support • Two separate OS or two copies of • • • one non-SMP OS Collapse two processors into one Task offload or division of labor Operating systems, data reside in different address spaces Slide 87 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 Core 0 Private data Core 1 OS, shared user data Core 0 OS, Private data shared user data Symmetric Multiprocessing • Homogenous OS support • High-performance option • Software transparency • Cores share address space for OS Memory Map Overlap Private data Core 1 OS, Private data

MPC 8641 and MPC 8641 D Statistics Processor MPC 8641 D Single e 600 Power. PC® Classic, > 1. 5 GHz, 2. 3 MIPS/MHz Dual e 600 Power. PC® Classic, > 1. 5 GHz, 2. 3 MIPS/MHz L 1: 32 k. B I/D L 2: 1 MB with ECC Caches (per processor) Memory Controller Fabric Interface Local I/O Interface Power and supplies Dual 64 b DDR 2, 667 MHz with ECC Serial Rapid. IO, 1 x/4 x at up to 2. 5 Gb/s per lane Dual PCI Express, x 1/x 2/x 4/x 8, 2. 0 Gb/s per lane 10– 15 W, 1. 0 V and 1. 1 V 10 years at 105 C Reliability Technology 15– 25 W, 1. 0 V and 1. 1 V 90 nm silicon-on-insulator (SOI) process Package 960 -pin Hi. TCE ceramic, 33 x 33 mm Availability Samples 2 H-05, production 1 H-06 Slide 88 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Summary Freescale has leveraged its expertise in building highperformance Power. PC® processors and highly integrated communications processors to design the MPC 8641 D Dual-Core Processor The MPC 8641 D delivers: • A power/performance point targeted at embedded requirements • A level of integration yielding multiple benefits: § § Chip count reduction High memory bandwidth Low memory latency Flexible I/O options • An excellent solution for networking, telecom, storage, industrial/military, printing, and embedded computing applications Slide 89 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Slide 90 Freescale Semiconductor General Business Information Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004
