マルチエージェントシミュレーションの実例 - 避難シミュレーション(1) Free. Walk/Qを用いた避難の統制実験の再現 ユーザ アバター 操作 (State 1 ((? posture : name Follower : state Standing) シナリオ (!speak : to Follower : sentence "Follow me") (go State 2))) (State 2 ((? position : name Follower : distance Far) (!turn : to Follower) (go State 2)) ((? position : name Follower : distance Near) シナリオ記述言語Q (!walk : to Exit) (go State 2)) 多数のエージェントのシナリオを ((? position : name Follower : at Exit) (go State 3))) 並行して解釈実行 エージェント 制御 解釈 仮想都市空間Free. Walk アバター(人が制御)とエージェント (シナリオ制御)が混在 Q言語処理系 Copyright(C) 2009 Field Informatics Research Group, Kyoto University. All rights reserved. 13/30
マルチエージェントシミュレーションの実例 - 避難シミュレーション(3) 誘導員シナリオの例 シナリオ記述言語Qにより状態遷移シナリオを記述 (State 1 ((? posture : name Follower : state Standing) (!speak : to Follower : sentence "Follow me") (go State 2))) (State 2 ((? position : name Follower : at Exit) (go State 3)) ((? position : name Follower : distance Far) (!turn : to Follower (go State 2)) ((? position : name Follower : distance Near) (!walk : to Exit) (go State 2))) 15/30 Copyright(C) 2009 Field Informatics Research Group, Kyoto University. All rights reserved.
マルチエージェントシミュレーションの実例 - 拡張型の参加型シミュレーション(3) - 20/30 Copyright(C) 2009 Field Informatics Research Group, Kyoto University. All rights reserved.

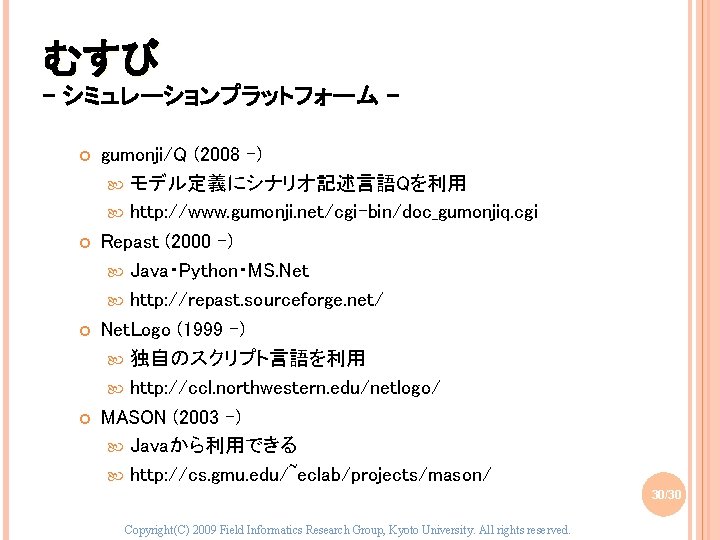

むすび - シミュレーションプラットフォーム gumonji/Q (2008 -) モデル定義にシナリオ記述言語Qを利用 http: //www. gumonji. net/cgi-bin/doc_gumonjiq. cgi Repast (2000 -) Java・Python・MS. Net http: //repast. sourceforge. net/ Net. Logo (1999 -) 独自のスクリプト言語を利用 http: //ccl. northwestern. edu/netlogo/ MASON (2003 -) Javaから利用できる http: //cs. gmu. edu/~eclab/projects/mason/ 30/30 Copyright(C) 2009 Field Informatics Research Group, Kyoto University. All rights reserved.
