Free air gravity anomalies derived from radar altimetric
- Slides: 18

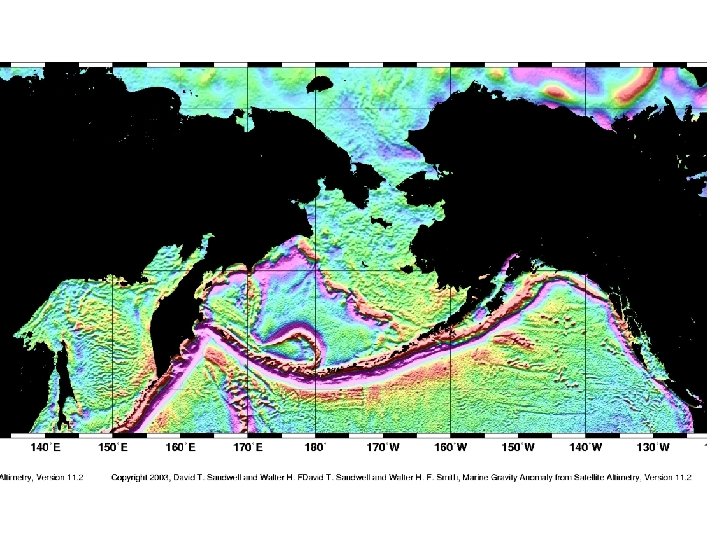

Free air gravity anomalies derived from radar altimetric determinations of geoid height milligals

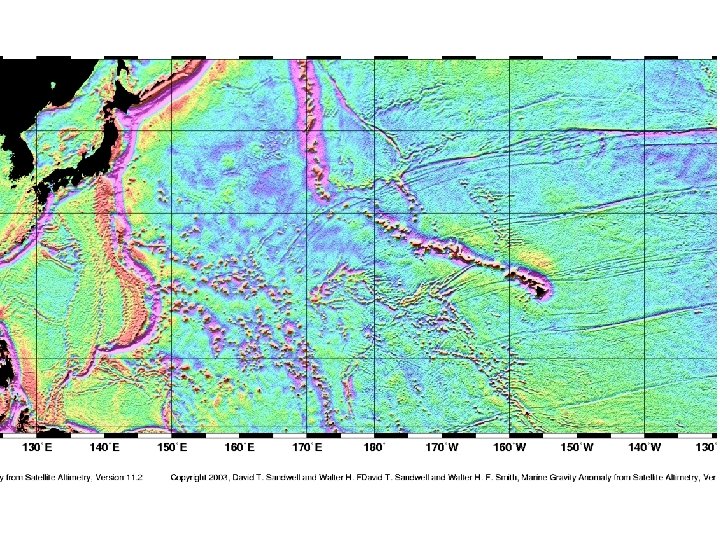

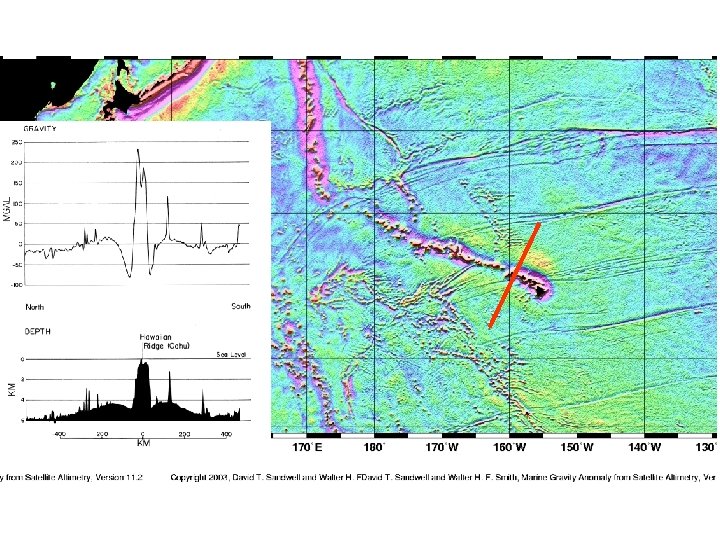

Bathymetry determined from satellite radar derived gravity plus shipboard measurements
Free Air gravity anomaly
Now consider an elastic plate which bends under the load
The flexural parameter, a where = flexural parameter
Deflection vrs x, for vertical line load on infinite plate and half plate -0. 4 p/2 0 3 p/4 0. 4 Infinite plate, vertical line load at x =0 0. 8 1. 2 Half plate, vertical line load on edge 1. 6 2. 0 0 1 2 3 Distance, x/a (a = flexural parameter 4 5
Bending of half plate F F

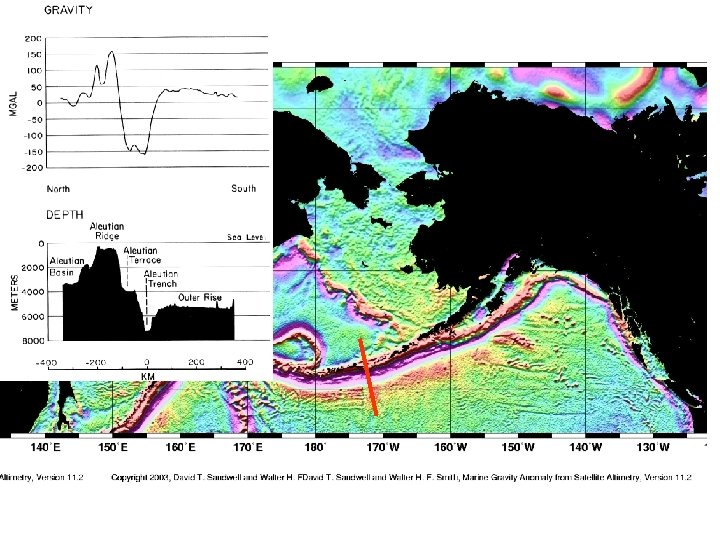

Outer (oceanic side) slope of trenches associated with subduction zones elastic plate model elastic-plastic model
Outer (oceanic side) slope of trenches associated with subduction zones plastic ela stic stress elastic plate model elastic-plastic model strain
Venus Gravity, Topography and Geoid High correlation between gravity and topography Anomaly amplitude similar to Earth Data from Magellan spacecraft, Images from Wieczorek, 2006
Mars Gravity & Topography Maps • Total amplitude of anomaly larger than on Earth Why? Free air gravity anomaly from Mars Global Surveyor (MGS) Mars topography from MOLA on MGS
Gravity anomalies from Martian features Elysium volcano • From Goddard Space Flight Center Gravity maps Isidis impact crater
Lunar Gravity & Topography Maps Gravity data from lunar nearside from Lunar Prospector (Sugano and Heki, 2004) Topography data from Clementine • Again total amplitude of free-air anomaly larger than on Earth Global map from Knopoliv et al. , 1998
s o Sl pe = lu u d o m elastic 50 plastic depth, km shear stress ig r of shear strain shear stress Temperature, 1300 degrees C 0 ity id yield stress 100 shear stress shear strain ty i os ef f fo pe o Sl = co sc vi viscous fluid 150 Viscous fluid shear strain rate 200
