Frames and Walls Lateral Stability

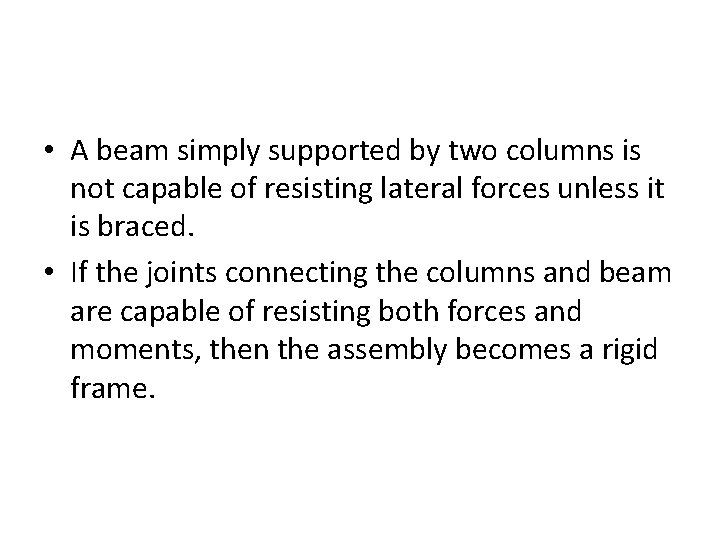

• A beam simply supported by two columns is not capable of resisting lateral forces unless it is braced. • If the joints connecting the columns and beam are capable of resisting both forces and moments, then the assembly becomes a rigid frame.

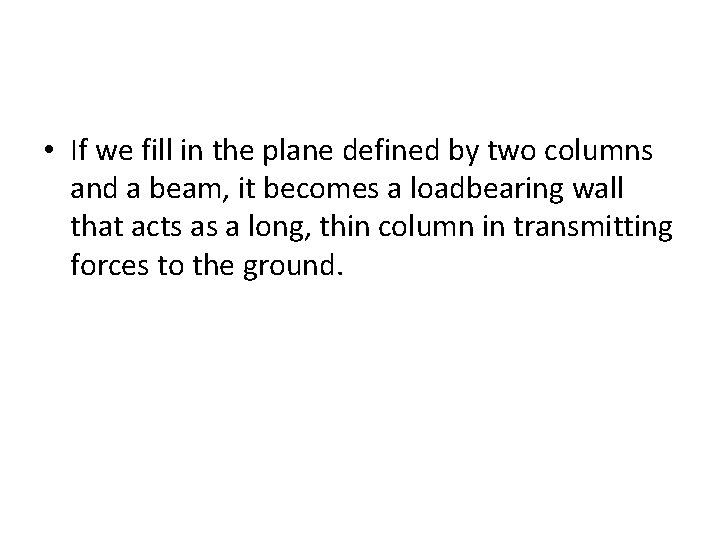

• If we fill in the plane defined by two columns and a beam, it becomes a loadbearing wall that acts as a long, thin column in transmitting forces to the ground.

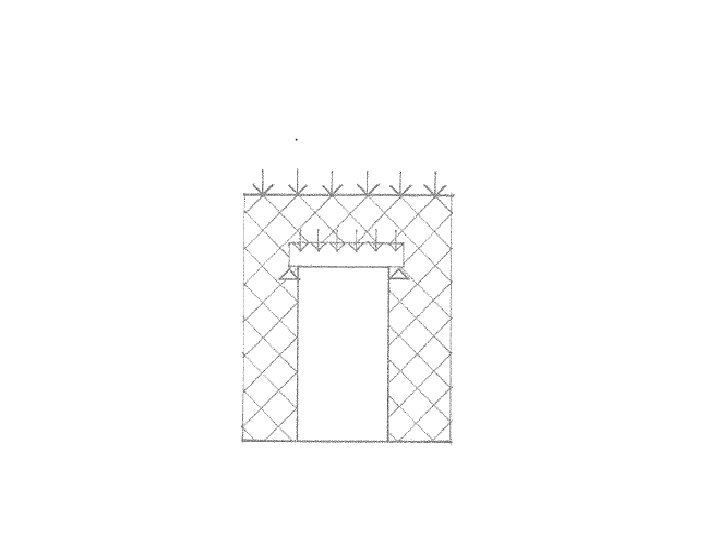

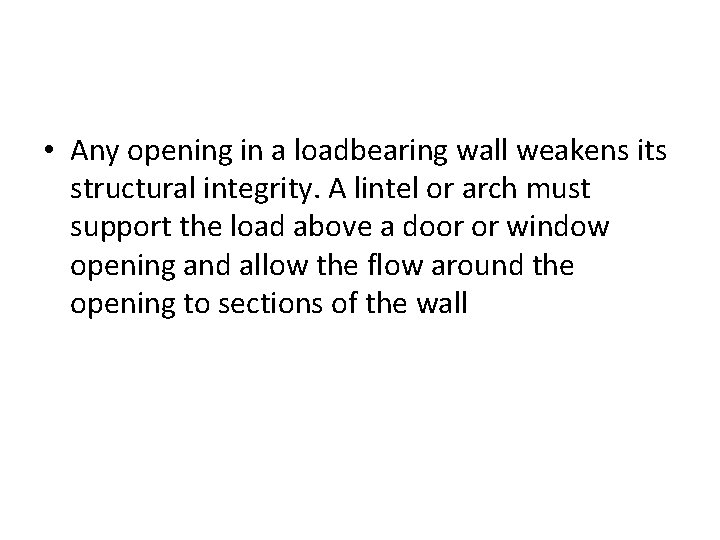

• Any opening in a loadbearing wall weakens its structural integrity. A lintel or arch must support the load above a door or window opening and allow the flow around the opening to sections of the wall

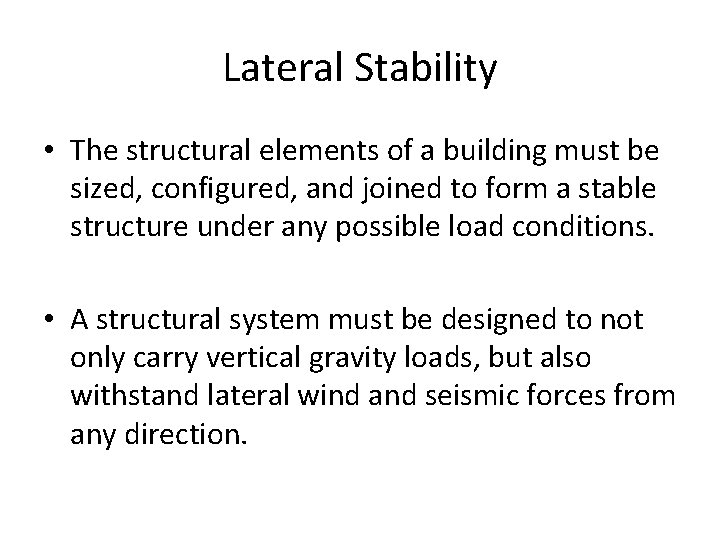

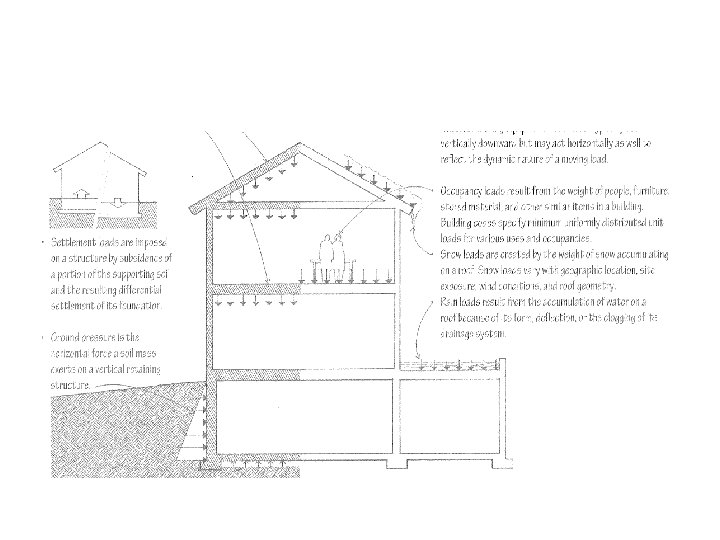

Lateral Stability • The structural elements of a building must be sized, configured, and joined to form a stable structure under any possible load conditions. • A structural system must be designed to not only carry vertical gravity loads, but also withstand lateral wind and seismic forces from any direction.

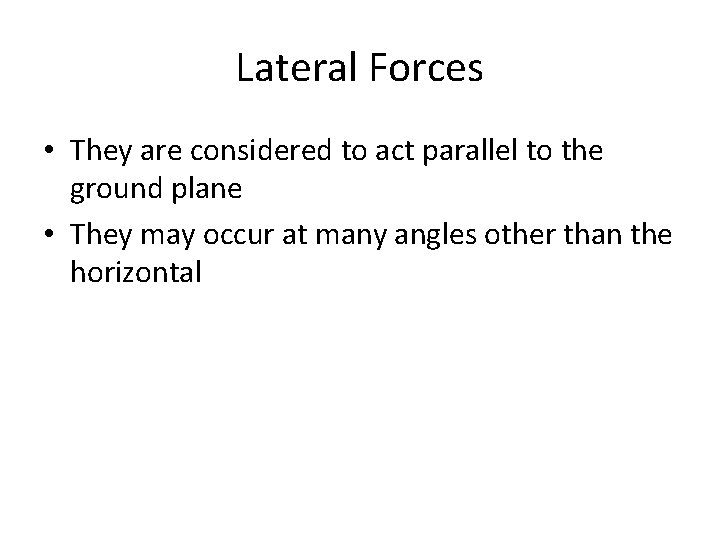

Lateral Forces • They are considered to act parallel to the ground plane • They may occur at many angles other than the horizontal

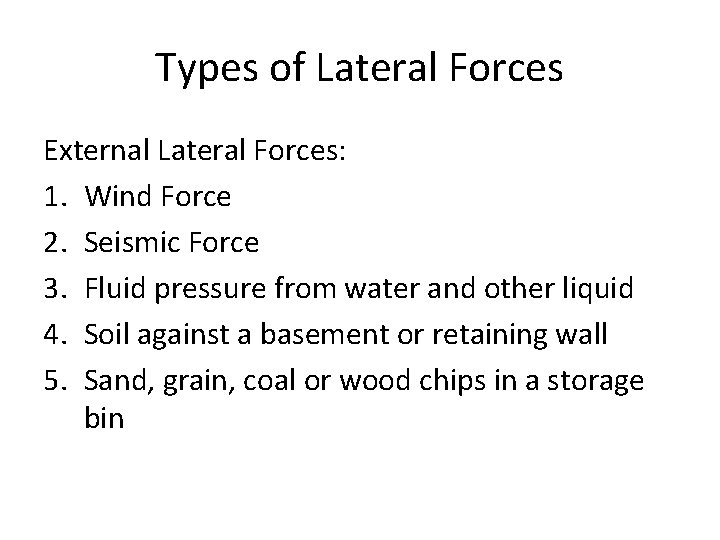

Types of Lateral Forces External Lateral Forces: 1. Wind Force 2. Seismic Force 3. Fluid pressure from water and other liquid 4. Soil against a basement or retaining wall 5. Sand, grain, coal or wood chips in a storage bin

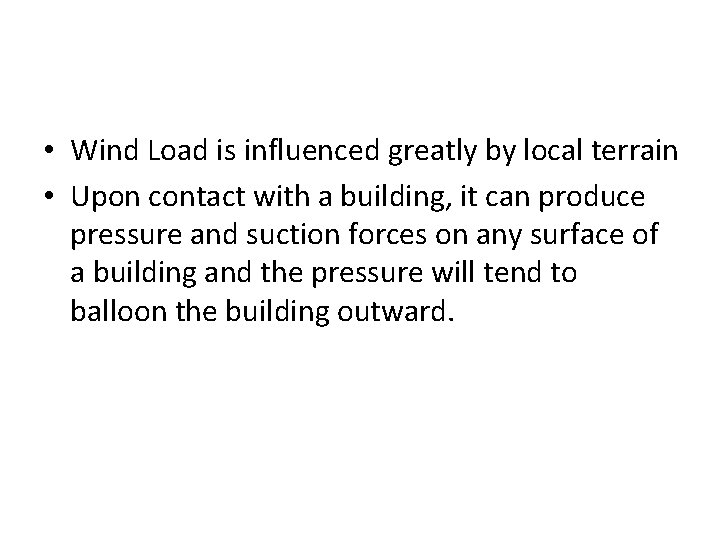

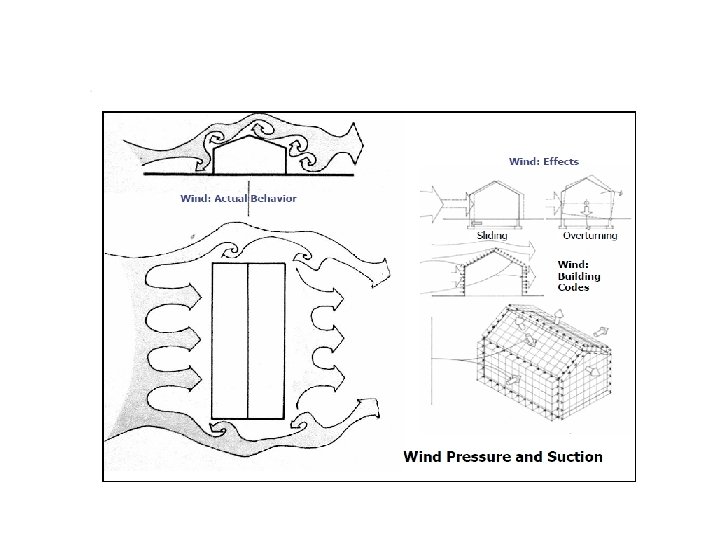

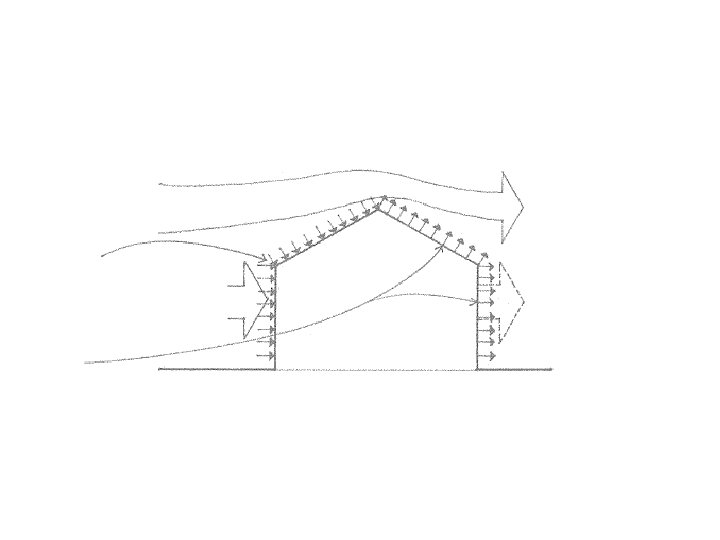

• Wind Load is influenced greatly by local terrain • Upon contact with a building, it can produce pressure and suction forces on any surface of a building and the pressure will tend to balloon the building outward.

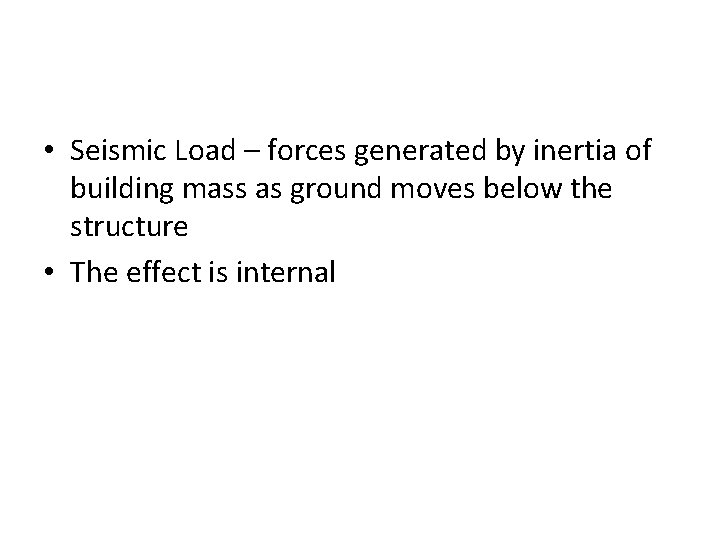

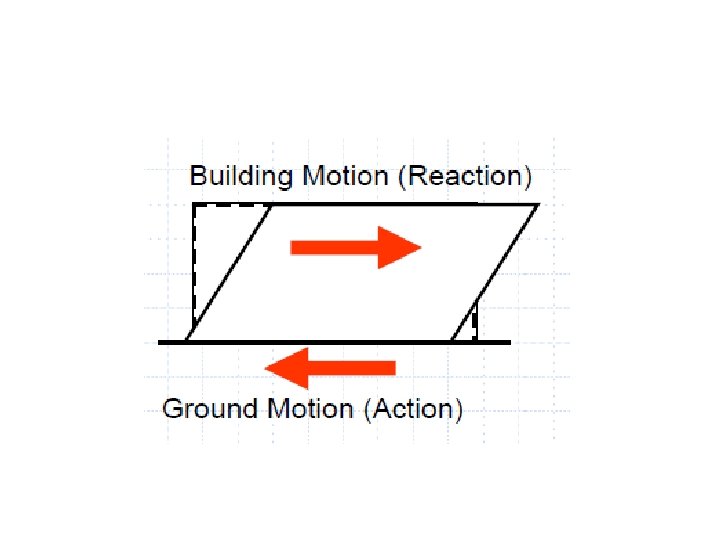

• Seismic Load – forces generated by inertia of building mass as ground moves below the structure • The effect is internal

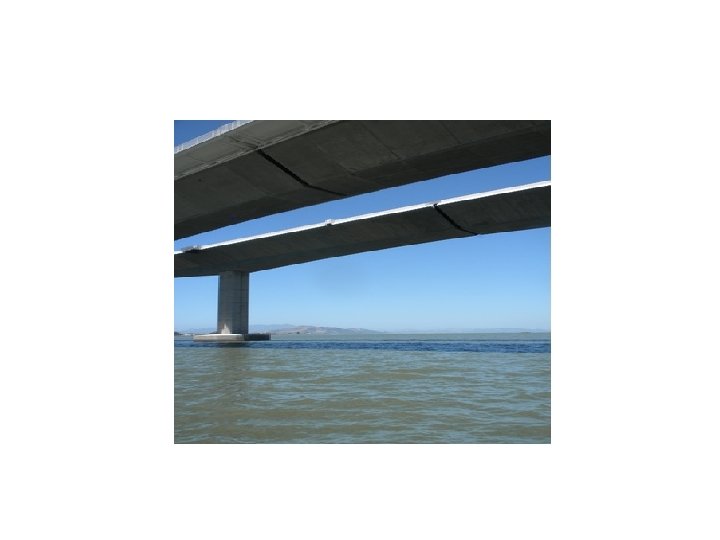

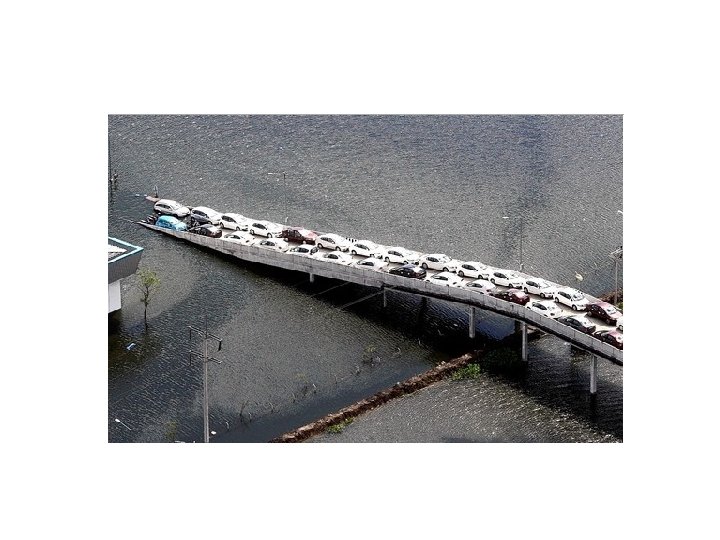

• Flood waters can produce devastating effect and can destroy foundations of bridges and buildings

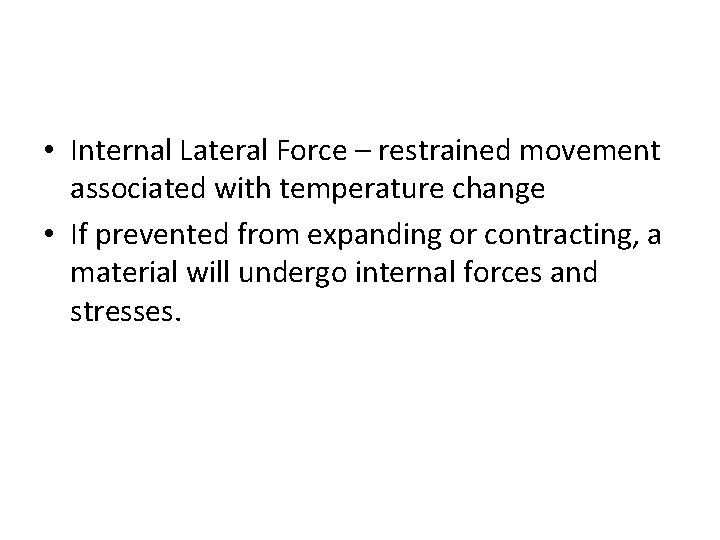

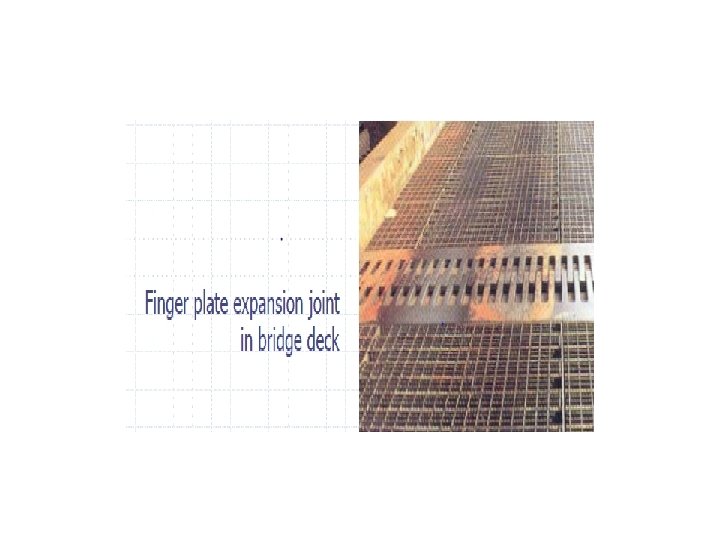

• Internal Lateral Force – restrained movement associated with temperature change • If prevented from expanding or contracting, a material will undergo internal forces and stresses.

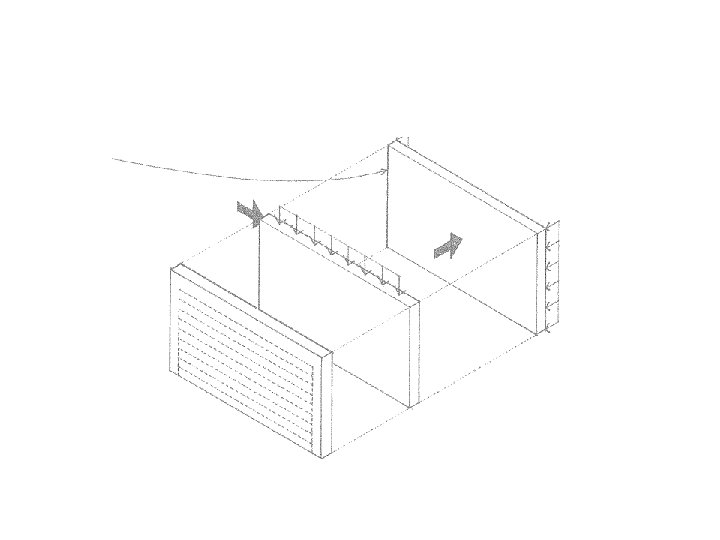

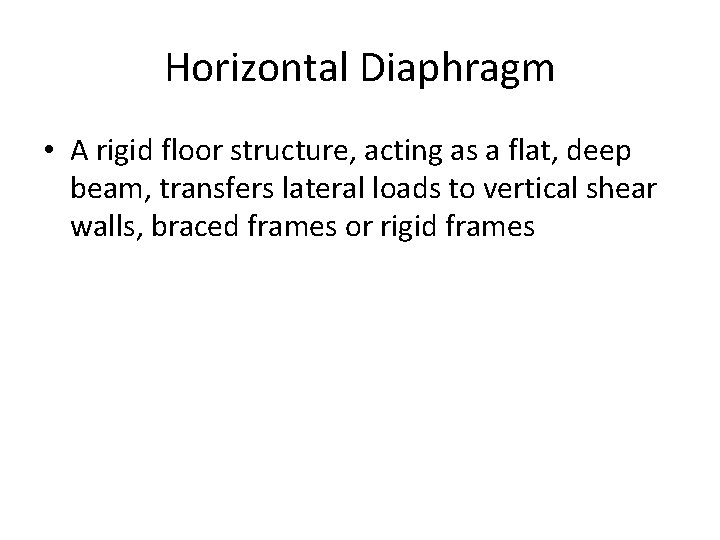

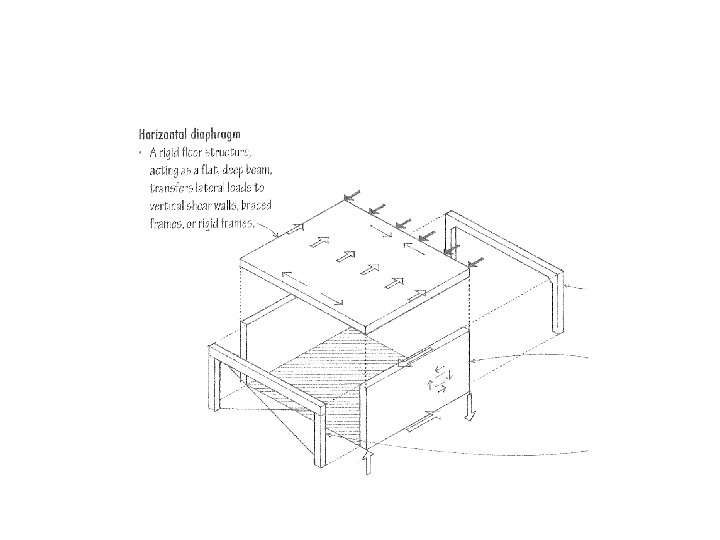

Horizontal Diaphragm • A rigid floor structure, acting as a flat, deep beam, transfers lateral loads to vertical shear walls, braced frames or rigid frames

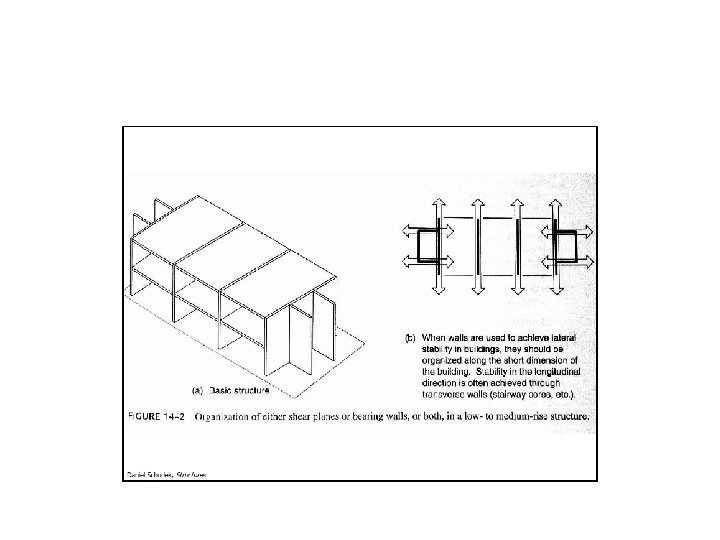

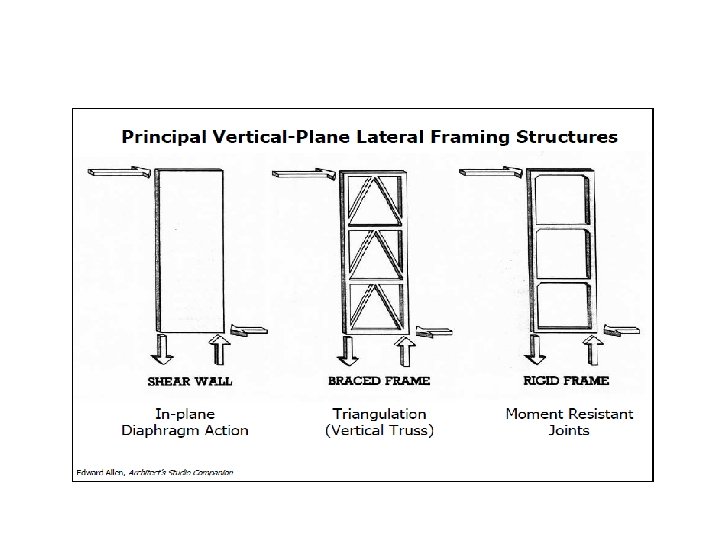

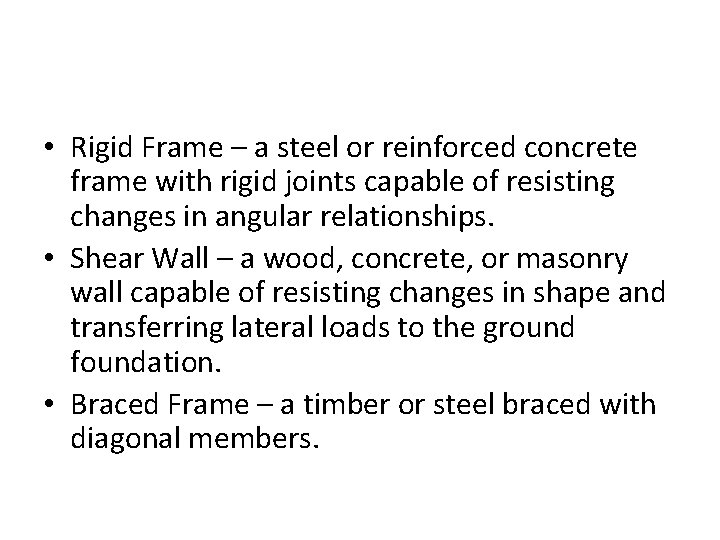

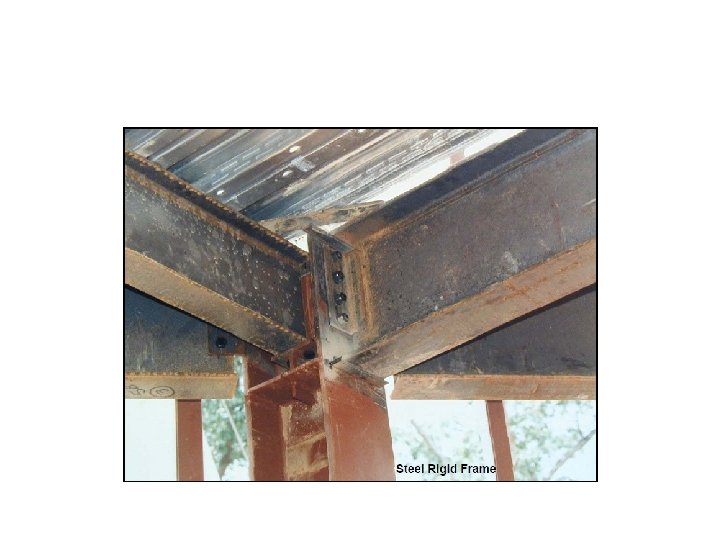

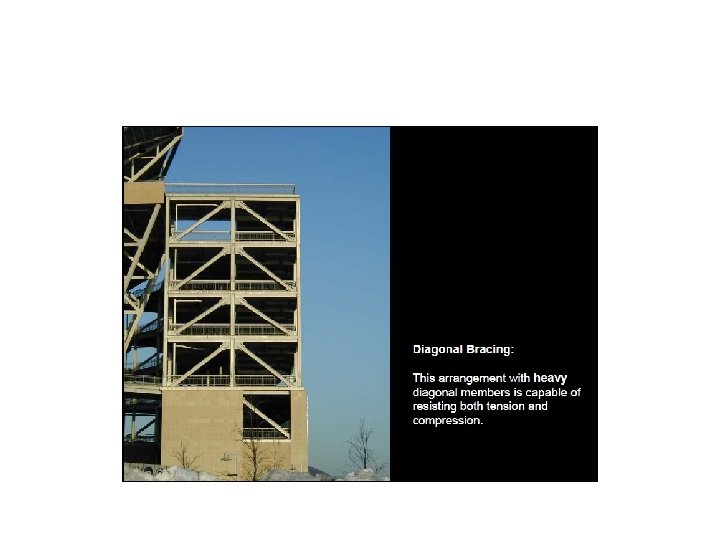

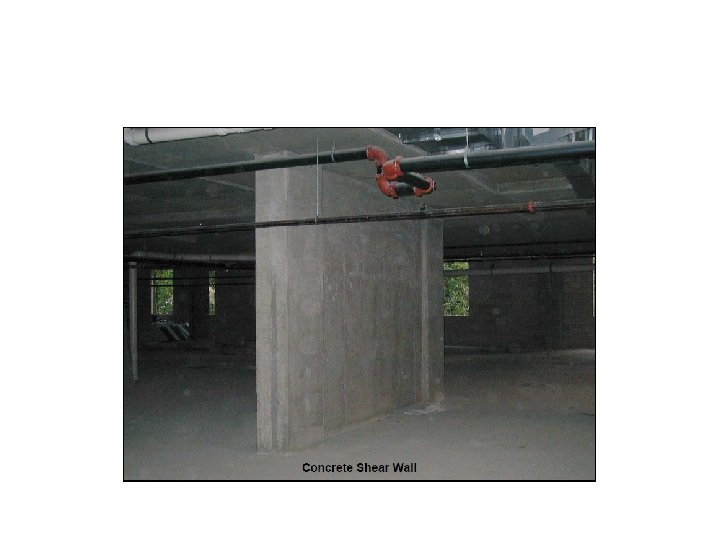

• Rigid Frame – a steel or reinforced concrete frame with rigid joints capable of resisting changes in angular relationships. • Shear Wall – a wood, concrete, or masonry wall capable of resisting changes in shape and transferring lateral loads to the ground foundation. • Braced Frame – a timber or steel braced with diagonal members.

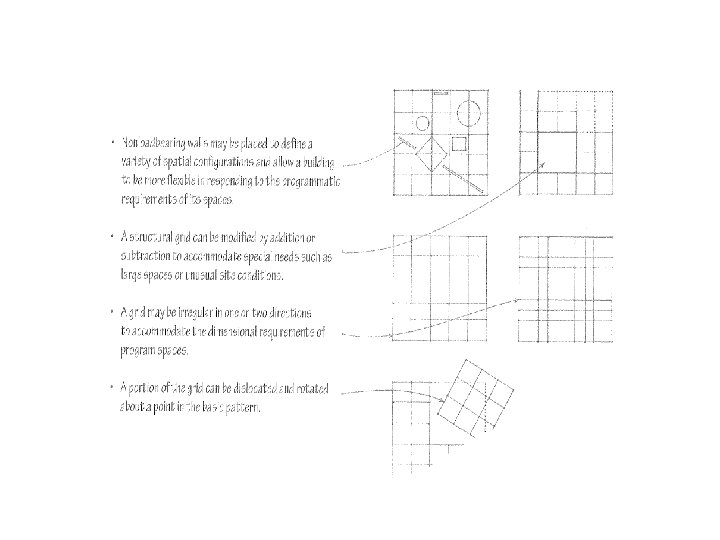

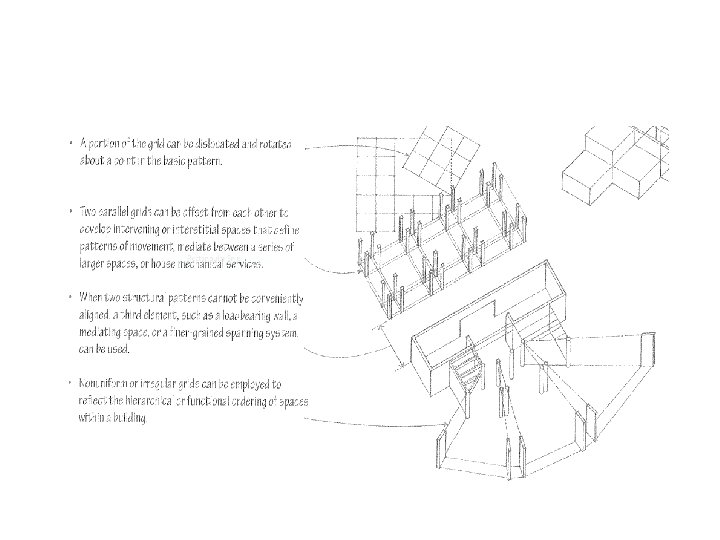

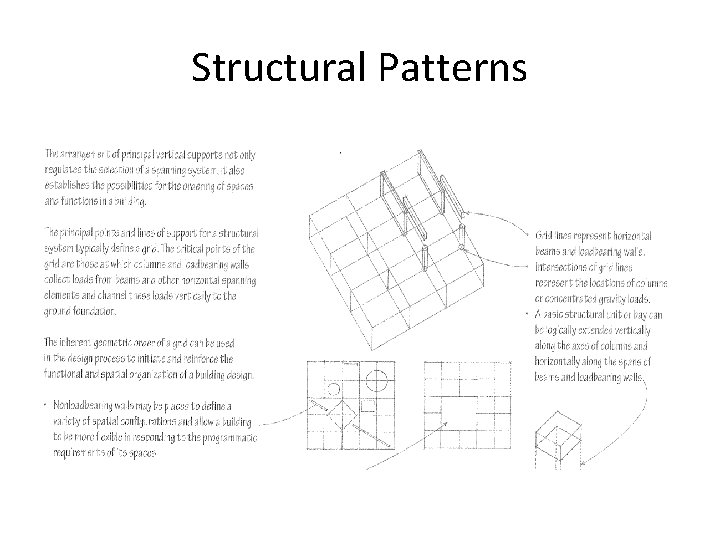

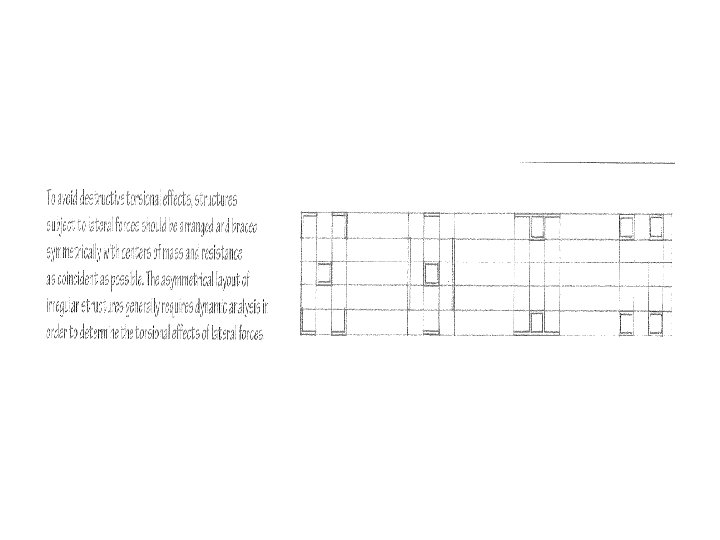

Structural Patterns

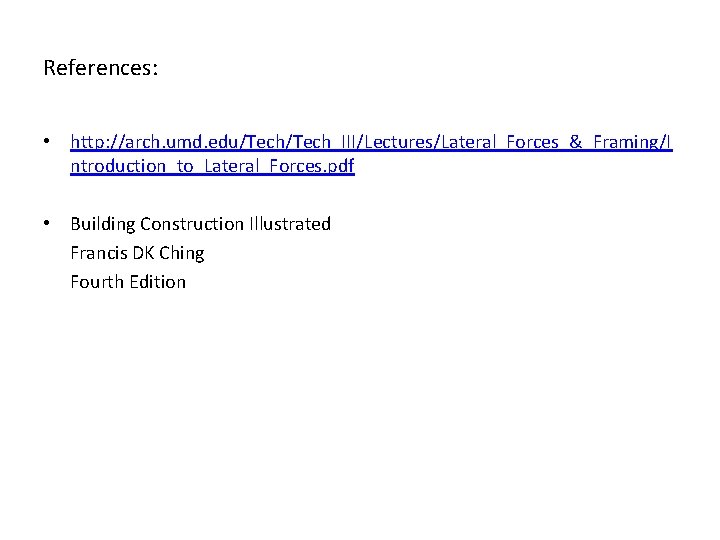

References: • http: //arch. umd. edu/Tech_III/Lectures/Lateral_Forces_&_Framing/I ntroduction_to_Lateral_Forces. pdf • Building Construction Illustrated Francis DK Ching Fourth Edition
