Frame and Cornice Construction Sequence Frame and Cornice

Frame and Cornice Construction Sequence

Frame and Cornice Construction Sequence Walls & Partitions Framed (Cut-away view of corner of a larger structure) Double Plate Top Plate Corner Post Wall Stud (top half)

Frame and Cornice Construction Sequence Exterior Sheathing Applied Wall Sheathing

Frame and Cornice Construction Sequence Ceiling Joists Placed Ceiling Joist

Frame and Cornice Construction Sequence Roof Rafters – Gable Lookouts Installed Lookout Common Rafter (bottom half) Rafter Tail Barge Rafter (sometimes called a Fly Rafter)

Frame and Cornice Construction Sequence False Facia Installed False Facia (Sometimes called Rough Facia)

Frame and Cornice Construction Sequence Roof Sheathing & Shingles Installed Roof Sheathing covered with Shingles “Dry-in” achieved. The remainder of the process occurs under the covered roof.

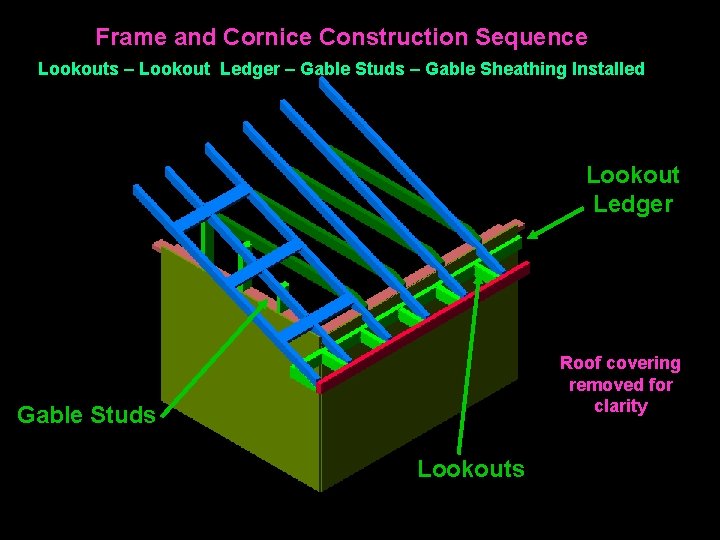

Frame and Cornice Construction Sequence Lookouts – Lookout Ledger – Gable Studs – Gable Sheathing Installed Lookout Ledger Roof covering removed for clarity Gable Studs Lookouts

Frame and Cornice Construction Sequence The Underside of Cornice (Soffit) installed Soffit (Sometimes called Plancier) Roof covering removed for clarity

Frame and Cornice Construction Sequence Facia Installed Finish Facia Roof covering removed for clarity

Frame and Cornice Construction Sequence Facia Work Completed All Cut-aways viewed together

Frame and Cornice Construction Sequence Presentati on Complete
