Fractures and Dislocations about the Elbow in the

Fractures and Dislocations about the Elbow in the Pediatric Patient Joshua Klatt, MD Original Author: Kevin Shea, MD; March 2004 Revised: Steven Frick, MD; August 2006 Joshua Klatt, MD; Albert Pendleton, MD ; November 2011

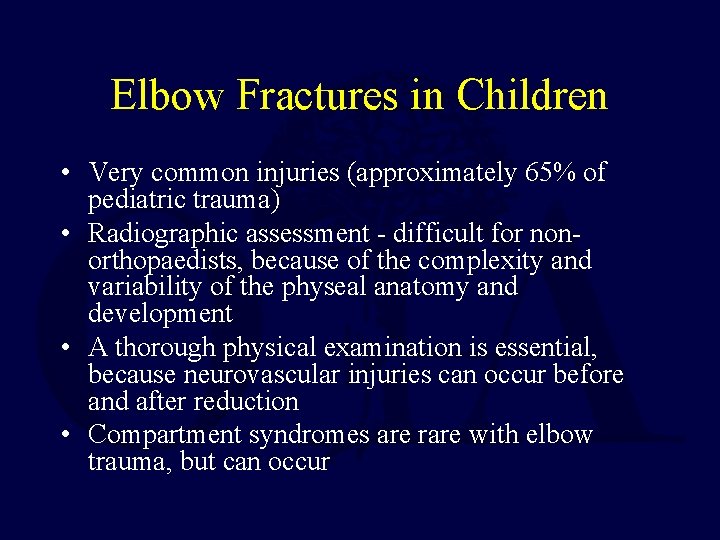

Elbow Fractures in Children • Very common injuries (approximately 65% of pediatric trauma) • Radiographic assessment - difficult for nonorthopaedists, because of the complexity and variability of the physeal anatomy and development • A thorough physical examination is essential, because neurovascular injuries can occur before and after reduction • Compartment syndromes are rare with elbow trauma, but can occur

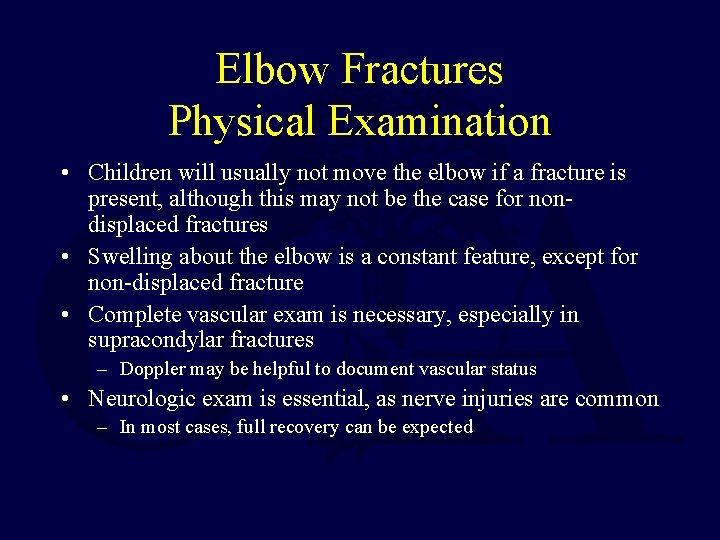

Elbow Fractures Physical Examination • Children will usually not move the elbow if a fracture is present, although this may not be the case for nondisplaced fractures • Swelling about the elbow is a constant feature, except for non-displaced fracture • Complete vascular exam is necessary, especially in supracondylar fractures – Doppler may be helpful to document vascular status • Neurologic exam is essential, as nerve injuries are common – In most cases, full recovery can be expected

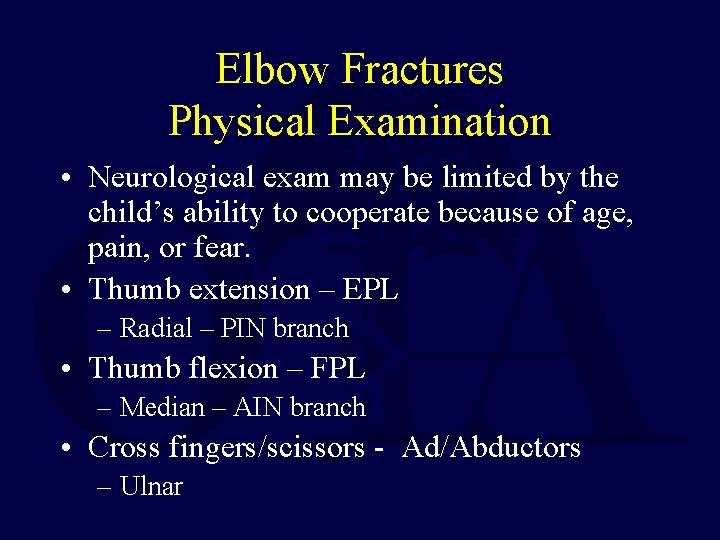

Elbow Fractures Physical Examination • Neurological exam may be limited by the child’s ability to cooperate because of age, pain, or fear. • Thumb extension – EPL – Radial – PIN branch • Thumb flexion – FPL – Median – AIN branch • Cross fingers/scissors - Ad/Abductors – Ulnar

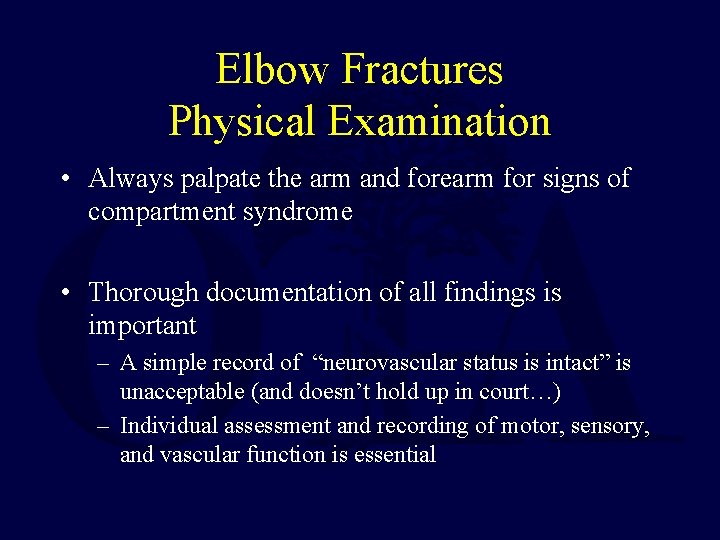

Elbow Fractures Physical Examination • Always palpate the arm and forearm for signs of compartment syndrome • Thorough documentation of all findings is important – A simple record of “neurovascular status is intact” is unacceptable (and doesn’t hold up in court…) – Individual assessment and recording of motor, sensory, and vascular function is essential

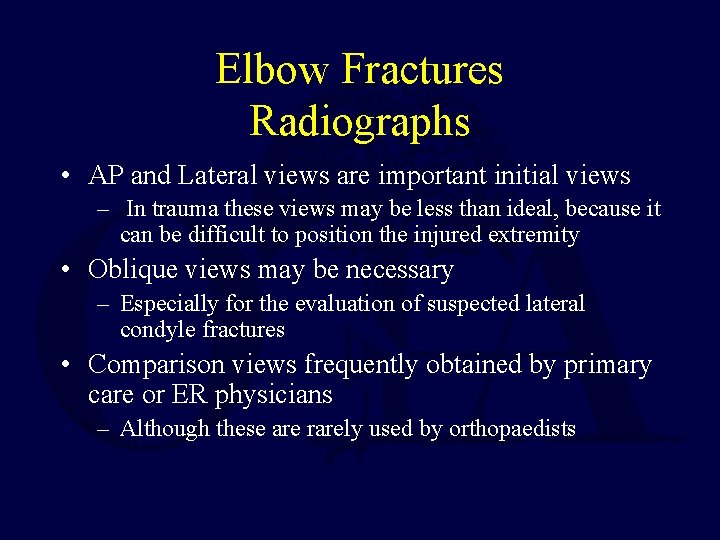

Elbow Fractures Radiographs • AP and Lateral views are important initial views – In trauma these views may be less than ideal, because it can be difficult to position the injured extremity • Oblique views may be necessary – Especially for the evaluation of suspected lateral condyle fractures • Comparison views frequently obtained by primary care or ER physicians – Although these are rarely used by orthopaedists

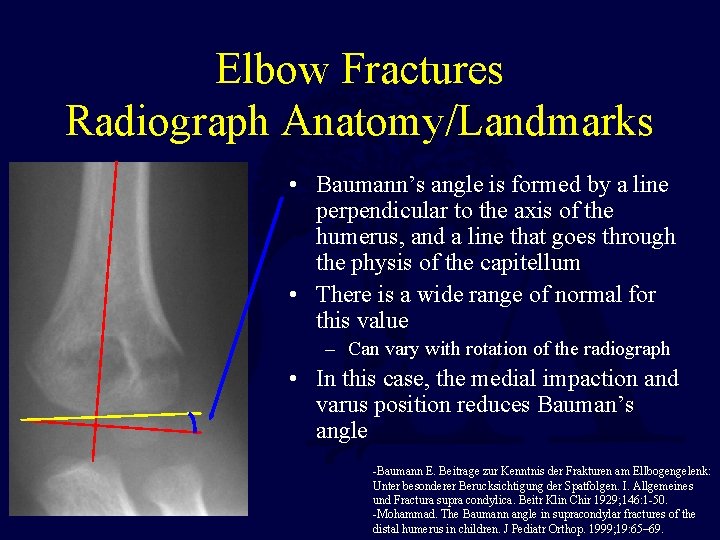

Elbow Fractures Radiograph Anatomy/Landmarks • Baumann’s angle is formed by a line perpendicular to the axis of the humerus, and a line that goes through the physis of the capitellum • There is a wide range of normal for this value – Can vary with rotation of the radiograph • In this case, the medial impaction and varus position reduces Bauman’s angle -Baumann E. Beitrage zur Kenntnis der Frakturen am Ellbogengelenk: Unter besonderer Berucksichtigung der Spatfolgen. I. Allgemeines und Fractura supra condylica. Beitr Klin Chir 1929; 146: 1 -50. -Mohammad. The Baumann angle in supracondylar fractures of the distal humerus in children. J Pediatr Orthop. 1999; 19: 65– 69.

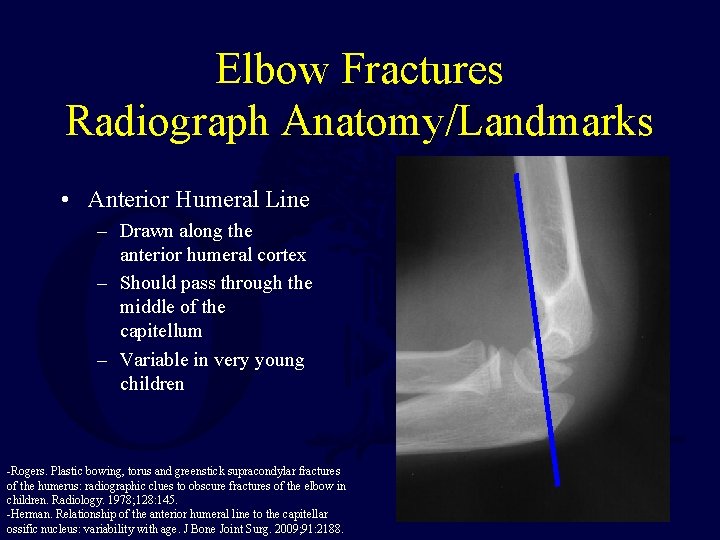

Elbow Fractures Radiograph Anatomy/Landmarks • Anterior Humeral Line – Drawn along the anterior humeral cortex – Should pass through the middle of the capitellum – Variable in very young children -Rogers. Plastic bowing, torus and greenstick supracondylar fractures of the humerus: radiographic clues to obscure fractures of the elbow in children. Radiology. 1978; 128: 145. -Herman. Relationship of the anterior humeral line to the capitellar ossific nucleus: variability with age. J Bone Joint Surg. 2009; 91: 2188.

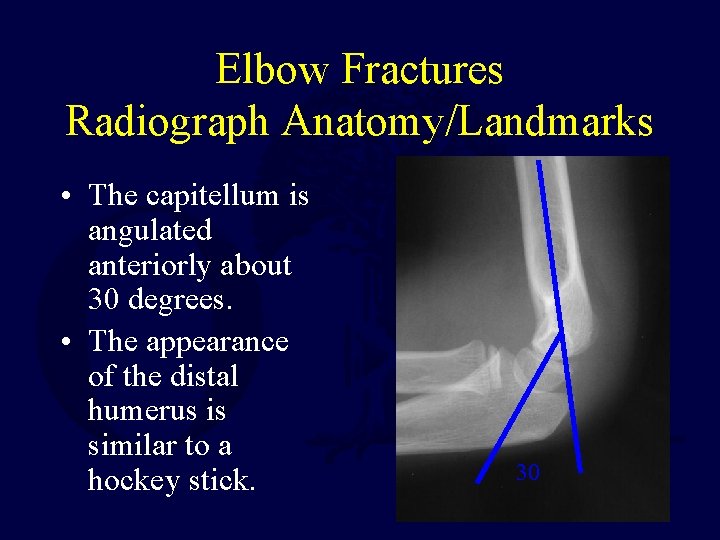

Elbow Fractures Radiograph Anatomy/Landmarks • The capitellum is angulated anteriorly about 30 degrees. • The appearance of the distal humerus is similar to a hockey stick. 30

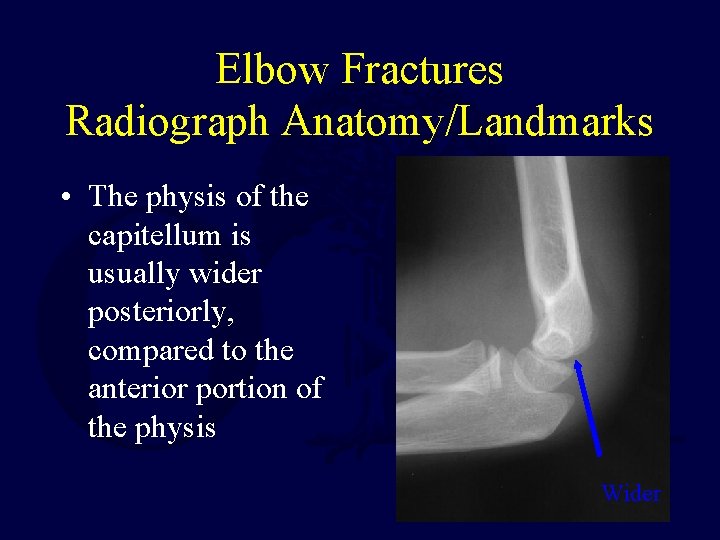

Elbow Fractures Radiograph Anatomy/Landmarks • The physis of the capitellum is usually wider posteriorly, compared to the anterior portion of the physis Wider

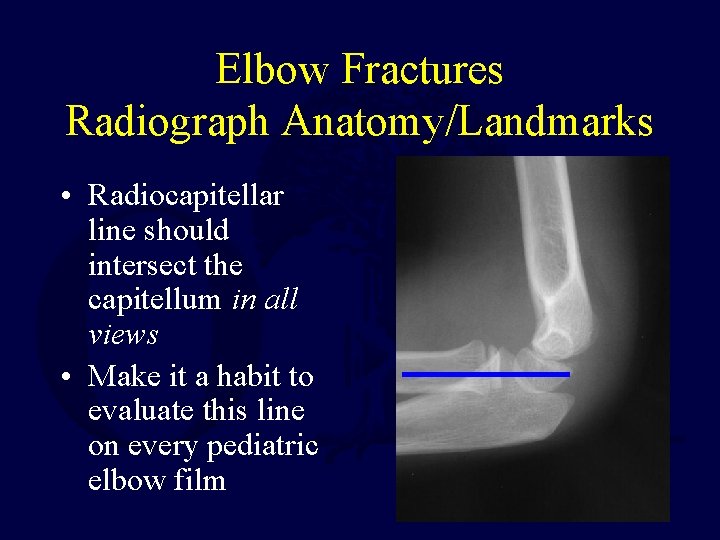

Elbow Fractures Radiograph Anatomy/Landmarks • Radiocapitellar line should intersect the capitellum in all views • Make it a habit to evaluate this line on every pediatric elbow film

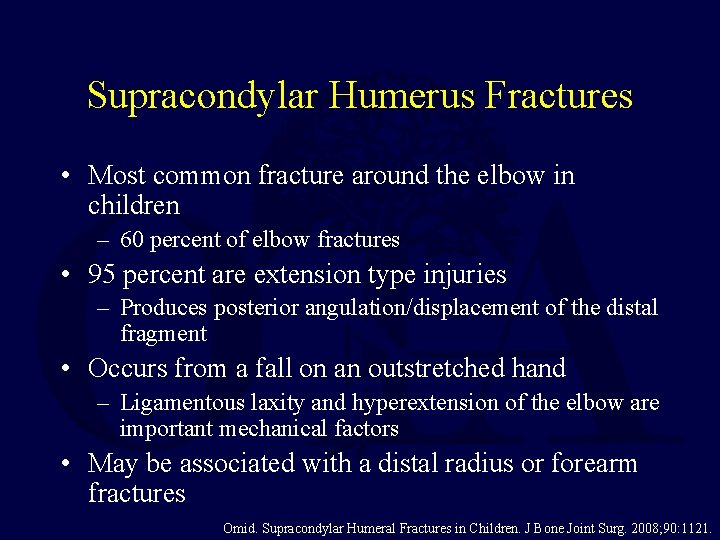

Supracondylar Humerus Fractures • Most common fracture around the elbow in children – 60 percent of elbow fractures • 95 percent are extension type injuries – Produces posterior angulation/displacement of the distal fragment • Occurs from a fall on an outstretched hand – Ligamentous laxity and hyperextension of the elbow are important mechanical factors • May be associated with a distal radius or forearm fractures Omid. Supracondylar Humeral Fractures in Children. J Bone Joint Surg. 2008; 90: 1121.

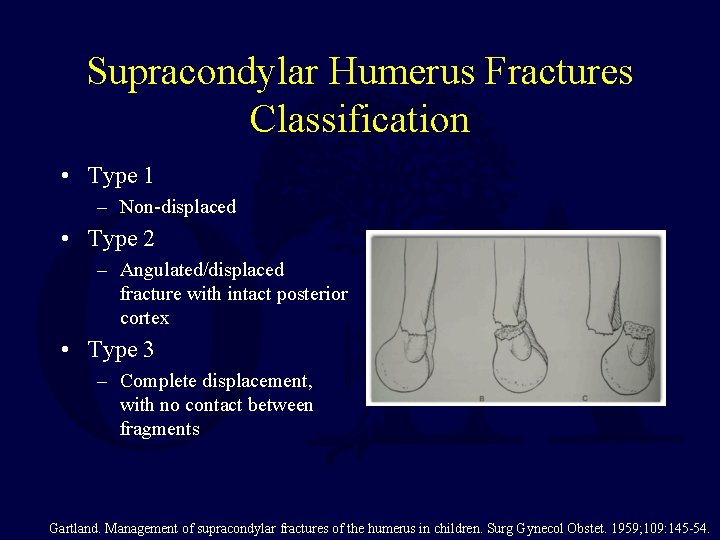

Supracondylar Humerus Fractures Classification • Type 1 – Non-displaced • Type 2 – Angulated/displaced fracture with intact posterior cortex • Type 3 – Complete displacement, with no contact between fragments Gartland. Management of supracondylar fractures of the humerus in children. Surg Gynecol Obstet. 1959; 109: 145 -54.

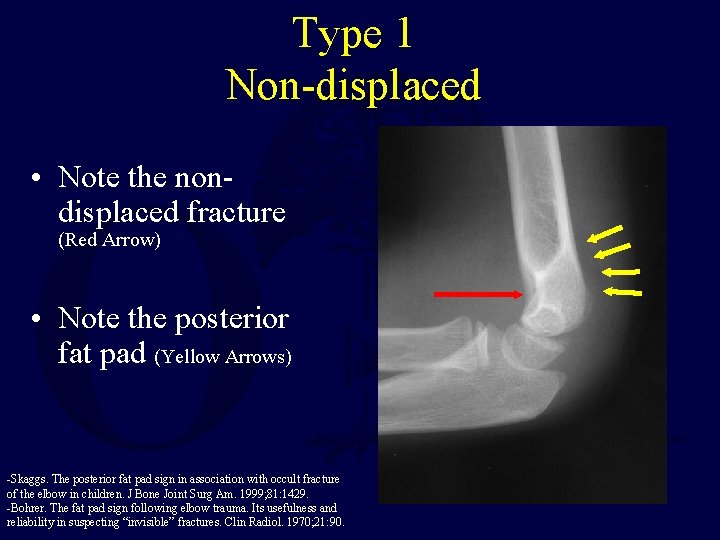

Type 1 Non-displaced • Note the nondisplaced fracture (Red Arrow) • Note the posterior fat pad (Yellow Arrows) -Skaggs. The posterior fat pad sign in association with occult fracture of the elbow in children. J Bone Joint Surg Am. 1999; 81: 1429. -Bohrer. The fat pad sign following elbow trauma. Its usefulness and reliability in suspecting “invisible” fractures. Clin Radiol. 1970; 21: 90.

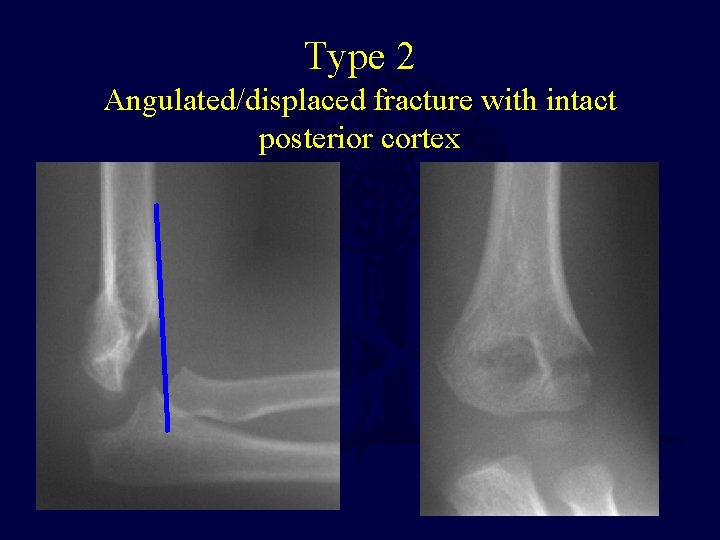

Type 2 Angulated/displaced fracture with intact posterior cortex

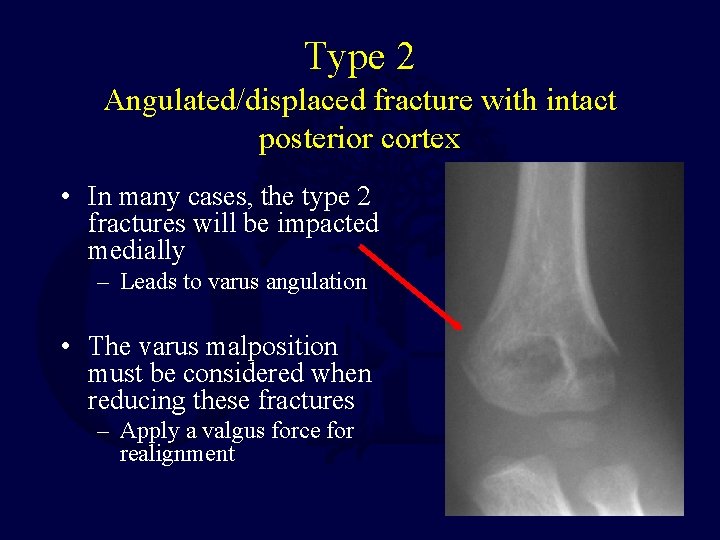

Type 2 Angulated/displaced fracture with intact posterior cortex • In many cases, the type 2 fractures will be impacted medially – Leads to varus angulation • The varus malposition must be considered when reducing these fractures – Apply a valgus force for realignment

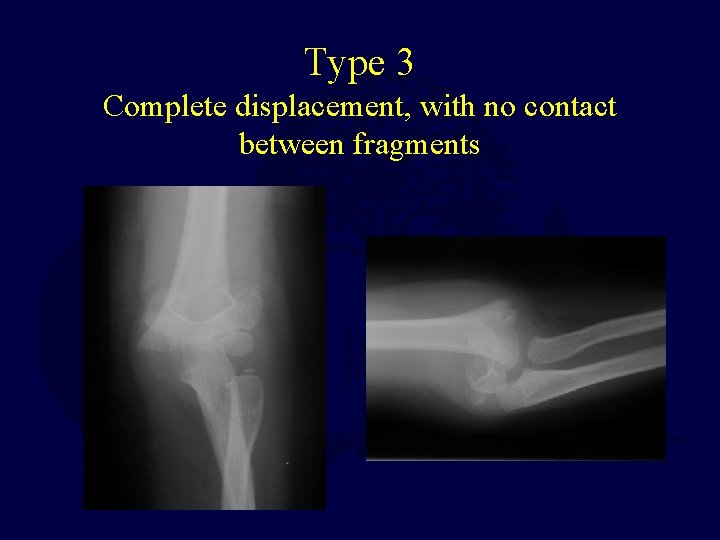

Type 3 Complete displacement, with no contact between fragments

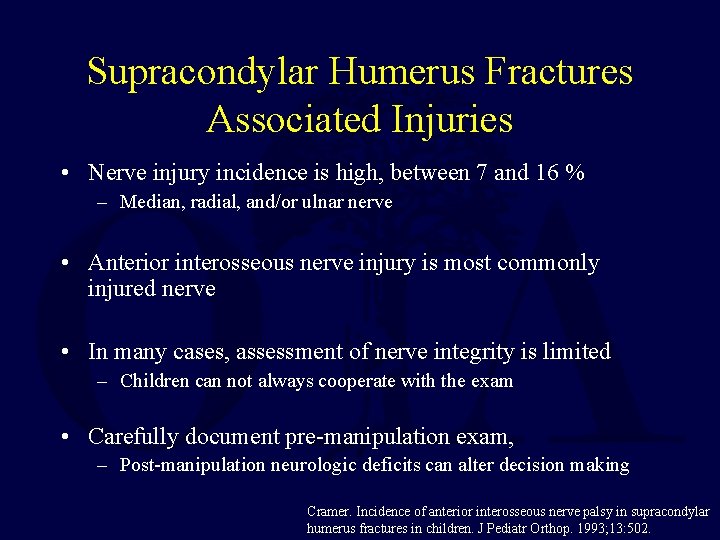

Supracondylar Humerus Fractures Associated Injuries • Nerve injury incidence is high, between 7 and 16 % – Median, radial, and/or ulnar nerve • Anterior interosseous nerve injury is most commonly injured nerve • In many cases, assessment of nerve integrity is limited – Children can not always cooperate with the exam • Carefully document pre-manipulation exam, – Post-manipulation neurologic deficits can alter decision making Cramer. Incidence of anterior interosseous nerve palsy in supracondylar humerus fractures in children. J Pediatr Orthop. 1993; 13: 502.

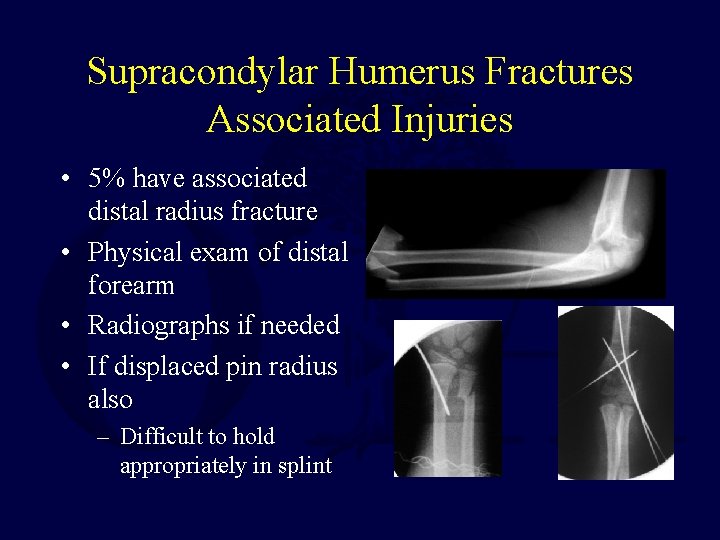

Supracondylar Humerus Fractures Associated Injuries • 5% have associated distal radius fracture • Physical exam of distal forearm • Radiographs if needed • If displaced pin radius also – Difficult to hold appropriately in splint

Supracondylar Humerus Fractures Associated Injuries • Vascular injuries are rare, but pulses should always be assessed before and after reduction • In the absence of a radial and/or ulnar pulse, the fingers may still be well-perfused, because of the excellent collateral circulation about the elbow • Doppler device can be used for assessment White. Perfused, pulseless, and puzzling: a systematic review of vascular injuries in pediatric supracondylar humerus fractures and results of a POSNA questionnaire. J Pediatr Orthop. 2010; 30: 328.

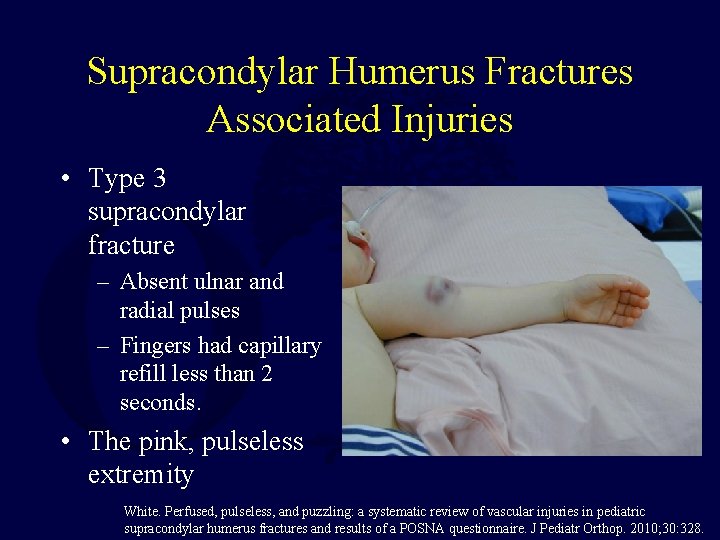

Supracondylar Humerus Fractures Associated Injuries • Type 3 supracondylar fracture – Absent ulnar and radial pulses – Fingers had capillary refill less than 2 seconds. • The pink, pulseless extremity White. Perfused, pulseless, and puzzling: a systematic review of vascular injuries in pediatric supracondylar humerus fractures and results of a POSNA questionnaire. J Pediatr Orthop. 2010; 30: 328.

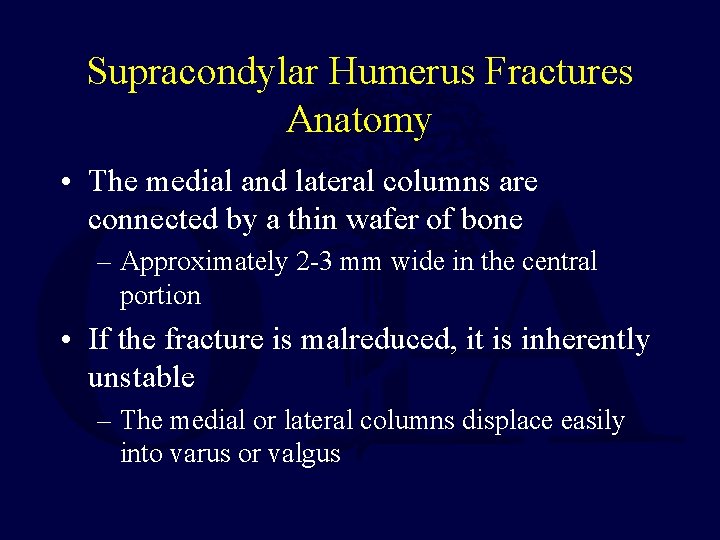

Supracondylar Humerus Fractures Anatomy • The medial and lateral columns are connected by a thin wafer of bone – Approximately 2 -3 mm wide in the central portion • If the fracture is malreduced, it is inherently unstable – The medial or lateral columns displace easily into varus or valgus

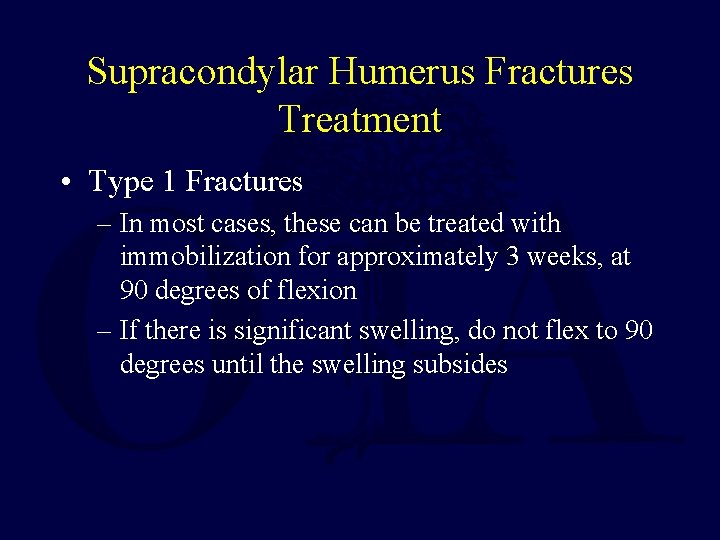

Supracondylar Humerus Fractures Treatment • Type 1 Fractures – In most cases, these can be treated with immobilization for approximately 3 weeks, at 90 degrees of flexion – If there is significant swelling, do not flex to 90 degrees until the swelling subsides

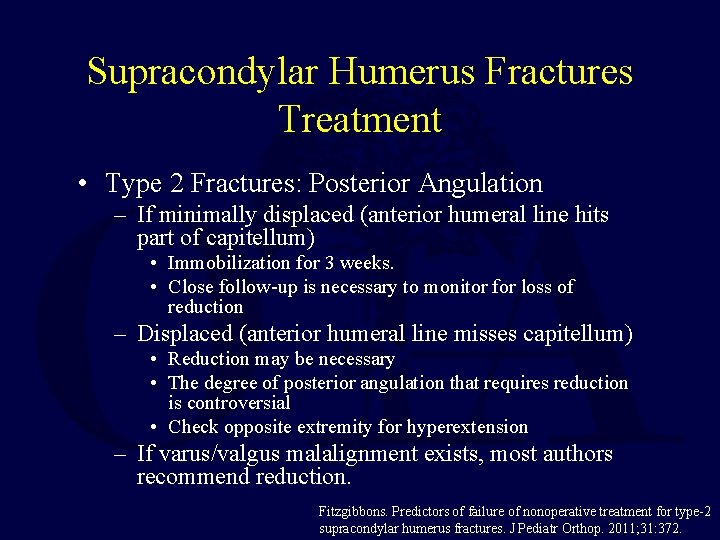

Supracondylar Humerus Fractures Treatment • Type 2 Fractures: Posterior Angulation – If minimally displaced (anterior humeral line hits part of capitellum) • Immobilization for 3 weeks. • Close follow-up is necessary to monitor for loss of reduction – Displaced (anterior humeral line misses capitellum) • Reduction may be necessary • The degree of posterior angulation that requires reduction is controversial • Check opposite extremity for hyperextension – If varus/valgus malalignment exists, most authors recommend reduction. Fitzgibbons. Predictors of failure of nonoperative treatment for type-2 supracondylar humerus fractures. J Pediatr Orthop. 2011; 31: 372.

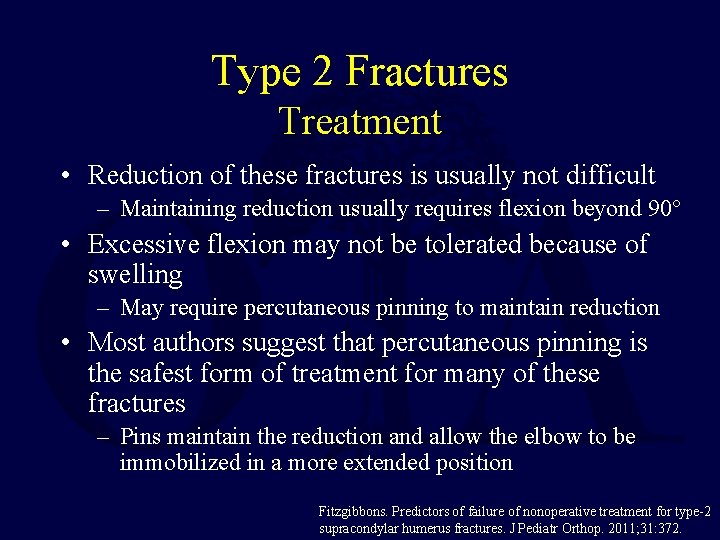

Type 2 Fractures Treatment • Reduction of these fractures is usually not difficult – Maintaining reduction usually requires flexion beyond 90° • Excessive flexion may not be tolerated because of swelling – May require percutaneous pinning to maintain reduction • Most authors suggest that percutaneous pinning is the safest form of treatment for many of these fractures – Pins maintain the reduction and allow the elbow to be immobilized in a more extended position Fitzgibbons. Predictors of failure of nonoperative treatment for type-2 supracondylar humerus fractures. J Pediatr Orthop. 2011; 31: 372.

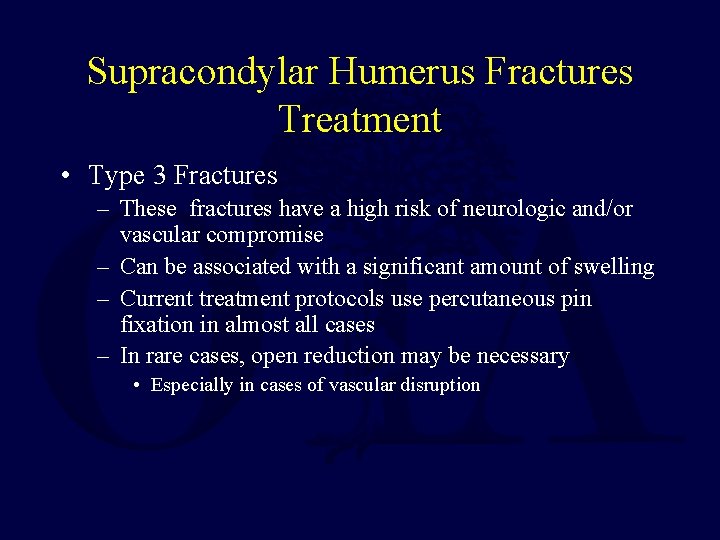

Supracondylar Humerus Fractures Treatment • Type 3 Fractures – These fractures have a high risk of neurologic and/or vascular compromise – Can be associated with a significant amount of swelling – Current treatment protocols use percutaneous pin fixation in almost all cases – In rare cases, open reduction may be necessary • Especially in cases of vascular disruption

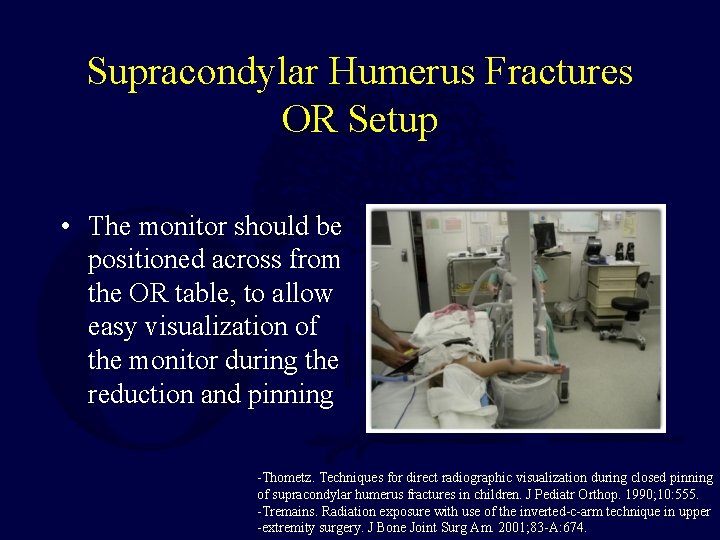

Supracondylar Humerus Fractures OR Setup • The monitor should be positioned across from the OR table, to allow easy visualization of the monitor during the reduction and pinning -Thometz. Techniques for direct radiographic visualization during closed pinning of supracondylar humerus fractures in children. J Pediatr Orthop. 1990; 10: 555. -Tremains. Radiation exposure with use of the inverted-c-arm technique in upper -extremity surgery. J Bone Joint Surg Am. 2001; 83 -A: 674.

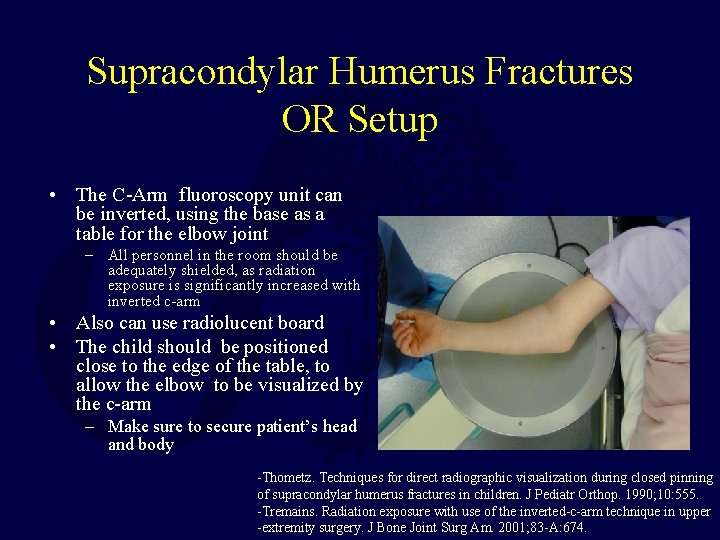

Supracondylar Humerus Fractures OR Setup • The C-Arm fluoroscopy unit can be inverted, using the base as a table for the elbow joint – All personnel in the room should be adequately shielded, as radiation exposure is significantly increased with inverted c-arm • Also can use radiolucent board • The child should be positioned close to the edge of the table, to allow the elbow to be visualized by the c-arm – Make sure to secure patient’s head and body -Thometz. Techniques for direct radiographic visualization during closed pinning of supracondylar humerus fractures in children. J Pediatr Orthop. 1990; 10: 555. -Tremains. Radiation exposure with use of the inverted-c-arm technique in upper -extremity surgery. J Bone Joint Surg Am. 2001; 83 -A: 674.

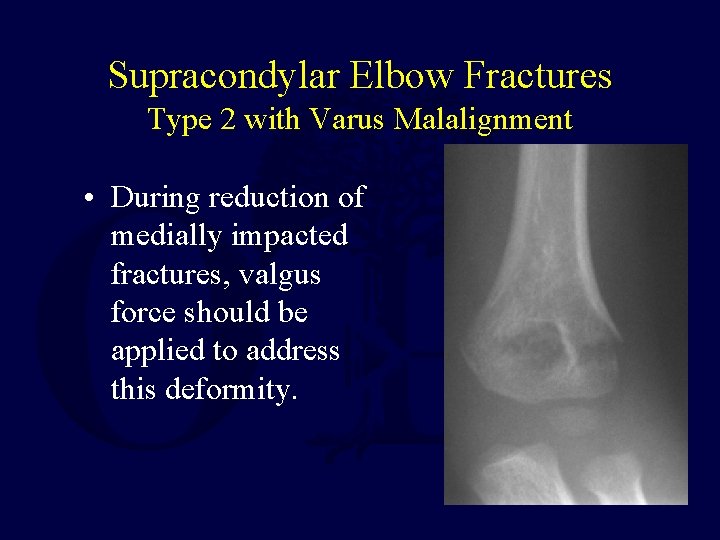

Supracondylar Elbow Fractures Type 2 with Varus Malalignment • During reduction of medially impacted fractures, valgus force should be applied to address this deformity.

Type 3 Supracondylar Fracture

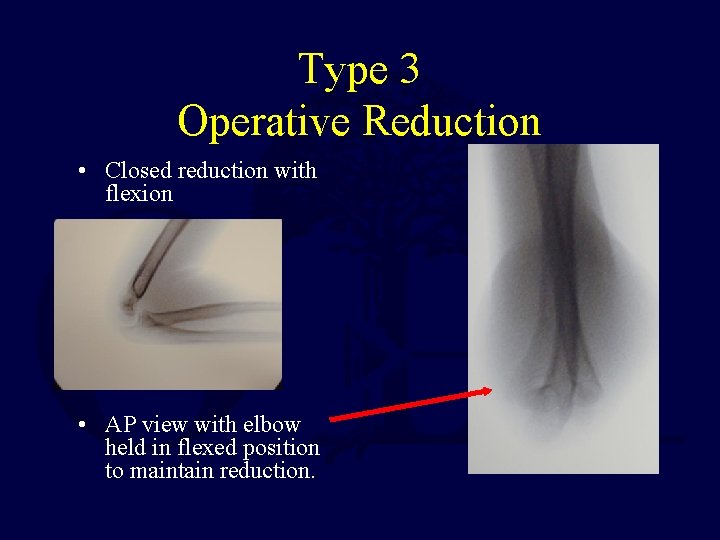

Type 3 Operative Reduction • Closed reduction with flexion • AP view with elbow held in flexed position to maintain reduction.

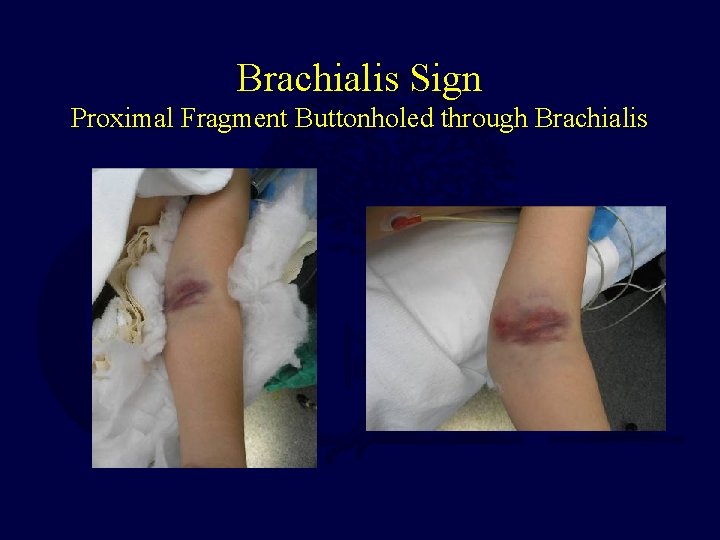

Brachialis Sign Proximal Fragment Buttonholed through Brachialis

Milking Maneuver Milk Soft Tissues over Proximal Spike Archibeck. Brachialis muscle entrapment in displaced supracondylar humerus fractures: a technique of closed reduction and report of initial results. J Pediatr Orthop. 1997; 17: 298.

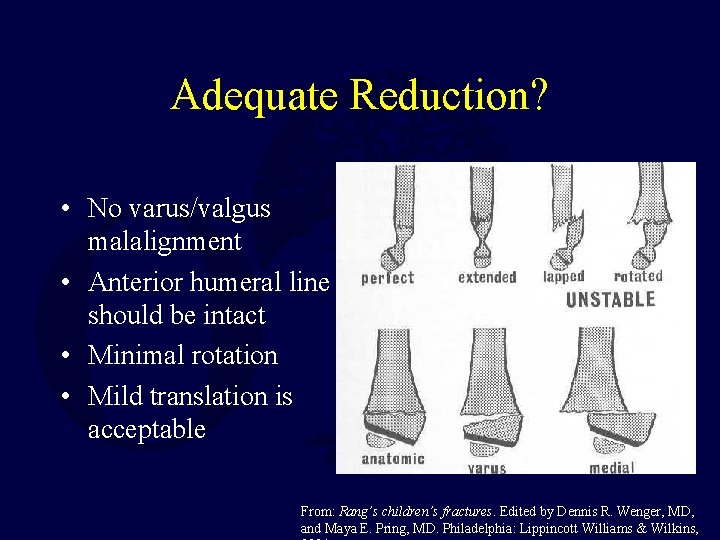

Adequate Reduction? • No varus/valgus malalignment • Anterior humeral line should be intact • Minimal rotation • Mild translation is acceptable From: Rang’s children’s fractures. Edited by Dennis R. Wenger, MD, and Maya E. Pring, MD. Philadelphia: Lippincott Williams & Wilkins,

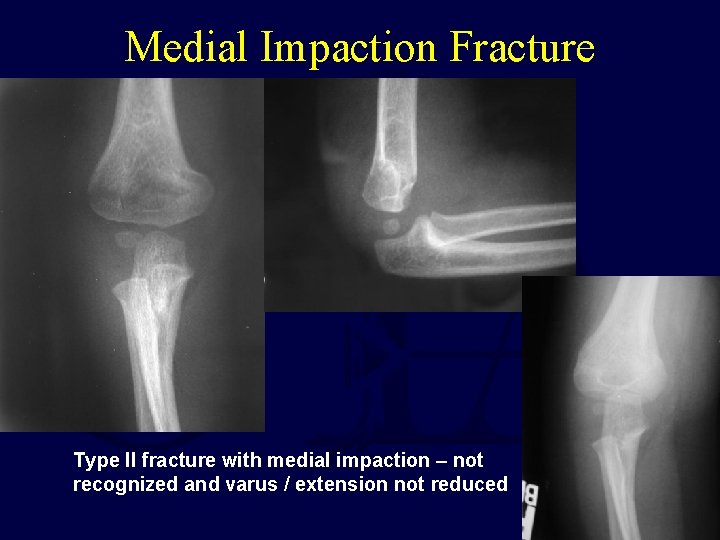

Medial Impaction Fracture Type II fracture with medial impaction – not recognized and varus / extension not reduced

Medial Impaction Fracture Cubitus varus 2 years later

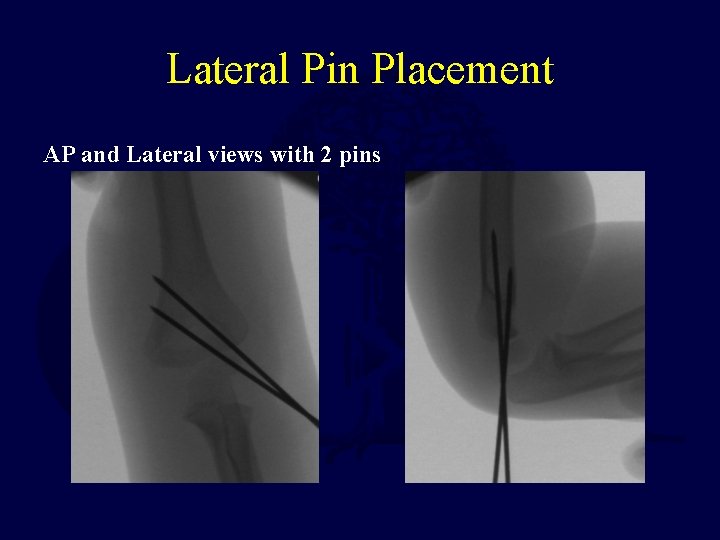

Lateral Pin Placement AP and Lateral views with 2 pins

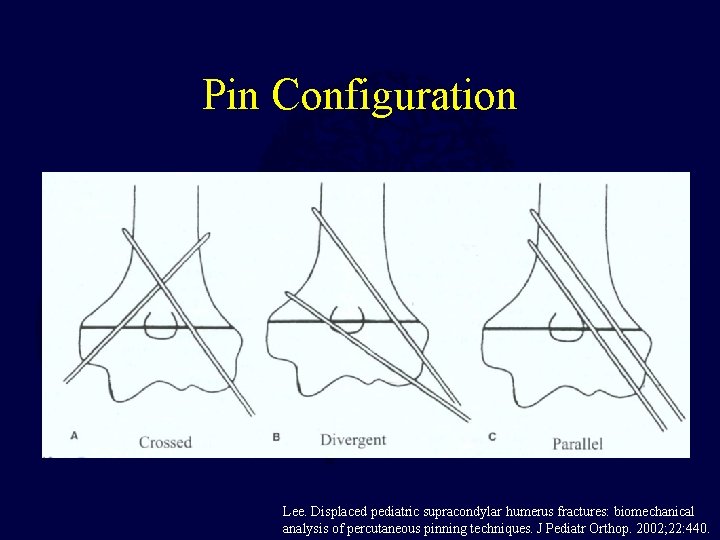

Pin Configuration Lee. Displaced pediatric supracondylar humerus fractures: biomechanical analysis of percutaneous pinning techniques. J Pediatr Orthop. 2002; 22: 440.

C-arm Views Oblique views with the C-arm can be useful to help verify the reduction. Note slight rotation and extension on medial column (right image).

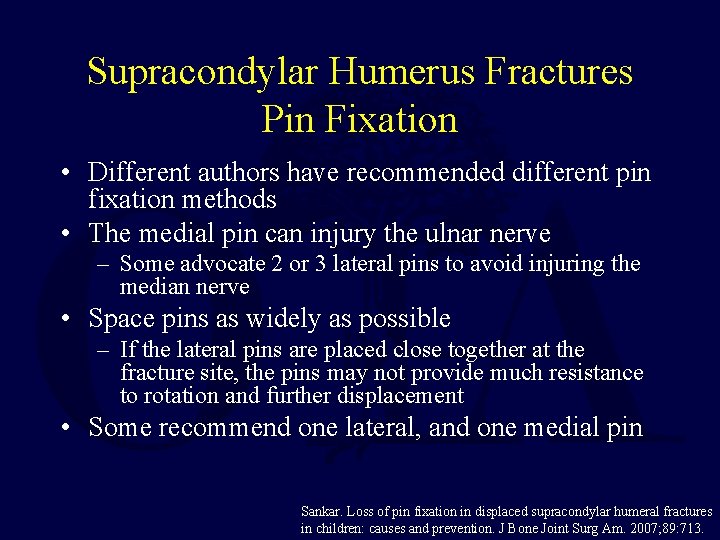

Supracondylar Humerus Fractures Pin Fixation • Different authors have recommended different pin fixation methods • The medial pin can injury the ulnar nerve – Some advocate 2 or 3 lateral pins to avoid injuring the median nerve • Space pins as widely as possible – If the lateral pins are placed close together at the fracture site, the pins may not provide much resistance to rotation and further displacement • Some recommend one lateral, and one medial pin Sankar. Loss of pin fixation in displaced supracondylar humeral fractures in children: causes and prevention. J Bone Joint Surg Am. 2007; 89: 713.

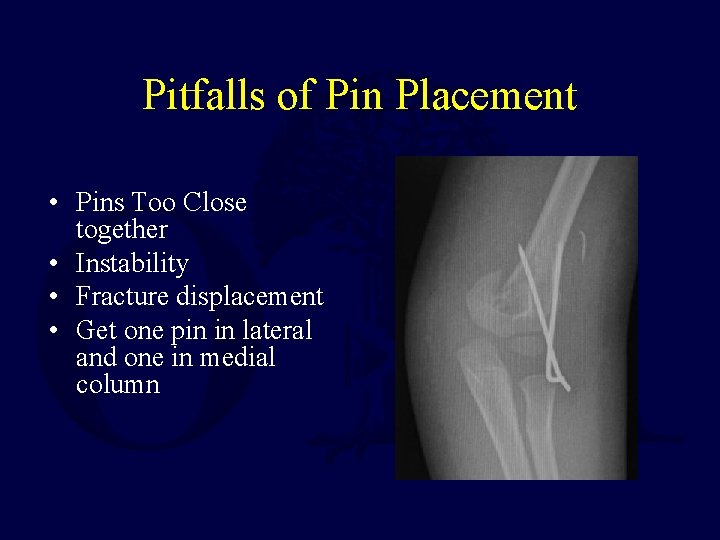

Pitfalls of Pin Placement • Pins Too Close together • Instability • Fracture displacement • Get one pin in lateral and one in medial column

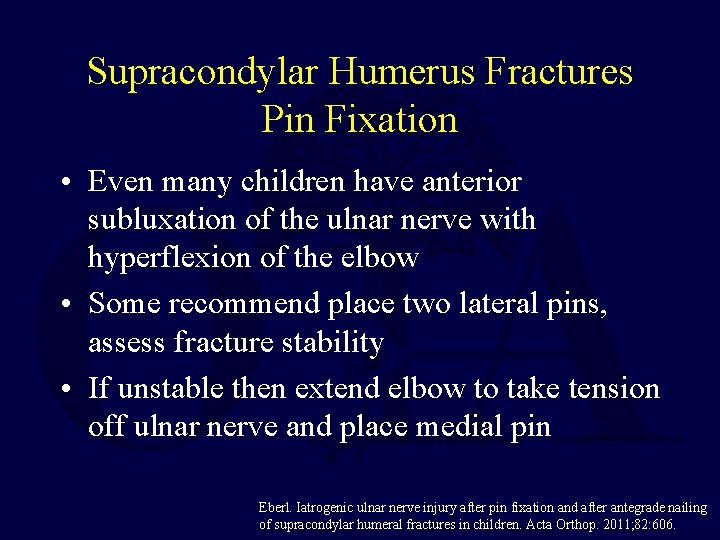

Supracondylar Humerus Fractures Pin Fixation • Even many children have anterior subluxation of the ulnar nerve with hyperflexion of the elbow • Some recommend place two lateral pins, assess fracture stability • If unstable then extend elbow to take tension off ulnar nerve and place medial pin Eberl. Iatrogenic ulnar nerve injury after pin fixation and after antegrade nailing of supracondylar humeral fractures in children. Acta Orthop. 2011; 82: 606.

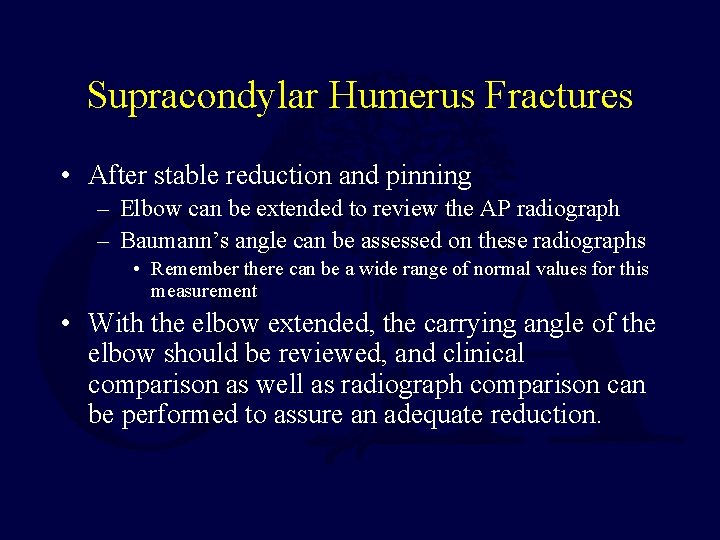

Supracondylar Humerus Fractures • After stable reduction and pinning – Elbow can be extended to review the AP radiograph – Baumann’s angle can be assessed on these radiographs • Remember there can be a wide range of normal values for this measurement • With the elbow extended, the carrying angle of the elbow should be reviewed, and clinical comparison as well as radiograph comparison can be performed to assure an adequate reduction.

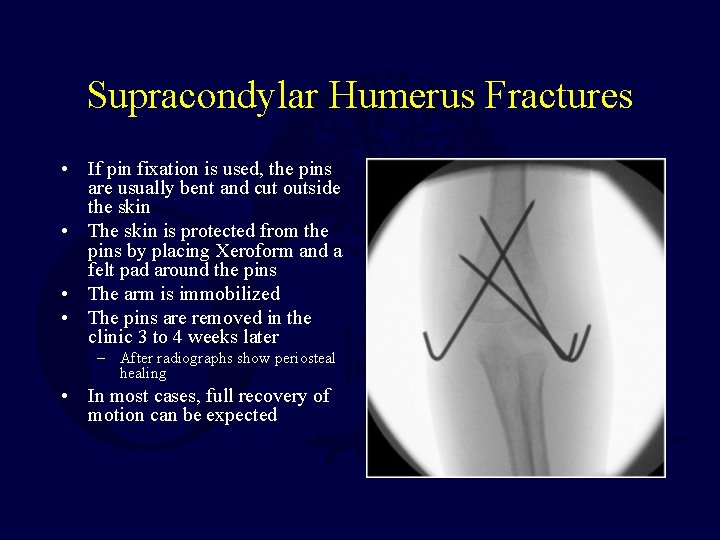

Supracondylar Humerus Fractures • If pin fixation is used, the pins are usually bent and cut outside the skin • The skin is protected from the pins by placing Xeroform and a felt pad around the pins • The arm is immobilized • The pins are removed in the clinic 3 to 4 weeks later – After radiographs show periosteal healing • In most cases, full recovery of motion can be expected

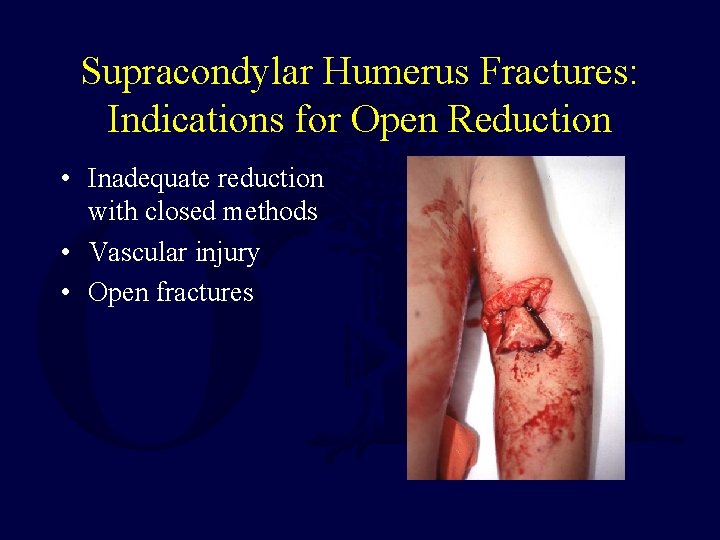

Supracondylar Humerus Fractures: Indications for Open Reduction • Inadequate reduction with closed methods • Vascular injury • Open fractures

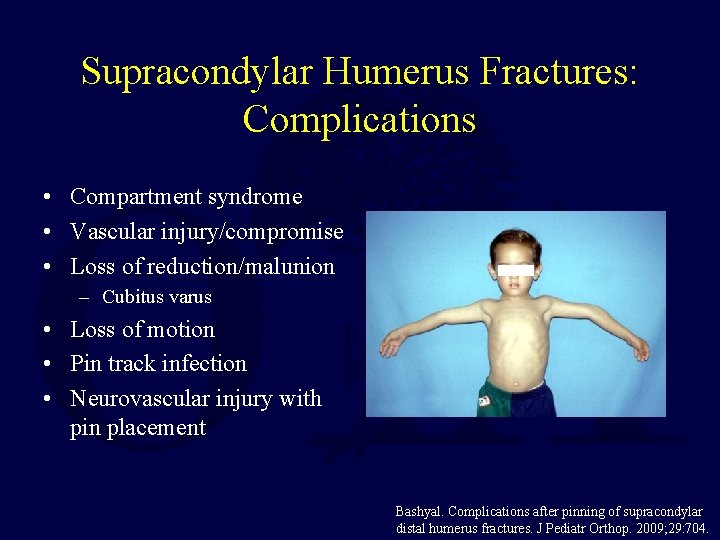

Supracondylar Humerus Fractures: Complications • Compartment syndrome • Vascular injury/compromise • Loss of reduction/malunion – Cubitus varus • Loss of motion • Pin track infection • Neurovascular injury with pin placement Bashyal. Complications after pinning of supracondylar distal humerus fractures. J Pediatr Orthop. 2009; 29: 704.

Supracondylar Humerus Fractures Flexion type • Rare, only 2% • Distal fracture fragment anterior and flexed • Ulnar nerve injury more common • Reduce with extension • Often requires 2 sets of hands in OF – Hold elbow at 90 degrees after reduction to facilitate pinning Mahan. Operative management of displaced flexion supracondylar humerus fractures in children. J Pediatr Orthop. 2007; 27: 551.

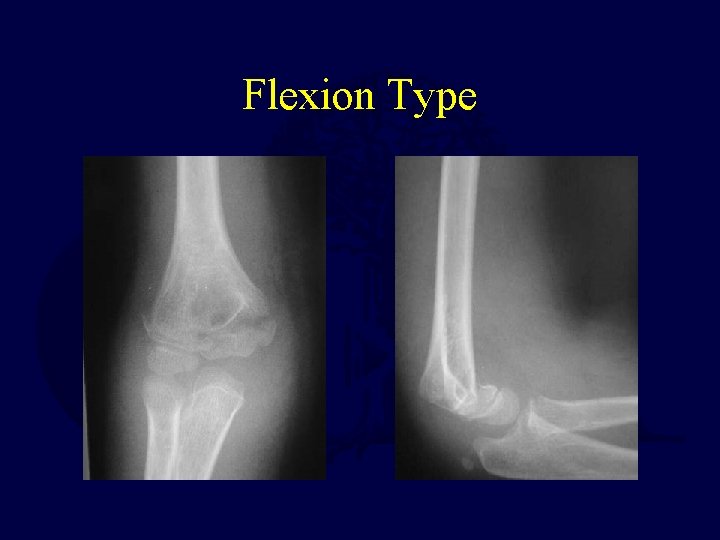

Flexion Type

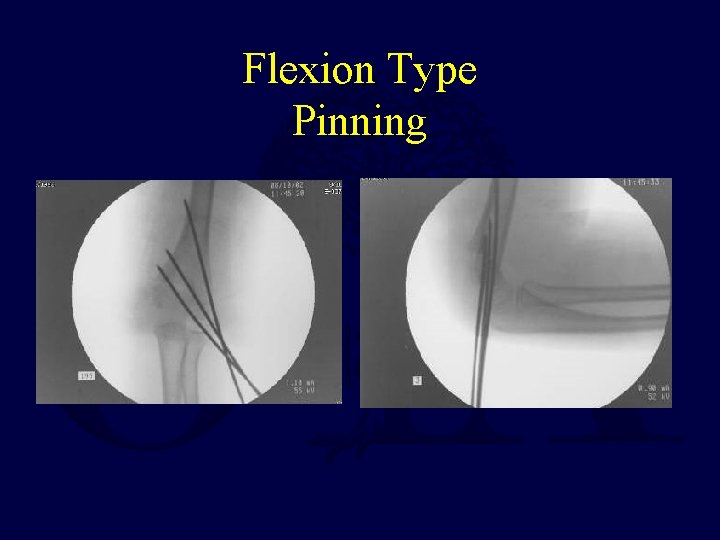

Flexion Type Pinning

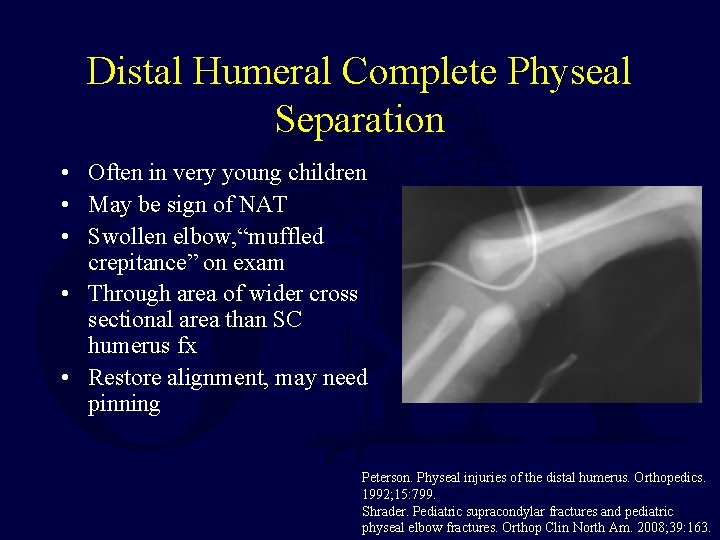

Distal Humeral Complete Physeal Separation • Often in very young children • May be sign of NAT • Swollen elbow, “muffled crepitance” on exam • Through area of wider cross sectional area than SC humerus fx • Restore alignment, may need pinning Peterson. Physeal injuries of the distal humerus. Orthopedics. 1992; 15: 799. Shrader. Pediatric supracondylar fractures and pediatric physeal elbow fractures. Orthop Clin North Am. 2008; 39: 163.

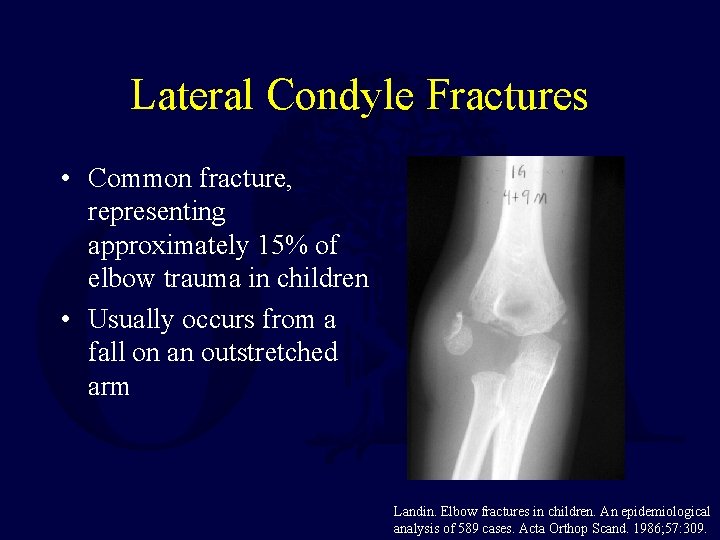

Lateral Condyle Fractures • Common fracture, representing approximately 15% of elbow trauma in children • Usually occurs from a fall on an outstretched arm Landin. Elbow fractures in children. An epidemiological analysis of 589 cases. Acta Orthop Scand. 1986; 57: 309.

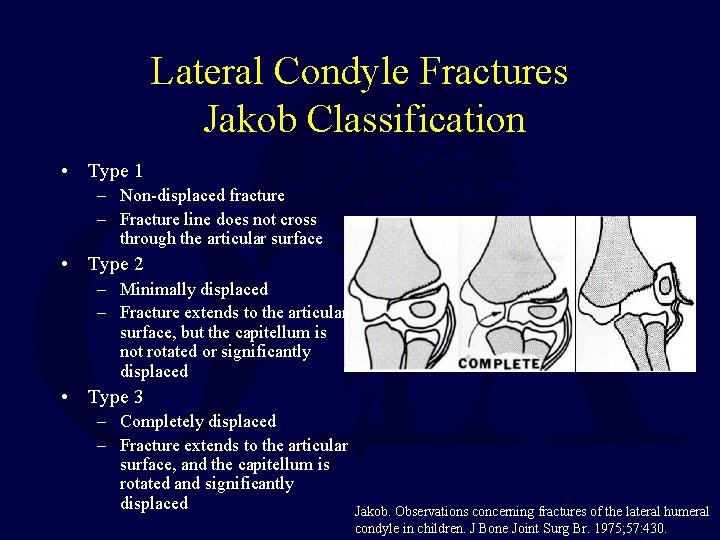

Lateral Condyle Fractures Jakob Classification • Type 1 – Non-displaced fracture – Fracture line does not cross through the articular surface • Type 2 – Minimally displaced – Fracture extends to the articular surface, but the capitellum is not rotated or significantly displaced • Type 3 – Completely displaced – Fracture extends to the articular surface, and the capitellum is rotated and significantly displaced Jakob. Observations concerning fractures of the lateral humeral condyle in children. J Bone Joint Surg Br. 1975; 57: 430.

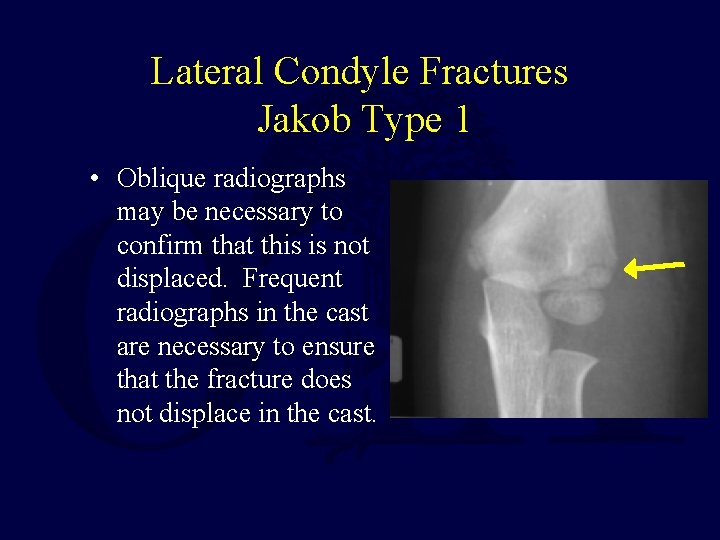

Lateral Condyle Fractures Jakob Type 1 • Oblique radiographs may be necessary to confirm that this is not displaced. Frequent radiographs in the cast are necessary to ensure that the fracture does not displace in the cast.

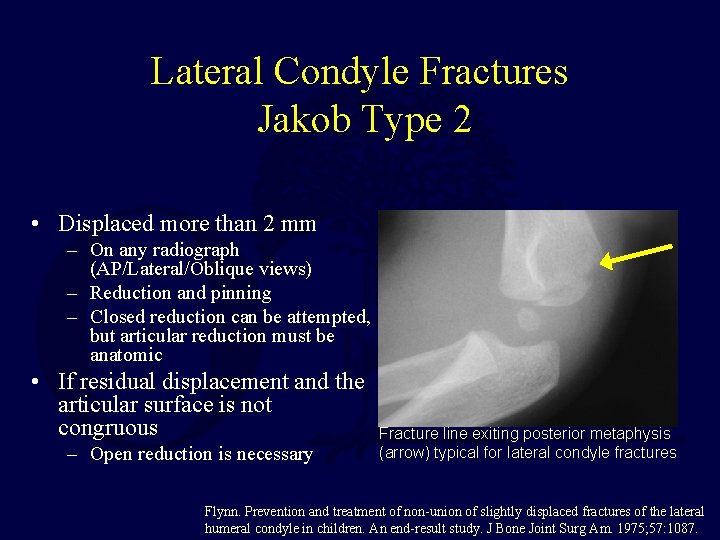

Lateral Condyle Fractures Jakob Type 2 • Displaced more than 2 mm – On any radiograph (AP/Lateral/Oblique views) – Reduction and pinning – Closed reduction can be attempted, but articular reduction must be anatomic • If residual displacement and the articular surface is not congruous – Open reduction is necessary Fracture line exiting posterior metaphysis (arrow) typical for lateral condyle fractures Flynn. Prevention and treatment of non-union of slightly displaced fractures of the lateral humeral condyle in children. An end-result study. J Bone Joint Surg Am. 1975; 57: 1087.

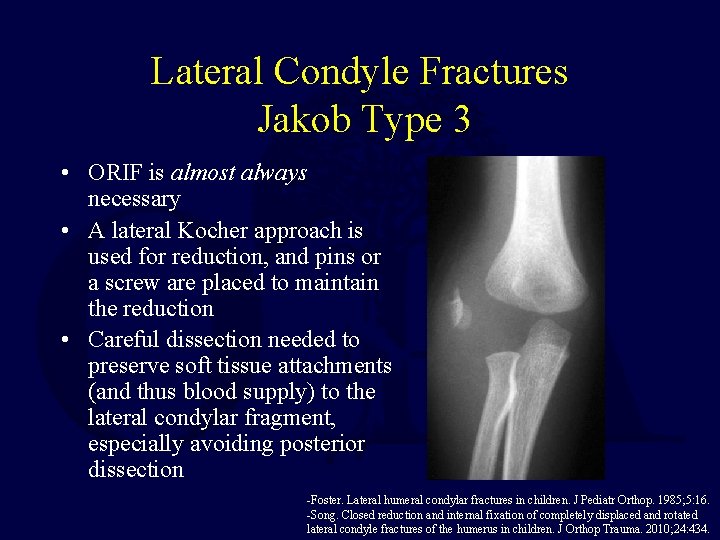

Lateral Condyle Fractures Jakob Type 3 • ORIF is almost always necessary • A lateral Kocher approach is used for reduction, and pins or a screw are placed to maintain the reduction • Careful dissection needed to preserve soft tissue attachments (and thus blood supply) to the lateral condylar fragment, especially avoiding posterior dissection -Foster. Lateral humeral condylar fractures in children. J Pediatr Orthop. 1985; 5: 16. -Song. Closed reduction and internal fixation of completely displaced and rotated lateral condyle fractures of the humerus in children. J Orthop Trauma. 2010; 24: 434.

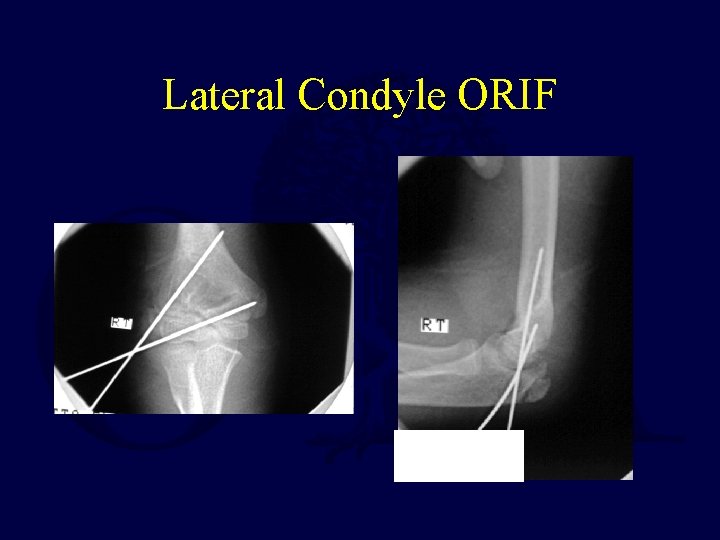

Lateral Condyle ORIF

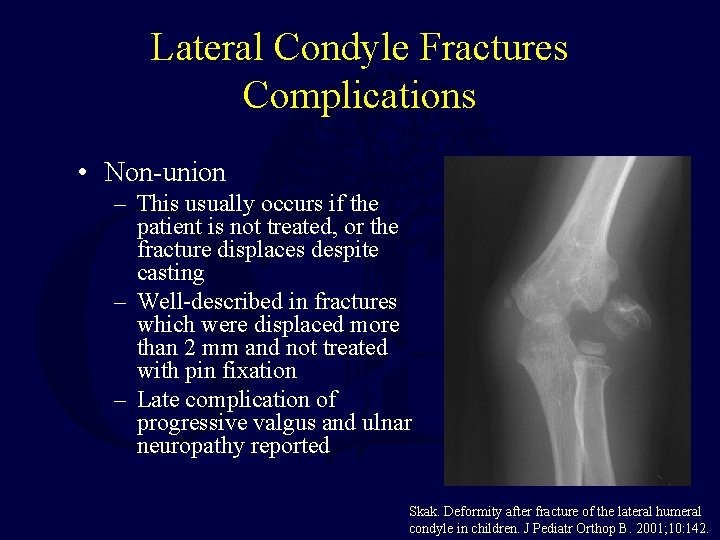

Lateral Condyle Fractures Complications • Non-union – This usually occurs if the patient is not treated, or the fracture displaces despite casting – Well-described in fractures which were displaced more than 2 mm and not treated with pin fixation – Late complication of progressive valgus and ulnar neuropathy reported Skak. Deformity after fracture of the lateral humeral condyle in children. J Pediatr Orthop B. 2001; 10: 142.

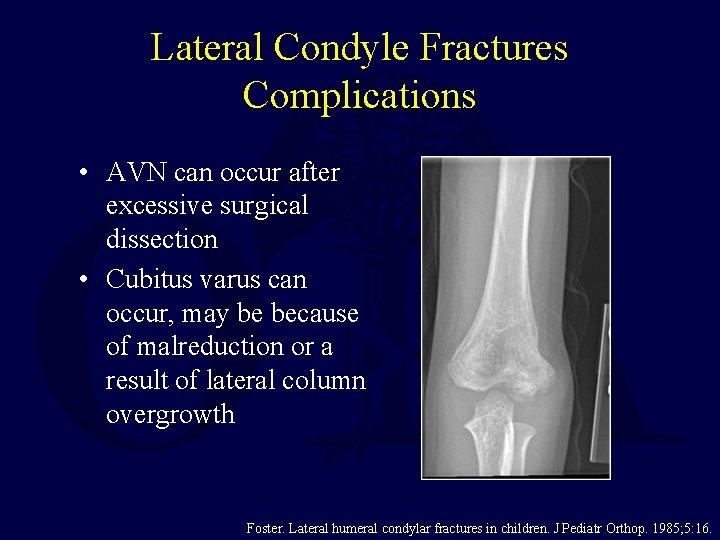

Lateral Condyle Fractures Complications • AVN can occur after excessive surgical dissection • Cubitus varus can occur, may be because of malreduction or a result of lateral column overgrowth Foster. Lateral humeral condylar fractures in children. J Pediatr Orthop. 1985; 5: 16.

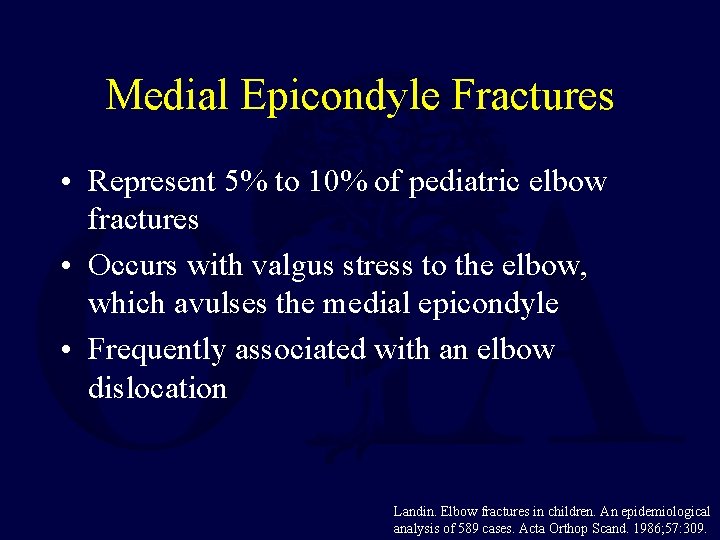

Medial Epicondyle Fractures • Represent 5% to 10% of pediatric elbow fractures • Occurs with valgus stress to the elbow, which avulses the medial epicondyle • Frequently associated with an elbow dislocation Landin. Elbow fractures in children. An epidemiological analysis of 589 cases. Acta Orthop Scand. 1986; 57: 309.

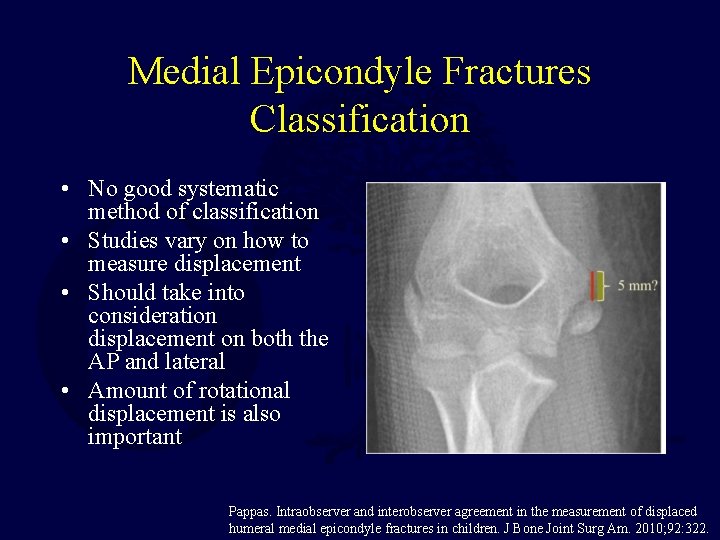

Medial Epicondyle Fractures Classification • No good systematic method of classification • Studies vary on how to measure displacement • Should take into consideration displacement on both the AP and lateral • Amount of rotational displacement is also important Pappas. Intraobserver and interobserver agreement in the measurement of displaced humeral medial epicondyle fractures in children. J Bone Joint Surg Am. 2010; 92: 322.

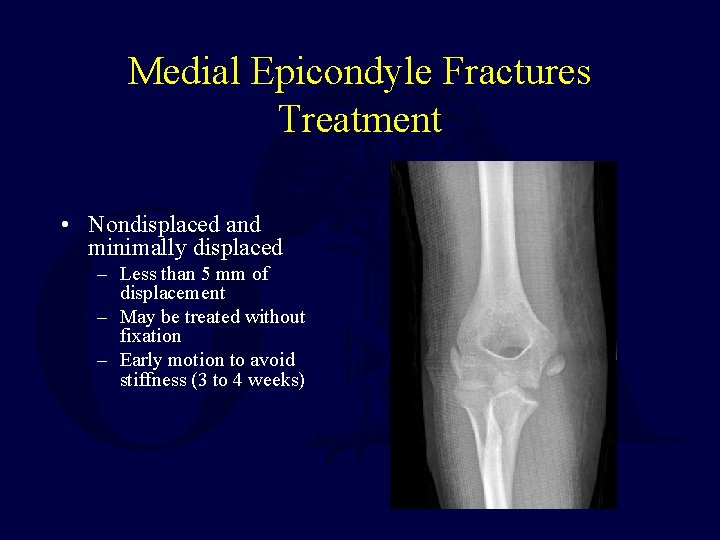

Medial Epicondyle Fractures Treatment • Nondisplaced and minimally displaced – Less than 5 mm of displacement – May be treated without fixation – Early motion to avoid stiffness (3 to 4 weeks)

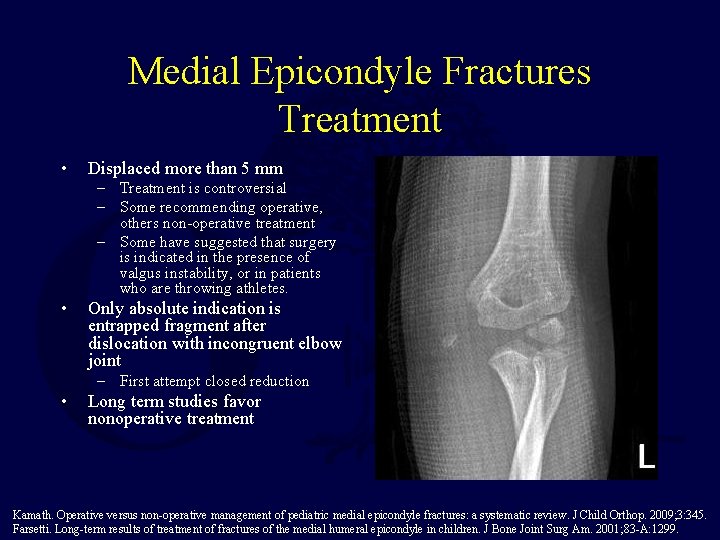

Medial Epicondyle Fractures Treatment • Displaced more than 5 mm – Treatment is controversial – Some recommending operative, others non-operative treatment – Some have suggested that surgery is indicated in the presence of valgus instability, or in patients who are throwing athletes. • Only absolute indication is entrapped fragment after dislocation with incongruent elbow joint – First attempt closed reduction • Long term studies favor nonoperative treatment Kamath. Operative versus non-operative management of pediatric medial epicondyle fractures: a systematic review. J Child Orthop. 2009; 3: 345. Farsetti. Long-term results of treatment of fractures of the medial humeral epicondyle in children. J Bone Joint Surg Am. 2001; 83 -A: 1299.

Medial Epicondyle Fracture Elbow dislocation with Medial Epicondyle Avulsion After attempted elbow reduction, medial epicondyle avulsion fragment is obvious

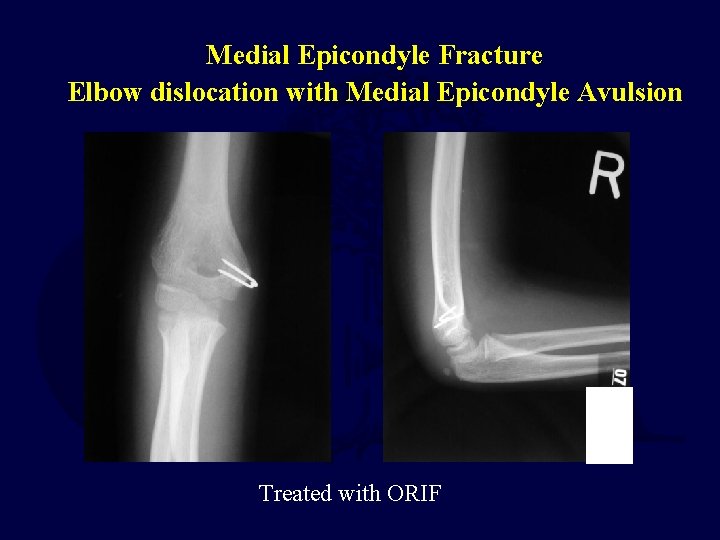

Medial Epicondyle Fracture Elbow dislocation with Medial Epicondyle Avulsion Treated with ORIF

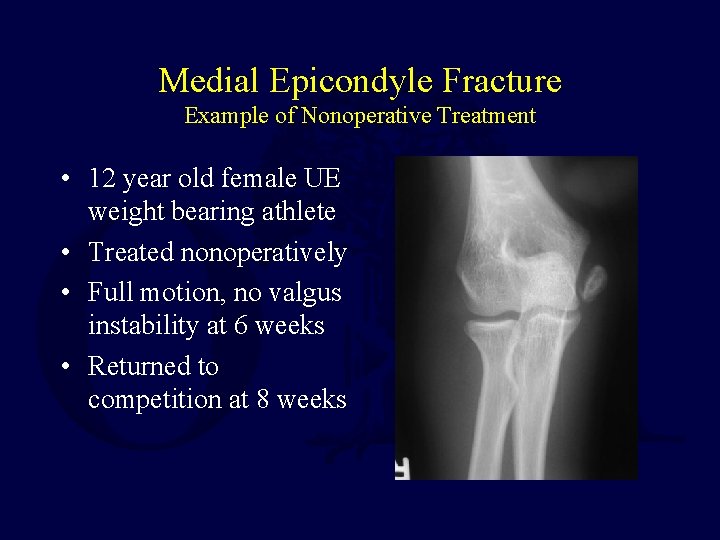

Medial Epicondyle Fracture Example of Nonoperative Treatment • 12 year old female UE weight bearing athlete • Treated nonoperatively • Full motion, no valgus instability at 6 weeks • Returned to competition at 8 weeks

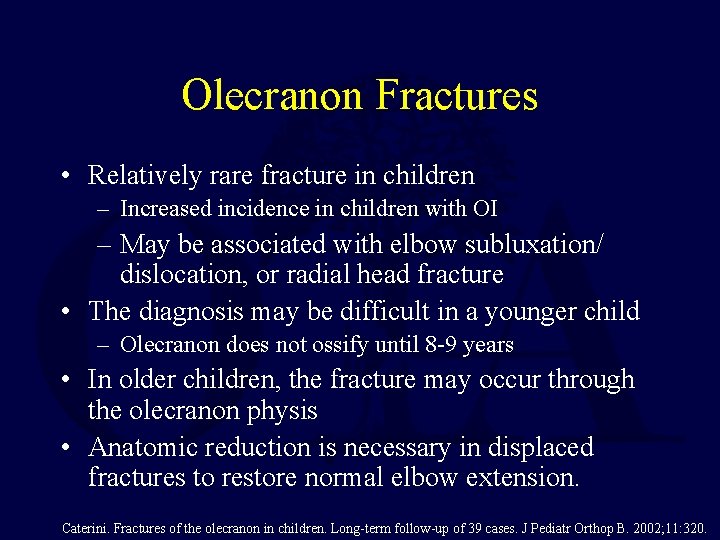

Olecranon Fractures • Relatively rare fracture in children – Increased incidence in children with OI – May be associated with elbow subluxation/ dislocation, or radial head fracture • The diagnosis may be difficult in a younger child – Olecranon does not ossify until 8 -9 years • In older children, the fracture may occur through the olecranon physis • Anatomic reduction is necessary in displaced fractures to restore normal elbow extension. Caterini. Fractures of the olecranon in children. Long-term follow-up of 39 cases. J Pediatr Orthop B. 2002; 11: 320.

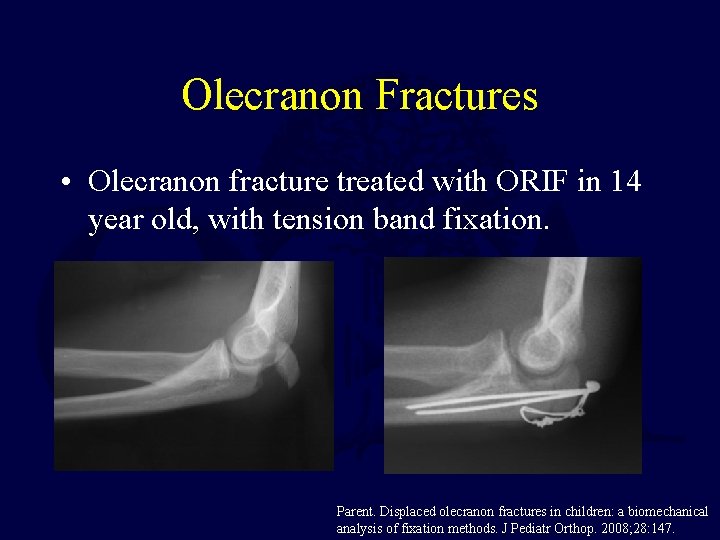

Olecranon Fractures • Olecranon fracture treated with ORIF in 14 year old, with tension band fixation. Parent. Displaced olecranon fractures in children: a biomechanical analysis of fixation methods. J Pediatr Orthop. 2008; 28: 147.

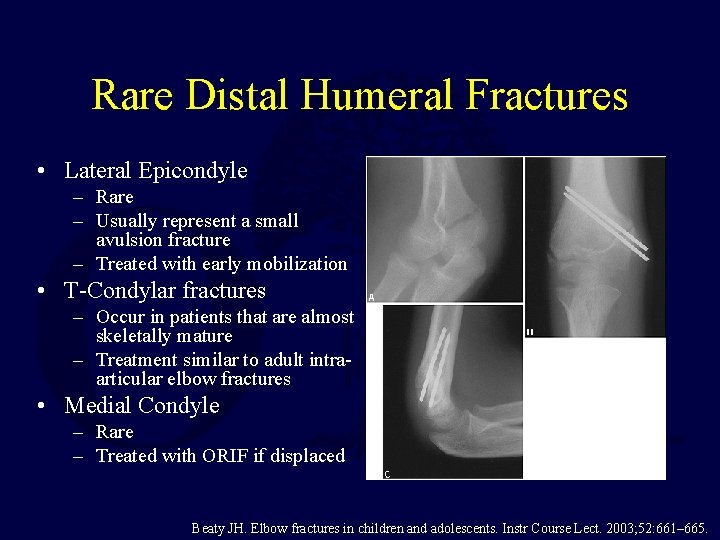

Rare Distal Humeral Fractures • Lateral Epicondyle – Rare – Usually represent a small avulsion fracture – Treated with early mobilization • T-Condylar fractures – Occur in patients that are almost skeletally mature – Treatment similar to adult intraarticular elbow fractures • Medial Condyle – Rare – Treated with ORIF if displaced Beaty JH. Elbow fractures in children and adolescents. Instr Course Lect. 2003; 52: 661– 665.

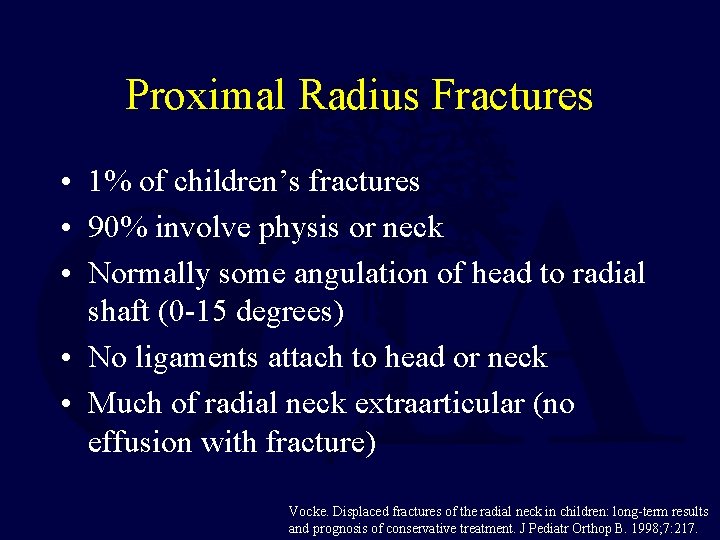

Proximal Radius Fractures • 1% of children’s fractures • 90% involve physis or neck • Normally some angulation of head to radial shaft (0 -15 degrees) • No ligaments attach to head or neck • Much of radial neck extraarticular (no effusion with fracture) Vocke. Displaced fractures of the radial neck in children: long-term results and prognosis of conservative treatment. J Pediatr Orthop B. 1998; 7: 217.

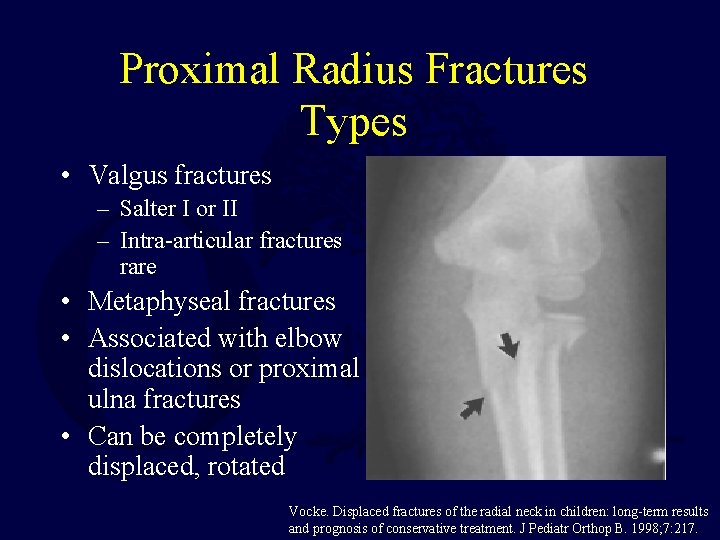

Proximal Radius Fractures Types • Valgus fractures – Salter I or II – Intra-articular fractures rare • Metaphyseal fractures • Associated with elbow dislocations or proximal ulna fractures • Can be completely displaced, rotated Vocke. Displaced fractures of the radial neck in children: long-term results and prognosis of conservative treatment. J Pediatr Orthop B. 1998; 7: 217.

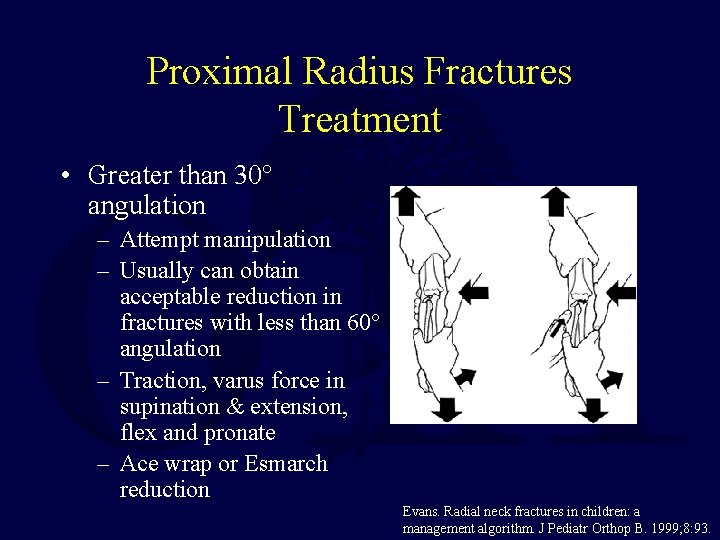

Proximal Radius Fractures Treatment • Greater than 30° angulation – Attempt manipulation – Usually can obtain acceptable reduction in fractures with less than 60° angulation – Traction, varus force in supination & extension, flex and pronate – Ace wrap or Esmarch reduction Evans. Radial neck fractures in children: a management algorithm. J Pediatr Orthop B. 1999; 8: 93.

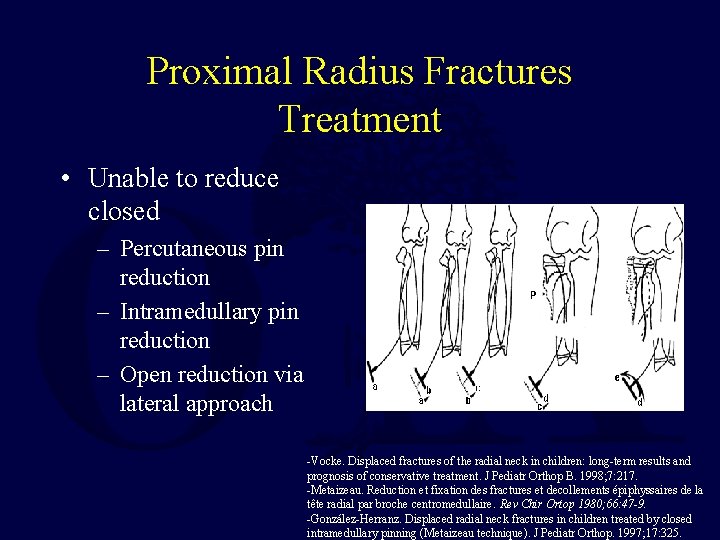

Proximal Radius Fractures Treatment • Unable to reduce closed – Percutaneous pin reduction – Intramedullary pin reduction – Open reduction via lateral approach -Vocke. Displaced fractures of the radial neck in children: long-term results and prognosis of conservative treatment. J Pediatr Orthop B. 1998; 7: 217. -Metaizeau. Reduction et fixation des fractures et decollements épiphyssaires de la tête radial par broche centromedullaire. Rev Chir Ortop 1980; 66: 47 -9. -González-Herranz. Displaced radial neck fractures in children treated by closed intramedullary pinning (Metaizeau technique). J Pediatr Orthop. 1997; 17: 325.

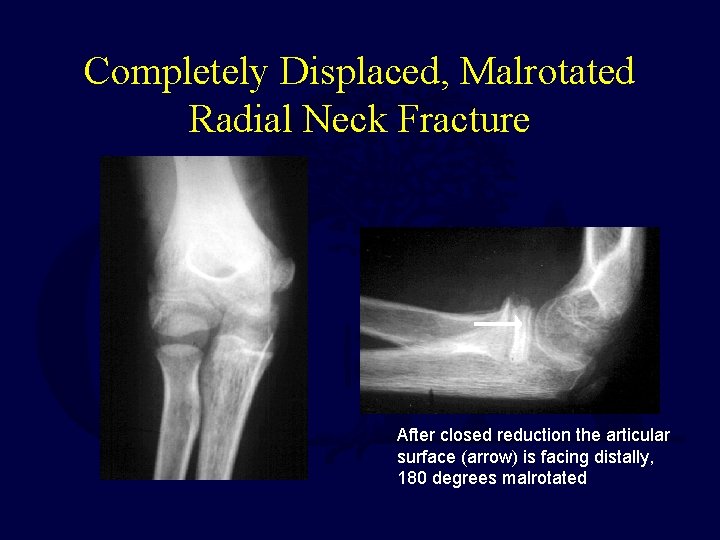

Completely Displaced, Malrotated Radial Neck Fracture After closed reduction the articular surface (arrow) is facing distally, 180 degrees malrotated

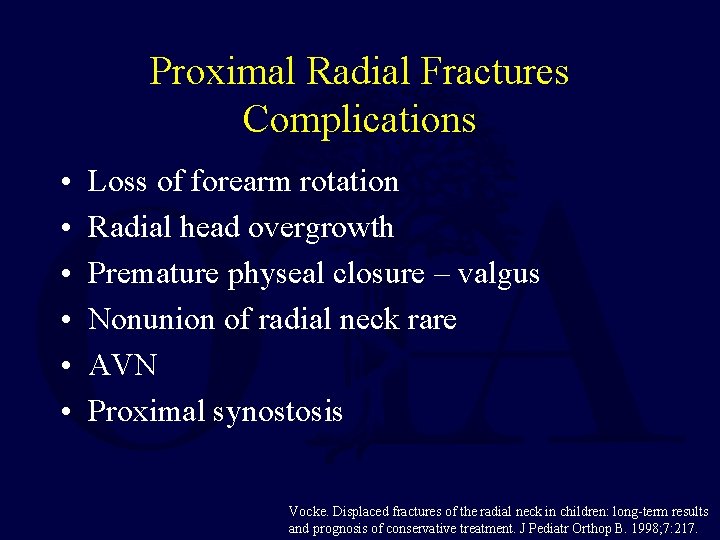

Proximal Radial Fractures Complications • • • Loss of forearm rotation Radial head overgrowth Premature physeal closure – valgus Nonunion of radial neck rare AVN Proximal synostosis Vocke. Displaced fractures of the radial neck in children: long-term results and prognosis of conservative treatment. J Pediatr Orthop B. 1998; 7: 217.

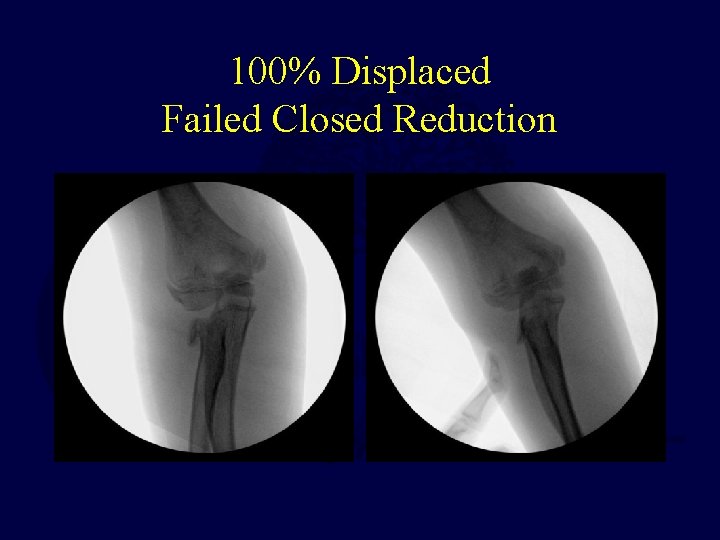

100% Displaced Failed Closed Reduction

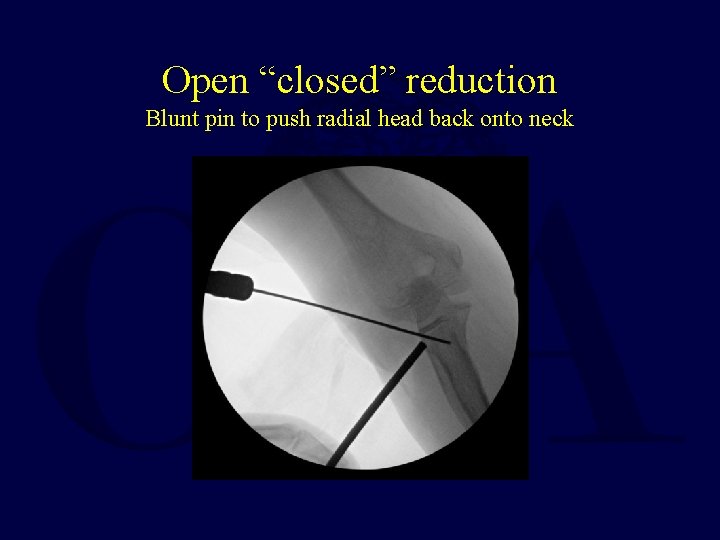

Open “closed” reduction Blunt pin to push radial head back onto neck

Pin fixation augmented by cast for 3 weeks

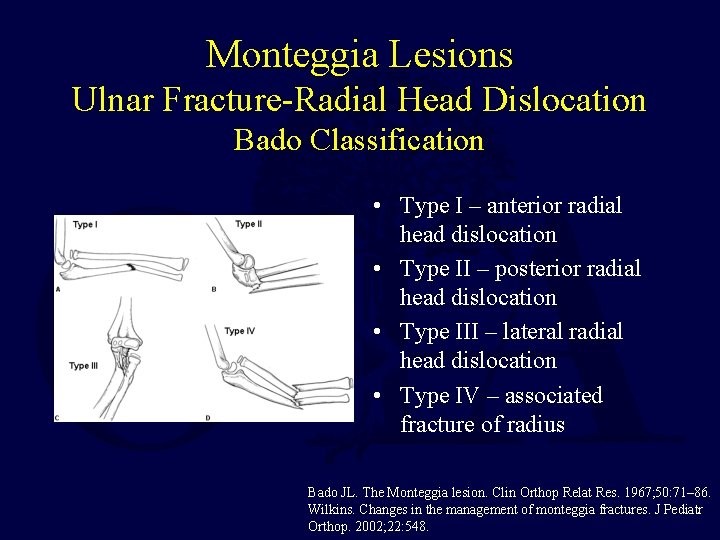

Monteggia Lesions Ulnar Fracture-Radial Head Dislocation Bado Classification • Type I – anterior radial head dislocation • Type II – posterior radial head dislocation • Type III – lateral radial head dislocation • Type IV – associated fracture of radius Bado JL. The Monteggia lesion. Clin Orthop Relat Res. 1967; 50: 71– 86. Wilkins. Changes in the management of monteggia fractures. J Pediatr Orthop. 2002; 22: 548.

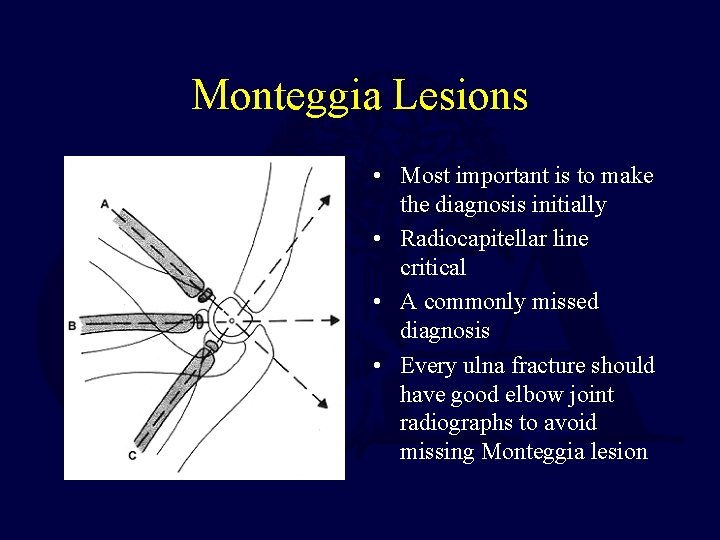

Monteggia Lesions • Most important is to make the diagnosis initially • Radiocapitellar line critical • A commonly missed diagnosis • Every ulna fracture should have good elbow joint radiographs to avoid missing Monteggia lesion

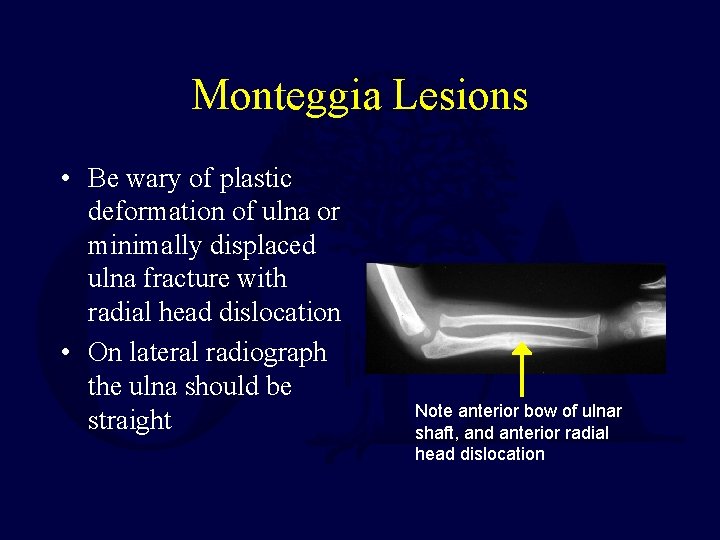

Monteggia Lesions • Be wary of plastic deformation of ulna or minimally displaced ulna fracture with radial head dislocation • On lateral radiograph the ulna should be straight Note anterior bow of ulnar shaft, and anterior radial head dislocation

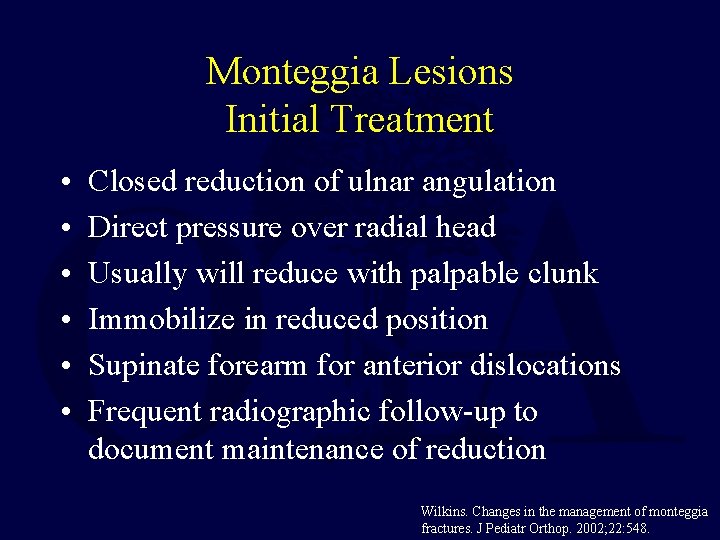

Monteggia Lesions Initial Treatment • • • Closed reduction of ulnar angulation Direct pressure over radial head Usually will reduce with palpable clunk Immobilize in reduced position Supinate forearm for anterior dislocations Frequent radiographic follow-up to document maintenance of reduction Wilkins. Changes in the management of monteggia fractures. J Pediatr Orthop. 2002; 22: 548.

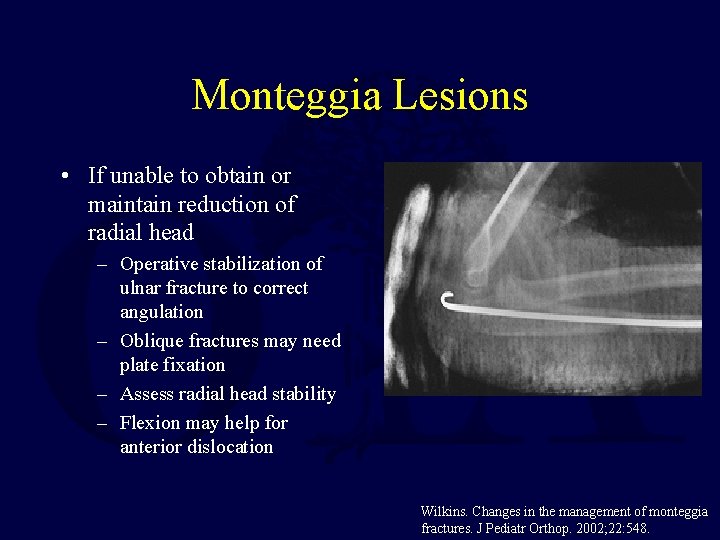

Monteggia Lesions • If unable to obtain or maintain reduction of radial head – Operative stabilization of ulnar fracture to correct angulation – Oblique fractures may need plate fixation – Assess radial head stability – Flexion may help for anterior dislocation Wilkins. Changes in the management of monteggia fractures. J Pediatr Orthop. 2002; 22: 548.

Missed Monteggia Lesion Anterior radial head dislocation and heterotopic ossification Healed prox ulna fx with anterior bow

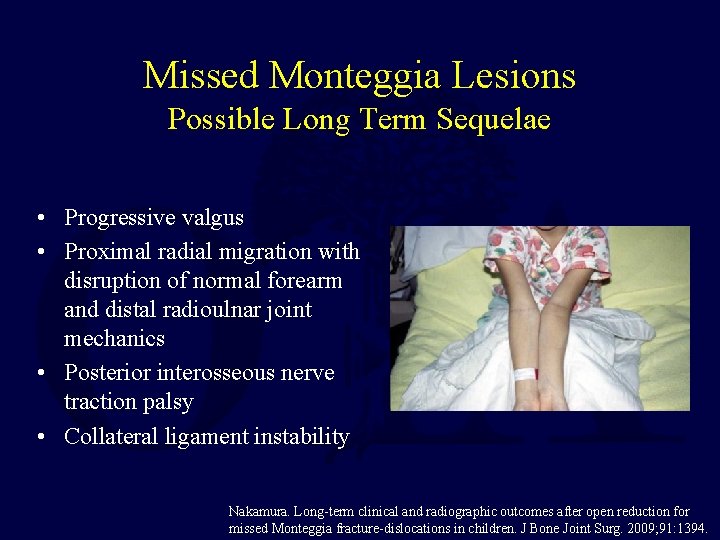

Missed Monteggia Lesions Possible Long Term Sequelae • Progressive valgus • Proximal radial migration with disruption of normal forearm and distal radioulnar joint mechanics • Posterior interosseous nerve traction palsy • Collateral ligament instability Nakamura. Long-term clinical and radiographic outcomes after open reduction for missed Monteggia fracture-dislocations in children. J Bone Joint Surg. 2009; 91: 1394.

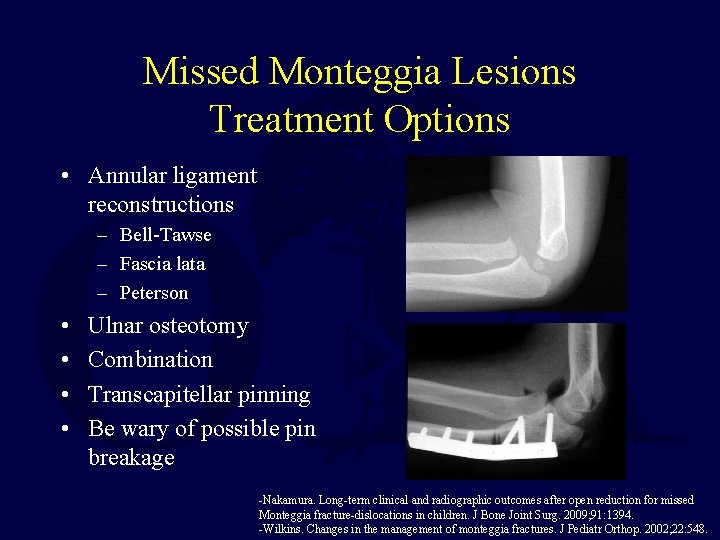

Missed Monteggia Lesions Treatment Options • Annular ligament reconstructions – Bell-Tawse – Fascia lata – Peterson • • Ulnar osteotomy Combination Transcapitellar pinning Be wary of possible pin breakage -Nakamura. Long-term clinical and radiographic outcomes after open reduction for missed Monteggia fracture-dislocations in children. J Bone Joint Surg. 2009; 91: 1394. -Wilkins. Changes in the management of monteggia fractures. J Pediatr Orthop. 2002; 22: 548.

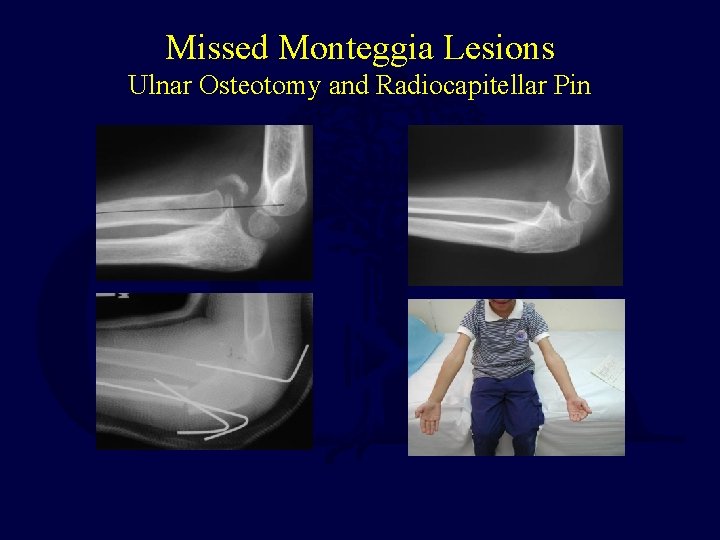

Missed Monteggia Lesions Ulnar Osteotomy and Radiocapitellar Pin

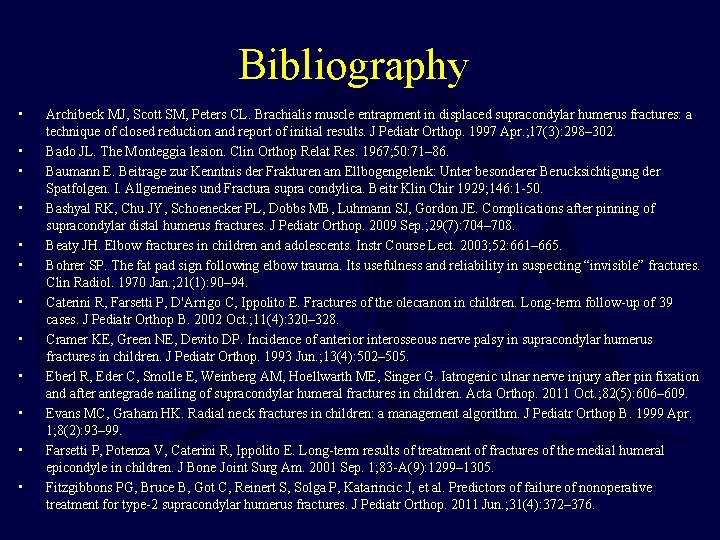

Bibliography • • • Archibeck MJ, Scott SM, Peters CL. Brachialis muscle entrapment in displaced supracondylar humerus fractures: a technique of closed reduction and report of initial results. J Pediatr Orthop. 1997 Apr. ; 17(3): 298– 302. Bado JL. The Monteggia lesion. Clin Orthop Relat Res. 1967; 50: 71– 86. Baumann E. Beitrage zur Kenntnis der Frakturen am Ellbogengelenk: Unter besonderer Berucksichtigung der Spatfolgen. I. Allgemeines und Fractura supra condylica. Beitr Klin Chir 1929; 146: 1 -50. Bashyal RK, Chu JY, Schoenecker PL, Dobbs MB, Luhmann SJ, Gordon JE. Complications after pinning of supracondylar distal humerus fractures. J Pediatr Orthop. 2009 Sep. ; 29(7): 704– 708. Beaty JH. Elbow fractures in children and adolescents. Instr Course Lect. 2003; 52: 661– 665. Bohrer SP. The fat pad sign following elbow trauma. Its usefulness and reliability in suspecting “invisible” fractures. Clin Radiol. 1970 Jan. ; 21(1): 90– 94. Caterini R, Farsetti P, D'Arrigo C, Ippolito E. Fractures of the olecranon in children. Long-term follow-up of 39 cases. J Pediatr Orthop B. 2002 Oct. ; 11(4): 320– 328. Cramer KE, Green NE, Devito DP. Incidence of anterior interosseous nerve palsy in supracondylar humerus fractures in children. J Pediatr Orthop. 1993 Jun. ; 13(4): 502– 505. Eberl R, Eder C, Smolle E, Weinberg AM, Hoellwarth ME, Singer G. Iatrogenic ulnar nerve injury after pin fixation and after antegrade nailing of supracondylar humeral fractures in children. Acta Orthop. 2011 Oct. ; 82(5): 606– 609. Evans MC, Graham HK. Radial neck fractures in children: a management algorithm. J Pediatr Orthop B. 1999 Apr. 1; 8(2): 93– 99. Farsetti P, Potenza V, Caterini R, Ippolito E. Long-term results of treatment of fractures of the medial humeral epicondyle in children. J Bone Joint Surg Am. 2001 Sep. 1; 83 -A(9): 1299– 1305. Fitzgibbons PG, Bruce B, Got C, Reinert S, Solga P, Katarincic J, et al. Predictors of failure of nonoperative treatment for type-2 supracondylar humerus fractures. J Pediatr Orthop. 2011 Jun. ; 31(4): 372– 376.

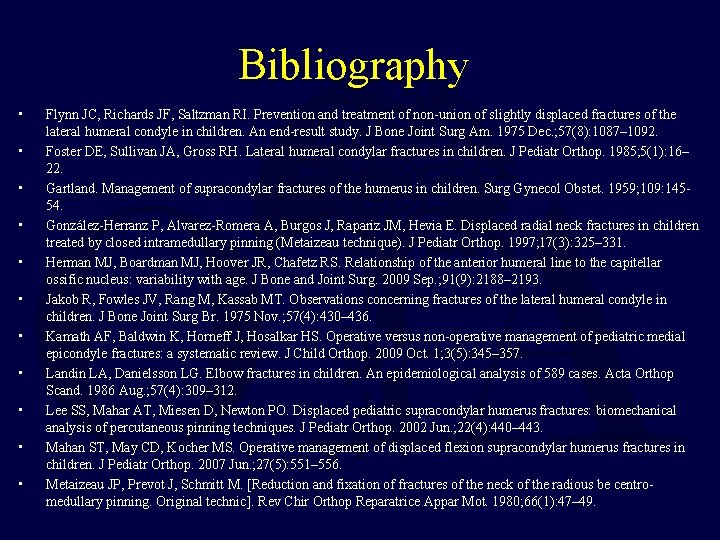

Bibliography • • • Flynn JC, Richards JF, Saltzman RI. Prevention and treatment of non-union of slightly displaced fractures of the lateral humeral condyle in children. An end-result study. J Bone Joint Surg Am. 1975 Dec. ; 57(8): 1087– 1092. Foster DE, Sullivan JA, Gross RH. Lateral humeral condylar fractures in children. J Pediatr Orthop. 1985; 5(1): 16– 22. Gartland. Management of supracondylar fractures of the humerus in children. Surg Gynecol Obstet. 1959; 109: 14554. González-Herranz P, Alvarez-Romera A, Burgos J, Rapariz JM, Hevia E. Displaced radial neck fractures in children treated by closed intramedullary pinning (Metaizeau technique). J Pediatr Orthop. 1997; 17(3): 325– 331. Herman MJ, Boardman MJ, Hoover JR, Chafetz RS. Relationship of the anterior humeral line to the capitellar ossific nucleus: variability with age. J Bone and Joint Surg. 2009 Sep. ; 91(9): 2188– 2193. Jakob R, Fowles JV, Rang M, Kassab MT. Observations concerning fractures of the lateral humeral condyle in children. J Bone Joint Surg Br. 1975 Nov. ; 57(4): 430– 436. Kamath AF, Baldwin K, Horneff J, Hosalkar HS. Operative versus non-operative management of pediatric medial epicondyle fractures: a systematic review. J Child Orthop. 2009 Oct. 1; 3(5): 345– 357. Landin LA, Danielsson LG. Elbow fractures in children. An epidemiological analysis of 589 cases. Acta Orthop Scand. 1986 Aug. ; 57(4): 309– 312. Lee SS, Mahar AT, Miesen D, Newton PO. Displaced pediatric supracondylar humerus fractures: biomechanical analysis of percutaneous pinning techniques. J Pediatr Orthop. 2002 Jun. ; 22(4): 440– 443. Mahan ST, May CD, Kocher MS. Operative management of displaced flexion supracondylar humerus fractures in children. J Pediatr Orthop. 2007 Jun. ; 27(5): 551– 556. Metaizeau JP, Prevot J, Schmitt M. [Reduction and fixation of fractures of the neck of the radious be centromedullary pinning. Original technic]. Rev Chir Orthop Reparatrice Appar Mot. 1980; 66(1): 47– 49.

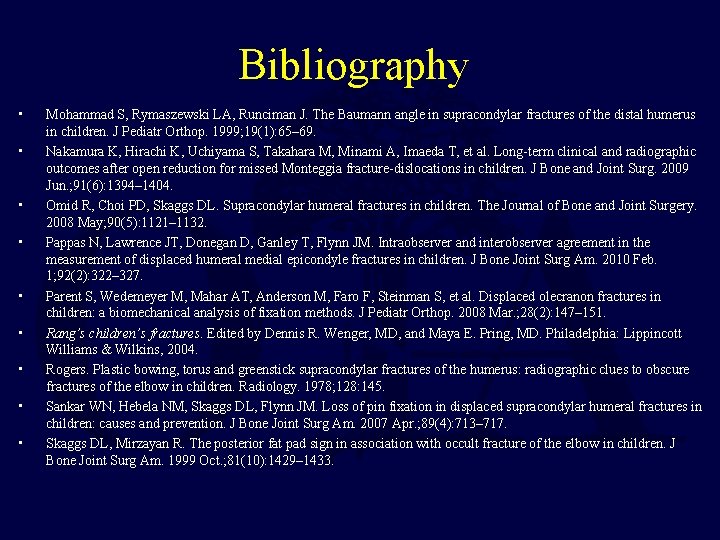

Bibliography • • • Mohammad S, Rymaszewski LA, Runciman J. The Baumann angle in supracondylar fractures of the distal humerus in children. J Pediatr Orthop. 1999; 19(1): 65– 69. Nakamura K, Hirachi K, Uchiyama S, Takahara M, Minami A, Imaeda T, et al. Long-term clinical and radiographic outcomes after open reduction for missed Monteggia fracture-dislocations in children. J Bone and Joint Surg. 2009 Jun. ; 91(6): 1394– 1404. Omid R, Choi PD, Skaggs DL. Supracondylar humeral fractures in children. The Journal of Bone and Joint Surgery. 2008 May; 90(5): 1121– 1132. Pappas N, Lawrence JT, Donegan D, Ganley T, Flynn JM. Intraobserver and interobserver agreement in the measurement of displaced humeral medial epicondyle fractures in children. J Bone Joint Surg Am. 2010 Feb. 1; 92(2): 322– 327. Parent S, Wedemeyer M, Mahar AT, Anderson M, Faro F, Steinman S, et al. Displaced olecranon fractures in children: a biomechanical analysis of fixation methods. J Pediatr Orthop. 2008 Mar. ; 28(2): 147– 151. Rang’s children’s fractures. Edited by Dennis R. Wenger, MD, and Maya E. Pring, MD. Philadelphia: Lippincott Williams & Wilkins, 2004. Rogers. Plastic bowing, torus and greenstick supracondylar fractures of the humerus: radiographic clues to obscure fractures of the elbow in children. Radiology. 1978; 128: 145. Sankar WN, Hebela NM, Skaggs DL, Flynn JM. Loss of pin fixation in displaced supracondylar humeral fractures in children: causes and prevention. J Bone Joint Surg Am. 2007 Apr. ; 89(4): 713– 717. Skaggs DL, Mirzayan R. The posterior fat pad sign in association with occult fracture of the elbow in children. J Bone Joint Surg Am. 1999 Oct. ; 81(10): 1429– 1433.

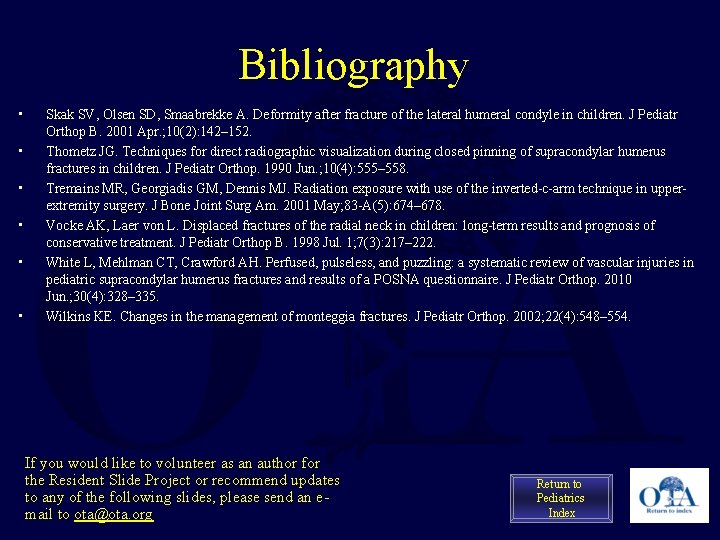

Bibliography • • • Skak SV, Olsen SD, Smaabrekke A. Deformity after fracture of the lateral humeral condyle in children. J Pediatr Orthop B. 2001 Apr. ; 10(2): 142– 152. Thometz JG. Techniques for direct radiographic visualization during closed pinning of supracondylar humerus fractures in children. J Pediatr Orthop. 1990 Jun. ; 10(4): 555– 558. Tremains MR, Georgiadis GM, Dennis MJ. Radiation exposure with use of the inverted-c-arm technique in upperextremity surgery. J Bone Joint Surg Am. 2001 May; 83 -A(5): 674– 678. Vocke AK, Laer von L. Displaced fractures of the radial neck in children: long-term results and prognosis of conservative treatment. J Pediatr Orthop B. 1998 Jul. 1; 7(3): 217– 222. White L, Mehlman CT, Crawford AH. Perfused, pulseless, and puzzling: a systematic review of vascular injuries in pediatric supracondylar humerus fractures and results of a POSNA questionnaire. J Pediatr Orthop. 2010 Jun. ; 30(4): 328– 335. Wilkins KE. Changes in the management of monteggia fractures. J Pediatr Orthop. 2002; 22(4): 548– 554. If you would like to volunteer as an author for the Resident Slide Project or recommend updates to any of the following slides, please send an email to ota@ota. org Return to Pediatrics Index
