FRACTALS IN NEUROSCIENCE Bio and Brain Engineering in
FRACTALS IN NEUROSCIENCE Bio and Brain Engineering in KAIST, Son Hyun. Jin
Contents Part 1 What is Fractal Properties Fractal Dimension Fractal in Neuroscience Part 2 Fractal Analysis in Neuroimaging Fractal Analysis in Neurological Disease Fractal Analysis of Brain Tumor Fractal Analysis of Time Series

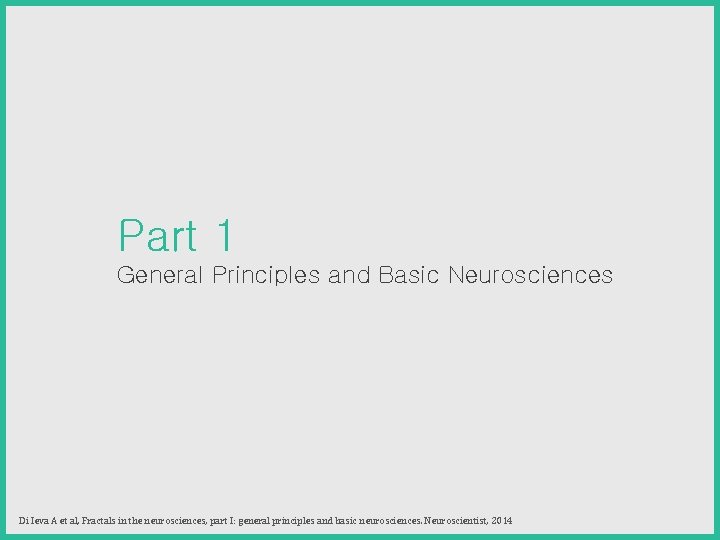

Part 1 General Principles and Basic Neurosciences Di Ieva A et al, Fractals in the neurosciences, part I: general principles and basic neurosciences. Neuroscientist, 2014

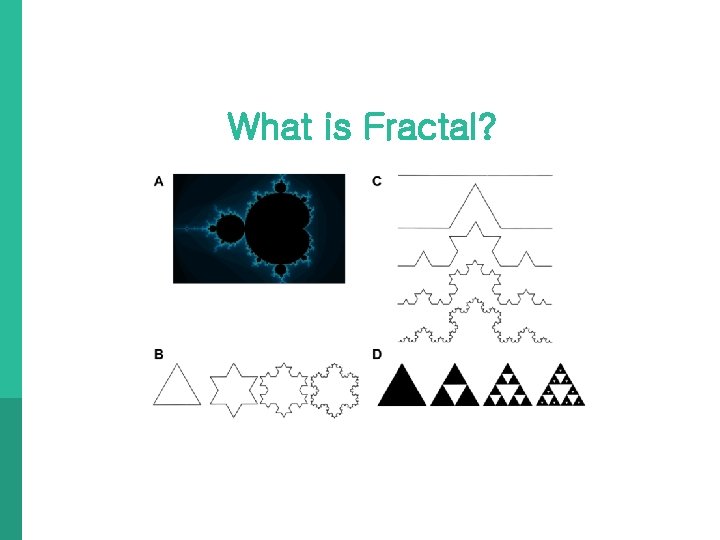

What is Fractal?
Fractal Properties Iteration Irregularity Non-integer fractal dimension Scaling

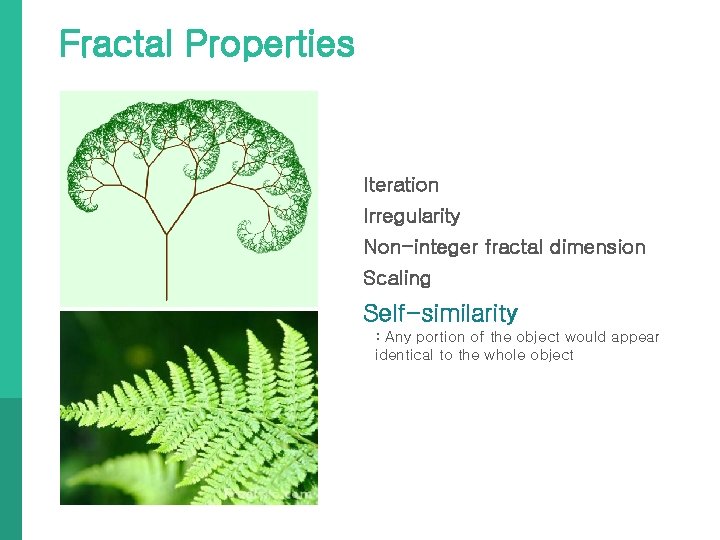

Fractal Properties Iteration Irregularity Non-integer fractal dimension Scaling Self-similarity : Any portion of the object would appear identical to the whole object
Fractal Dimension

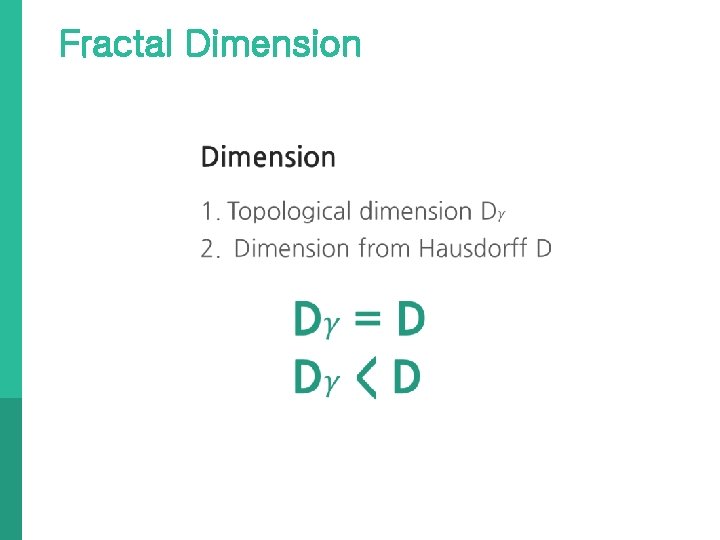

Fractal Dimension

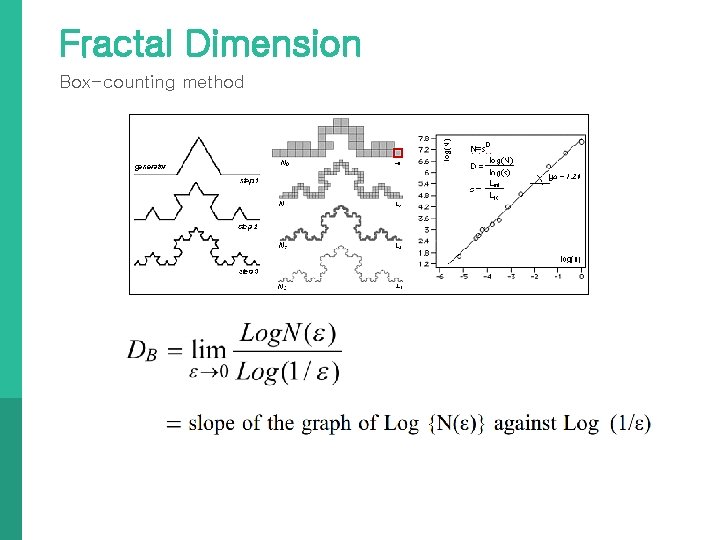

Fractal Dimension Box-counting method
Fractal Dimension Box-counting method
Fractal in Neuroscience § Mandelbrot (1983) § Smith (1994) § Nowadays, modern neurosciences admit the prevalence of fractal properties in the brain at various levels § FD correlates with the increase in morphological complexity and neuronal maturity De. Felipe J. The evolution of the brain, the human nature of cortical circuits, and the intellectual creativity. Front Neuroanat 5: 1– 16. 2011

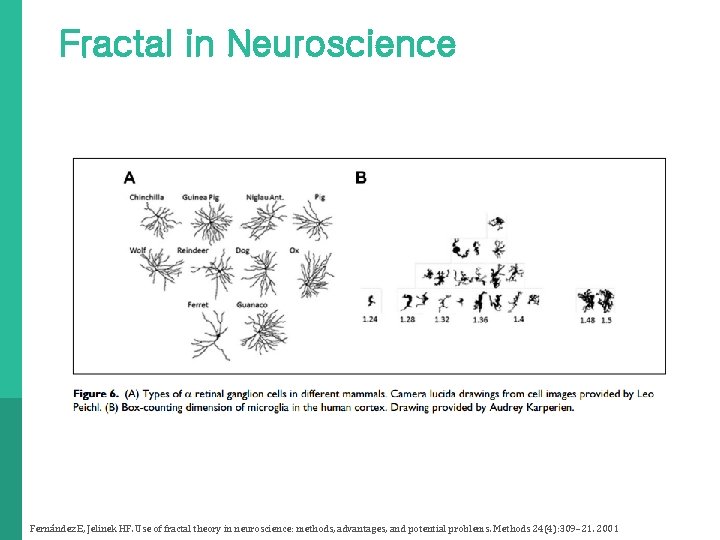

Fractal in Neuroscience Fernández E, Jelinek HF. Use of fractal theory in neuroscience: methods, advantages, and potential problems. Methods 24(4): 309– 21. 2001

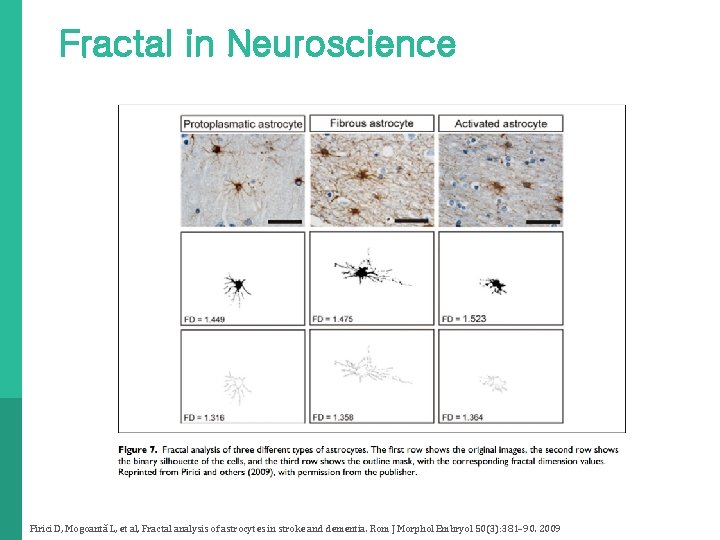

Fractal in Neuroscience Pirici D, Mogoantă L, et al, Fractal analysis of astrocytes in stroke and dementia. Rom J Morphol Embryol 50(3): 381– 90. 2009

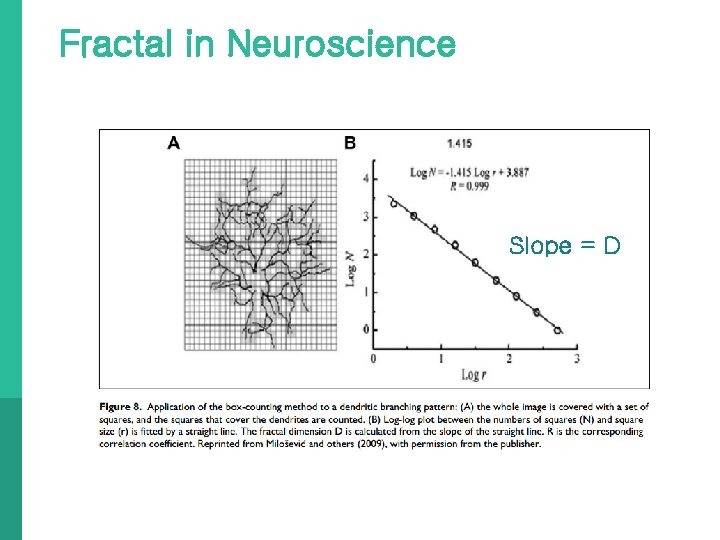

Fractal in Neuroscience Slope = D
Part 2 Clinical Applications and Future Perspectives Di Ieva A et al, Fractals in the neurosciences, Part II, Clinical Applications and Future Perspectives Neuroscientist, 2015

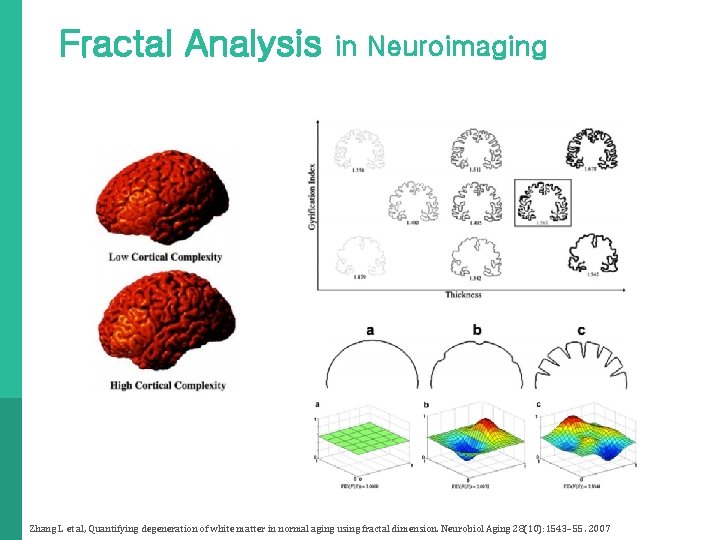

Fractal Analysis in Neuroimaging Zhang L et al, Quantifying degeneration of white matter in normal aging using fractal dimension. Neurobiol Aging 28(10): 1543– 55. 2007

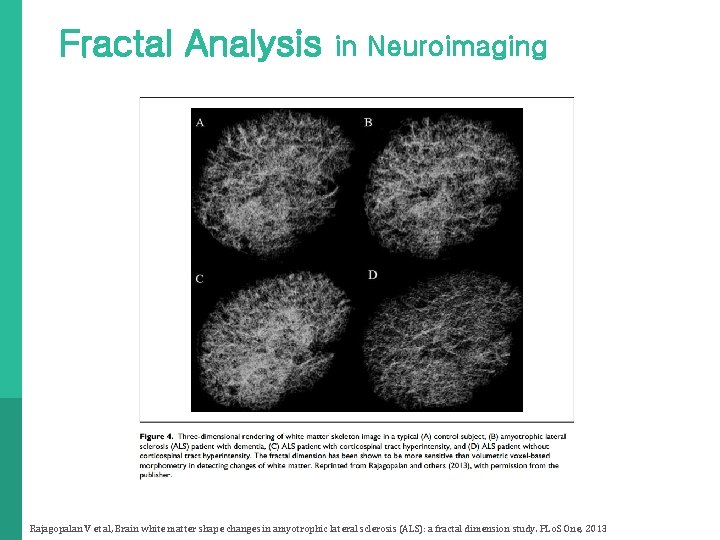

Fractal Analysis in Neuroimaging Rajagopalan V et al, Brain white matter shape changes in amyotrophic lateral sclerosis (ALS): a fractal dimension study. PLo. S One, 2013

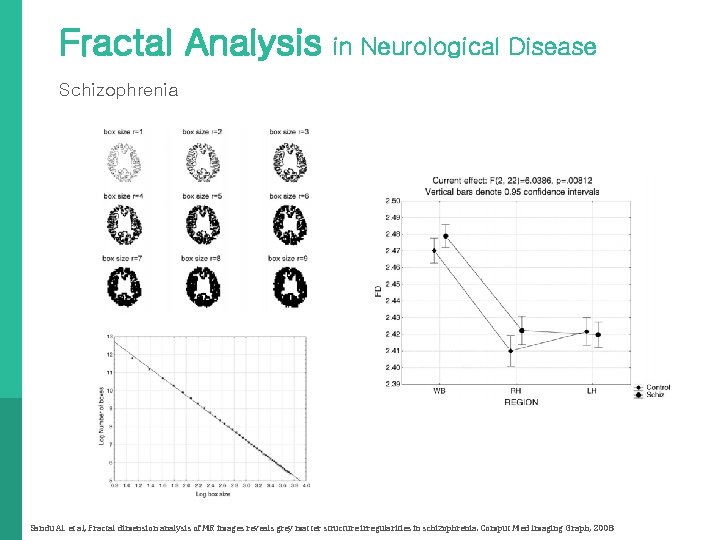

Fractal Analysis in Neurological Disease Schizophrenia Sandu AL et al, Fractal dimension analysis of MR images reveals grey matter structure irregularities in schizophrenia. Comput Med Imaging Graph, 2008

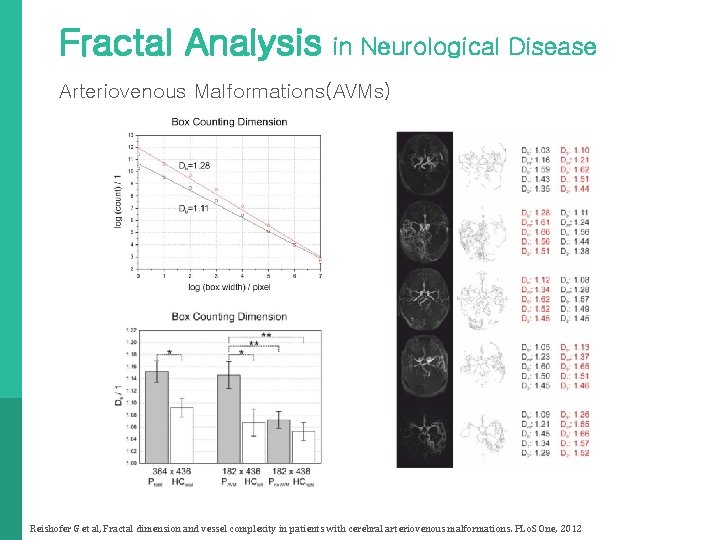

Fractal Analysis in Neurological Disease Arteriovenous Malformations(AVMs) Reishofer G et al, Fractal dimension and vessel complexity in patients with cerebral arteriovenous malformations. PLo. S One, 2012

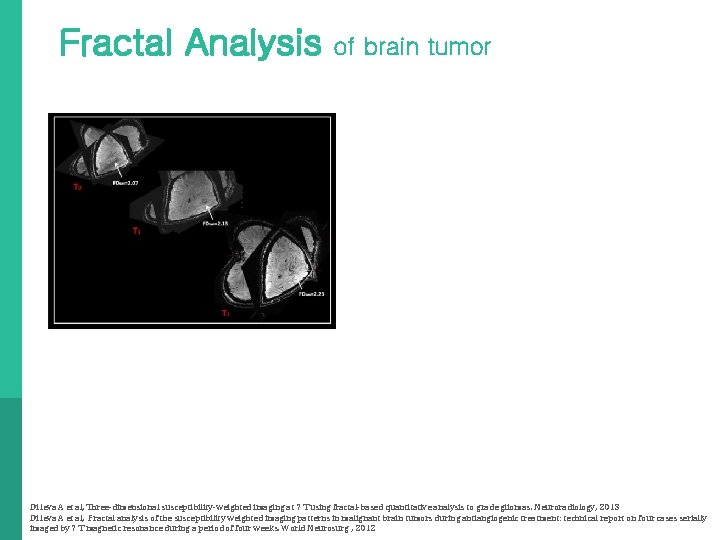

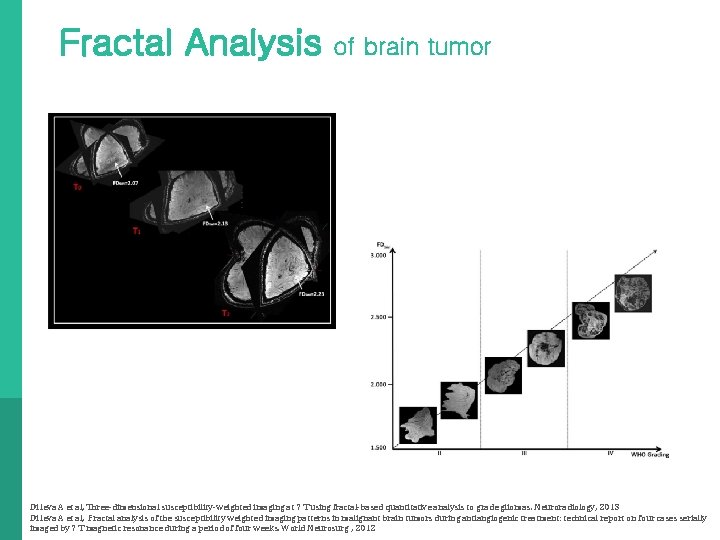

Fractal Analysis of brain tumor Di Ieva A et al, Three-dimensional susceptibility-weighted imaging at 7 T using fractal-based quantitative analysis to grade gliomas. Neuroradiology, 2013 Di Ieva A et al, Fractal analysis of the susceptibility weighted imaging patterns in malignant brain tumors during antiangiogenic treatment: technical report on four cases serially imaged by 7 T magnetic resonance during a period of four weeks. World Neurosurg , 2012
Fractal Analysis of brain tumor Di Ieva A et al, Three-dimensional susceptibility-weighted imaging at 7 T using fractal-based quantitative analysis to grade gliomas. Neuroradiology, 2013 Di Ieva A et al, Fractal analysis of the susceptibility weighted imaging patterns in malignant brain tumors during antiangiogenic treatment: technical report on four cases serially imaged by 7 T magnetic resonance during a period of four weeks. World Neurosurg , 2012

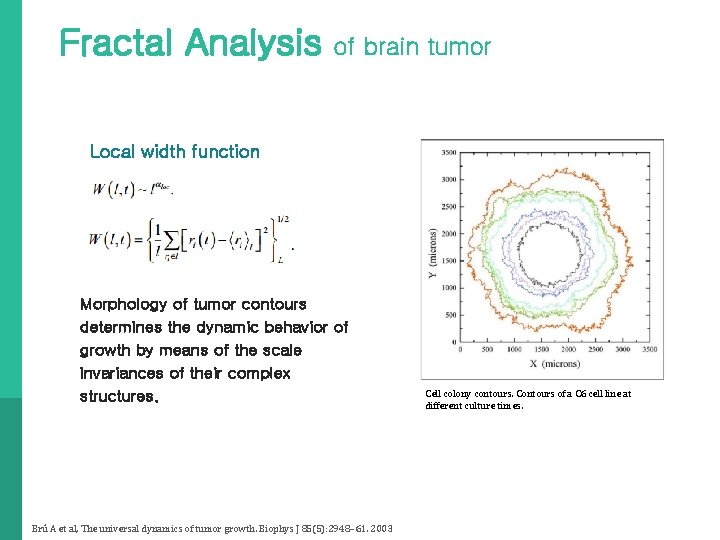

Fractal Analysis of brain tumor Local width function Morphology of tumor contours determines the dynamic behavior of growth by means of the scale invariances of their complex structures. Brú A et al, The universal dynamics of tumor growth. Biophys J 85(5): 2948– 61. 2003 Cell colony contours. Contours of a C 6 cell line at different culture times.

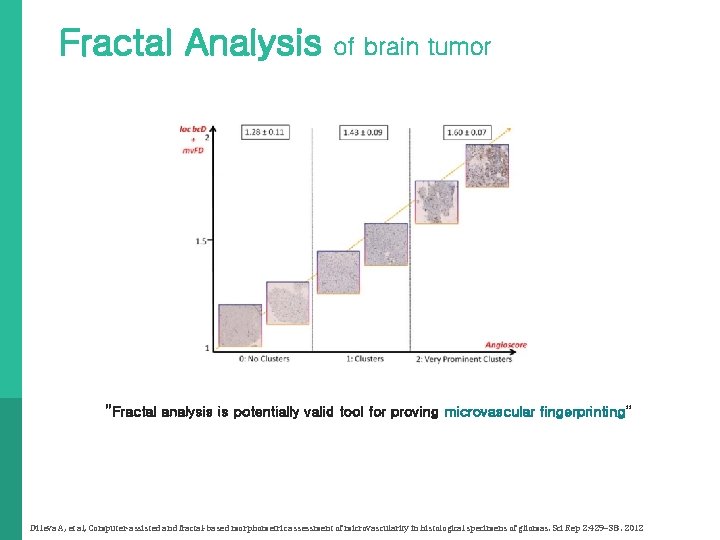

Fractal Analysis of brain tumor “Fractal analysis is potentially valid tool for proving microvascular fingerprinting” Di Ieva A, et al, Computer-assisted and fractal-based morphometric assessment of microvascularity in histological specimens of gliomas. Sci Rep 2: 429– 38. 2012

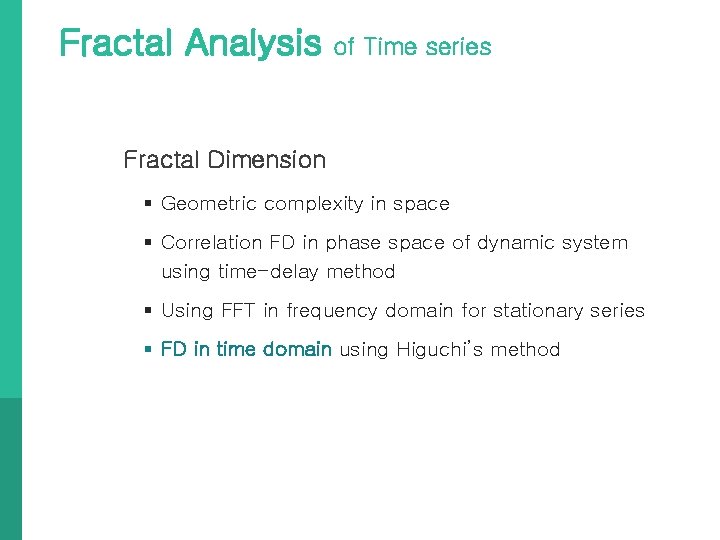

Fractal Analysis of Time series Fractal Dimension § Geometric complexity in space § Correlation FD in phase space of dynamic system using time-delay method § Using FFT in frequency domain for stationary series § FD in time domain using Higuchi’s method

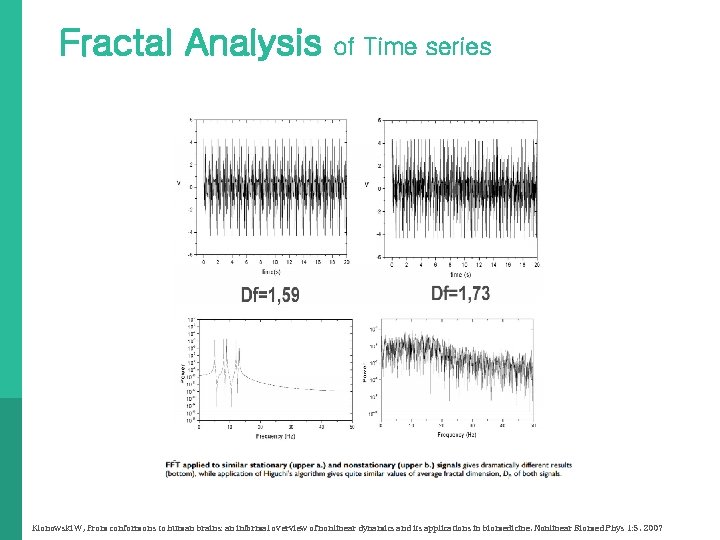

Fractal Analysis of Time series Klonowski W, From conformons to human brains: an informal overview of nonlinear dynamics and its applications in biomedicine. Nonlinear Biomed Phys 1: 5. 2007

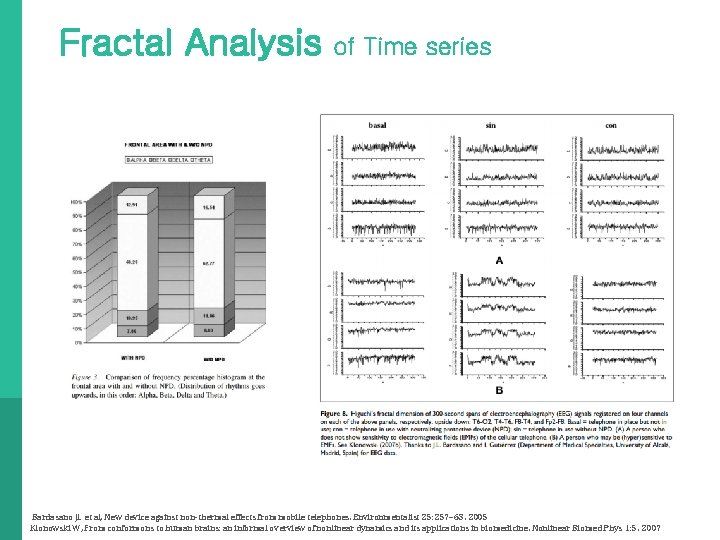

Fractal Analysis of Time series Bardasano JL et al, New device against non-thermal effects from mobile telephones. Environmentalist 25: 257– 63. 2005 Klonowski W, From conformons to human brains: an informal overview of nonlinear dynamics and its applications in biomedicine. Nonlinear Biomed Phys 1: 5. 2007

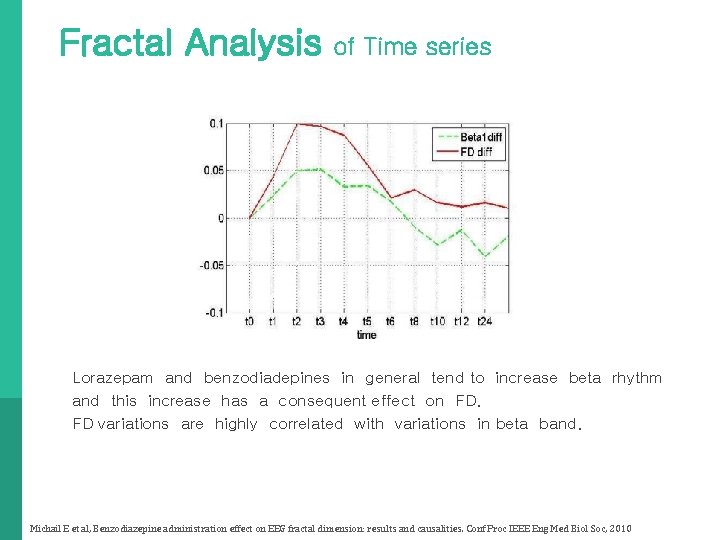

Fractal Analysis of Time series Lorazepam and benzodiadepines in general tend to increase beta rhythm and this increase has a consequent effect on FD. FD variations are highly correlated with variations in beta band. Michail E et al, Benzodiazepine administration effect on EEG fractal dimension: results and causalities. Conf Proc IEEE Eng Med Biol Soc, 2010
Our world is not linear. Fractal is powerful model to research!
