FQ PC tool quick start guide Michael Kleiber
FQ PC tool quick start guide Michael Kleiber Version: 25 th June 2010
Network setup Peer to peer: For peer to peer you have to assign a fixed IP address to your PC: 1 2 3 4+5 4 Right click 5 6 Enter these values
Network setup Office LAN: Office LAN You do not need to change your PC network settings, just take care that the cable to the office LAN is connected, otherwise the PC does not obtain an IP address and the system is not working!
Network Setup Switch off your firewall(s): e. g. AT&T VPN client firewall: It may look different on your PC because at Omron there are several different versions of the AT&T client installed. If you are not sure about these settings, please ask your network administrator for help… If any firewall is active you will not be able to communicate with the FQ sensor.
Installation of the PC tool: Dow n IAB load the datab P ase… C tool fro m th 1. 2. e Download the file „ 100618. zip” from the IAB database Unzip the file in a directory of your choice 1 Create a directory of your choice 3 double click this file to start the PC tool 2 You can find the PC tool in this directory MADE by_SENBU

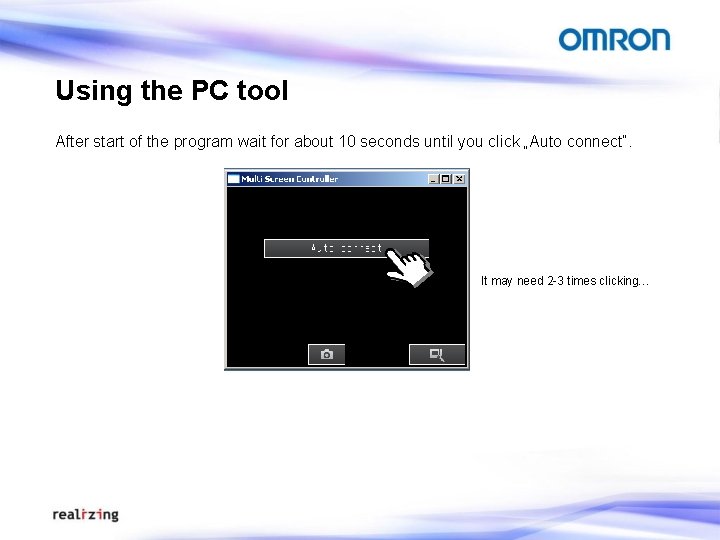

Using the PC tool After start of the program wait for about 10 seconds until you click „Auto connect“. It may need 2 -3 times clicking…
Using the PC tool Touch & Go! Brightness etc. Inspection items Veryfying the settings while the sensor triggers automatically. The I/O lines are not operated. RUN mode. Triggering by Input line. The I/O lines are operated.
Troubleshooting • • After power on the green BUSY LED should blink once (signals the application firmware is working). The orange ETN LED should be on/blinking if the network cable is connected properly. The orange LED should go off for about 1 -2 seconds after the PC tool is started, then the LED goes on again and you can click the „Auto connect“ button. You can test the FQ network connection by sending a ping to address 10. 5. 5. 100 and checking if there is response from FQ (after you set fixed IP for your PC).
