FPGA based RFID Reader Group Members Farhan Tariq

FPGA based RFID Reader Group Members – Farhan Tariq Usman Sarwar Khalid Khan Supervisor. Mr. Naveed Ahmed Internal Advisor. Prof. Dr. Abdul Razzak Memon External Advisor. Engn. Aurangzeb Dated: 03 -Sep-2007 @ Balochistan University of Information Technology and Management Sciences

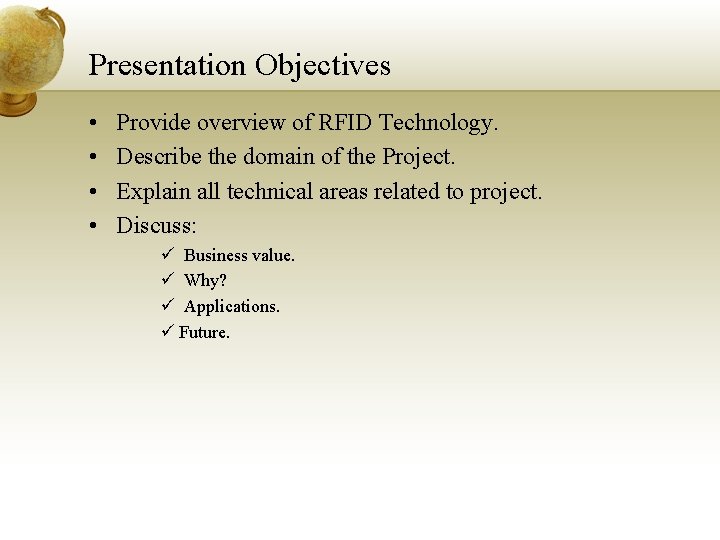

Presentation Objectives • • Provide overview of RFID Technology. Describe the domain of the Project. Explain all technical areas related to project. Discuss: ü Business value. ü Why? ü Applications. ü Future.

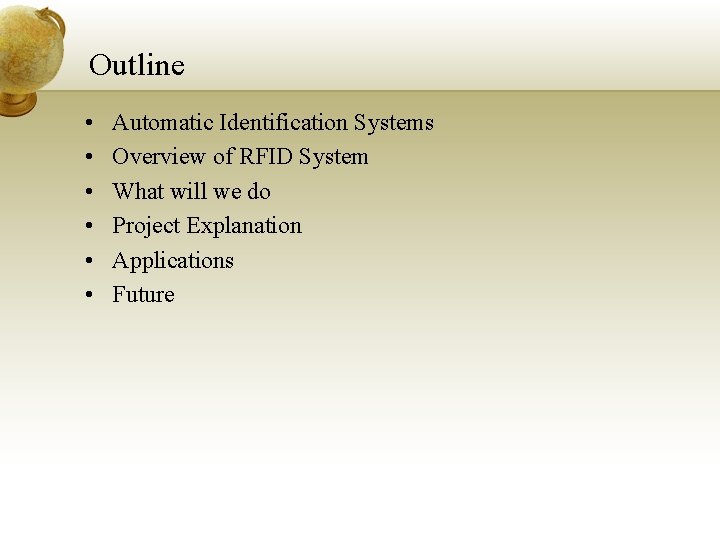

Outline • • • Automatic Identification Systems Overview of RFID System What will we do Project Explanation Applications Future

Automatic Identification Systems

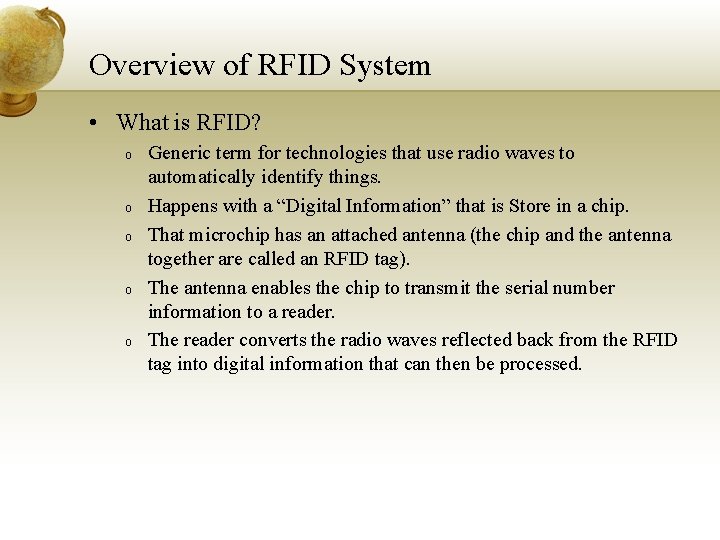

Overview of RFID System • What is RFID? o o o Generic term for technologies that use radio waves to automatically identify things. Happens with a “Digital Information” that is Store in a chip. That microchip has an attached antenna (the chip and the antenna together are called an RFID tag). The antenna enables the chip to transmit the serial number information to a reader. The reader converts the radio waves reflected back from the RFID tag into digital information that can then be processed.

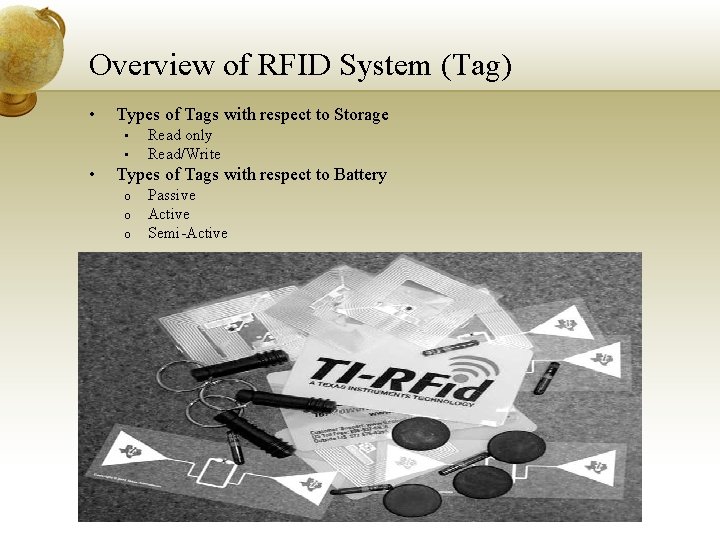

Overview of RFID System (Tag) • Types of Tags with respect to Storage • • • Read only Read/Write Types of Tags with respect to Battery o o o Passive Active Semi-Active

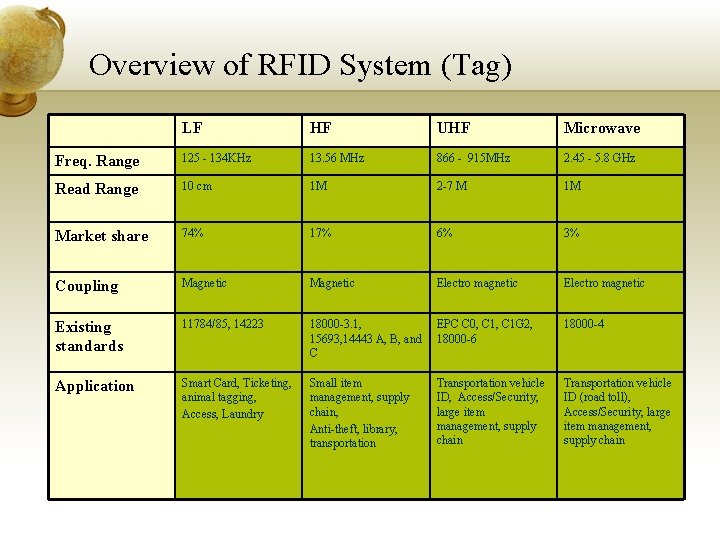

Overview of RFID System (Tag) LF HF UHF Microwave Freq. Range 125 - 134 KHz 13. 56 MHz 866 - 915 MHz 2. 45 - 5. 8 GHz Read Range 10 cm 1 M 2 -7 M 1 M Market share 74% 17% 6% 3% Coupling Magnetic Electro magnetic Existing standards 11784/85, 14223 18000 -3. 1, 15693, 14443 A, B, and C EPC C 0, C 1 G 2, 18000 -6 18000 -4 Application Smart Card, Ticketing, animal tagging, Access, Laundry Small item management, supply chain, Anti-theft, library, transportation Transportation vehicle ID, Access/Security, large item management, supply chain Transportation vehicle ID (road toll), Access/Security, large item management, supply chain

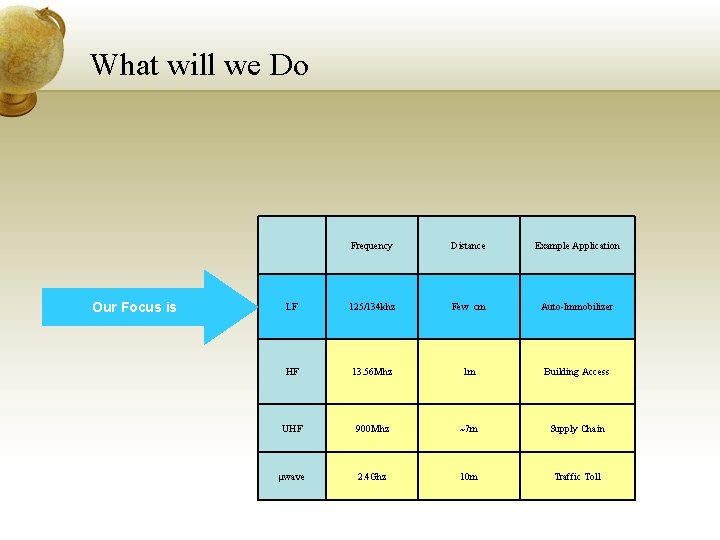

What will we Do Our Focus is Frequency Distance Example Application LF 125/134 khz Few cm Auto-Immobilizer HF 13. 56 Mhz 1 m Building Access UHF 900 Mhz ~7 m Supply Chain μwave 2. 4 Ghz 10 m Traffic Toll

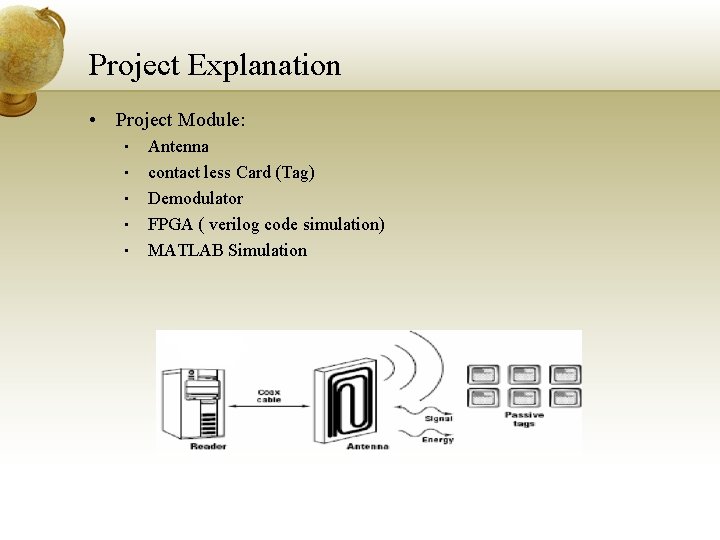

Project Explanation • Project Module: • • • Antenna contact less Card (Tag) Demodulator FPGA ( verilog code simulation) MATLAB Simulation

Project Explanation

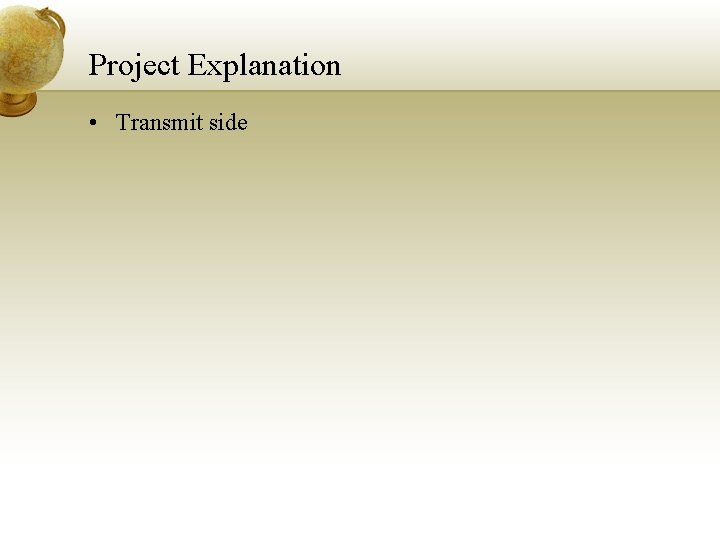

Project Explanation • Transmit side

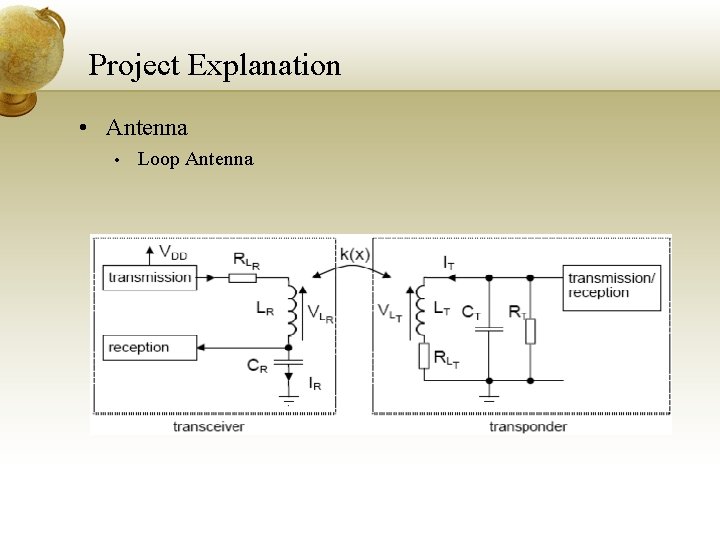

Project Explanation • Antenna • Loop Antenna

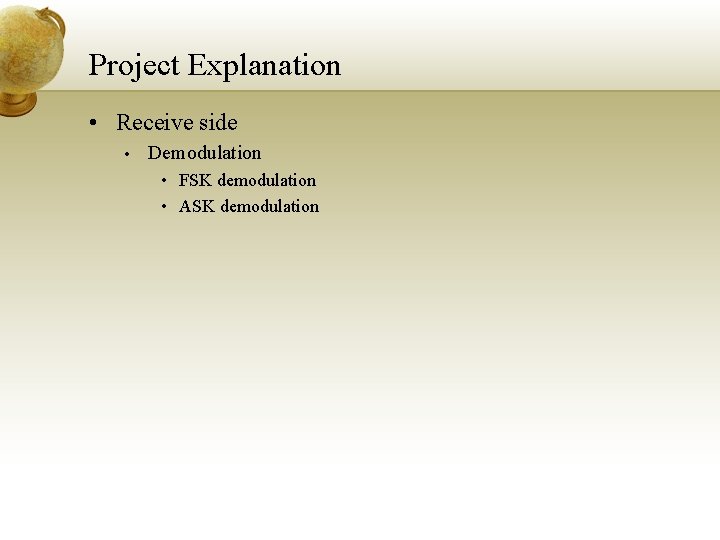

Project Explanation • Receive side • Demodulation • FSK demodulation • ASK demodulation

Project Explanation • ASK demodulation

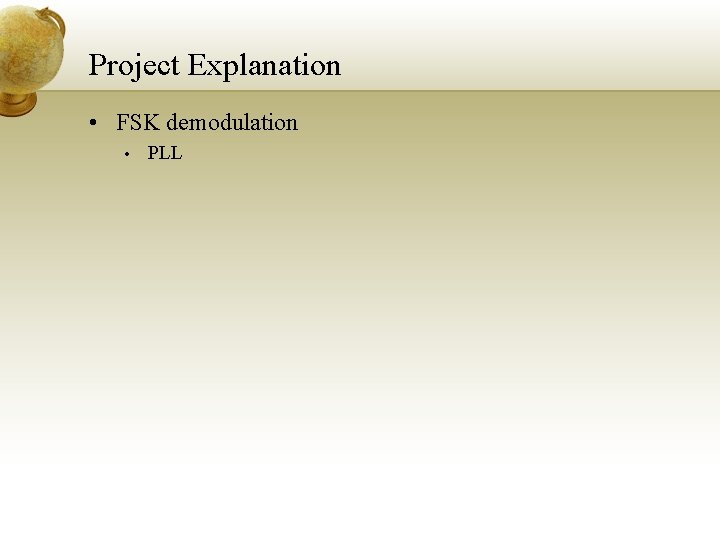

Project Explanation • FSK demodulation • PLL

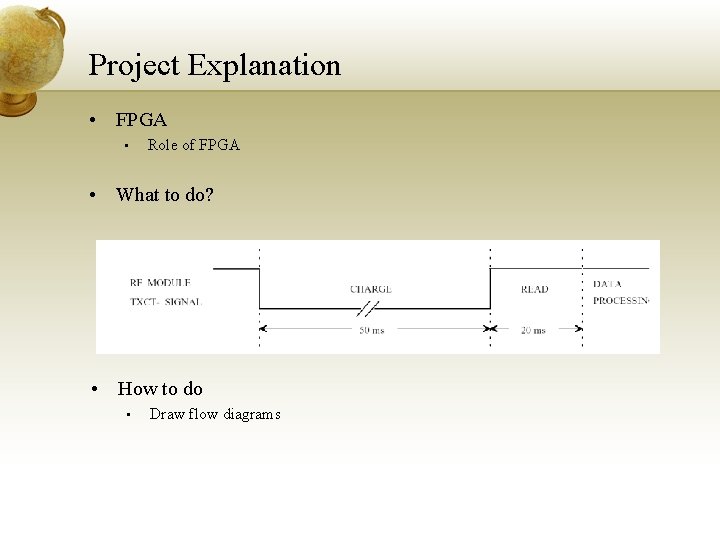

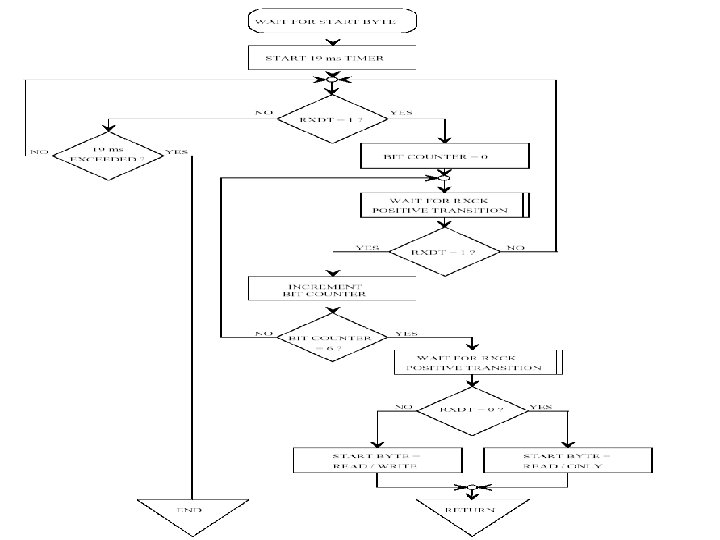

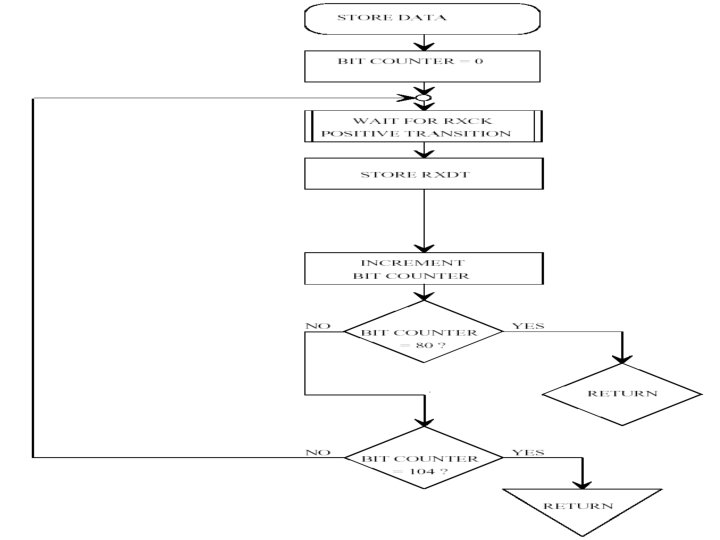

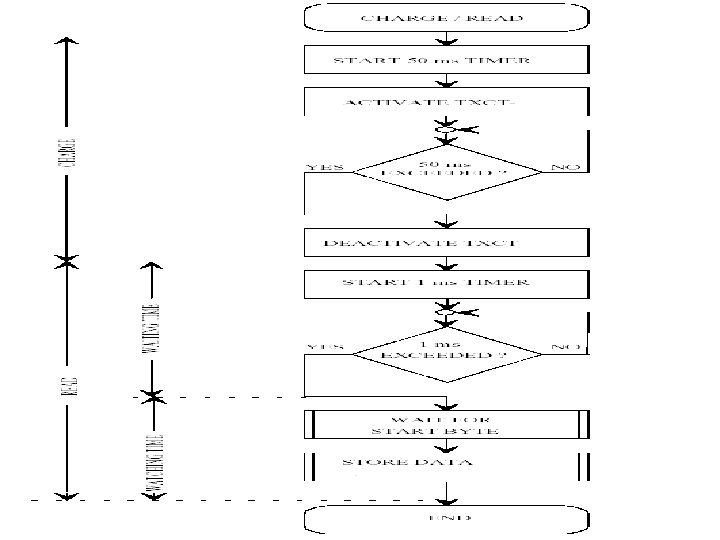

Project Explanation • FPGA • Role of FPGA • What to do? • How to do • Draw flow diagrams

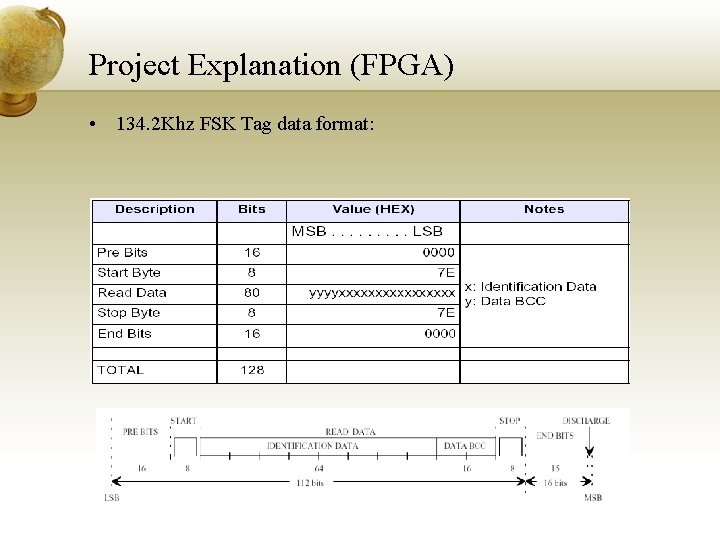

Project Explanation (FPGA) • 134. 2 Khz FSK Tag data format:

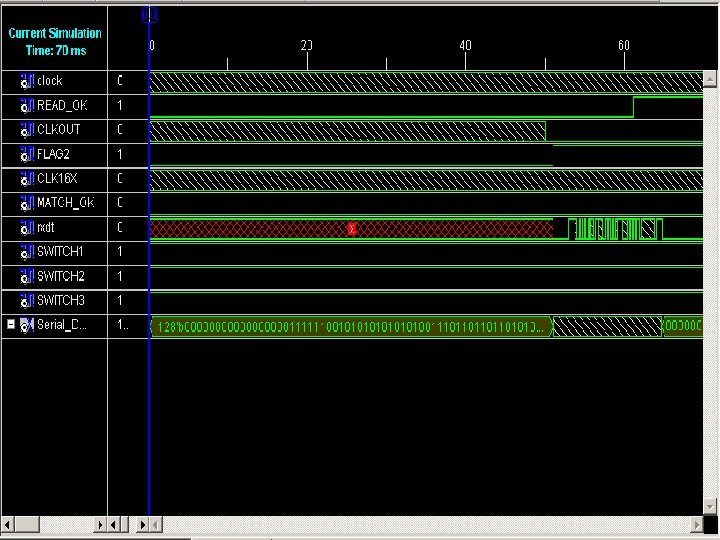

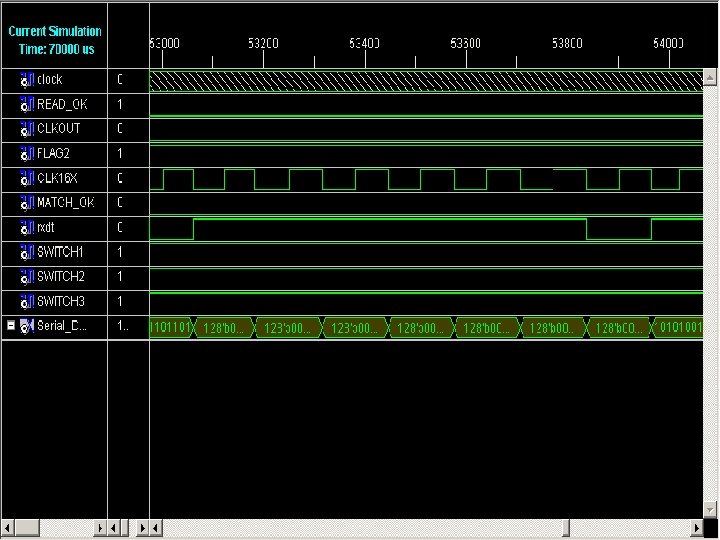

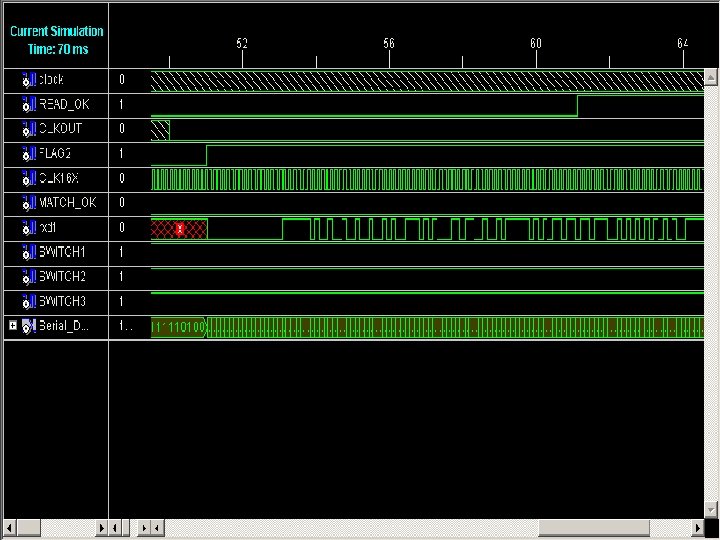

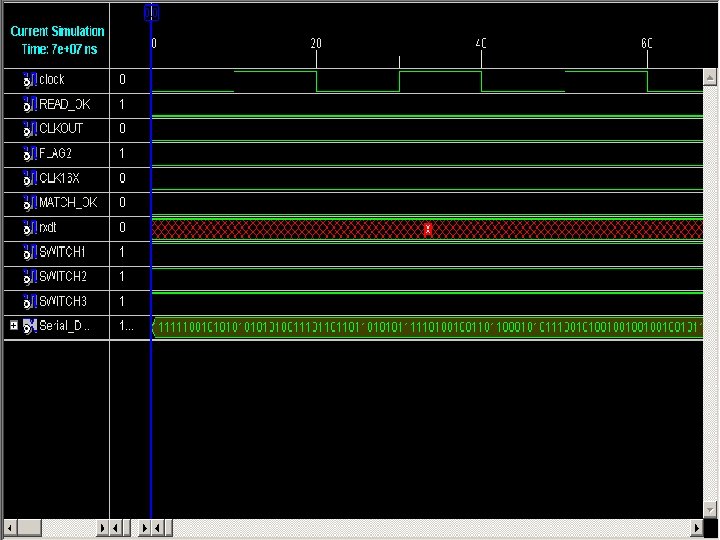

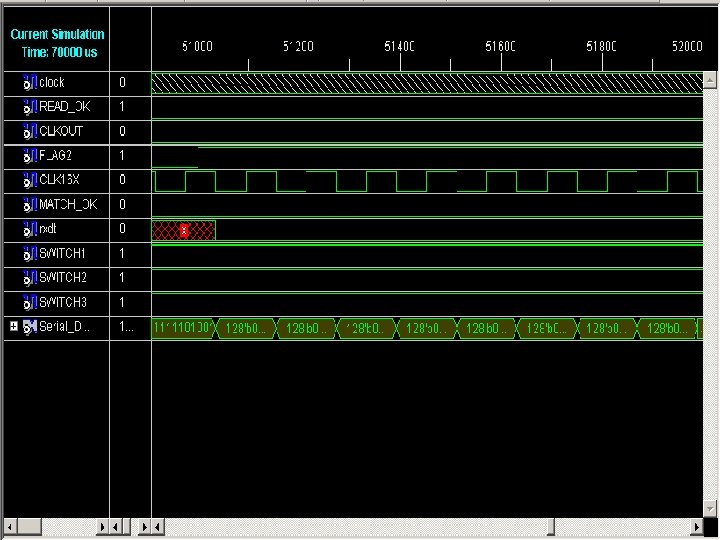

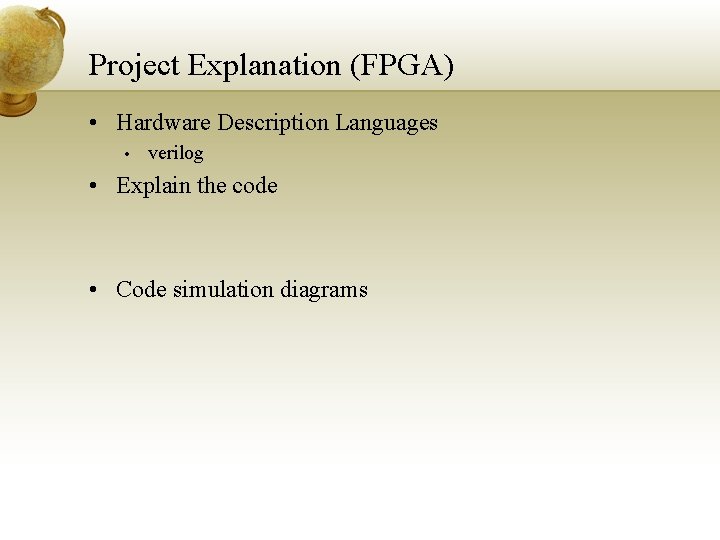

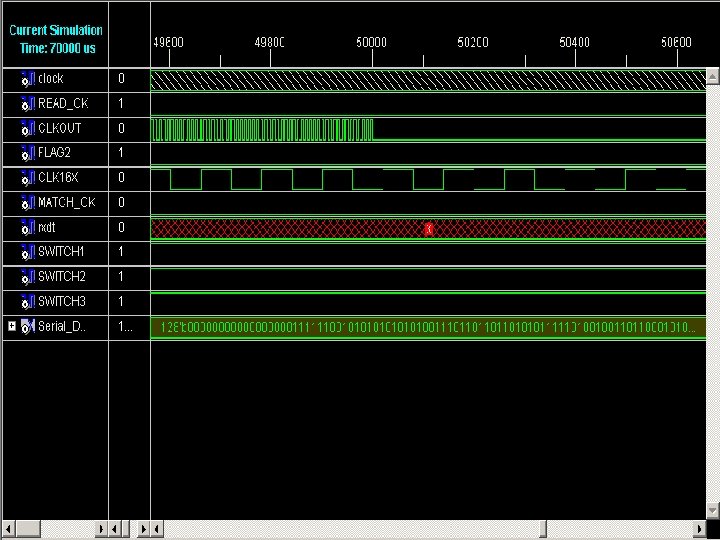

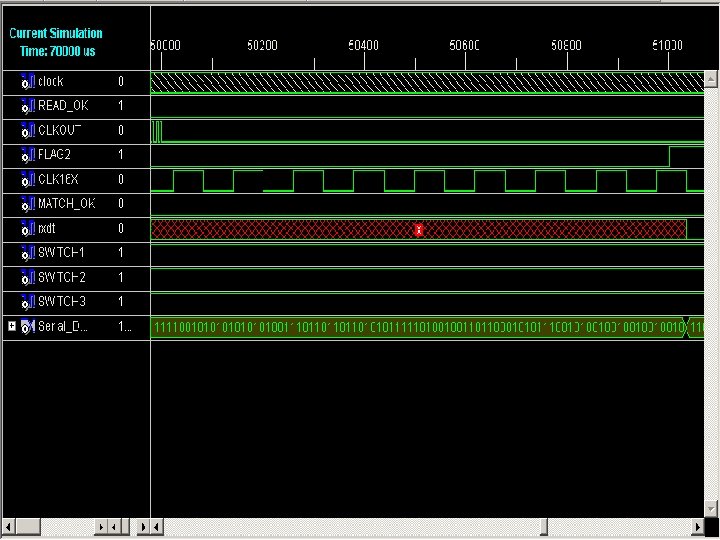

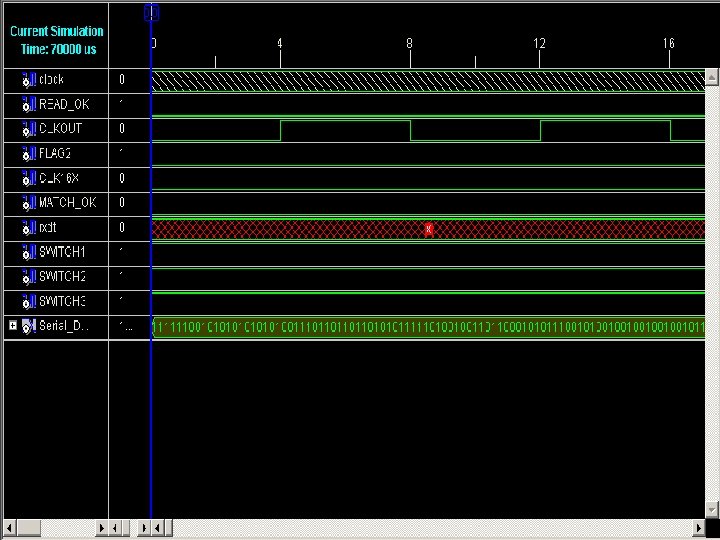

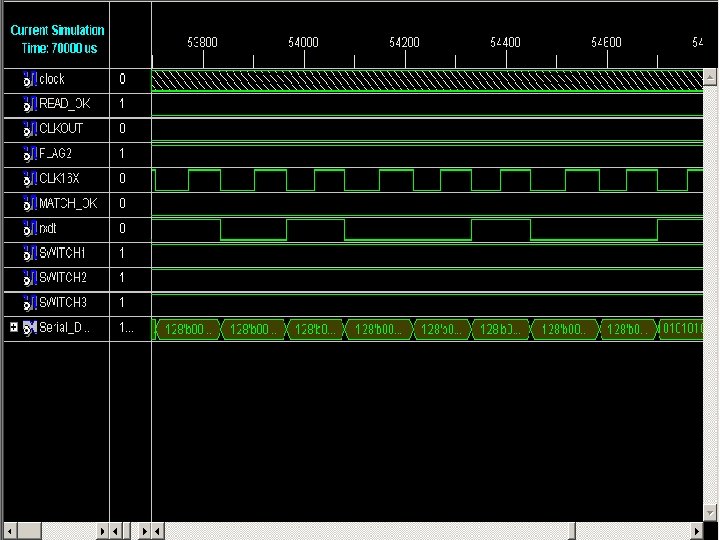

Project Explanation (FPGA) • Hardware Description Languages • verilog • Explain the code • Code simulation diagrams

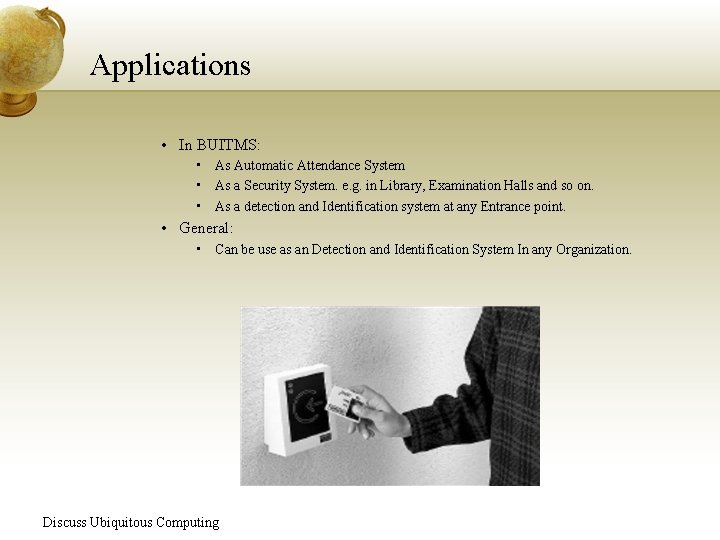

Applications • In BUITMS: • As Automatic Attendance System • As a Security System. e. g. in Library, Examination Halls and so on. • As a detection and Identification system at any Entrance point. • General: • Can be use as an Detection and Identification System In any Organization. Discuss Ubiquitous Computing

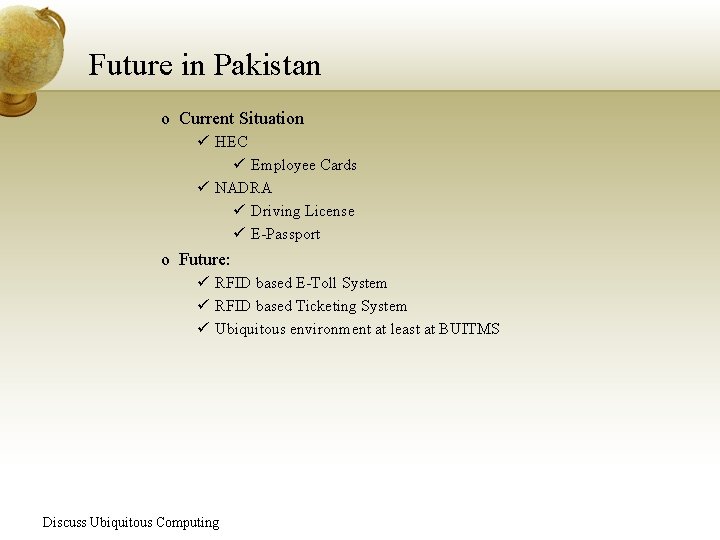

Future in Pakistan o Current Situation ü HEC ü Employee Cards ü NADRA ü Driving License ü E-Passport o Future: ü RFID based E-Toll System ü RFID based Ticketing System ü Ubiquitous environment at least at BUITMS Discuss Ubiquitous Computing
