Fourier theory made easy A sine wave 5sin

Fourier theory made easy (? )

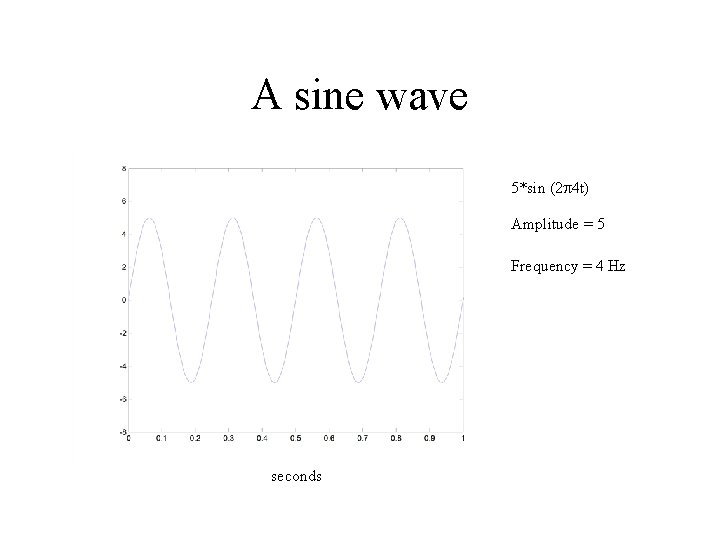

A sine wave 5*sin (2 4 t) Amplitude = 5 Frequency = 4 Hz seconds

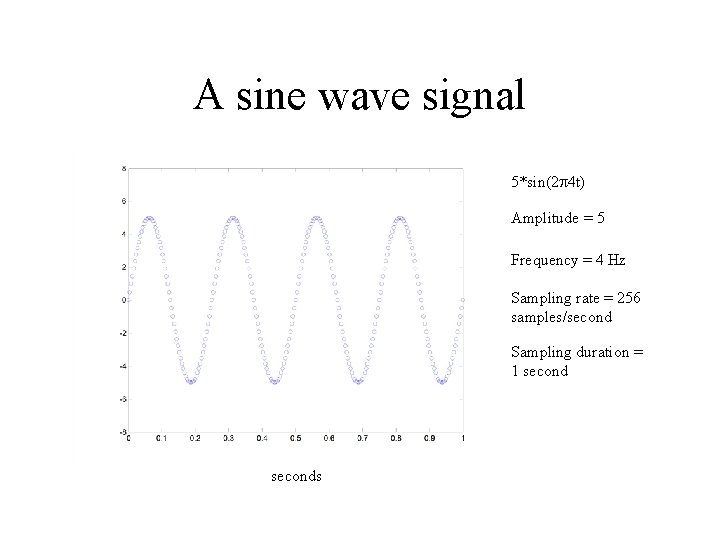

A sine wave signal 5*sin(2 4 t) Amplitude = 5 Frequency = 4 Hz Sampling rate = 256 samples/second Sampling duration = 1 seconds

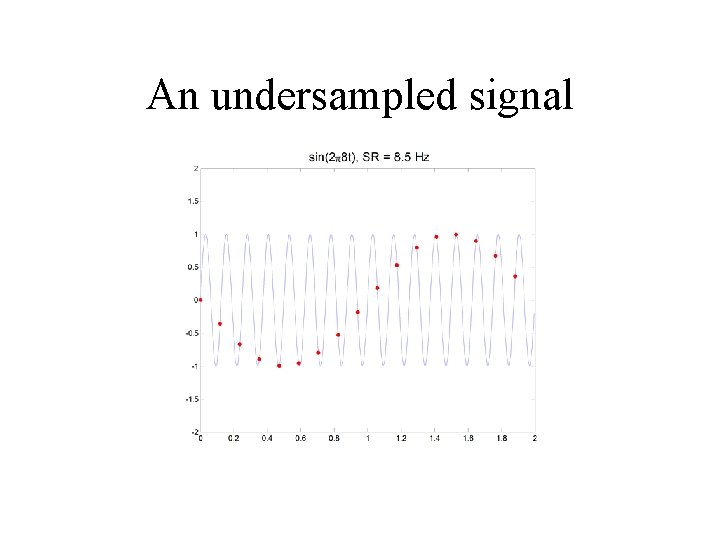

An undersampled signal

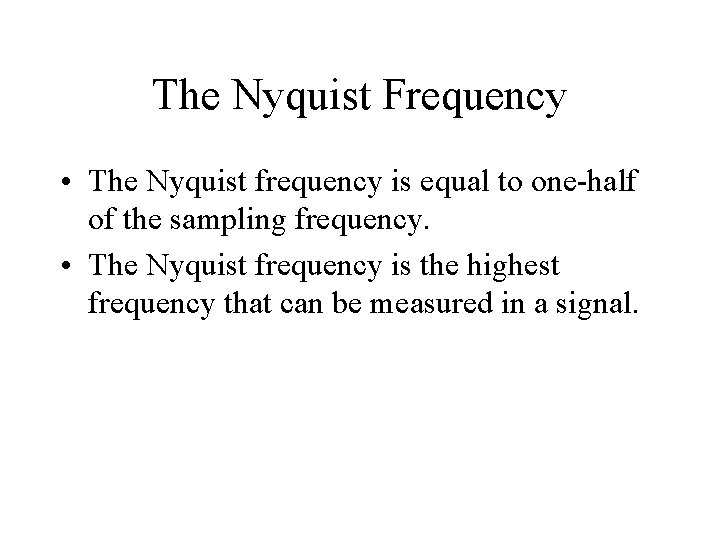

The Nyquist Frequency • The Nyquist frequency is equal to one-half of the sampling frequency. • The Nyquist frequency is the highest frequency that can be measured in a signal.

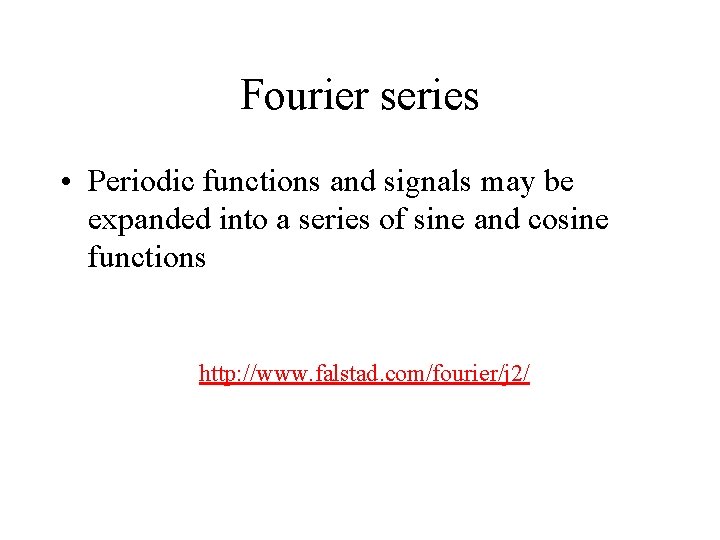

Fourier series • Periodic functions and signals may be expanded into a series of sine and cosine functions http: //www. falstad. com/fourier/j 2/

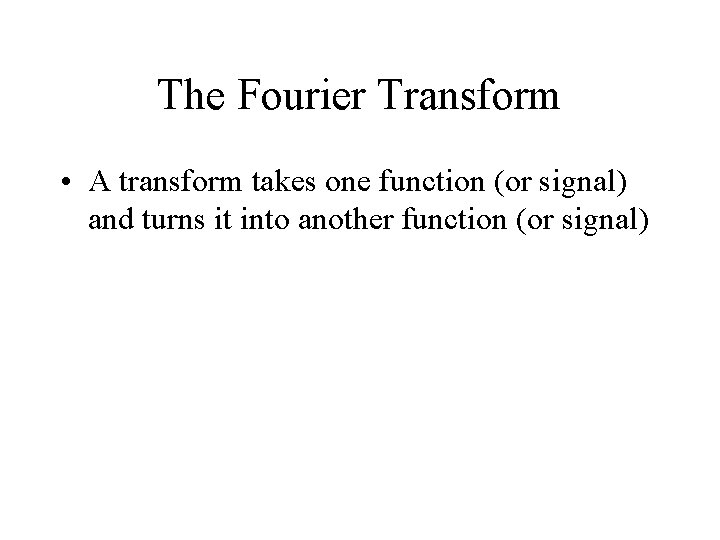

The Fourier Transform • A transform takes one function (or signal) and turns it into another function (or signal)

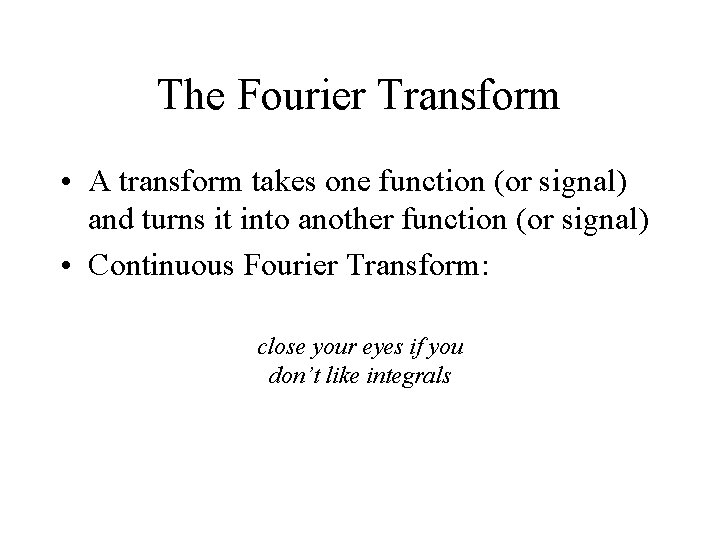

The Fourier Transform • A transform takes one function (or signal) and turns it into another function (or signal) • Continuous Fourier Transform: close your eyes if you don’t like integrals

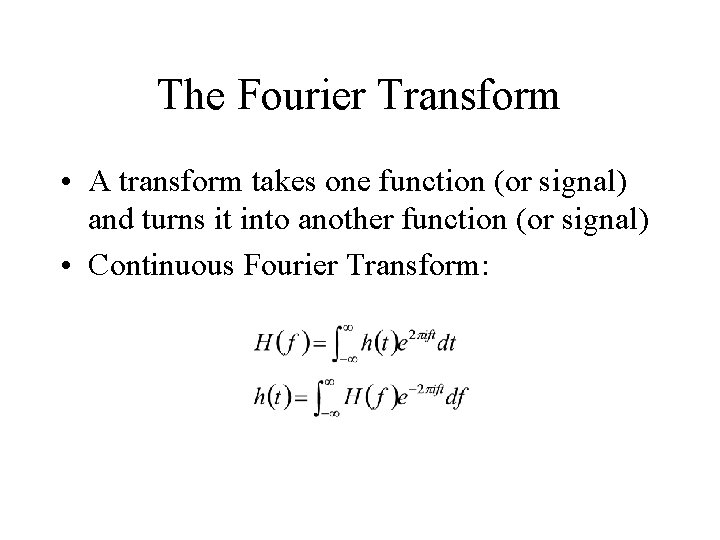

The Fourier Transform • A transform takes one function (or signal) and turns it into another function (or signal) • Continuous Fourier Transform:

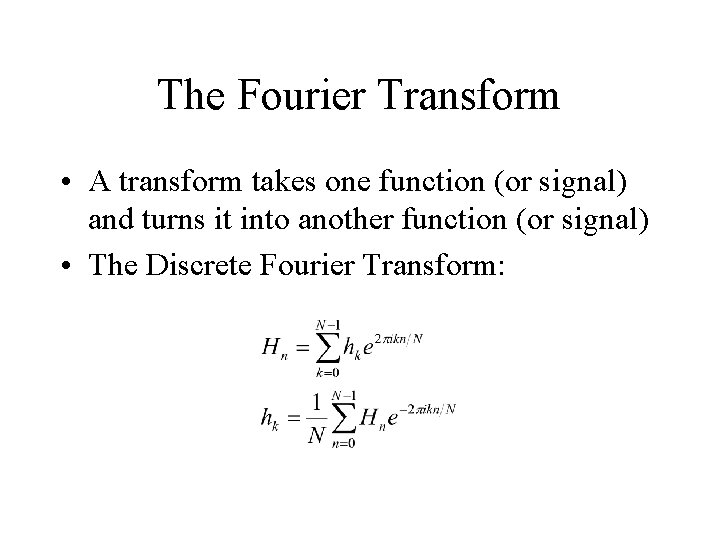

The Fourier Transform • A transform takes one function (or signal) and turns it into another function (or signal) • The Discrete Fourier Transform:

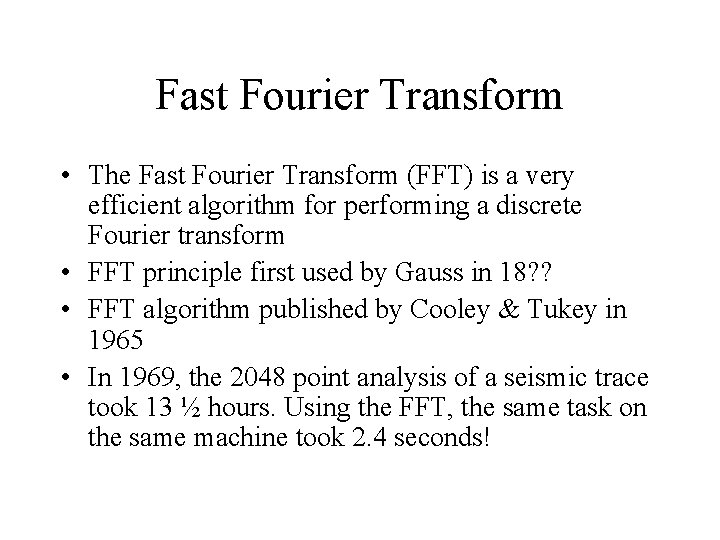

Fast Fourier Transform • The Fast Fourier Transform (FFT) is a very efficient algorithm for performing a discrete Fourier transform • FFT principle first used by Gauss in 18? ? • FFT algorithm published by Cooley & Tukey in 1965 • In 1969, the 2048 point analysis of a seismic trace took 13 ½ hours. Using the FFT, the same task on the same machine took 2. 4 seconds!

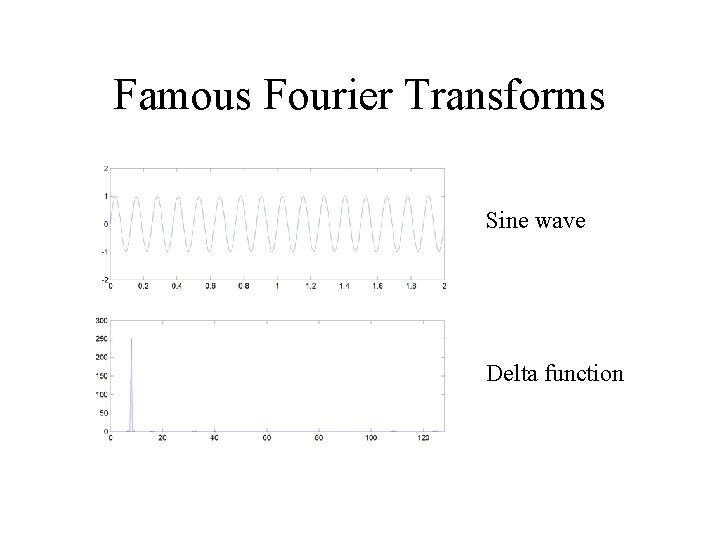

Famous Fourier Transforms Sine wave Delta function

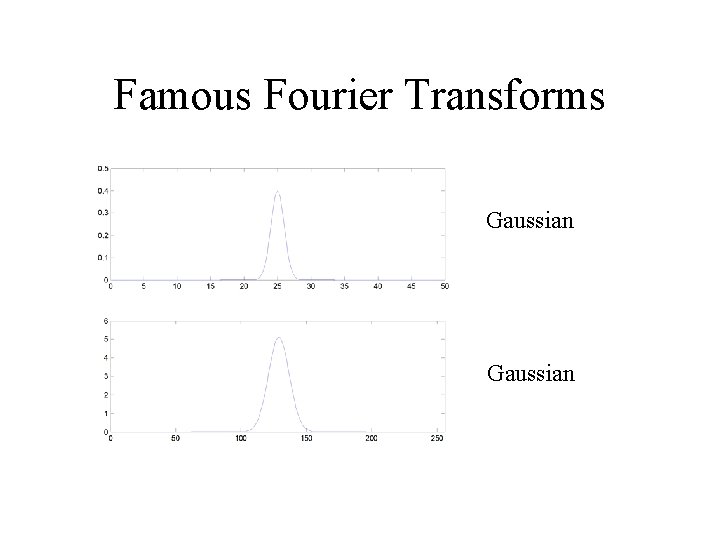

Famous Fourier Transforms Gaussian

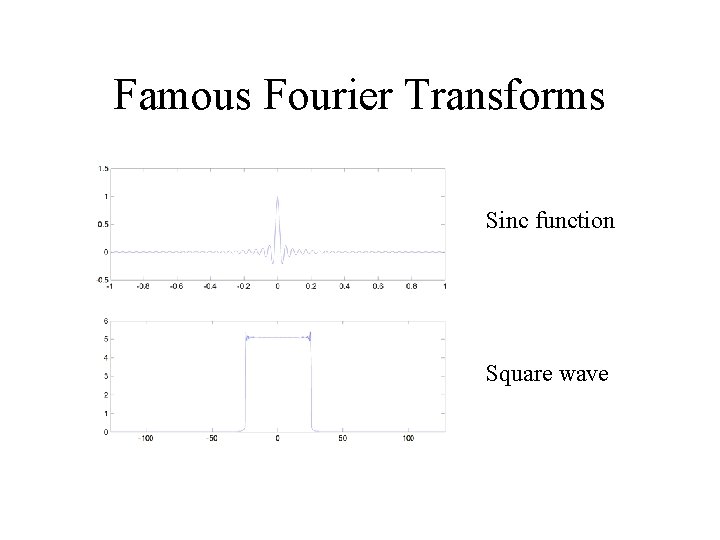

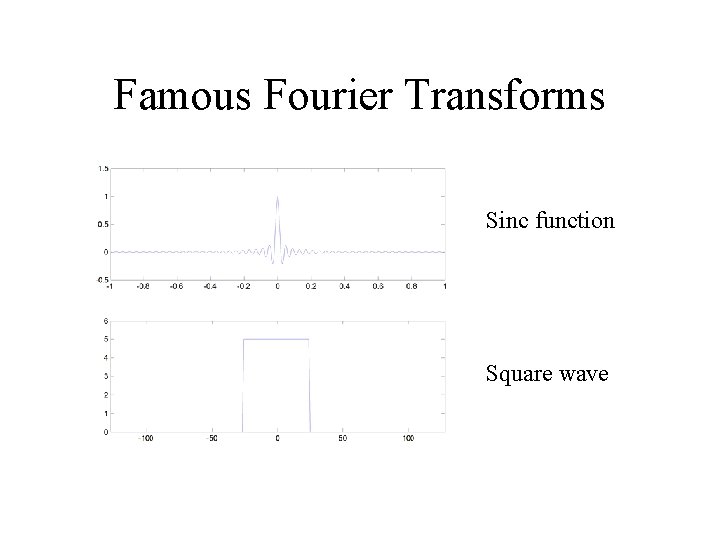

Famous Fourier Transforms Sinc function Square wave

Famous Fourier Transforms Sinc function Square wave

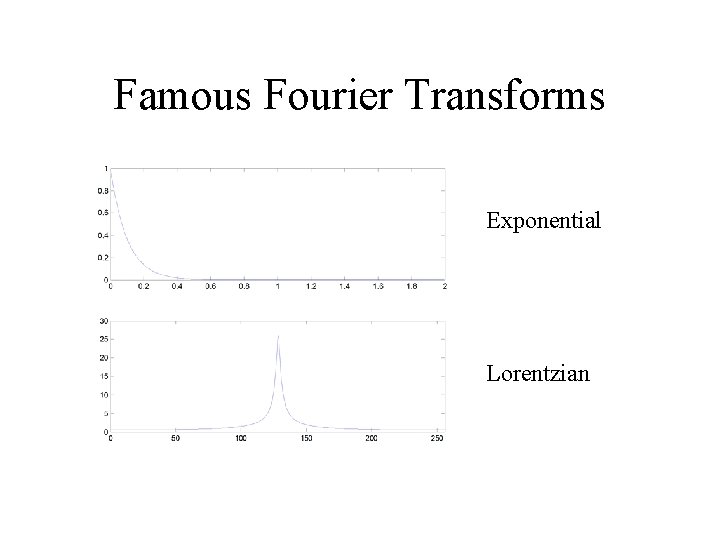

Famous Fourier Transforms Exponential Lorentzian

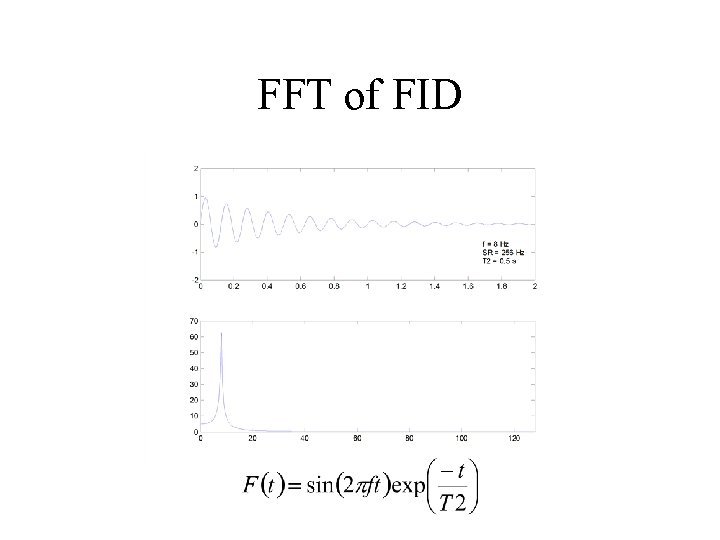

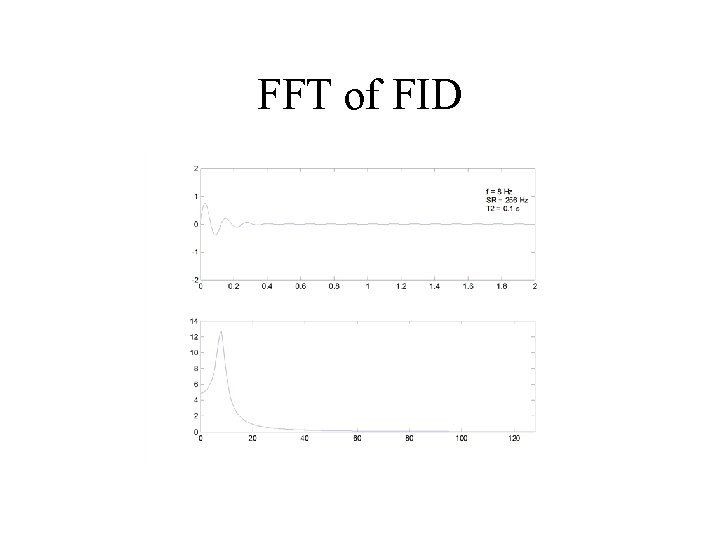

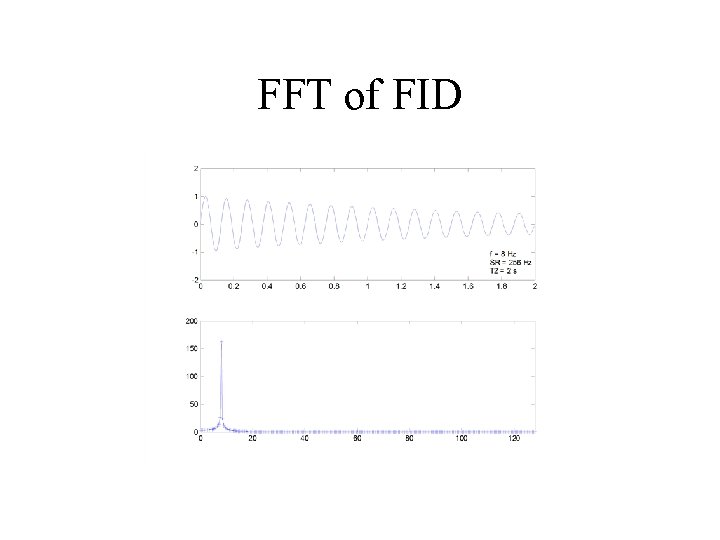

FFT of FID

FFT of FID

FFT of FID

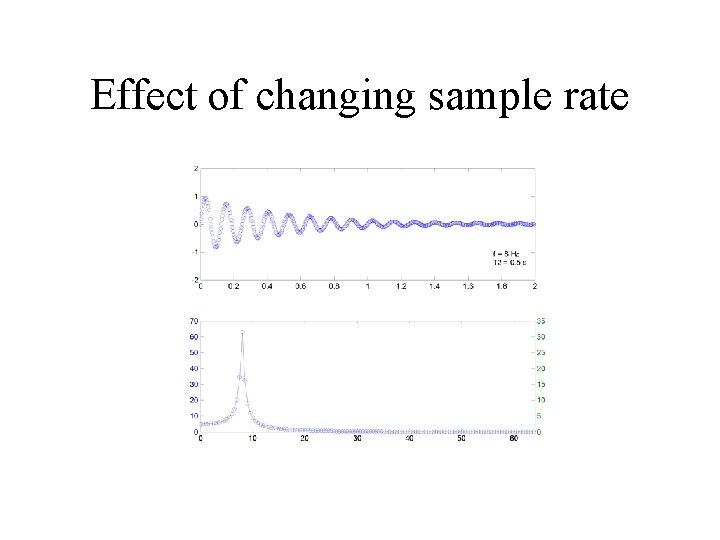

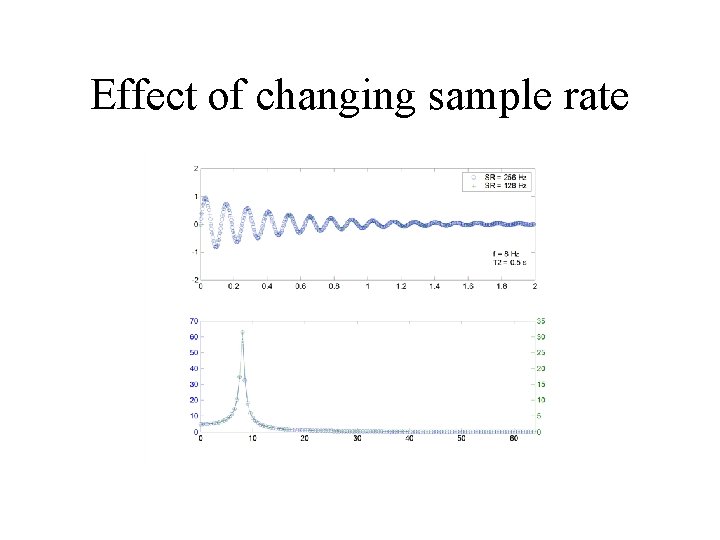

Effect of changing sample rate

Effect of changing sample rate

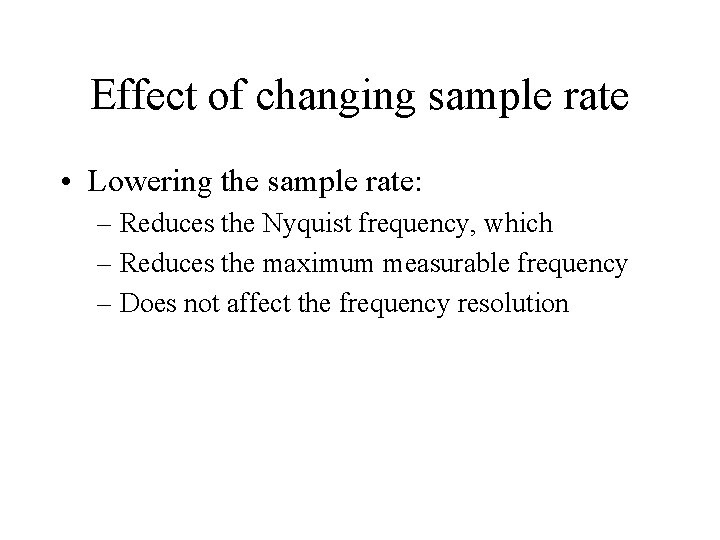

Effect of changing sample rate • Lowering the sample rate: – Reduces the Nyquist frequency, which – Reduces the maximum measurable frequency – Does not affect the frequency resolution

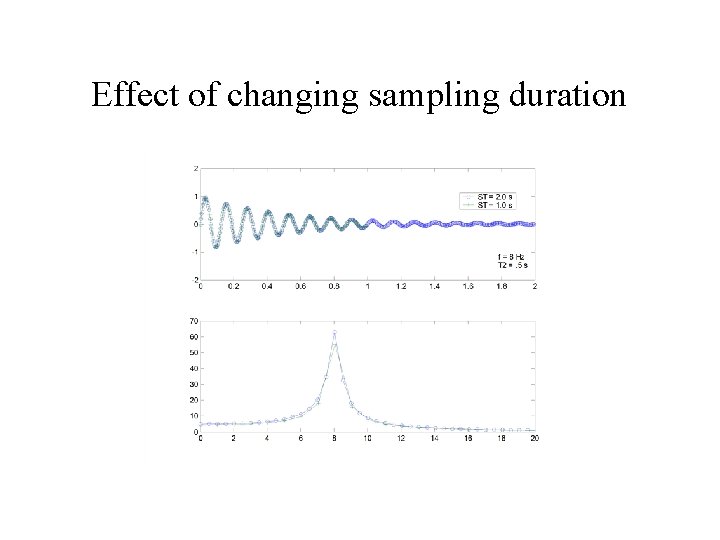

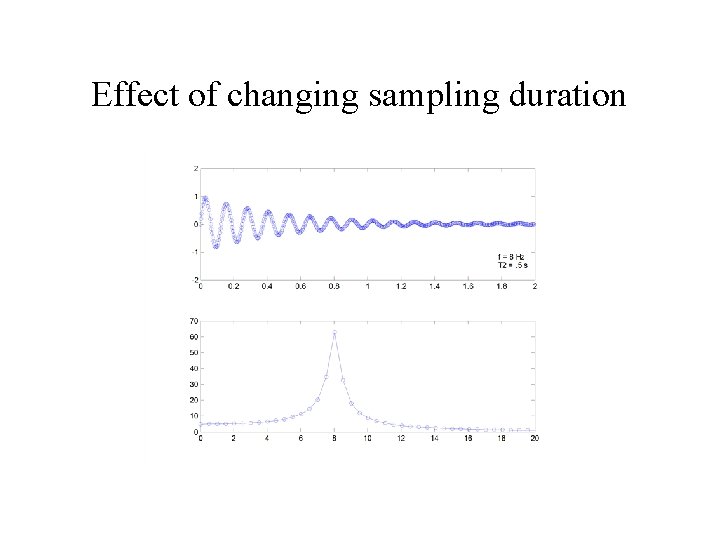

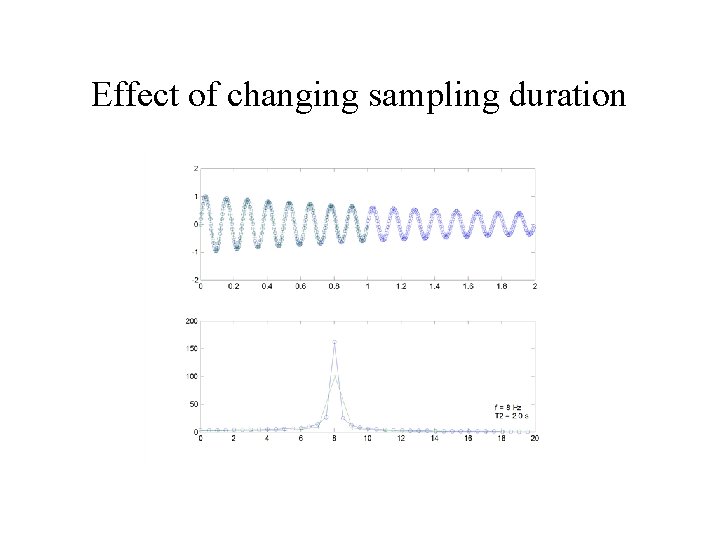

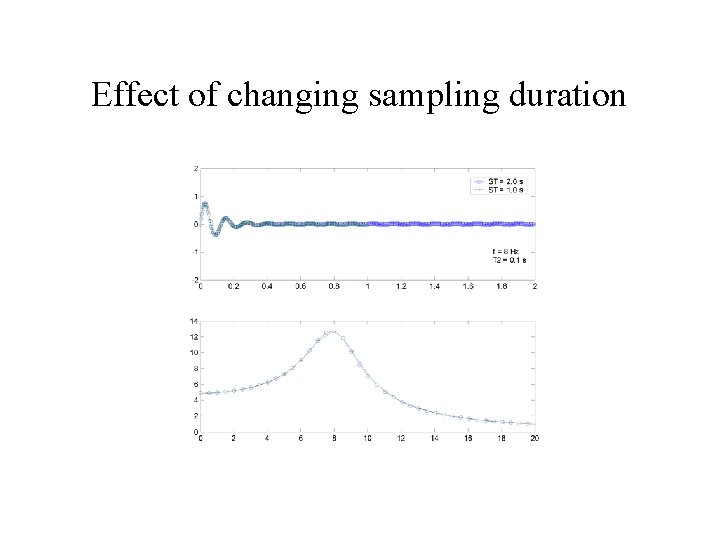

Effect of changing sampling duration

Effect of changing sampling duration

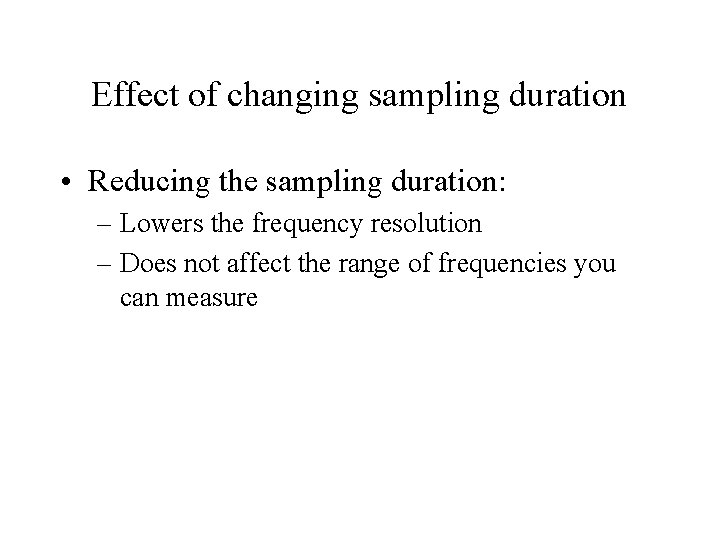

Effect of changing sampling duration • Reducing the sampling duration: – Lowers the frequency resolution – Does not affect the range of frequencies you can measure

Effect of changing sampling duration

Effect of changing sampling duration

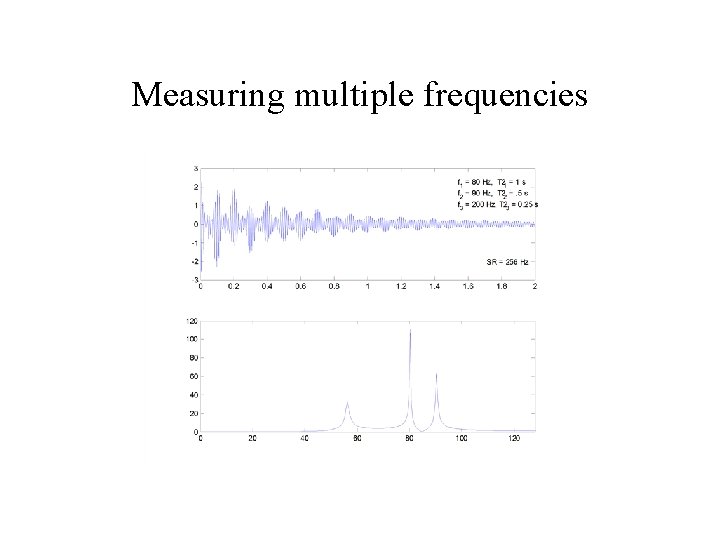

Measuring multiple frequencies

Measuring multiple frequencies

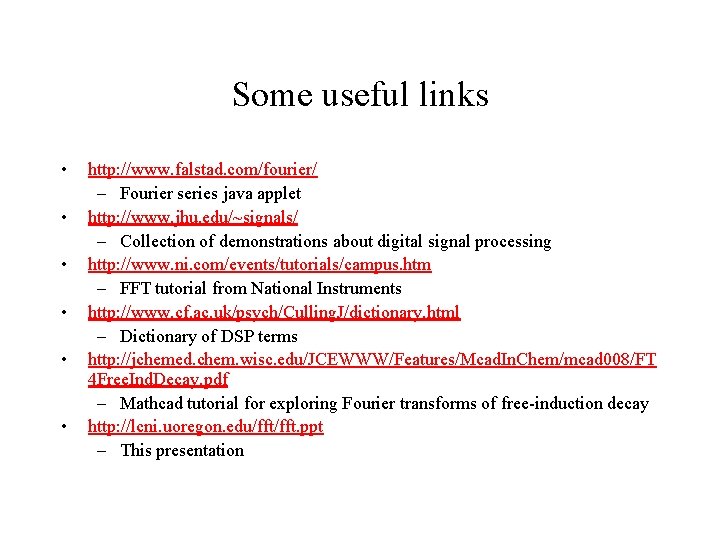

Some useful links • • • http: //www. falstad. com/fourier/ – Fourier series java applet http: //www. jhu. edu/~signals/ – Collection of demonstrations about digital signal processing http: //www. ni. com/events/tutorials/campus. htm – FFT tutorial from National Instruments http: //www. cf. ac. uk/psych/Culling. J/dictionary. html – Dictionary of DSP terms http: //jchemed. chem. wisc. edu/JCEWWW/Features/Mcad. In. Chem/mcad 008/FT 4 Free. Ind. Decay. pdf – Mathcad tutorial for exploring Fourier transforms of free-induction decay http: //lcni. uoregon. edu/fft. ppt – This presentation
