FOURIER SERIES CHAPTER 5 1 TOPIC Fourier series
- Slides: 75
FOURIER SERIES CHAPTER 5 1

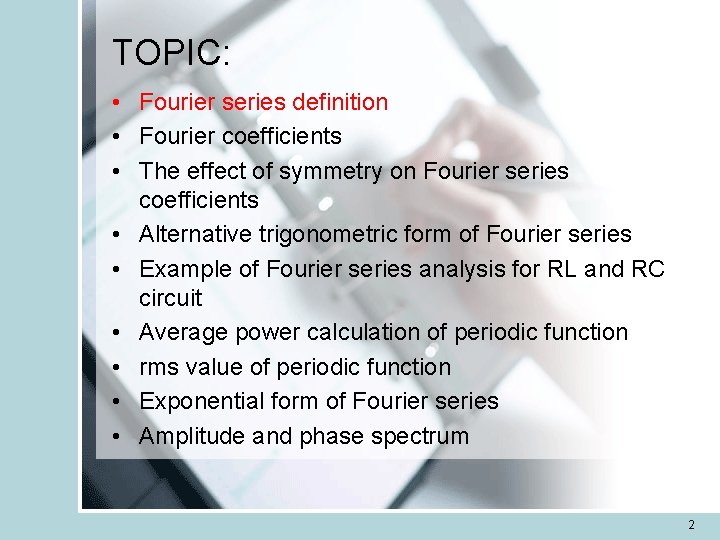

TOPIC: • Fourier series definition • Fourier coefficients • The effect of symmetry on Fourier series coefficients • Alternative trigonometric form of Fourier series • Example of Fourier series analysis for RL and RC circuit • Average power calculation of periodic function • rms value of periodic function • Exponential form of Fourier series • Amplitude and phase spectrum 2
FOURIER SERIES DEFINITION • The Fourier Series of a periodic function f(t) is a representation that resolves f(t) into a DC component and an AC component comprising an infinite series of harmonic sinusoids. 3
FOURIER SERIES • Periodic function 4
trigonometric form of Fourier series AC DC Fourier coefficients Harmonic frequency 5
Condition of convergent a Fourier series (Dirichlet conditions): 1. F(t) is single-valued 2. F(t) has a finite number of finite discontinuities in any one period 3. F(t) has a finite number of maxima and minima in any one period 4. The intergral 6
Fourier coefficients • Integral relationship to get Fourier coefficients 7

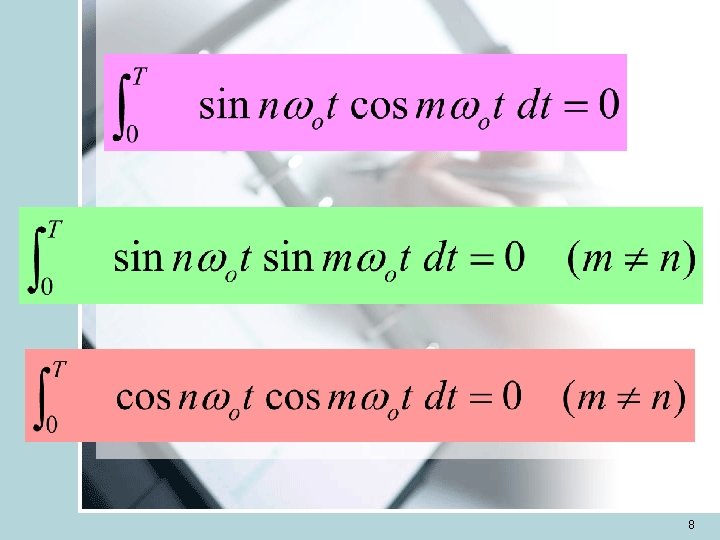

8
9
av coefficient 10
an coefficient 11
bn coefficient 12
THE EFFECT OF SYMMETRY ON FOURIER COEFFICIENTS • • Even symmetry Odd symmetry Half-wave symmetry Quarter-wave symmetry 13
Even Symmetry • A function is define as even if 14

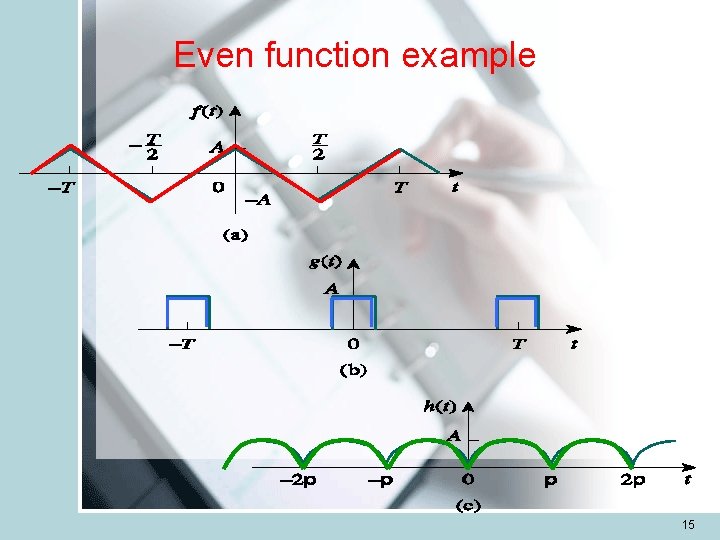

Even function example 15
Even function property: 16
Fourier coefficients 17
Odd Symmetry • A function is define as odd if 18
Odd function example 19
Odd function property: 20
Fourier coefficients 21
Half-wave symmetry • half-wave function: 22
half-wave function 23
Fourier coefficients for half wave function: 24
Quarter-wave symmetry • A periodic function that has half-wave symmetry and, in addition, symmetry about the mid-point of the positive and negative half-cycles. 25
Example of quarter-wave symmetry function 26
Even quarter-wave symmetry 27
Odd quarter-wave symmetry 28
ALTERNATIVE TRIGONOMETRIC FORM OF THE FOURIER SERIES • Fourier series • Alternative form 29
• Trigonometric identity • Fourier series 30
Fourier coefficients 31
Example 1 • Obtain the Fourier series for the waveform below (given ωo=π): 32
Solution: • Fourier series: 33
Waveform equation: 34
av coefficient 35
an coefficient 36
bn coefficient 37
Fit in the coefficients into Fourier series equation: 38
By using n=integer…. 39

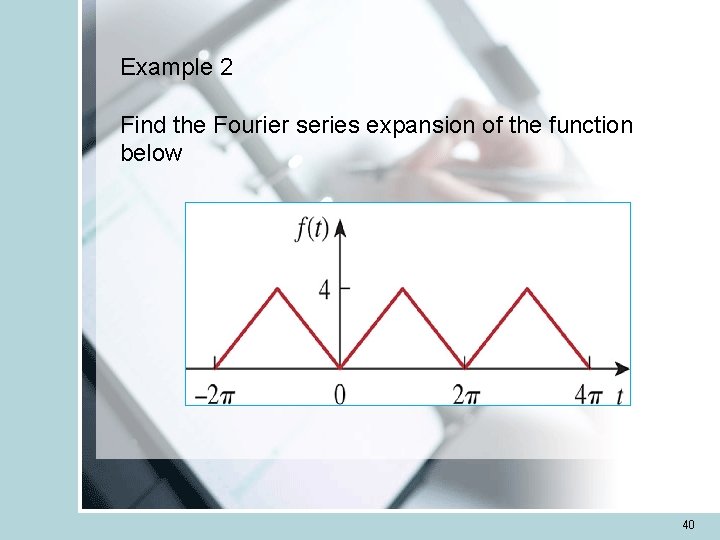

Example 2 Find the Fourier series expansion of the function below 40
Solution This is an even function, bn = 0 41
Example 3 • Obtain the trigonometric Fourier series for the waveform shown below:
Solution: • Function is an odd function
Fourier coefficients of odd function:
Bn coefficient:
Fourier series:
Example 4 • Determine the Fourier series expansion of the function below:
Solution: • The function is half wave symmetry
Fourier coefficients for half wave function:
An coefficient:
Bn coefficient:
Fourier series:
Steps for applying Fourier series: • Express the excitation as a Fourier Series • Find the response of each term in Fourier Series • Add the individual response using the superposition principle 53
Periodic voltage source: 54
Step 1: Fourier expansion 55
Step 2: find response • DC component: set n=0 atau ω=0 • Time domain: inductor = short circuit capacitor = open circuit 56

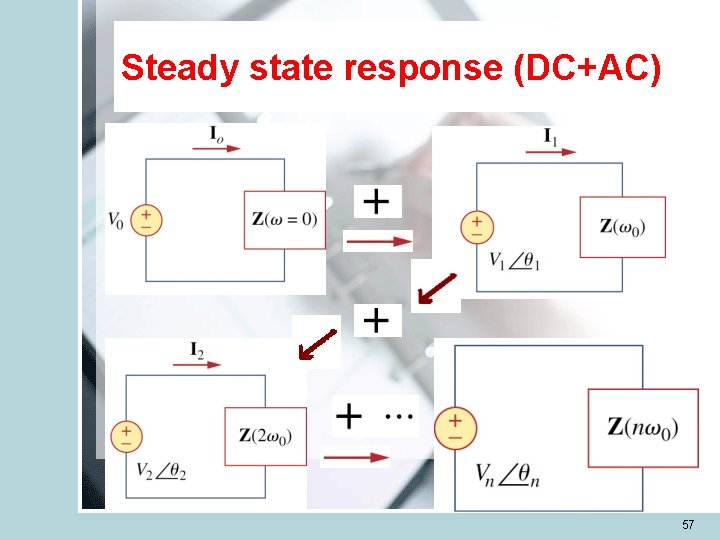

Steady state response (DC+AC) 57
Step 3: superposition principle 58
example: 59
Question: • If Obtain the response of vo(t) for the circuit using ωn=nωo. 60
Solution: • Using voltage divider: 61
• DC component (n=0 @ ωn=0) • nth harmonic 62
Response of vo: 63
In time domain: 64
Example of symmetry effect on Fourier coefficients (past year): A square voltage waveform, vi (t) ( as in Fig (b)) Is applied to a circuit as in Fig. (a). If Vm = 60π V and the period is T = 2π s, a) Obtain the Fourier Series for vi (t). b) Obtain the first three nonzero term for vo (t). 65
Rajah (a) Rajah (b) 66
Solution (a): • Response is the Odd Quarter-wave symmetry… 67
Equation of vi (t) for 0<t< T/4: Harmonic frequency: 68
bn coefficient: 69
Fourier series for vi(t): 70
Solution (b): • Voltage vi for first three harmonic: 71
Circuit transfer function: 72
Transfer function for first three harmonic: 73
Voltage vo for first three harmonic: 74
First three nonzero term: 75
