Foundations of Cryptography Lecture 1 Introduction Identification Oneway
- Slides: 46
Foundations of Cryptography Lecture 1: Introduction, Identification, Oneway functions Lecturer: Moni Naor Weizmann Institute of Science
What is Cryptography? Traditionally: how to maintain secrecy in communication Alice and Bob talk while Eve tries to listen Bob Alice Eve
History of Cryptography • Very ancient occupation Biblical times הארץ כל תהלת ותתפש ששך נלכדה איך בגויים בבל לשמה היתה איך • Many interesting books and sources, especially about the Enigma – David Kahn, The Codebreakers, 1967 – Gaj and Orlowski, Facts and Myths of Enigma: Breaking Stereotypes Eurocrypt 2003 • Not the subject of this course!
Modern Times • Up to the mid 70’s - mostly classified military work – Exception: Shannon, Turing* • Since then - explosive growth – Commercial applications – Scientific work: tight relationship with Computational Complexity Theory – Major works: Diffie-Hellman, Rivest, Shamir and Adleman (RSA) • Recently - more involved models for more diverse tasks.
Cryptography and Complexity Theory • Study the resources needed to solve computational problems Cryptography • Find ways to specify security requirements of systems • Use the – computer time, computational memory infeasibility of • Identify problems that problems in order to are infeasible to obtain security. compute. The development of these two areas is tightly connect

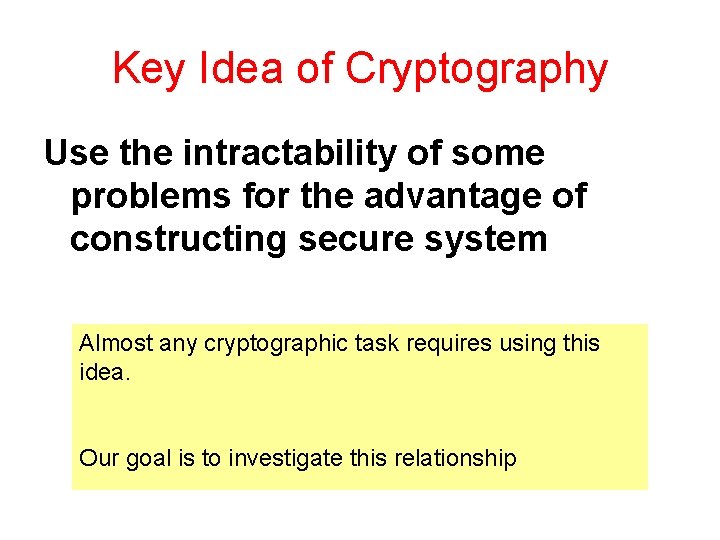

Key Idea of Cryptography Use the intractability of some problems for the advantage of constructing secure system Almost any cryptographic task requires using this idea. Our goal is to investigate this relationship
Administrivia • Instructor: Moni Naor • Grader: Gil Segev • When: Wednesday 16: 00 --18: 00 Where: Ziskind 1 Home page of the course: www. wisdom. weizmann. ac. il/~naor/COURSE/foundations_of_crypto. h tml • METHOD OF EVALUATION: around 8 homework assignments and a final (in class) exam. Also must prepare notes for (at least) one lecture. – Homework assignments should be turned in on time (usually two weeks after they are given)! – Try and do as many problems from each set. – You may discuss the problems with other students, but the write-up should be individual. – There will also be reading assignments.
Official Description Cryptography deals with methods for protecting the privacy, integrity and functionality of computer and communication systems. The goal of the course is to provide a firm foundation to the construction of such methods. In particular we will cover topics such as notions of security of a cryptosystem, proof techniques for demonstrating security and cryptographic primitives such as one-way functions and trapdoor permutations
What you will learn in this course • How to specify a cryptographic task • How to specify a solution • Relationship with complexity assumptions
Lectures Outline • Identification, Authentication and encryption • One-way functions and their essential role in cryptography • Universal one-way functions, multiple identifications, • Amplification: from weak to strong one-way functions • Universal hashing and authentication. • One-way hashing • Signature Scheme: Existentially unforgeability • Pseudo-random generators • Hardcore predicates, • Pseudo-Random Functions and Permutations. • Semantic Security and Indistinguishability of Encryptions. • Zero-Knowledge Proofs and Arguments • Chosen ciphertext attacks and non-malleability • Oblivous Transfer and Secure Function Evaluation
Three Basic Issues in Cryptography • Identification • Authentication • Encryption
Example: Identification • When the time is right, Alice wants to send an `approve’ message to Bob. • They want to prevent Eve from interfering – Bob should be sure that Alice indeed approves Alice Bob Eve
Rigorous Specification of Security To define security of a system must specify: 1. What constitute a failure of the system 2. The power of the adversary – computational – access to the system – what it means to break the system.
Specification of the Problem Alice and Bob communicate through a channel Bob has two external states {N, Y} N, Y Eve completely controls the channel Requirements: • If Alice wants to approve and Eve does not interfere – Bob moves to state Y • If Alice does not approve, then for any behavior from Eve, Bob stays in N • If Alice wants to approve and Eve does interfere - no requirements from the external state
Can we guarantee the requirements? • No – when Alice wants to approve she sends (and receives) a finite set of bits on the channel. Eve can guess them. • To the rescue - probability. – Want that Eve will succeed only with low probability. – How low? Related to the string length that Alice sends…
Identification X X Alice Bob Eve ? ?
Suppose there is a setup period • There is a setup where Alice and Bob can agree on a common secret – Eve only controls the channel, does not see the internal state of Alice and Bob (only external state of Bob) Simple solution: – Alice and Bob choose a random string X R {0, 1}n – When Alice wants to approve – she sends X – If Bob gets any symbols on channel – compares to X • If equal moves to Y
Eve’s probability of success • If Alice did not send X and Eve put some string X’ on the channel, then – Bob moves to Y only if X= X’ Prob[X=X’] ≤ 2 -n Good news: can make it a small as we wish • What to do if Alice and Bob cannot agree on a uniformly generated string X?

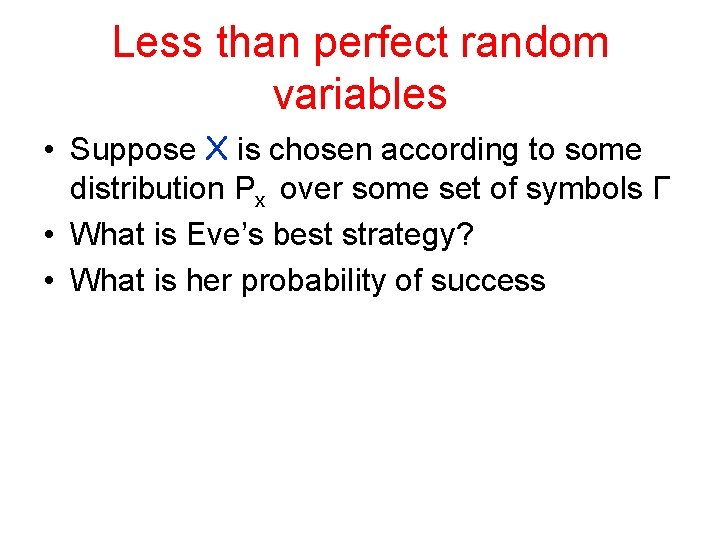

Less than perfect random variables • Suppose X is chosen according to some distribution Px over some set of symbols Γ • What is Eve’s best strategy? • What is her probability of success
(Shannon) Entropy Let X be random variable over alphabet Γ with distribution Px The (Shannon) entropy of X is H(X) = - ∑ x Γ Px (x) log Px (x) Where we take 0 log 0 to be 0. Represents how much we can compress X
Examples • If X=0 (constant) then H(x) = 0 – Only case where H(x) = 0 is when x is constant – All other cases H(x) >0 • If X {0, 1} and Prob[X=0] = p and Prob[X=1]=1 -p, then H(X) = -p log p + (1 -p) log (1 -p) ≡ H(p) If X {0, 1}n and is uniformly distributed, then H(X) = - ∑ n 1/2 n log 1/2 n = 2 n/2 n n = n
Properties of Entropy • Entropy is bounded H(X) ≤ log | Γ | with equality only if X is uniform over Γ
Does High Entropy Suffice for Identification? • If Alice and bob agree on X {0, 1}n where X has high entropy (say H(X) ≥ n/2 ), what are Eve’s chances of cheating? • Can be high: say – Prob[X=0 n ] = 1/2 – For any x 1{0, 1} n-1 Prob[X=x ] = 1/2 n Then H(X) = n/2+1/2 But Eve can cheat with probability at least ½ by guessing that X=0 n
Another Notion: Min Entropy Let X be random variable over alphabet Γ with distribution Px The min entropy of X is Hmin(X) = - log max x Γ Px (x) The min entropy represents the most likely value of X Property: Hmin(X) ≤ H(X)
High Min Entropy and Passwords Claim: if Alice and Bob agree on such that Hmin(X) ≥ m, then the probability that Eve succeeds in cheating is at most 2 -m Proof: Make Eve deterministic, by picking her best choice, X’ = x’. Prob[X=x’] = Px (x’) ≤ max x Γ Px (x) =2 –Hmin(X) ≤ 2 -m Conclusion: passwords should be chosen to have high min-entropy!
Good source on Information Theory: T. Cover and J. A. Thomas, Elements of Information Theory
One-time vs. many times • This was good for a single identification. What about many sessions of identification? • Later…
A different scenario – now Charlie is involved • Bob has no proof that Alice indeed identified • If there are two possible verifiers, Bob and Charlie, they can each pretend to each other to be Alice – Can each have there own string – But, assume that they share the setup phase • Whatever Bob knows Charlie know • Relevant when they are many of possible verifiers!
The new requirement • If Alice wants to approve and Eve does not interfere – Bob moves to state Y • If Alice does not approve, then for any behavior from Eve and Charlie, Bob stays in N • Similarly if Bob and Charlie are switched Charlie Alice Bob Eve
Can we achieve the requirements? • Observation: what Bob and Charlie received in the setup phase might as well be public • Therefore can reduce to the previous scenario (with no setup)… • To the rescue - complexity Alice should be able to perform something that neither Bob nor Charlie (nor Eve) can do Must assume that the parties are not computationally all powerful!
Function and inversions • We say that a function f is hard to invert if given y=f(x) it is hard to find x’ such that y=f(x’) – x’ need not be equal to x – We will use f-1(y) to denote the set of preimages of y • To discuss hard must specify a computational model • Use two flavors: – Concrete
Computational Models • Asymptotic: Turing Machines with random tape – For classical models: precise model does not matter up to polynomial factor Random tape 1 0 Both algorithm for evaluating f and the adversary are modeled by PTM 1 1 0 Input tape
One-way functions - asymptotic A function f: {0, 1}* → {0, 1}* is called a one-way function, if • f is a polynomial-time computable function – Also polynomial relationship between input and output length • for every probabilistic polynomial-time algorithm A, every positive polynomial p(. ), and all sufficiently large n’s Prob[ A(f(x)) f-1(f(x)) ] ≤ 1/p(n) Where x is chosen uniformly in {0, 1}n and the probability is also over the internal coin flips of A
Computational Models • Concrete : Boolean circuits (example) – precise model makes a difference – Time = circuit size Input Output
One-way functions – concrete version A function f: {0, 1}n → {0, 1}n is called a (t, ε) one-way function, if • f is a polynomial-time computable function (independent of t) circuit • for every t-time algorithm A, Prob[A(f(x)) f-1(f(x)) ] ≤ ε Where x is chosen uniformly in {0, 1}n and the probability is also over the internal coin flips of A Can either think of t and ε as being fixed or as t(n), ε(n)
Complexity Theory and One-way Functions • Claim: if P=NP then there are no one-way functions Proof: for any one-way function f: {0, 1}n → {0, 1}n consider the language Lf : – Consisting of strings of the form {y, b 1, b 2, …, bk} – There is an x {0, 1}n such that y=f(x) and – The first k bits of x are b 1, b 2…bk Lf is NP – guess x and check If Lf is P then f is invertible in polynomial time: Self reducibility
A few properties and questions concerning one-way functions • Major open problem: connect the existence of one-way functions and the P=NP? question. • If f is one-to-one it is a called a one-way permutation. In what complexity class does the problem of inverting oneway permutations reside? – good exercise! • If f’ is a one-way function, is f’ where f’(x) is f(x) with the last bit chopped a one-way function? • If f is a one-way function, is f. L where f. L(x) consists of the first half of the bits of f(x) a one-way function? – good exercise! • If f is a one way function is g(x) = f(f(x)) necessarily a one-way function? – good exercise!
• Solution to the password problem Assume that – f: {0, 1}n → {0, 1}n is a (t, ε) one-way function – Adversary’s run times is bounded by t • Setup phase: – Alice chooses x R {0, 1}n – computes y=f(x) – Gives y to Bob and Charlie • When Alice wants to approve – she sends x • If Bob gets any symbols on channel – call them z; compute f(z) and compares to y – If equal moves to state Y – If not equal moves permanently to state N
Eve’s and Charlie’s probability of success • If Alice did not send x and Eve (Charlie) put some string x’ on the channel to Bob, then: – Bob moves to state Y only if f(x’)=y=f(x) – But we know that Prob[A[f(x)] f-1(f(x)) ] ≤ ε or else we can use Eve to break the one-way function A’ Ev yy e x’ y x’ The time and probability of success of breaking the identification scheme by Eve same as The time and probability of inverting f Good news: if ε can be made as small as we wish, then we have a by A’ good scheme. • Can be used for monitoring • Similar to the Unix password scheme – f(x) stored in login file – DES used as the one-way function.
Reductions • This is a simple example of a reduction • Simulate Eve’s algorithm in order to break the one-way function • Most reductions are much more involved – Do not preserve the parameters so well
Cryptographic Reductions Show to use an adversary for breaking primitive 1 in order to break primitive 2 Important • Run time: how does T 1 relate to T 2 • Probability of success: how does 1 relate to 2 • Access to the system 1 vs. 2
Examples of One-way functions Examples of hard problems: • Subset sum • Discrete log • Factoring (numbers, polynomials) into prime components Easy problem How do we get a one-way function out of them?
Subset Sum • Subset sum problem: given – n numbers 0 ≤ a 1, a 2 , …, an ≤ 2 m – Target sum T – Find subset S⊆ {1, . . . , n} ∑ i S ai, =T • (n, m)-subset sum assumption: for uniformly chosen – a 1, a 2 , …, an R{0, … 2 m -1} and S⊆ {1, . . . , n} – For any probabilistic polynomial time algorithm, the probability of finding S’⊆ {1, . . . , n} such that ∑ i S ai= ∑ i S’ ai is negligible, where the probability is over the random choice of the ai‘s, S and the inner coin flips of the algorithm – Not true for very small or very large m Assumption f is one way • Subset sum one-way function f: {0, 1}mn+n → {0, 1}mn+m f(a 1, a 2 , …, an , b 1, b 2 , …, bn ) = (a 1, a 2 , …, an , ∑ i=1 n bi ai mod 2 m )

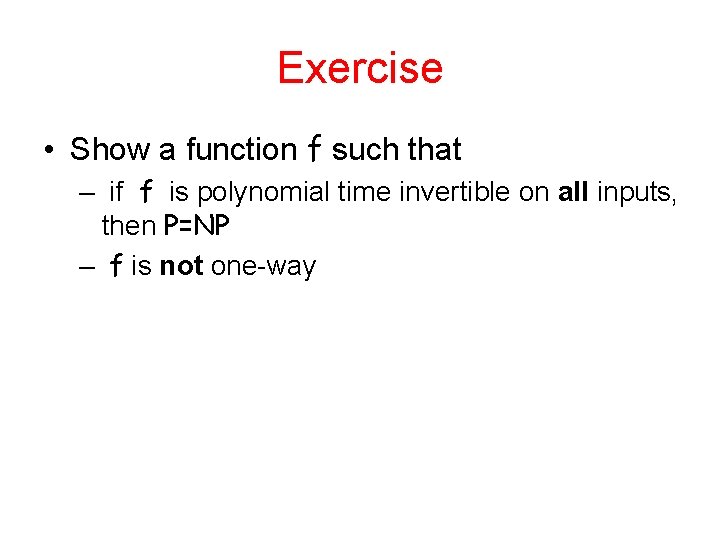

Exercise • Show a function f such that – if f is polynomial time invertible on all inputs, then P=NP – f is not one-way
Discrete Log Problem • Let G be a group and g an element in G. • Let y=gz and x the minimal non negative integer satisfying the equation. x is called the discrete log of y to base g. • Example: y=gx mod p in the multiplicative group of Zp • In general: easy to exponentiate via repeated squaring – Consider binary representation • What about discrete log? – If difficult, f(g, x) = (g, gx ) is a one-way function
Integer Factoring • Consider f(x, y) = x • y • Easy to compute • Is it one-way? – No: if f(x, y) is even can set inverse as (f(x, y)/2, 2) • If factoring a number into prime factors is hard: – Specifically given N= P • Q , the product of two random large (nbit) primes, it is hard to factor – Then somewhat hard – there a non-negligible fraction of such numbers ~ 1/n 2 from the density of primes – Hence a weak one-way function • Alternatively: – let g(r) be a function mapping random bits into random primes. – The function f(r 1, r 2) = g(r 1) • g(r 2) is one-way
