FORUM ON NEXT GENERATION STANDARDIZATION (Colombo, Sri Lanka, 7 -10 April 2009) Evolution of NGN infrastructure for Multi-media applications & FMC Ashwani Kumar Director, Sales Engg UTStarcom, India Colombo, Sri Lanka, 7 -10 April 2009
Agenda Global Trends & Srilanka Scenario NGN & Convergence Converged Network Architecture NGN Advanced Services Architecture SIP Based Multimedia Soft. Phone Unified Centrex Continuity FMC Solution Video Conferencing i. Number- Find me Follow me CRBT PSTN to NGN Migration Case Study Colombo, Sri Lanka, 7 -10 April 2009 2
Global Trends Technology Trends Networks are moving towards end-to-end IP to support faster and higher BW services Converged Transport to provide robust high BW link between application and user New Wireless technologies are delivering service to remote regions Broadband is replacing dial-up to provide high speed access NGN Core being deployed to support multimedia services Fixed Mobile Convergence promises seamless connectivity regardless of location IPTV is enabling new multimedia applications over Broadband now Market/Industry Trends Convergence of communications & entertainment - Voice, Data, & Video Aggressive growth of broadband subscribers globally Increasing need for higher end-user bandwidth-for Multimedia Services Transition from network-centric single services to subscriber-centric offering Services Value chain Service Bundling - Basic Voice-driven to multimedia service-driven business model Basic services- Voice, Internet access Value Added services- VMS, SMS, UMS, CRBT, IM, Presence, LBS Multimedia Services – IPTV, IP Surveillance, Video Conferencing Colombo, Sri Lanka, 7 -10 April 2009 3

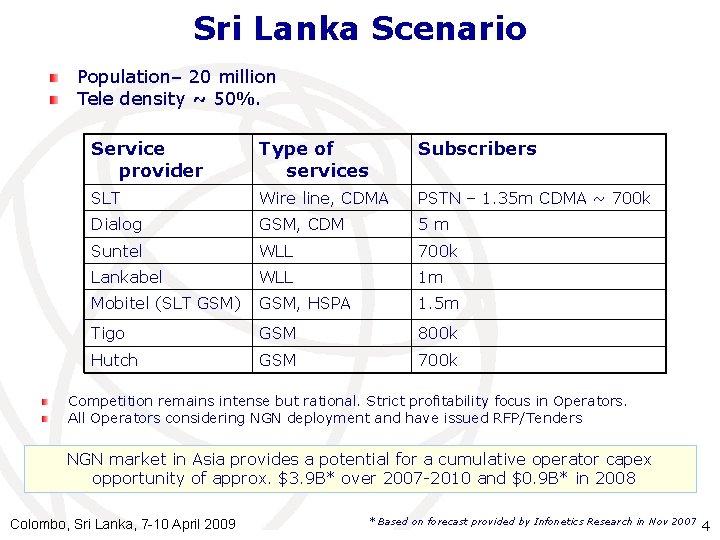

Sri Lanka Scenario Population– 20 million Tele density ~ 50%. Service provider Type of services Subscribers SLT Wire line, CDMA PSTN – 1. 35 m CDMA ~ 700 k Dialog GSM, CDM 5 m Suntel WLL 700 k Lankabel WLL 1 m Mobitel (SLT GSM) GSM, HSPA 1. 5 m Tigo GSM 800 k Hutch GSM 700 k Competition remains intense but rational. Strict profitability focus in Operators. All Operators considering NGN deployment and have issued RFP/Tenders NGN market in Asia provides a potential for a cumulative operator capex opportunity of approx. $3. 9 B* over 2007 -2010 and $0. 9 B* in 2008 Colombo, Sri Lanka, 7 -10 April 2009 * Based on forecast provided by Infonetics Research in Nov 2007 4

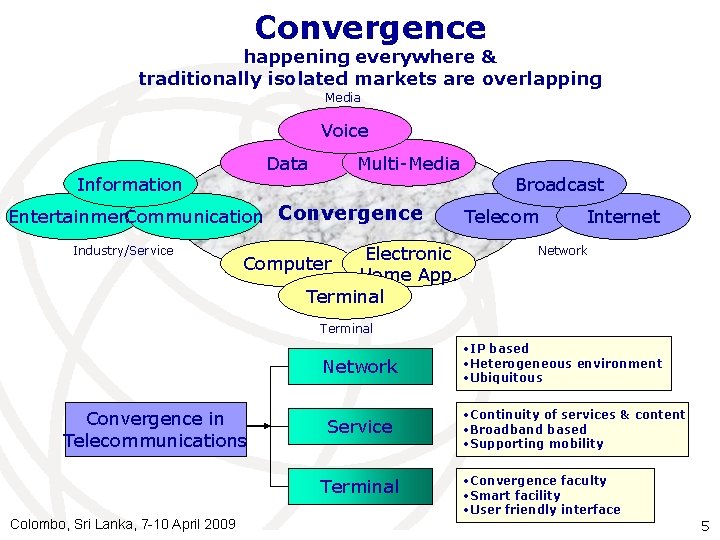

Convergence happening everywhere & traditionally isolated markets are overlapping Media Voice Data Information Multi-Media Entertainment Communication Convergence Industry/Service Electronic Computer Home App. Terminal Broadcast Telecom Internet Network Terminal Network Convergence in Telecommunications Service Terminal Colombo, Sri Lanka, 7 -10 April 2009 • IP based • Heterogeneous environment • Ubiquitous • Continuity of services & content • Broadband based • Supporting mobility • Convergence faculty • Smart facility • User friendly interface 5
What is NGN is a concept for defining & deploying networks, which due to their formal separation into different layers & planes and use of open interfaces, offers service providers a platform which can evolve in a step -by-step manner to create, deploy & manage innovative services. NG Architecture : Service oriented, layered (transport, control, application) NG Services : Converged (quad play- voice, data, video & mobility) NG Access : High speed (Broadband) IP based connectivity (ADSL, VDSL, Wi. Max, Cable TV, FTTH) NG Transport : Ethernet, IP-MPLS, RPR, T-MPLS NG Mobile : 3 G+, 4 G NG Internet : IPv 6 NG Interconnect : Capacity and Quality based NG Licensing : Unified, Converged Colombo, Sri Lanka, 7 -10 April 2009 6
NGN Market Drivers TDM switches facing EOL or reaching capacity saturation Explosive growth in Internet traffic Intense competition Telco vs. Cable vs. Satellite vs. Wireless vs. NGN Need for Improved Business Model OPEX savings and top-line revenue growth Need for Service Differentiation Ease in offering new services (Vo. IP, IPTV, FMC) Time-to-market and ability to provision services quicker Integration of network resulting in huge network cost savings Colombo, Sri Lanka, 7 -10 April 2009 7
NGN Converged System Architecture NMS OSS VAS Servers Service Layer SLR (VLR/HLR) Control Layer OSA Parlay SCP (IN&CAMEL) Gateway Pre-paid Server Core Switch Parlay API based AS 3 rd party AS Soft. Switch Call Servers Managed IP Network Gateway Layer AMG i. MS i. UMG SGW TMG CDMA 2000 IP Access GW Wi. MAX PHS IP phone/IAD/IP TV Console PBX POTS/DSLV 5 AN BSC PSTN/PLMN & IN(CAMEL) BTS ASN BS CPE Unified Core Network Solution for all Voice Applications Colombo, Sri Lanka, 7 -10 April 2009 8
NGN Advanced Service Architecture External SCP Pre-paid q Calling Card q Toll Free q m. Service IN/CAMEL Standard IN/CAMEL Services q UT i. SCP CAP/INAP FMC q Calling Card q Video Call q Voice Mail q Instant Message q …. . . SIP AS q SIP/SIP-T i. Number q i. Secretary q VPN q Video Conference q …… Parlay Gateway q SIP/SIP-T CAP/INAP Short Message MCN q Location Service q Mail Service q C-Mode q …… VAS Server q q HTTP/SNSP NMS SLR CS-P Core Switch Network M 3 UA SG M 2 UA IUA H. 248 i. UMG OSS ISUP/PRI PSTN/PLMN H. 323 Network Colombo, Sri Lanka, 7 -10 April 2009 SIP/SIP-T SIP Network IP-TK 2 G/3 G Network m. Switch Network 9
Advanced Multimedia Services Smart. Phone (UTSmart) SIP Based Multimedia Soft. Phone Unified Centrex Continuity FMC (Fixed/Mobile Convergence) Solution Conferencing- Voice, message, multimedia Video Calling & Video Conferencing i. Number- Find me Follow me CRBT Unified Messaging- Voice, Email, Fax, Video Quadruple Play- Voice, Data, Video & Mobility Voice over Broadband Presence & IM PSTN Emulation Services Colombo, Sri Lanka, 7 -10 April 2009 10
UTSmart Soft Phone Support on Microsoft Windows 98/2000/XP Embedded SIP soft phone for voice and video calls Voice codec – G. 711 a, G. 711 u, G. 729 Video codec – MPEG 4, H. 263 Phone address book Friendly GUI for service activation and deactivation Automatic update of call records for call history Auto answer and voice message recording/replay SMS support from/to NGN/PLMN/PSTN subscribers Security with password protection (MD 5) Multiple call server configuration Support of automatic upgrade from HTTP server Colombo, Sri Lanka, 7 -10 April 2009 11

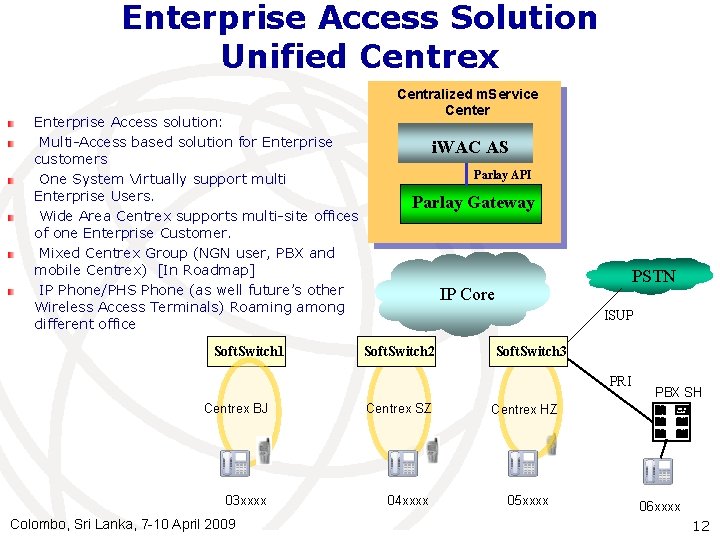

Enterprise Access Solution Unified Centrex Enterprise Access solution: Multi-Access based solution for Enterprise customers One System Virtually support multi Enterprise Users. Wide Area Centrex supports multi-site offices of one Enterprise Customer. Mixed Centrex Group (NGN user, PBX and mobile Centrex) [In Roadmap] IP Phone/PHS Phone (as well future’s other Wireless Access Terminals) Roaming among different office Soft. Switch 1 Centralized m. Service Center i. WAC AS Parlay API Parlay Gateway Provisoning Center PSTN IP Core ISUP Soft. Switch 2 Soft. Switch 3 PRI Centrex BJ Centrex SZ 03 xxxx 04 xxxx Colombo, Sri Lanka, 7 -10 April 2009 PBX SH Centrex HZ 05 xxxx 06 xxxx 12
FMC-Business Drivers Many households today have at least one cell phone. In these households estimated 60% of long distance calls and 36% of local calls take place on mobile phone at home (Yankee Group) 14% of users use cell phones as their primary line (Yankee Group) Additional 26% of users are ready to switch as in-building coverage improves Over 50% of users place mobile calls when they are at home or office (Wireless Review) Wi. Fi exists or can be supported in both places Traffic on mobile network has been increasing causing Qo. S problem and hence subscribers’ churn Pressure to reduce tariff for voice services “Fixed” broadband availability is growing at a rapid pace - double digits in CALL most cases FAILED Vo. BB provides new revenue stream for Service Provider, and also give a low cost alternative to carry mobile voice traffic Leverage low fixed line asset cost to support the mobile voice application PLEASE TRY AGAIN! Users need to access services seamlessly regardless of their location, active device or the network access method Lower CAPEX, Lower OPEX, Higher coverage and quality Colombo, Sri Lanka, 7 -10 April 2009 13
Driving Forces Consumers like mobile phones And all of them are not using just for mobility In >50% cases used for portability, not mobility. Consumes demands low cost for voice Broadband is getting widely deployed Voice over broadband is not only new revenue stream for SP, but also the low cost alternative to carry mobile voice traffic Leverage low fixed line asset cost to provide the mobile voice application Lower CAPEX, Lower OPEX, Higher coverage and quality => Fix Mobility Convergence Colombo, Sri Lanka, 7 -10 April 2009 14

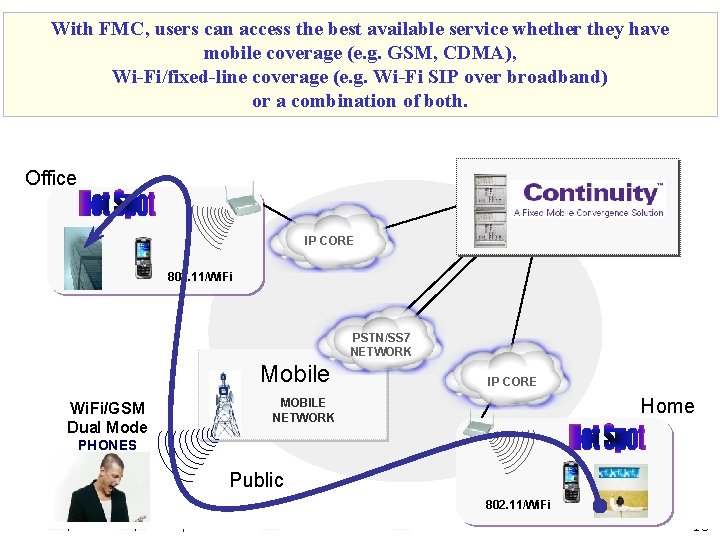

With FMC, users can access the best available service whether they have mobile coverage (e. g. GSM, CDMA), Wi-Fi/fixed-line coverage (e. g. Wi-Fi SIP over broadband) or a combination of both. Office IP CORE 802. 11/Wi. Fi PSTN/SS 7 NETWORK Mobile IP CORE Home MOBILE NETWORK Wi. Fi/GSM Dual Mode PHONES Public 802. 11/Wi. Fi Colombo, Sri Lanka, 7 -10 April 2009 15
