FORUM ON NEXT GENERATION STANDARDIZATION Colombo Sri Lanka

FORUM ON NEXT GENERATION STANDARDIZATION (Colombo, Sri Lanka, 7 -10 April 2009) Security & Regulatory Issues in NGN NK Goyal President, Communications & Manufacturing Association of India (CMAI) Chairman Emeritus, Telecom Equipment Manufacturers Association of India (TEMA) Director, National Fertilizers Ltd. NFL ( Govt. of India Undertaking) 7 -10 th April, 2009 Sri Lanka nkgoyals@nkgoyals. com nkgoyals@yahoo. co. in +91 98 111 29879 www. nkgoyals. com Colombo, Sri Lanka, 7 -10 April 2009

Indian Telecom Sector 281 Access service licensees. Of these, 121 UAS licenses were awarded in January, 2008. The total number of telephone connections stood at 400. 05 million at the end of January, 2009. Second largest in world. Monthly additions 10 -15 Millions The overall tele-density is 40. 50% and the rural tele-density is only 13. 13%. Colombo, Sri Lanka, 7 -10 April 2009 2

Next Generation Networks An ITU-T defined telecommunications Network architectures & Technologies NGN is a broadband Network where service layer, transport layer & application layers have an independent function of each other An Internet with an IMS architecture is NGN An evolutionary approach from PSTN/ISDN networks to advanced network called NGN Move from current H. 323 protocol to Session based Session Initiation Protocol Colombo, Sri Lanka, 7 -10 April 2009 3

Regulation of “Plain Old Telephone Service (POTS)” Numbering Consumer protection Security Privacy Quality of Service Emergency Access Interconnection Competition “Next Generation” Longer term issues Short term issues Regulatory implications of NGN Colombo, Sri Lanka, 7 -10 April 2009 Source: ASTAP 05_WS. IP&NGN-09 Core policy areas: • Competition (level-playing field), Interconnection • Consumer (QOS, privacy, emergency access) • Security & legal interception 4 Scope for self-regulation 4

Typical attacks in SIP Malformed Message Attacks Buffer Overflow Attacks Denial-of Service attacks RTP session hijacking Injection of unauthentic RTP packets into existing RTP flows Re-use of compromised SIP credentials Hostile SIP network elements Colombo, Sri Lanka, 7 -10 April 2009 5

Session Border Controller An insecure network cannot charge for its use or provide a guaranteed Qo. S service, because unauthorized users cannot be prevented from overusing limited network resources. SBCs can provide security and protection against unauthorized access into the trusted network invalid or malicious calls, including Denial of Service (Do. S) attacks bandwidth theft by authorized users unusual network conditions, for example a major emergency. Colombo, Sri Lanka, 7 -10 April 2009 6

NGN Security requirements for Transport Home Network domain Core Network Interfaces Security requirements for Service IMS domain Transport stratum to IMS domain IMS to Application domain security Home Network-to-IMS domain security Open service platform to valued-added service provider security Colombo, Sri Lanka, 7 -10 April 2009 7

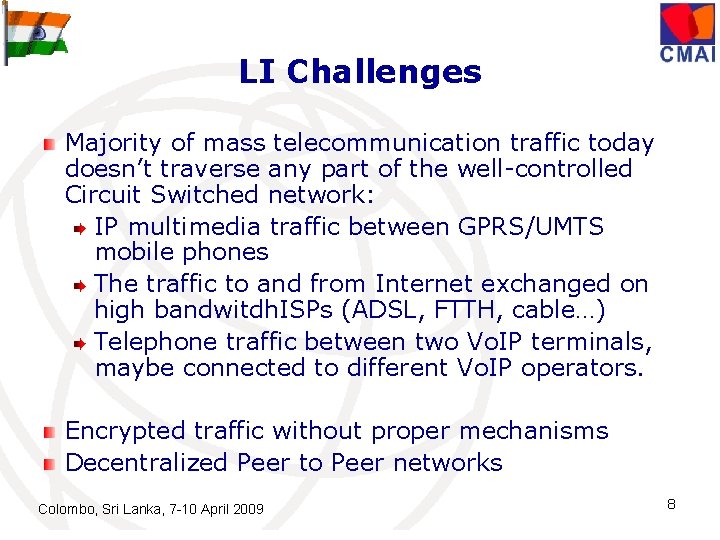

LI Challenges Majority of mass telecommunication traffic today doesn’t traverse any part of the well-controlled Circuit Switched network: IP multimedia traffic between GPRS/UMTS mobile phones The traffic to and from Internet exchanged on high bandwitdh. ISPs (ADSL, FTTH, cable…) Telephone traffic between two Vo. IP terminals, maybe connected to different Vo. IP operators. Encrypted traffic without proper mechanisms Decentralized Peer to Peer networks Colombo, Sri Lanka, 7 -10 April 2009 8

Challenges for NGN security • Network Address Translation (NAT): Calls may not materialized in due to NAT implementation in some router & firewall. • SIP: Message are sent in plain, uuencoded text although encryption option is available but there is no standard. • RTP: Vulnerable to interception & alteration • Code & script attacks: SIP phone are potentially vulnerable to attack from executable code or scripts. It may results in denial of service. • No standard Spam detection solutions Colombo, Sri Lanka, 7 -10 April 2009 9

Cyber Security With the growing number of applications to exploit on the converged Mobile IP Networks, a plethora of online avenues and revenues to pilfer, and many more corporate networks to hack, cyber-criminals appear to have no shortage of targets to pursue. The heightened interest and response from law enforcement worldwide in bringing cyber criminals to justice may well result in malicious hackers being increasingly aggressive and creative in their efforts. The threat of Malware, Trojans and lots others and it’s impact to operators is also big challenge. Colombo, Sri Lanka, 7 -10 April 2009 10

Summary of Next Gen Security & Other aspects 3 G/NGN/4 G/IMS security issues seems to remain a threat for a good amount of time in near future. Technical security of NGN systems well designed but likely to suffer implementation problems Increased connectivity means the security exposure will become more serious and harder to manage Protocols such as SIP (e. g. in IMS model) likely to be abused by NGP (next generation phreakers) Open and distributed nature Lack of inherent security mechanisms Increasingly complicated network concept Running of mission critical Applications Deployed before fully matured likely to cause operational problems Few expert solutions for effective management Require time and Cost consuming Integration and configuration Colombo, Sri Lanka, 7 -10 April 2009 11

Where is my cell phone mama. . I want to SMS to God that I have reached safely! Colombo, Sri Lanka, 7 -10 April 2009 12
