Forschungszentrum Karlsruhe in der HelmholtzGemeinschaft ANKA Synchrotron Architecture

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft ANKA Synchrotron: Architecture, use of ACS, experience of operation Wolfgang Mexner

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Forschungszentrum Karlsruhe Gmb. H Earth + Environment Health Energy Structure of Matter Keytechnology

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft The Machine 0 5 10 m storage ring 2, 5 Ge. V/200 m. A booster 500 Me. V microtron 50 Me. V

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Beamlines at ANKA XAS Absorption DIFF Diffraction SUL-X Fluo. Topo Fluorescence, Topography INE Actinide Research Lithography PX Protein. Crystallography IR Infra. Red. Spectroscopy MPI-MF Surface Diffraction WERA Soft X-ray Analytical Device

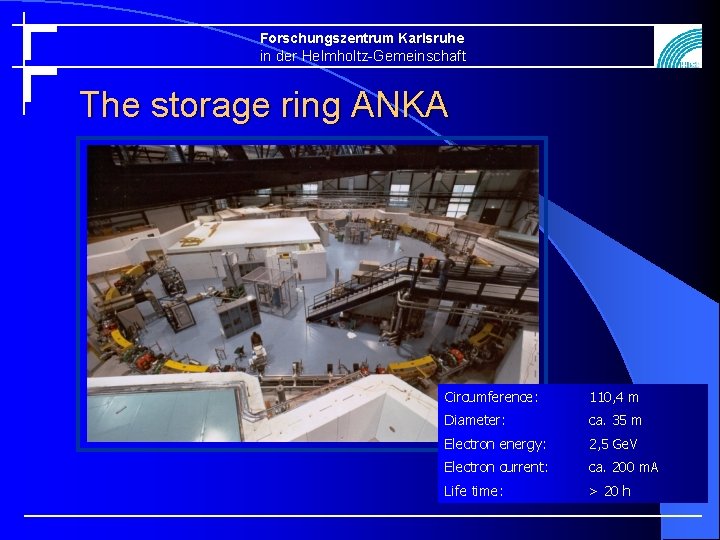

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft The storage ring ANKA Circumference: 110, 4 m Diameter: ca. 35 m Electron energy: 2, 5 Ge. V Electron current: ca. 200 m. A Life time: > 20 h

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Storage ring components bending magnet focusing magnets insertion device beamline front end experiment hall

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft ANKA Machine CS Datasheet l 9 device server machines l 28 different device types (IDLs) l 43 device servers l 507 devices l more than 1500 data channels

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft ANKA Machine CS Diagram l Java clients on Windows machines l C++ ACS Device servers on Windows l Lon. Works fieldbus with drivers in C for Neuron nodes

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Device Server machine l Windows 2000 machine with Lon. Works interface card. l Each device server started with own batch script l local copy of dll-s and configuration database maintained with CVS l remote access with VNC

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft ACS device servers at ANKA l ACS version 1. 1 ported to windows because of Lon. Works drivers l We had to do some fixes on BACI properties, should they go in main ACS branch? l Some problems: – with large number of slow clients monitor dispatching starts to be “slower” – logging server is synchronous and slows down whole system when used

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft LNS Errors during Activator Startup

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Power Supply Clients @ ANKA

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft SQL Snapshot Client

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft SQL-Database

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft SQL Data Retrieval with Excel

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Data Retrieval by Fill-Number

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Missing Clients l Configurable Alarm Table with clear graphical status display l Client with Bitmap with „Hot Spots“ to select power supplies etc.

Forschungszentrum Karlsruhe in der Helmholtz-Gemeinschaft Upgrade to newer ACS? l Are mentioned problems solved in new ACS? l What are new features, that ANKA would benefit of? l How much does it take to port ACS to Windows?
