FORMULATION OF PROVINCIAL SPATIAL ECONOMIC DEVELOPMENT STRATEGY (PSEDS) CORRIDOR AND NODAL FRAMEWORK AND DATA MAPPING UMKHANYAKUDE DISTRICT MUNICIPALITY Cosmas Hamadziripi Director: Policy and Planning/ Aerotropolis Department of Economic Development, Tourism and Environmental Affairs (EDTEA) Email: Cosmas. Hamadziripi@kznedtea. gov. za Cell: +27825208715 Tel: +27332642781/5

CONTENTS: § Introduction § Background § Motivation § Regional comparisons § PSEDS Nodes and Corridors 2007 vs 2016 § Methodology § Data sources § Analysis § Census data (Municipality / Ward) § Stats. SA SAMPI § PSEDS Nodes and Corridors 2016 § Provincial IREDC projects identified § Projects per District 2016

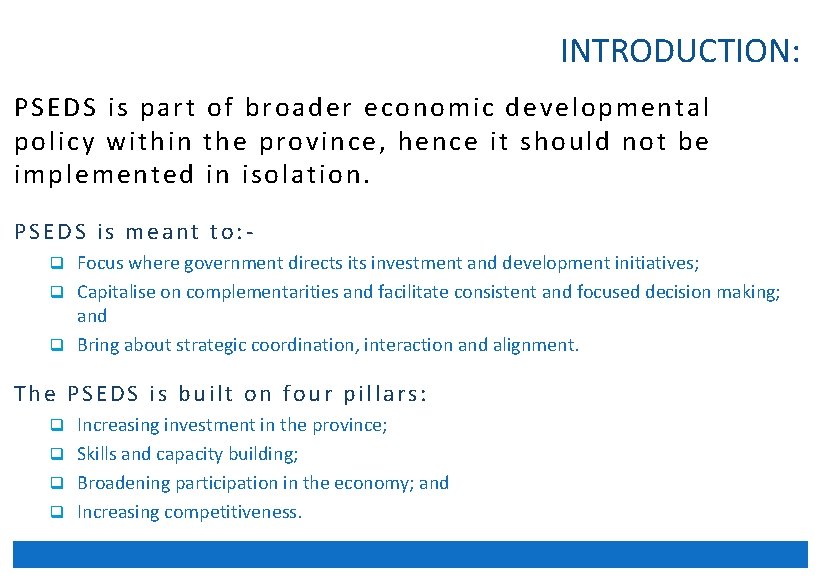

INTRODUCTION: PSEDS is part of broader economic developmental policy within the province, hence it should not be implemented in isolation. PSEDS is meant to: q Focus where government directs investment and development initiatives; q Capitalise on complementarities and facilitate consistent and focused decision making; and q Bring about strategic coordination, interaction and alignment. The PSEDS is built on four pillars: q Increasing investment in the province; q Skills and capacity building; q Broadening participation in the economy; and q Increasing competitiveness.

BACKGROUND: KZN PSEDS was adopted by cabinet in 2007 and has since its adoption acted as a framework for the prioritization of spatial economic development initiatives in the province. The PSEDS aims to answer the question: “WHERE should development take place” Or put differently “WHERE should provincial government focus its’ RESOURCES? ” In a manner that is (1) sustainable and (2) ensures maximum impact

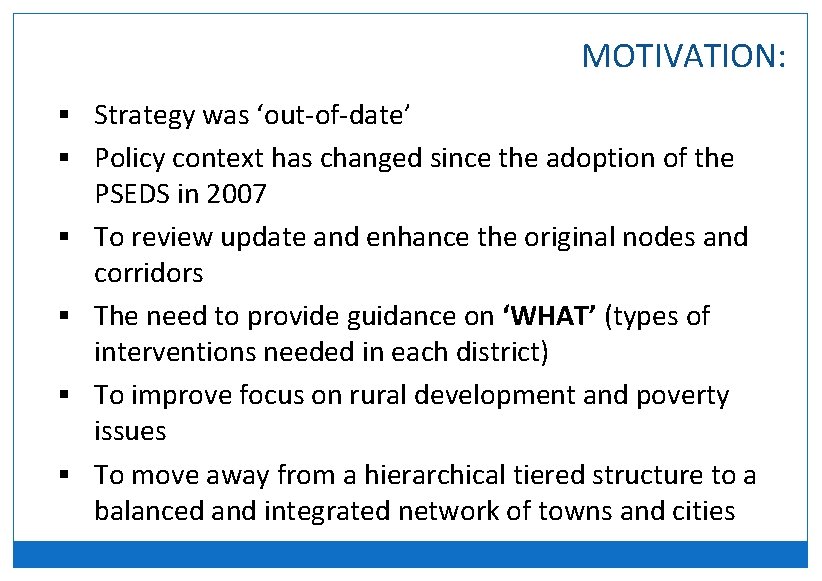

MOTIVATION: § Strategy was ‘out-of-date’ § Policy context has changed since the adoption of the § § PSEDS in 2007 To review update and enhance the original nodes and corridors The need to provide guidance on ‘WHAT’ (types of interventions needed in each district) To improve focus on rural development and poverty issues To move away from a hierarchical tiered structure to a balanced and integrated network of towns and cities

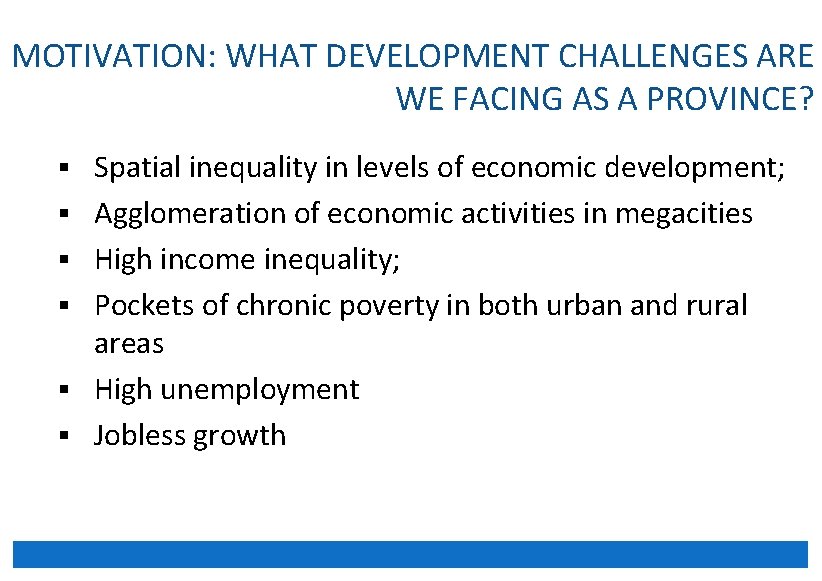

MOTIVATION: WHAT DEVELOPMENT CHALLENGES ARE WE FACING AS A PROVINCE? § Spatial inequality in levels of economic development; § Agglomeration of economic activities in megacities § High income inequality; § Pockets of chronic poverty in both urban and rural areas § High unemployment § Jobless growth

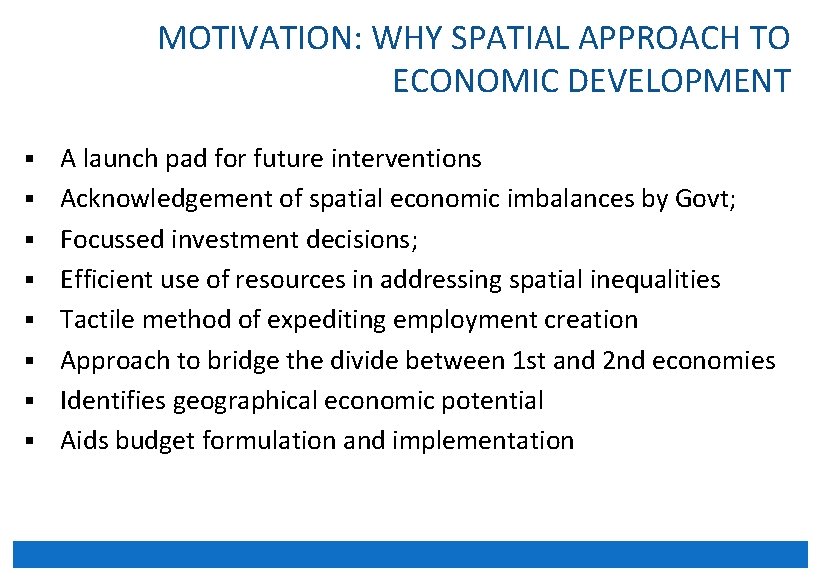

MOTIVATION: WHY SPATIAL APPROACH TO ECONOMIC DEVELOPMENT § § § § A launch pad for future interventions Acknowledgement of spatial economic imbalances by Govt; Focussed investment decisions; Efficient use of resources in addressing spatial inequalities Tactile method of expediting employment creation Approach to bridge the divide between 1 st and 2 nd economies Identifies geographical economic potential Aids budget formulation and implementation

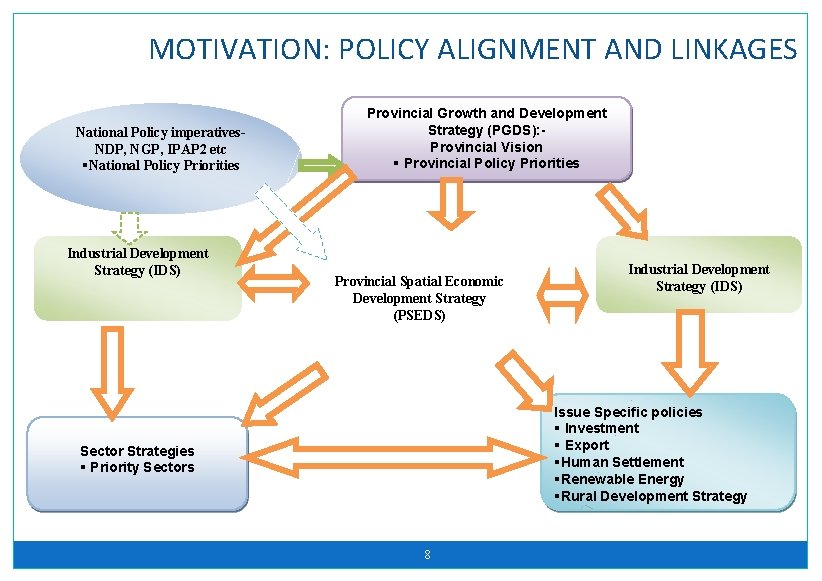

MOTIVATION: POLICY ALIGNMENT AND LINKAGES National Policy imperatives. NDP, NGP, IPAP 2 etc §National Policy Priorities Industrial Development Strategy (IDS) Provincial Growth and Development Strategy (PGDS): Provincial Vision § Provincial Policy Priorities Provincial Spatial Economic Development Strategy (PSEDS) Industrial Development Strategy (IDS) Issue Specific policies § Investment § Export §Human Settlement §Renewable Energy §Rural Development Strategy Sector Strategies § Priority Sectors 8

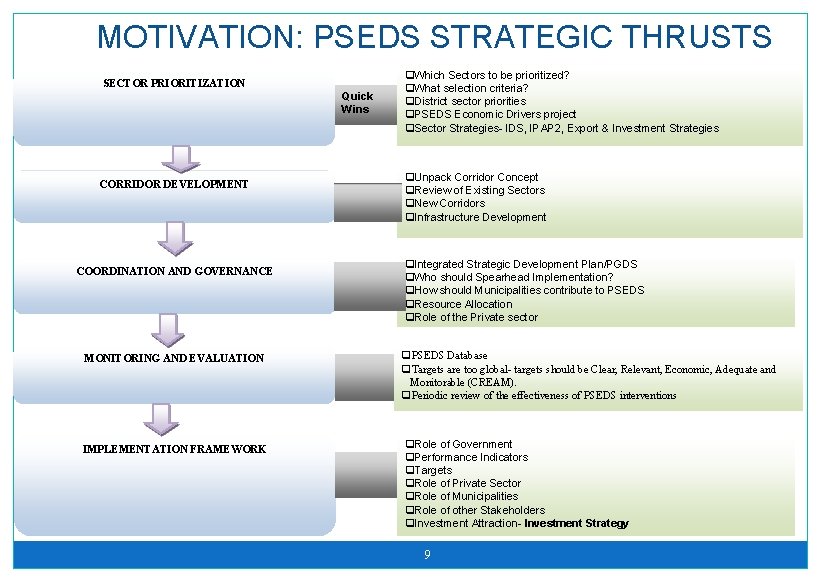

MOTIVATION: PSEDS STRATEGIC THRUSTS SECTOR PRIORITIZATION Quick Wins CORRIDOR DEVELOPMENT COORDINATION AND GOVERNANCE q. Which Sectors to be prioritized? q. What selection criteria? q. District sector priorities q. PSEDS Economic Drivers project q. Sector Strategies- IDS, IPAP 2, Export & Investment Strategies q. Unpack Corridor Concept q. Review of Existing Sectors q. New Corridors q. Infrastructure Development q. Integrated Strategic Development Plan/PGDS q. Who should Spearhead Implementation? q. How should Municipalities contribute to PSEDS q. Resource Allocation q. Role of the Private sector MONITORING AND EVALUATION q. PSEDS Database q. Targets are too global- targets should be Clear, Relevant, Economic, Adequate and Monitorable (CREAM). q. Periodic review of the effectiveness of PSEDS interventions IMPLEMENTATION FRAMEWORK q. Role of Government q. Performance Indicators q. Targets q. Role of Private Sector q. Role of Municipalities q. Role of other Stakeholders q. Investment Attraction- Investment Strategy 9

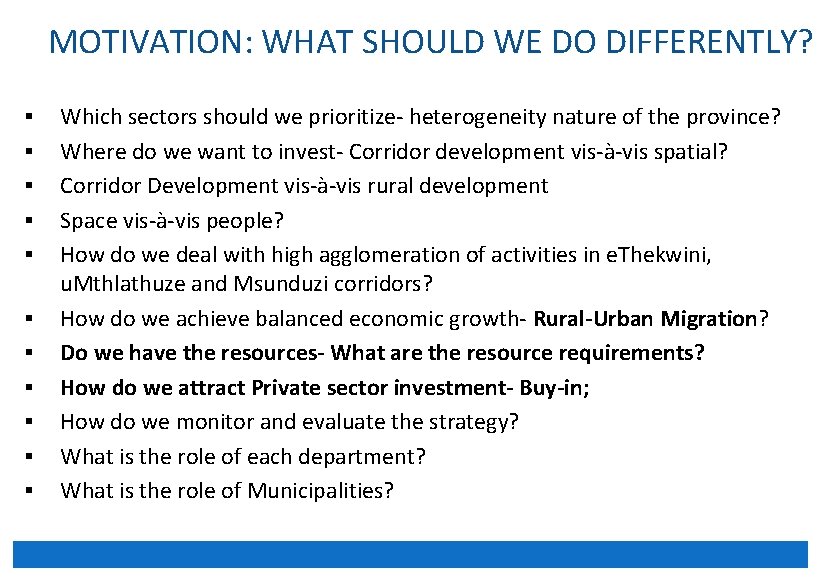

MOTIVATION: WHAT SHOULD WE DO DIFFERENTLY? § § § Which sectors should we prioritize- heterogeneity nature of the province? Where do we want to invest- Corridor development vis-à-vis spatial? Corridor Development vis-à-vis rural development Space vis-à-vis people? How do we deal with high agglomeration of activities in e. Thekwini, u. Mthlathuze and Msunduzi corridors? How do we achieve balanced economic growth- Rural-Urban Migration? Do we have the resources- What are the resource requirements? How do we attract Private sector investment- Buy-in; How do we monitor and evaluate the strategy? What is the role of each department? What is the role of Municipalities?

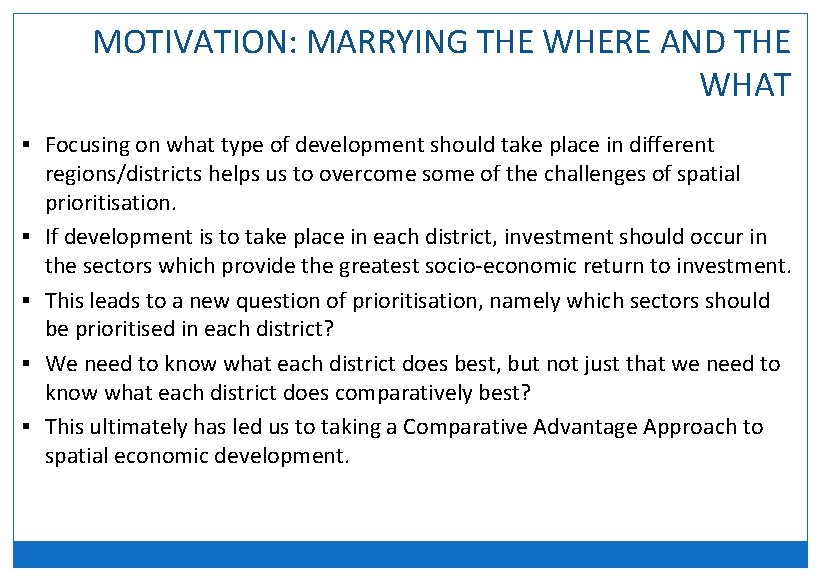

MOTIVATION: MARRYING THE WHERE AND THE WHAT § Focusing on what type of development should take place in different § § regions/districts helps us to overcome some of the challenges of spatial prioritisation. If development is to take place in each district, investment should occur in the sectors which provide the greatest socio-economic return to investment. This leads to a new question of prioritisation, namely which sectors should be prioritised in each district? We need to know what each district does best, but not just that we need to know what each district does comparatively best? This ultimately has led us to taking a Comparative Advantage Approach to spatial economic development.

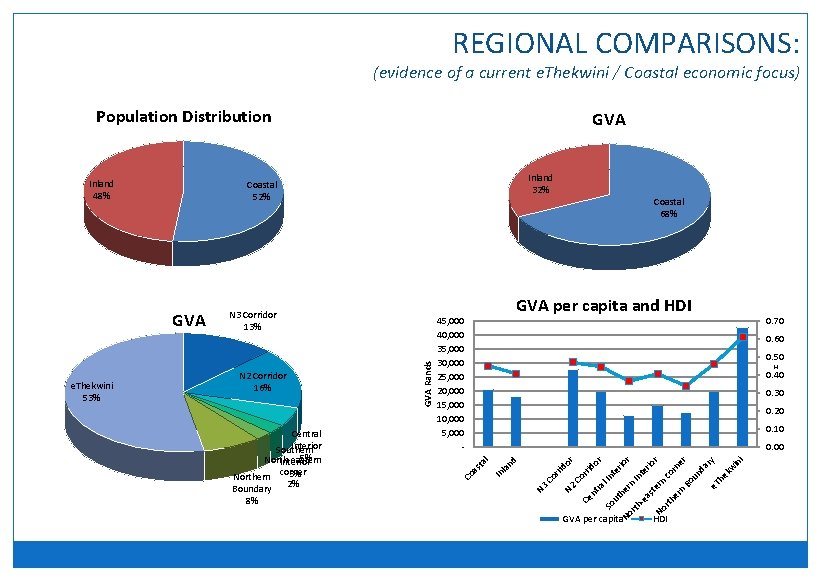

REGIONAL COMPARISONS: (evidence of a current e. Thekwini / Coastal economic focus) Population Distribution 0. 50 H 0. 40 0. 30 0. 20 0. 10 rth er n Bo co rn rio rn No No rth -e as te rn In te te he ut So GVA per capita er un da ry e. T he kw in i r r rio r do ra nt C o rri N 2 C o l In do r nd In la l 0. 00 Ce 8% 0. 70 0. 60 ta Central Interior Southern 5% North-eastern Interior corner 3% Northern 2% Boundary 45, 000 40, 000 35, 000 30, 000 25, 000 20, 000 15, 000 10, 000 5, 000 as N 2 Corridor 16% Coastal 68% GVA per capita and HDI Co N 3 Corridor 13% GVA Rands GVA e. Thekwini 53% Inland 32% Coastal 52% N 3 Inland 48% GVA HDI

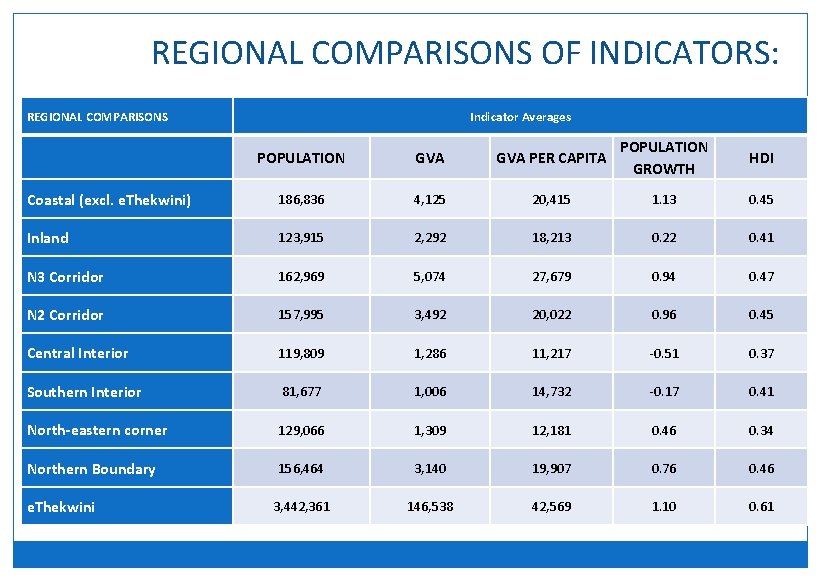

REGIONAL COMPARISONS OF INDICATORS: REGIONAL COMPARISONS Indicator Averages POPULATION GVA PER CAPITA POPULATION GROWTH HDI Coastal (excl. e. Thekwini) 186, 836 4, 125 20, 415 1. 13 0. 45 Inland 123, 915 2, 292 18, 213 0. 22 0. 41 N 3 Corridor 162, 969 5, 074 27, 679 0. 94 0. 47 N 2 Corridor 157, 995 3, 492 20, 022 0. 96 0. 45 Central Interior 119, 809 1, 286 11, 217 -0. 51 0. 37 Southern Interior 81, 677 1, 006 14, 732 -0. 17 0. 41 North-eastern corner 129, 066 1, 309 12, 181 0. 46 0. 34 Northern Boundary 156, 464 3, 140 19, 907 0. 76 0. 46 3, 442, 361 146, 538 42, 569 1. 10 0. 61 e. Thekwini

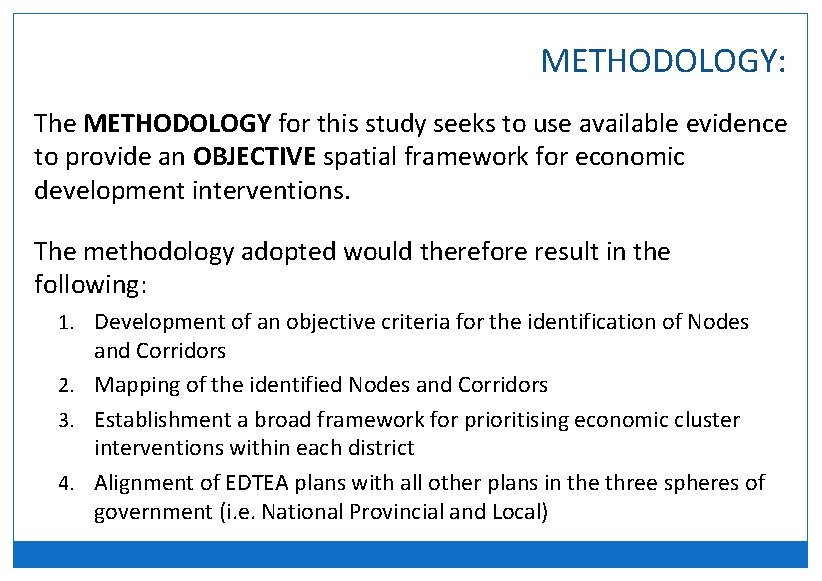

METHODOLOGY: The METHODOLOGY for this study seeks to use available evidence to provide an OBJECTIVE spatial framework for economic development interventions. The methodology adopted would therefore result in the following: 1. Development of an objective criteria for the identification of Nodes and Corridors 2. Mapping of the identified Nodes and Corridors 3. Establishment a broad framework for prioritising economic cluster interventions within each district 4. Alignment of EDTEA plans with all other plans in the three spheres of government (i. e. National Provincial and Local)

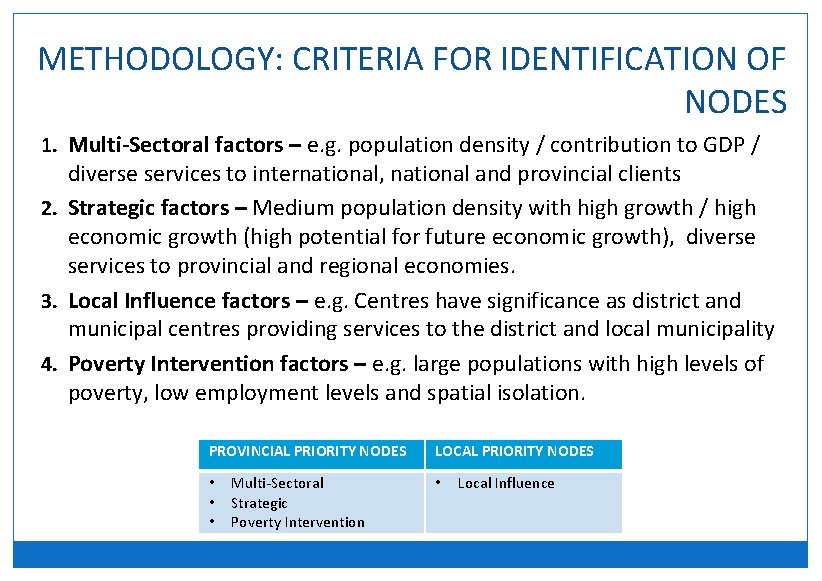

METHODOLOGY: CRITERIA FOR IDENTIFICATION OF NODES 1. Multi-Sectoral factors – e. g. population density / contribution to GDP / diverse services to international, national and provincial clients 2. Strategic factors – Medium population density with high growth / high economic growth (high potential for future economic growth), diverse services to provincial and regional economies. 3. Local Influence factors – e. g. Centres have significance as district and municipal centres providing services to the district and local municipality 4. Poverty Intervention factors – e. g. large populations with high levels of poverty, low employment levels and spatial isolation. PROVINCIAL PRIORITY NODES • • • Multi-Sectoral Strategic Poverty Intervention LOCAL PRIORITY NODES • Local Influence

DATA SOURCES: § Status Quo at Municipal level: § Population / Population Growth § GVA § Labour Indicators (employment / employment rate / employment growth) § Poverty Indicators (average income %<R 19600. 00 pa HDI) § District Economic Driver Profiles § Census Data (2001 and 2011) extracted from Super. Cross § Agricultural Land Categories § SIP 2 Corridor SDF Analysis § Catalytic and other projects § District / Municipality boundaries 2016 § KZN DOT Master plan 2016 § PGDS

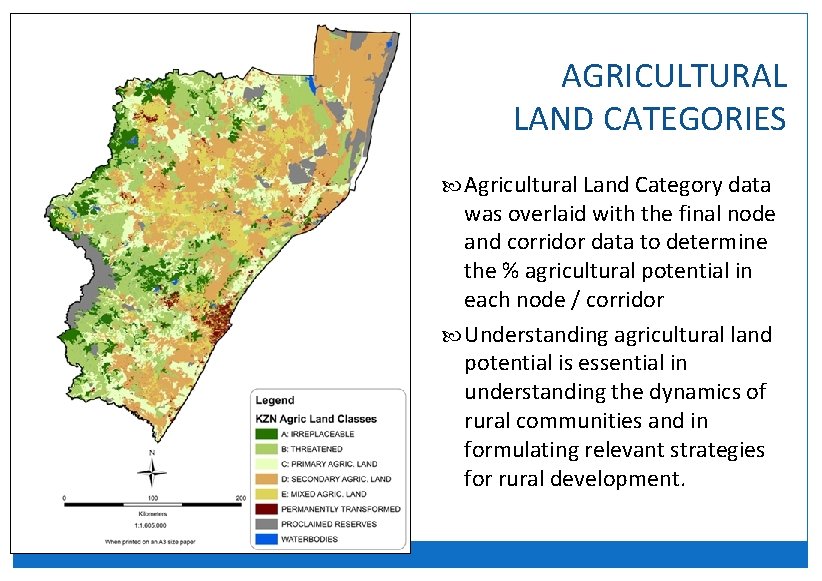

AGRICULTURAL LAND CATEGORIES Agricultural Land Category data was overlaid with the final node and corridor data to determine the % agricultural potential in each node / corridor Understanding agricultural land potential is essential in understanding the dynamics of rural communities and in formulating relevant strategies for rural development.

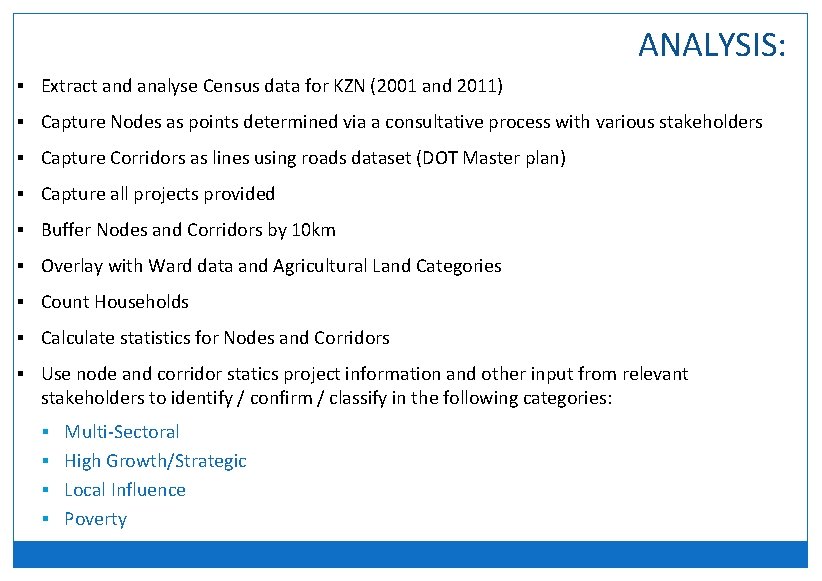

ANALYSIS: § Extract and analyse Census data for KZN (2001 and 2011) § Capture Nodes as points determined via a consultative process with various stakeholders § Capture Corridors as lines using roads dataset (DOT Master plan) § Capture all projects provided § Buffer Nodes and Corridors by 10 km § Overlay with Ward data and Agricultural Land Categories § Count Households § Calculate statistics for Nodes and Corridors § Use node and corridor statics project information and other input from relevant stakeholders to identify / confirm / classify in the following categories: § Multi-Sectoral § High Growth/Strategic § Local Influence § Poverty

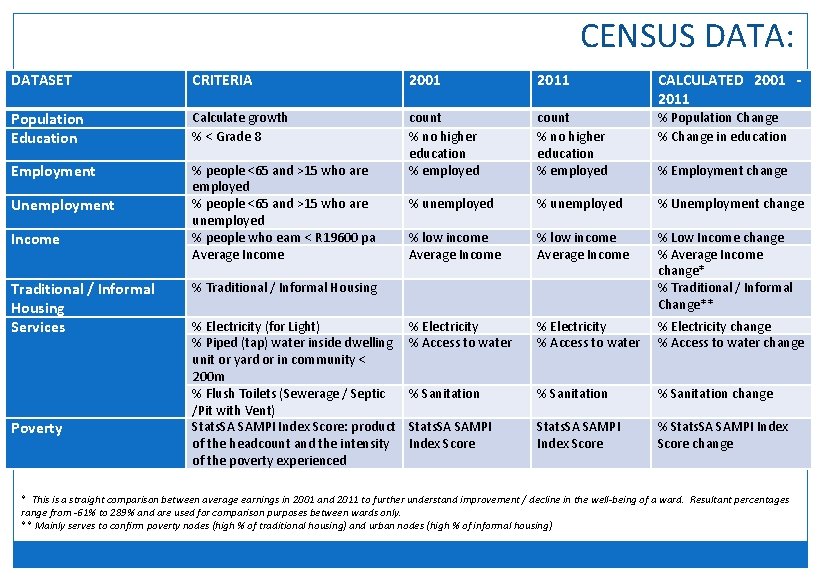

CENSUS DATA: DATASET CRITERIA 2001 2011 Population Education Calculate growth % < Grade 8 Employment % people <65 and >15 who are employed % people <65 and >15 who are unemployed % people who earn < R 19600 pa Average Income count % no higher education % employed % unemployed % Unemployment change % low income Average Income % Traditional / Informal Housing % Low Income change % Average Income change* % Traditional / Informal Change** % Electricity (for Light) % Piped (tap) water inside dwelling unit or yard or in community < 200 m % Flush Toilets (Sewerage / Septic /Pit with Vent) Stats. SA SAMPI Index Score: product of the headcount and the intensity of the poverty experienced % Electricity % Access to water % Electricity change % Access to water change % Sanitation change Stats. SA SAMPI Index Score % Stats. SA SAMPI Index Score change Unemployment Income Traditional / Informal Housing Services Poverty CALCULATED 2001 - 2011 % Population Change % Change in education % Employment change * This is a straight comparison between average earnings in 2001 and 2011 to further understand improvement / decline in the well-being of a ward. Resultant percentages range from -61% to 289% and are used for comparison purposes between wards only. ** Mainly serves to confirm poverty nodes (high % of traditional housing) and urban nodes (high % of informal housing)

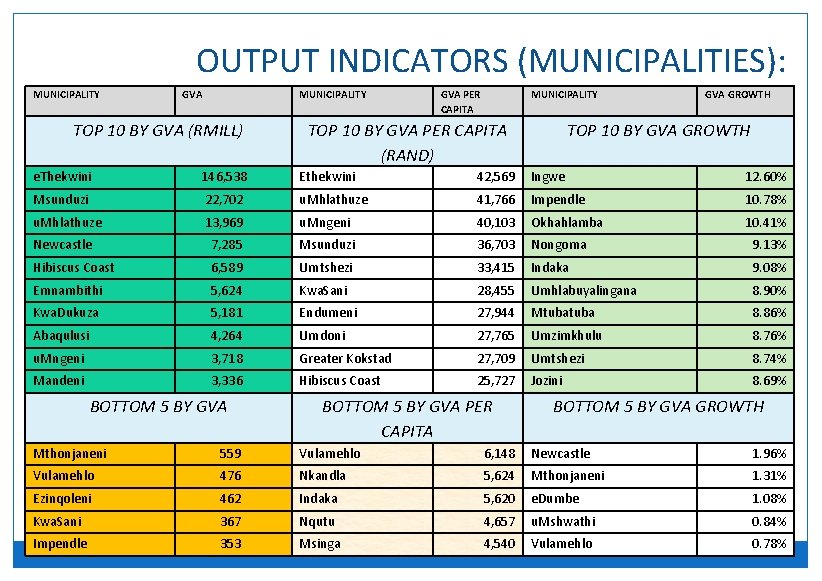

OUTPUT INDICATORS (MUNICIPALITIES): MUNICIPALITY GVA TOP 10 BY GVA (RMILL) MUNICIPALITY GVA PER CAPITA MUNICIPALITY TOP 10 BY GVA PER CAPITA (RAND) GVA GROWTH TOP 10 BY GVA GROWTH e. Thekwini 146, 538 Ethekwini 42, 569 Ingwe 12. 60% Msunduzi 22, 702 u. Mhlathuze 41, 766 Impendle 10. 78% u. Mhlathuze 13, 969 u. Mngeni 40, 103 Okhahlamba 10. 41% Newcastle 7, 285 Msunduzi 36, 703 Nongoma 9. 13% Hibiscus Coast 6, 589 Umtshezi 33, 415 Indaka 9. 08% Emnambithi 5, 624 Kwa. Sani 28, 455 Umhlabuyalingana 8. 90% Kwa. Dukuza 5, 181 Endumeni 27, 944 Mtuba 8. 86% Abaqulusi 4, 264 Umdoni 27, 765 Umzimkhulu 8. 76% u. Mngeni 3, 718 Greater Kokstad 27, 709 Umtshezi 8. 74% Mandeni 3, 336 Hibiscus Coast 25, 727 Jozini 8. 69% BOTTOM 5 BY GVA PER CAPITA BOTTOM 5 BY GVA GROWTH Mthonjaneni 559 Vulamehlo 6, 148 Newcastle 1. 96% Vulamehlo 476 Nkandla 5, 624 Mthonjaneni 1. 31% Ezinqoleni 462 Indaka 5, 620 e. Dumbe 1. 08% Kwa. Sani 367 Nqutu 4, 657 u. Mshwathi 0. 84% Impendle 353 Msinga 4, 540 Vulamehlo 0. 78%

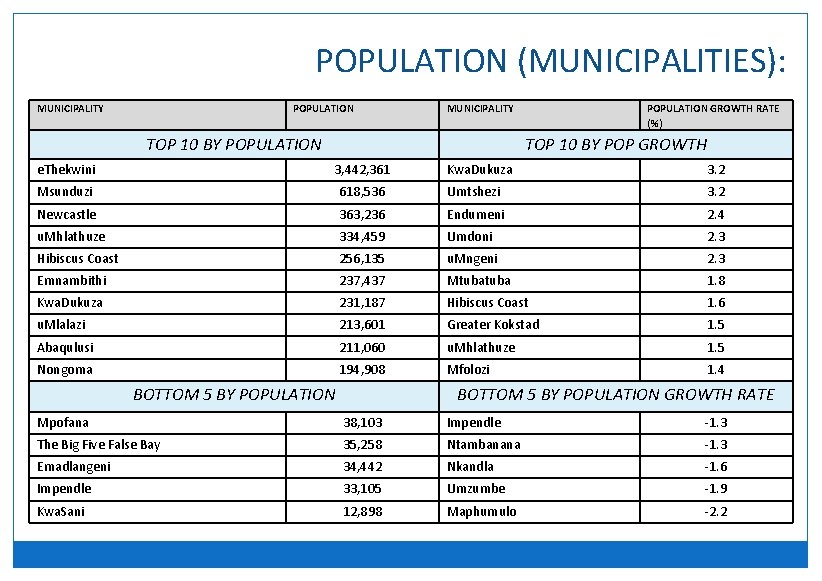

POPULATION (MUNICIPALITIES): MUNICIPALITY POPULATION MUNICIPALITY TOP 10 BY POPULATION GROWTH RATE (%) TOP 10 BY POP GROWTH e. Thekwini 3, 442, 361 Kwa. Dukuza 3. 2 Msunduzi 618, 536 Umtshezi 3. 2 Newcastle 363, 236 Endumeni 2. 4 u. Mhlathuze 334, 459 Umdoni 2. 3 Hibiscus Coast 256, 135 u. Mngeni 2. 3 Emnambithi 237, 437 Mtuba 1. 8 Kwa. Dukuza 231, 187 Hibiscus Coast 1. 6 u. Mlalazi 213, 601 Greater Kokstad 1. 5 Abaqulusi 211, 060 u. Mhlathuze 1. 5 Nongoma 194, 908 Mfolozi 1. 4 BOTTOM 5 BY POPULATION GROWTH RATE Mpofana 38, 103 Impendle -1. 3 The Big Five False Bay 35, 258 Ntambanana -1. 3 Emadlangeni 34, 442 Nkandla -1. 6 Impendle 33, 105 Umzumbe -1. 9 Kwa. Sani 12, 898 Maphumulo -2. 2

POPULATION (WARDS): WARD POPULATION TOP 10 BY POPULATION e. Thekwini Ward 11 e. Thekwini Ward 98 e. Thekwini Ward 77 e. Thekwini Ward 59 e. Thekwini Ward 67 e. Thekwini Ward 19 e. Thekwini Ward 55 e. Thekwini Ward 65 e. Thekwini Ward 3 e. Thekwini Ward 56 POPULATION GROWTH RATE TOP 10 BY POPULATION GROWTH RATE (%) 48, 705 46, 509 46, 050 45, 342 44, 874 43, 521 43, 056 42, 804 42, 405 42, 237 BOTTOM 5 BY POPULATION Kwa Sani Ward 3 Abaqulusi Ward 10 Kwa Sani Ward 4 u. Mngeni Ward 2 Nongoma Ward 19 WARD 3, 108 2, 709 2, 559 1, 266 402 Kwa. Dukuza Ward 23 Kwa. Dukuza Ward 5 Abaqulusi Ward 22 Greater Kokstad Ward 4 Kwa. Dukuza Ward 8 Mfolozi Ward 5 Kwa. Dukuza Ward 2 Mandeni Ward 17 e. Thekwini Ward 102 Kwa. Dukuza Ward 4 25. 01 23. 06 22. 07 20. 22 20. 20 16. 22 16. 14 16. 08 15. 60 14. 77 BOTTOM 5 BY POPULATION GROWTH RATE (%) Nkandla Ward 12 Greater Kokstad Ward 7 Maphumulo Ward 6 Umzumbe Ward 6 Nongoma Ward 19 -4. 13 -4. 23 -4. 43 -4. 79 -7. 05

POPULATION GROWTH (CENSUS 2001 -2011)

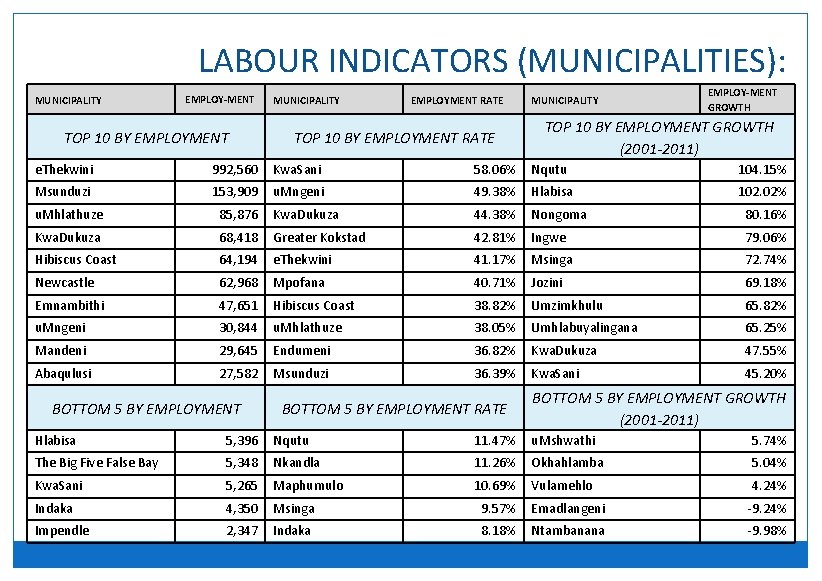

LABOUR INDICATORS (MUNICIPALITIES): MUNICIPALITY EMPLOY-MENT TOP 10 BY EMPLOYMENT MUNICIPALITY EMPLOYMENT RATE TOP 10 BY EMPLOYMENT RATE MUNICIPALITY EMPLOY-MENT GROWTH TOP 10 BY EMPLOYMENT GROWTH (2001 -2011) e. Thekwini 992, 560 Kwa. Sani 58. 06% Nqutu 104. 15% Msunduzi 153, 909 u. Mngeni 49. 38% Hlabisa 102. 02% u. Mhlathuze 85, 876 Kwa. Dukuza 44. 38% Nongoma 80. 16% Kwa. Dukuza 68, 418 Greater Kokstad 42. 81% Ingwe 79. 06% Hibiscus Coast 64, 194 e. Thekwini 41. 17% Msinga 72. 74% Newcastle 62, 968 Mpofana 40. 71% Jozini 69. 18% Emnambithi 47, 651 Hibiscus Coast 38. 82% Umzimkhulu 65. 82% u. Mngeni 30, 844 u. Mhlathuze 38. 05% Umhlabuyalingana 65. 25% Mandeni 29, 645 Endumeni 36. 82% Kwa. Dukuza 47. 55% Abaqulusi 27, 582 Msunduzi 36. 39% Kwa. Sani 45. 20% BOTTOM 5 BY EMPLOYMENT RATE BOTTOM 5 BY EMPLOYMENT GROWTH (2001 -2011) Hlabisa 5, 396 Nqutu 11. 47% u. Mshwathi 5. 74% The Big Five False Bay 5, 348 Nkandla 11. 26% Okhahlamba 5. 04% Kwa. Sani 5, 265 Maphumulo 10. 69% Vulamehlo 4. 24% Indaka 4, 350 Msinga 9. 57% Emadlangeni -9. 24% Impendle 2, 347 Indaka 8. 18% Ntambanana -9. 98%

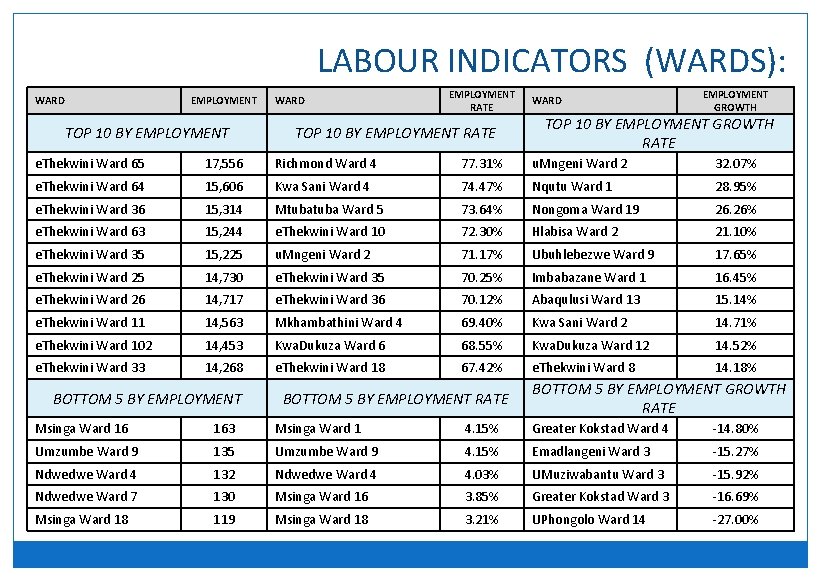

LABOUR INDICATORS (WARDS): WARD EMPLOYMENT TOP 10 BY EMPLOYMENT WARD EMPLOYMENT RATE TOP 10 BY EMPLOYMENT RATE WARD EMPLOYMENT GROWTH TOP 10 BY EMPLOYMENT GROWTH RATE e. Thekwini Ward 65 17, 556 Richmond Ward 4 77. 31% u. Mngeni Ward 2 32. 07% e. Thekwini Ward 64 15, 606 Kwa Sani Ward 4 74. 47% Nqutu Ward 1 28. 95% e. Thekwini Ward 36 15, 314 Mtuba Ward 5 73. 64% Nongoma Ward 19 26. 26% e. Thekwini Ward 63 15, 244 e. Thekwini Ward 10 72. 30% Hlabisa Ward 2 21. 10% e. Thekwini Ward 35 15, 225 u. Mngeni Ward 2 71. 17% Ubuhlebezwe Ward 9 17. 65% e. Thekwini Ward 25 14, 730 e. Thekwini Ward 35 70. 25% Imbabazane Ward 1 16. 45% e. Thekwini Ward 26 14, 717 e. Thekwini Ward 36 70. 12% Abaqulusi Ward 13 15. 14% e. Thekwini Ward 11 14, 563 Mkhambathini Ward 4 69. 40% Kwa Sani Ward 2 14. 71% e. Thekwini Ward 102 14, 453 Kwa. Dukuza Ward 6 68. 55% Kwa. Dukuza Ward 12 14. 52% e. Thekwini Ward 33 14, 268 e. Thekwini Ward 18 67. 42% e. Thekwini Ward 8 14. 18% BOTTOM 5 BY EMPLOYMENT RATE BOTTOM 5 BY EMPLOYMENT GROWTH RATE Msinga Ward 16 163 Msinga Ward 1 4. 15% Greater Kokstad Ward 4 -14. 80% Umzumbe Ward 9 135 Umzumbe Ward 9 4. 15% Emadlangeni Ward 3 -15. 27% Ndwedwe Ward 4 132 Ndwedwe Ward 4 4. 03% UMuziwabantu Ward 3 -15. 92% Ndwedwe Ward 7 130 Msinga Ward 16 3. 85% Greater Kokstad Ward 3 -16. 69% Msinga Ward 18 119 Msinga Ward 18 3. 21% UPhongolo Ward 14 -27. 00%

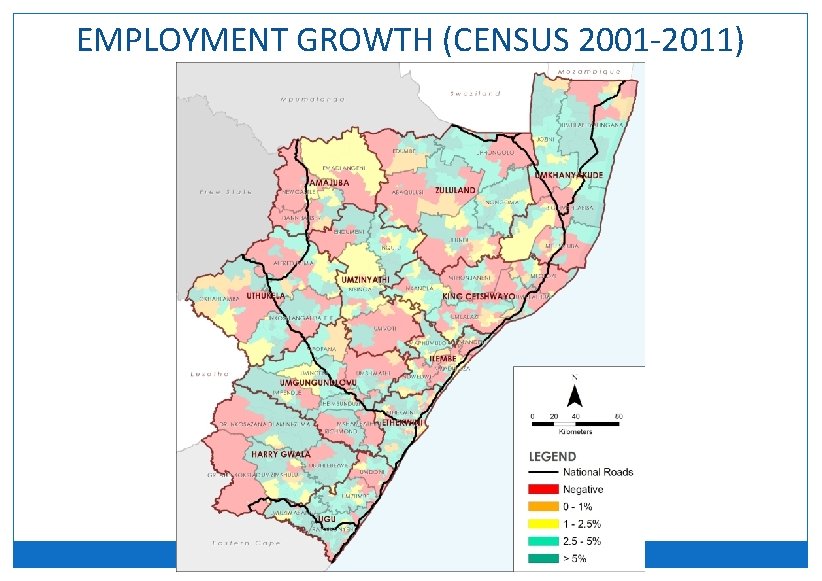

EMPLOYMENT GROWTH (CENSUS 2001 -2011)

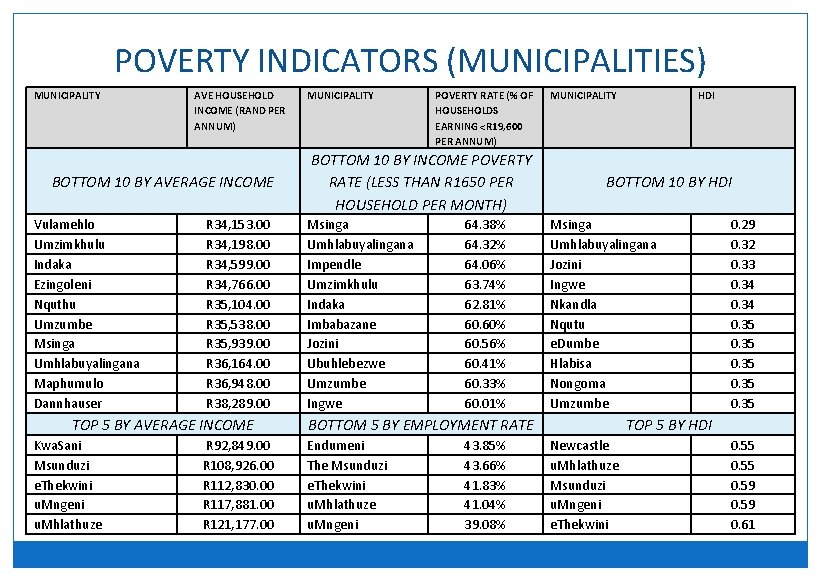

POVERTY INDICATORS (MUNICIPALITIES) MUNICIPALITY AVE HOUSEHOLD INCOME (RAND PER ANNUM) BOTTOM 10 BY AVERAGE INCOME Vulamehlo Umzimkhulu Indaka Ezingoleni Nquthu Umzumbe Msinga Umhlabuyalingana Maphumulo Dannhauser R 34, 153. 00 R 34, 198. 00 R 34, 599. 00 R 34, 766. 00 R 35, 104. 00 R 35, 538. 00 R 35, 939. 00 R 36, 164. 00 R 36, 948. 00 R 38, 289. 00 TOP 5 BY AVERAGE INCOME Kwa. Sani Msunduzi e. Thekwini u. Mngeni u. Mhlathuze R 92, 849. 00 R 108, 926. 00 R 112, 830. 00 R 117, 881. 00 R 121, 177. 00 MUNICIPALITY POVERTY RATE (% OF HOUSEHOLDS EARNING <R 19, 600 PER ANNUM) BOTTOM 10 BY INCOME POVERTY RATE (LESS THAN R 1650 PER HOUSEHOLD PER MONTH) Msinga Umhlabuyalingana Impendle Umzimkhulu Indaka Imbabazane Jozini Ubuhlebezwe Umzumbe Ingwe 64. 38% 64. 32% 64. 06% 63. 74% 62. 81% 60. 60% 60. 56% 60. 41% 60. 33% 60. 01% MUNICIPALITY BOTTOM 10 BY HDI Msinga Umhlabuyalingana Jozini Ingwe Nkandla Nqutu e. Dumbe Hlabisa Nongoma Umzumbe BOTTOM 5 BY EMPLOYMENT RATE Endumeni The Msunduzi e. Thekwini u. Mhlathuze u. Mngeni 43. 85% 43. 66% 41. 83% 41. 04% 39. 08% HDI 0. 29 0. 32 0. 33 0. 34 0. 35 TOP 5 BY HDI Newcastle u. Mhlathuze Msunduzi u. Mngeni e. Thekwini 0. 55 0. 59 0. 61

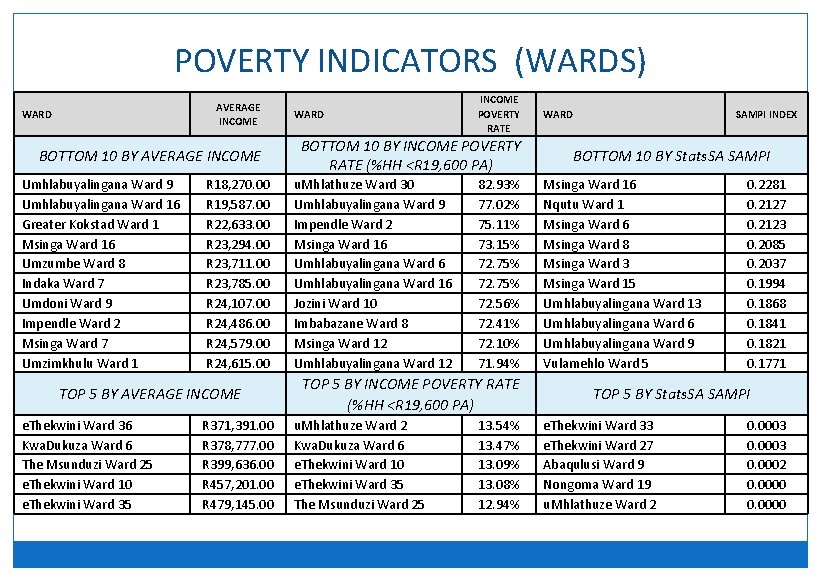

POVERTY INDICATORS (WARDS) AVERAGE INCOME WARD BOTTOM 10 BY AVERAGE INCOME Umhlabuyalingana Ward 9 Umhlabuyalingana Ward 16 Greater Kokstad Ward 1 Msinga Ward 16 Umzumbe Ward 8 Indaka Ward 7 Umdoni Ward 9 Impendle Ward 2 Msinga Ward 7 Umzimkhulu Ward 1 R 18, 270. 00 R 19, 587. 00 R 22, 633. 00 R 23, 294. 00 R 23, 711. 00 R 23, 785. 00 R 24, 107. 00 R 24, 486. 00 R 24, 579. 00 R 24, 615. 00 TOP 5 BY AVERAGE INCOME e. Thekwini Ward 36 Kwa. Dukuza Ward 6 The Msunduzi Ward 25 e. Thekwini Ward 10 e. Thekwini Ward 35 R 371, 391. 00 R 378, 777. 00 R 399, 636. 00 R 457, 201. 00 R 479, 145. 00 WARD INCOME POVERTY RATE BOTTOM 10 BY INCOME POVERTY RATE (%HH <R 19, 600 PA) u. Mhlathuze Ward 30 Umhlabuyalingana Ward 9 Impendle Ward 2 Msinga Ward 16 Umhlabuyalingana Ward 16 Jozini Ward 10 Imbabazane Ward 8 Msinga Ward 12 Umhlabuyalingana Ward 12 82. 93% 77. 02% 75. 11% 73. 15% 72. 75% 72. 56% 72. 41% 72. 10% 71. 94% TOP 5 BY INCOME POVERTY RATE (%HH <R 19, 600 PA) u. Mhlathuze Ward 2 Kwa. Dukuza Ward 6 e. Thekwini Ward 10 e. Thekwini Ward 35 The Msunduzi Ward 25 13. 54% 13. 47% 13. 09% 13. 08% 12. 94% WARD SAMPI INDEX BOTTOM 10 BY Stats. SA SAMPI Msinga Ward 16 Nqutu Ward 1 Msinga Ward 6 Msinga Ward 8 Msinga Ward 3 Msinga Ward 15 Umhlabuyalingana Ward 13 Umhlabuyalingana Ward 6 Umhlabuyalingana Ward 9 Vulamehlo Ward 5 0. 2281 0. 2127 0. 2123 0. 2085 0. 2037 0. 1994 0. 1868 0. 1841 0. 1821 0. 1771 TOP 5 BY Stats. SA SAMPI e. Thekwini Ward 33 e. Thekwini Ward 27 Abaqulusi Ward 9 Nongoma Ward 19 u. Mhlathuze Ward 2 0. 0003 0. 0002 0. 0000

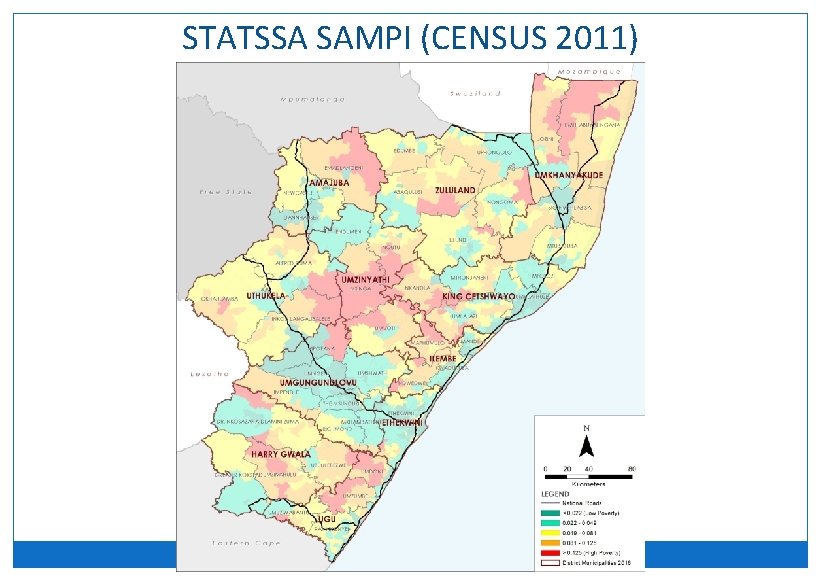

STATSSA SAMPI (CENSUS 2011)

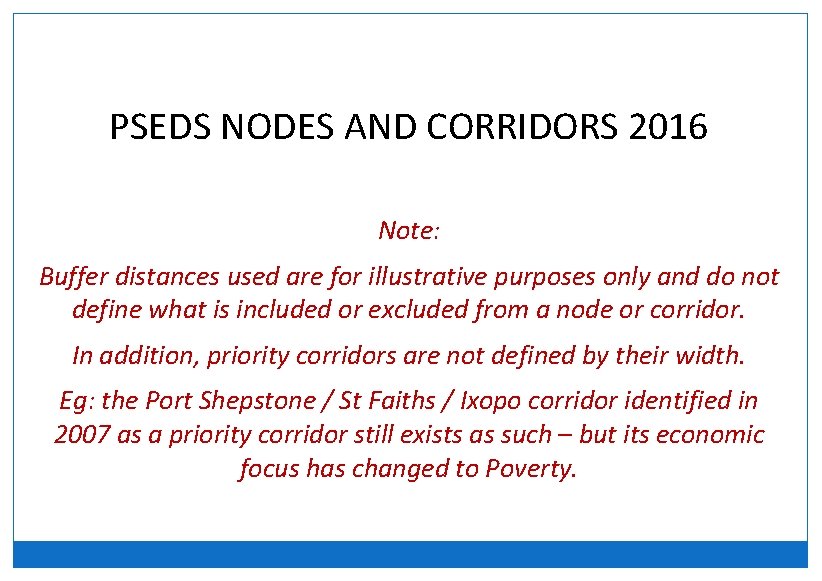

PSEDS NODES AND CORRIDORS 2016 Note: Buffer distances used are for illustrative purposes only and do not define what is included or excluded from a node or corridor. In addition, priority corridors are not defined by their width. Eg: the Port Shepstone / St Faiths / Ixopo corridor identified in 2007 as a priority corridor still exists as such – but its economic focus has changed to Poverty.

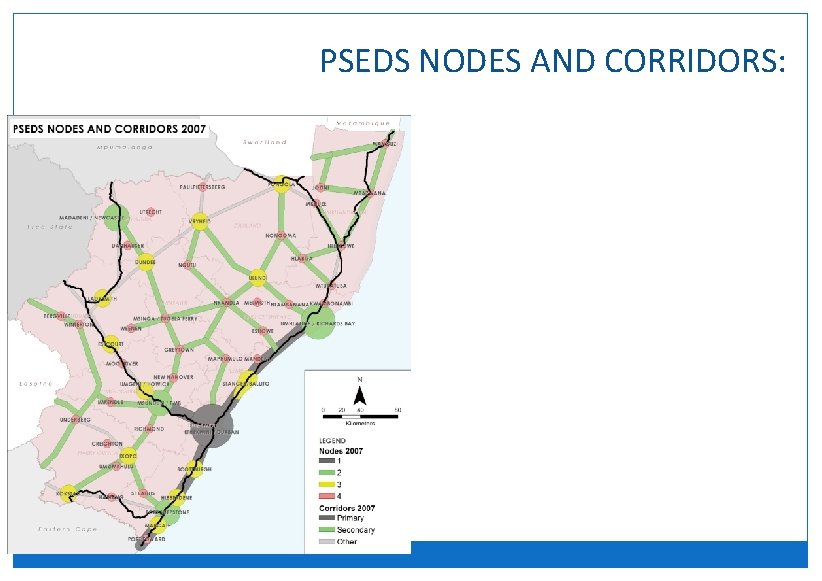

PSEDS NODES AND CORRIDORS:

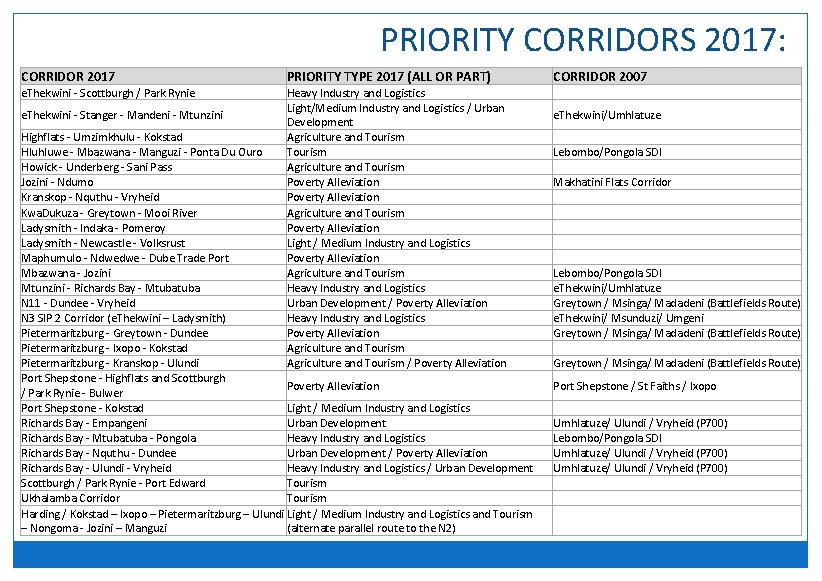

PRIORITY CORRIDORS 2017: CORRIDOR 2017 PRIORITY TYPE 2017 (ALL OR PART) e. Thekwini - Scottburgh / Park Rynie Heavy Industry and Logistics Light/Medium Industry and Logistics / Urban Development Agriculture and Tourism Poverty Alleviation Agriculture and Tourism Poverty Alleviation Light / Medium Industry and Logistics Poverty Alleviation Agriculture and Tourism Heavy Industry and Logistics Urban Development / Poverty Alleviation Heavy Industry and Logistics Poverty Alleviation Agriculture and Tourism / Poverty Alleviation e. Thekwini - Stanger - Mandeni - Mtunzini Highflats - Umzimkhulu - Kokstad Hluhluwe - Mbazwana - Manguzi - Ponta Du Ouro Howick - Underberg - Sani Pass Jozini - Ndumo Kranskop - Nquthu - Vryheid Kwa. Dukuza - Greytown - Mooi River Ladysmith - Indaka - Pomeroy Ladysmith - Newcastle - Volksrust Maphumulo - Ndwedwe - Dube Trade Port Mbazwana - Jozini Mtunzini - Richards Bay - Mtuba N 11 - Dundee - Vryheid N 3 SIP 2 Corridor (e. Thekwini – Ladysmith) Pietermaritzburg - Greytown - Dundee Pietermaritzburg - Ixopo - Kokstad Pietermaritzburg - Kranskop - Ulundi Port Shepstone - Highflats and Scottburgh Poverty Alleviation / Park Rynie - Bulwer Port Shepstone - Kokstad Light / Medium Industry and Logistics Richards Bay - Empangeni Urban Development Richards Bay - Mtuba - Pongola Heavy Industry and Logistics Richards Bay - Nquthu - Dundee Urban Development / Poverty Alleviation Richards Bay - Ulundi - Vryheid Heavy Industry and Logistics / Urban Development Scottburgh / Park Rynie - Port Edward Tourism Ukhalamba Corridor Tourism Harding / Kokstad – Ixopo – Pietermaritzburg – Ulundi Light / Medium Industry and Logistics and Tourism – Nongoma - Jozini – Manguzi (alternate parallel route to the N 2) CORRIDOR 2007 e. Thekwini/Umhlatuze Lebombo/Pongola SDI Makhatini Flats Corridor Lebombo/Pongola SDI e. Thekwini/Umhlatuze Greytown / Msinga/ Madadeni (Battlefields Route) e. Thekwini/ Msunduzi/ Umgeni Greytown / Msinga/ Madadeni (Battlefields Route) Port Shepstone / St Faiths / Ixopo Umhlatuze/ Ulundi / Vryheid (P 700) Lebombo/Pongola SDI Umhlatuze/ Ulundi / Vryheid (P 700)

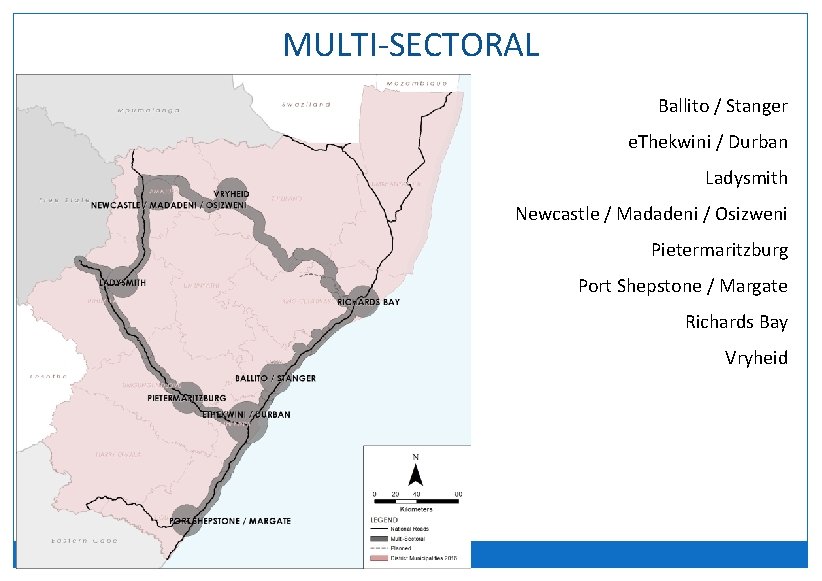

MULTI-SECTORAL Ballito / Stanger e. Thekwini / Durban Ladysmith Newcastle / Madadeni / Osizweni Pietermaritzburg Port Shepstone / Margate Richards Bay Vryheid

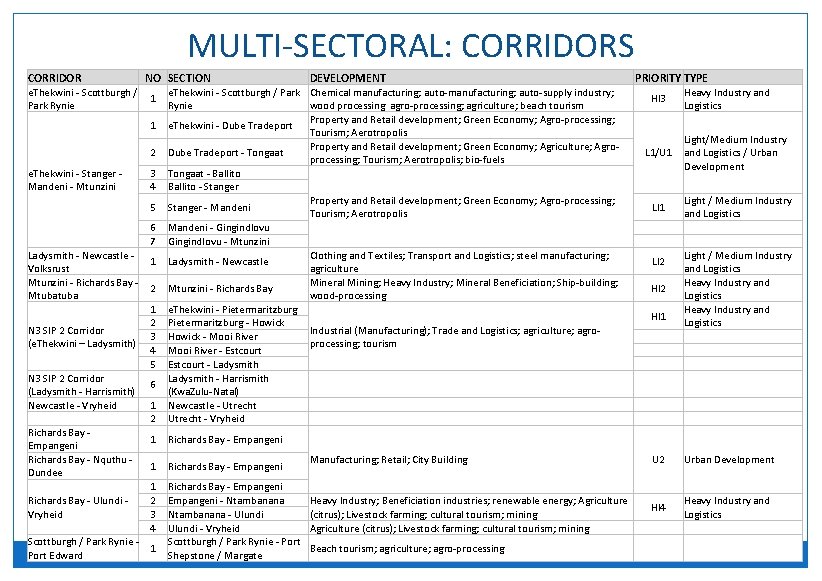

MULTI-SECTORAL: CORRIDORS CORRIDOR NO SECTION e. Thekwini - Scottburgh / 1 Park Rynie 1 2 e. Thekwini - Stanger - Mandeni - Mtunzini 3 4 5 6 7 Ladysmith - Newcastle - 1 Volksrust Mtunzini - Richards Bay - 2 Mtuba 1 2 N 3 SIP 2 Corridor 3 (e. Thekwini – Ladysmith) 4 5 N 3 SIP 2 Corridor 6 (Ladysmith - Harrismith) Newcastle - Vryheid 1 2 Richards Bay - 1 Empangeni Richards Bay - Nquthu - 1 Dundee 1 2 Richards Bay - Ulundi - Vryheid 3 4 Scottburgh / Park Rynie - 1 Port Edward DEVELOPMENT e. Thekwini - Scottburgh / Park Chemical manufacturing; auto-supply industry; Rynie wood processing agro-processing; agriculture; beach tourism Property and Retail development; Green Economy; Agro-processing; e. Thekwini - Dube Tradeport Tourism; Aerotropolis Property and Retail development; Green Economy; Agriculture; Agro. Dube Tradeport - Tongaat processing; Tourism; Aerotropolis; bio-fuels Tongaat - Ballito - Stanger Property and Retail development; Green Economy; Agro-processing; Stanger - Mandeni Tourism; Aerotropolis Mandeni - Gingindlovu - Mtunzini Clothing and Textiles; Transport and Logistics; steel manufacturing; Ladysmith - Newcastle agriculture Mineral Mining; Heavy Industry; Mineral Beneficiation; Ship-building; Mtunzini - Richards Bay wood-processing e. Thekwini - Pietermaritzburg - Howick Industrial (Manufacturing); Trade and Logistics; agriculture; agro. Howick - Mooi River processing; tourism Mooi River - Estcourt - Ladysmith - Harrismith (Kwa. Zulu-Natal) Newcastle - Utrecht - Vryheid PRIORITY TYPE HI 3 L 1/U 1 Heavy Industry and Logistics Light/Medium Industry and Logistics / Urban Development Light / Medium Industry and Logistics Heavy Industry and Logistics LI 1 LI 2 HI 1 Richards Bay - Empangeni - Ntambanana - Ulundi - Vryheid Scottburgh / Park Rynie - Port Shepstone / Margate Manufacturing; Retail; City Building Heavy Industry; Beneficiation industries; renewable energy; Agriculture (citrus); Livestock farming; cultural tourism; mining Beach tourism; agriculture; agro-processing U 2 Urban Development Heavy Industry and Logistics HI 4

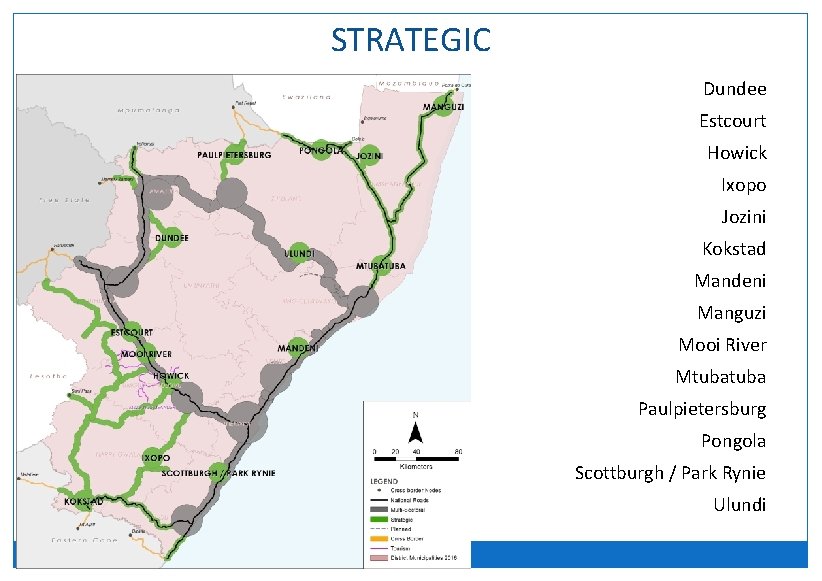

STRATEGIC Dundee Estcourt Howick Ixopo Jozini Kokstad Mandeni Manguzi Mooi River Mtuba Paulpietersburg Pongola Scottburgh / Park Rynie Ulundi

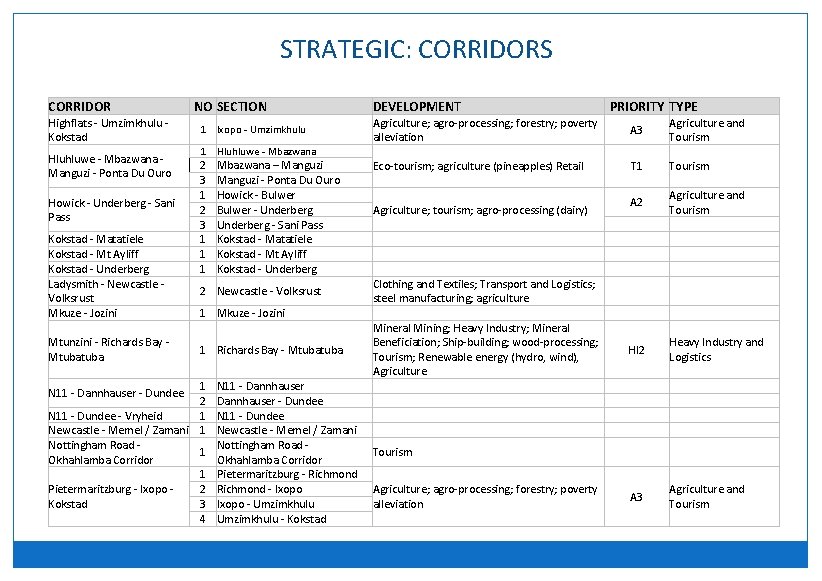

STRATEGIC: CORRIDORS CORRIDOR Highflats - Umzimkhulu - Kokstad Hluhluwe - Mbazwana - Manguzi - Ponta Du Ouro Howick - Underberg - Sani Pass Kokstad - Matatiele Kokstad - Mt Ayliff Kokstad - Underberg Ladysmith - Newcastle - Volksrust Mkuze - Jozini Mtunzini - Richards Bay - Mtuba NO SECTION 1 Ixopo - Umzimkhulu PRIORITY TYPE Agriculture; agro-processing; forestry; poverty alleviation A 3 Agriculture and Tourism Eco-tourism; agriculture (pineapples) Retail T 1 Tourism 1 Hluhluwe - Mbazwana 2 3 1 1 1 Mbazwana – Manguzi - Ponta Du Ouro Howick - Bulwer - Underberg - Sani Pass Kokstad - Matatiele Kokstad - Mt Ayliff Kokstad - Underberg 2 Newcastle - Volksrust 1 Mkuze - Jozini 1 Richards Bay - Mtuba 1 2 N 11 - Dundee - Vryheid 1 Newcastle - Memel / Zamani 1 Nottingham Road - 1 Okhahlamba Corridor 1 2 Pietermaritzburg - Ixopo - Kokstad 3 4 N 11 - Dannhauser - Dundee DEVELOPMENT N 11 - Dannhauser - Dundee N 11 - Dundee Newcastle - Memel / Zamani Nottingham Road - Okhahlamba Corridor Pietermaritzburg - Richmond - Ixopo - Umzimkhulu - Kokstad Agriculture; tourism; agro-processing (dairy) Clothing and Textiles; Transport and Logistics; steel manufacturing; agriculture Mineral Mining; Heavy Industry; Mineral Beneficiation; Ship-building; wood-processing; Tourism; Renewable energy (hydro, wind), Agriculture and Tourism A 2 HI 2 Heavy Industry and Logistics Tourism Agriculture; agro-processing; forestry; poverty alleviation A 3 Agriculture and Tourism

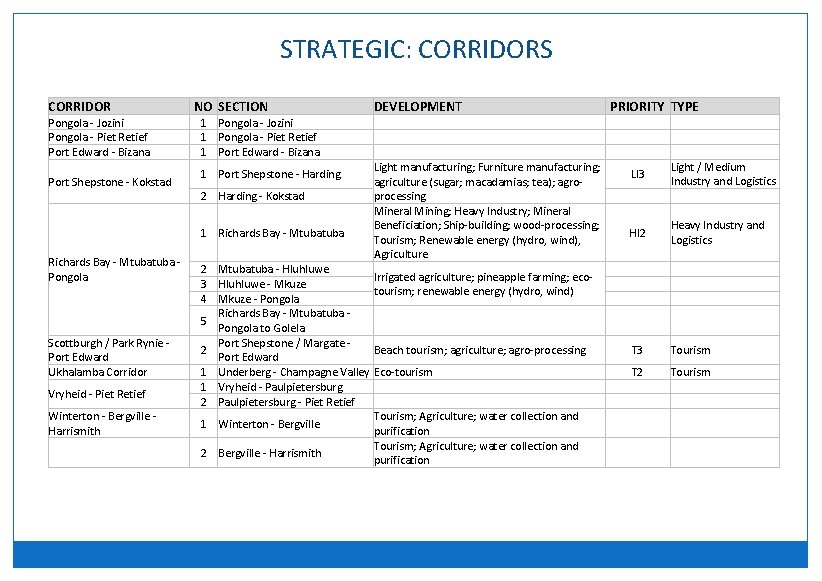

STRATEGIC: CORRIDORS CORRIDOR Pongola - Jozini Pongola - Piet Retief Port Edward - Bizana Port Shepstone - Kokstad NO SECTION 1 Pongola - Jozini 1 Pongola - Piet Retief 1 Port Edward - Bizana 1 Port Shepstone - Harding 2 Harding - Kokstad 1 Richards Bay - Mtubatuba - Pongola Scottburgh / Park Rynie - Port Edward Ukhalamba Corridor Vryheid - Piet Retief 2 Mtuba - Hluhluwe 3 Hluhluwe - Mkuze 4 Mkuze - Pongola Richards Bay - Mtuba - 5 Pongola to Golela Port Shepstone / Margate - 2 Port Edward 1 Underberg - Champagne Valley 1 Vryheid - Paulpietersburg 2 Paulpietersburg - Piet Retief Winterton - Bergville - Harrismith 1 Winterton - Bergville 2 Bergville - Harrismith DEVELOPMENT Light manufacturing; Furniture manufacturing; agriculture (sugar; macadamias; tea); agroprocessing Mineral Mining; Heavy Industry; Mineral Beneficiation; Ship-building; wood-processing; Tourism; Renewable energy (hydro, wind), Agriculture PRIORITY TYPE LI 3 HI 2 Light / Medium Industry and Logistics Heavy Industry and Logistics Irrigated agriculture; pineapple farming; ecotourism; renewable energy (hydro, wind) Beach tourism; agriculture; agro-processing T 3 Tourism Eco-tourism Tourism; Agriculture; water collection and purification T 2 Tourism

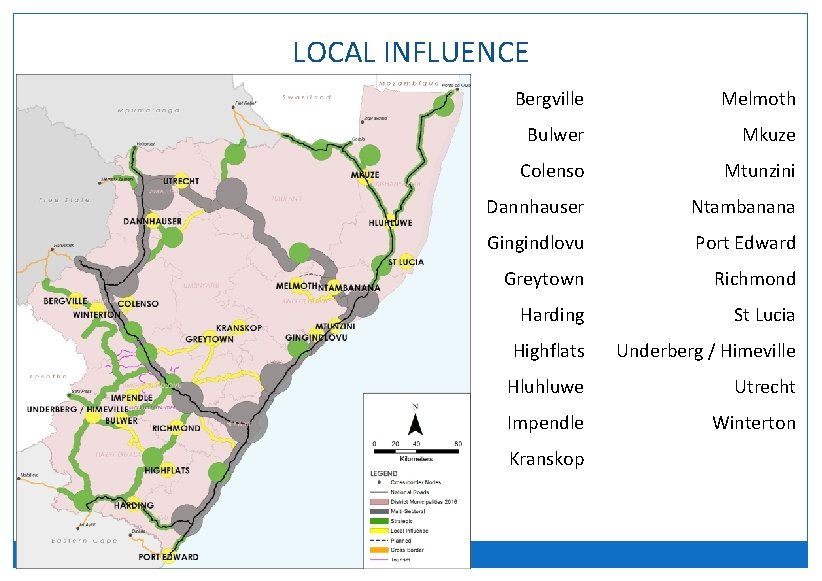

LOCAL INFLUENCE Bergville Melmoth Bulwer Mkuze Colenso Mtunzini Dannhauser Ntambanana Gingindlovu Port Edward Greytown Richmond Harding St Lucia Highflats Underberg / Himeville Hluhluwe Utrecht Impendle Winterton Kranskop

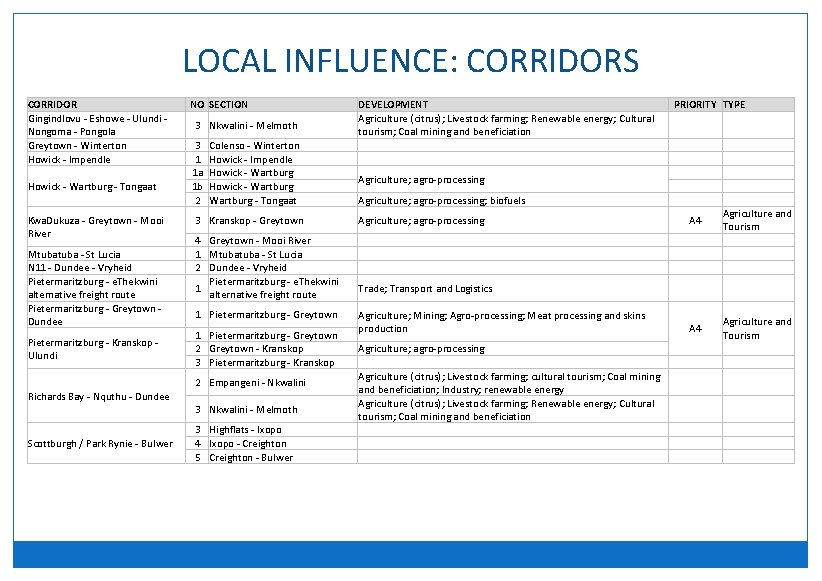

LOCAL INFLUENCE: CORRIDORS CORRIDOR Gingindlovu - Eshowe - Ulundi - Nongoma - Pongola Greytown - Winterton Howick - Impendle Howick - Wartburg - Tongaat Kwa. Dukuza - Greytown - Mooi River Mtuba - St Lucia N 11 - Dundee - Vryheid Pietermaritzburg - e. Thekwini alternative freight route Pietermaritzburg - Greytown - Dundee Pietermaritzburg - Kranskop - Ulundi NO SECTION 3 Nkwalini - Melmoth 3 1 1 a 1 b 2 Colenso - Winterton Howick - Impendle Howick - Wartburg - Tongaat 3 Kranskop - Greytown 4 Greytown - Mooi River 1 Mtuba - St Lucia 2 Dundee - Vryheid Pietermaritzburg - e. Thekwini 1 alternative freight route 1 Pietermaritzburg - Greytown 2 Greytown - Kranskop 3 Pietermaritzburg - Kranskop 2 Empangeni - Nkwalini Richards Bay - Nquthu - Dundee 3 Nkwalini - Melmoth Scottburgh / Park Rynie - Bulwer 3 Highflats - Ixopo 4 Ixopo - Creighton 5 Creighton - Bulwer DEVELOPMENT Agriculture (citrus); Livestock farming; Renewable energy; Cultural tourism; Coal mining and beneficiation Agriculture; agro-processing; biofuels Agriculture; agro-processing PRIORITY TYPE Agriculture and Tourism A 4 Trade; Transport and Logistics Agriculture; Mining; Agro-processing; Meat processing and skins production Agriculture; agro-processing Agriculture (citrus); Livestock farming; cultural tourism; Coal mining and beneficiation; Industry; renewable energy Agriculture (citrus); Livestock farming; Renewable energy; Cultural tourism; Coal mining and beneficiation A 4 Agriculture and Tourism

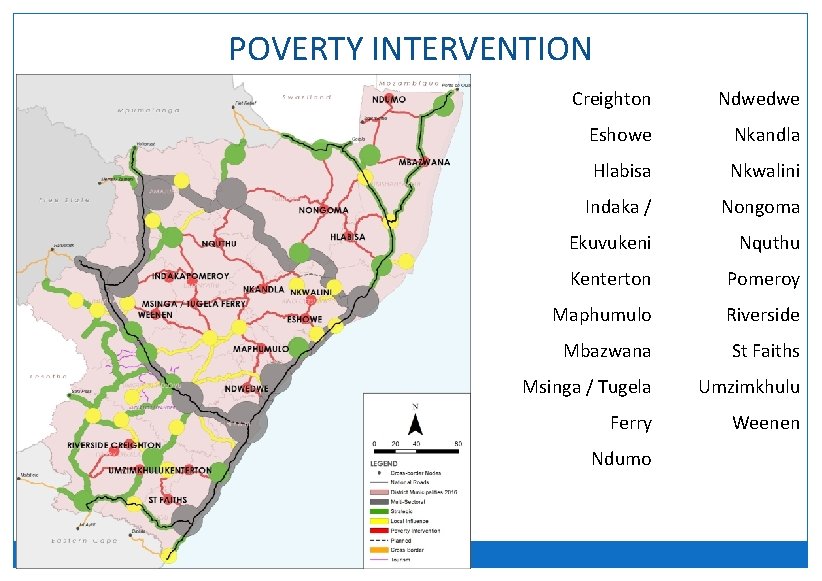

POVERTY INTERVENTION Creighton Ndwedwe Eshowe Nkandla Hlabisa Nkwalini Indaka / Nongoma Ekuvukeni Nquthu Kenterton Pomeroy Maphumulo Riverside Mbazwana St Faiths Msinga / Tugela Umzimkhulu Ferry Weenen Ndumo

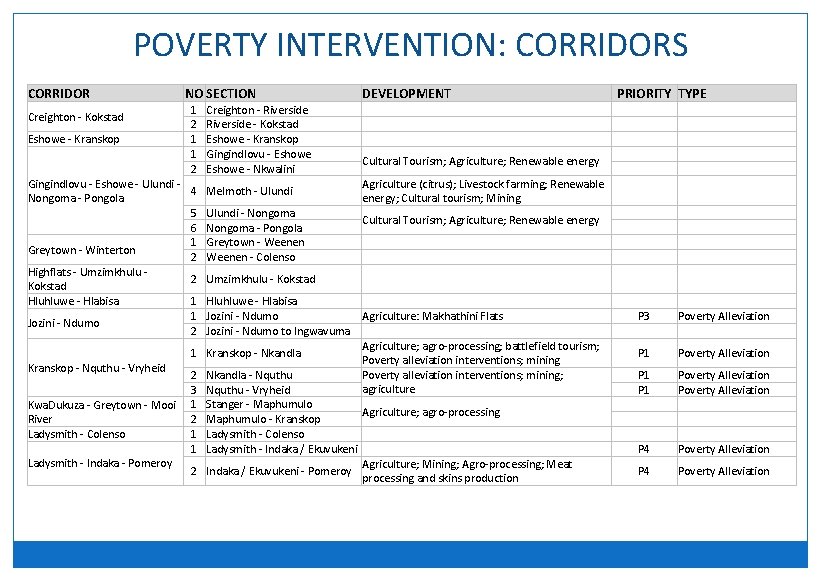

POVERTY INTERVENTION: CORRIDORS CORRIDOR Creighton - Kokstad Eshowe - Kranskop NO SECTION 1 2 1 1 2 Gingindlovu - Eshowe - Ulundi - 4 Nongoma - Pongola 5 6 1 Greytown - Winterton 2 Highflats - Umzimkhulu - 2 Kokstad Hluhluwe - Hlabisa 1 1 Jozini - Ndumo 2 1 Kranskop - Nquthu - Vryheid Kwa. Dukuza - Greytown - Mooi River Ladysmith - Colenso Ladysmith - Indaka - Pomeroy 2 3 1 2 1 1 2 Creighton - Riverside - Kokstad Eshowe - Kranskop Gingindlovu - Eshowe - Nkwalini Melmoth - Ulundi - Nongoma - Pongola Greytown - Weenen - Colenso Umzimkhulu - Kokstad DEVELOPMENT PRIORITY TYPE Cultural Tourism; Agriculture; Renewable energy Agriculture (citrus); Livestock farming; Renewable energy; Cultural tourism; Mining Cultural Tourism; Agriculture; Renewable energy Hluhluwe - Hlabisa Jozini - Ndumo Agriculture: Makhathini Flats Jozini - Ndumo to Ingwavuma Agriculture; agro-processing; battlefield tourism; Kranskop - Nkandla Poverty alleviation interventions; mining Nkandla - Nquthu Poverty alleviation interventions; mining; agriculture Nquthu - Vryheid Stanger - Maphumulo Agriculture; agro-processing Maphumulo - Kranskop Ladysmith - Colenso Ladysmith - Indaka / Ekuvukeni Agriculture; Mining; Agro-processing; Meat Indaka / Ekuvukeni - Pomeroy processing and skins production P 3 Poverty Alleviation P 1 Poverty Alleviation P 1 P 4 Poverty Alleviation P 4 Poverty Alleviation

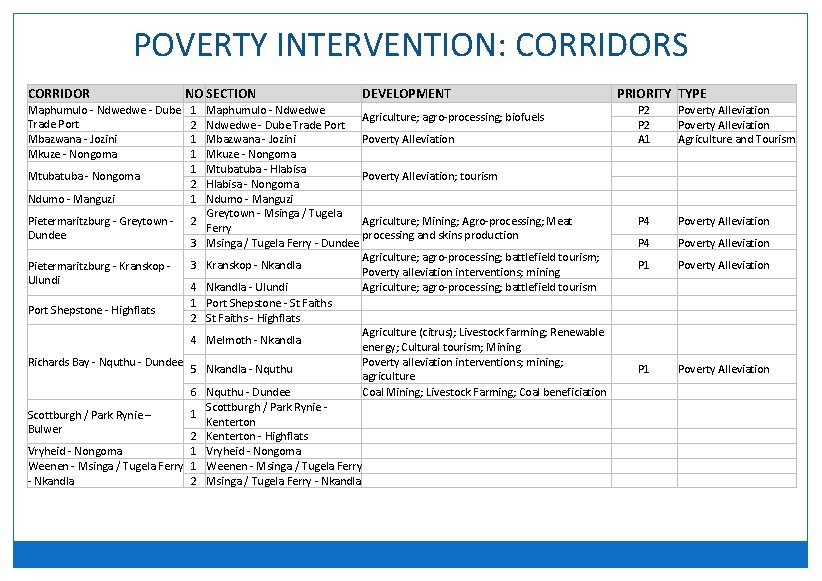

POVERTY INTERVENTION: CORRIDORS CORRIDOR Maphumulo - Ndwedwe - Dube Trade Port Mbazwana - Jozini Mkuze - Nongoma Mtuba - Nongoma Ndumo - Manguzi NO SECTION 1 2 1 1 1 2 1 Pietermaritzburg - Greytown - Dundee 2 Pietermaritzburg - Kranskop - Ulundi 3 Port Shepstone - Highflats 3 4 1 2 4 Richards Bay - Nquthu - Dundee 5 6 Scottburgh / Park Rynie – Bulwer 1 2 Vryheid - Nongoma 1 Weenen - Msinga / Tugela Ferry 1 - Nkandla 2 DEVELOPMENT Maphumulo - Ndwedwe Agriculture; agro-processing; biofuels Ndwedwe - Dube Trade Port Mbazwana - Jozini Poverty Alleviation Mkuze - Nongoma Mtuba - Hlabisa Poverty Alleviation; tourism Hlabisa - Nongoma Ndumo - Manguzi Greytown - Msinga / Tugela Agriculture; Mining; Agro-processing; Meat Ferry processing and skins production Msinga / Tugela Ferry - Dundee Agriculture; agro-processing; battlefield tourism; Kranskop - Nkandla Poverty alleviation interventions; mining Nkandla - Ulundi Agriculture; agro-processing; battlefield tourism Port Shepstone - St Faiths - Highflats Agriculture (citrus); Livestock farming; Renewable Melmoth - Nkandla energy; Cultural tourism; Mining Poverty alleviation interventions; mining; Nkandla - Nquthu agriculture Nquthu - Dundee Coal Mining; Livestock Farming; Coal beneficiation Scottburgh / Park Rynie - Kenterton - Highflats Vryheid - Nongoma Weenen - Msinga / Tugela Ferry - Nkandla PRIORITY TYPE P 2 A 1 Poverty Alleviation Agriculture and Tourism P 4 Poverty Alleviation P 1 Poverty Alleviation

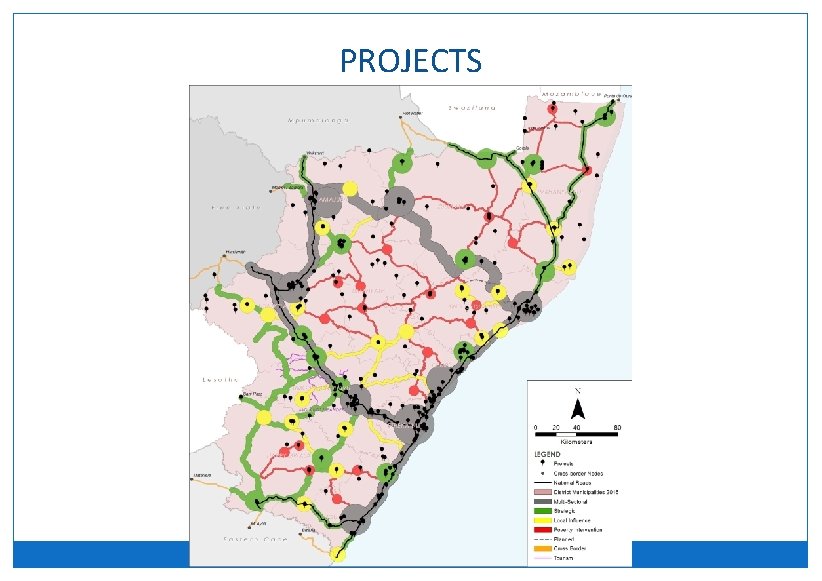

PROJECTS

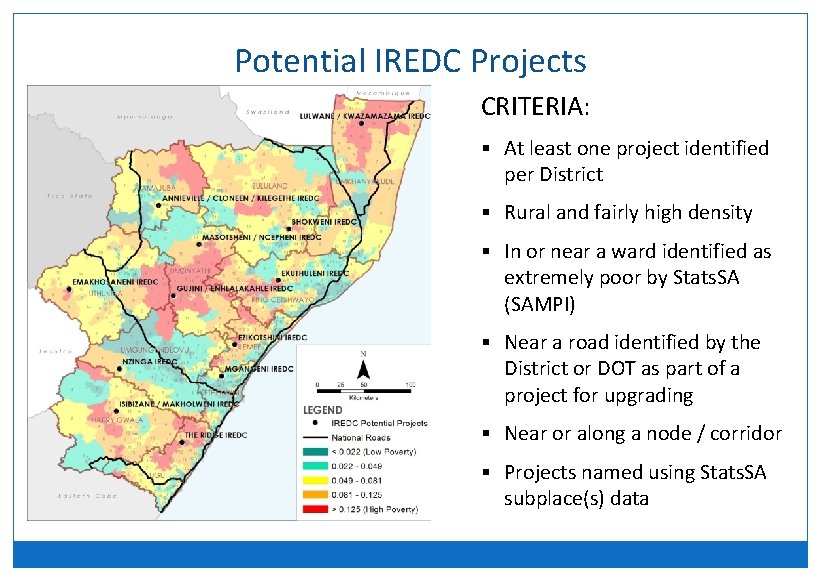

Potential IREDC Projects CRITERIA: § At least one project identified per District § Rural and fairly high density § In or near a ward identified as extremely poor by Stats. SA (SAMPI) § Near a road identified by the District or DOT as part of a project for upgrading § Near or along a node / corridor § Projects named using Stats. SA subplace(s) data

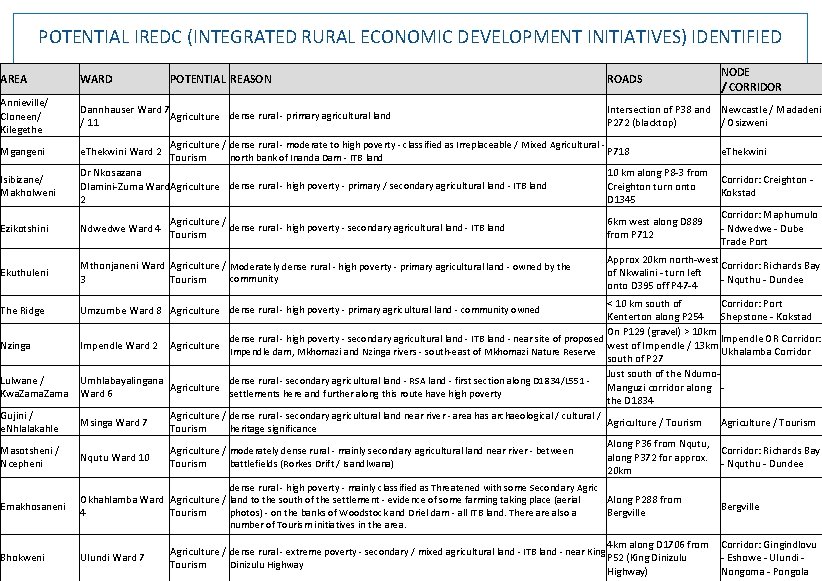

POTENTIAL IREDC (INTEGRATED RURAL ECONOMIC DEVELOPMENT INITIATIVES) IDENTIFIED AREA WARD Annieville/ Cloneen/ Kilegethe Dannhauser Ward 7 Agriculture dense rural - primary agricultural land / 11 Mgangeni e. Thekwini Ward 2 Isibizane/ Makholweni Ezikotshini Ekuthuleni POTENTIAL REASON ROADS NODE / CORRIDOR Intersection of P 38 and Newcastle / Madadeni P 272 (blacktop) / Osizweni Agriculture / dense rural - moderate to high poverty - classified as Irreplaceable / Mixed Agricultural - P 718 e. Thekwini north bank of Inanda Dam - ITB land Tourism Dr Nkosazana 10 km along P 8 -3 from Corridor: Creighton - Dlamini-Zuma Ward Agriculture dense rural - high poverty - primary / secondary agricultural land - ITB land Creighton turn onto Kokstad 2 D 1345 Corridor: Maphumulo Agriculture / 6 km west along D 889 dense rural - high poverty - secondary agricultural land - ITB land Ndwedwe Ward 4 - Ndwedwe - Dube Tourism from P 712 Trade Port Mthonjaneni Ward Agriculture / Moderately dense rural - high poverty - primary agricultural land - owned by the community 3 Tourism Approx 20 km north-west Corridor: Richards Bay of Nkwalini - turn left - Nquthu - Dundee onto D 395 off P 47 -4 < 10 km south of Corridor: Port Kenterton along P 254 Shepstone - Kokstad On P 129 (gravel) > 10 km Impendle OR Corridor: dense rural - high poverty - secondary agricultural land - ITB land - near site of proposed Nzinga Impendle Ward 2 Agriculture west of Impendle / 13 km Impendle dam, Mkhomazi and Nzinga rivers - south-east of Mkhomazi Nature Reserve Ukhalamba Corridor south of P 27 Just south of the Ndumo. Lulwane / Umhlabayalingana dense rural - secondary agricultural land - RSA land - first section along D 1834/L 551 - Agriculture Manguzi corridor along settlements here and further along this route have high poverty Kwa. Zama Ward 6 the D 1834 Gujini / Agriculture / dense rural - secondary agricultural land near river - area has archaeological / cultural / Msinga Ward 7 Agriculture / Tourism heritage significance e. Nhlalakahle Tourism Along P 36 from Nqutu, Masotsheni / Agriculture / moderately dense rural - mainly secondary agricultural land near river - between Corridor: Richards Bay Nqutu Ward 10 along P 372 for approx. battlefields (Rorkes Drift / Isandlwana) Ncepheni Tourism - Nquthu - Dundee 20 km The Ridge Umzumbe Ward 8 Agriculture dense rural - high poverty - primary agricultural land - community owned Emakhosaneni dense rural - high poverty - mainly classified as Threatened with some Secondary Agric Okhahlamba Ward Agriculture / land to the south of the settlement - evidence of some farming taking place (aerial Along P 288 from photos) - on the banks of Woodstock and Driel dam - all ITB land. There also a 4 Tourism Bergville number of Tourism initiatives in the area. Bhokweni Ulundi Ward 7 Bergville 4 km along D 1706 from Corridor: Gingindlovu Agriculture / dense rural - extreme poverty - secondary / mixed agricultural land - ITB land - near King P 52 (King Dinizulu - Eshowe - Ulundi - Dinizulu Highway Tourism Highway) Nongoma - Pongola

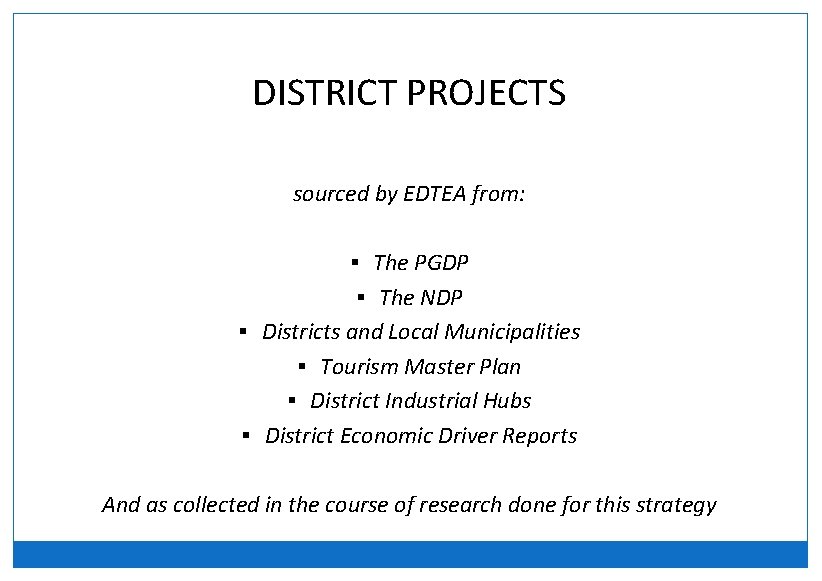

DISTRICT PROJECTS sourced by EDTEA from: § The PGDP § The NDP § Districts and Local Municipalities § Tourism Master Plan § District Industrial Hubs § District Economic Driver Reports And as collected in the course of research done for this strategy

UMKHANYAKUDE

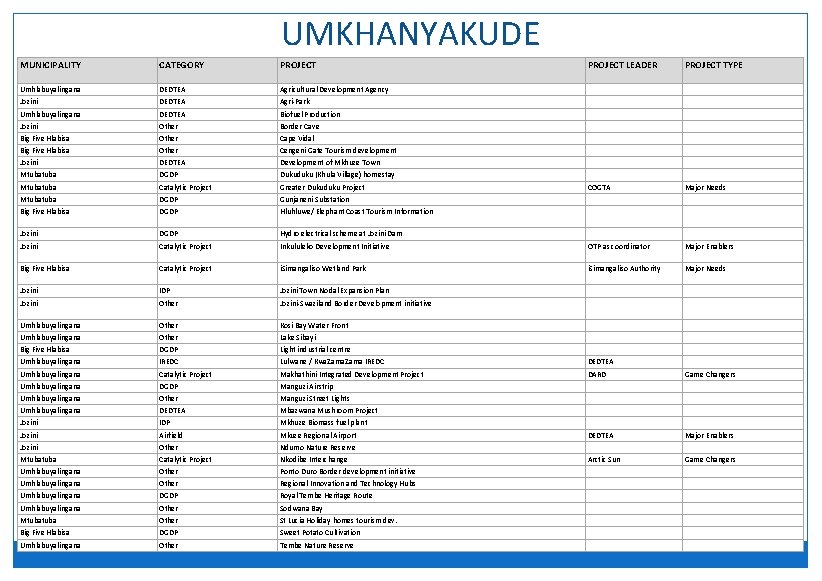

UMKHANYAKUDE MUNICIPALITY CATEGORY PROJECT LEADER PROJECT TYPE Umhlabuyalingana DEDTEA Agricultural Development Agency Jozini DEDTEA Agri-Park Umhlabuyalingana DEDTEA Biofuel Production Jozini Other Border Cave Big Five Hlabisa Other Cape Vidal Big Five Hlabisa Other Cengeni Gate Tourism development Jozini DEDTEA Development of Mkhuze Town Mtuba DGDP Dukuduku (Khula Village) homestay Mtuba Catalytic Project Greater Dukuduku Project COGTA Major Needs Mtuba DGDP Gunjaneni Substation Big Five Hlabisa DGDP Hluhluwe/ Elephant Coast Tourism Information Jozini DGDP Hydro electrical scheme at Jozini Dam Jozini Catalytic Project Inkululeko Development Initiative OTP as coordinator Major Enablers Big Five Hlabisa Catalytic Project i. Simangaliso Wetland Park i. Simangaliso Authority Major Needs Jozini IDP Jozini Town Nodal Expansion Plan Jozini Other Jozini-Swaziland Border Development initiative Umhlabuyalingana Other Kosi Bay Water Front Umhlabuyalingana Other Lake Sibayi Big Five Hlabisa DGDP Light industrial centre Umhlabuyalingana IREDC Lulwane / Kwa. Zama IREDC DEDTEA Umhlabuyalingana Catalytic Project Makhathini Integrated Development Project DARD Game Changers Umhlabuyalingana DGDP Manguzi Airstrip Umhlabuyalingana Other Manguzi Street Lights Umhlabuyalingana DEDTEA Mbazwana Mushroom Project Jozini IDP Mkhuze Biomass fuel plant Jozini Airfield Mkuze Regional Airport DEDTEA Major Enablers Jozini Other Ndumo Nature Reserve Mtuba Catalytic Project Nkodibe Interchange Arctic Sun Game Changers Umhlabuyalingana Other Ponto Duro Border development initiative Umhlabuyalingana Other Regional Innovation and Technology Hubs Umhlabuyalingana DGDP Royal Tembe Heritage Route Umhlabuyalingana Other Sodwana Bay Mtuba Other St Lucia Holiday homes tourism dev. Big Five Hlabisa DGDP Sweet Potato Cultivation Umhlabuyalingana Other Tembe Nature Reserve
