Formal Languages PushDown Automata PDAs Pushdown Automaton PDA
- Slides: 93
Formal Languages Push-Down Automata (PDAs)
Pushdown Automaton -- PDA Input String Stack States 2
Initial Stack Symbol Stack stack head top bottom special symbol Appears at time 0 3
The States Input symbol Pop symbol Push symbol 4
input stack top Replace 5
input stack top Push 6
input stack top Pop 7
input stack top No Change 8
Empty Stack input stack top Pop empty The automaton HALTS No possible transition after 9
A Possible Transition input stack top Pop 10
Non-Determinism PDAs are non-deterministic Allow non-deterministic transitions 11
Example PDA: Basic Idea? PDA 12
Basic Idea: 1. Push the a’s on the stack 2. Match the b’s on input with a’s on stack 3. Match found 13
Execution Example: Time 0 Input Stack current state 14
Time 1 Input Stack 15
Time 2 Input Stack 16
Time 3 Input Stack 17
Time 4 Input Stack 18
Time 5 Input Stack 19
Time 6 Input Stack 20
Time 7 Input Stack 21
Time 8 Input Stack accept 22
A string is accepted if there is a computation such that: All the input is consumed AND The last state is an accepting state At the end of the computation, we do not care about the stack contents (the stack can be empty at the last state) 23
The input string is accepted by the PDA: 24
In general, is the language accepted by the PDA: 25
Rejection Example: Time 0 Input Stack current state 26
Rejection Example: Time 1 Input Stack current state 27
Rejection Example: Time 2 Input Stack current state 28
Rejection Example: Time 3 Input Stack current state 29
Rejection Example: Time 4 Input Stack current state 30
Rejection Example: Time 4 Input reject Stack current state 31
The input string is rejected by the PDA: 32
A string is rejected if there is no computation such that: All the input is consumed AND The last state is an accept state At the end of the computation, we do not care about the stack contents 33
Another PDA example: Language? PDA 34
Another PDA example PDA 35
Basic Idea: 1. Push v on stack 2. Guess middle of input 3. Match on input with v on stack 4. Match found 36
Execution Example: Time 0 Input Stack 37
Time 1 Input Stack 38
Time 2 Input Stack 39
Time 3 Input Guess the middle of string Stack 40
Time 4 Input Stack 41
Time 5 Input Stack 42
Time 6 Input Stack accept 43
Rejection Example: Time 0 Input Stack 44
Time 1 Input Stack 45
Time 2 Input Stack 46
Time 3 Input Guess the middle of string Stack 47
Time 4 Input Stack 48
Input Time 5 There is no possible transition. Input is not consumed Stack 49
Another computation on same string: Input Time 0 Stack 50
Time 1 Input Stack 51
Time 2 Input Stack 52
Time 3 Input Stack 53
Time 4 Input Stack 54

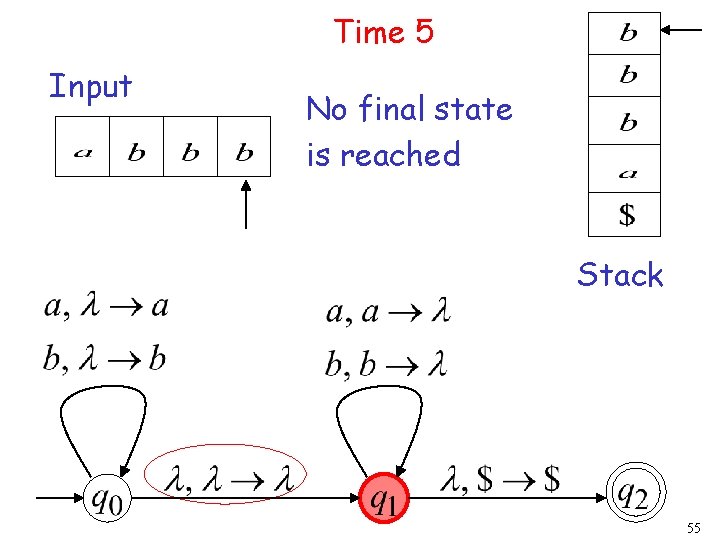

Time 5 Input No final state is reached Stack 55
There is no computation that accepts string 56
Another PDA example: Language? PDA 57
Another PDA example PDA 58
Execution Example: Time 0 Input Stack 59
Time 1 Input Stack 60
Time 2 Input Stack 61
Time 3 Input Stack accept 62
Rejection example: Time 0 Input Stack 63
Time 1 Input Stack 64
Time 2 Input Stack 65
Time 3 Input Stack 66
Time 4 Input Stack Halt and Reject 67
Pushing Strings Input symbol Pop symbol Push string 68
Example: input stack top pushed string Push 69
Another PDA example: Language? PDA 70
Another PDA example PDA 71
Execution Example: Time 0 Input Stack current state 72
Time 1 Input Stack 73
Time 3 Input Stack 74
Time 4 Input Stack 75
Time 5 Input Stack 76
Time 6 Input Stack 77
Time 7 Input Stack 78
Time 8 Input Stack accept 79
PDAs: Formal Definition 80
Transition function: 81
Transition function: 82
Formal Definition Pushdown Automaton (PDA) States Input alphabet Transition Initial Stack function state alphabet Final states Stack start symbol 83
Instantaneous Description Current state Remaining input Current stack contents 84
Example: Instantaneous Description Time 4: Input Stack 85
Example: Instantaneous Description Time 5: Input Stack 86
We write: Time 4 Time 5 87
A computation: 88
For convenience we write: 89
Formal Definition Language of PDA Initial state : Final state 90
Example: PDA : 91
PDA : 92
Therefore: PDA : 93
