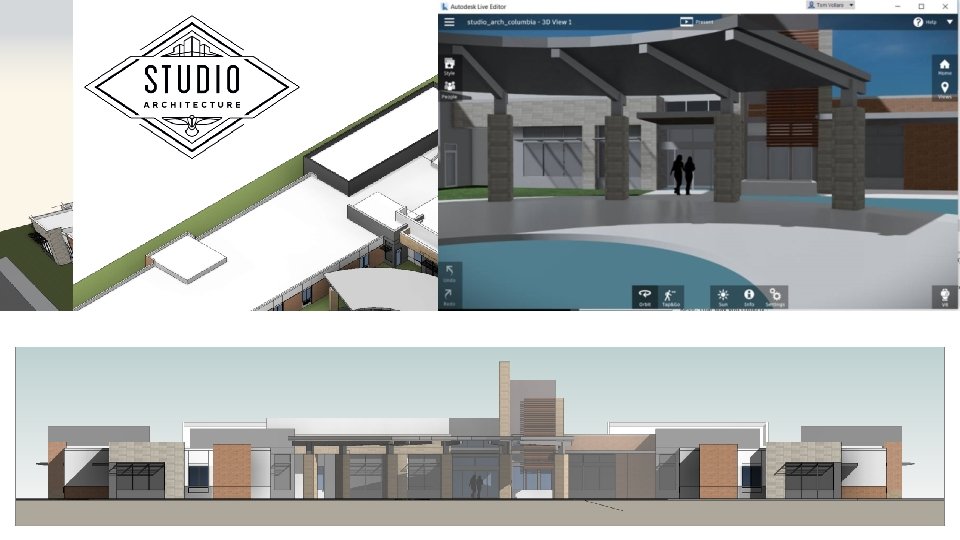

Form It Revit 2018 Live VR Webinar Process
Form. It + Revit 2018 + Live VR Webinar

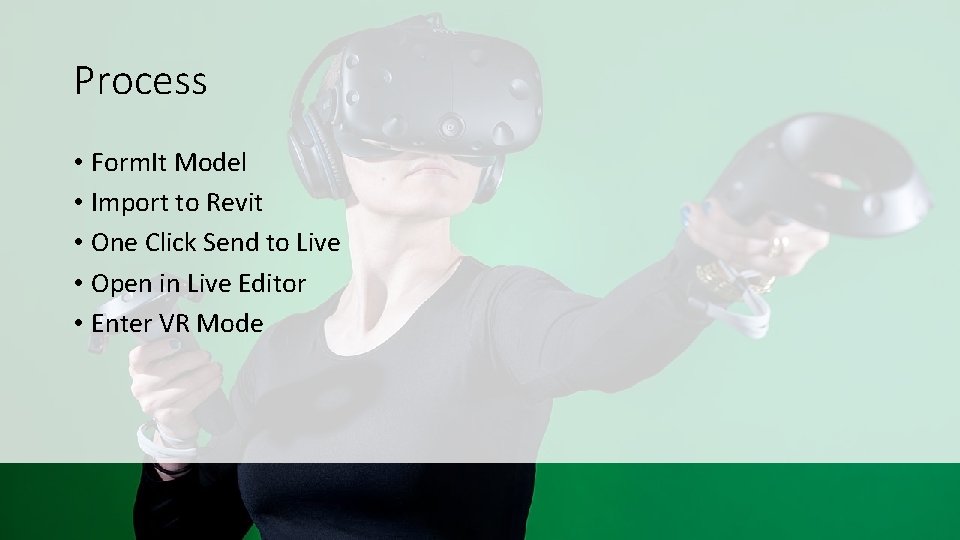

Process • Form. It Model • Import to Revit • One Click Send to Live • Open in Live Editor • Enter VR Mode
Form. It • Apply Materials • Import Sketch. Up (Entourage, Furniture, etc…) • Specify Category (Mass, Generic, Entourage) • Save with desired Layers visible (WYSIWYG) • Save Form. It AXM in desired location (material textures will be pathed) • If the file is big… export Layer by Layer
Revit • Import Form. It AXM into Revit Template of your choice • Look out for any errors! • Create Perspective Views, Steering Wheel • Turn on Mass Category, Verify Materials (especially transparency!) • Turn off unwanted categories in VG (WYSIWYG) • Swap Trees from Entourage -> Planting category • Replace Families if applicable
Revit Live • Live button only appears in a 3 D View • View Tab, Go Live! • Processes in the cloud and emails you when ready • Download to your VR machine • Open in the Live Editor

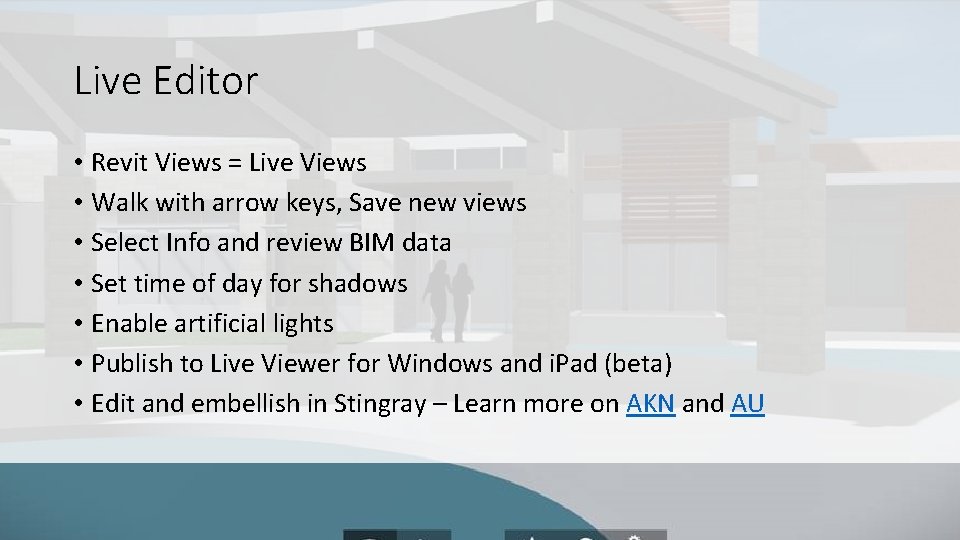

Live Editor • Revit Views = Live Views • Walk with arrow keys, Save new views • Select Info and review BIM data • Set time of day for shadows • Enable artificial lights • Publish to Live Viewer for Windows and i. Pad (beta) • Edit and embellish in Stingray – Learn more on AKN and AU

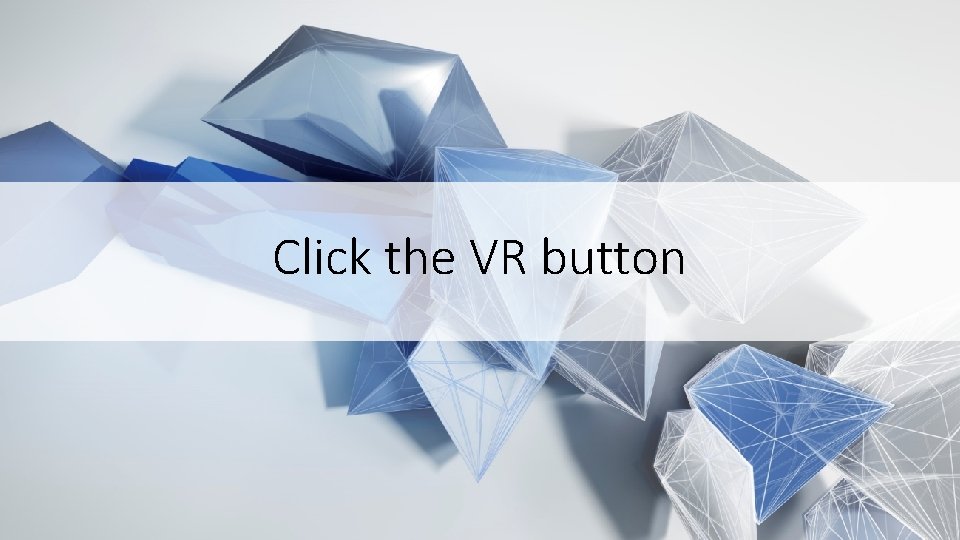

Click the VR button
