Form 5™ Malleable Iron Conduit Outlet Bodies Crouse-Hinds Training Module

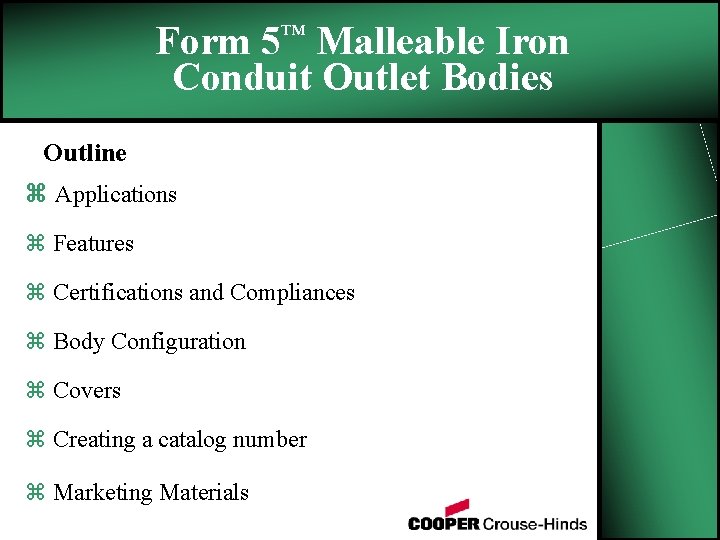

Form 5™ Malleable Iron Conduit Outlet Bodies Outline z Applications z Features z Certifications and Compliances z Body Configuration z Covers z Creating a catalog number z Marketing Materials

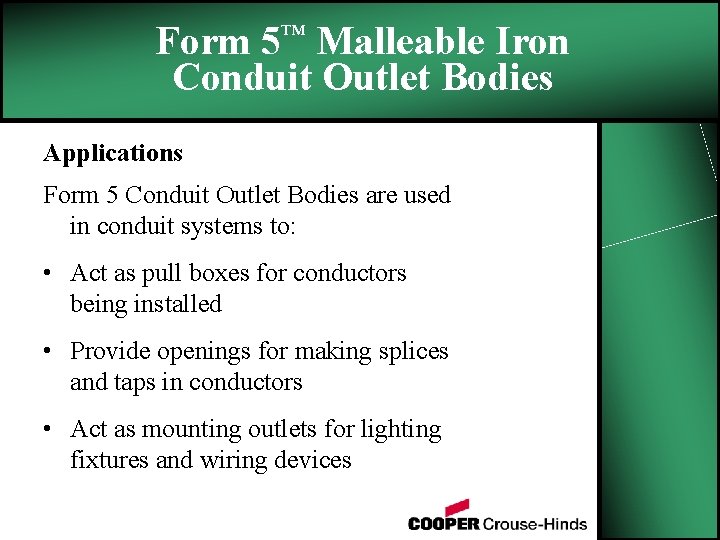

Form 5™ Malleable Iron Conduit Outlet Bodies Applications Form 5 Conduit Outlet Bodies are used in conduit systems to: • Act as pull boxes for conductors being installed • Provide openings for making splices and taps in conductors • Act as mounting outlets for lighting fixtures and wiring devices

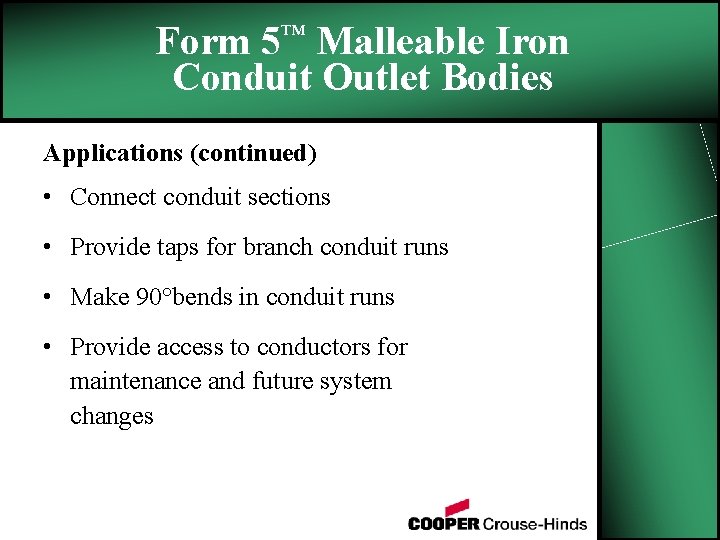

Form 5™ Malleable Iron Conduit Outlet Bodies Applications (continued) • Connect conduit sections • Provide taps for branch conduit runs • Make 90°bends in conduit runs • Provide access to conductors for maintenance and future system changes

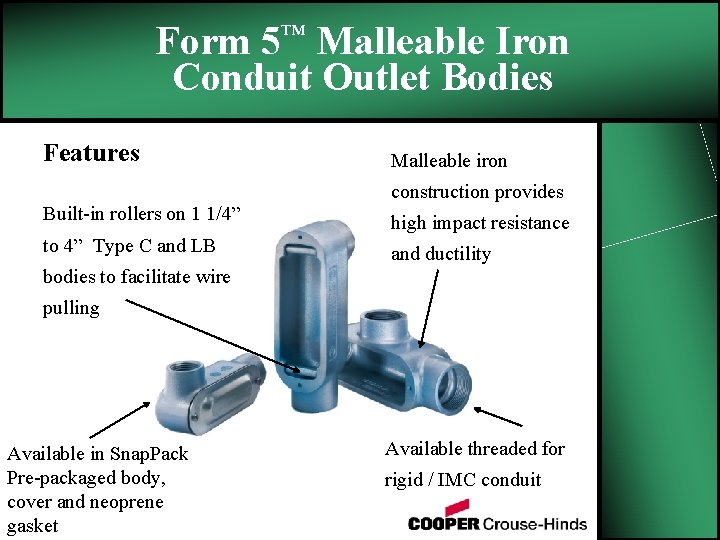

Form 5™ Malleable Iron Conduit Outlet Bodies Features Malleable iron construction provides Built-in rollers on 1 1/4” high impact resistance to 4” Type C and LB and ductility bodies to facilitate wire pulling Available in Snap. Pack Pre-packaged body, cover and neoprene gasket Available threaded for rigid / IMC conduit

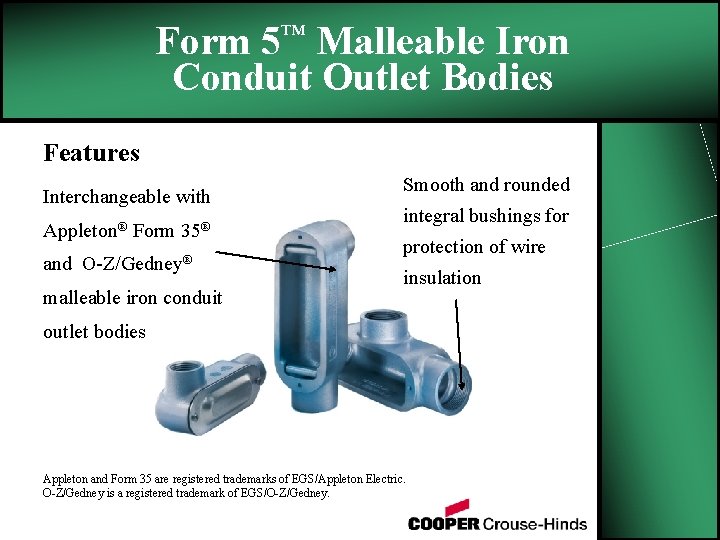

Form 5™ Malleable Iron Conduit Outlet Bodies Features Interchangeable with Appleton® and Form 35® O-Z/Gedney® malleable iron conduit Smooth and rounded integral bushings for protection of wire insulation outlet bodies Appleton and Form 35 are registered trademarks of EGS/Appleton Electric. O-Z/Gedney is a registered trademark of EGS/O-Z/Gedney.
Form 5™ Malleable Iron Conduit Outlet Bodies Certifications and Compliances • UL Standard 514 B • CSA Standard C 22. 2 No. 18

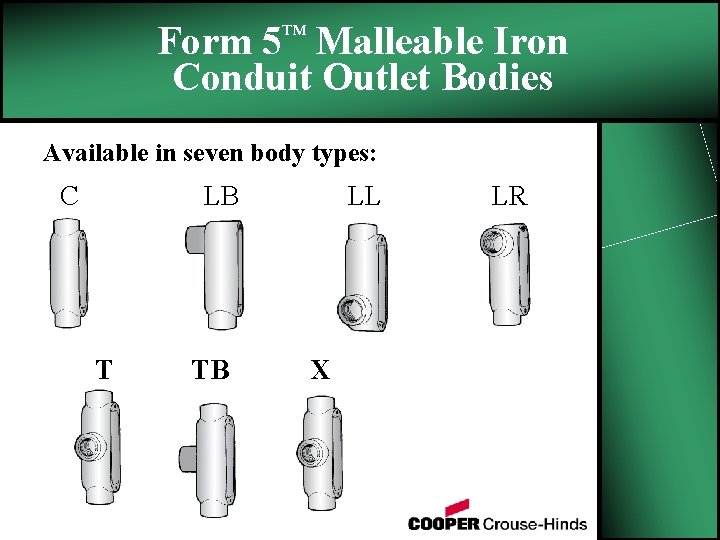

Form 5™ Malleable Iron Conduit Outlet Bodies Available in seven body types: C LB T TB LL X LR

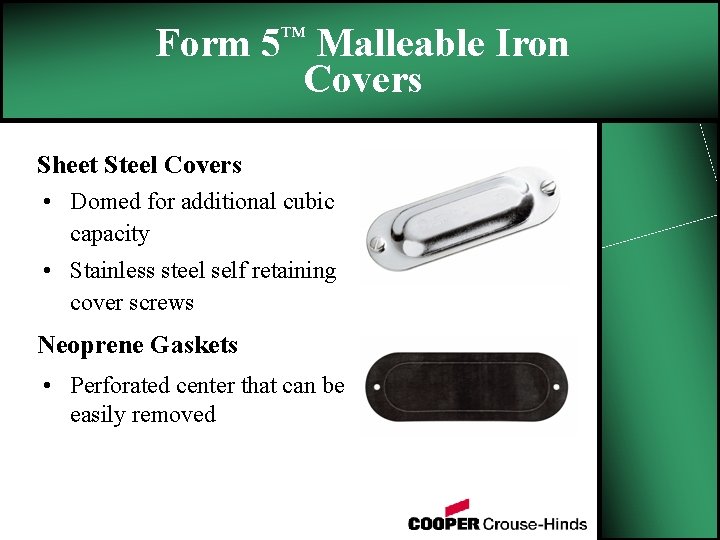

Form 5™ Malleable Iron Covers Sheet Steel Covers • Domed for additional cubic capacity • Stainless steel self retaining cover screws Neoprene Gaskets • Perforated center that can be easily removed

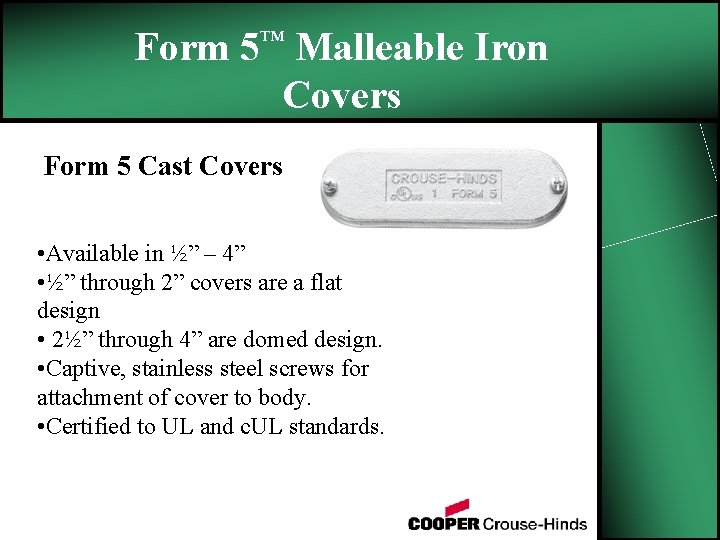

Form 5™ Malleable Iron Covers Form 5 Cast Covers • Available in ½” – 4” • ½” through 2” covers are a flat design • 2½” through 4” are domed design. • Captive, stainless steel screws for attachment of cover to body. • Certified to UL and c. UL standards.

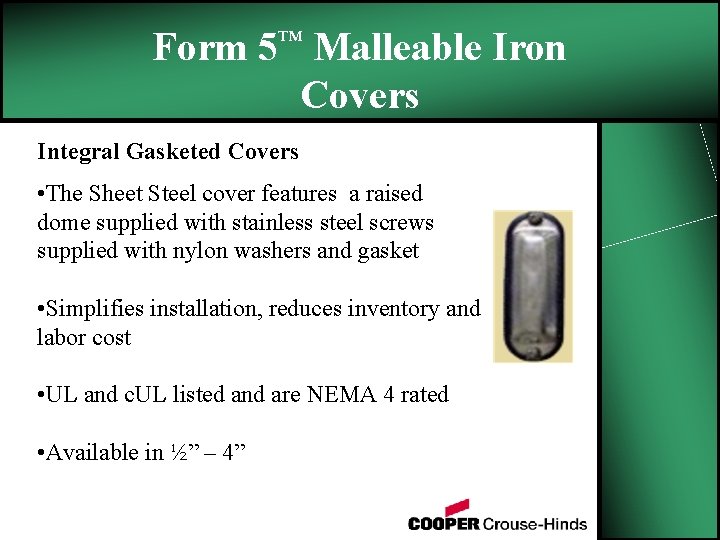

Form 5™ Malleable Iron Covers Integral Gasketed Covers • The Sheet Steel cover features a raised dome supplied with stainless steel screws supplied with nylon washers and gasket • Simplifies installation, reduces inventory and labor cost • UL and c. UL listed and are NEMA 4 rated • Available in ½” – 4”

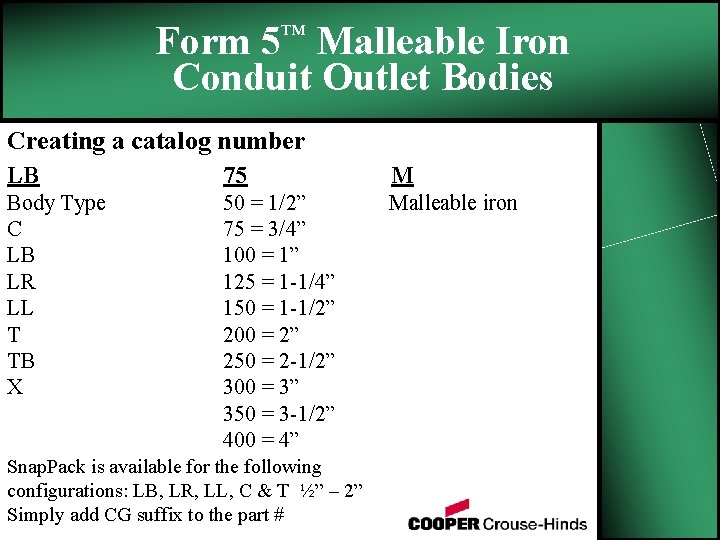

Form 5™ Malleable Iron Conduit Outlet Bodies Creating a catalog number LB 75 M Body Type C LB LR LL T TB X 50 = 1/2” 75 = 3/4” 100 = 1” 125 = 1 -1/4” 150 = 1 -1/2” 200 = 2” 250 = 2 -1/2” 300 = 3” 350 = 3 -1/2” 400 = 4” Malleable iron Snap. Pack is available for the following configurations: LB, LR, LL, C & T ½” – 2” Simply add CG suffix to the part #

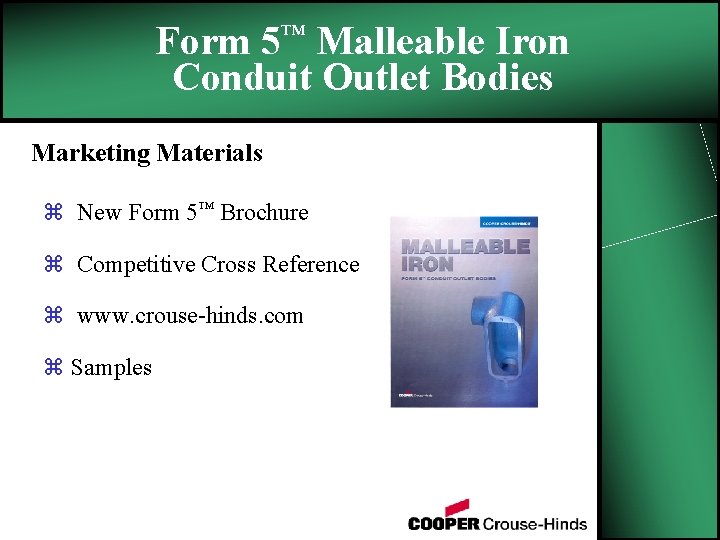

Form 5™ Malleable Iron Conduit Outlet Bodies Marketing Materials z New Form 5™ Brochure z Competitive Cross Reference z www. crouse-hinds. com z Samples
