Forensic Science: An Introduction Blood and DNA
![Blood Components • Formed Elements (cells) – 45% – Erythrocytes - Red Blood Cells Blood Components • Formed Elements (cells) – 45% – Erythrocytes - Red Blood Cells](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-2.jpg)

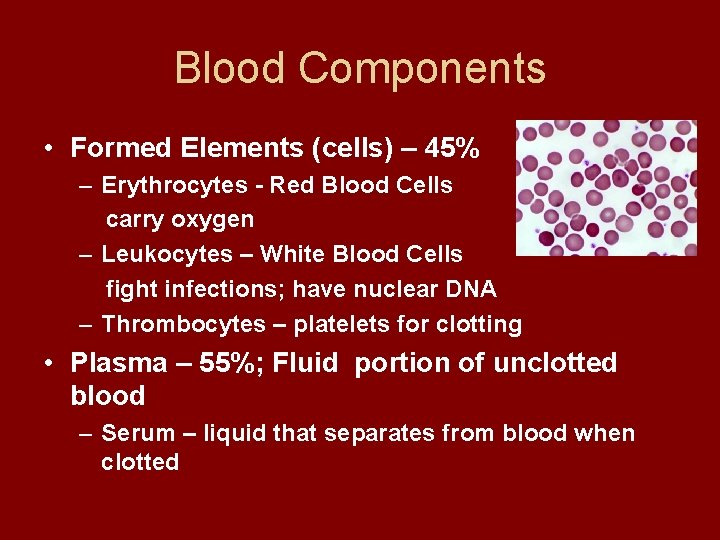

Blood Components • Formed Elements (cells) – 45% – Erythrocytes - Red Blood Cells carry oxygen – Leukocytes – White Blood Cells fight infections; have nuclear DNA – Thrombocytes – platelets for clotting • Plasma – 55%; Fluid portion of unclotted blood – Serum – liquid that separates from blood when clotted
![Antigens & Antibodies • Antigens - proteins found on surface of RBCs • Antibodies Antigens & Antibodies • Antigens - proteins found on surface of RBCs • Antibodies](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-3.jpg)
Antigens & Antibodies • Antigens - proteins found on surface of RBCs • Antibodies - proteins found in serum – Destroys or inactivates a specific antigen – Binds to two different antigens at a time and causes agglutination (clumping) • Serology – the study of antigen-antibody reactions
![Blood Type Blood type Antigens Antibodies A A Anti-B B B Anti-A AB Both Blood Type Blood type Antigens Antibodies A A Anti-B B B Anti-A AB Both](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-4.jpg)

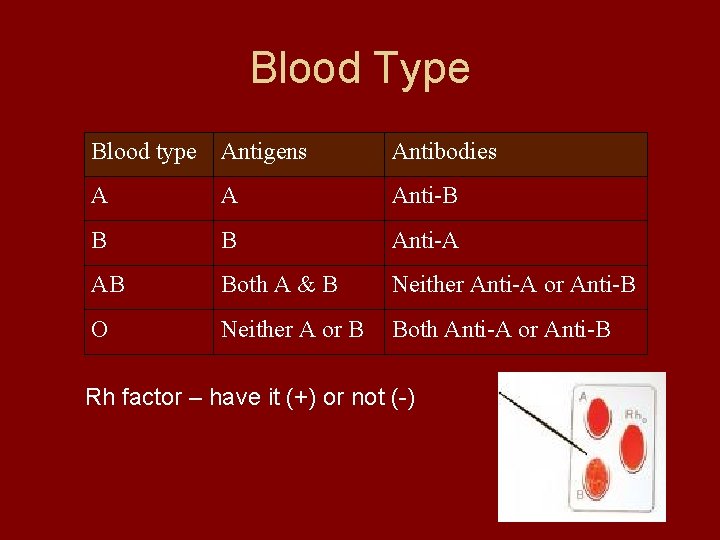

Blood Type Blood type Antigens Antibodies A A Anti-B B B Anti-A AB Both A & B Neither Anti-A or Anti-B O Neither A or B Both Anti-A or Anti-B Rh factor – have it (+) or not (-)
![Immunoassay • Animals can be exposed to drug-protein complexes to produce antibodies against the Immunoassay • Animals can be exposed to drug-protein complexes to produce antibodies against the](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-5.jpg)

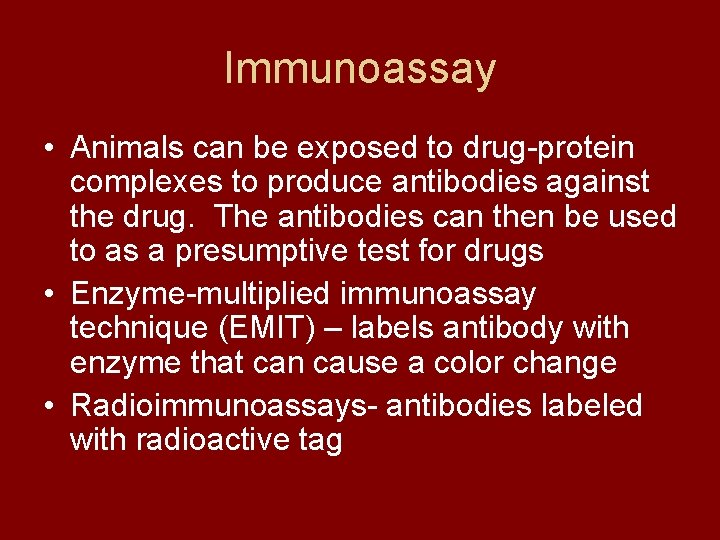

Immunoassay • Animals can be exposed to drug-protein complexes to produce antibodies against the drug. The antibodies can then be used to as a presumptive test for drugs • Enzyme-multiplied immunoassay technique (EMIT) – labels antibody with enzyme that can cause a color change • Radioimmunoassays- antibodies labeled with radioactive tag
![Making Antibodies • Polyclonal antibodies – produced by injecting animals with a specific antigen, Making Antibodies • Polyclonal antibodies – produced by injecting animals with a specific antigen,](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-6.jpg)

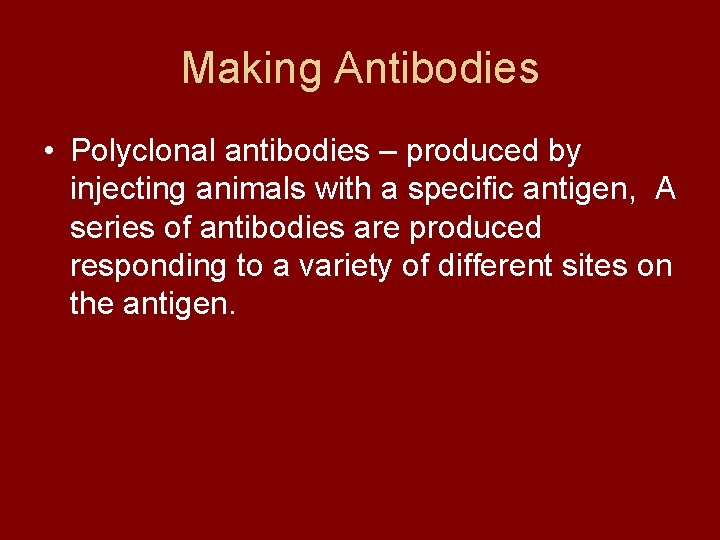

Making Antibodies • Polyclonal antibodies – produced by injecting animals with a specific antigen, A series of antibodies are produced responding to a variety of different sites on the antigen.
![Monoclonal Antibodies • A collection of identical antibodies that interact with a single antigen Monoclonal Antibodies • A collection of identical antibodies that interact with a single antigen](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-7.jpg)

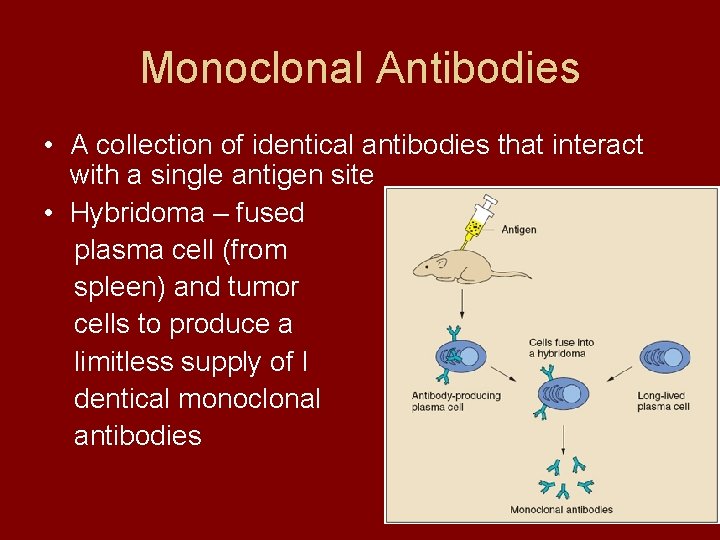

Monoclonal Antibodies • A collection of identical antibodies that interact with a single antigen site • Hybridoma – fused plasma cell (from spleen) and tumor cells to produce a limitless supply of I dentical monoclonal antibodies
![Forensic Characterization of Blood Stains • Kastle-Myer – tests for hemoglobin to presume that Forensic Characterization of Blood Stains • Kastle-Myer – tests for hemoglobin to presume that](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-8.jpg)

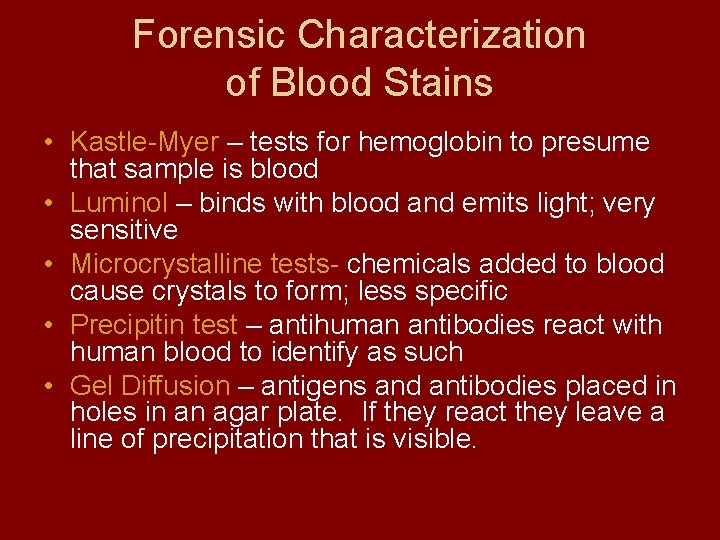

Forensic Characterization of Blood Stains • Kastle-Myer – tests for hemoglobin to presume that sample is blood • Luminol – binds with blood and emits light; very sensitive • Microcrystalline tests- chemicals added to blood cause crystals to form; less specific • Precipitin test – antihuman antibodies react with human blood to identify as such • Gel Diffusion – antigens and antibodies placed in holes in an agar plate. If they react they leave a line of precipitation that is visible.
![Blood Stain Patterns • Surface texture is important; the harder and less porous, the Blood Stain Patterns • Surface texture is important; the harder and less porous, the](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-9.jpg)
Blood Stain Patterns • Surface texture is important; the harder and less porous, the less splatter • The direction of travel of the blood can be determined by its shape • The angle of the impact can be determined by the circular distortion of the drop. • The origin of blood splatter can be determined by converging the long axes of several drops to create a 2 D origin
![Heredity • • • Zygote Sperm/egg Chromosome Gene Allele Locus DNA Homozygous Heterozygous Genotype Heredity • • • Zygote Sperm/egg Chromosome Gene Allele Locus DNA Homozygous Heterozygous Genotype](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-10.jpg)

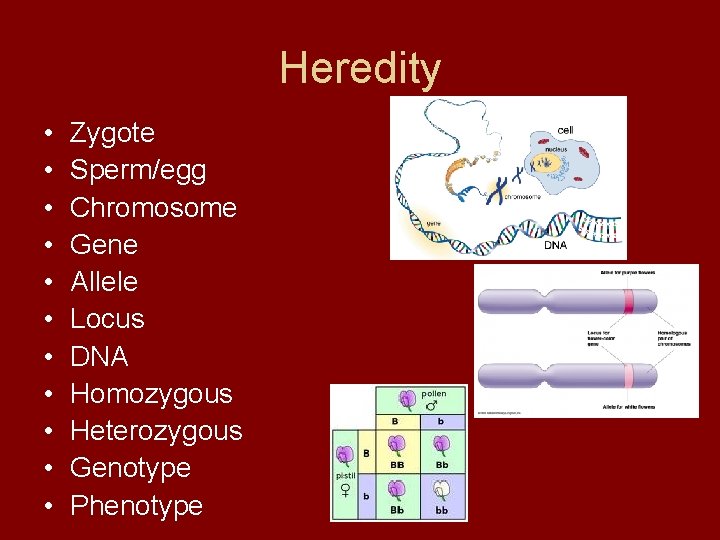

Heredity • • • Zygote Sperm/egg Chromosome Gene Allele Locus DNA Homozygous Heterozygous Genotype Phenotype
![Paternity testing • Used to identify is a male is the father of a Paternity testing • Used to identify is a male is the father of a](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-11.jpg)

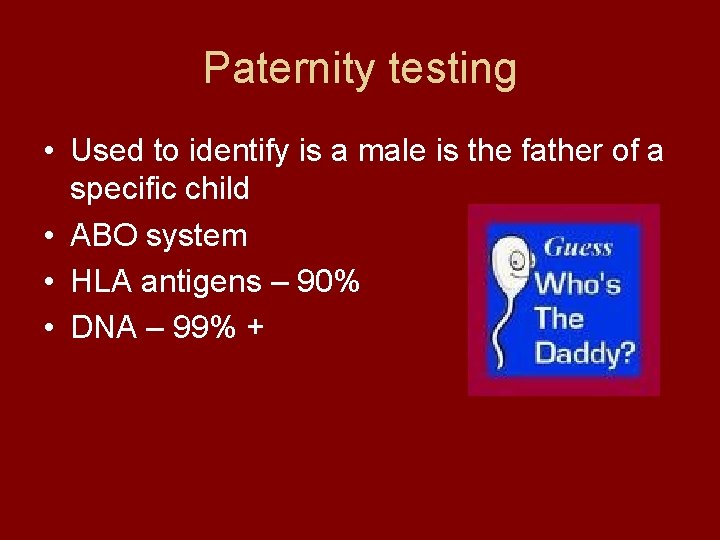

Paternity testing • Used to identify is a male is the father of a specific child • ABO system • HLA antigens – 90% • DNA – 99% +
![Semen • Acid phosphatase – enzyme found in high concentration is semen • Can Semen • Acid phosphatase – enzyme found in high concentration is semen • Can](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-12.jpg)

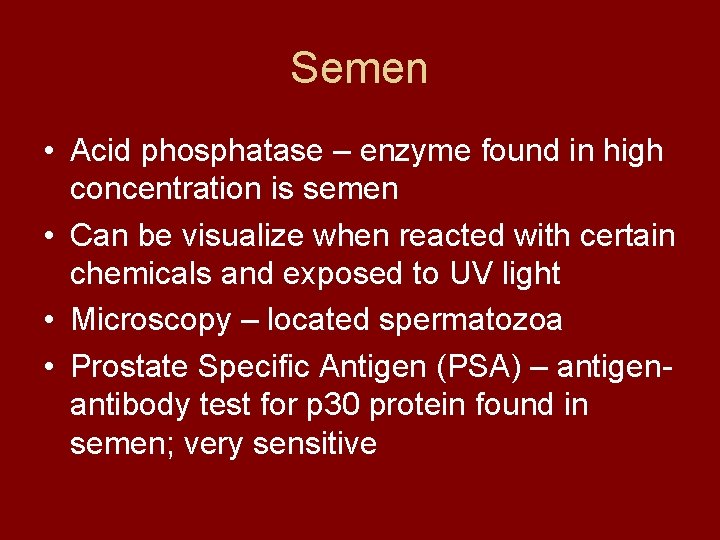

Semen • Acid phosphatase – enzyme found in high concentration is semen • Can be visualize when reacted with certain chemicals and exposed to UV light • Microscopy – located spermatozoa • Prostate Specific Antigen (PSA) – antigenantibody test for p 30 protein found in semen; very sensitive
![Rape Evidence From the victim From the suspect • Pubic combings • Pubic hair Rape Evidence From the victim From the suspect • Pubic combings • Pubic hair](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-13.jpg)

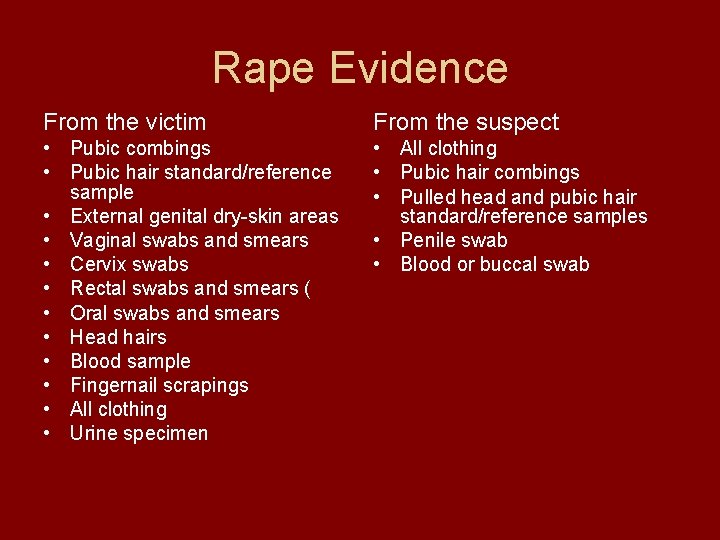

Rape Evidence From the victim From the suspect • Pubic combings • Pubic hair standard/reference sample • External genital dry-skin areas • Vaginal swabs and smears • Cervix swabs • Rectal swabs and smears ( • Oral swabs and smears • Head hairs • Blood sample • Fingernail scrapings • All clothing • Urine specimen • All clothing • Pubic hair combings • Pulled head and pubic hair standard/reference samples • Penile swab • Blood or buccal swab
![DNA • • • Deoxyribo. Nucleic Acid Found in the nucleus 46 chromosomes 25, DNA • • • Deoxyribo. Nucleic Acid Found in the nucleus 46 chromosomes 25,](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-14.jpg)

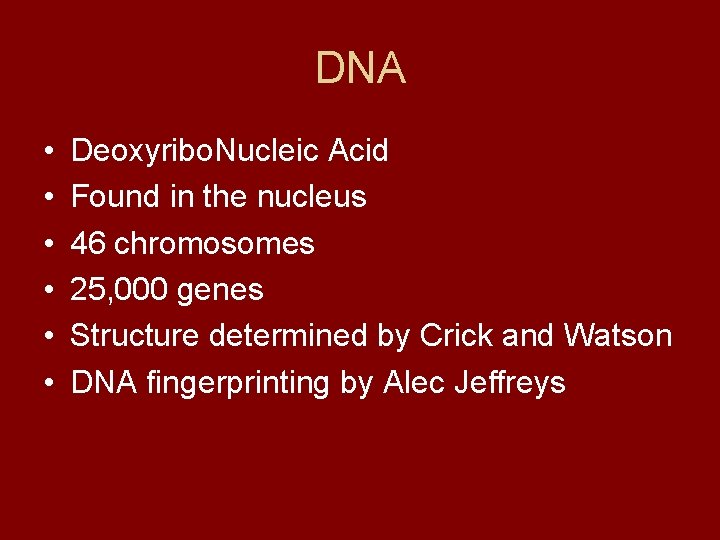

DNA • • • Deoxyribo. Nucleic Acid Found in the nucleus 46 chromosomes 25, 000 genes Structure determined by Crick and Watson DNA fingerprinting by Alec Jeffreys
![Structure of DNA • A polymer made of repeating nucleotides • Nucleotide consists of Structure of DNA • A polymer made of repeating nucleotides • Nucleotide consists of](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-15.jpg)

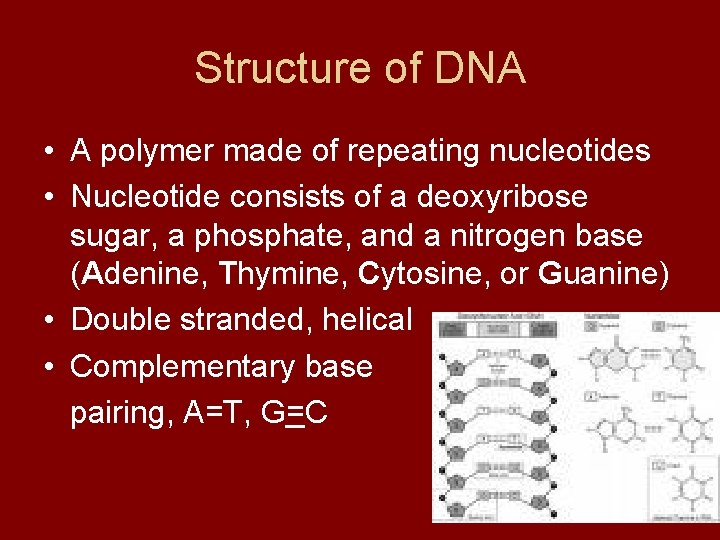

Structure of DNA • A polymer made of repeating nucleotides • Nucleotide consists of a deoxyribose sugar, a phosphate, and a nitrogen base (Adenine, Thymine, Cytosine, or Guanine) • Double stranded, helical • Complementary base pairing, A=T, G=C
![DNA at Work • DNA in nucleus is copied into a strand of RNA DNA at Work • DNA in nucleus is copied into a strand of RNA](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-16.jpg)

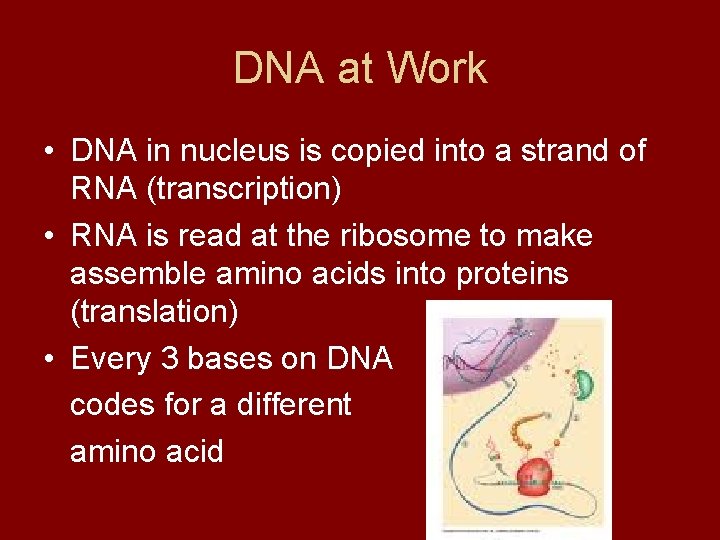

DNA at Work • DNA in nucleus is copied into a strand of RNA (transcription) • RNA is read at the ribosome to make assemble amino acids into proteins (translation) • Every 3 bases on DNA codes for a different amino acid
![Replication of DNA • Replication – the synthesis of new DNA from existing DNA Replication of DNA • Replication – the synthesis of new DNA from existing DNA](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-17.jpg)

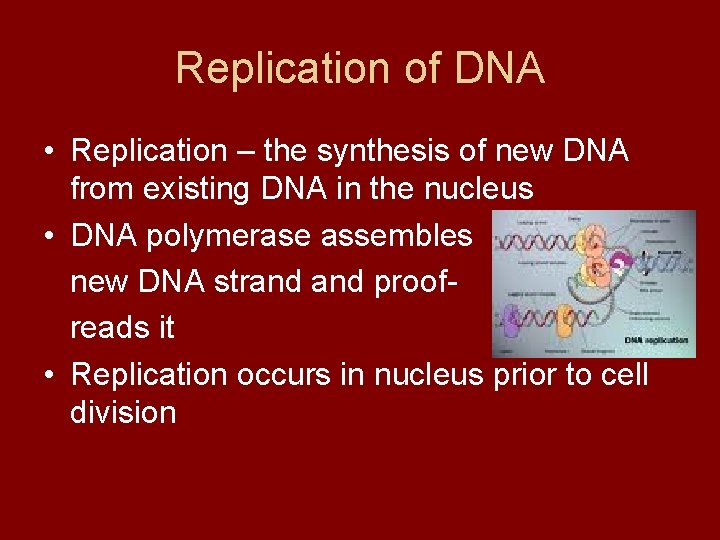

Replication of DNA • Replication – the synthesis of new DNA from existing DNA in the nucleus • DNA polymerase assembles new DNA strand proofreads it • Replication occurs in nucleus prior to cell division
![Polymerase Chain Reaction • A technique for replication, or amplifying, a portion of DNA Polymerase Chain Reaction • A technique for replication, or amplifying, a portion of DNA](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-18.jpg)

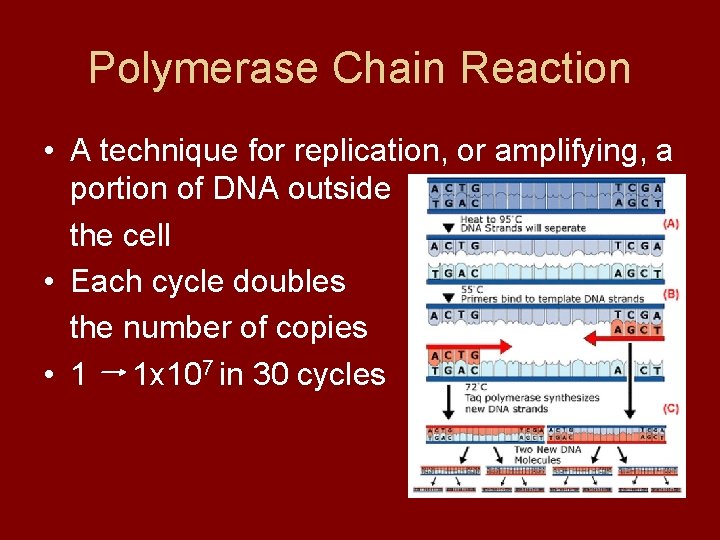

Polymerase Chain Reaction • A technique for replication, or amplifying, a portion of DNA outside the cell • Each cycle doubles the number of copies • 1 1 x 107 in 30 cycles
![DNA Typing with Tandem Repeats • Region of chromosome that contains multiple copies of DNA Typing with Tandem Repeats • Region of chromosome that contains multiple copies of](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-19.jpg)

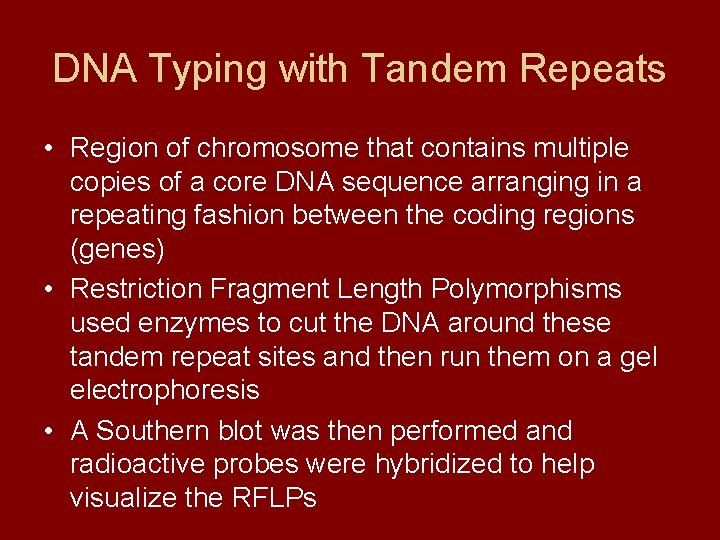

DNA Typing with Tandem Repeats • Region of chromosome that contains multiple copies of a core DNA sequence arranging in a repeating fashion between the coding regions (genes) • Restriction Fragment Length Polymorphisms used enzymes to cut the DNA around these tandem repeat sites and then run them on a gel electrophoresis • A Southern blot was then performed and radioactive probes were hybridized to help visualize the RFLPs
![RFLPs RFLPs](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-20.jpg)
RFLPs
![PCR has the following advantages: 1. PCR can use shorter sequences 2. shorter pieces PCR has the following advantages: 1. PCR can use shorter sequences 2. shorter pieces](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-21.jpg)

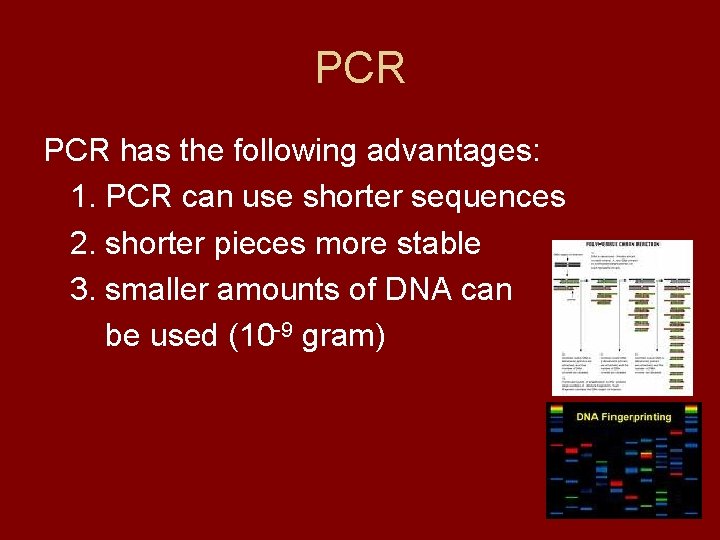

PCR has the following advantages: 1. PCR can use shorter sequences 2. shorter pieces more stable 3. smaller amounts of DNA can be used (10 -9 gram)
![Short Tandem Repeats (STRs) • A region of a DNA molecule that contains short Short Tandem Repeats (STRs) • A region of a DNA molecule that contains short](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-22.jpg)

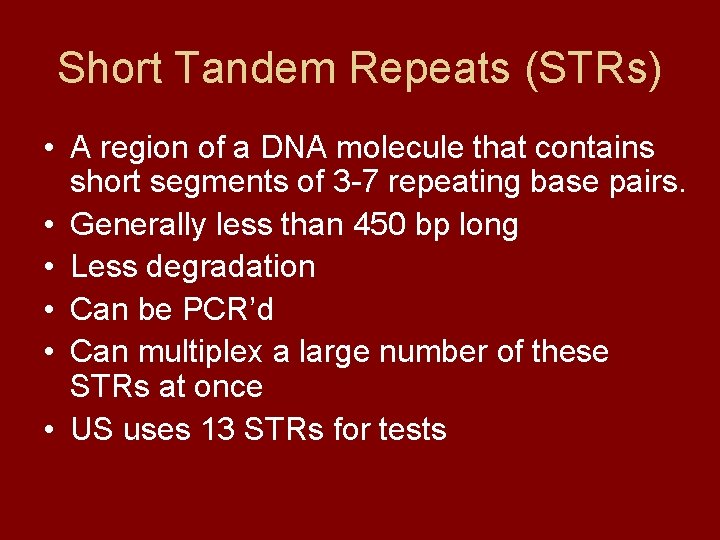

Short Tandem Repeats (STRs) • A region of a DNA molecule that contains short segments of 3 -7 repeating base pairs. • Generally less than 450 bp long • Less degradation • Can be PCR’d • Can multiplex a large number of these STRs at once • US uses 13 STRs for tests
![• Capillary electrophoresis • Sex Identification by focusing on the amelogenin gene • Capillary electrophoresis • Sex Identification by focusing on the amelogenin gene](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-23.jpg)

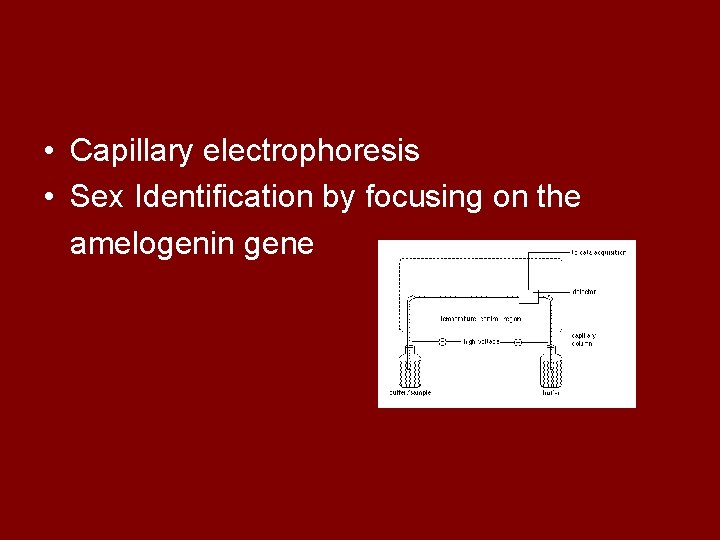

• Capillary electrophoresis • Sex Identification by focusing on the amelogenin gene
![Mitochondrial DNA • Cell organelle responsible for supplying energy to the cell by producing Mitochondrial DNA • Cell organelle responsible for supplying energy to the cell by producing](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-24.jpg)

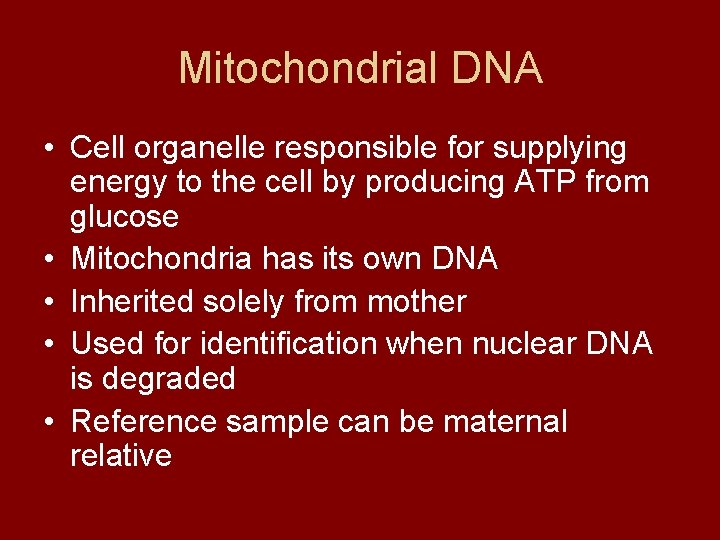

Mitochondrial DNA • Cell organelle responsible for supplying energy to the cell by producing ATP from glucose • Mitochondria has its own DNA • Inherited solely from mother • Used for identification when nuclear DNA is degraded • Reference sample can be maternal relative
![CODIS • A computer software program developed by the FBI that contains local, state CODIS • A computer software program developed by the FBI that contains local, state](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-25.jpg)

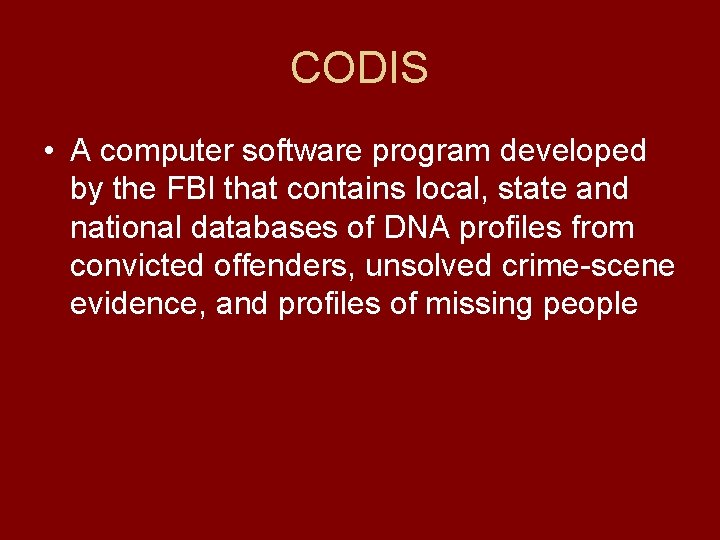

CODIS • A computer software program developed by the FBI that contains local, state and national databases of DNA profiles from convicted offenders, unsolved crime-scene evidence, and profiles of missing people
![Collection and Preservation • Can use low copy samples • Avoid contamination; change gloves Collection and Preservation • Can use low copy samples • Avoid contamination; change gloves](http://slidetodoc.com/presentation_image/44dfbab7a7f045463c09fbabb068864f/image-26.jpg)

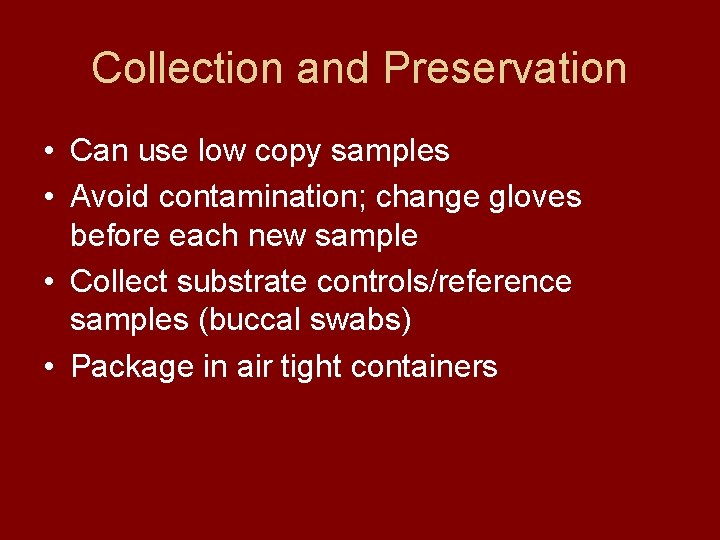

Collection and Preservation • Can use low copy samples • Avoid contamination; change gloves before each new sample • Collect substrate controls/reference samples (buccal swabs) • Package in air tight containers
