Forensic Examination of Paint Pg 213 223 Paint

Forensic Examination of Paint Pg. 213 -223

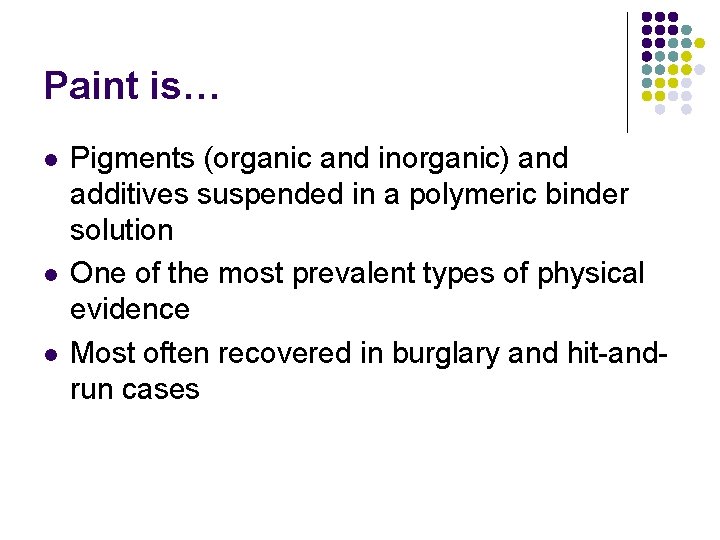

Paint is… l l l Pigments (organic and inorganic) and additives suspended in a polymeric binder solution One of the most prevalent types of physical evidence Most often recovered in burglary and hit-andrun cases

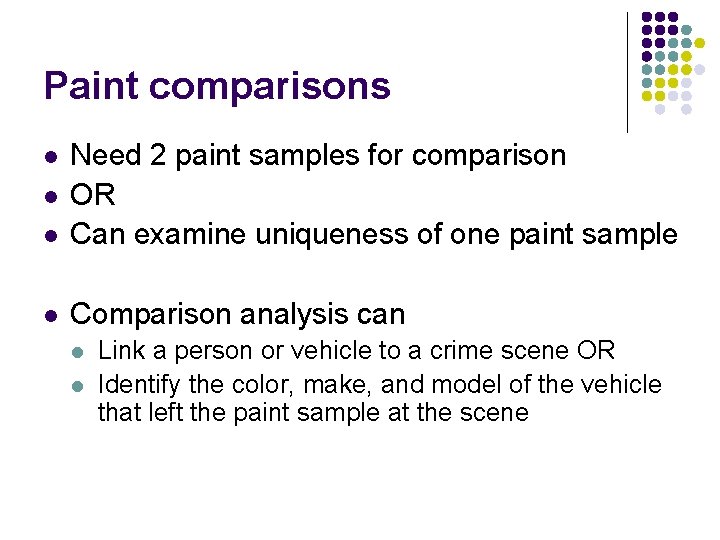

Paint comparisons l Need 2 paint samples for comparison OR Can examine uniqueness of one paint sample l Comparison analysis can l l Link a person or vehicle to a crime scene OR Identify the color, make, and model of the vehicle that left the paint sample at the scene

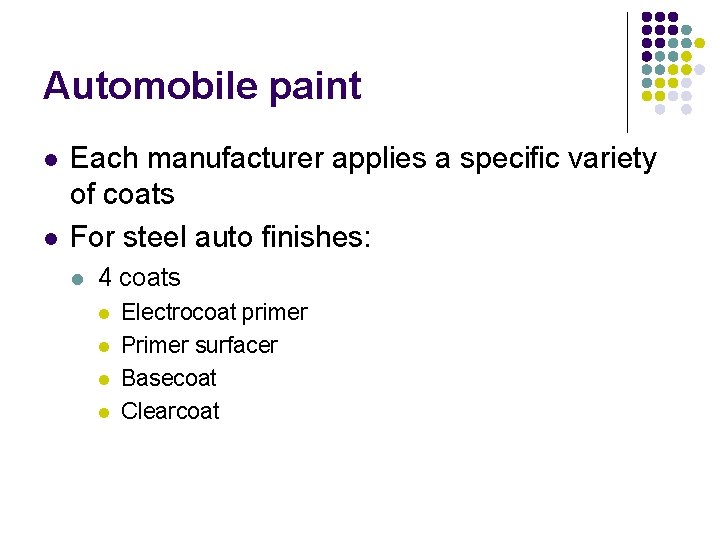

Automobile paint l l Each manufacturer applies a specific variety of coats For steel auto finishes: l 4 coats l l Electrocoat primer Primer surfacer Basecoat Clearcoat

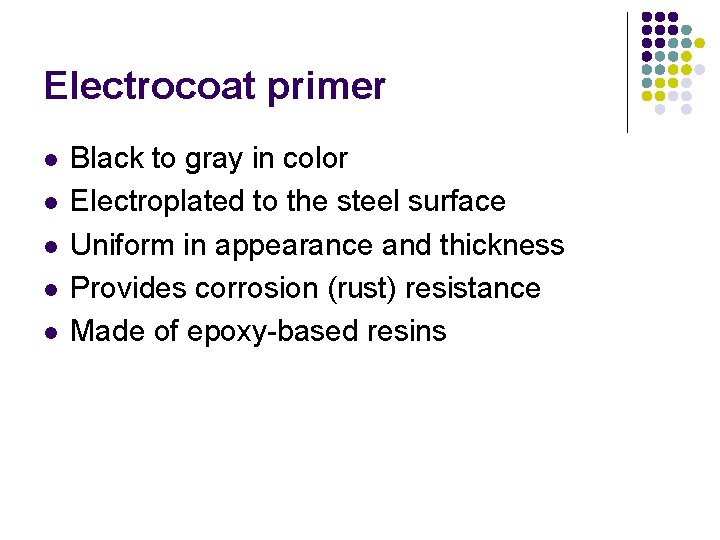

Electrocoat primer l l l Black to gray in color Electroplated to the steel surface Uniform in appearance and thickness Provides corrosion (rust) resistance Made of epoxy-based resins

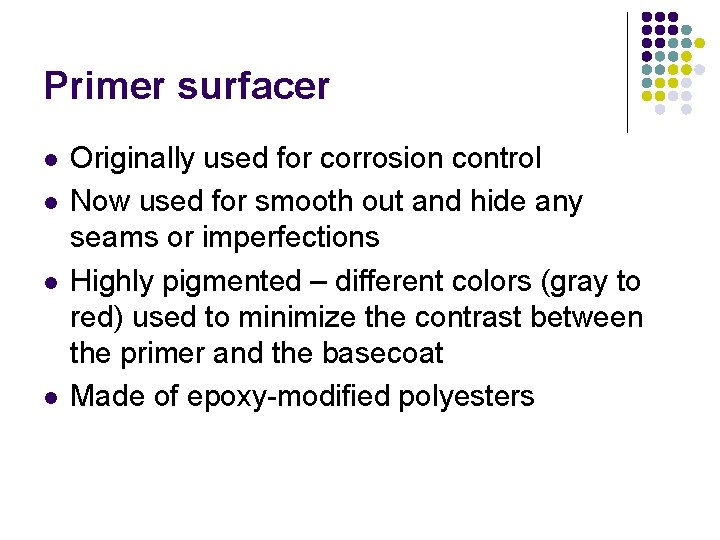

Primer surfacer l l Originally used for corrosion control Now used for smooth out and hide any seams or imperfections Highly pigmented – different colors (gray to red) used to minimize the contrast between the primer and the basecoat Made of epoxy-modified polyesters

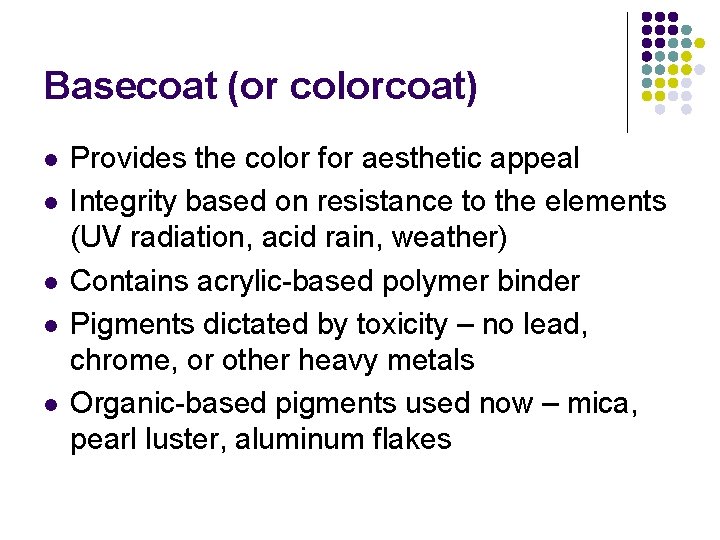

Basecoat (or colorcoat) l l l Provides the color for aesthetic appeal Integrity based on resistance to the elements (UV radiation, acid rain, weather) Contains acrylic-based polymer binder Pigments dictated by toxicity – no lead, chrome, or other heavy metals Organic-based pigments used now – mica, pearl luster, aluminum flakes

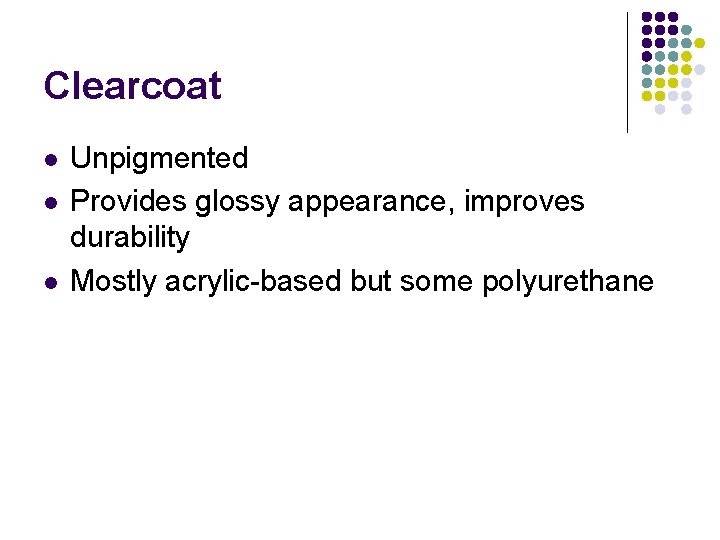

Clearcoat l l l Unpigmented Provides glossy appearance, improves durability Mostly acrylic-based but some polyurethane

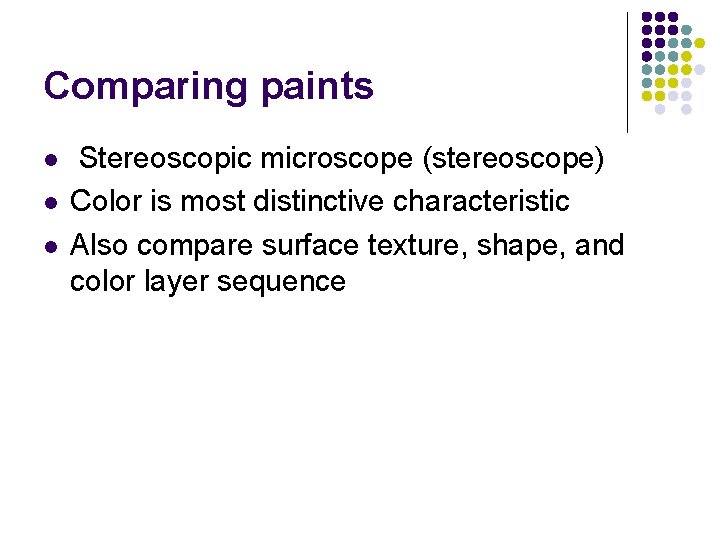

Comparing paints l l l Stereoscopic microscope (stereoscope) Color is most distinctive characteristic Also compare surface texture, shape, and color layer sequence

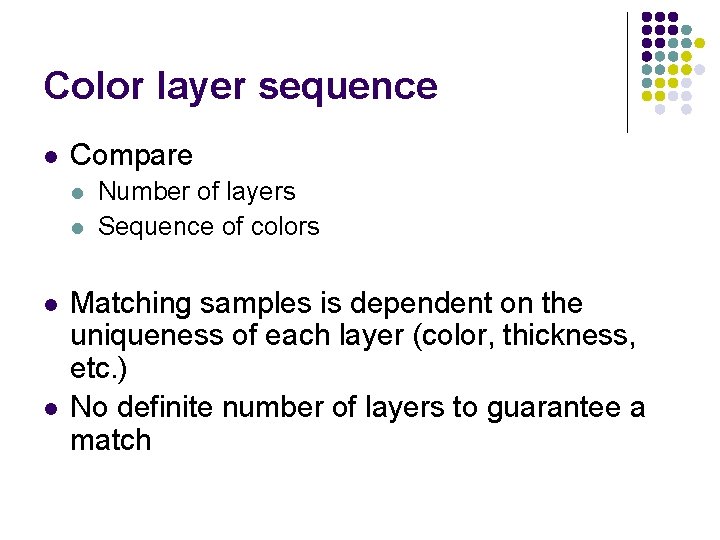

Color layer sequence l Compare l l Number of layers Sequence of colors Matching samples is dependent on the uniqueness of each layer (color, thickness, etc. ) No definite number of layers to guarantee a match

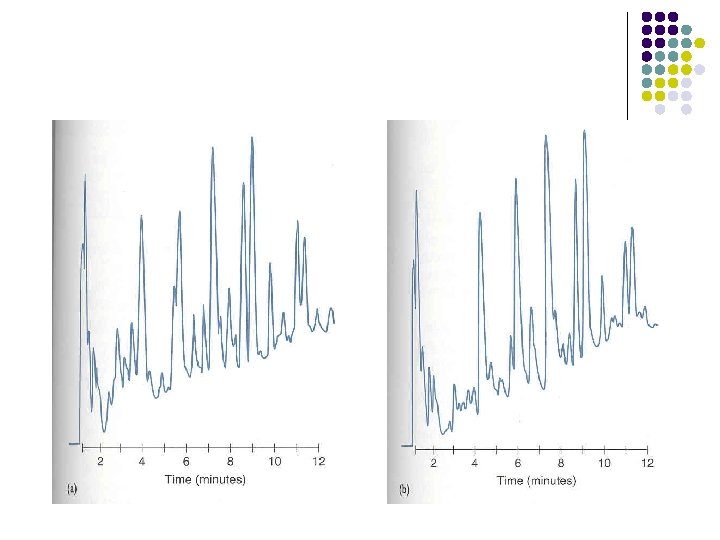

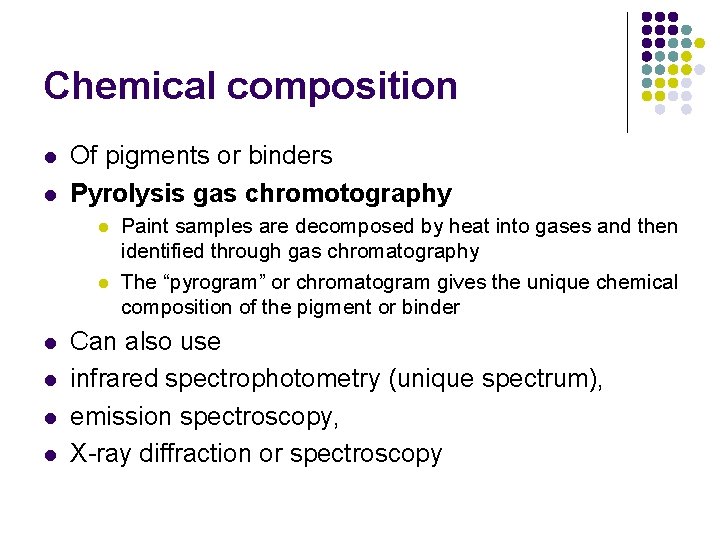

Chemical composition l l Of pigments or binders Pyrolysis gas chromotography l l l Paint samples are decomposed by heat into gases and then identified through gas chromatography The “pyrogram” or chromatogram gives the unique chemical composition of the pigment or binder Can also use infrared spectrophotometry (unique spectrum), emission spectroscopy, X-ray diffraction or spectroscopy

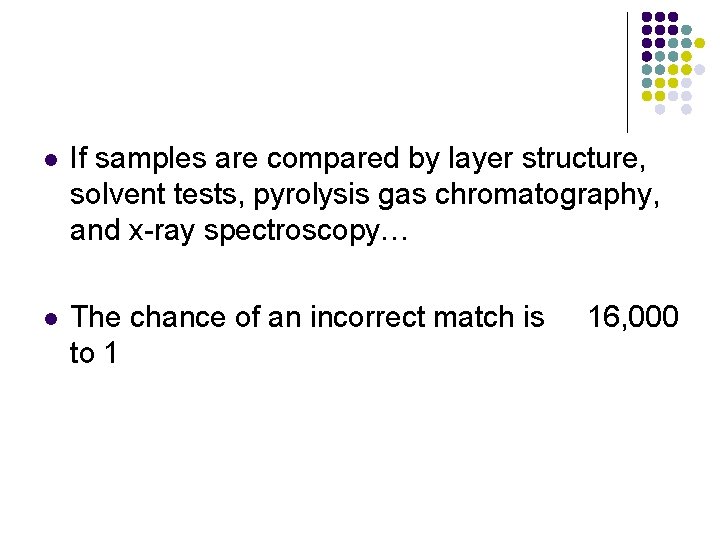

l If samples are compared by layer structure, solvent tests, pyrolysis gas chromatography, and x-ray spectroscopy… l The chance of an incorrect match is to 1 16, 000

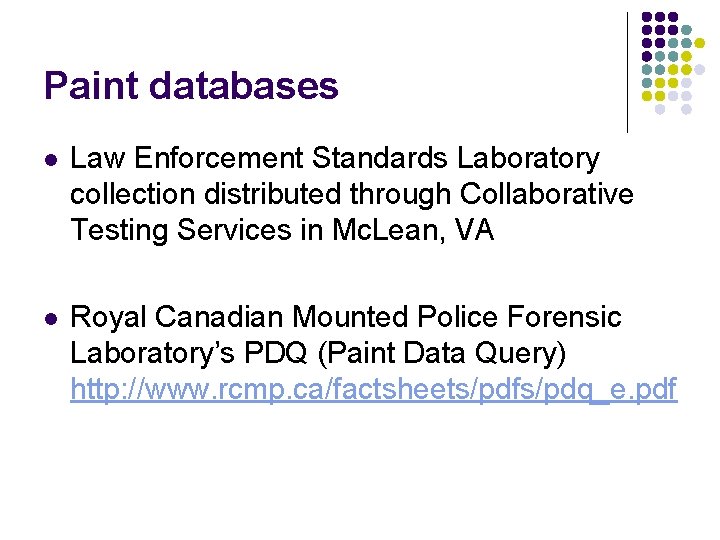

Paint databases l Law Enforcement Standards Laboratory collection distributed through Collaborative Testing Services in Mc. Lean, VA l Royal Canadian Mounted Police Forensic Laboratory’s PDQ (Paint Data Query) http: //www. rcmp. ca/factsheets/pdfs/pdq_e. pdf
