Forensic DNA Analysis Criminalist Harry Klann DNA Technical
- Slides: 39
Forensic DNA Analysis Criminalist Harry Klann, DNA Technical Leader DNA Detail Los Angeles Police Department Scientific Investigation Division Power. Point presentation by Criminalist Carl Matthies

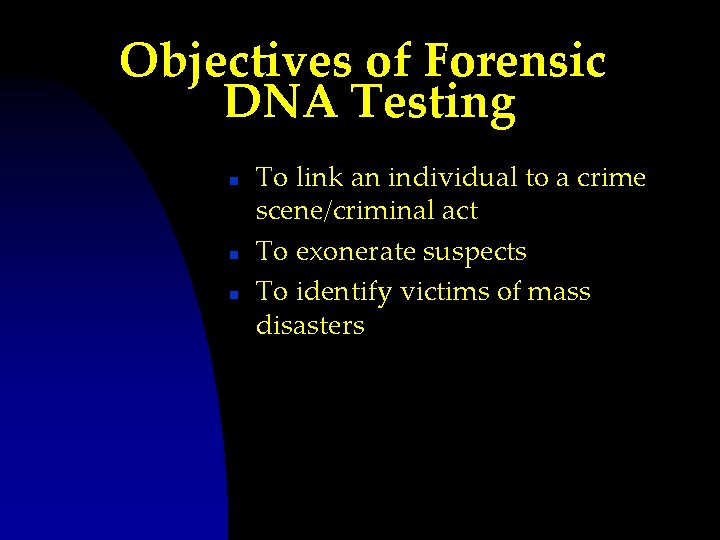

Objectives of Forensic DNA Testing n n n To link an individual to a crime scene/criminal act To exonerate suspects To identify victims of mass disasters
n n A Brief History Contemporary Forensic DNA Testing Casework Applications Questions?
Early 1980 s: Restriction Fragment Length Polymorphism (RFLP) n n Sir Alec Jeffreys n Genetic variation in the distance between restriction enzyme sites Template DNA digested by enzymes, electrophoresed, detected via Southern blotting Power of discrimination in the range of 106 -108 for a six probe analysis
Mechanisms for RFLPs
Mid-1980 s: The Colin Pitchfork Case n n n Two young women raped and murdered in Narborough, England 5, 000 local men are asked to provide blood/saliva samples 1 st exoneration and conviction on forensic DNA evidence
The Catch: n n RFLP testing requires a relatively large amount of HMW DNA (~50 ng = thousands of cells) Not ideal forensic evidence, in which small, degraded samples are common

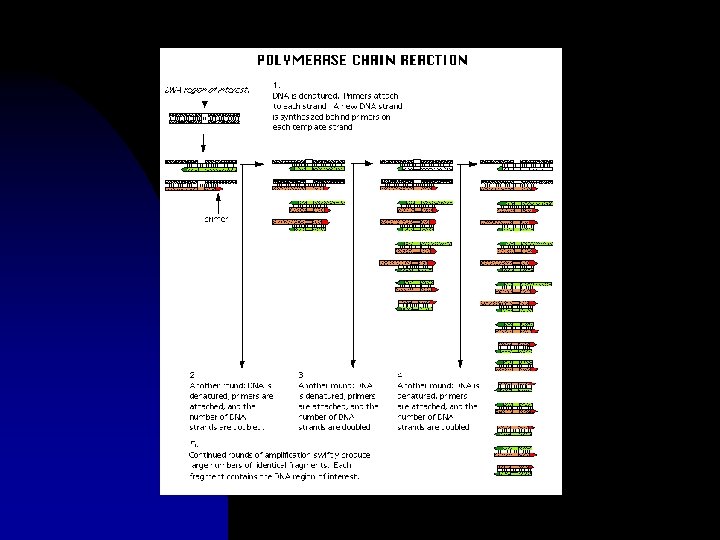

PCR To The Rescue! n n Dr. Kary Mullis Eccentric Genius Polymerase Chain Reaction = molecular Xeroxing Three temperature phases, carried out in a Thermal Cycler, replicate or “amplify” the desired DNA fragment(s)
PCR (cont’d) n n n First forensic application is the DQα locus, later multi-plexed with Polymarker™ loci using dot-blot detection method Works with lower quantity (1 -2 ng), lower quality samples Power of discrimination goes from 102 -106. . . not good enough for databasing
The Current Method of Choice: Autosomal Short Tandem Repeats n n n Non-coding, tetranucleotide sequences which vary greatly from person to person in the number of repeating units Requires <1 ng of DNA to type 1315 STR loci Power of discrimination ranges from 1014 -1023. World population is 109 so bring on the database!
Applied Biosystems 310 Genetic Analyzer

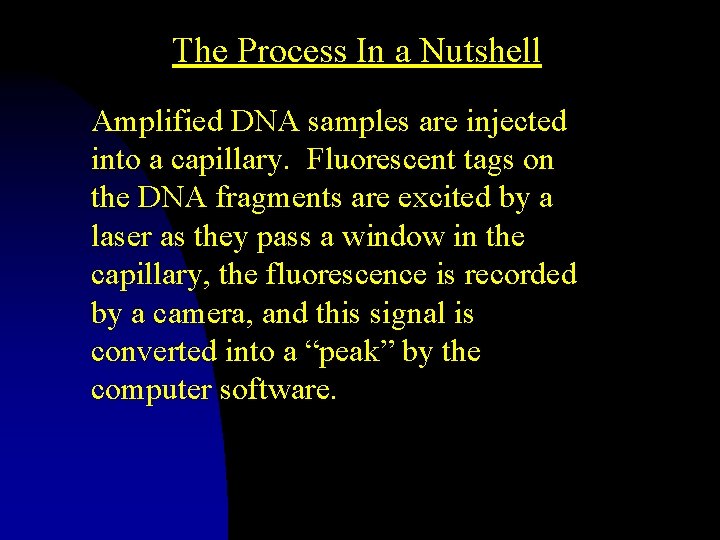

The Process In a Nutshell Amplified DNA samples are injected into a capillary. Fluorescent tags on the DNA fragments are excited by a laser as they pass a window in the capillary, the fluorescence is recorded by a camera, and this signal is converted into a “peak” by the computer software.
STR data X, Y, XY
STR data (cont’d)

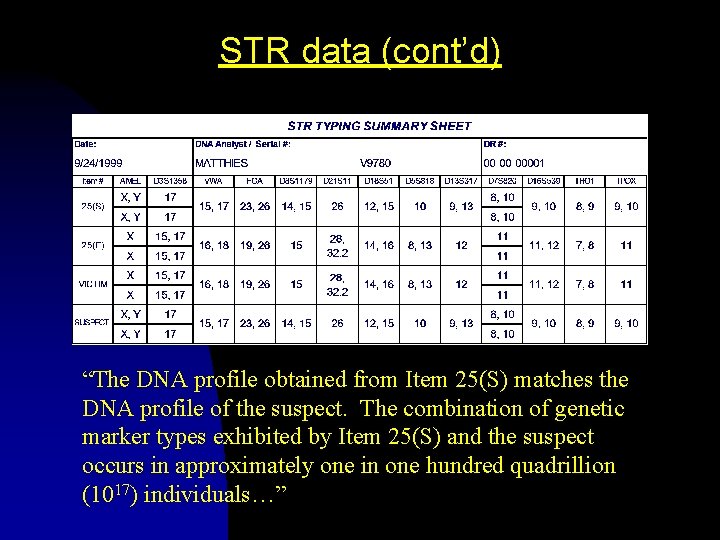

STR data (cont’d) “The DNA profile obtained from Item 25(S) matches the DNA profile of the suspect. The combination of genetic marker types exhibited by Item 25(S) and the suspect occurs in approximately one in one hundred quadrillion (1017) individuals…”
How are these astronomical figures derived? The product rule: combined probability of a series of independent events is determined by multiplying the probabilities of each event. STR loci are inherited independently (unlinked) Homozygous loci: p 2 (same allele inherited from mother and father) Heterozygous loci: 2 pq (either allele could be inherited from either parent) p(17)2 x 2 p(15)q(17) x 2 p(23)q(26)…. (. 223)2 x 2(. 083)(. 25) x 2(. 14)(. 02) =. 000013, which is equivalent to a probability of one in 76, 000 using just 3 of the 13 loci!
STR Artifacts -A (“minus A”): Incomplete addition of nucleotide ‘A’ by DNA polymerase; results in a peak that is one base pair smaller than allele peak.
STR Artifacts Stutter: Slippage of DNA polymerase; results in a peak that is four base pairs (one repeat unit) smaller than allele peak.

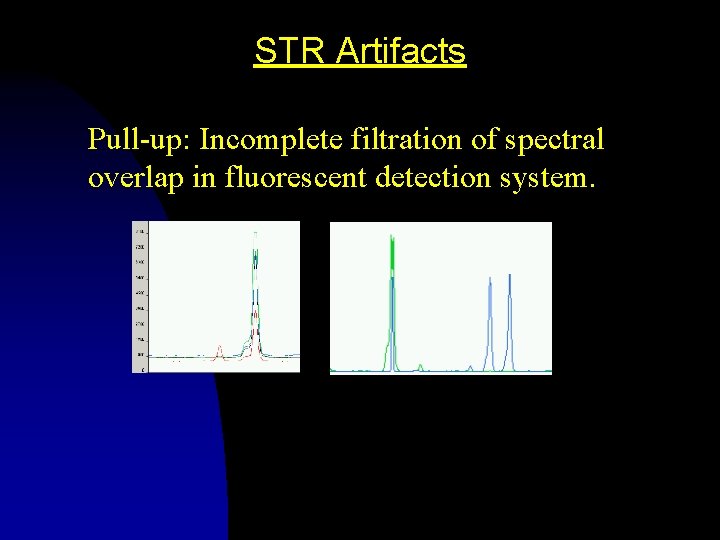

STR Artifacts Pull-up: Incomplete filtration of spectral overlap in fluorescent detection system.
Pull-up
DNA Mixtures When more than one source of DNA is detected in a sample, assignment of genotypes becomes more difficult.

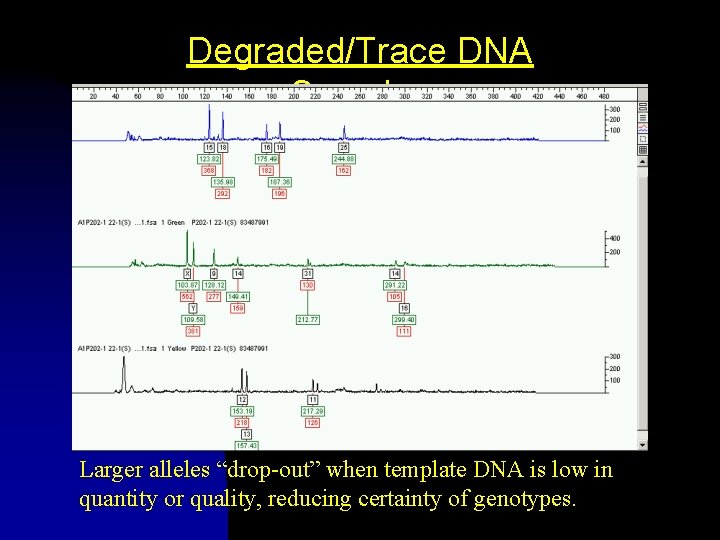

Degraded/Trace DNA Samples Larger alleles “drop-out” when template DNA is low in quantity or quality, reducing certainty of genotypes.
The Combined DNA Index System (Co. DIS) n n n A database of DNA profiles from violent felons and crime scene samples Laws concerning who is eligible for the database vary from state to state Database currently contains about 2, 038, 470 felons and 93, 956 crime scene profiles (19, 00 hits so far)
The Mystical Power of Co. DIS n n Extremely powerful investigative tool, linking crimes, and pulling suspects out of thin air! Can prevent, as well as solve crimes!
The Dark Side of Co. DIS (What the FBI doesn’t want you to know. ) n n DNA mixtures and degraded DNA profiles have lead to spurious matches Stringent laws explicitly permit databasing innocent people Adding arrestees to database violates presumption of innocence However, the prosecution rate on case to offender matches is shockingly low! (~10%)

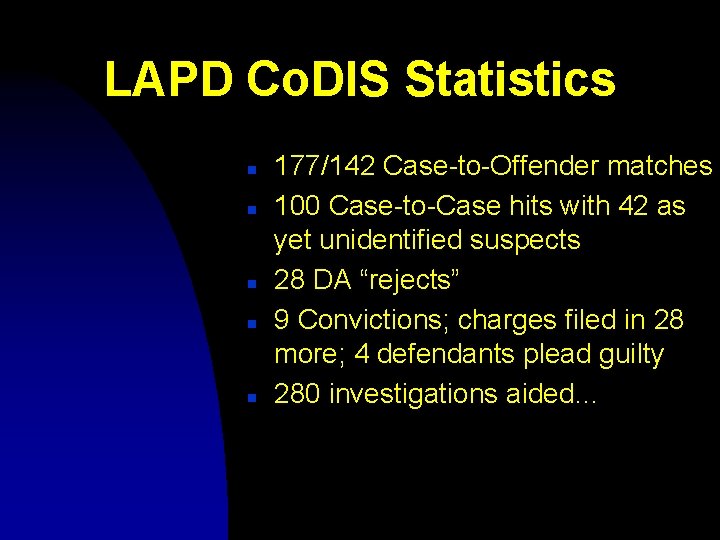

LAPD Co. DIS Statistics n n n 177/142 Case-to-Offender matches 100 Case-to-Case hits with 42 as yet unidentified suspects 28 DA “rejects” 9 Convictions; charges filed in 28 more; 4 defendants plead guilty 280 investigations aided…
“Specialized” PCR-based systems n n n mt. DNA Y-STRs SNPs
Mitochondrial DNA (mt. DNA)
Mitochondrial DNA (mt. DNA) n n n Pros Single-cell sensitivity because each cell contains ~1000 mitochondria Especially useful for shed hairs, burnt remains Can be used to establish kinship directly because entire complement of mt. DNA is maternally inherited
Mitochondrial DNA (mt. DNA) n n n Cons Single-cell sensitivity because each cell contains ~1000 mitochondria = very high contamination risk! Heteroplasmy - more than one mt. DNA type manifesting in different tissues in the same individual Lower power of discrimination - maternal relatives all share the same mt. DNA
Y-STRs n n Problem: ~99% of violent crimes are committed by men DNA Mixtures of male suspect and female victim can pose an analytical challenge, especially when the female contribution is much greater than the male = preferential amplification
Y-STRs n Solution: Test for markers found only on the Ychromosome. Only male DNA is amplified!
Y-STRs n n “Khan” Argument Lower power of discrimination - paternal relatives all share the same Y-STR haplotype (“Wicked Uncle Ernie” Defense) 10% of Central Asian males share the same Y-STR haplotype, thought to belong to Genghis Khan

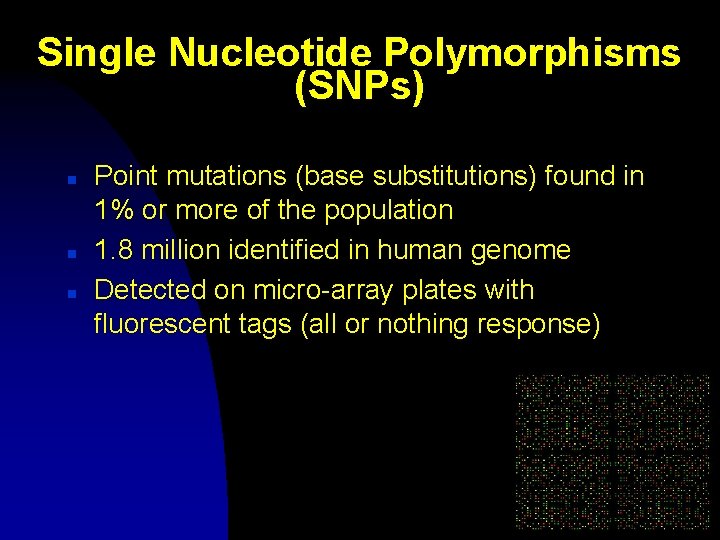

Single Nucleotide Polymorphisms (SNPs) n n n Point mutations (base substitutions) found in 1% or more of the population 1. 8 million identified in human genome Detected on micro-array plates with fluorescent tags (all or nothing response)
SNPs (cont’d) n n ~50 SNPs provides same power of discrimination as 13 STR loci Certain SNPs used as predictors of ancestry/ethnicity by a private sector lab (DNA Witness)
Flawed logic in the use of SNPs for predicting ancestry Scenario 1: SNP profile inconsistent with subject’s reported ancestry subject’s family history is inaccurate results are indisputable Scenario 2: SNP profile inconsistent with subject’s physical appearance ad hoc human migration explanation results are indisputable
Other SNP Flaws n n Privacy issues - unlike STRs, SNPs can be correlated with susceptibility/resistance to diseases Requires a relatively large quantity of DNA for robust assay
