Forefront Online Protection for Exchange Renato Francesco Giorgini

Forefront Online Protection for Exchange Renato Francesco Giorgini Evangelist IT Pro Renato. Francesco. Giorgini@microsoft. com

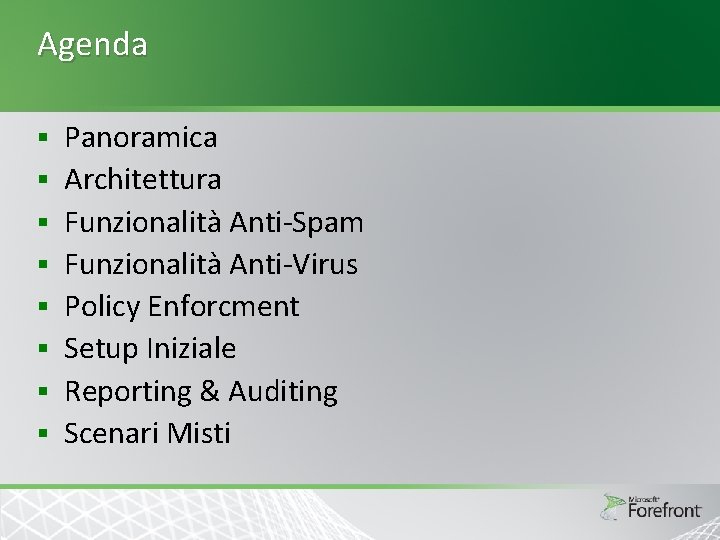

Agenda § § § § Panoramica Architettura Funzionalità Anti-Spam Funzionalità Anti-Virus Policy Enforcment Setup Iniziale Reporting & Auditing Scenari Misti

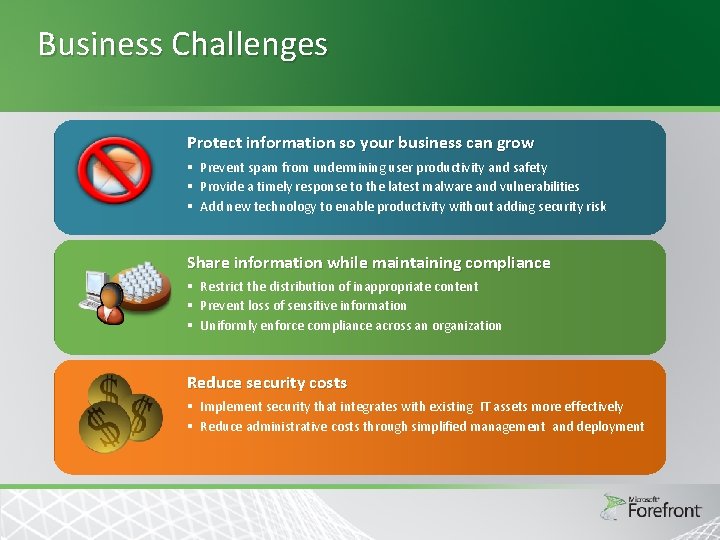

Business Challenges Protect information so your business can grow § Prevent spam from undermining user productivity and safety § Provide a timely response to the latest malware and vulnerabilities § Add new technology to enable productivity without adding security risk Share information while maintaining compliance § Restrict the distribution of inappropriate content § Prevent loss of sensitive information § Uniformly enforce compliance across an organization Reduce security costs § Implement security that integrates with existing IT assets more effectively § Reduce administrative costs through simplified management and deployment

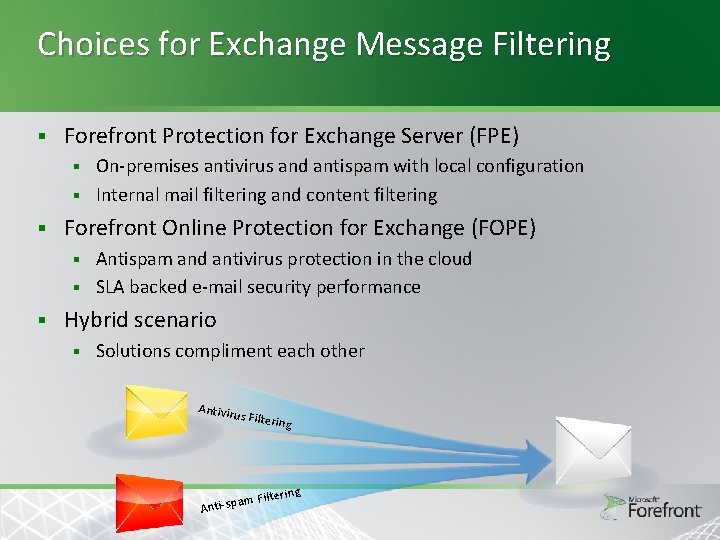

Choices for Exchange Message Filtering § Forefront Protection for Exchange Server (FPE) On-premises antivirus and antispam with local configuration § Internal mail filtering and content filtering § § Forefront Online Protection for Exchange (FOPE) Antispam and antivirus protection in the cloud § SLA backed e-mail security performance § § Hybrid scenario § Solutions compliment each other Antiviru s Filteri ng ltering i F m a p Anti-s

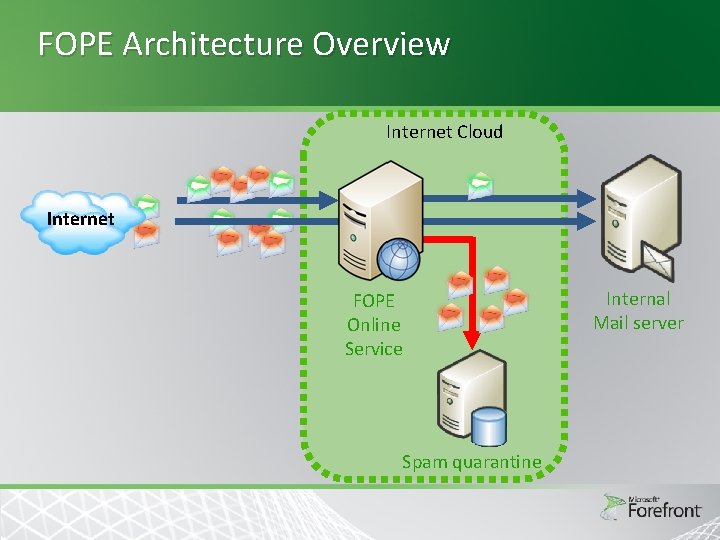

FOPE Architecture Overview Internet Cloud Internet FOPE Online Service Spam quarantine Internal Mail server

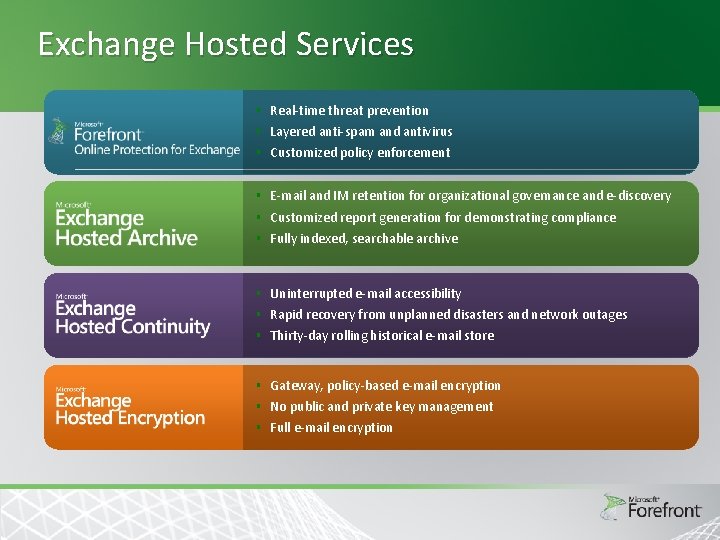

Exchange Hosted Services § Real-time threat prevention § Layered anti-spam and antivirus § Customized policy enforcement § E-mail and IM retention for organizational governance and e-discovery § Customized report generation for demonstrating compliance § Fully indexed, searchable archive § Uninterrupted e-mail accessibility § Rapid recovery from unplanned disasters and network outages § Thirty-day rolling historical e-mail store § Gateway, policy-based e-mail encryption § No public and private key management § Full e-mail encryption

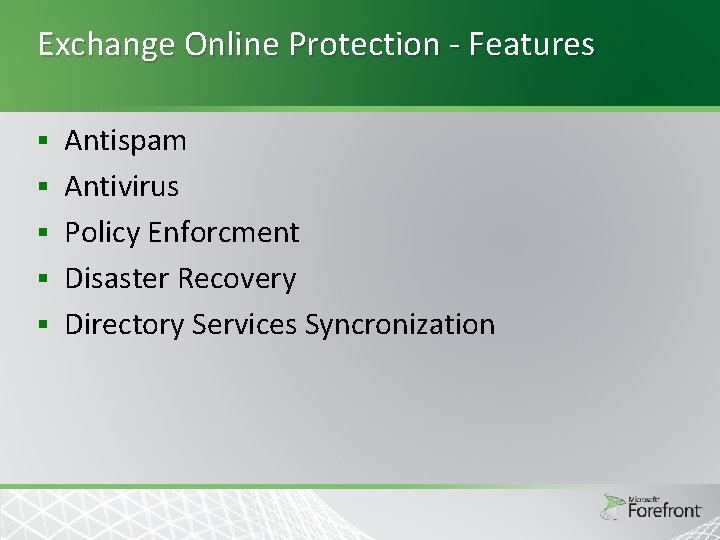

Exchange Online Protection - Features § § § Antispam Antivirus Policy Enforcment Disaster Recovery Directory Services Syncronization

Architettura

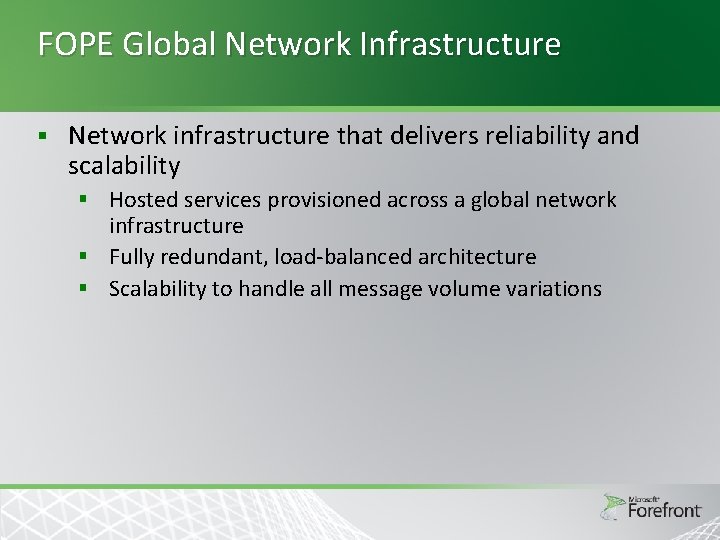

FOPE Global Network Infrastructure § Network infrastructure that delivers reliability and scalability § Hosted services provisioned across a global network infrastructure § Fully redundant, load-balanced architecture § Scalability to handle all message volume variations

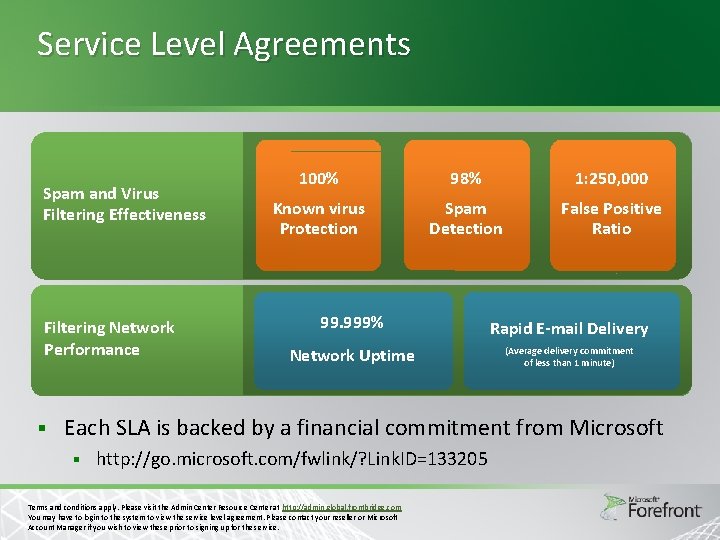

Service Level Agreements Spam and Virus Filtering Effectiveness Filtering Network Performance § 100% 98% 1: 250, 000 Known virus Protection Spam Detection False Positive Ratio 99. 999% Network Uptime Rapid E-mail Delivery (Average delivery commitment of less than 1 minute) Each SLA is backed by a financial commitment from Microsoft § http: //go. microsoft. com/fwlink/? Link. ID=133205 Terms and conditions apply. Please visit the Admin Center Resource Center at http: //admin. global. frontbridge. com You may have to login to the system to view the service level agreement. Please contact your reseller or Microsoft Account Manager if you wish to view these prior to signing up for the service.

Demo

Funzionalità Anti-Spam

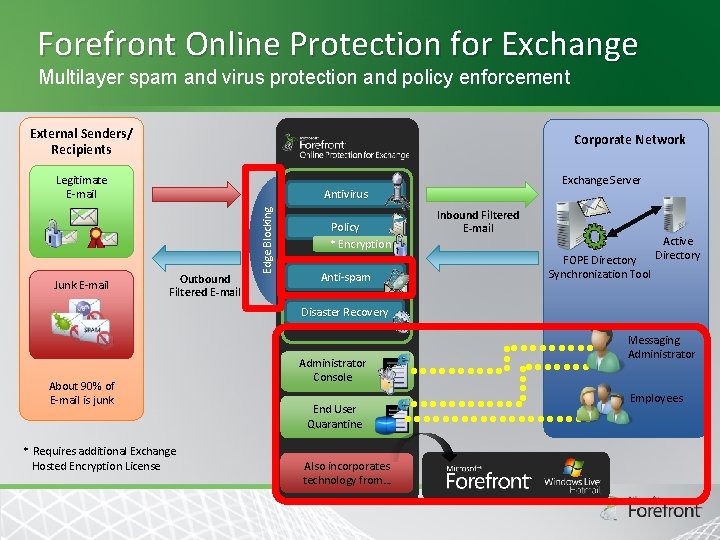

Forefront Online Protection for Exchange Multilayer spam and virus protection and policy enforcement External Senders/ Recipients Corporate Network Legitimate E-mail Junk E-mail Exchange Server Outbound Filtered E-mail Edge Blocking Antivirus Policy * Encryption Anti-spam Inbound Filtered E-mail FOPE Directory Synchronization Tool Active Directory Disaster Recovery About 90% of E-mail is junk * Requires additional Exchange Hosted Encryption License Administrator Console End User Quarantine Also incorporates technology from… Messaging Administrator Employees

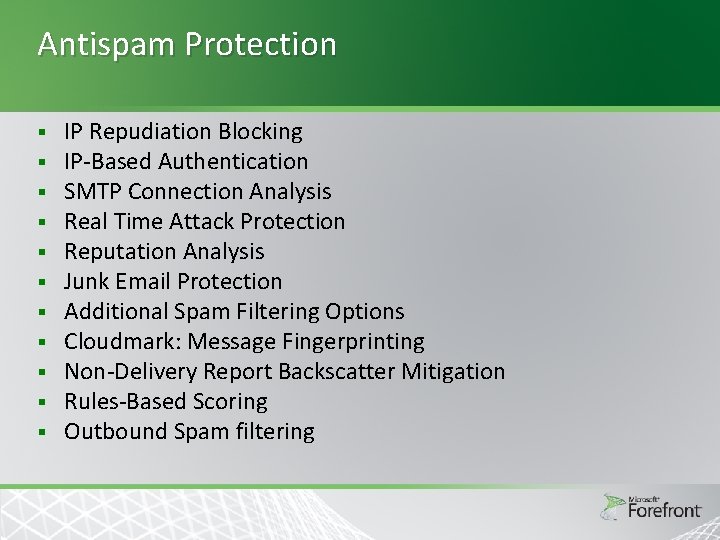

Antispam Protection § § § IP Repudiation Blocking IP-Based Authentication SMTP Connection Analysis Real Time Attack Protection Reputation Analysis Junk Email Protection Additional Spam Filtering Options Cloudmark: Message Fingerprinting Non-Delivery Report Backscatter Mitigation Rules-Based Scoring Outbound Spam filtering

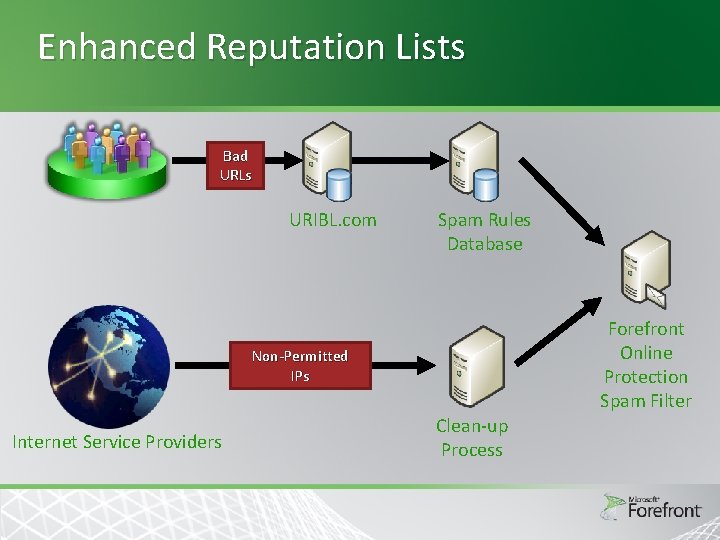

Enhanced Reputation Lists Bad URLs URIBL. com Spam Rules Database Forefront Online Protection Spam Filter Non-Permitted IPs Internet Service Providers Clean-up Process

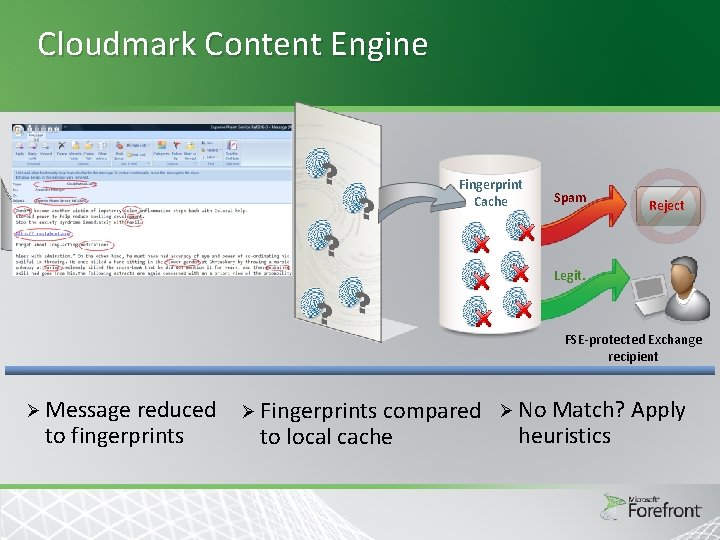

Cloudmark Content Engine Fingerprint Cache Spam Reject Legit. FSE-protected Exchange recipient Ø Message reduced to fingerprints Ø Fingerprints compared Ø No Match? Apply to local cache heuristics

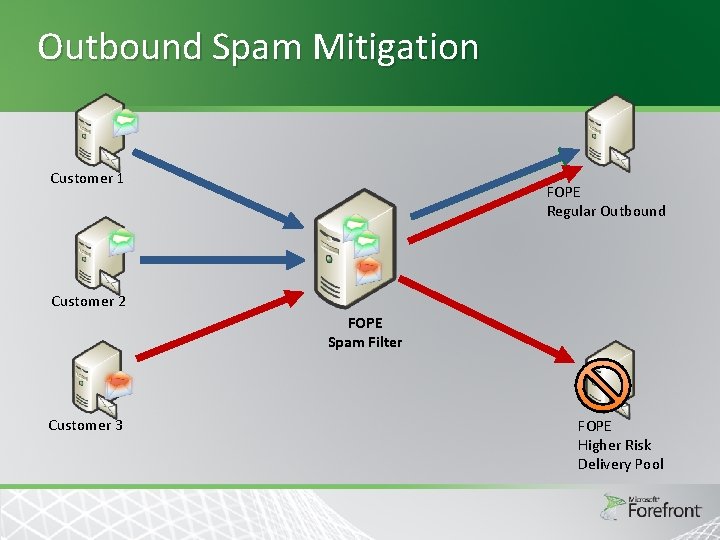

Outbound Spam Mitigation Customer 1 FOPE Regular Outbound Customer 2 FOPE Spam Filter Customer 3 FOPE Higher Risk Delivery Pool

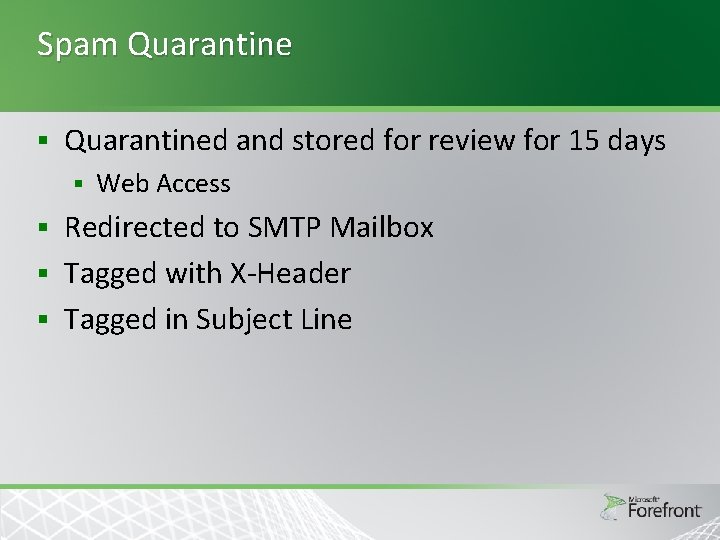

Spam Quarantine § Quarantined and stored for review for 15 days § Web Access Redirected to SMTP Mailbox § Tagged with X-Header § Tagged in Subject Line §

Demo

Funzionalità Anti-Virus

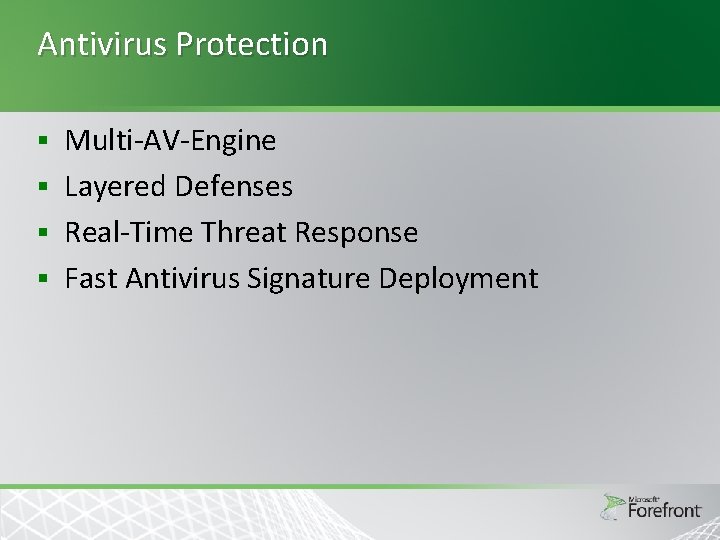

Antivirus Protection Multi-AV-Engine § Layered Defenses § Real-Time Threat Response § Fast Antivirus Signature Deployment §

Demo

Policy Enforcment

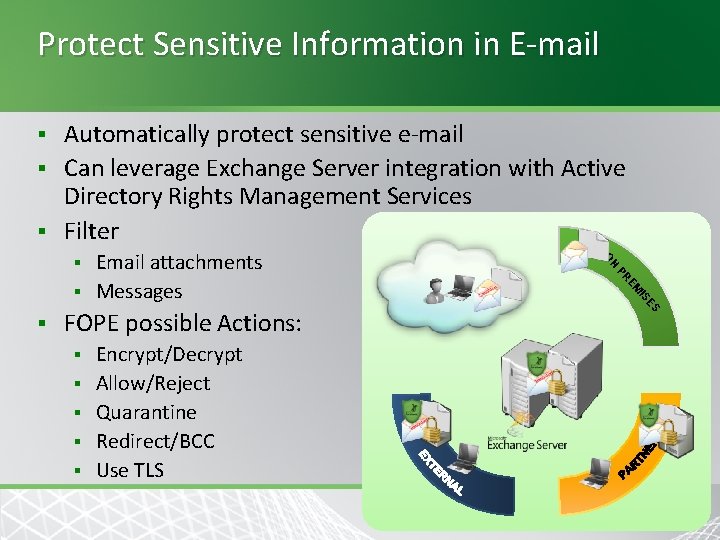

Protect Sensitive Information in E-mail Automatically protect sensitive e-mail § Can leverage Exchange Server integration with Active Directory Rights Management Services § Filter § § ES § Encrypt/Decrypt Allow/Reject Quarantine Redirect/BCC Use TLS IS § EM PR FOPE possible Actions: N § O Email attachments § Messages §

Demo

Setup Iniziale

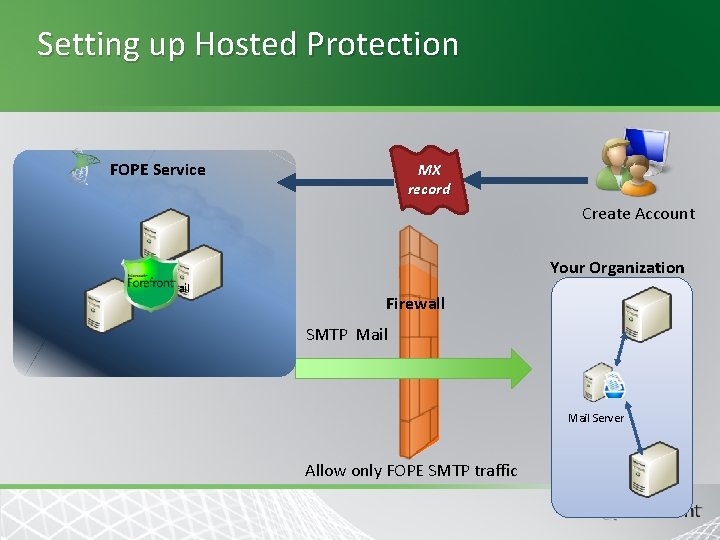

Setting up Hosted Protection FOPE Service MX record Create Account Your Organization Mail Firewall SMTP Mail Server Allow only FOPE SMTP traffic

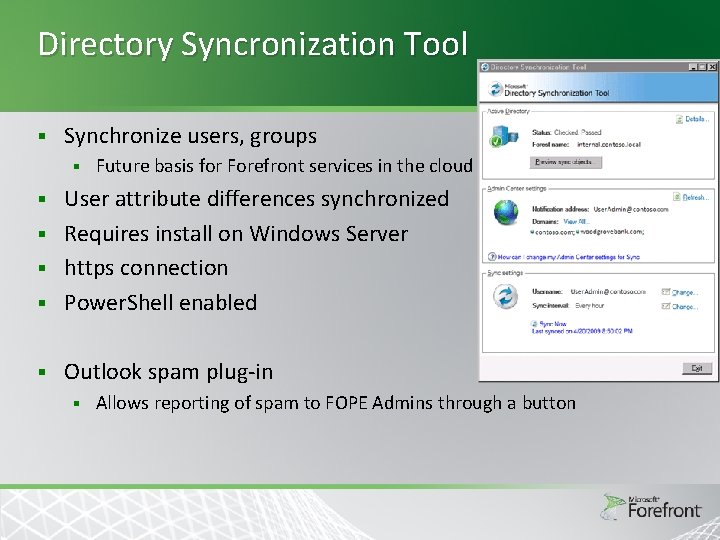

Directory Syncronization Tool § Synchronize users, groups § Future basis for Forefront services in the cloud User attribute differences synchronized § Requires install on Windows Server § https connection § Power. Shell enabled § § Outlook spam plug-in § Allows reporting of spam to FOPE Admins through a button

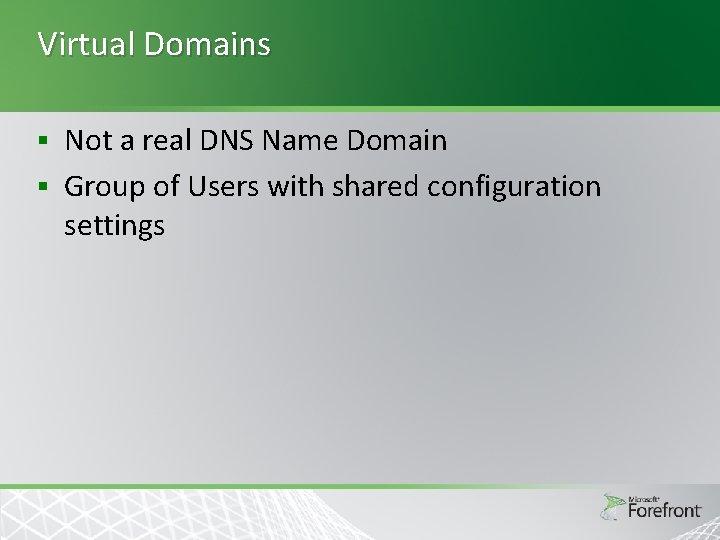

Virtual Domains Not a real DNS Name Domain § Group of Users with shared configuration settings §

Demo

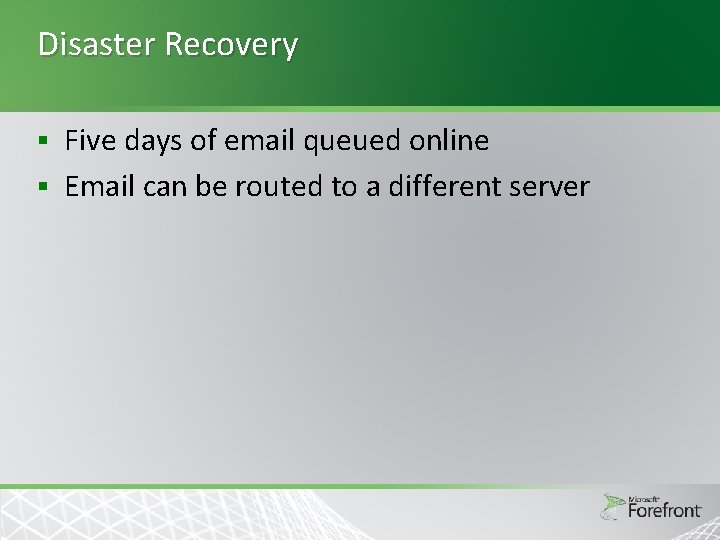

Disaster Recovery Five days of email queued online § Email can be routed to a different server §

Reporting & Auditing

Demo

Scenari Misti

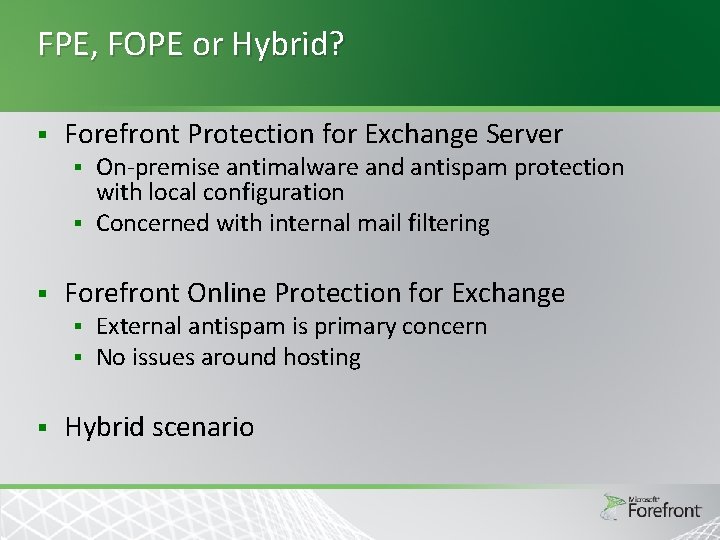

FPE, FOPE or Hybrid? § Forefront Protection for Exchange Server On-premise antimalware and antispam protection with local configuration § Concerned with internal mail filtering § § Forefront Online Protection for Exchange § § § External antispam is primary concern No issues around hosting Hybrid scenario

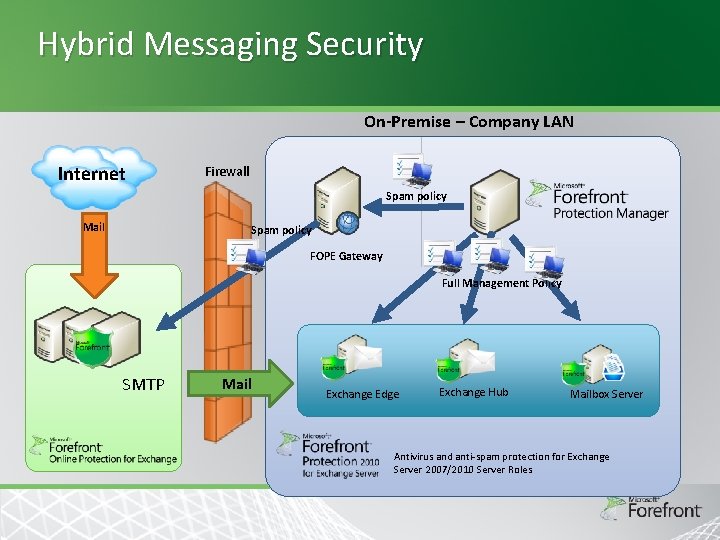

Hybrid Messaging Security On-Premise – Company LAN Internet Firewall Spam policy Mail Spam policy FOPE Gateway Full Management Policy SMTP Mail Exchange Edge Exchange Hub Mailbox Server Antivirus and anti-spam protection for Exchange Server 2007/2010 Server Roles

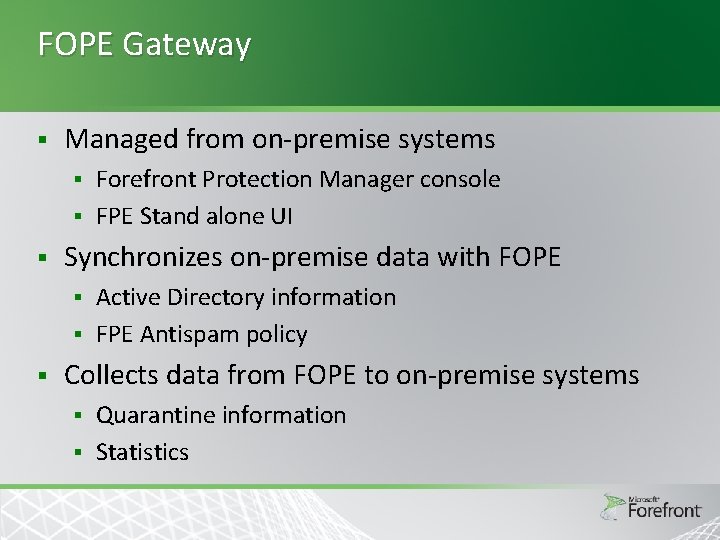

FOPE Gateway § Managed from on-premise systems Forefront Protection Manager console § FPE Stand alone UI § § Synchronizes on-premise data with FOPE Active Directory information § FPE Antispam policy § § Collects data from FOPE to on-premise systems Quarantine information § Statistics §

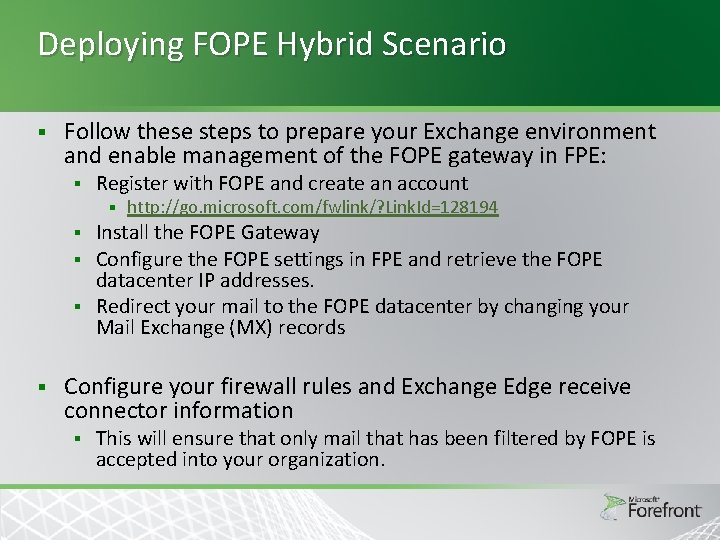

Deploying FOPE Hybrid Scenario § Follow these steps to prepare your Exchange environment and enable management of the FOPE gateway in FPE: § Register with FOPE and create an account § http: //go. microsoft. com/fwlink/? Link. Id=128194 Install the FOPE Gateway Configure the FOPE settings in FPE and retrieve the FOPE datacenter IP addresses. § Redirect your mail to the FOPE datacenter by changing your Mail Exchange (MX) records § § § Configure your firewall rules and Exchange Edge receive connector information § This will ensure that only mail that has been filtered by FOPE is accepted into your organization.

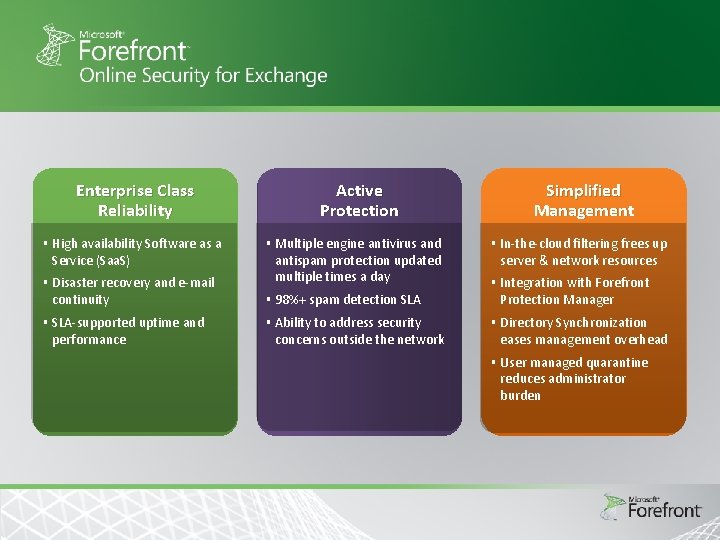

Enterprise Class Reliability § High availability Software as a Service (Saa. S) § Disaster recovery and e-mail continuity § SLA-supported uptime and performance Active Protection § Multiple engine antivirus and antispam protection updated multiple times a day § 98%+ spam detection SLA § Ability to address security concerns outside the network Simplified Management § In-the-cloud filtering frees up server & network resources § Integration with Forefront Protection Manager § Directory Synchronization eases management overhead § User managed quarantine reduces administrator burden

Windows 7 Windows Server 2008 R 2 Hyper-V Server R 2 Internet Information Services 7. 5 Exchange Server 2010 Share. Point Server 2010 System Center Internet Explorer 8. 0 Forefront Protection Suite (Codename “Stirling”) Renato. Francesco. Giorgini@microsoft. com http: //bit. ly/itpromomentum

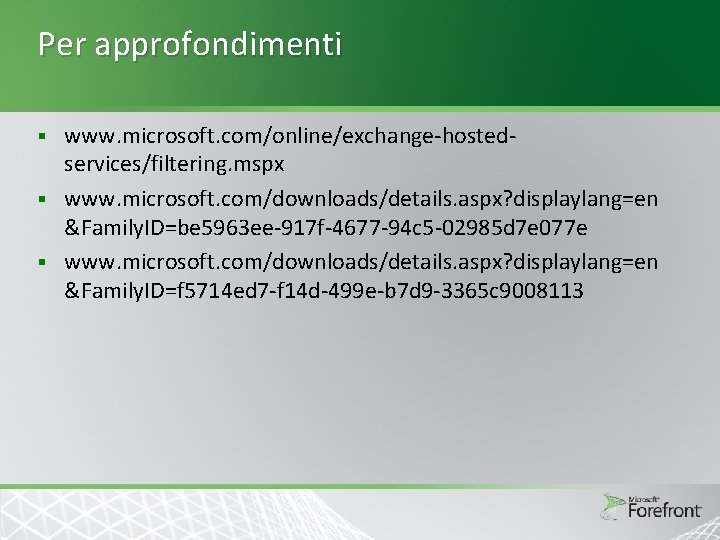

Per approfondimenti www. microsoft. com/online/exchange-hostedservices/filtering. mspx § www. microsoft. com/downloads/details. aspx? displaylang=en &Family. ID=be 5963 ee-917 f-4677 -94 c 5 -02985 d 7 e 077 e § www. microsoft. com/downloads/details. aspx? displaylang=en &Family. ID=f 5714 ed 7 -f 14 d-499 e-b 7 d 9 -3365 c 9008113 §
