Forces review Complete the tasks on each slide

Forces review Complete the tasks on each slide and then mark your answers in a different colour pen

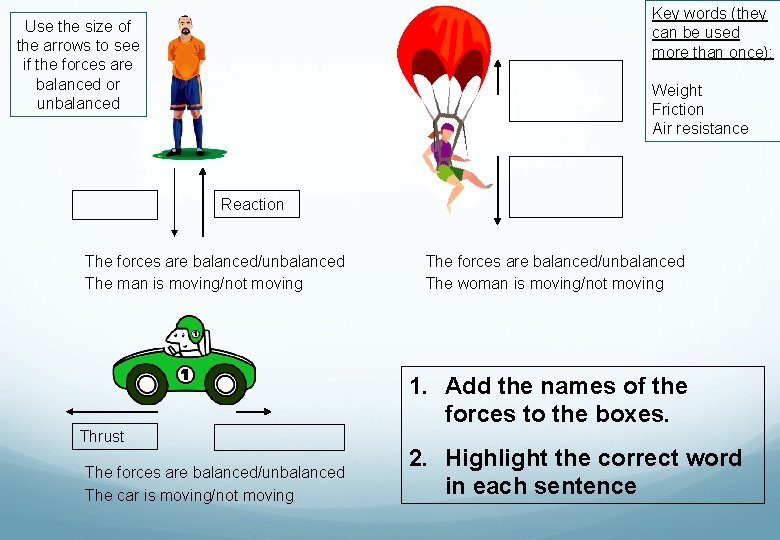

Key words (they can be used more than once): Use the size of the arrows to see if the forces are balanced or unbalanced Weight Friction Air resistance Reaction The forces are balanced/unbalanced The man is moving/not moving The forces are balanced/unbalanced The woman is moving/not moving 1. Add the names of the forces to the boxes. Thrust The forces are balanced/unbalanced The car is moving/not moving 2. Highlight the correct word in each sentence

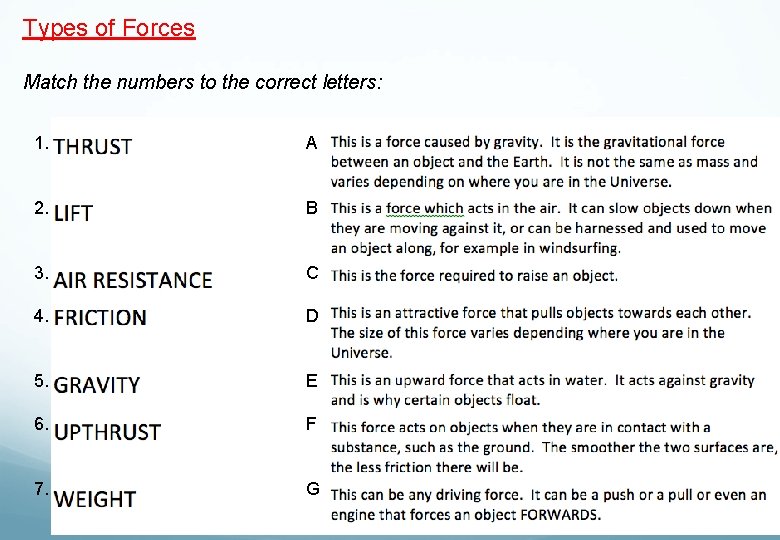

Types of Forces Match the numbers to the correct letters: 1. A 2. B 3. C 4. D 5. E 6. F 7. G

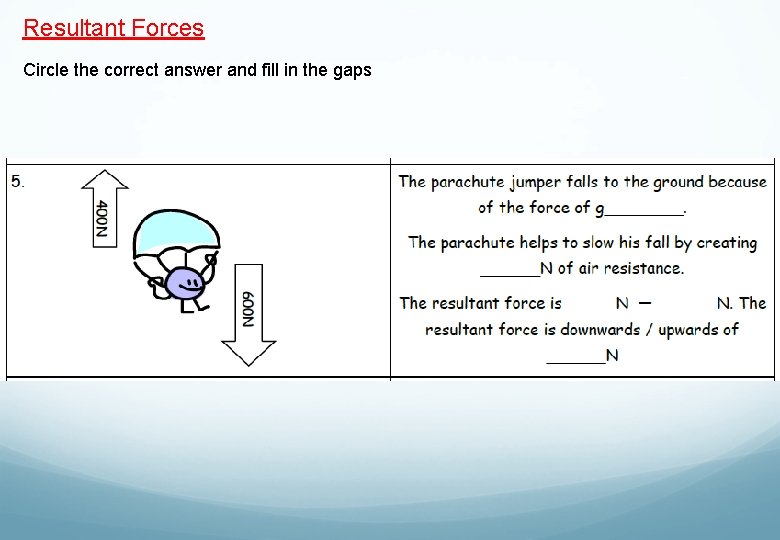

Resultant Forces Circle the correct answer and fill in the gaps

Resultant Forces Circle the correct answer and fill in the gaps

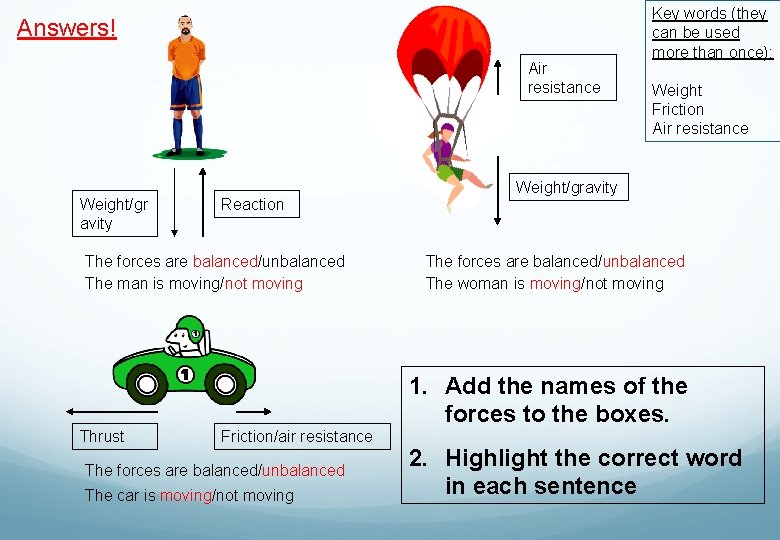

Answers! Air resistance Weight/gr avity Reaction The forces are balanced/unbalanced The man is moving/not moving Key words (they can be used more than once): Weight Friction Air resistance Weight/gravity The forces are balanced/unbalanced The woman is moving/not moving 1. Add the names of the forces to the boxes. Thrust Friction/air resistance The forces are balanced/unbalanced The car is moving/not moving 2. Highlight the correct word in each sentence

Types of Forces - Answers 1=G 2=C 3=B 4=F 5=D 6=E 1. A 2. B 3. C 4. D 5. E 6. F 7. G 7=A

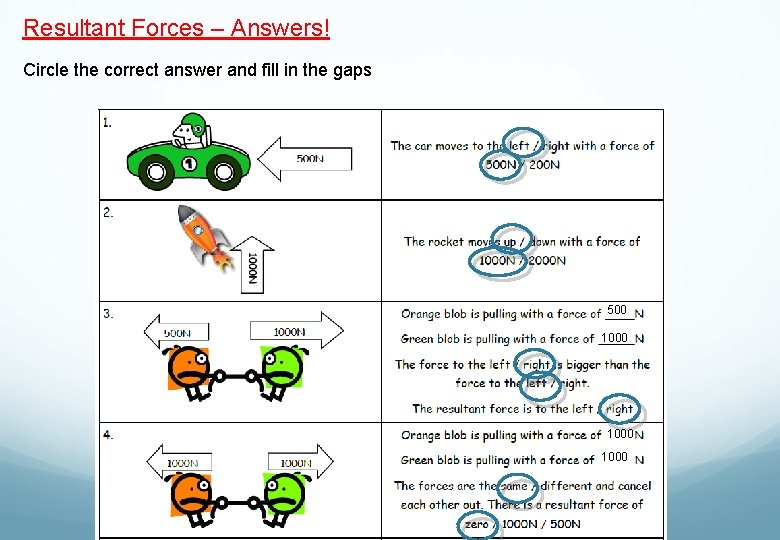

Resultant Forces – Answers! Circle the correct answer and fill in the gaps 500 1000

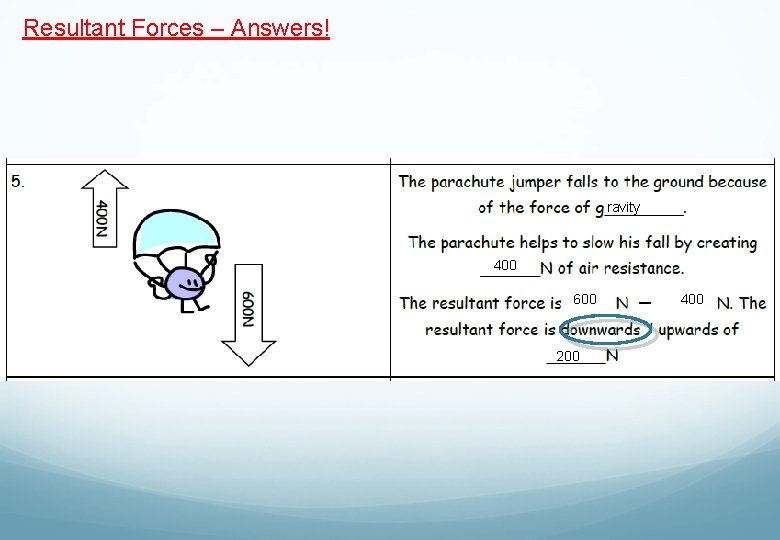

Resultant Forces – Answers! ravity 400 600 200 400

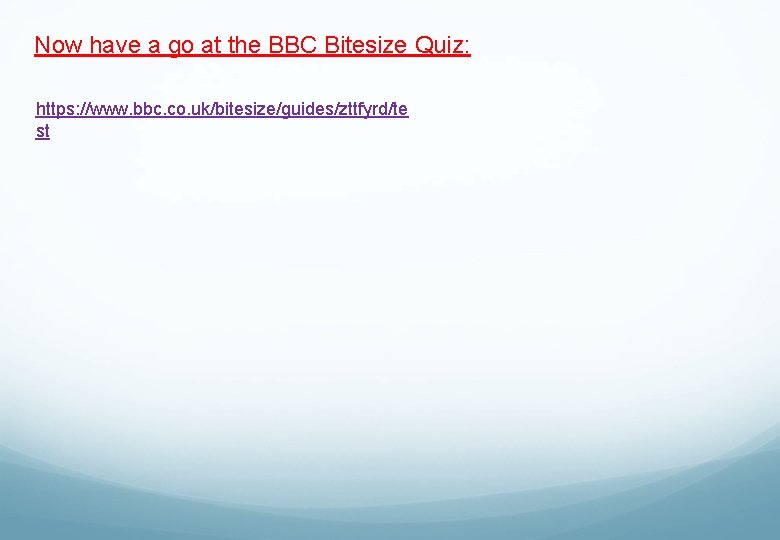

Now have a go at the BBC Bitesize Quiz: https: //www. bbc. co. uk/bitesize/guides/zttfyrd/te st
