Forces and Inertia Force Interaction between two objects

Forces and Inertia Force: Interaction between two objects • Mutual • “push” or “pull” (along the line) • Contact or over distance • Measure it in Newton, lb, dyne © 2015 Pearson Education, Inc.

Forces and Inertia Force: Interaction between two objects • Mutual • “push” or “pull” (along the line) • Contact or over distance • Measure it in Newton, lb, dyne Inertia • is a property of matter to resist changes in motion. • depends on the amount of matter in an object (its mass). © 2015 Pearson Education, Inc.

Newton's First Law of Motion To change the motion of an object (its speed and direction), you need a force © 2015 Pearson Education, Inc.

Newton's First Law of Motion To change the motion of an object (its speed and direction), you need a force Question: Why does stamping your feet clean the snow of them? © 2015 Pearson Education, Inc.

Newton's First Law of Motion To change the motion of an object (its speed and direction), you need a force Question: Why does stamping your feet clean the snow of them? Question: Why do lose objects on the dashboard slide to the right when the car turns suddenly to the left? © 2015 Pearson Education, Inc.

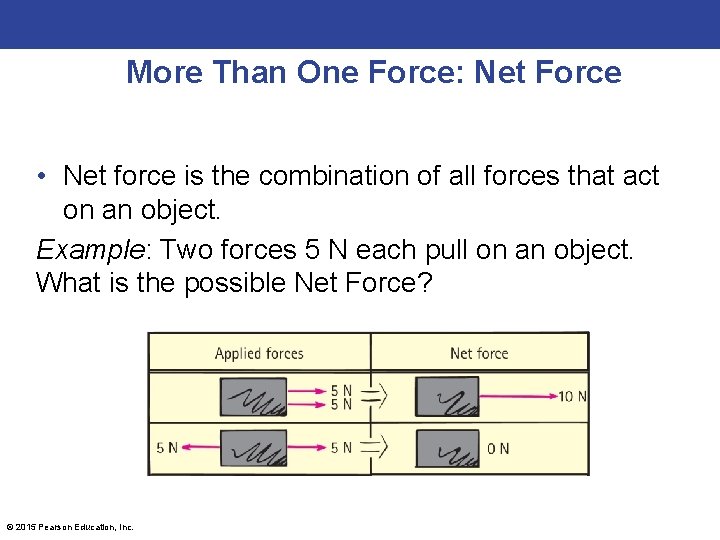

More Than One Force: Net Force • Net force is the combination of all forces that act on an object. Example: Two forces 5 N each pull on an object. What is the possible Net Force? © 2015 Pearson Education, Inc.

More Than One Force: Net Force • Net force is the combination of all forces that act on an object. Example: Two forces 5 N each pull on an object. What is the possible Net Force? © 2015 Pearson Education, Inc.

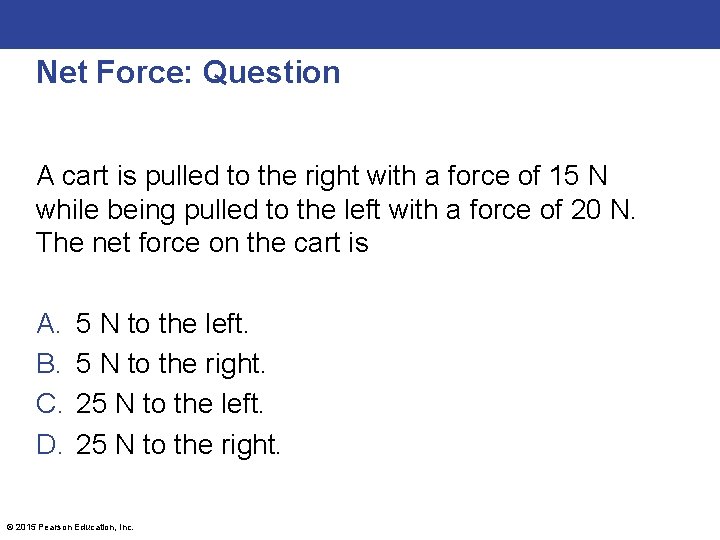

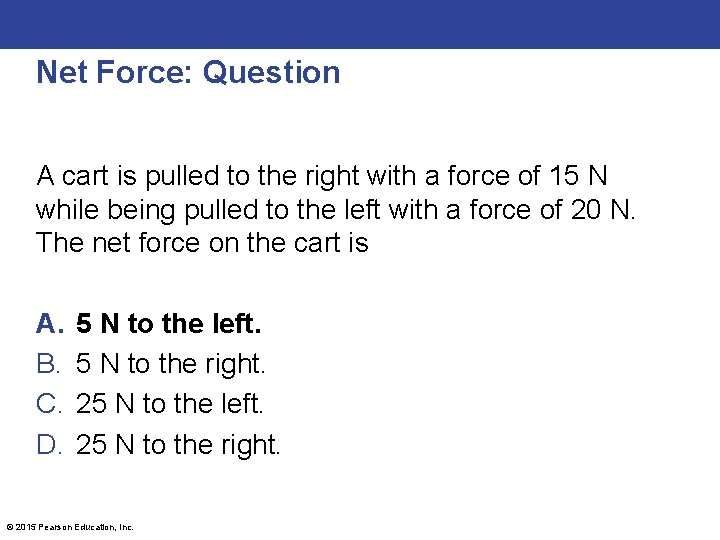

Net Force: Question A cart is pulled to the right with a force of 15 N while being pulled to the left with a force of 20 N. The net force on the cart is A. B. C. D. 5 N to the left. 5 N to the right. 25 N to the left. 25 N to the right. © 2015 Pearson Education, Inc.

Net Force: Question A cart is pulled to the right with a force of 15 N while being pulled to the left with a force of 20 N. The net force on the cart is A. B. C. D. 5 N to the left. 5 N to the right. 25 N to the left. 25 N to the right. © 2015 Pearson Education, Inc.

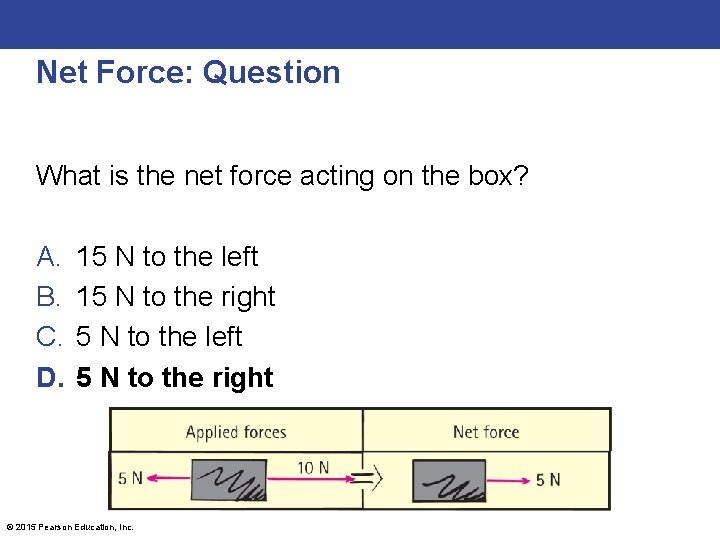

Net Force: Question What is the net force acting on the box? A. B. C. D. 15 N to the left 15 N to the right 5 N to the left 5 N to the right ? © 2015 Pearson Education, Inc.

Net Force: Question What is the net force acting on the box? A. B. C. D. 15 N to the left 15 N to the right 5 N to the left 5 N to the right © 2015 Pearson Education, Inc.

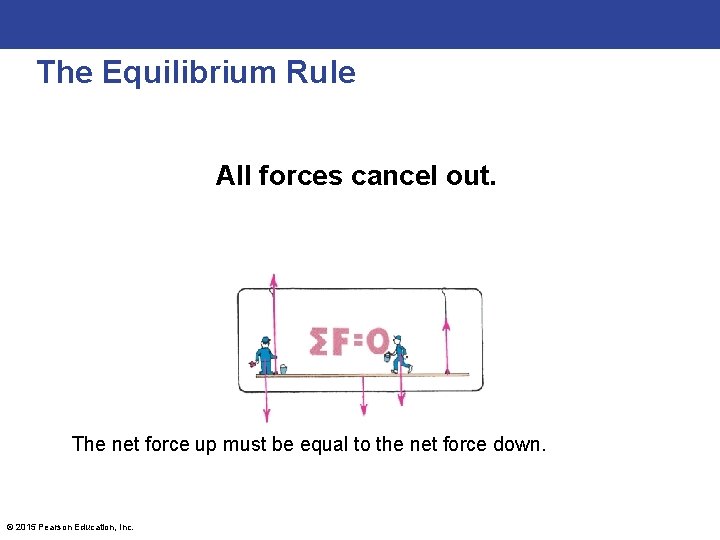

The Equilibrium Rule All forces cancel out. The net force up must be equal to the net force down. © 2015 Pearson Education, Inc.

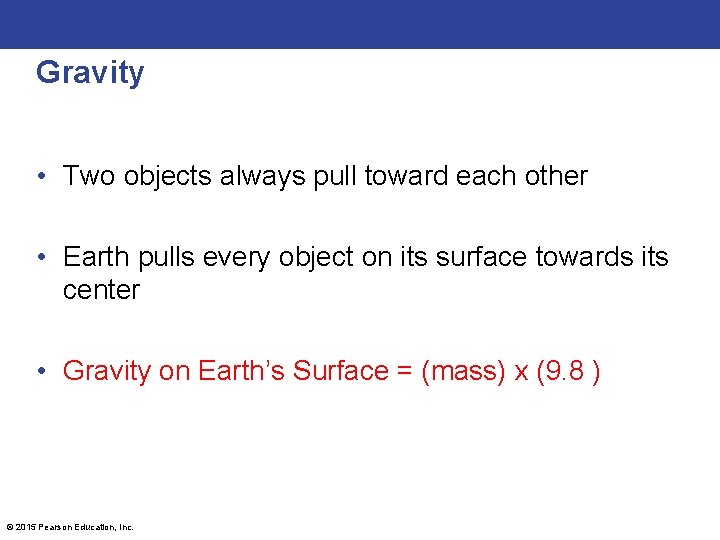

Gravity • Two objects always pull toward each other • Earth pulls every object on its surface towards its center • Gravity on Earth’s Surface = (mass) x (9. 8 ) © 2015 Pearson Education, Inc.

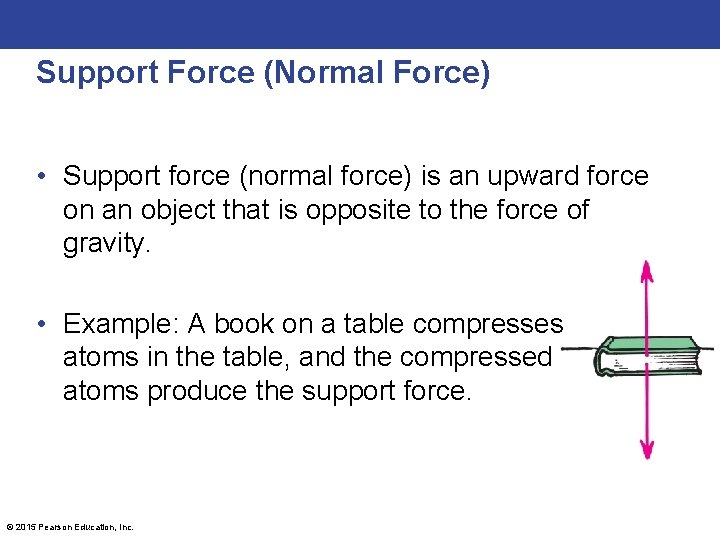

Support Force (Normal Force) • Support force (normal force) is an upward force on an object that is opposite to the force of gravity. • Example: A book on a table compresses atoms in the table, and the compressed atoms produce the support force. © 2015 Pearson Education, Inc.

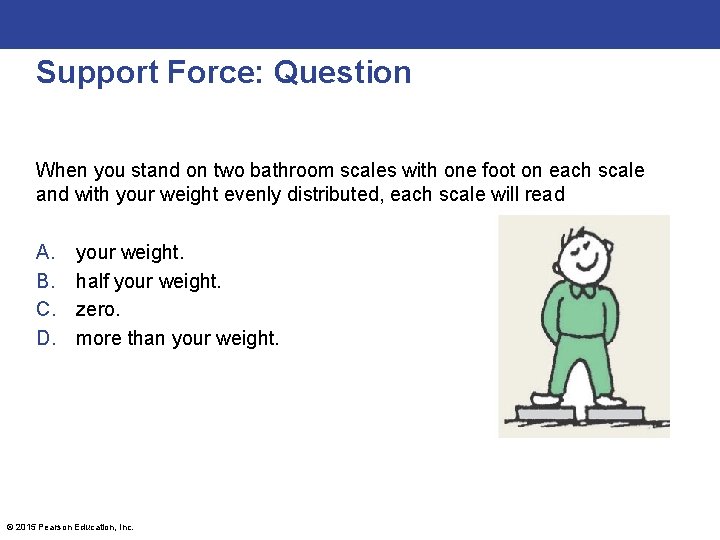

Support Force: Question When you stand on two bathroom scales with one foot on each scale and with your weight evenly distributed, each scale will read A. B. C. D. your weight. half your weight. zero. more than your weight. © 2015 Pearson Education, Inc.

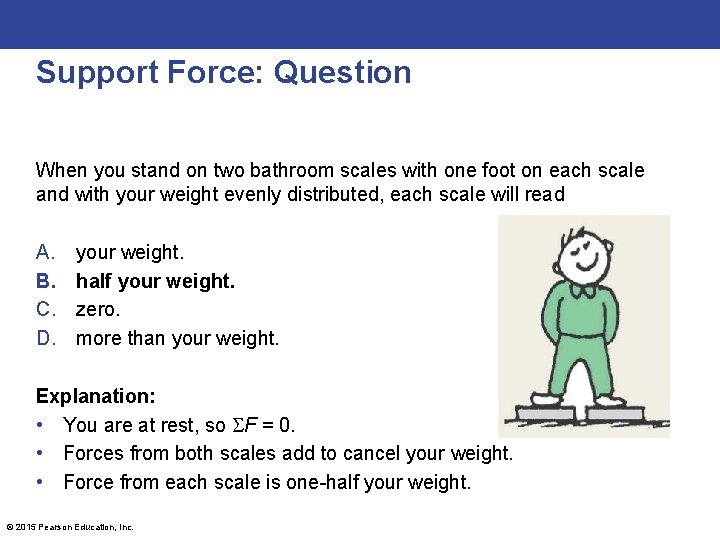

Support Force: Question When you stand on two bathroom scales with one foot on each scale and with your weight evenly distributed, each scale will read A. B. C. D. your weight. half your weight. zero. more than your weight. Explanation: • You are at rest, so F = 0. • Forces from both scales add to cancel your weight. • Force from each scale is one-half your weight. © 2015 Pearson Education, Inc.

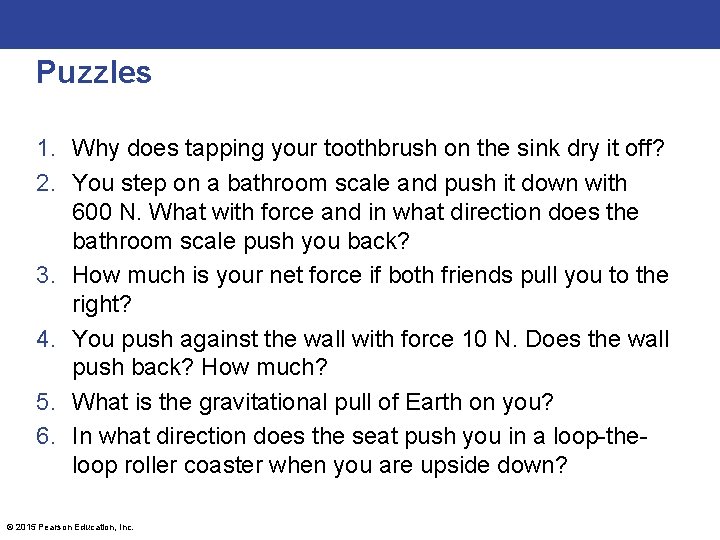

Puzzles 1. Why does tapping your toothbrush on the sink dry it off? 2. You step on a bathroom scale and push it down with 600 N. What with force and in what direction does the bathroom scale push you back? 3. How much is your net force if both friends pull you to the right? 4. You push against the wall with force 10 N. Does the wall push back? How much? 5. What is the gravitational pull of Earth on you? 6. In what direction does the seat push you in a loop-theloop roller coaster when you are upside down? © 2015 Pearson Education, Inc.
