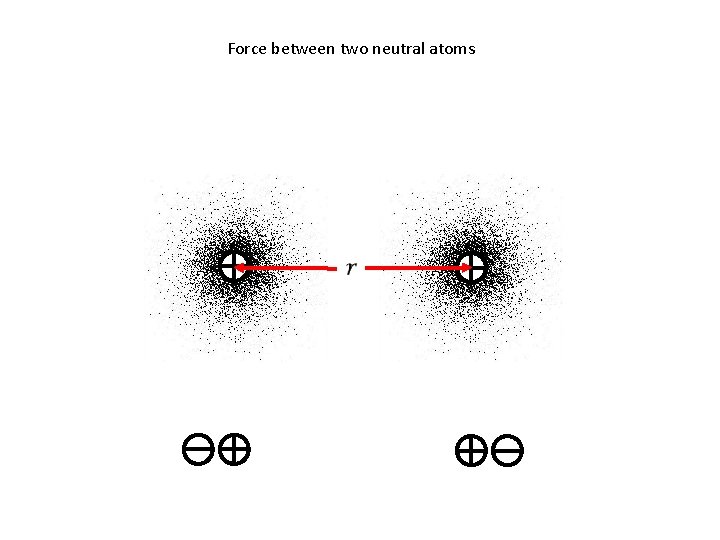

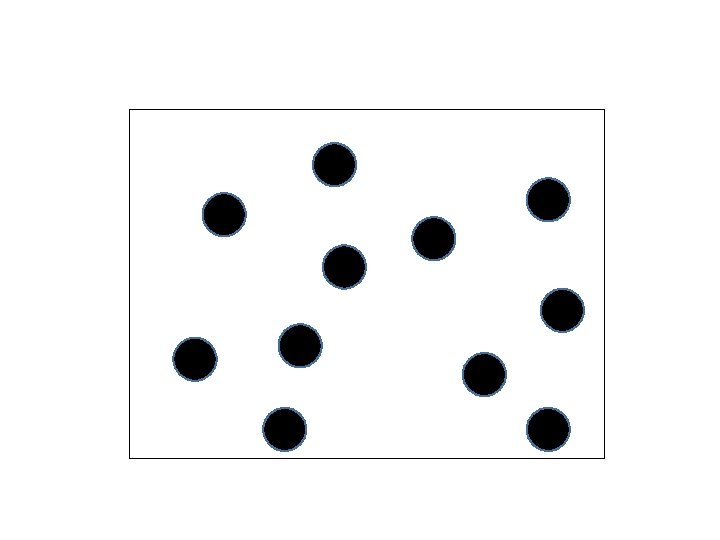

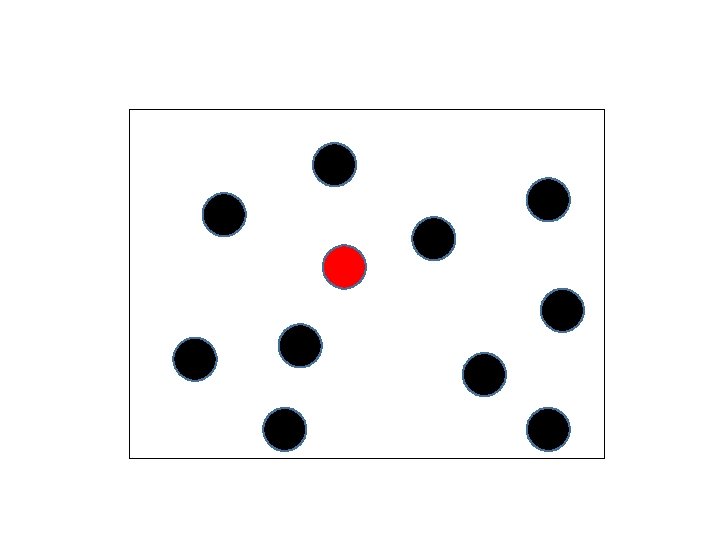

Force between two neutral atoms Force between two
Force between two neutral atoms
Force between two neutral atoms
Force between two neutral atoms

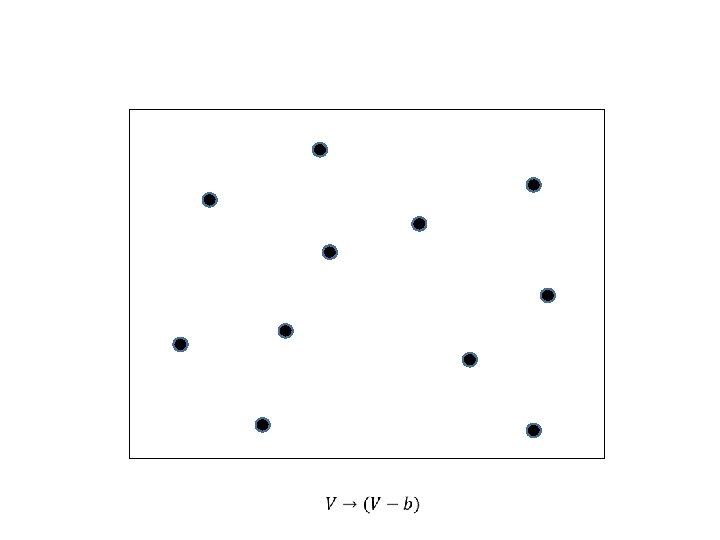

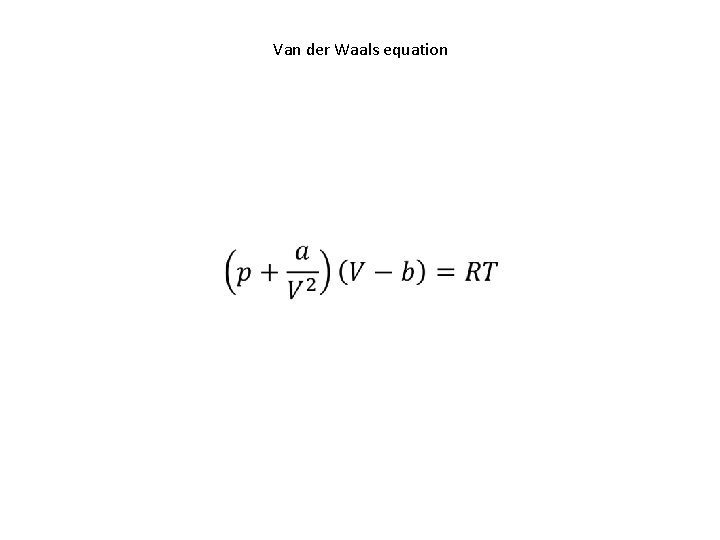

Van der Waals equation
Sir James Dewar FRS (1842 – 1923) Heike Kamerlingh Onnes (1853 – 1926) Johannes Diderik van der Waals (1837 – 1923)

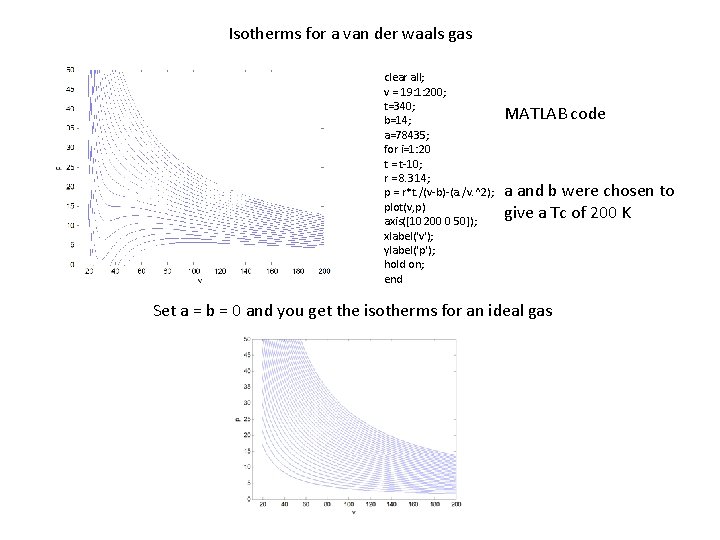

Isotherms for a van der waals gas clear all; v = 19: 1: 200; t=340; b=14; a=78435; for i=1: 20 t = t-10; r = 8. 314; p = r*t. /(v-b)-(a. /v. ^2); plot(v, p) axis([10 200 0 50]); xlabel('v'); ylabel('p'); hold on; end MATLAB code a and b were chosen to give a Tc of 200 K Set a = b = 0 and you get the isotherms for an ideal gas
At a particular temperature a vdw gas develops a point of inflexion. The gas can be liquefied below this temperature. To find the point of inflexion set: and

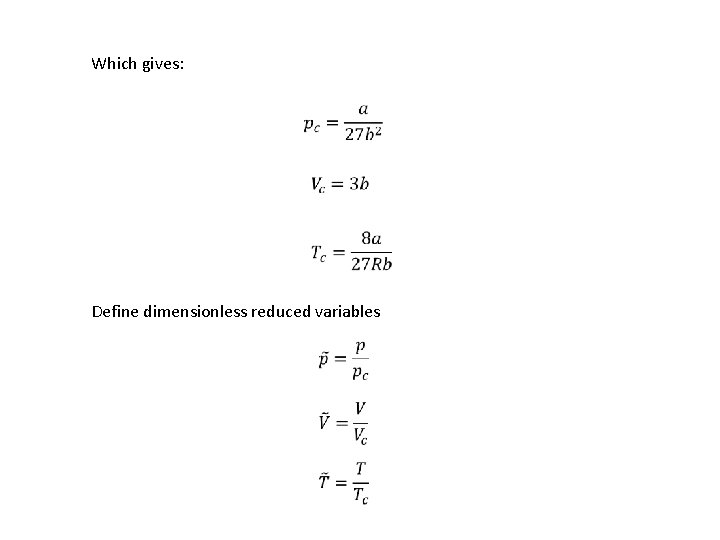

Which gives: Define dimensionless reduced variables

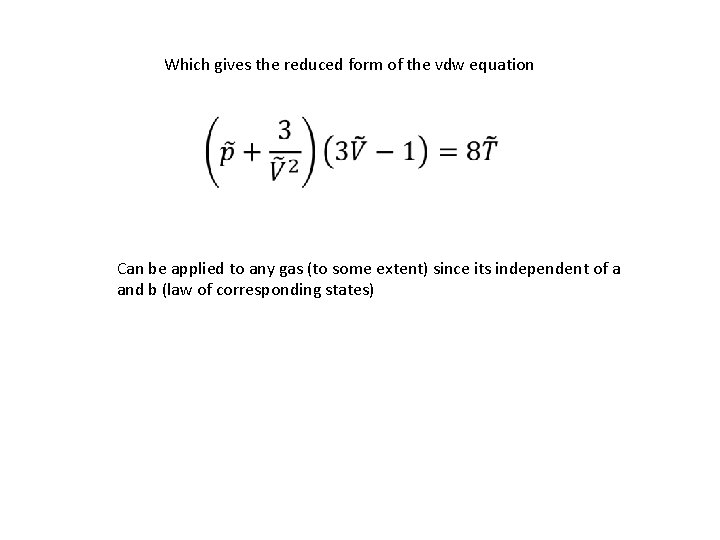

Which gives the reduced form of the vdw equation Can be applied to any gas (to some extent) since its independent of a and b (law of corresponding states)
Isotherms for the reduced form of the van der waals equation of state MATLAB code clear all; vr = 0. 5: 0. 01: 10; tr=2; for i=1: 15 tr = tr-0. 1; pr = (8*tr. /(vr. *3 -1))-(3. /vr. ^2); plot(vr, pr) axis([0. 1 5 0 5]); xlabel('v_r'); ylabel('p_r'); hold on; end

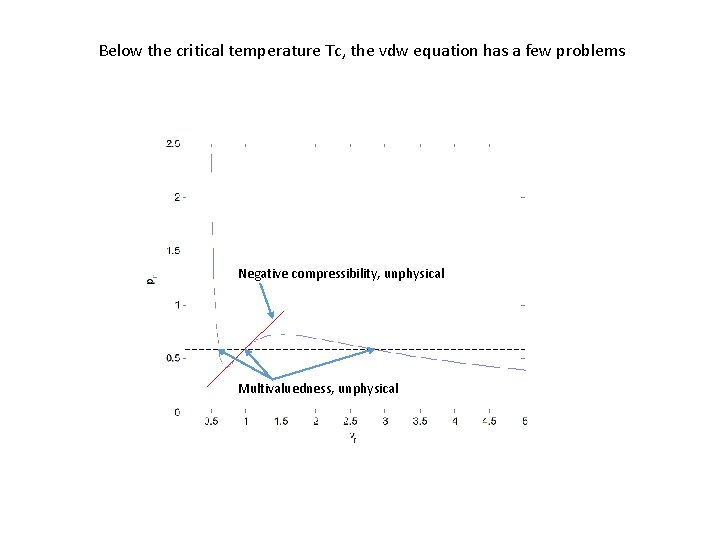

Below the critical temperature Tc, the vdw equation has a few problems Negative compressibility, unphysical Multivaluedness, unphysical

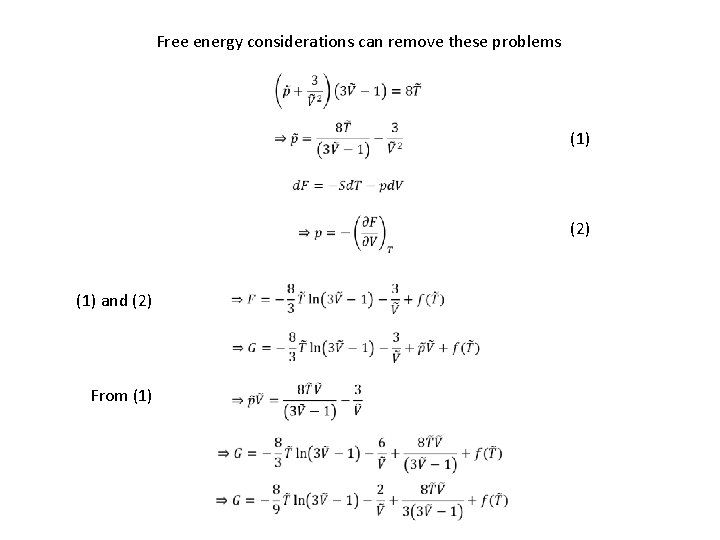

Free energy considerations can remove these problems (1) and (2) From (1) (2)

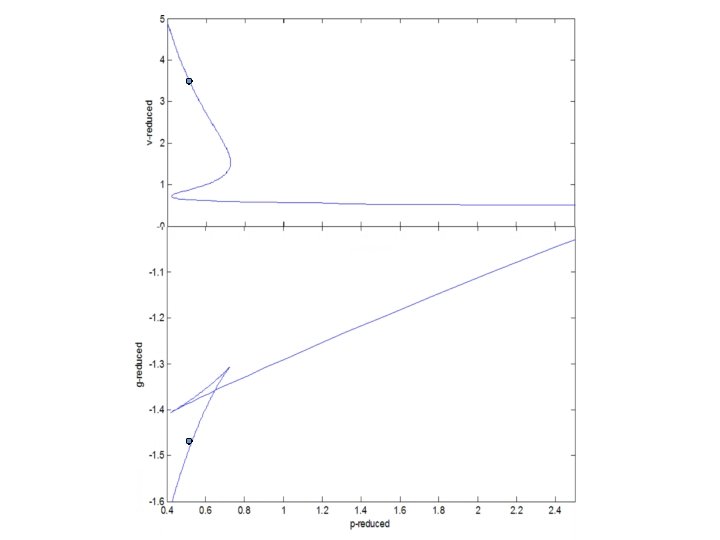

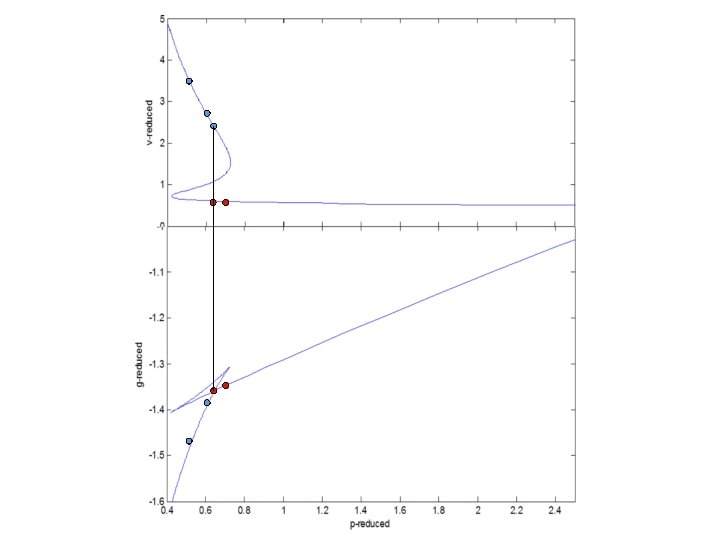

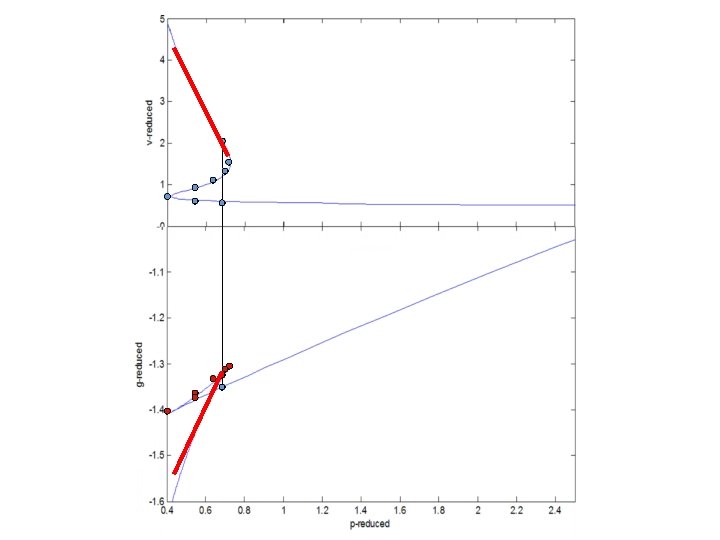

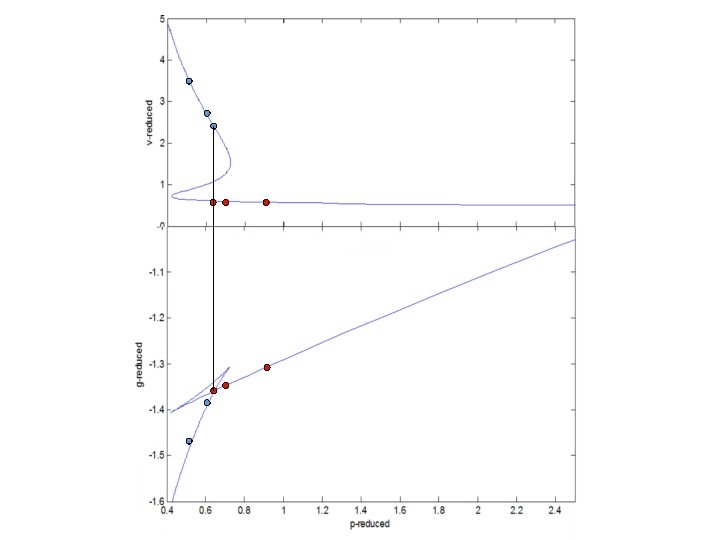

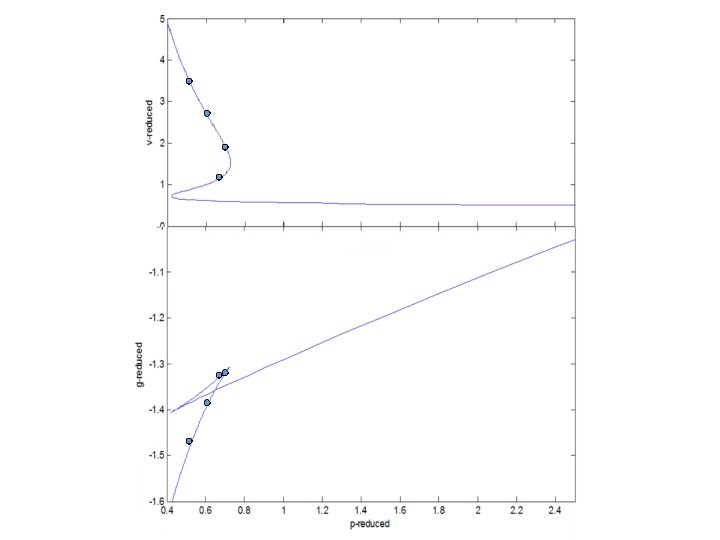

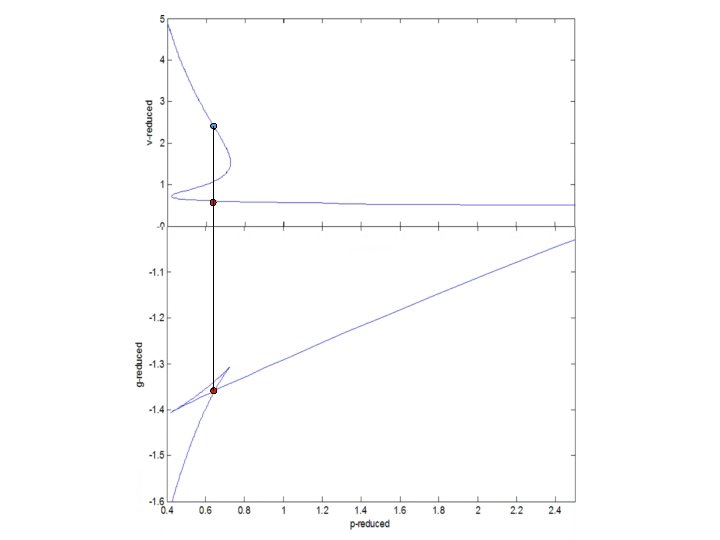

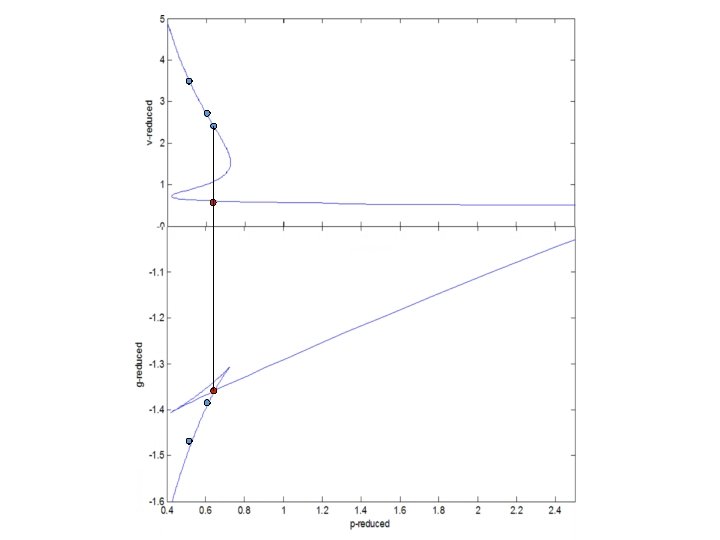

Plotting the gibbs function using matlab… The system will choose the minimum Gibb’s free energy
Maxwell construction B 2
clc; clear all; close all Vr = linspace(0. 5, 3, 100); figure(1); ylim([0 2]) xlim([0. 25 3]) xlabel('V_r') ylabel('P_r') Tr = 0. 9; Prfunc = @(Vr) 8*Tr. /(3*Vr - 1) - 3. /(Vr. ^2); Pr = Prfunc(Vr); plot(Vr, Pr) Clear command, clears the screen; clears all objects; closes all figures etc. Creates values of Vr from 0. 5 to 3 in steps of (3 -0. 5)/100 Opens a figure window Y axis limits X axis limits Labels x axis Labels y axis Defines the van der Waals equation as a function of Tr and Vr Calculate Pr using the vd. W equation Plots Pr vs. Vr

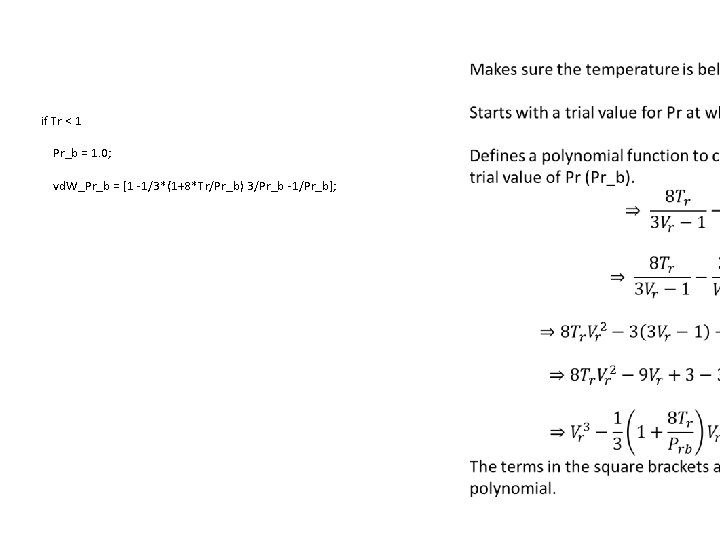

if Tr < 1 Pr_b = 1. 0; vd. W_Pr_b = [1 -1/3*(1+8*Tr/Pr_b) 3/Pr_b -1/Pr_b];

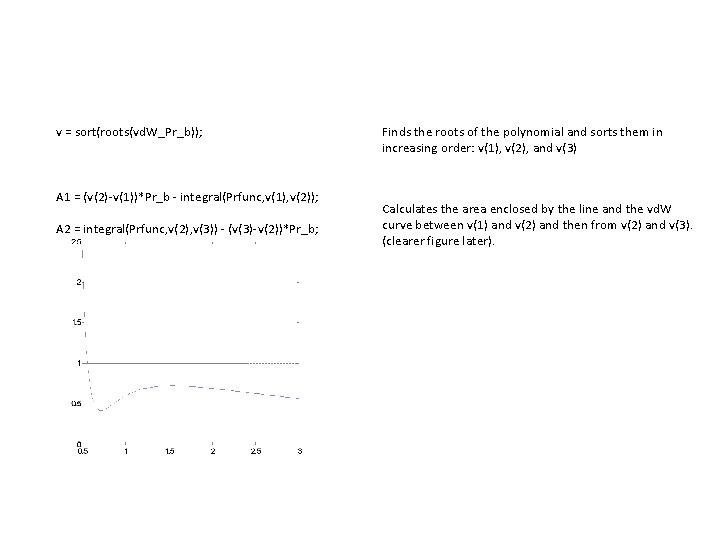

v = sort(roots(vd. W_Pr_b)); A 1 = (v(2)-v(1))*Pr_b - integral(Prfunc, v(1), v(2)); A 2 = integral(Prfunc, v(2), v(3)) - (v(3)-v(2))*Pr_b; Finds the roots of the polynomial and sorts them in increasing order: v(1), v(2), and v(3) Calculates the area enclosed by the line and the vd. W curve between v(1) and v(2) and then from v(2) and v(3). (clearer figure later).

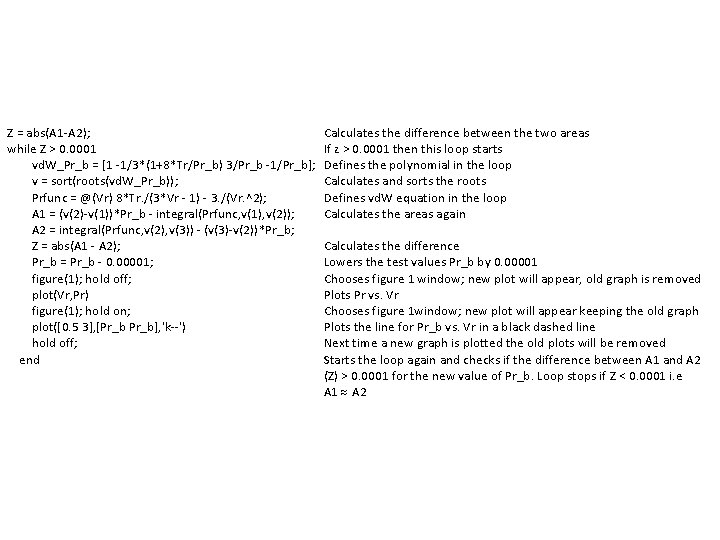

Z = abs(A 1 -A 2); while Z > 0. 0001 vd. W_Pr_b = [1 -1/3*(1+8*Tr/Pr_b) 3/Pr_b -1/Pr_b]; v = sort(roots(vd. W_Pr_b)); Prfunc = @(Vr) 8*Tr. /(3*Vr - 1) - 3. /(Vr. ^2); A 1 = (v(2)-v(1))*Pr_b - integral(Prfunc, v(1), v(2)); A 2 = integral(Prfunc, v(2), v(3)) - (v(3)-v(2))*Pr_b; Z = abs(A 1 - A 2); Pr_b = Pr_b - 0. 00001; figure(1); hold off; plot(Vr, Pr) figure(1); hold on; plot([0. 5 3], [Pr_b], 'k--') hold off; end Calculates the difference between the two areas If z > 0. 0001 then this loop starts Defines the polynomial in the loop Calculates and sorts the roots Defines vd. W equation in the loop Calculates the areas again Calculates the difference Lowers the test values Pr_b by 0. 00001 Chooses figure 1 window; new plot will appear, old graph is removed Plots Pr vs. Vr Chooses figure 1 window; new plot will appear keeping the old graph Plots the line for Pr_b vs. Vr in a black dashed line Next time a new graph is plotted the old plots will be removed Starts the loop again and checks if the difference between A 1 and A 2 (Z) > 0. 0001 for the new value of Pr_b. Loop stops if Z < 0. 0001 i. e A 1 A 2
v(1) v(3) v(2) Pr_b (v(2)-v(1))*Pr_b (v(3)-v(2))*Pr_b
v(1) v(2) v(3) Pr_b integral(Prfunc, v(1), v(2)) integral(Prfunc, v(2), v(3)) Calculates the area under the vd. W curve from v(1) to v(2) and from v(2) to v(3).

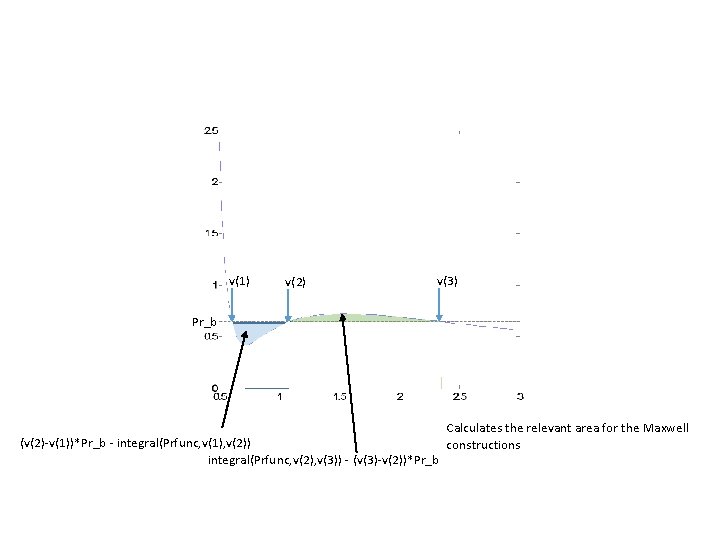

v(1) v(2) v(3) Pr_b Calculates the relevant area for the Maxwell (v(2)-v(1))*Pr_b - integral(Prfunc, v(1), v(2)) constructions integral(Prfunc, v(2), v(3)) - (v(3)-v(2))*Pr_b
end A 1 A 2 Pr_b Ends the if loop Prints A 1 and A 2 Prints the value of pressure Pr_b which satisfies Maxwell’s condition.

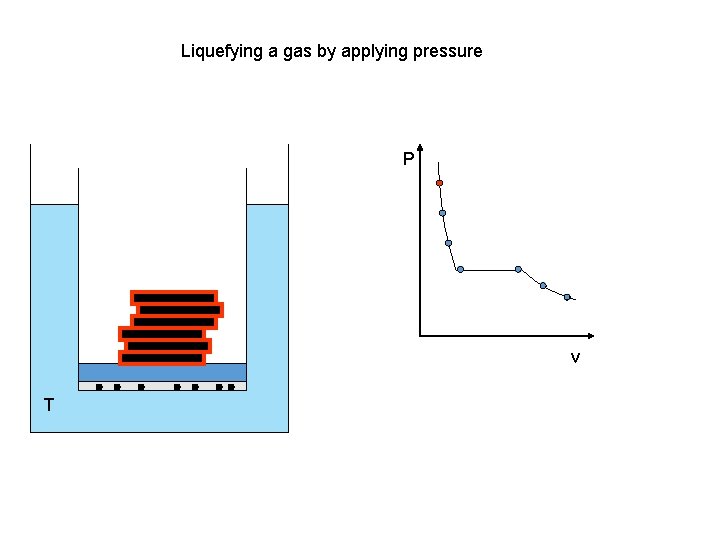

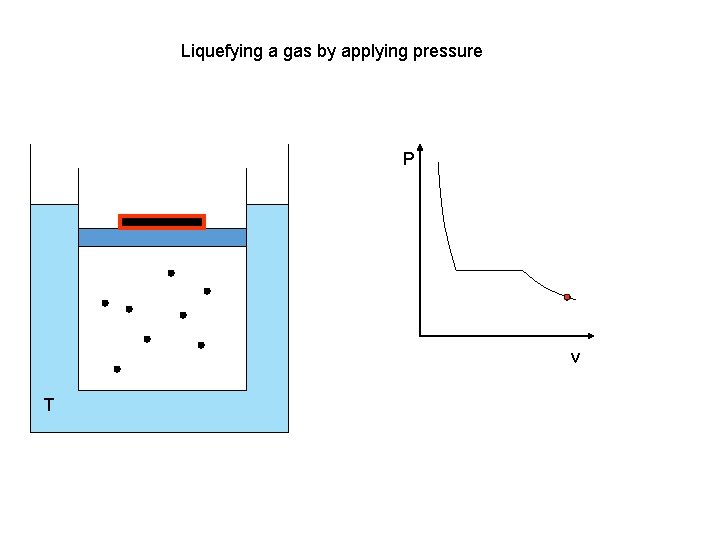

Liquefying a gas by applying pressure P v T
Liquefying a gas by applying pressure P v T
Liquefying a gas by applying pressure P v T
Liquefying a gas by applying pressure P v T
Liquefying a gas by applying pressure P v T
Liquefying a gas by applying pressure P v T
Liquefying a gas by applying pressure P v T

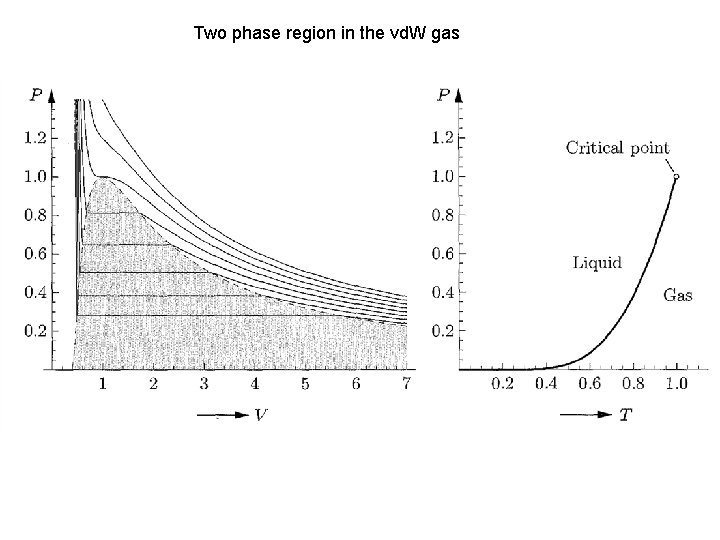

Two phase region in the vd. W gas

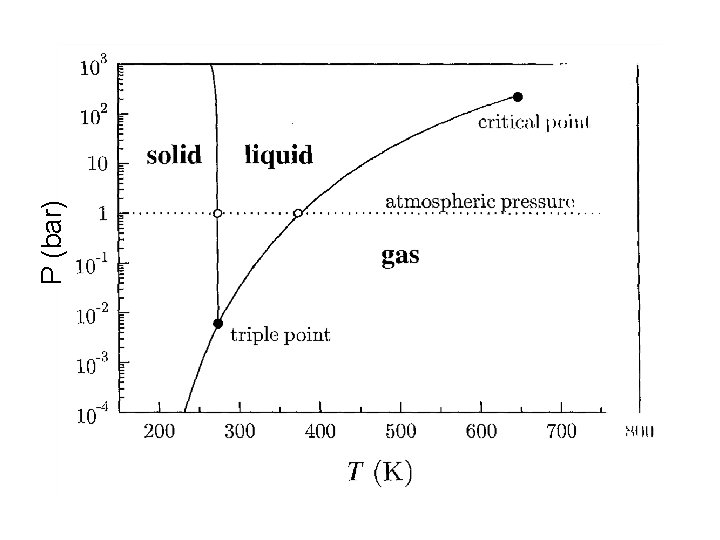

P (bar)
http: //www. youtube. com/watch? v=GEr 3 Nx s. PTOA
