Force and Motion Gravity and Motion Which would
- Slides: 38
Force and Motion
Gravity and Motion • Which would hit the ground first, a soccer ball or a bowling ball?
400 B. C. in Greece - Aristotle “the rate at which an object falls depends on the object’s mass” Philosopher so he never tested his idea
1500 s in Italy – Galileo Galilei “mass of an object does not affect the time the object takes to fall to the ground”
Gravity and Motion • Which would hit the ground first, a soccer ball or a bowling ball?

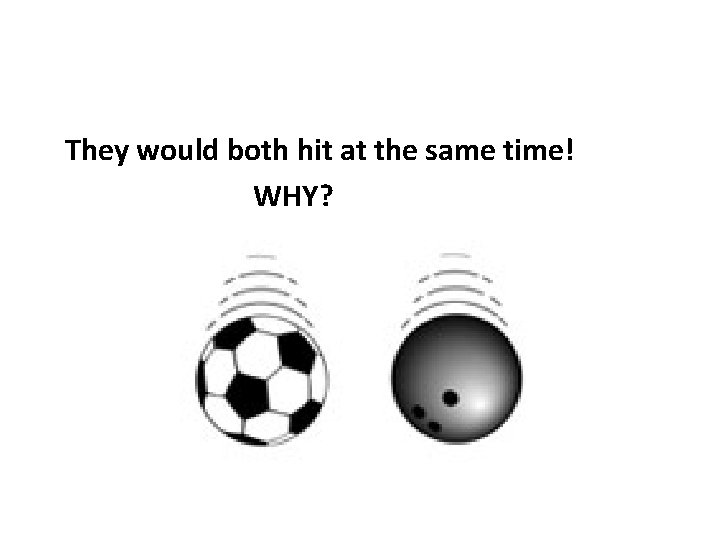

They would both hit at the same time! WHY?

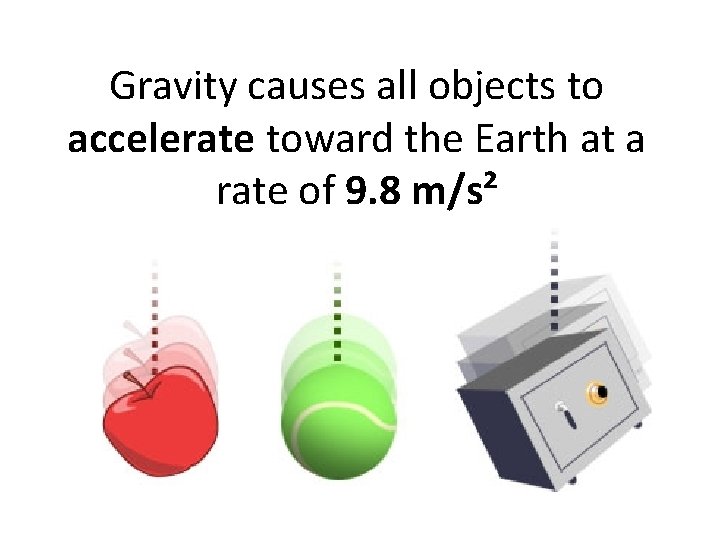

Gravity causes all objects to accelerate toward the Earth at a rate of 9. 8 m/s²
You can calculate the change in velocity of a falling object… Equation: Δv = g x t
Δv = g x t • Δv = change in velocity • g = acceleration due to gravity (9. 8 m/s²) • t = time
Practice - Δv = g x t • A penny is dropped from the top of a tall stairwell. What is the penny’s velocity after it has fallen 2 seconds?
Practice - Δv = g x t • The same penny hits the ground in 4. 5 s. What is the penny’s velocity as it hits the ground?
Practice - Δv = g x t • A marble is dropped from a tall building. The marble hits the ground with a velocity of 98 m/s downward. How long was the marble in the air?
Practice - Δv = g x t • An acorn falls from an oak tree. It hits the ground with a velocity of 14. 7 m/s downward. How long did it take the acorn to land?
If different masses can fall at the same time, same masses definitely should!
Air Resistance – force that opposes the motion of objects through air Depends on: Size, Shape, and Speed of the object

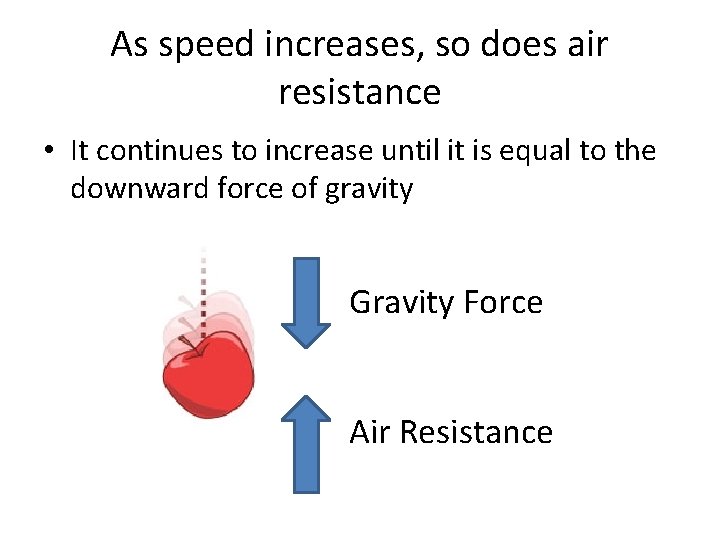

As speed increases, so does air resistance • It continues to increase until it is equal to the downward force of gravity Gravity Force Air Resistance
Terminal velocity • when the object stops accelerating because air resistance equals gravity Gravity Force Air Resistance
Terminal velocity can be a good thing • Normal terminal velocity is 5 – 40 m/s • Without air resistance, they could reach velocities near 350 m/s
Penny Dropped from Empire State Building Reach Speeds to Kill? • http: //www. youtube. com/watch? v=PHxv. MLo KRWg
Free Fall
• Free fall – if only gravity and no other forces are acting on it; no place with air So where can free fall occur?
Freefall can occur: • In a vacuum • In space

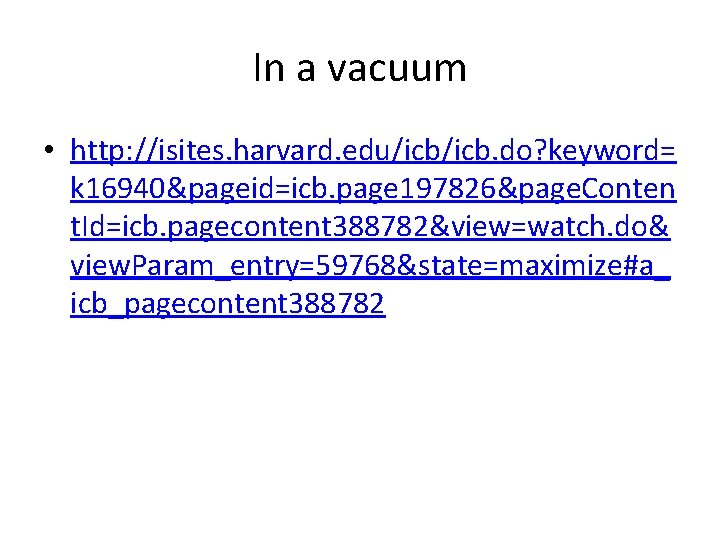

In a vacuum • http: //isites. harvard. edu/icb. do? keyword= k 16940&pageid=icb. page 197826&page. Conten t. Id=icb. pagecontent 388782&view=watch. do& view. Param_entry=59768&state=maximize#a_ icb_pagecontent 388782
In Space • https: //www. youtube. com/watch? v=KDp 1 ti. U s. Zw 8
Why is the astronaut floating inside the space shuttle? weightless?

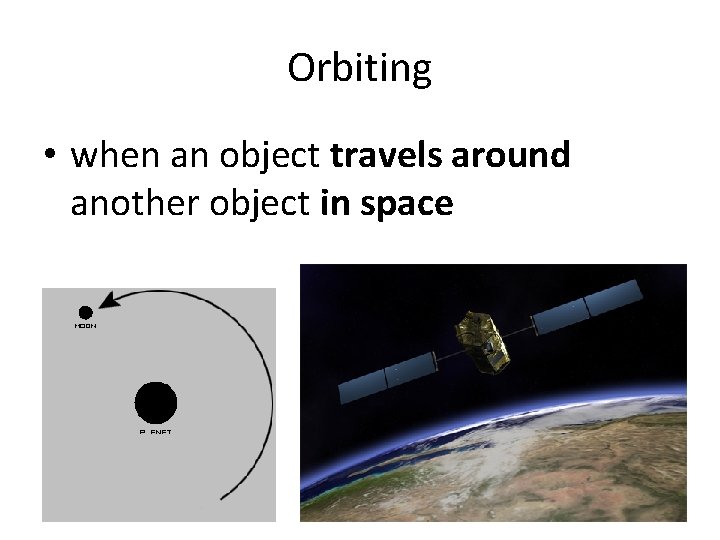

Orbiting • when an object travels around another object in space

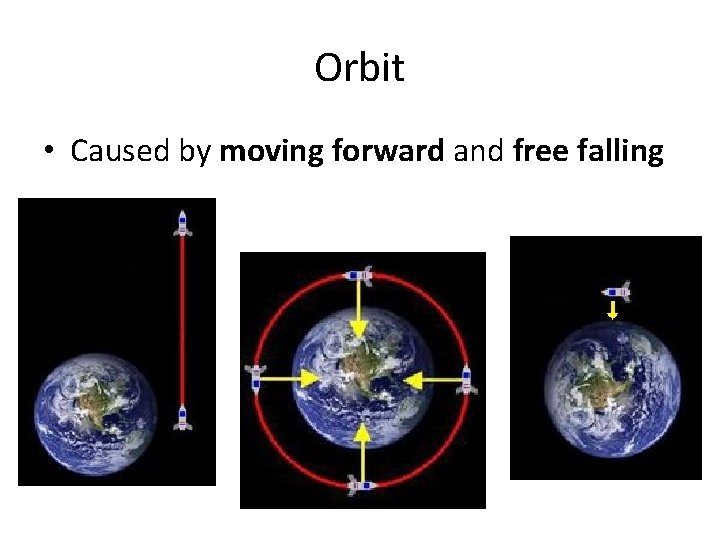

Orbit • Caused by moving forward and free falling
Projectile Motion – curved path an object follows when thrown near the surface of the earth Horizontal motion + Vertical motion Curved path
Projectile Motion
Projectile Motion
Projectile Motion
Projectile Motion
Projectile Motion

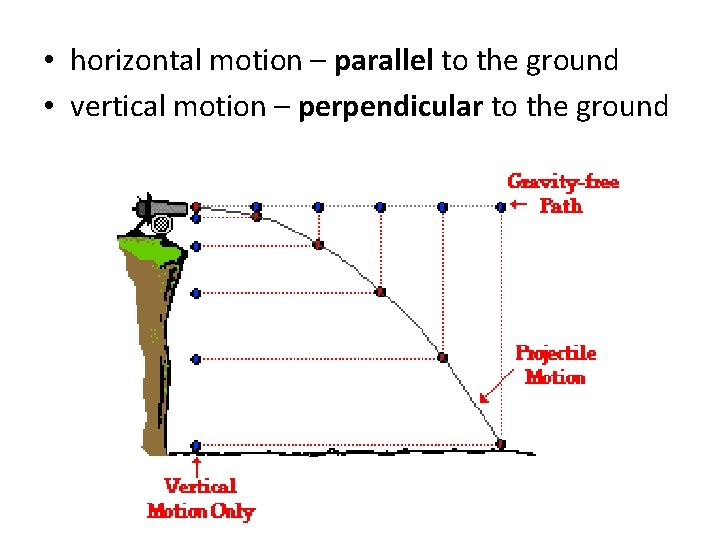

• horizontal motion – parallel to the ground • vertical motion – perpendicular to the ground
They are independent of each other! • gravity affects only the vertical motion
Why is this important to know?
Projectile Design!!! • You will be working in groups of 5 • Create a device that will project a marble into a container 1 meter away • You will design your device and bring any items needed to make it to class tomorrow. • You will want to test it out several times and make sure it is accurate – you each get 2 shots in front of the class!
Ideas?
