Food Ordering Kiosk Jasmine Raeford James Stump Campus

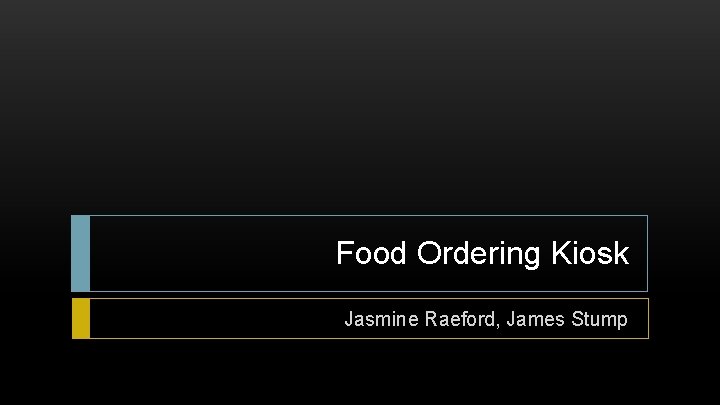

Food Ordering Kiosk Jasmine Raeford, James Stump

Campus Initiative

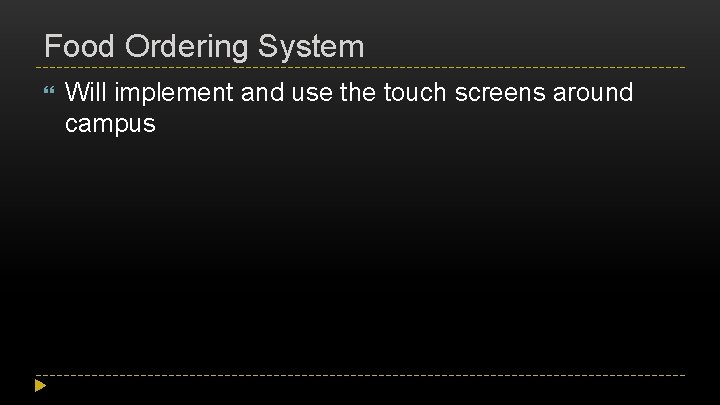

Food Ordering System Will implement and use the touch screens around campus

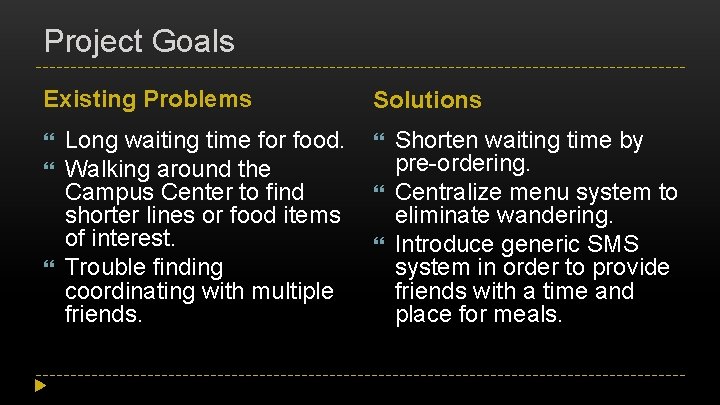

Project Goals Existing Problems Long waiting time for food. Walking around the Campus Center to find shorter lines or food items of interest. Trouble finding coordinating with multiple friends. Solutions Shorten waiting time by pre-ordering. Centralize menu system to eliminate wandering. Introduce generic SMS system in order to provide friends with a time and place for meals.

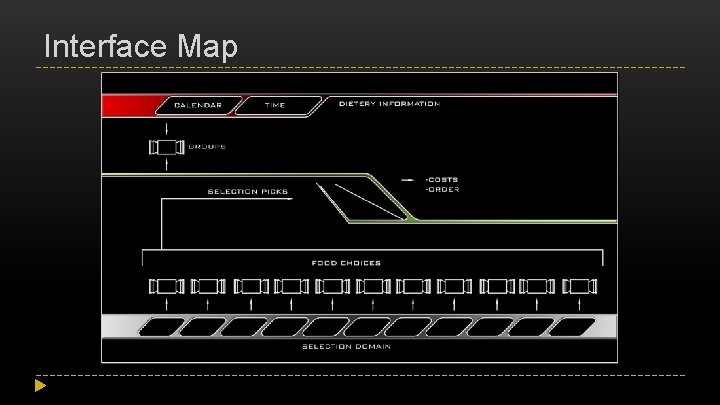

Interface Map

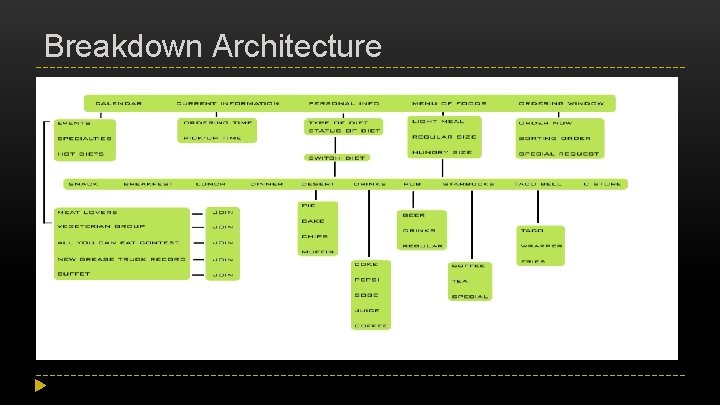

Breakdown Architecture

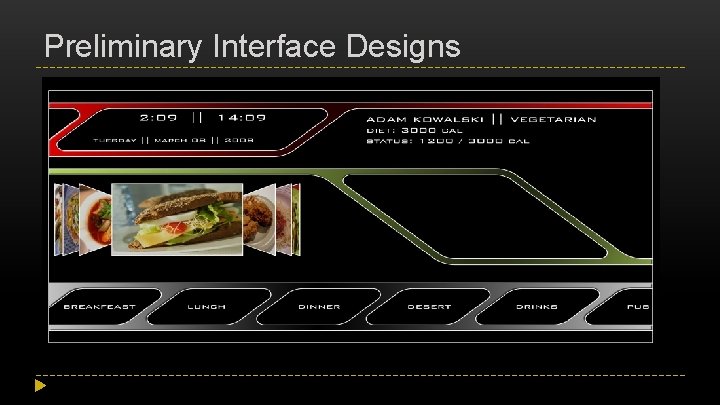

Preliminary Interface Designs

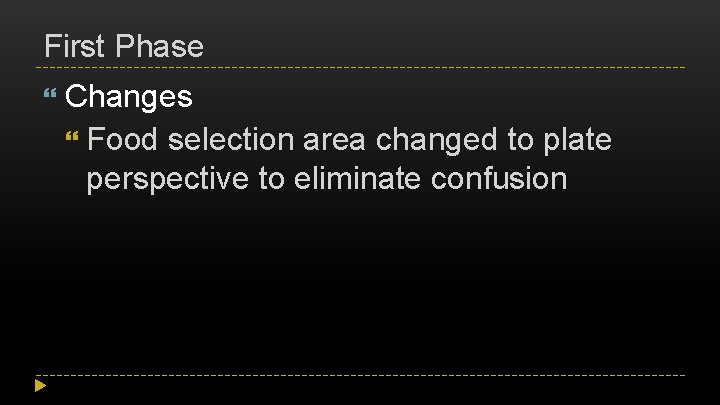

First Phase Changes Food selection area changed to plate perspective to eliminate confusion

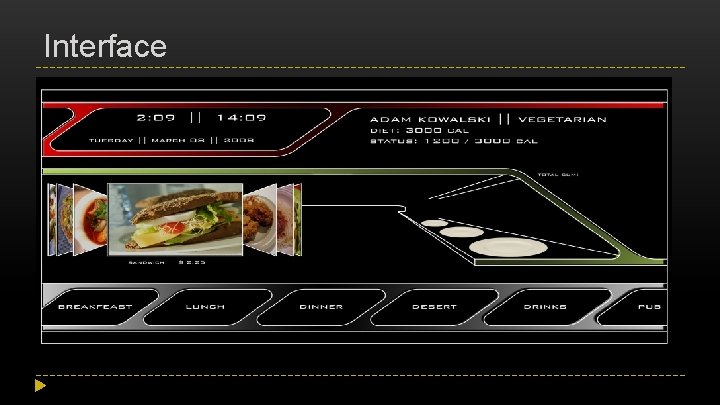

Interface

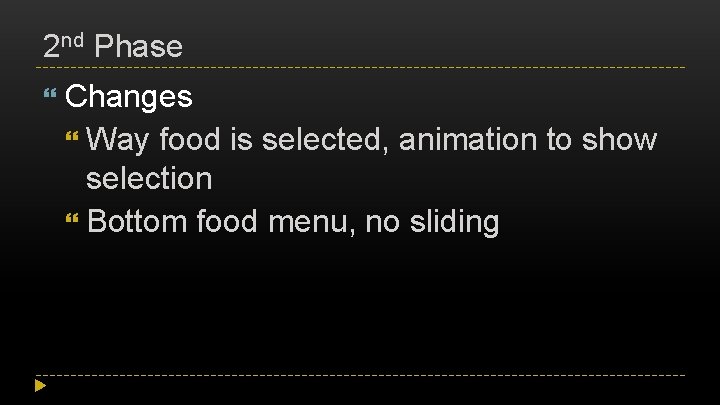

2 nd Phase Changes Way food is selected, animation to show selection Bottom food menu, no sliding

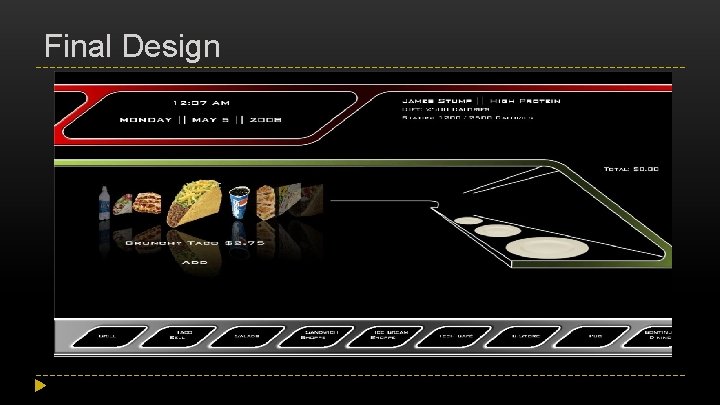

Final Design

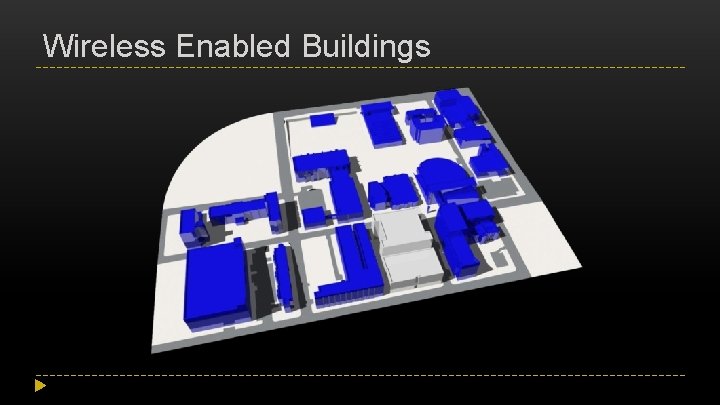

Wireless Enabled Buildings

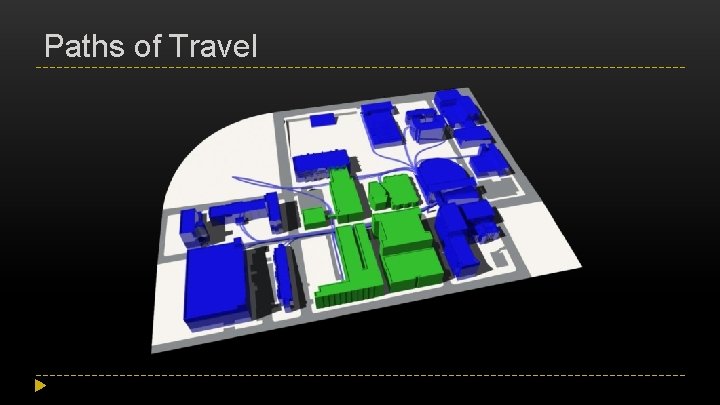

Paths of Travel

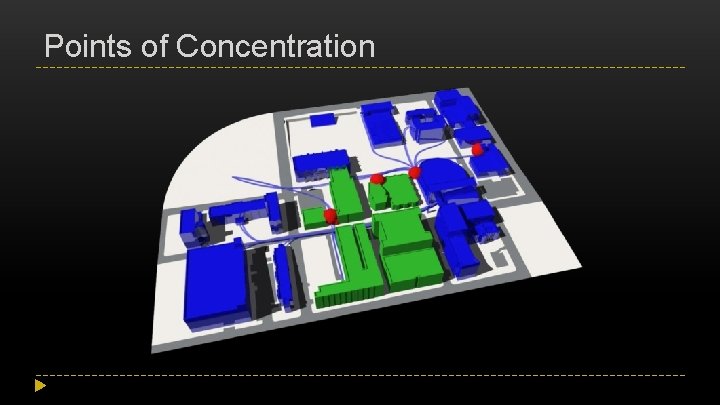

Points of Concentration

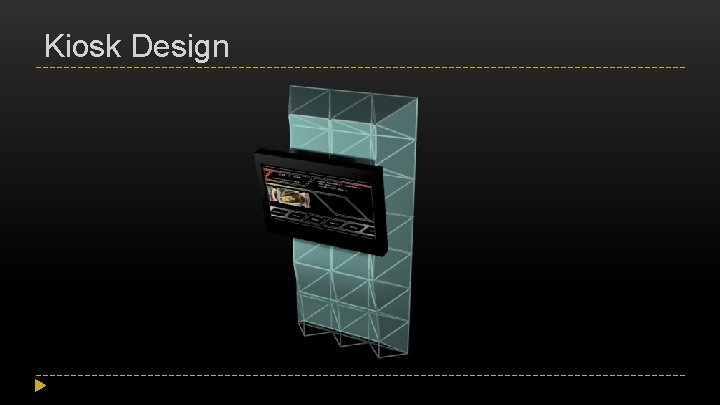

Kiosk Design

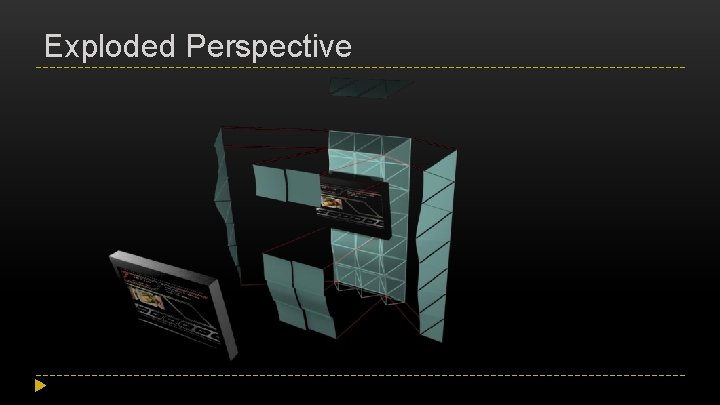

Exploded Perspective

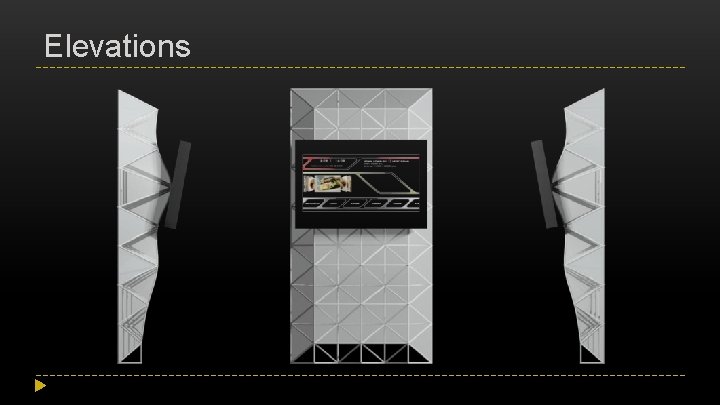

Elevations

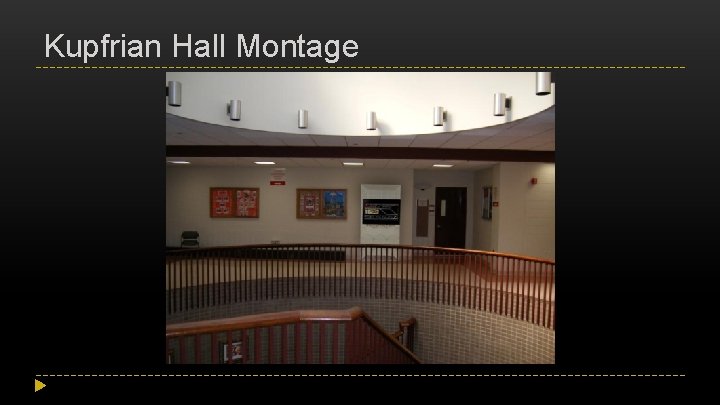

Kupfrian Hall Montage

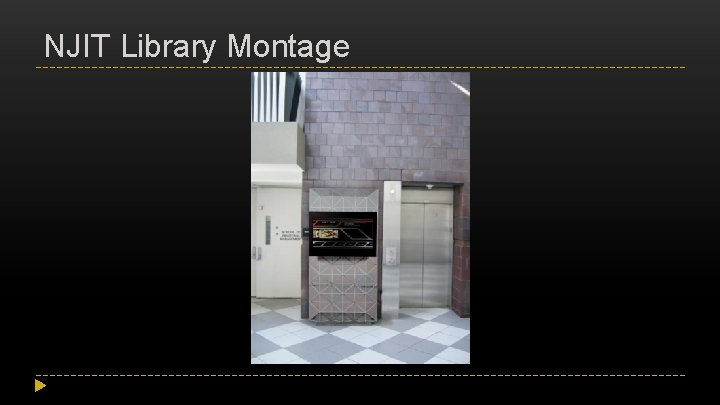

NJIT Library Montage

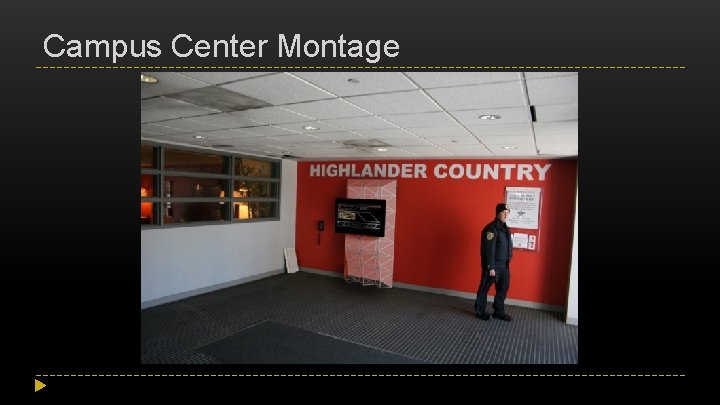

Campus Center Montage

Wi-Fi Connectivity The nutritional information and wait times will be sent through NJIT’s wireless network.

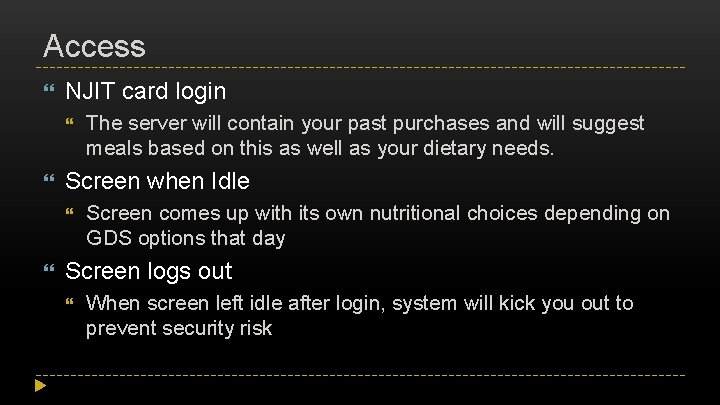

Access NJIT card login Screen when Idle The server will contain your past purchases and will suggest meals based on this as well as your dietary needs. Screen comes up with its own nutritional choices depending on GDS options that day Screen logs out When screen left idle after login, system will kick you out to prevent security risk

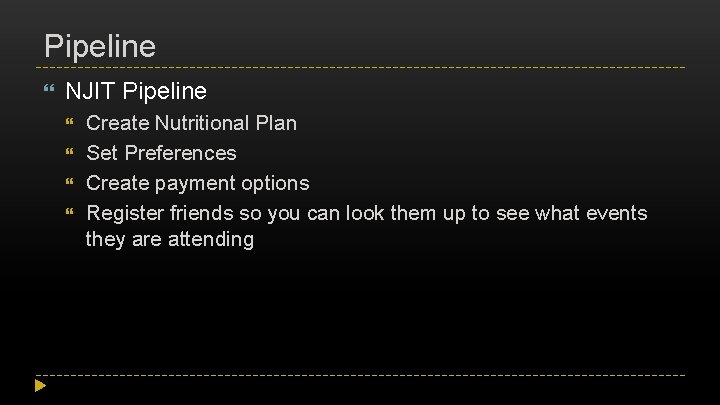

Pipeline NJIT Pipeline Create Nutritional Plan Set Preferences Create payment options Register friends so you can look them up to see what events they are attending

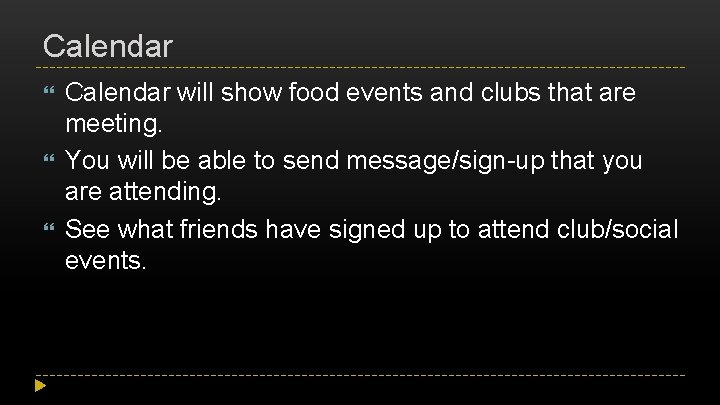

Calendar will show food events and clubs that are meeting. You will be able to send message/sign-up that you are attending. See what friends have signed up to attend club/social events.

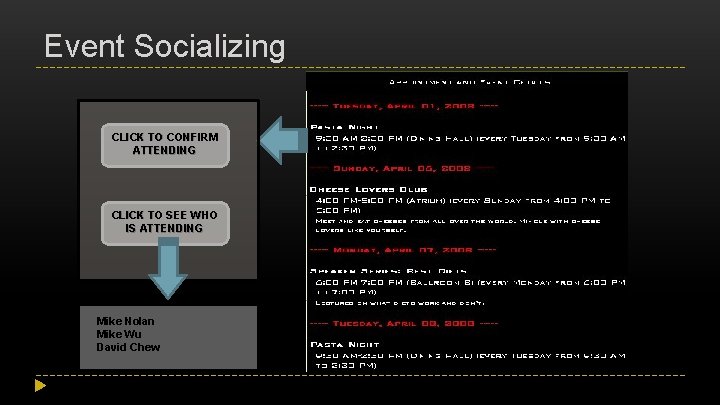

Event Socializing CLICK TO CONFIRM ATTENDING CLICK TO SEE WHO IS ATTENDING Mike Nolan Mike Wu David Chew

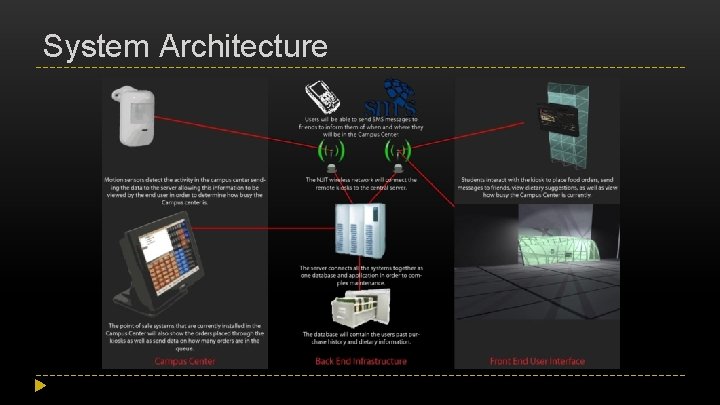

System Architecture

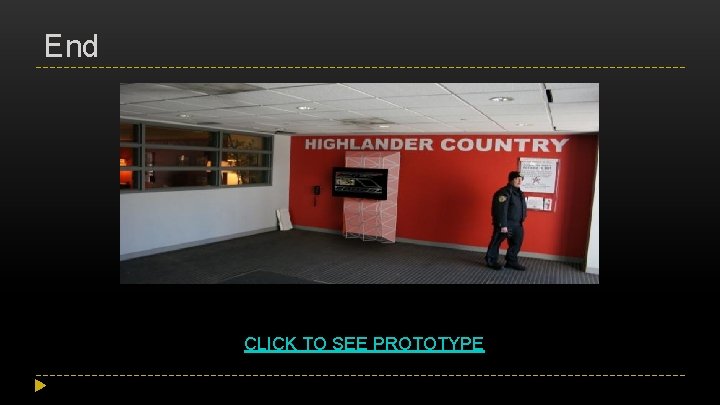

End CLICK TO SEE PROTOTYPE
