Folded Trie: Efficient Data Structure for All of Unicode Vladimir Weinstein vweinste@us. ibm. com Globalization Center of Competency, San Jose, CA 21 st International Unicode Conference Dublin, Ireland, May 2002 1

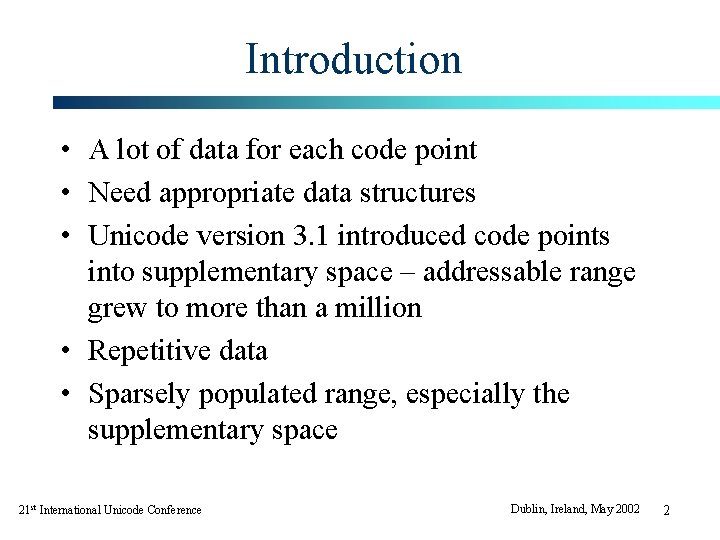

Introduction • A lot of data for each code point • Need appropriate data structures • Unicode version 3. 1 introduced code points into supplementary space – addressable range grew to more than a million • Repetitive data • Sparsely populated range, especially the supplementary space 21 st International Unicode Conference Dublin, Ireland, May 2002 2

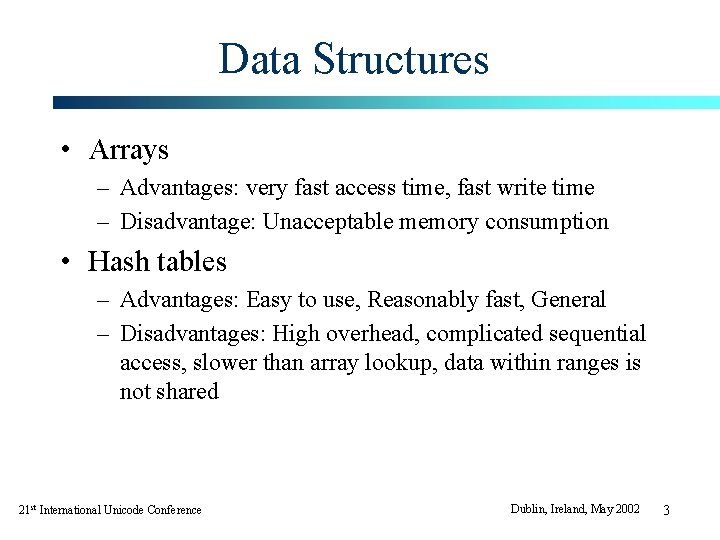

Data Structures • Arrays – Advantages: very fast access time, fast write time – Disadvantage: Unacceptable memory consumption • Hash tables – Advantages: Easy to use, Reasonably fast, General – Disadvantages: High overhead, complicated sequential access, slower than array lookup, data within ranges is not shared 21 st International Unicode Conference Dublin, Ireland, May 2002 3

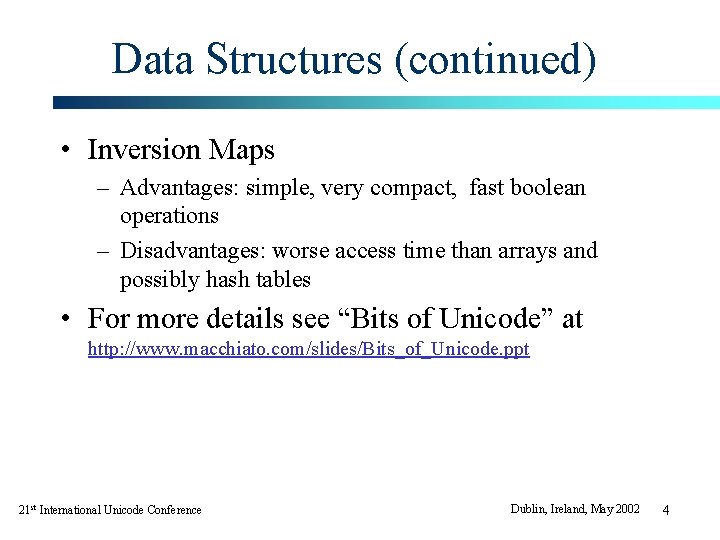

Data Structures (continued) • Inversion Maps – Advantages: simple, very compact, fast boolean operations – Disadvantages: worse access time than arrays and possibly hash tables • For more details see “Bits of Unicode” at http: //www. macchiato. com/slides/Bits_of_Unicode. ppt 21 st International Unicode Conference Dublin, Ireland, May 2002 4

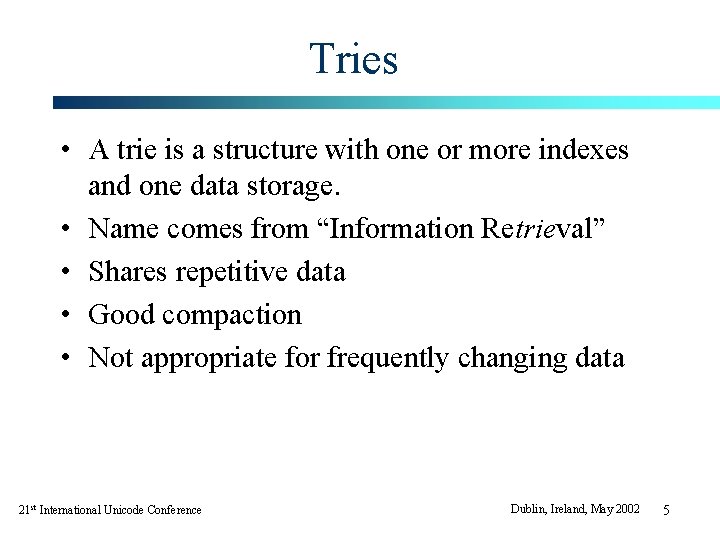

Tries • A trie is a structure with one or more indexes and one data storage. • Name comes from “Information Retrieval” • Shares repetitive data • Good compaction • Not appropriate for frequently changing data 21 st International Unicode Conference Dublin, Ireland, May 2002 5

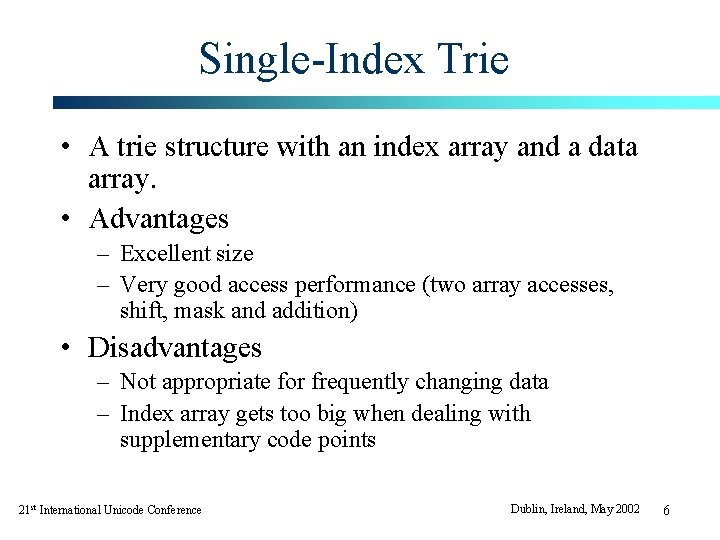

Single-Index Trie • A trie structure with an index array and a data array. • Advantages – Excellent size – Very good access performance (two array accesses, shift, mask and addition) • Disadvantages – Not appropriate for frequently changing data – Index array gets too big when dealing with supplementary code points 21 st International Unicode Conference Dublin, Ireland, May 2002 6

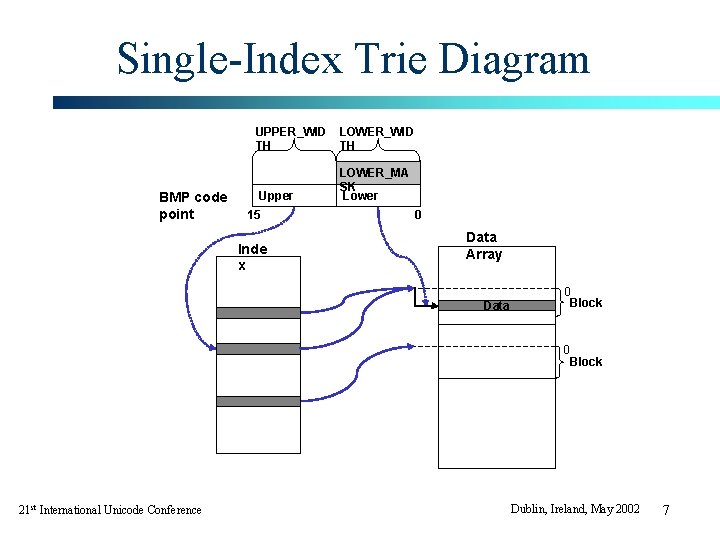

Single-Index Trie Diagram UPPER_WID TH BMP code point Upper 15 Inde x LOWER_WID TH LOWER_MA SK Lower 0 Data Array Data 0 Block 0 21 st International Unicode Conference Block Dublin, Ireland, May 2002 7

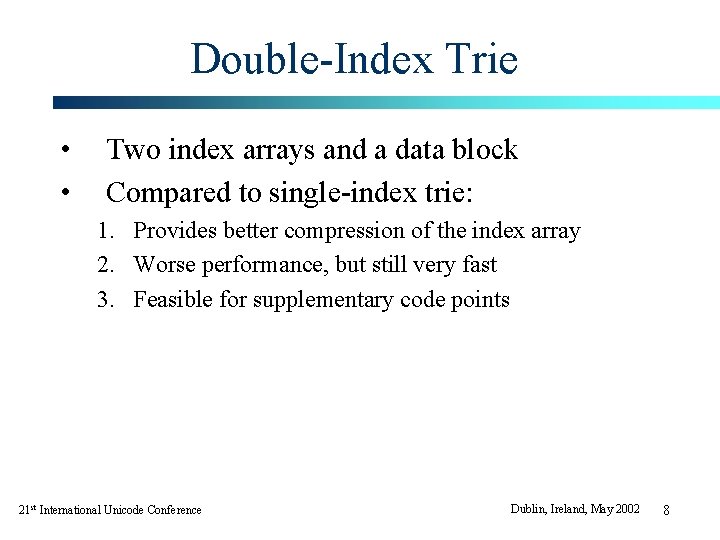

Double-Index Trie • • Two index arrays and a data block Compared to single-index trie: 1. Provides better compression of the index array 2. Worse performance, but still very fast 3. Feasible for supplementary code points 21 st International Unicode Conference Dublin, Ireland, May 2002 8

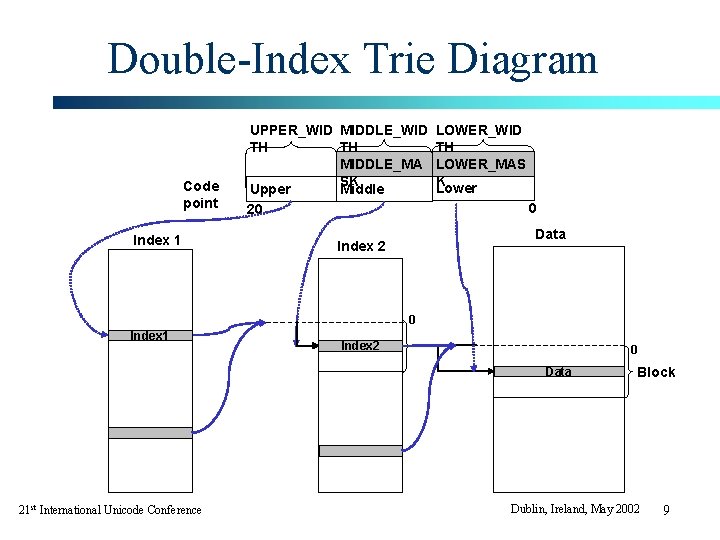

Double-Index Trie Diagram Code point Index 1 UPPER_WID MIDDLE_WID LOWER_WID TH TH TH MIDDLE_MA LOWER_MAS SK K Lower Upper Middle 0 20 Data Index 2 0 Index 1 Index 2 0 Data 21 st International Unicode Conference Block Dublin, Ireland, May 2002 9

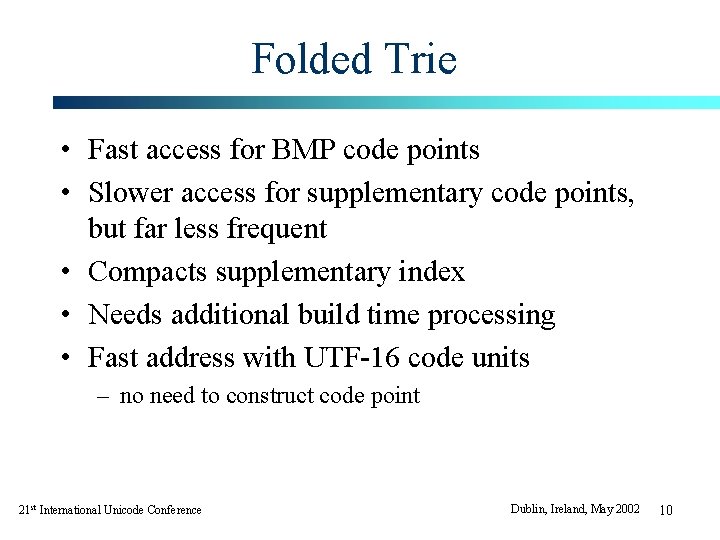

Folded Trie • Fast access for BMP code points • Slower access for supplementary code points, but far less frequent • Compacts supplementary index • Needs additional build time processing • Fast address with UTF-16 code units – no need to construct code point 21 st International Unicode Conference Dublin, Ireland, May 2002 10

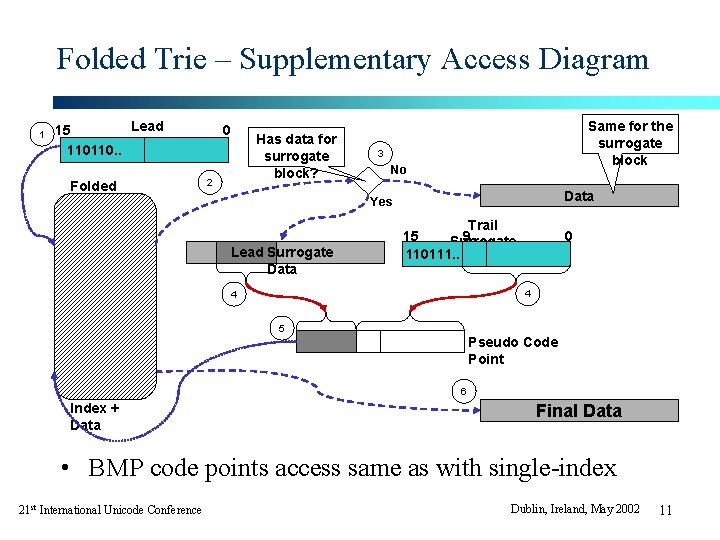

Folded Trie – Supplementary Access Diagram 1 Lead 15 Surrogate 110110. . Folded Trie 0 Has data for surrogate block? 2 Same for the surrogate block 3 No Data Yes Lead Surrogate Data Trail 15 9 Surrogate 110111. . 0 4 4 5 Pseudo Code Point 6 Index + Data Final Data • BMP code points access same as with single-index 21 st International Unicode Conference Dublin, Ireland, May 2002 11

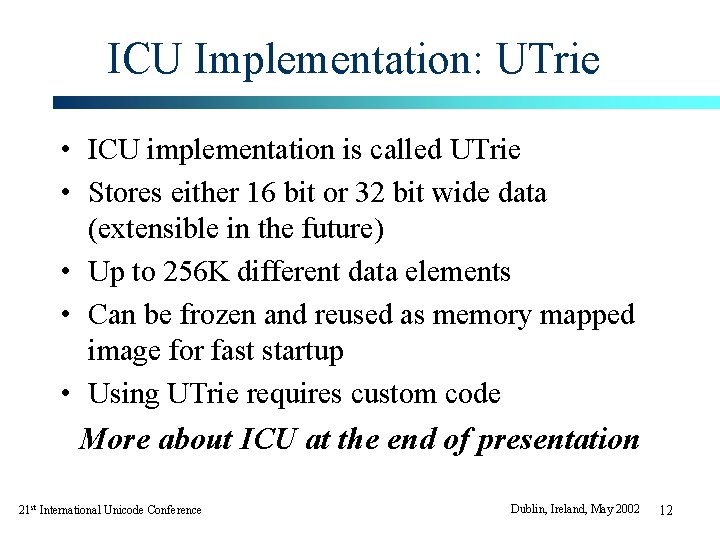

ICU Implementation: UTrie • ICU implementation is called UTrie • Stores either 16 bit or 32 bit wide data (extensible in the future) • Up to 256 K different data elements • Can be frozen and reused as memory mapped image for fast startup • Using UTrie requires custom code More about ICU at the end of presentation 21 st International Unicode Conference Dublin, Ireland, May 2002 12

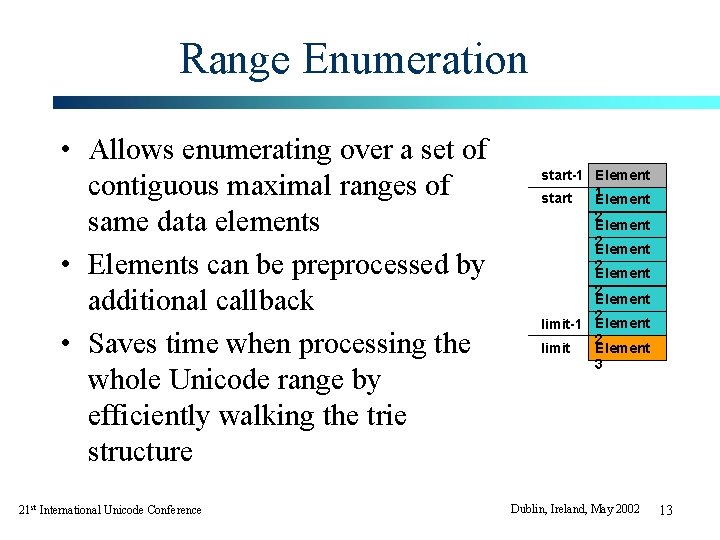

Range Enumeration • Allows enumerating over a set of contiguous maximal ranges of same data elements • Elements can be preprocessed by additional callback • Saves time when processing the whole Unicode range by efficiently walking the trie structure 21 st International Unicode Conference start-1 Element 1 start Element 2 Element 2 limit-1 Element 2 Element limit 3 Dublin, Ireland, May 2002 13

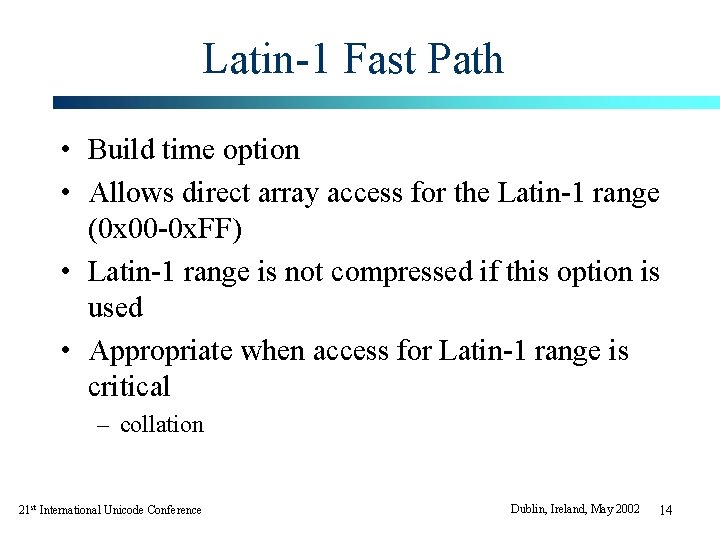

Latin-1 Fast Path • Build time option • Allows direct array access for the Latin-1 range (0 x 00 -0 x. FF) • Latin-1 range is not compressed if this option is used • Appropriate when access for Latin-1 range is critical – collation 21 st International Unicode Conference Dublin, Ireland, May 2002 14

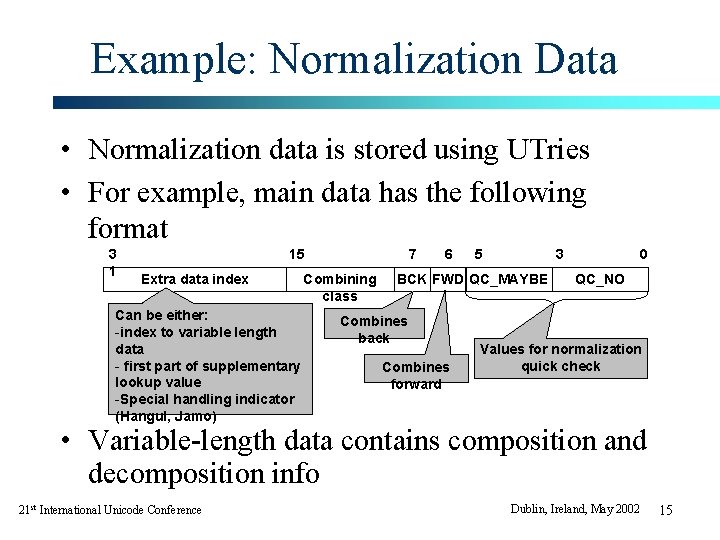

Example: Normalization Data • Normalization data is stored using UTries • For example, main data has the following format 3 1 15 Extra data index Can be either: -index to variable length data - first part of supplementary lookup value -Special handling indicator (Hangul, Jamo) 7 Combining class 6 5 3 BCK FWD QC_MAYBE Combines back Combines forward 0 QC_NO Values for normalization quick check • Variable-length data contains composition and decomposition info 21 st International Unicode Conference Dublin, Ireland, May 2002 15

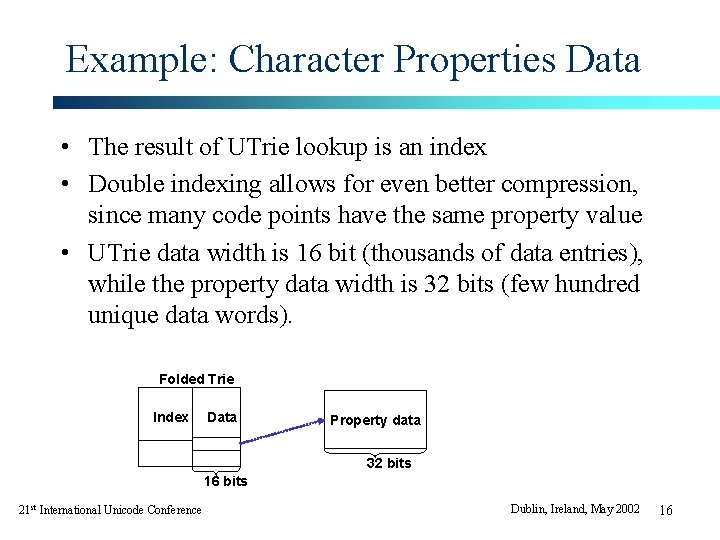

Example: Character Properties Data • The result of UTrie lookup is an index • Double indexing allows for even better compression, since many code points have the same property value • UTrie data width is 16 bit (thousands of data entries), while the property data width is 32 bits (few hundred unique data words). Folded Trie Index Data Property data 32 bits 16 bits 21 st International Unicode Conference Dublin, Ireland, May 2002 16

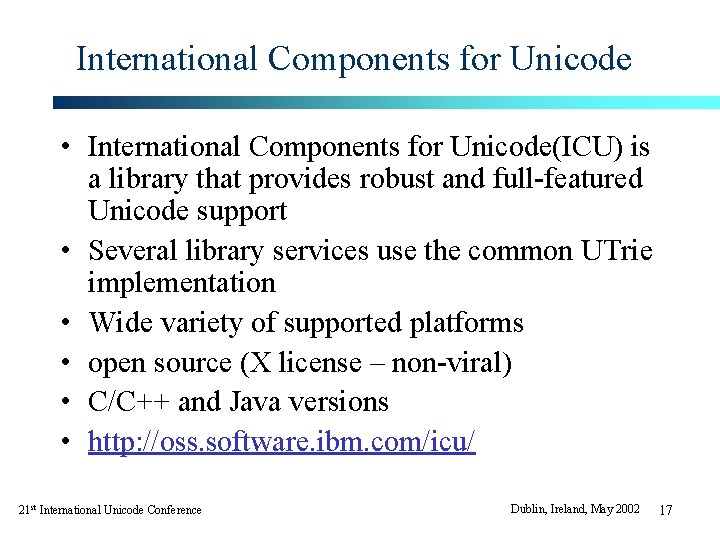

International Components for Unicode • International Components for Unicode(ICU) is a library that provides robust and full-featured Unicode support • Several library services use the common UTrie implementation • Wide variety of supported platforms • open source (X license – non-viral) • C/C++ and Java versions • http: //oss. software. ibm. com/icu/ 21 st International Unicode Conference Dublin, Ireland, May 2002 17

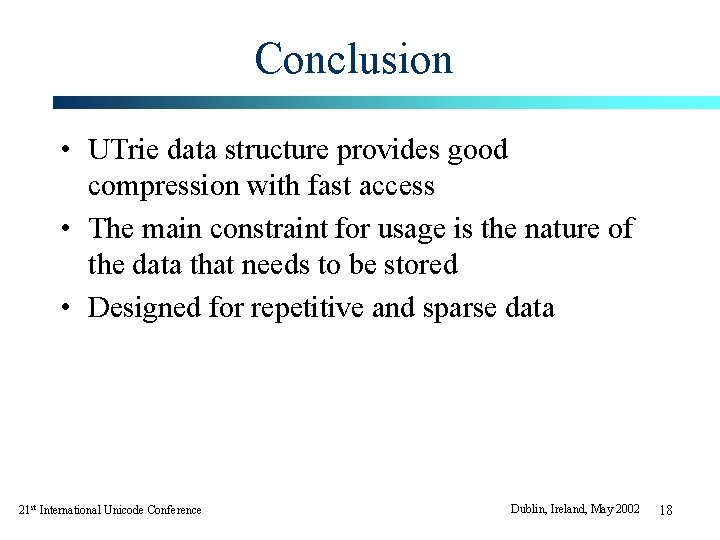

Conclusion • UTrie data structure provides good compression with fast access • The main constraint for usage is the nature of the data that needs to be stored • Designed for repetitive and sparse data 21 st International Unicode Conference Dublin, Ireland, May 2002 18

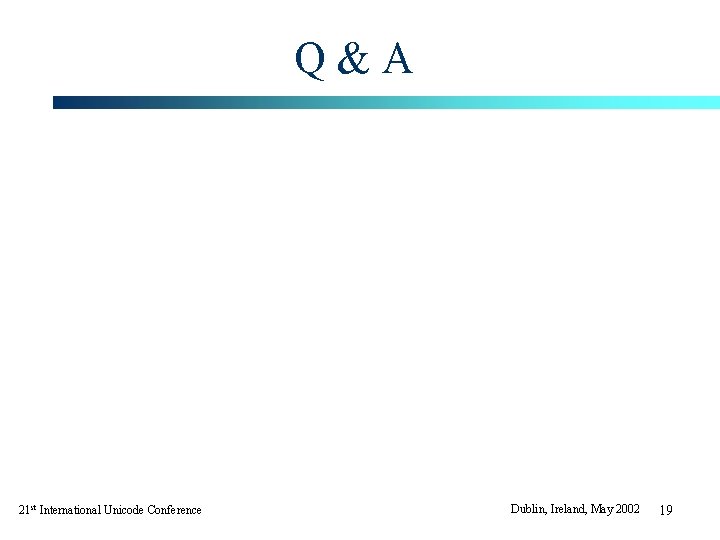

Q&A 21 st International Unicode Conference Dublin, Ireland, May 2002 19

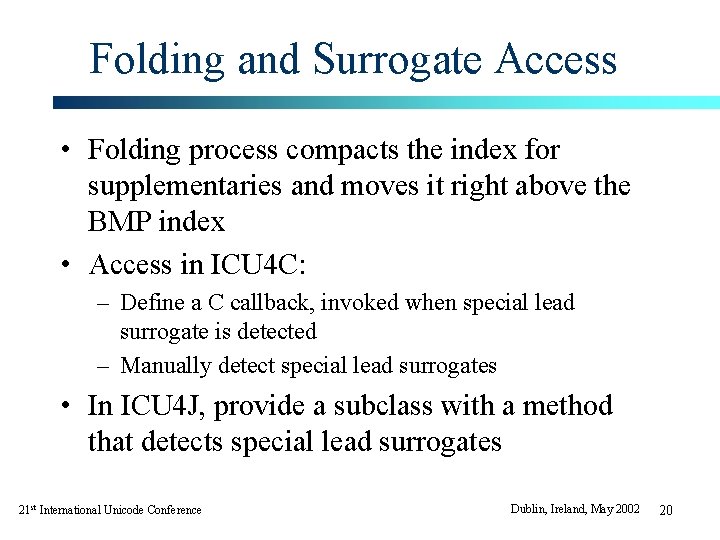

Folding and Surrogate Access • Folding process compacts the index for supplementaries and moves it right above the BMP index • Access in ICU 4 C: – Define a C callback, invoked when special lead surrogate is detected – Manually detect special lead surrogates • In ICU 4 J, provide a subclass with a method that detects special lead surrogates 21 st International Unicode Conference Dublin, Ireland, May 2002 20

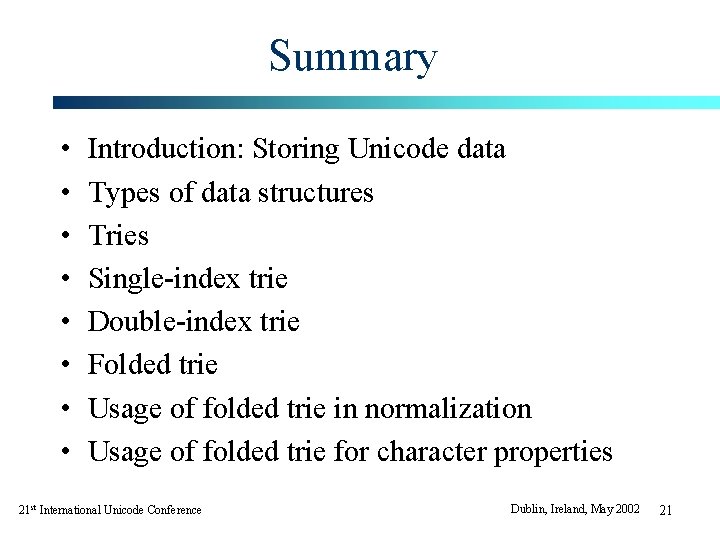

Summary • • Introduction: Storing Unicode data Types of data structures Tries Single-index trie Double-index trie Folded trie Usage of folded trie in normalization Usage of folded trie for character properties 21 st International Unicode Conference Dublin, Ireland, May 2002 21
